Presentation Transcript

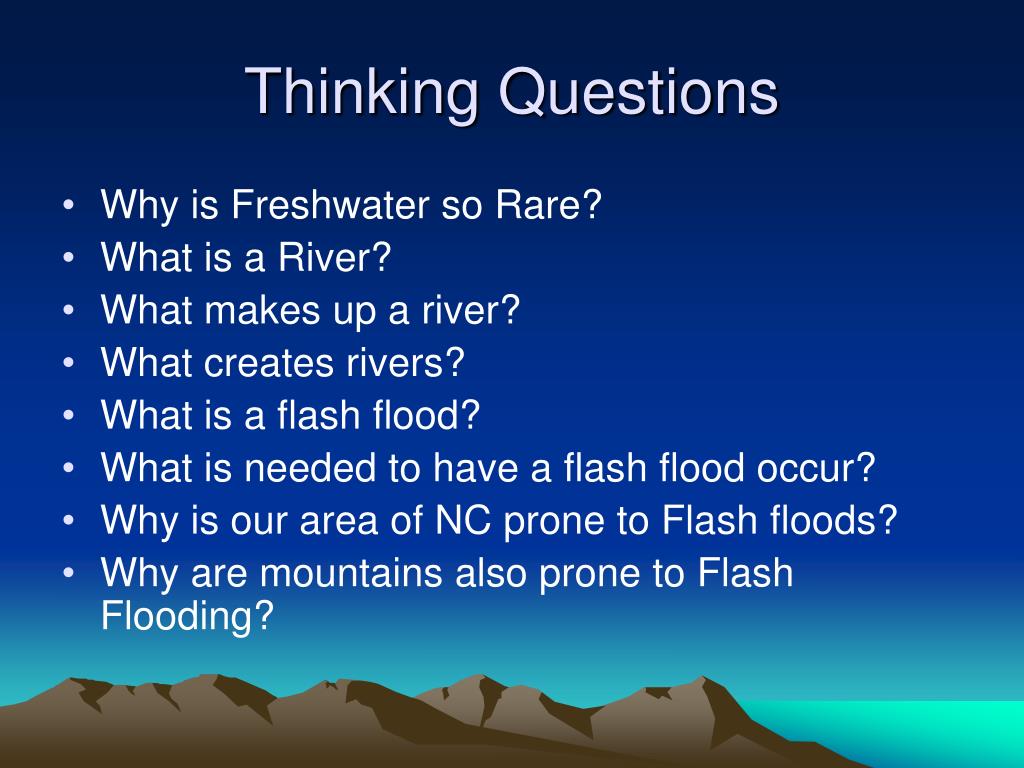

  1. Thinking Questions • Why is Freshwater so Rare? • What is a River? • What makes up a river? • What creates rivers? • What is a flash flood? • What is needed to have a flash flood occur? • Why is our area of NC prone to Flash floods? • Why are mountains also prone to Flash Flooding?

  2. Freshwater Systems You will be able to: Explain how Rivers shape the land Identify conditions which cause flooding Identify the different zones and characteristics of River Systems

  3. Water Cycle • Fresh Water comes from the Water Cycle • Water Cycle Diagram: here

  4. Where is the Water? • 71% of Earth is covered by water • 29% Terrestrial Surface • 3% of water is Fresh • 97% of all water is salt water

  5. Where’s the FRESHWATER?

  6. Where’s the Freshwater? • Water in Ice caps completely frozen all year round • Making ground water the largest supplier of the world’s FRESH WATER!

  7. The 1%: How Rivers Form • All Rivers form from Run-off • Run-off is water that is not absorbed by the ground. • Produced from precipitation and seasonal melting of snow and glaciers • Run-off rates may change at different locations within a River System

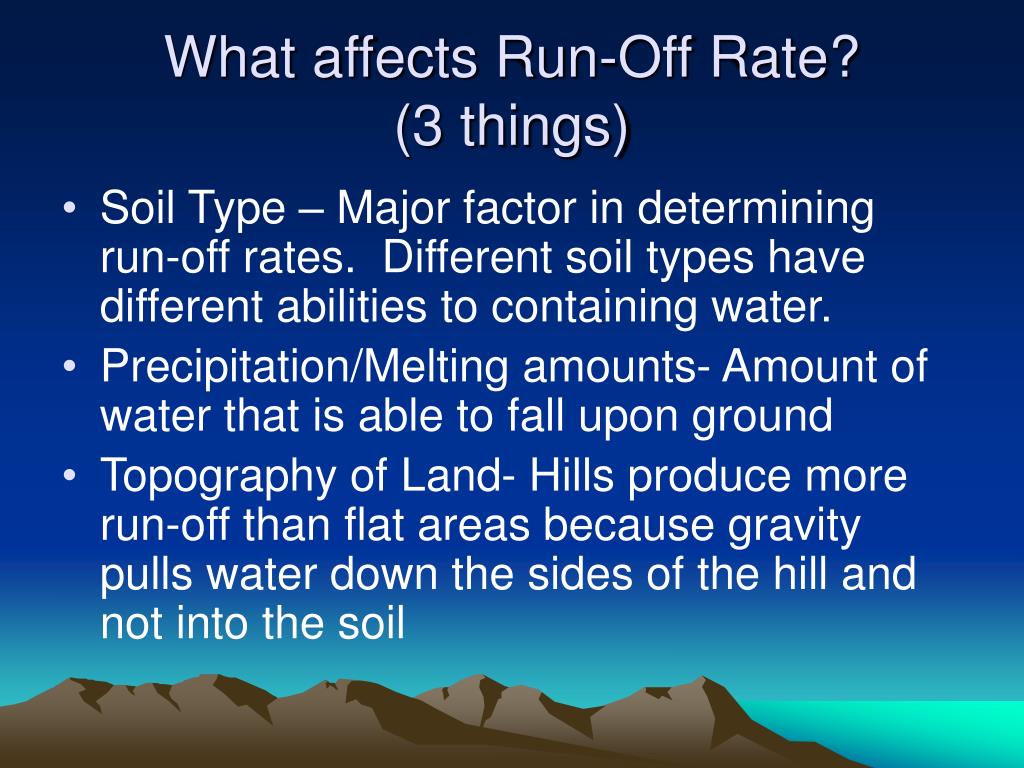

  8. What affects Run-Off Rate?(3 things) • Soil Type – Major factor in determining run-off rates. Different soil types have different abilities to containing water. • Precipitation/Melting amounts- Amount of water that is able to fall upon ground • Topography of Land- Hills produce more run-off than flat areas because gravity pulls water down the sides of the hill and not into the soil

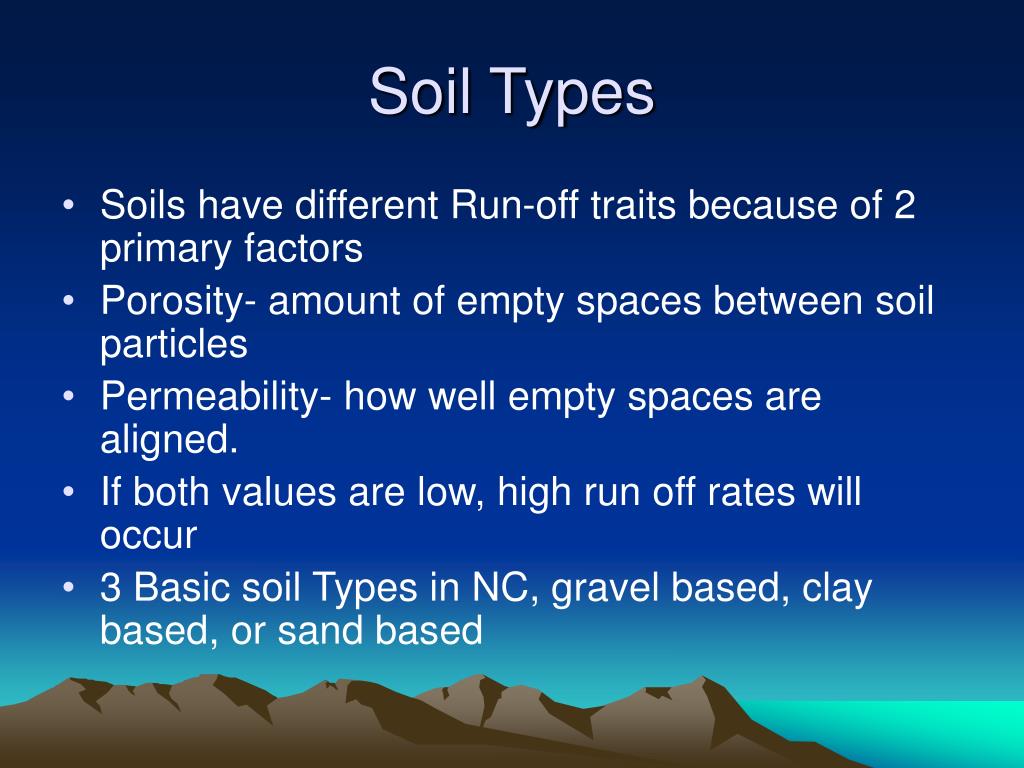

  9. Soil Types • Soils have different Run-off traits because of 2 primary factors • Porosity- amount of empty spaces between soil particles • Permeability- how well empty spaces are aligned. • If both values are low, high run off rates will occur • 3 Basic soil Types in NC, gravel based, clay based, or sand based

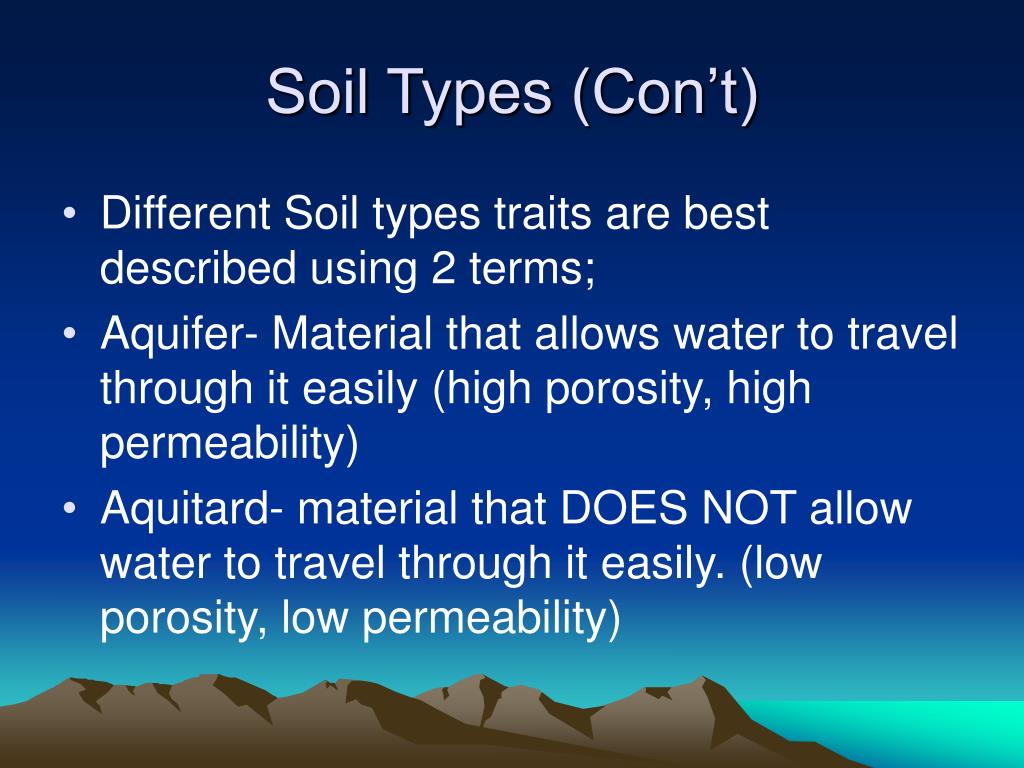

  10. Soil Types (Con’t) • Different Soil types traits are best described using 2 terms; • Aquifer- Material that allows water to travel through it easily (high porosity, high permeability) • Aquitard- material that DOES NOT allow water to travel through it easily. (low porosity, low permeability)

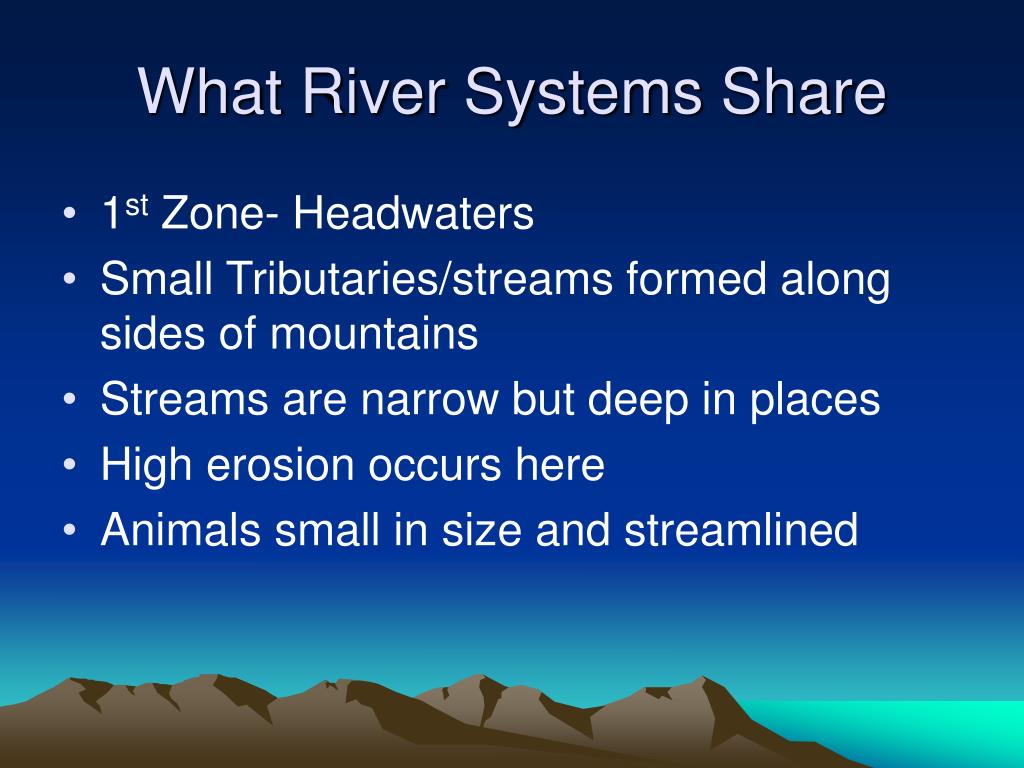

  11. What River Systems Share • 1st Zone- Headwaters • Small Tributaries/streams formed along sides of mountains • Streams are narrow but deep in places • High erosion occurs here • Animals small in size and streamlined

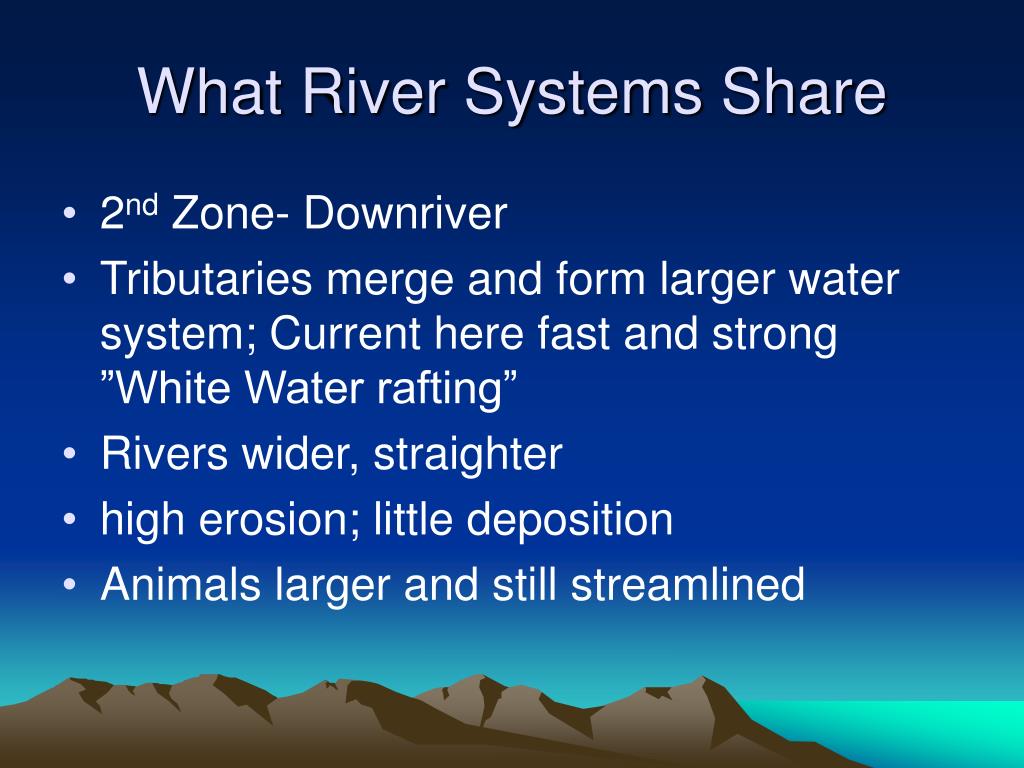

  12. What River Systems Share • 2nd Zone- Downriver • Tributaries merge and form larger water system; Current here fast and strong ”White Water rafting” • Rivers wider, straighter • high erosion; little deposition • Animals larger and still streamlined

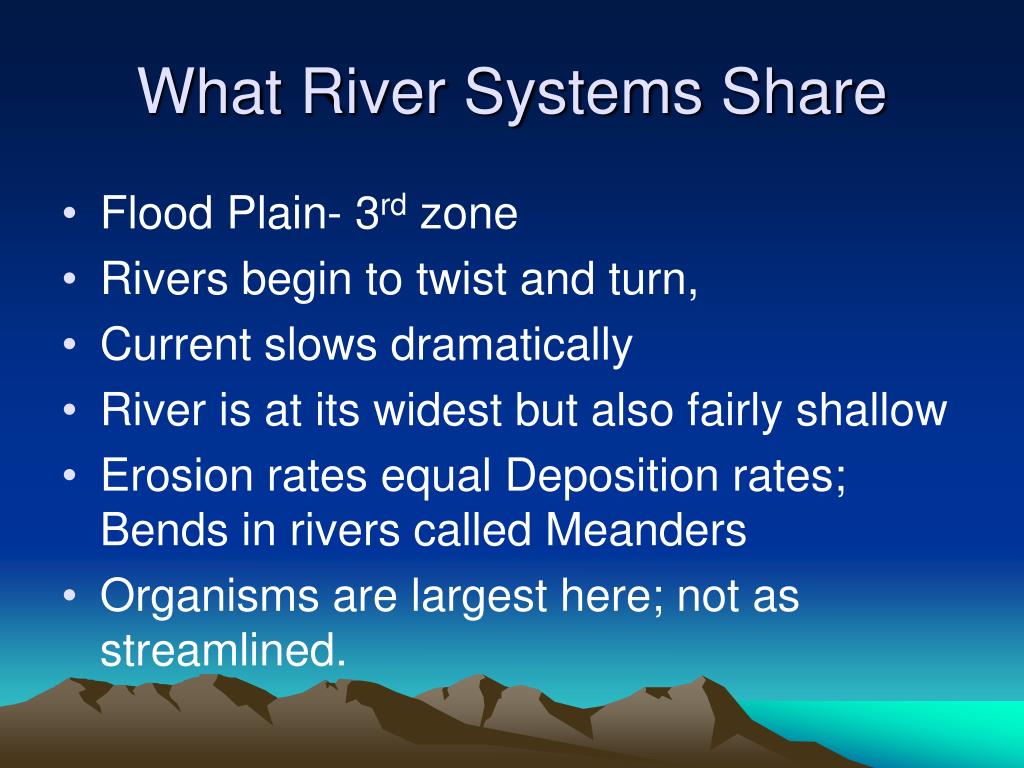

  13. What River Systems Share • Flood Plain- 3rd zone • Rivers begin to twist and turn, • Current slows dramatically • River is at its widest but also fairly shallow • Erosion rates equal Deposition rates; Bends in rivers called Meanders • Organisms are largest here; not as streamlined.

  14. What River Systems Share • 4th Zone- Estuary/Mouth/Delta • Where River empties into Sea • Current here very slow • No Erosion, High Deposition rates • Organisms actually get smaller in size as you approach ocean,

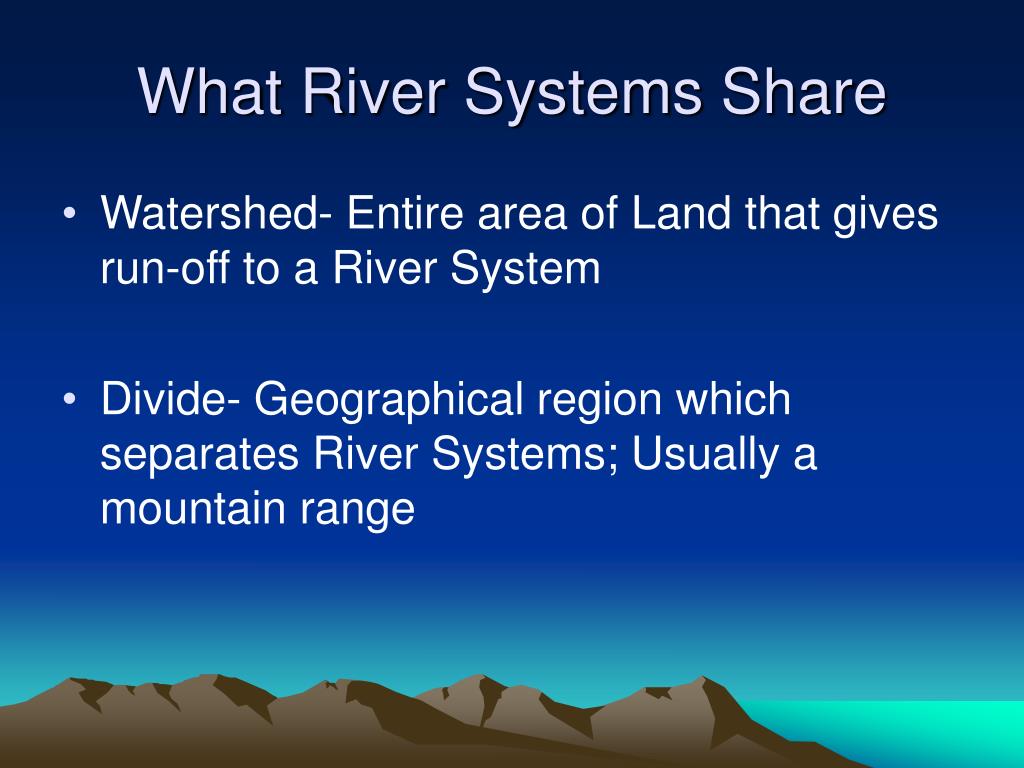

  15. What River Systems Share • Watershed- Entire area of Land that gives run-off to a River System • Divide- Geographical region which separates River Systems; Usually a mountain range
