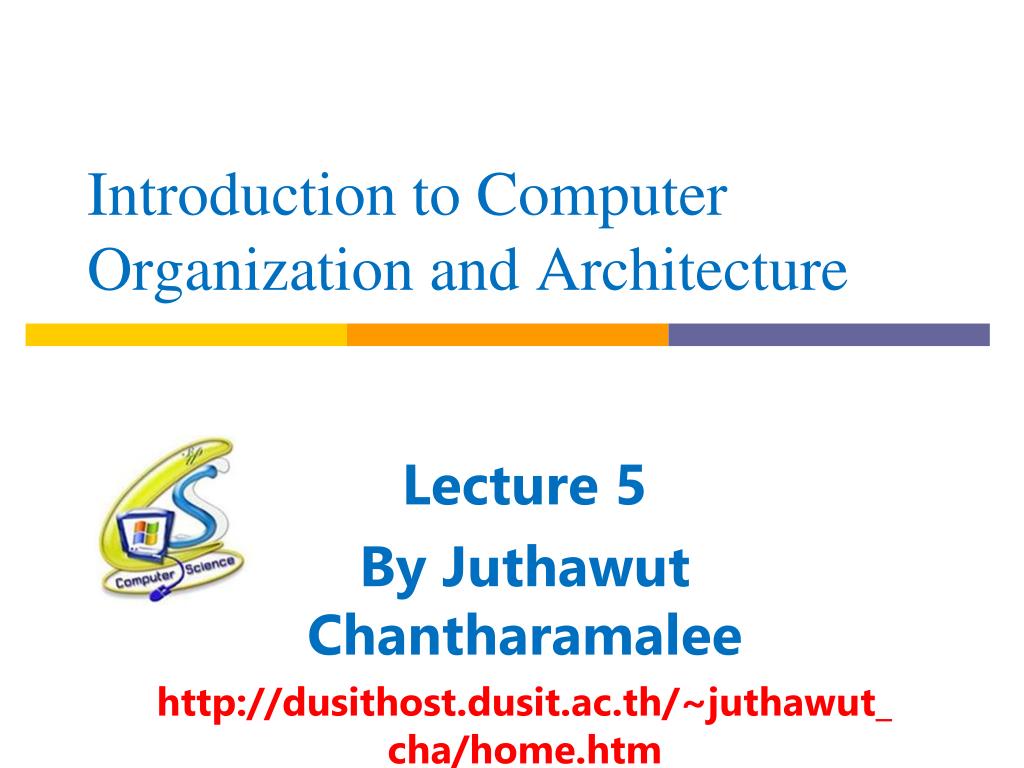

  1. Introduction to Computer Organization and Architecture Lecture 5 By Juthawut Chantharamalee http://dusithost.dusit.ac.th/~juthawut_cha/home.htm

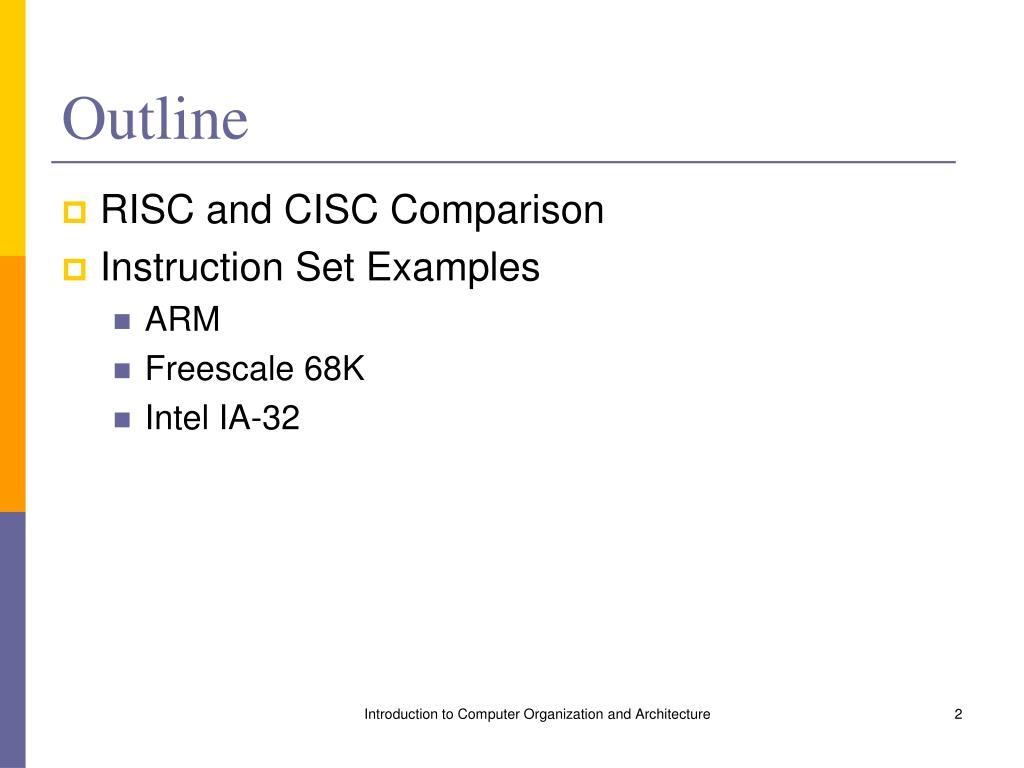

  2. Outline • RISC and CISC Comparison • Instruction Set Examples • ARM • Freescale 68K • Intel IA-32 Introduction to Computer Organization and Architecture

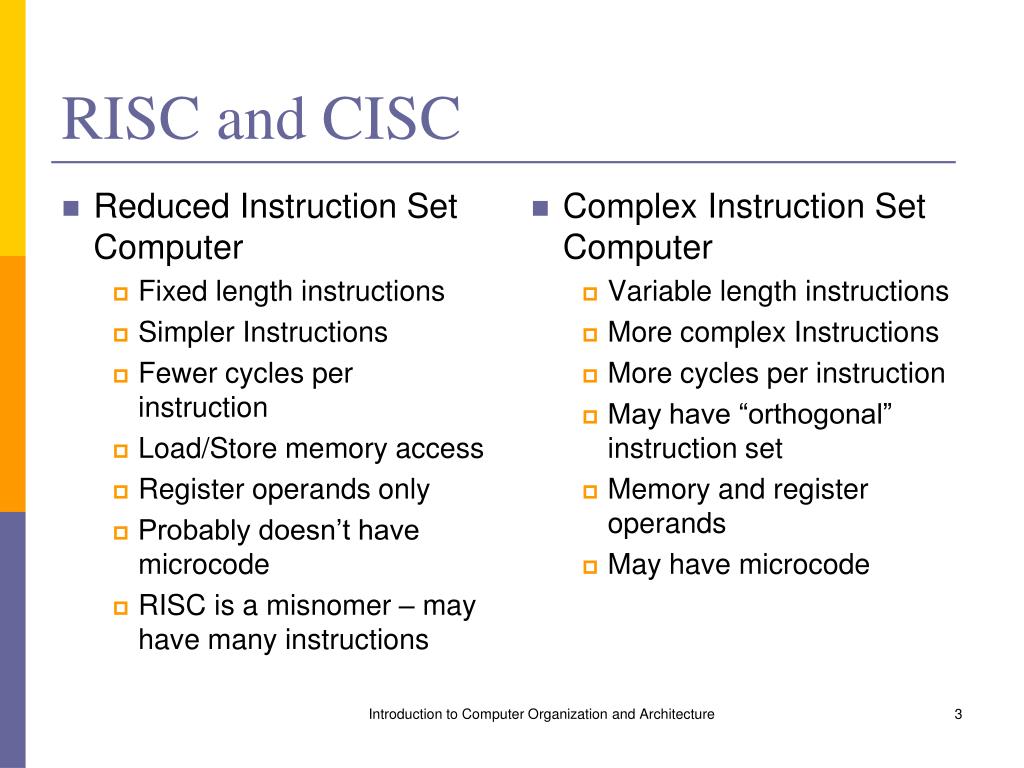

  3. RISC and CISC • Reduced Instruction Set Computer • Fixed length instructions • Simpler Instructions • Fewer cycles per instruction • Load/Store memory access • Register operands only • Probably doesn’t have microcode • RISC is a misnomer – may have many instructions • Complex Instruction Set Computer • Variable length instructions • More complex Instructions • More cycles per instruction • May have “orthogonal” instruction set • Memory and register operands • May have microcode Introduction to Computer Organization and Architecture

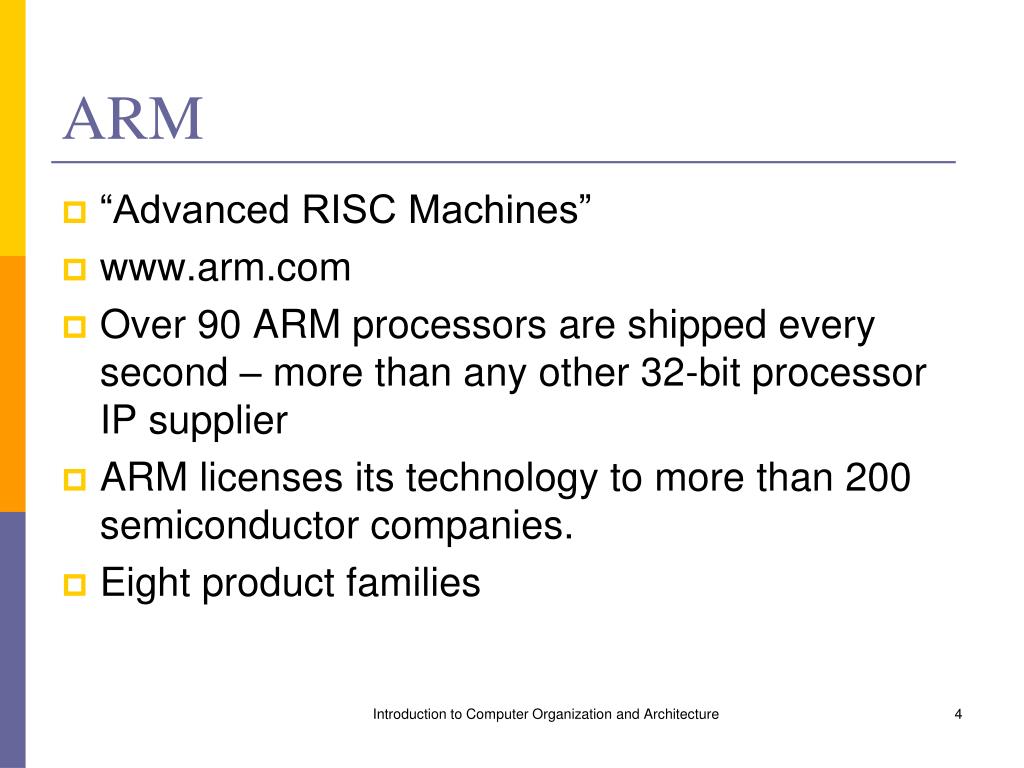

  4. ARM • “Advanced RISC Machines” • www.arm.com • Over 90 ARM processors are shipped every second – more than any other 32-bit processor IP supplier • ARM licenses its technology to more than 200 semiconductor companies. • Eight product families Introduction to Computer Organization and Architecture

  5. ARM Example • ARM CortexTM-A8 processor • Intellectual Property (IP) Core • licensed by other companies to create “System On a Chip” (SOC) • Dual, symmetric, in-order issue, 13-stage pipelines • Integrated L2 cache Introduction to Computer Organization and Architecture

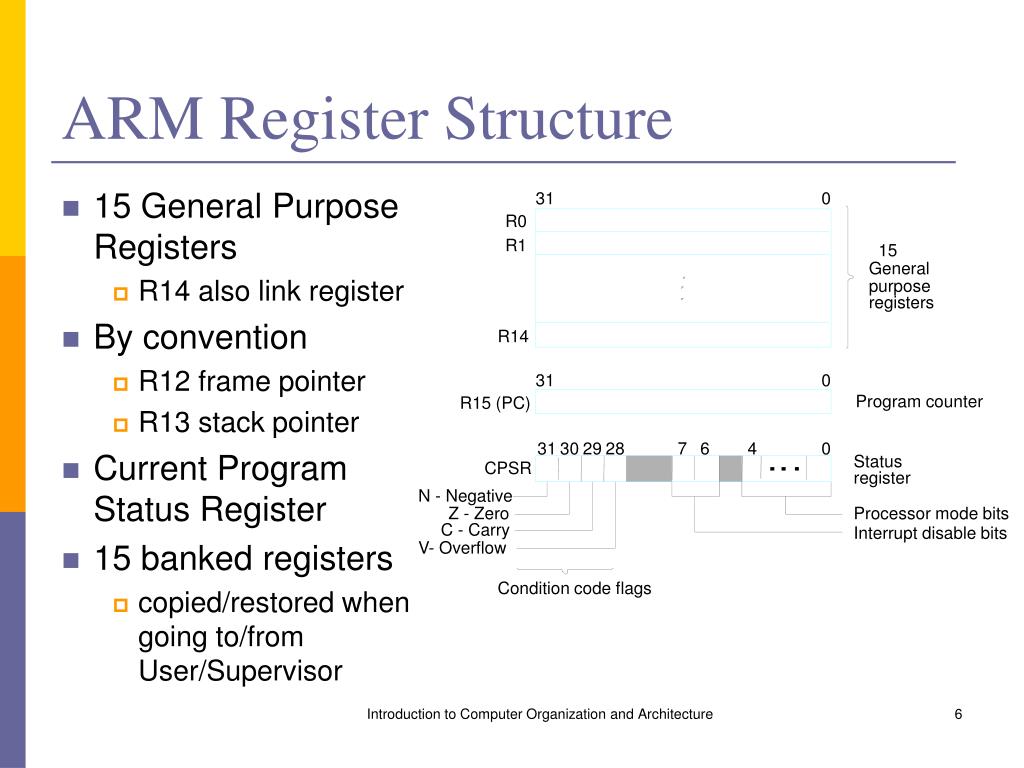

  6. 31 0 R0 R1 15 General purpose registers R14 31 0 Program counter R15 (PC) 31 30 29 28 7 6 4 0 Status CPSR register N - Negative Z - Zero Processor mode bits C - Carry Interrupt disable bits V- Overflow Condition code flags ARM Register Structure • 15 General Purpose Registers • R14 also link register • By convention • R12 frame pointer • R13 stack pointer • Current Program Status Register • 15 banked registers • copied/restored when going to/from User/Supervisor Introduction to Computer Organization and Architecture

  7. 31 28 27 20 19 16 15 12 11 4 3 0 Condition OP code R n R d Other info R m ARM Instruction Format • Load/store architecture (RISC) • Conditional execution of instructions • One or two operands (register) • Destination register • See appendix B Introduction to Computer Organization and Architecture

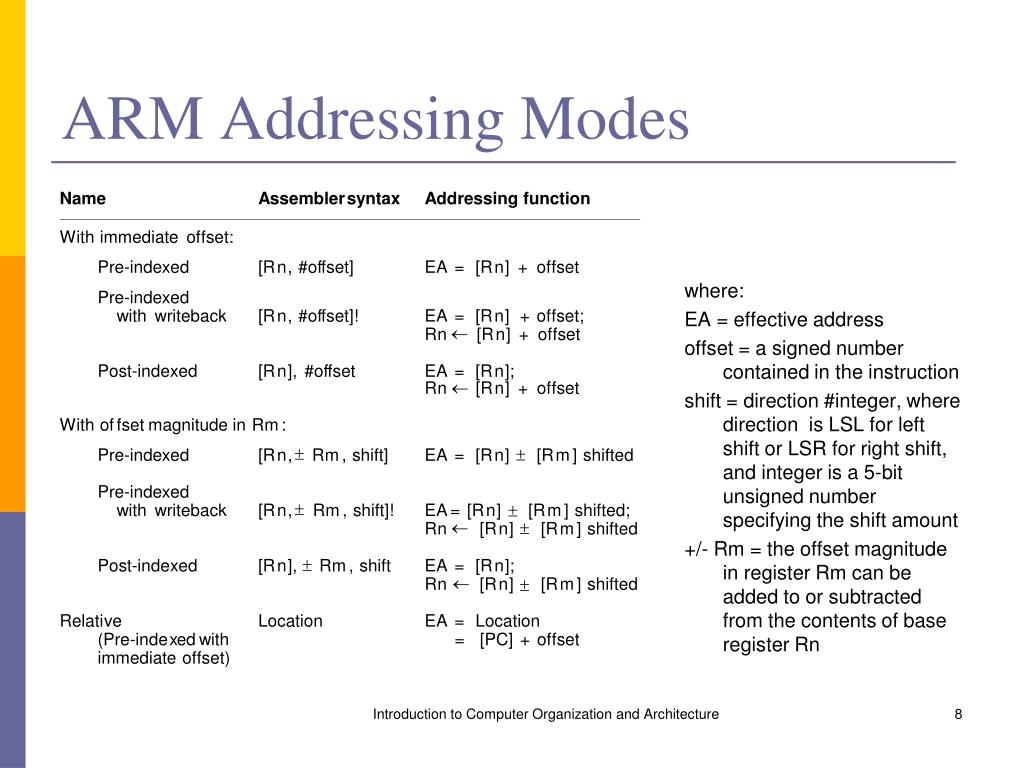

  8. ARM Addressing Modes where: EA = effective address offset = a signed number contained in the instruction shift = direction #integer, where direction is LSL for left shift or LSR for right shift, and integer is a 5-bit unsigned number specifying the shift amount +/- Rm = the offset magnitude in register Rm can be added to or subtracted from the contents of base register Rn Name Assembler syntax Addressing function W ith immediate of fset: Pre-inde x ed [R n , #of fset] EA = [R n ] + of fset Pre-inde x ed with writeback [R n , #of fset]! EA = [R n ] + of fset;  R n [R n ] + of fset Post-indexed [R n ], #of fset EA = [R n ];  R n [R n ] + of fset W ith of fset magnitude in R m :   Pre-inde x ed [R n , R m , shift] EA = [R n ] [R m ] shifted Pre-inde x ed   with writeback [R n , R m , shift]! EA = [R n ] [R m ] shifted;   R n [R n ] [R m ] shifted  Post-indexed [R n ], R m , shift EA = [R n ];   R n [R n ] [R m ] shifted Relati v e Location EA = Location (Pre-inde x ed with = [PC] + of fset immediate of fset) Introduction to Computer Organization and Architecture

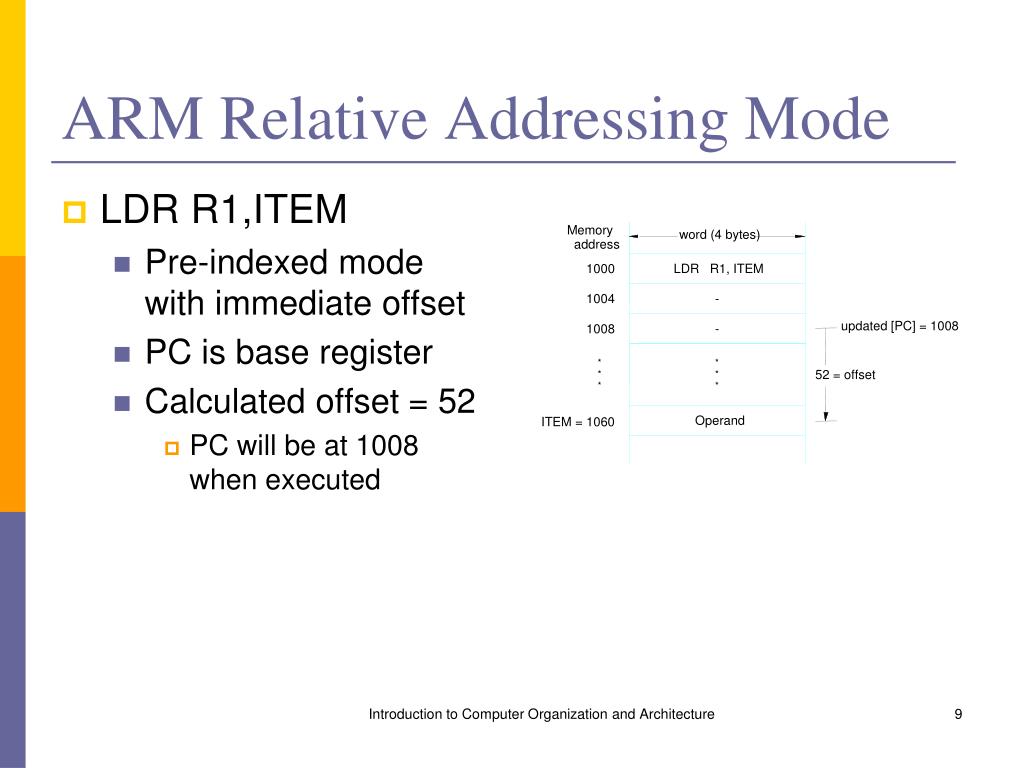

  9. Memory word (4 bytes) address 1000 LDR R1, ITEM 1004 - ARM Relative Addressing Mode updated [PC] = 1008 1008 - * * 52 = offset * * * * Operand ITEM = 1060 • LDR R1,ITEM • Pre-indexed mode with immediate offset • PC is base register • Calculated offset = 52 • PC will be at 1008 when executed Introduction to Computer Organization and Architecture

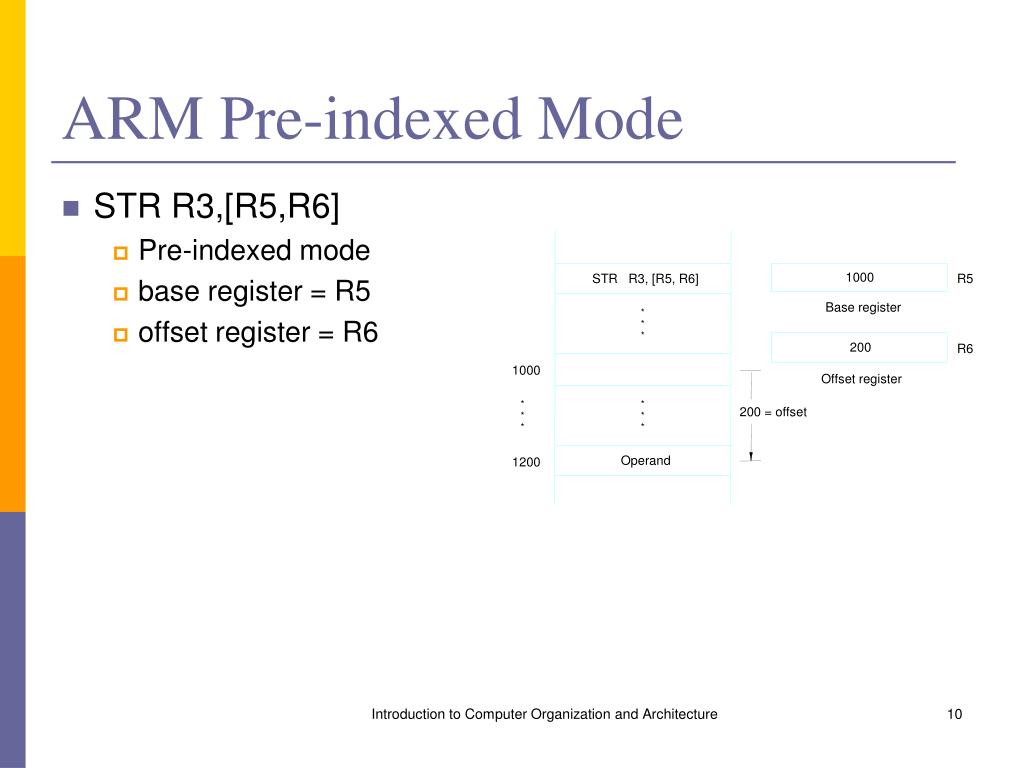

  10. ARM Pre-indexed Mode • STR R3,[R5,R6] • Pre-indexed mode • base register = R5 • offset register = R6 1000 STR R3, [R5, R6] R5 Base register * * * 200 R6 1000 Offset register * * 200 = offset * * * * Introduction to Computer Organization and Architecture Operand 1200

  11. ARM Post-indexed Mode w/ WB • LDR R1,[R2],R10,LSL #2 • Use in loop • LSL #2 is logical shift left by 2 bits => x4 • 1st pass: R1 <- [R2] • 2nd pass: R1 <- [[R2] + [R10] x 4] R2 <- [R2] + [R10] x 4 • 3rd pass: R1 <- [[R2] + [R10] x 4] R2 <- [R2] + [R10] x 4 • and so on Memory word (4 bytes) address 1000 6 1000 R2 Base register * * 100 = 25 x 4 * 25 R10 1100 -17 Offset register * * 100 = 25 x 4 * Load instruction: 1200 321 LDR R1,[R2],R10,LSL #2 Introduction to Computer Organization and Architecture

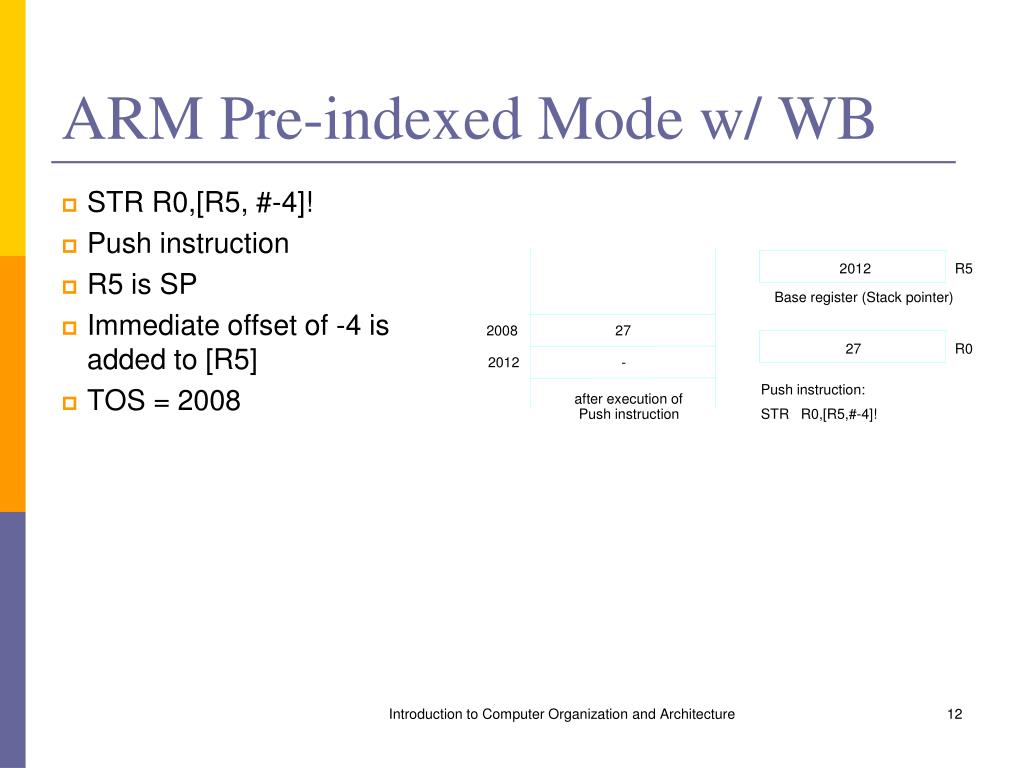

  12. ARM Pre-indexed Mode w/ WB • STR R0,[R5, #-4]! • Push instruction • R5 is SP • Immediate offset of -4 is added to [R5] • TOS = 2008 2012 R5 Base register (Stack pointer) 2008 27 27 R0 2012 - Push instruction: after execution of Introduction to Computer Organization and Architecture Push instruction STR R0,[R5,#-4]!

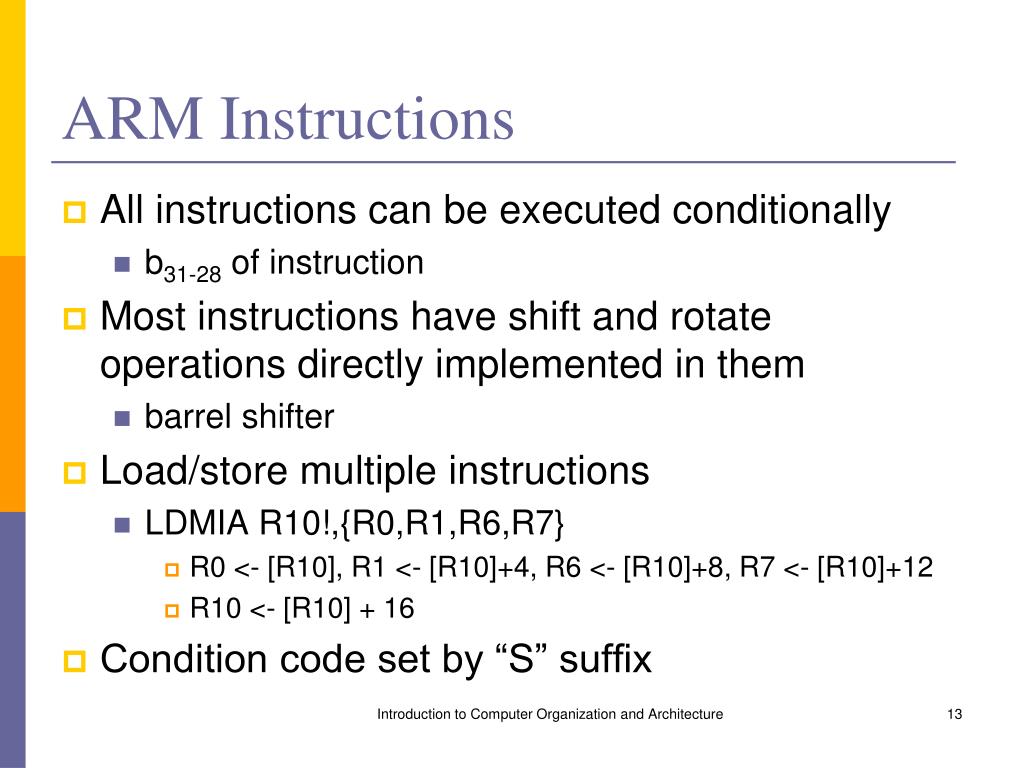

  13. ARM Instructions • All instructions can be executed conditionally • b31-28 of instruction • Most instructions have shift and rotate operations directly implemented in them • barrel shifter • Load/store multiple instructions • LDMIA R10!,{R0,R1,R6,R7} • R0 <- [R10], R1 <- [R10]+4, R6 <- [R10]+8, R7 <- [R10]+12 • R10 <- [R10] + 16 • Condition code set by “S” suffix Introduction to Computer Organization and Architecture

  14. ARM Instructions • Arithmetic • Opcode Rd,Rn,Rm • ADD R0,R2,R4 => R0 <- [R2] + [R4] • ADD R0,R3,#17 => R0 <- [R3] + 17 • immediate value in b7-0 • SUB R0,R6, R5 => R0 <- [R6] – [R5] • ADD R0,R1,R5,LSL #4 => R0 <- R1+[R5]x16 • MUL R0,R1,R2 => R0 <- [R1] X [R2] • MLA R0,R1,R2,R3 => R0 <- [R1]X[R2]+[R3] • ADDS R0,R1,R2 => R0 <- [R1] + [R2] • Sets condition codes NCZV Introduction to Computer Organization and Architecture

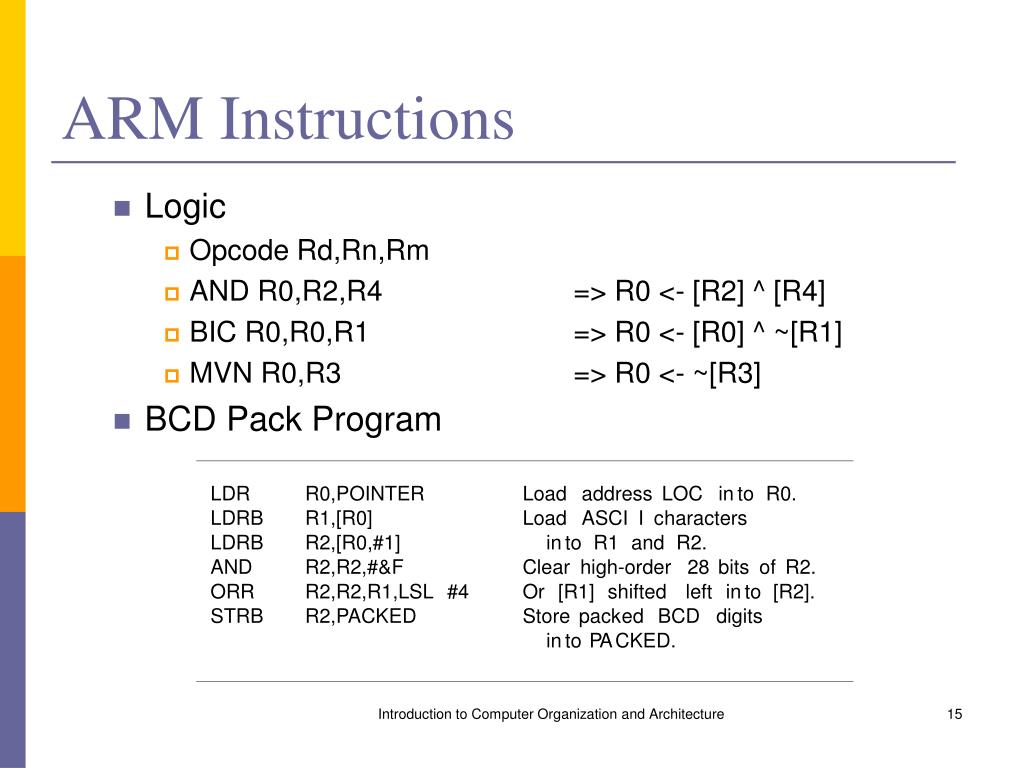

  15. ARM Instructions • Logic • Opcode Rd,Rn,Rm • AND R0,R2,R4 => R0 <- [R2] ^ [R4] • BIC R0,R0,R1 => R0 <- [R0] ^ ~[R1] • MVN R0,R3 => R0 <- ~[R3] • BCD Pack Program LDR R0,POINTER Load address LOC in to R0. LDRB R1,[R0] Load ASCI I c haracters LDRB R2,[R0,#1] in to R1 and R2. AND R2,R2,#&F Clear high-order 28 bits of R2. ORR R2,R2,R1,LSL #4 Or [R1] shifted left in to [R2]. STRB R2,PACKED Store pac k ed BCD digits in to P A CKED. Introduction to Computer Organization and Architecture

  16. ARM Instructions 31 28 27 24 23 0 Condition OP code Offset • Branch • Contain 2’s complement 24-bit offset • Condition to be tested is in b31-28 • BEQ LOCATION • BGT LOOP (a) Instruction format 1000 BEQ LOCATION 1004 updated [PC] = 1008 Offset = 92 LOCATION = 1100 Branch target instruction Introduction to Computer Organization and Architecture

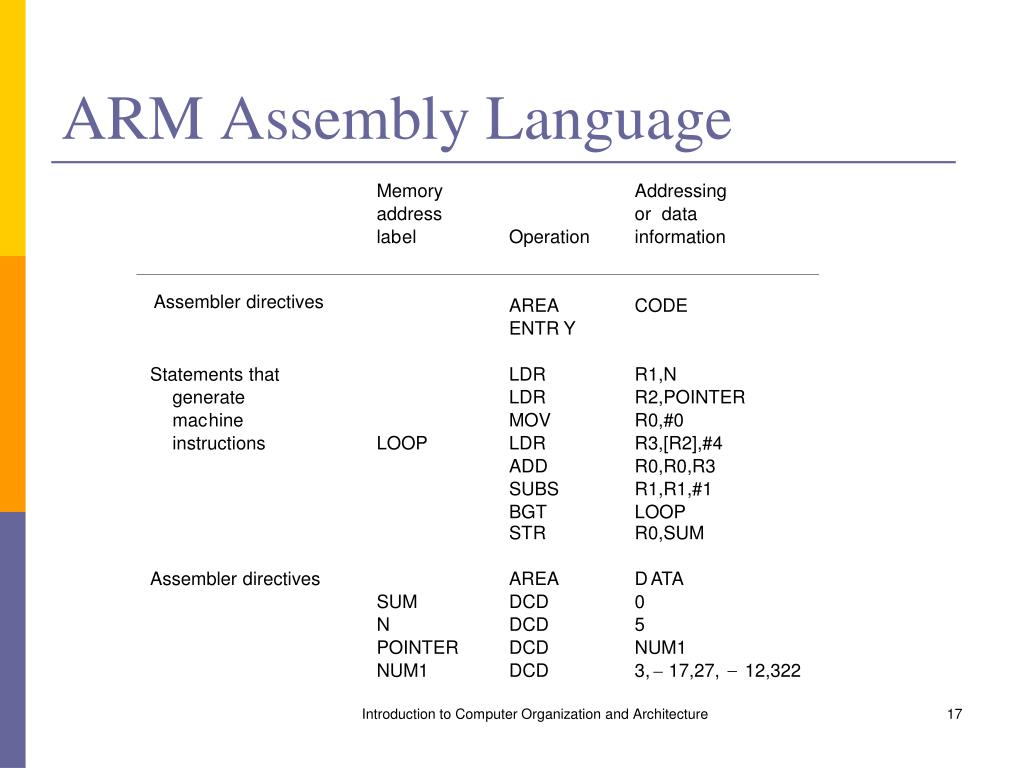

  17. ARM Assembly Language Memory Addressing address or data lab el Operation information AREA CODE ENTR Y Statements that LDR R1,N generate LDR R2,POINTER Assembler directives mac hine MOV R0,#0 instructions LOOP LDR R3,[R2],#4 ADD R0,R0,R3 SUBS R1,R1,#1 BGT LOOP STR R0,SUM Assembler directives AREA D ATA SUM DCD 0 N DCD 5 POINTER DCD NUM1   NUM1 DCD 3, 17,27, 12,322 Introduction to Computer Organization and Architecture

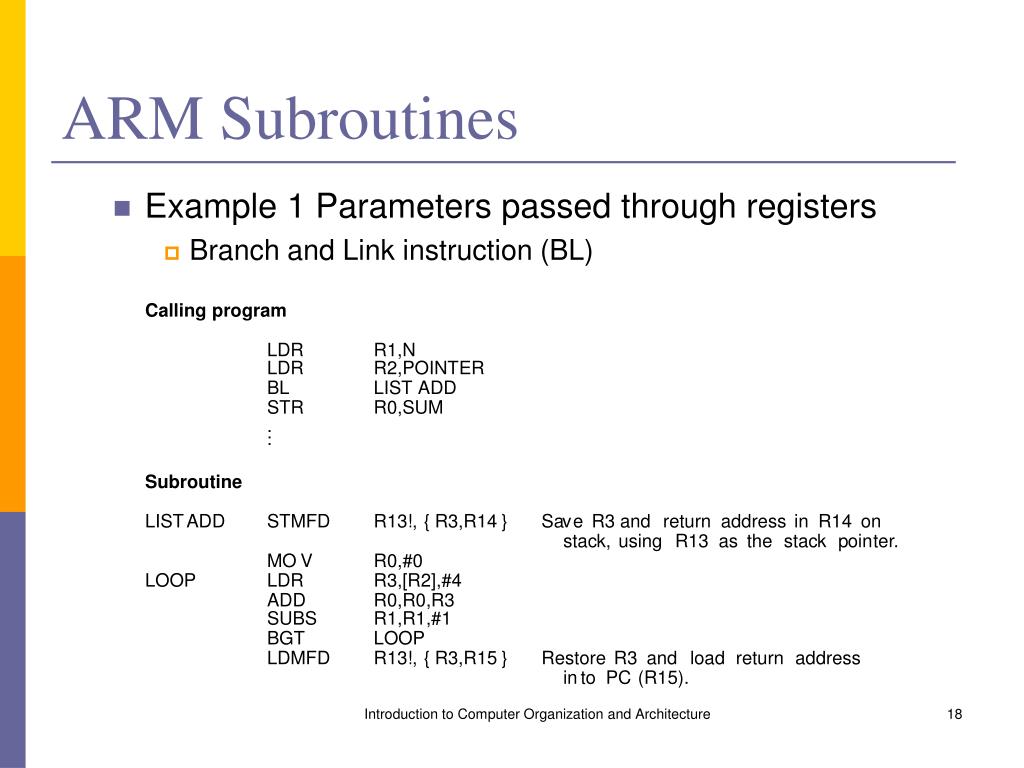

  18. ARM Subroutines • Example 1 Parameters passed through registers • Branch and Link instruction (BL) Calling program LDR R1,N LDR R2,POINTER BL LIST ADD STR R0,SUM . . . Subroutine LIST ADD STMFD R13!, { R3,R14 } Sa v e R3 and return address in R14 on stac k, using R13 as the stac k p oin ter. MO V R0,#0 LOOP LDR R3,[R2],#4 ADD R0,R0,R3 SUBS R1,R1,#1 BGT LOOP LDMFD R13!, { R3,R15 } Restore R3 and load return address in to PC (R15). Introduction to Computer Organization and Architecture

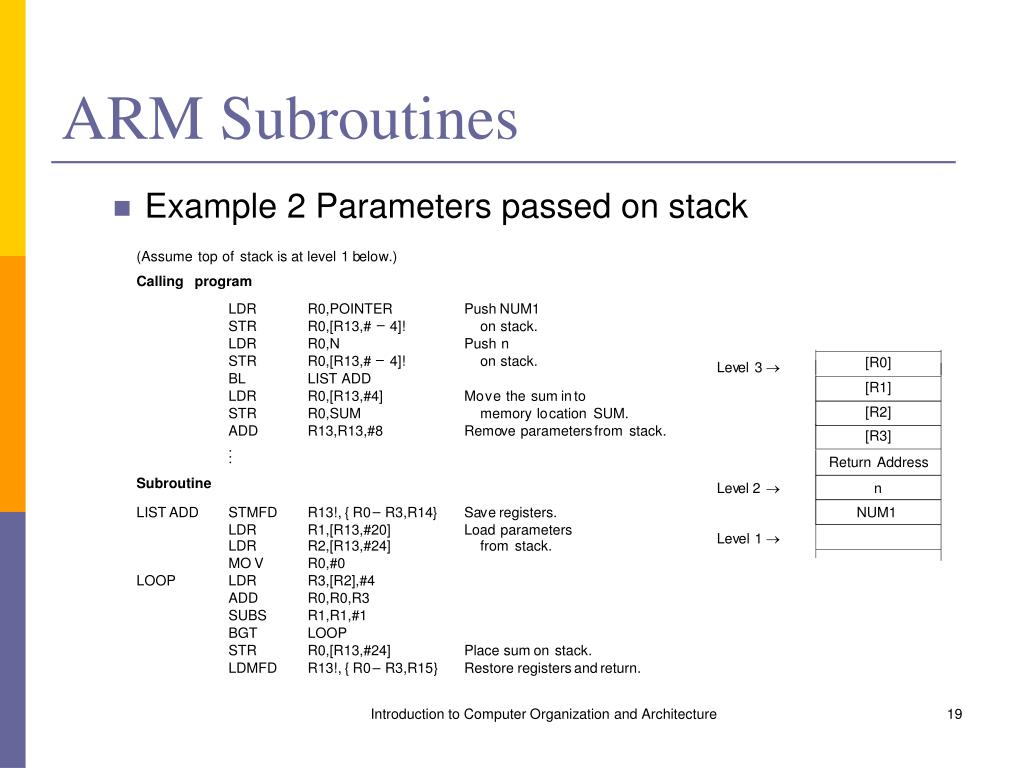

  19. ARM Subroutines (Assume top of stack is at level 1 b elo w.) Calling program LDR R0,POINTER Push NUM1 – STR R0,[R13,# 4]! on stack. • Example 2 Parameters passed on stack LDR R0,N Push n – STR R0,[R13,# 4]! on stack. BL LIST ADD LDR R0,[R13,#4] Mo v e the sum in to STR R0,SUM memory lo cation SUM. ADD R13,R13,#8 Remo v e parameters from stack. . . . Subroutine – LIST ADD STMFD R13!, { R0 R3,R14 } Sa v e registers. LDR R1,[R13,#20] Load parameters LDR R2,[R13,#24] from stack. MO V R0,#0 LOOP LDR R3,[R2],#4 ADD R0,R0,R3 SUBS R1,R1,#1 BGT LOOP STR R0,[R13,#24] Place sum on stack. – LDMFD R13!, { R0 R3,R15 } Restore registers and return. [R0]  Lev el 3 [R1] [R2] [R3] Introduction to Computer Organization and Architecture Return Address Lev el 2  n NUM1  Lev el 1

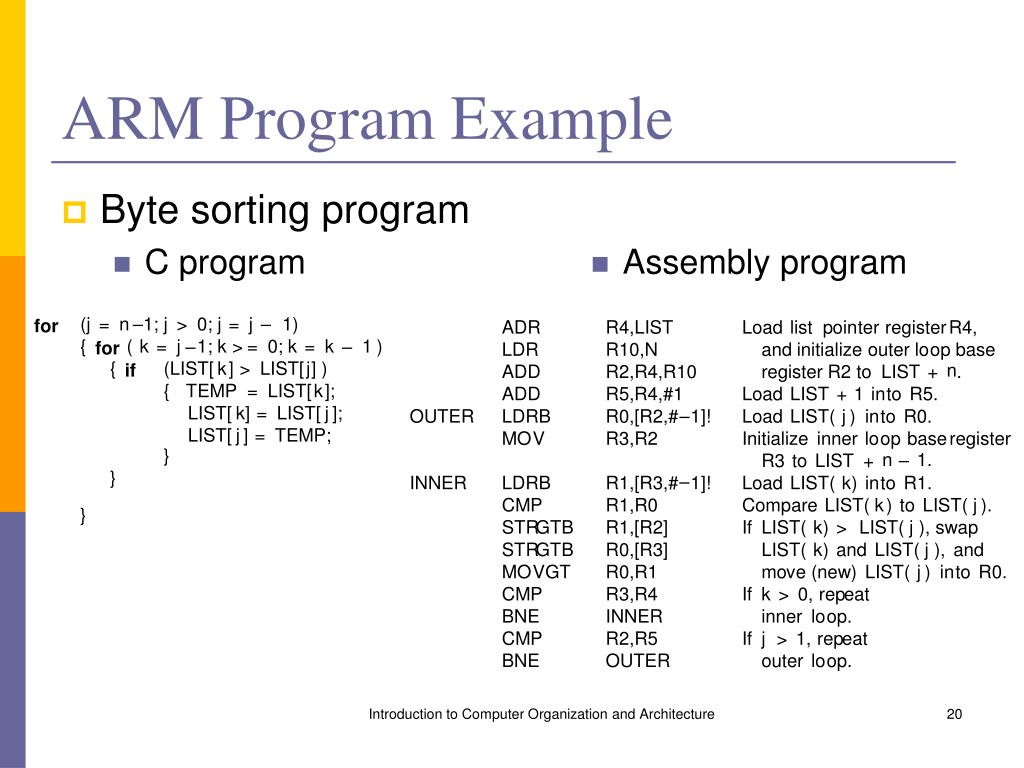

  20. ARM Program Example – – (j = n 1; j > 0; j = j 1) for – – { ( k = j 1; k > = 0; k = k 1 ) for { (LIST[ k ] > LIST[ j ]) if { TEMP = LIST[ k ]; • Assembly program • Byte sorting program • C program LIST[ k ] = LIST[ j ]; LIST[ j ] = TEMP; } } } ADR R4,LIST Load list p oin ter register R4, LDR R10,N and initialize outer lo op base n ADD R2,R4,R10 register R2 to LIST + . ADD R5,R4,#1 Load LIST + 1 in to R5. – OUTER LDRB R0,[R2,# 1]! Load LIST( j ) in to R0. MO V R3,R2 Initialize inner lo op base register – n 1. R3 to LIST + – INNER LDRB R1,[R3,# 1]! Load LIST( k ) in to R1. CMP R1,R0 Compare LIST( k ) to LIST( j ). STR GTB R1,[R2] If LIST( k ) > LIST( j ), swap STR GTB R0,[R3] LIST( k ) and LIST( j ), and MO V GT R0,R1 mo v e (new) LIST( j ) in to R0. CMP R3,R4 If k > 0, rep eat Introduction to Computer Organization and Architecture BNE INNER inner lo op. CMP R2,R5 If j > 1, rep eat BNE OUTER outer lo op.

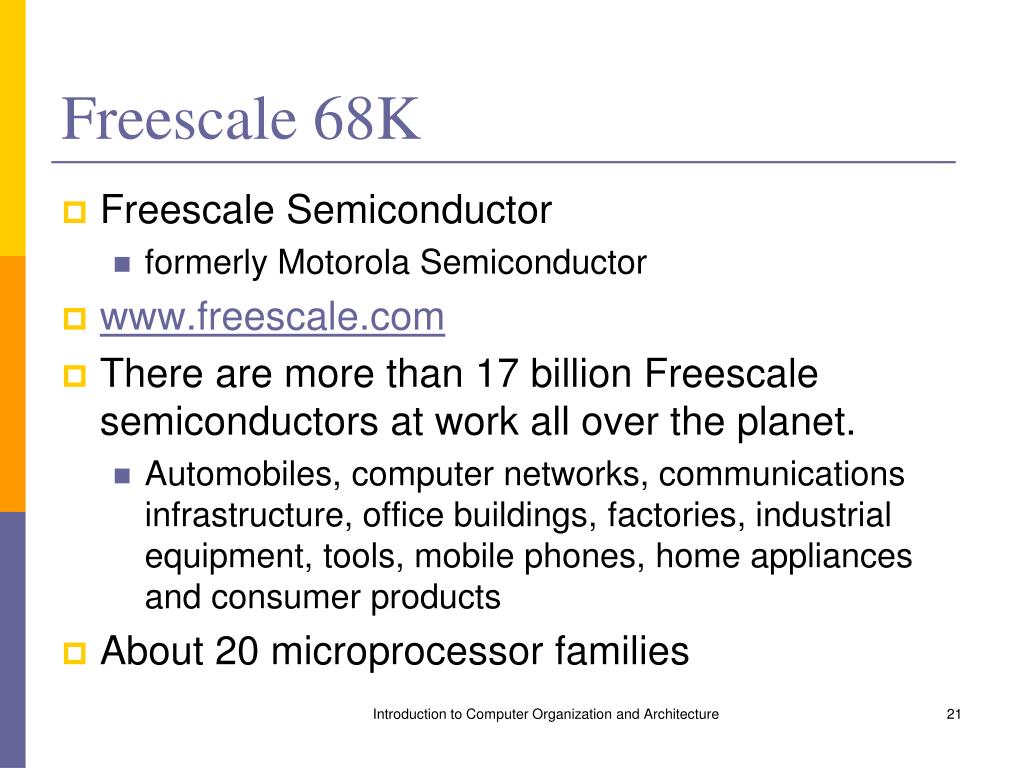

  21. Freescale 68K • Freescale Semiconductor • formerly Motorola Semiconductor • www.freescale.com • There are more than 17 billion Freescale semiconductors at work all over the planet. • Automobiles, computer networks, communications infrastructure, office buildings, factories, industrial equipment, tools, mobile phones, home appliances and consumer products • About 20 microprocessor families Introduction to Computer Organization and Architecture

  22. 68K • 68K Family • 68000: Introduced in 1979, 16 bit word length and 8/16/32 bit arithmetic, 24 bit address space (16 MB) • 68008: 8 bit version of the 68000 with 20 bit address space • 68010: Version of the 68000 supporting virtual memory and virtual machine concepts • 68020: Extended addressing capabilities, 32-bit, i-cache • 68030: Data cache in addition to the instruction cache, on-chip memory management unit • 68040: Floating-point arithmetic, pipelining, . . . • “ColdFire” family added in 1994 • V1 through V5 cores Introduction to Computer Organization and Architecture

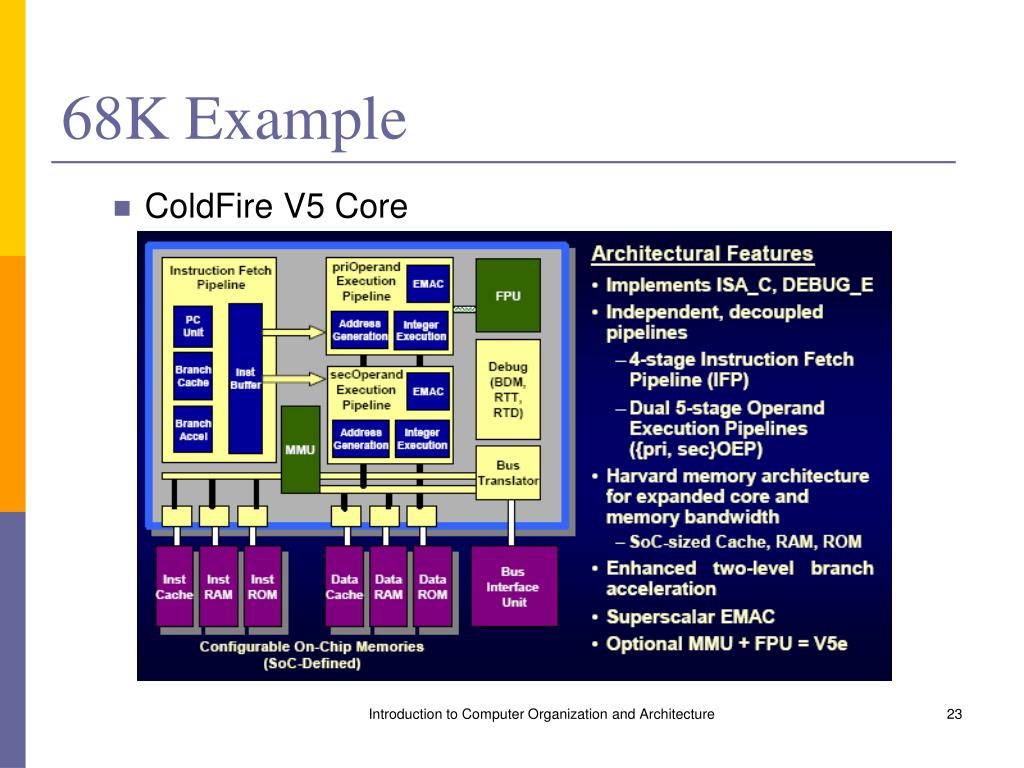

  23. 68K Example • ColdFire V5 Core Introduction to Computer Organization and Architecture

  24. 68K Register Structure Long word Word Byte • 8 32-bit Data Registers • 8 32-bit Address Registers • A7 is Stack Pointer • Separate Supervisor and User pointers • Users cannot execute privileged instructions • Status Register 31 16 15 8 7 0 D0 D1 D2 D3 Data registers D4 D5 D6 D7 A0 A1 A2 Address A3 registers A4 A5 A6 User stack pointer Stack A7 pointers Supervisor stack pointer Introduction to Computer Organization and Architecture PC Program counter 15 13 10 8 4 0 SR Status register T - Trace mode select C - Carry S - Supervisor mode select V - Overflow I - Interrupt mask Z - Zero N - Negative X - Extend

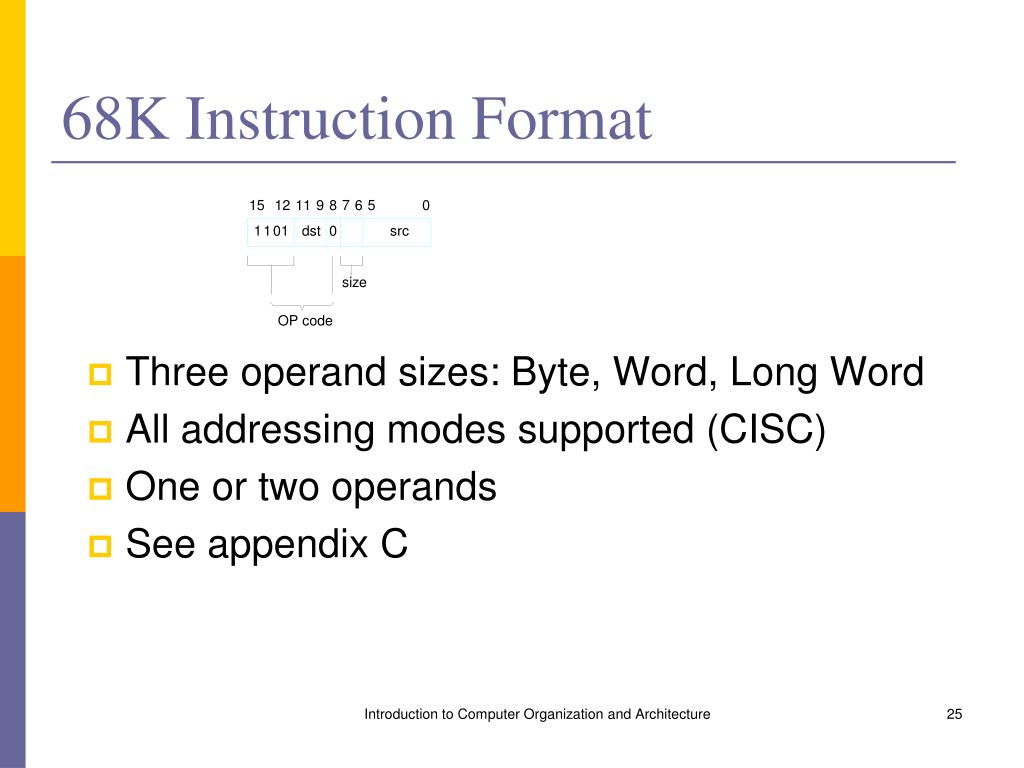

  25. 68K Instruction Format 15 12 11 9 8 7 6 5 0 1 1 0 1 dst 0 src • Three operand sizes: Byte, Word, Long Word • All addressing modes supported (CISC) • One or two operands • See appendix C size OP code Introduction to Computer Organization and Architecture

  26. 68K Addressing Modes where: EA = effective address Value = a number given either explicitly or represented by a label BValue = an 8-bit Value WValue = a 16-bit Value An = an address register Rn = an address or a data register S = a size indicator syn tax Name Assem bler Addressing function Immediate #V alue Op erand = V alue Absolute Short V alue EA = Sign Extended WV alue Absolute Long V alue EA = V alue Register Rn EA = R n that is, Op erand = [R ] n Register Indirect (An) EA = [A ] n Autoincremen t (An)+ EA = [A ]; n Incremen t A n – Auto decrement (An) Decremen t A ; n EA = [A ] n Indexed basic WV alue(An) EA = WV alue + [A ] n Indexed full BV alue(An,Rk.S) EA = BV alue + [A ] +[R ] n k Relativ e basic WV alue(PC) EA = WV alue + [PC] or Lab el Relativ e full BV alue(PC,Rk.S) EA = BV alue + [PC] + [R ] k or Lab el (Rk) Introduction to Computer Organization and Architecture

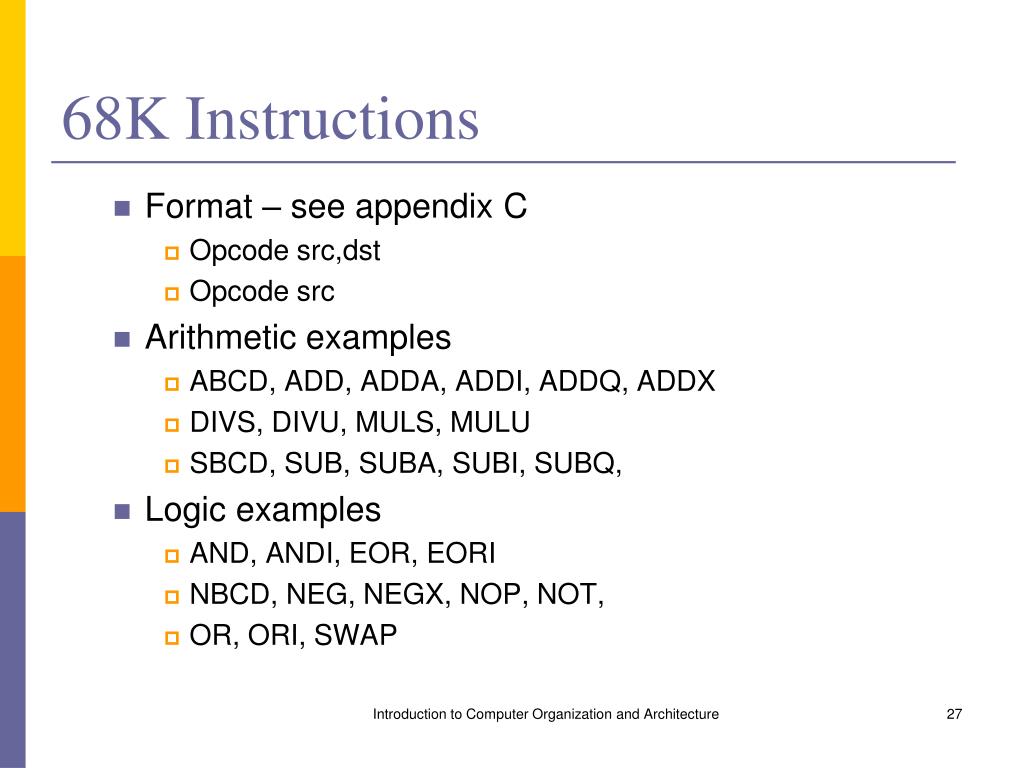

  27. 68K Instructions • Format – see appendix C • Opcode src,dst • Opcode src • Arithmetic examples • ABCD, ADD, ADDA, ADDI, ADDQ, ADDX • DIVS, DIVU, MULS, MULU • SBCD, SUB, SUBA, SUBI, SUBQ, • Logic examples • AND, ANDI, EOR, EORI • NBCD, NEG, NEGX, NOP, NOT, • OR, ORI, SWAP Introduction to Computer Organization and Architecture

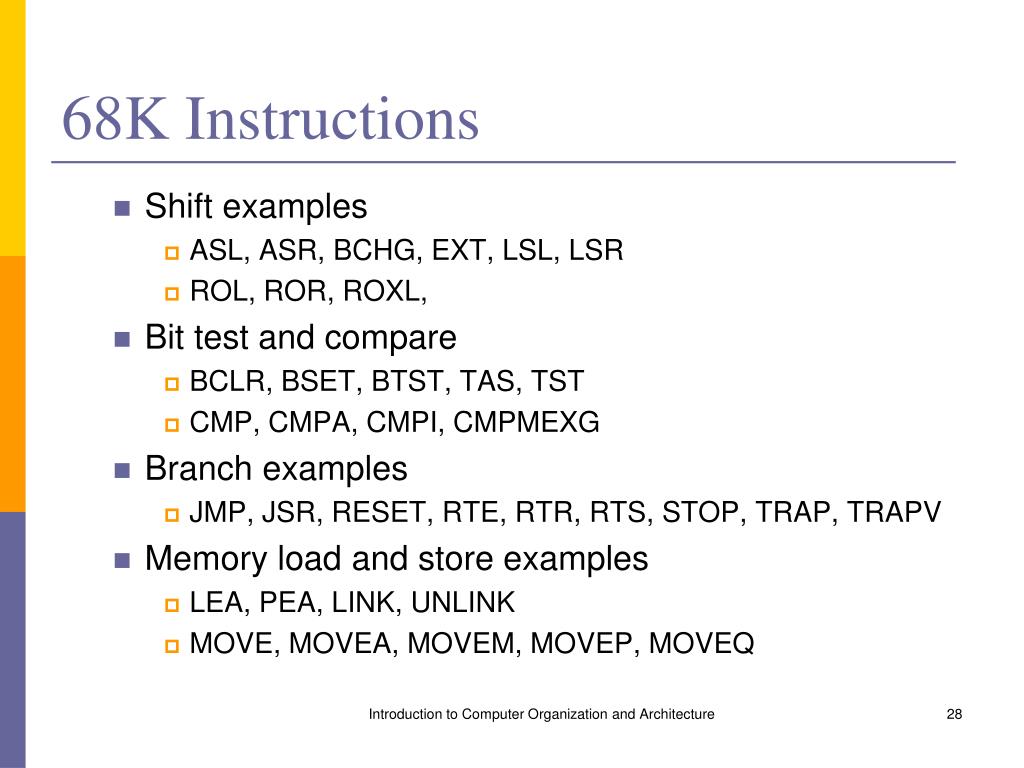

  28. 68K Instructions • Shift examples • ASL, ASR, BCHG, EXT, LSL, LSR • ROL, ROR, ROXL, • Bit test and compare • BCLR, BSET, BTST, TAS, TST • CMP, CMPA, CMPI, CMPMEXG • Branch examples • JMP, JSR, RESET, RTE, RTR, RTS, STOP, TRAP, TRAPV • Memory load and store examples • LEA, PEA, LINK, UNLINK • MOVE, MOVEA, MOVEM, MOVEP, MOVEQ Introduction to Computer Organization and Architecture

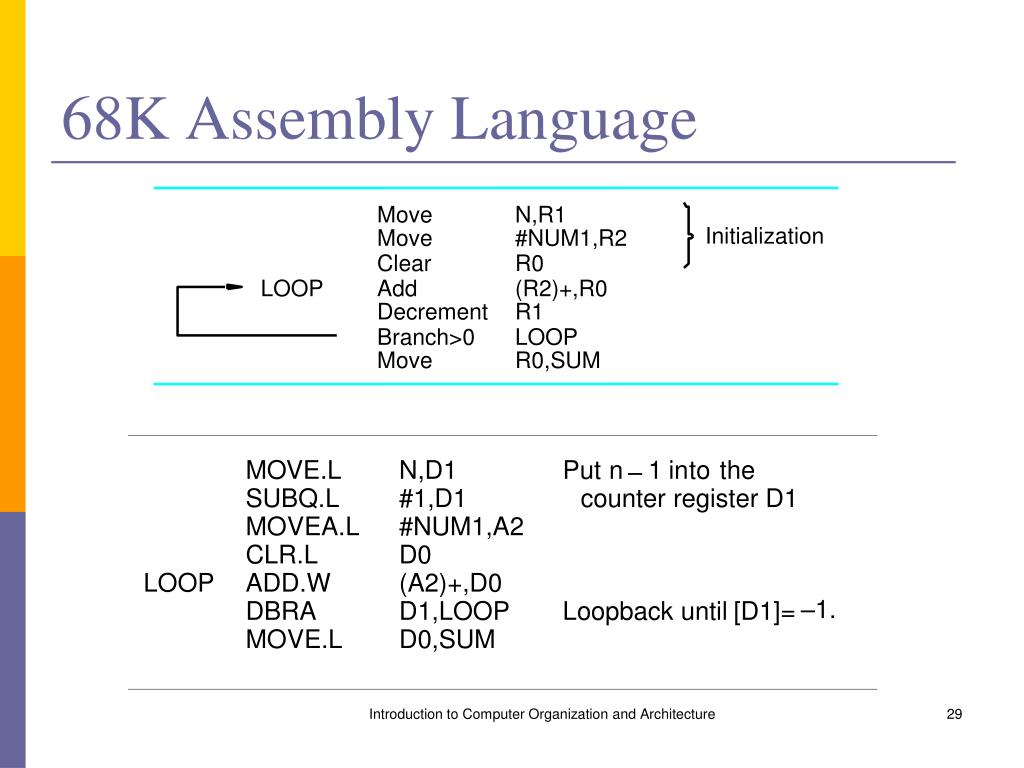

  29. 68K Assembly Language Move N,R1 Initialization Move #NUM1,R2 Clear R0 – MO VE.L N,D1 Put n 1 in to the LOOP Add (R2)+,R0 SUBQ.L #1,D1 counter register D1 Decrement R1 MO VEA.L #NUM1,A2 Branch>0 LOOP CLR.L D0 Move R0,SUM LOOP ADD.W (A2)+,D0 –1. DBRA D1,LOOP Loopback until [D1]= MO VE.L D0,SUM Introduction to Computer Organization and Architecture

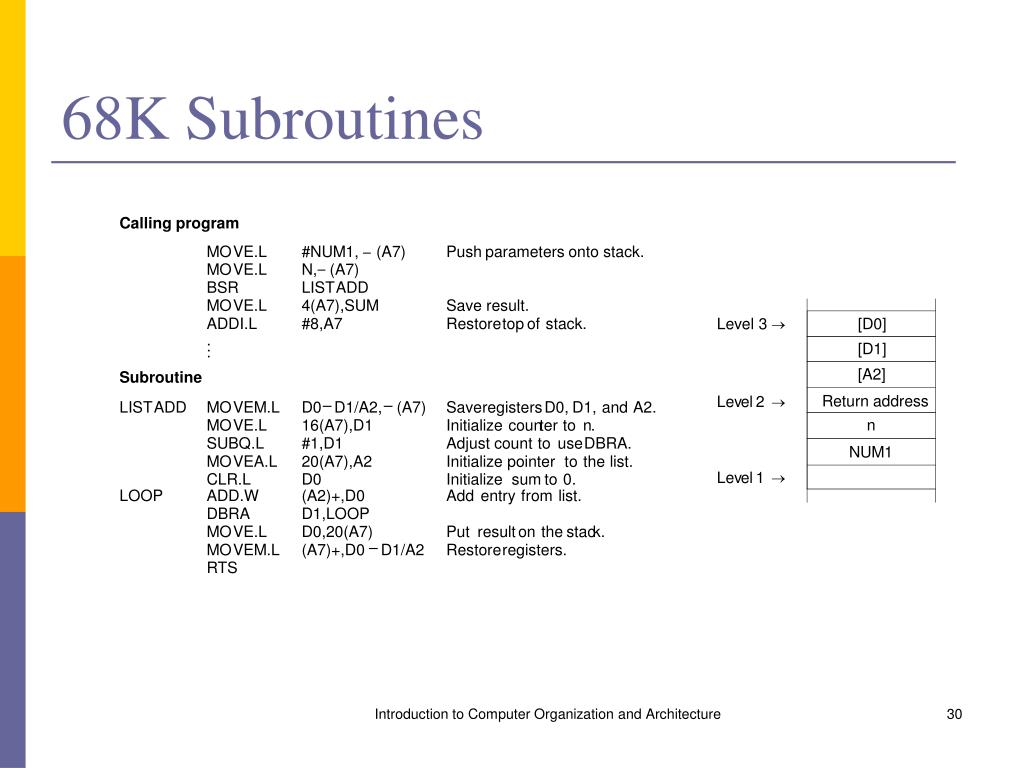

  30. 68K Subroutines Calling program – MO VE.L #NUM1, (A7) Push parameters onto stack. – MO VE.L N, (A7) BSR LIST ADD MO VE.L 4(A7),SUM Save result. ADDI.L #8,A7 Restore top of stack. . . . Subroutine – – LIST ADD MO VEM.L D0 D1/A2, (A7) Save registers D0, D1, and A2. MO VE.L 16(A7),D1 Initialize coun ter to n . SUBQ.L #1,D1 Adjust count to use DBRA. MO VEA.L 20(A7),A2 Initialize pointer to the list. CLR.L D0 Initialize sum to 0. LOOP ADD.W (A2)+,D0 Add entry from list. DBRA D1,LOOP MO VE.L D0,20(A7) Put result on the stac k. – MO VEM.L (A7)+,D0 D1/A2 Restore registers. R TS [D0] Level 3  [D1] [A2] Return address Lev el 2  Introduction to Computer Organization and Architecture n NUM1 Lev el 1 

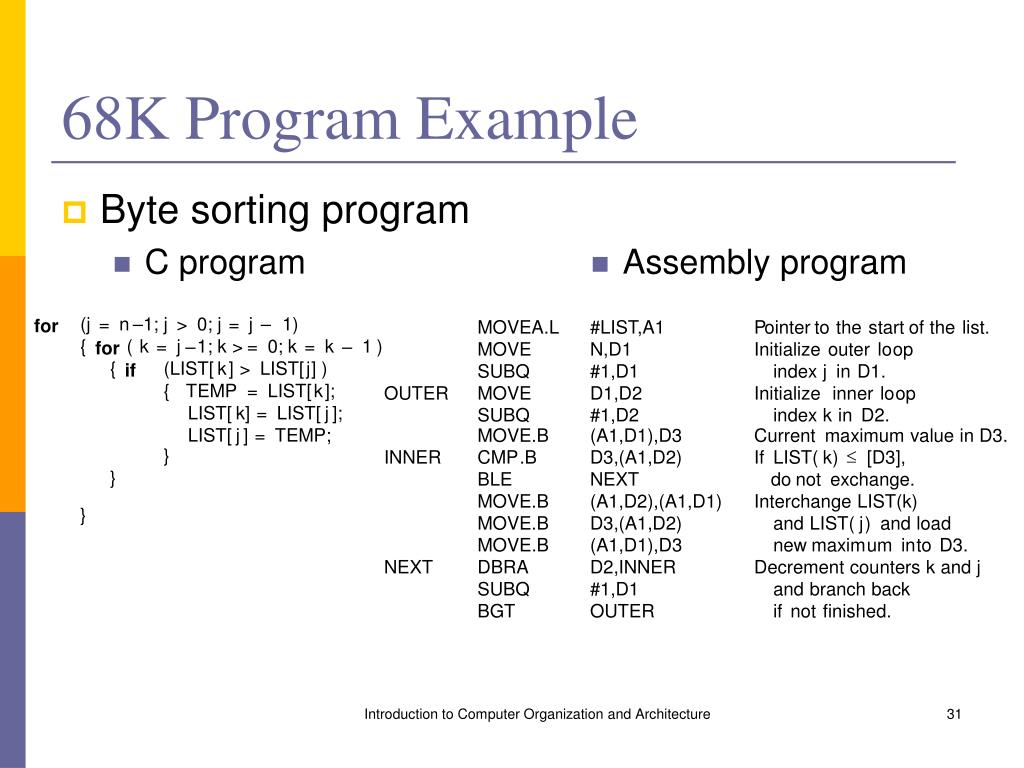

  31. 68K Program Example – – (j = n 1; j > 0; j = j 1) for – – { ( k = j 1; k > = 0; k = k 1 ) for { (LIST[ k ] > LIST[ j ]) if { TEMP = LIST[ k ]; • Byte sorting program • C program • Assembly program LIST[ k ] = LIST[ j ]; LIST[ j ] = TEMP; } } } MO VEA.L #LIST,A1 P ointer to the start of the list. MO VE N,D1 Initialize outer lo op SUBQ #1,D1 index j in D1. OUTER MO VE D1,D2 Initialize inner lo op SUBQ #1,D2 index k in D2. MO VE.B (A1,D1),D3 Current maximum value in D3.  INNER CMP .B D3,(A1,D2) If LIST( k ) [D3], BLE NEXT do not exchange. MO VE.B (A1,D2),(A1,D1) In terchange LIST(k) MO VE.B D3,(A1,D2) and LIST( j ) and load MO VE.B (A1,D1),D3 new maxim um in to D3. NEXT DBRA D2,INNER Decrement counters k and j Introduction to Computer Organization and Architecture SUBQ #1,D1 and branch back BGT OUTER if not finished.

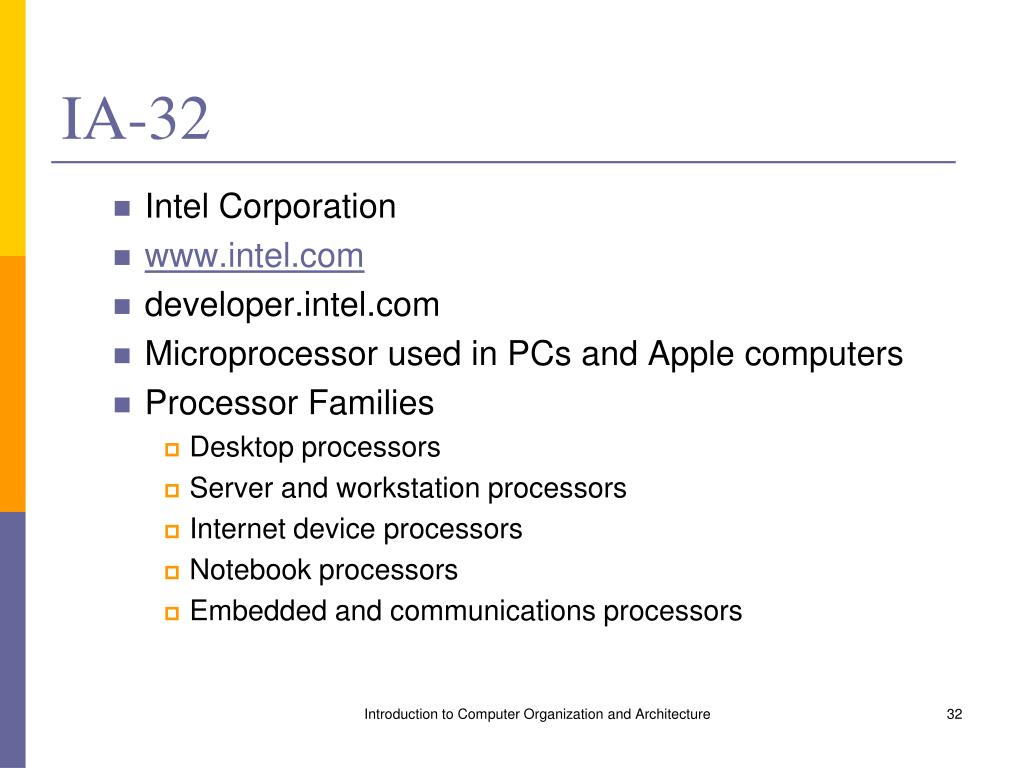

  32. IA-32 • Intel Corporation • www.intel.com • developer.intel.com • Microprocessor used in PCs and Apple computers • Processor Families • Desktop processors • Server and workstation processors • Internet device processors • Notebook processors • Embedded and communications processors Introduction to Computer Organization and Architecture

  33. IA-32 • Intel microprocessor history Introduction to Computer Organization and Architecture

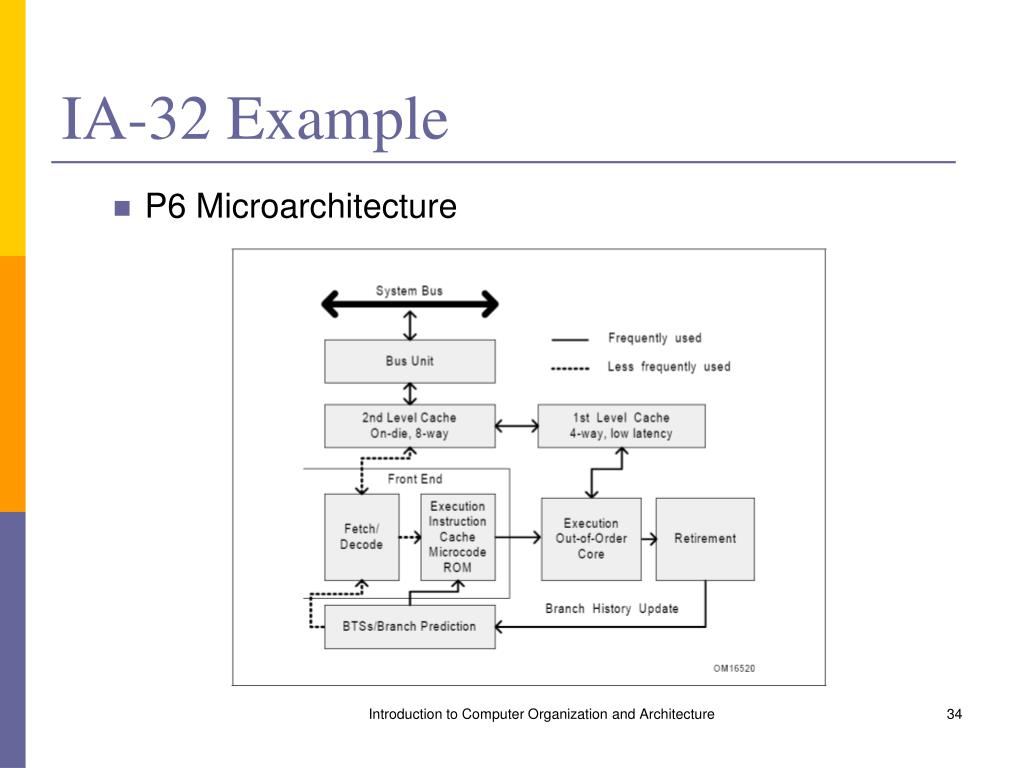

  34. IA-32 Example • P6 Microarchitecture Introduction to Computer Organization and Architecture

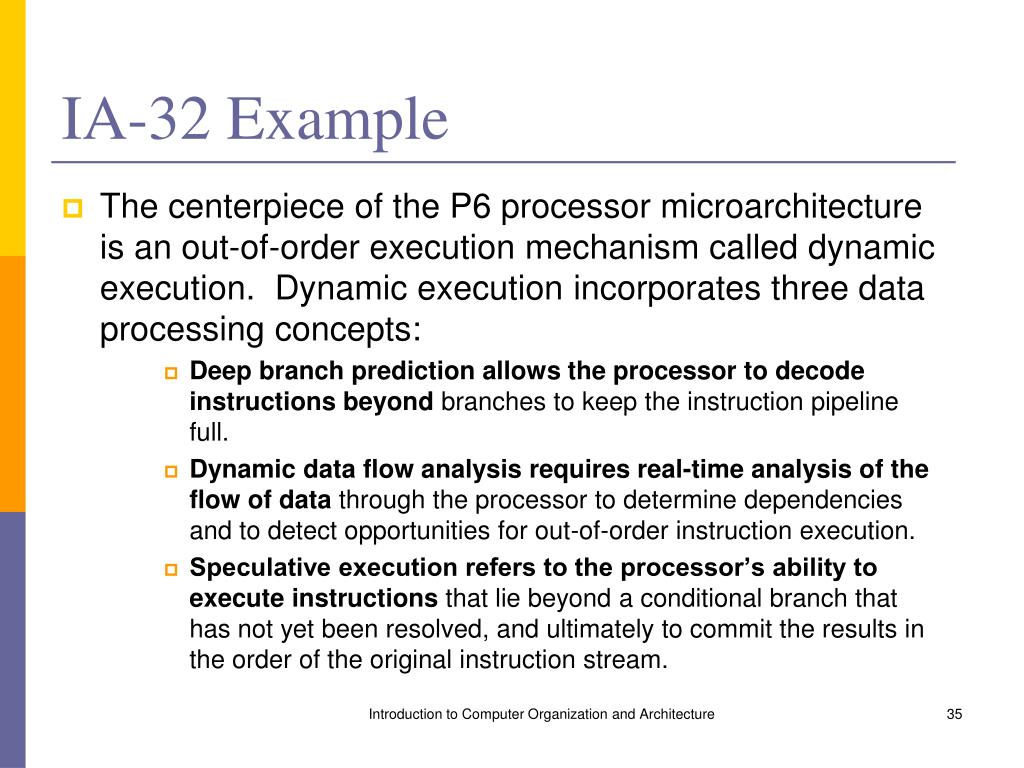

  35. IA-32 Example • The centerpiece of the P6 processor microarchitecture is an out-of-order execution mechanism called dynamic execution. Dynamic execution incorporates three data processing concepts: • Deep branch prediction allows the processor to decode instructions beyond branches to keep the instruction pipeline full. • Dynamic data flow analysis requires real-time analysis of the flow of data through the processor to determine dependencies and to detect opportunities for out-of-order instruction execution. • Speculative execution refers to the processor’s ability to execute instructions that lie beyond a conditional branch that has not yet been resolved, and ultimately to commit the results in the order of the original instruction stream. Introduction to Computer Organization and Architecture

  36. IA-32 Register Structure • 8 32-bit Data Registers • 8 64-bit Floating Point Registers • 6 Segment Registers 31 0 R0 R1 8 General purpose registers R7 63 0 FP0 FP1 8 Floating-point registers FP7 16 0 Code Segment CS Stack Segment SS 6 DS Segment ES registers Data Segments FS GS Introduction to Computer Organization and Architecture

  37. IA-32 Register Structure • 32-bit Instruction pointer • Status register • Privilege level • Condition codes 31 0 Instruction pointer 31 13 12 11 9 8 7 6 0 Introduction to Computer Organization and Architecture Status register IOPL - Input/Output CF - Carry privilege level ZF - Zero OF - Overflow SF - Sign IF - Interrupt enable TF - Trap

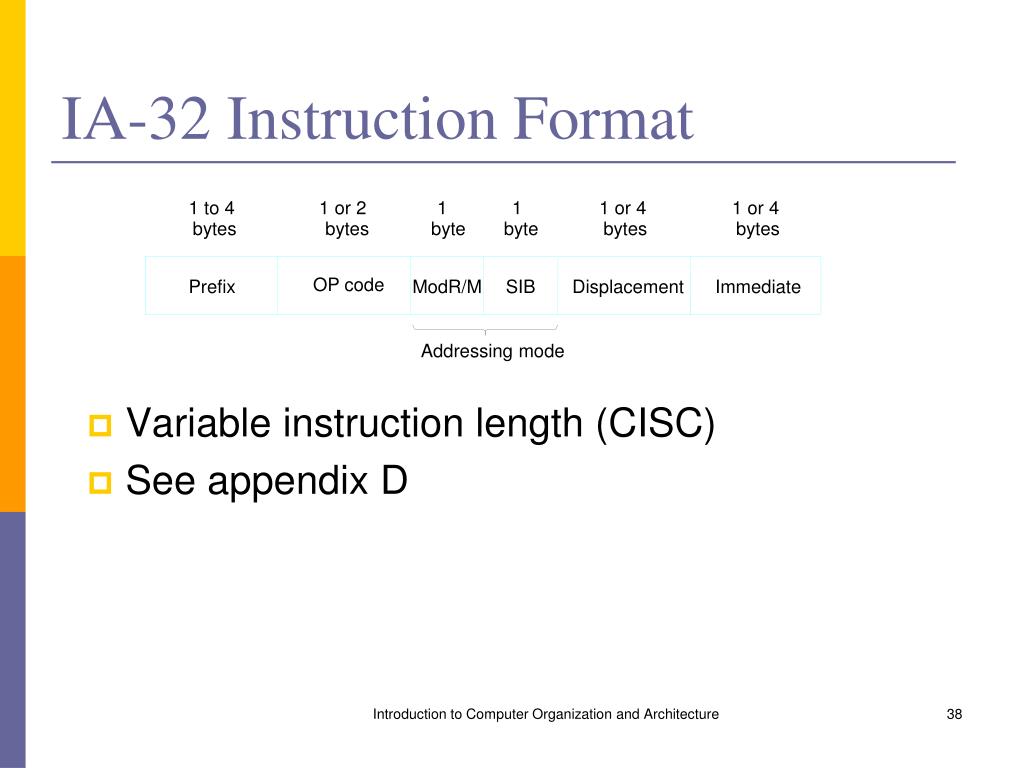

  38. IA-32 Instruction Format 1 to 4 1 or 2 1 1 1 or 4 1 or 4 • Variable instruction length (CISC) • See appendix D bytes bytes byte byte bytes bytes OP code Prefix ModR/M SIB Displacement Immediate Addressing mode Introduction to Computer Organization and Architecture

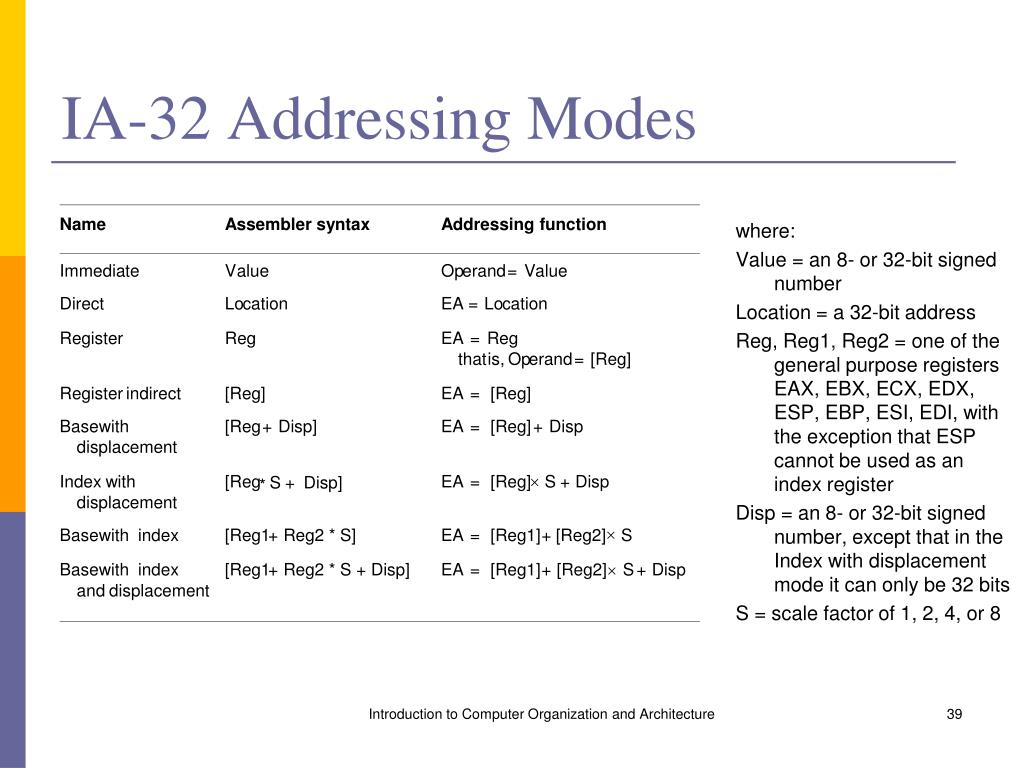

  39. IA-32 Addressing Modes where: Value = an 8- or 32-bit signed number Location = a 32-bit address Reg, Reg1, Reg2 = one of the general purpose registers EAX, EBX, ECX, EDX, ESP, EBP, ESI, EDI, with the exception that ESP cannot be used as an index register Disp = an 8- or 32-bit signed number, except that in the Index with displacement mode it can only be 32 bits S = scale factor of 1, 2, 4, or 8 Name Assembler syntax Addressing function Immediate V alue Op erand = V alue Direct Lo cation EA = Lo cation Register Reg EA = Reg that is, Op erand = [Reg] Register indirect [Reg] EA = [Reg] Base with [Reg + Disp] EA = [Reg] + Disp displacement  * Index with [Reg EA = [Reg] S + Disp S + Disp] displacement  Base with index [Reg1 + Reg2 * S] EA = [Reg1] + [Reg2] S  Base with index [Reg1 + Reg2 * S + Disp] EA = [Reg1] + [Reg2] S + Disp and displacement Introduction to Computer Organization and Architecture

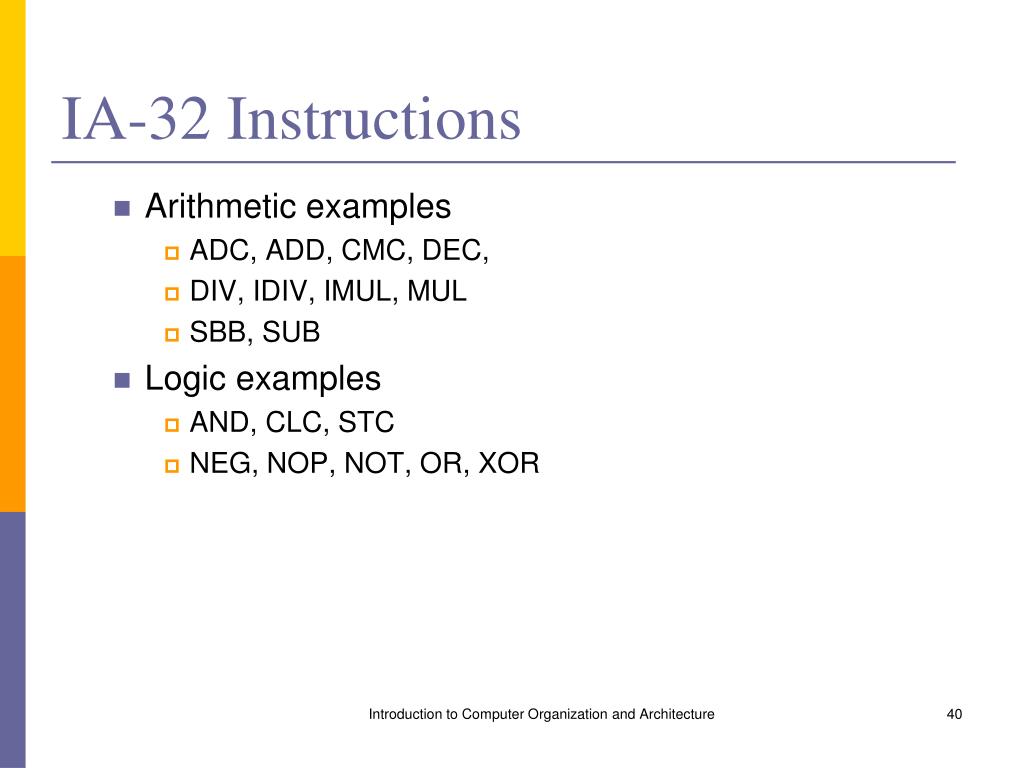

  40. IA-32 Instructions • Arithmetic examples • ADC, ADD, CMC, DEC, • DIV, IDIV, IMUL, MUL • SBB, SUB • Logic examples • AND, CLC, STC • NEG, NOP, NOT, OR, XOR Introduction to Computer Organization and Architecture

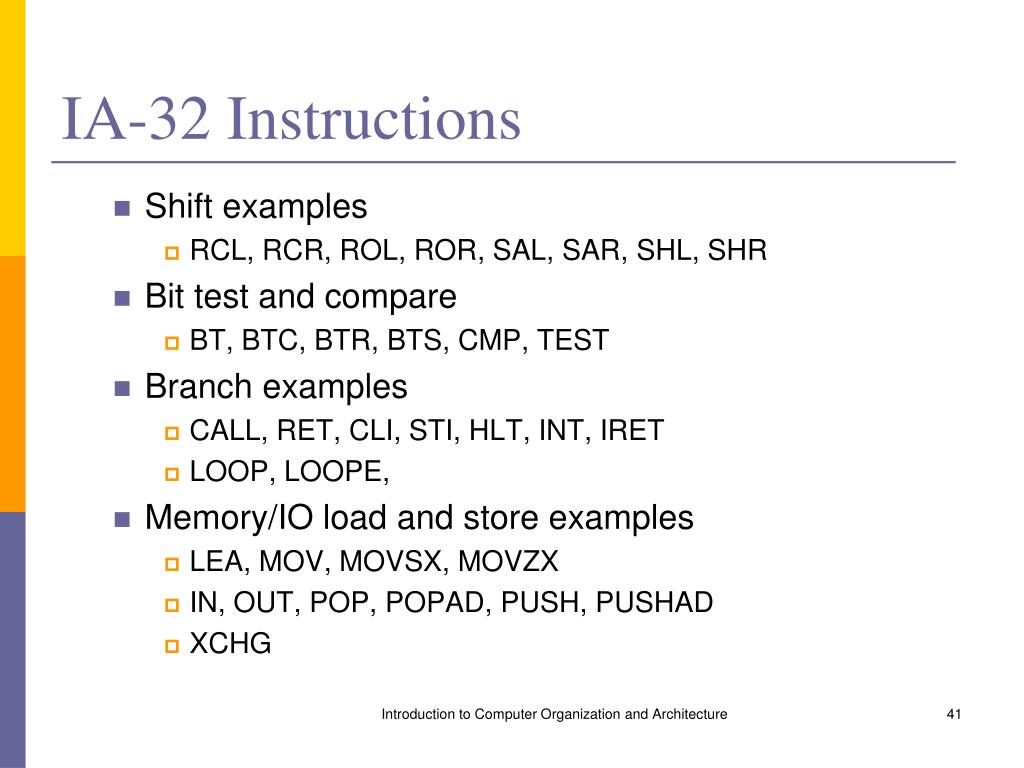

  41. IA-32 Instructions • Shift examples • RCL, RCR, ROL, ROR, SAL, SAR, SHL, SHR • Bit test and compare • BT, BTC, BTR, BTS, CMP, TEST • Branch examples • CALL, RET, CLI, STI, HLT, INT, IRET • LOOP, LOOPE, • Memory/IO load and store examples • LEA, MOV, MOVSX, MOVZX • IN, OUT, POP, POPAD, PUSH, PUSHAD • XCHG Introduction to Computer Organization and Architecture

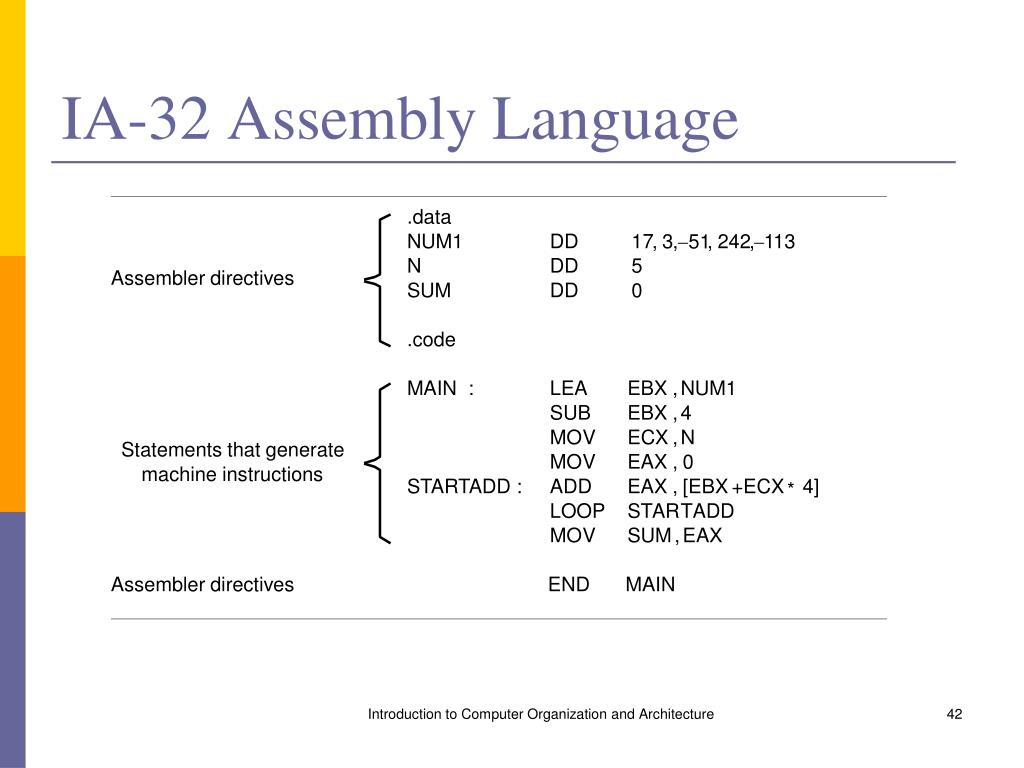

  42. IA-32 Assembly Language .data NUM1 DD 17 , 3 , 51 , 242 ,  113 N DD 5 Assembler directives SUM DD 0 .code MAIN : LEA EBX , NUM1 SUB EBX , 4 MO V ECX , N Statements that generate MO V EAX , 0 machine instructions * STARTADD : ADD EAX , [EBX +ECX 4] LOOP ST AR T ADD MO V SUM , EAX Assembler directives END MAIN Introduction to Computer Organization and Architecture

  43. IA-32 Subroutines Calling program PUSH OFFSET NUM1 Push parameters on to the stack. PUSH N CALL LIST ADD Branc h to the subroutine. ADD ESP ,4 Remo v e n from the stack. POP SUM P op the sum in to SUM. . . . Subroutine LIST ADD: PUSH EDI Sa v e EDI and use MO V EDI,0 as index register.  [ECX] Lev el 3 PUSH EAX Sa v e EAX and use as MO V EAX,0 accummulator register. [EBX] PUSH EBX Sa v e EBX and load [EAX] MO V EBX,[ESP+20] address NUM1. PUSH ECX Sa v e ECX and [EDI] MO V ECX,[ESP+20] load count n . Return Address  * Lev el 2 ST AR T ADD: ADD EAX,[EBX+EDI 4] Add next n umber. n INC EDI Incremen t index. DEC ECX Decremen t coun ter. NUM1 JG ST AR T ADD Branc h bac k if not done. MO V [ESP+24],EAX Ov erwrite NUM1 in stac k with sum.  Lev el 1 POP ECX Restore registers. POP EBX POP EAX POP EDI RET Return. Introduction to Computer Organization and Architecture

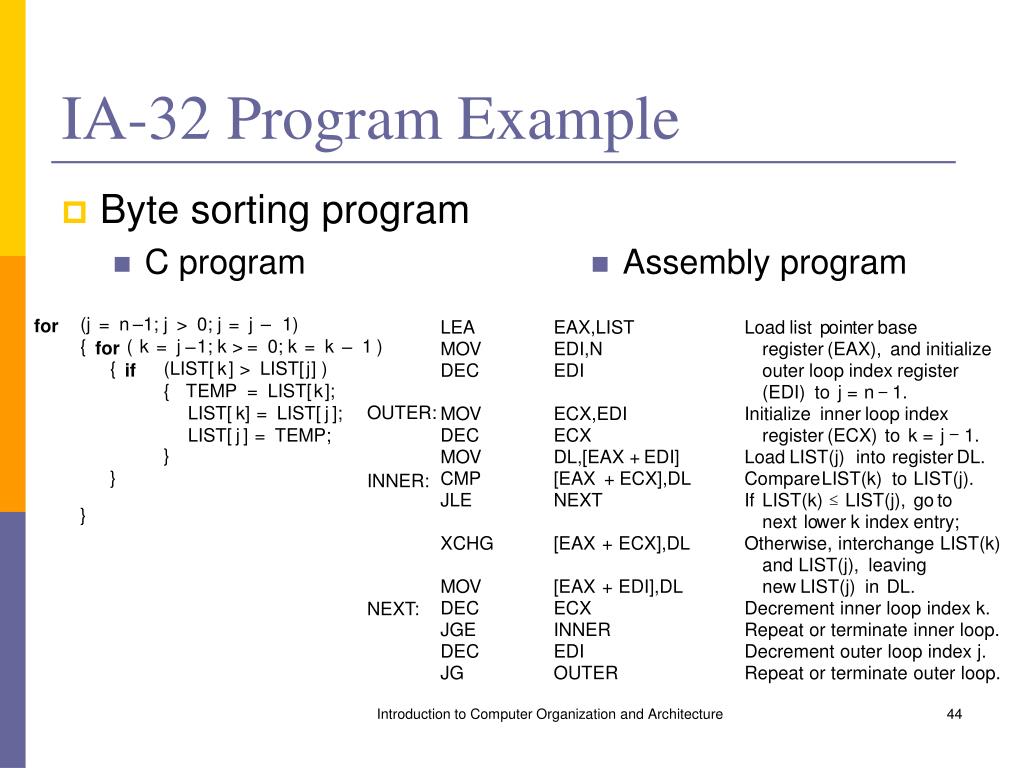

  44. IA-32 Program Example – – (j = n 1; j > 0; j = j 1) for – – { ( k = j 1; k > = 0; k = k 1 ) for { (LIST[ k ] > LIST[ j ]) if { TEMP = LIST[ k ]; • Assembly program • Byte sorting program • C program LIST[ k ] = LIST[ j ]; LIST[ j ] = TEMP; } } } LEA EAX,LIST Load list p oin ter base MO V EDI,N register (EAX), and initialize DEC EDI outer lo op index register – (EDI) to j = n 1. OUTER: MO V ECX,EDI Initialize inner lo op index – DEC ECX register (ECX) to k = j 1. MO V DL,[EAX + EDI] Load LIST(j) in to register DL. CMP [EAX + ECX],DL Compare LIST(k) to LIST(j). INNER:  JLE NEXT If LIST(k) LIST(j), go to next lo w er k index entry; X CHG [EAX + ECX],DL Otherwise, interchange LIST(k) and LIST(j), leaving MO V [EAX + EDI],DL new LIST(j) in DL. DEC ECX Decrement inner loop index k. NEXT: JGE INNER Repeat or terminate inner loop. DEC EDI Decrement outer loop index j. JG OUTER Repeat or terminate outer loop. Introduction to Computer Organization and Architecture

  45. The End Lecture 5
