A Motivating Application: Sensor Array Signal Processing

Forward. Inverse. A Motivating Application: Sensor Array Signal Processing. Goal: Estimate directions of arrival of acoustic sources using a microphone array. Data collection setup. Underlying “sparse” spatial spectrum f *. [. ]. Underdetermined Linear Inverse Problems.

amalia
Télécharger la présentation

A Motivating Application: Sensor Array Signal Processing

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Forward Inverse A Motivating Application:Sensor Array Signal Processing • Goal: Estimate directions of arrival of acoustic sources using a microphone array Data collection setup Underlying “sparse” spatial spectrum f*

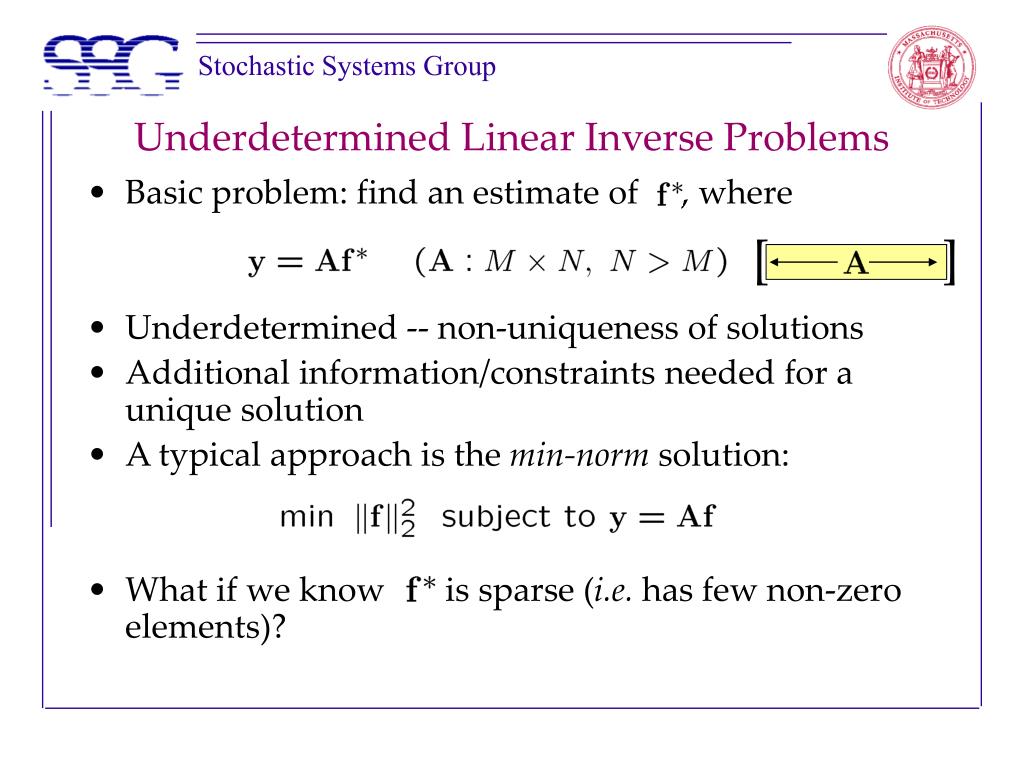

  2. [ ] Underdetermined Linear Inverse Problems • Basic problem: find an estimate of , where • Underdetermined -- non-uniqueness of solutions • Additional information/constraints needed for a unique solution • A typical approach is the min-norm solution: • What if we know is sparse (i.e. has few non-zero elements)?

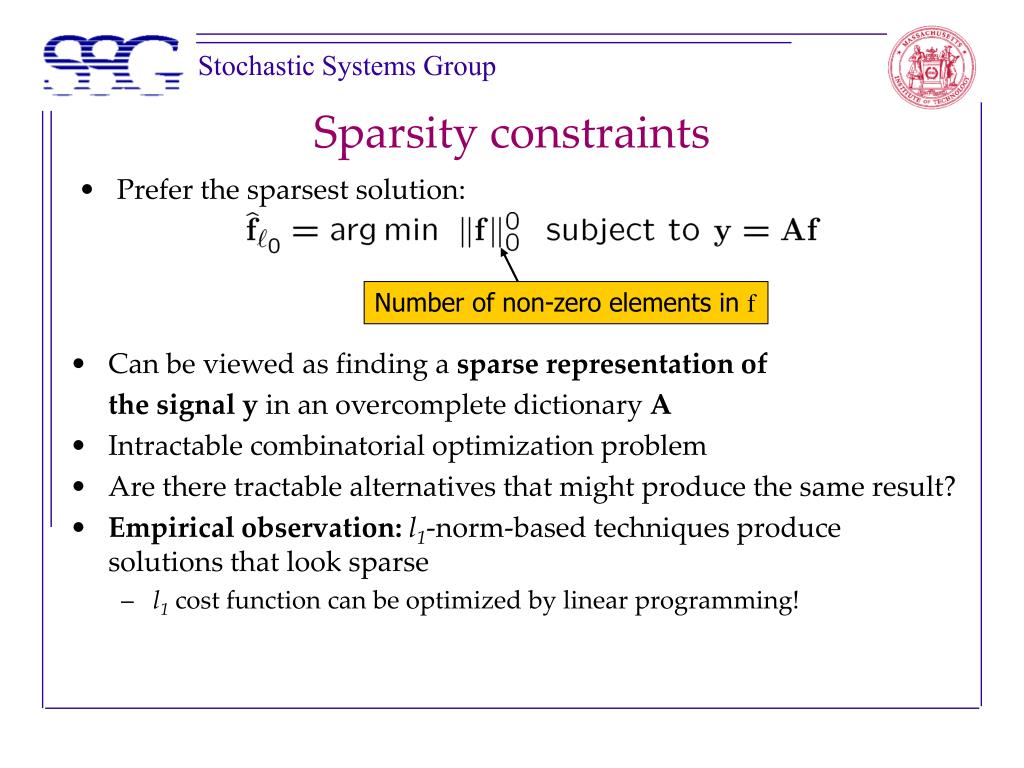

  3. Number of non-zero elements in f Sparsity constraints • Prefer the sparsest solution: • Can be viewed as finding a sparse representation of the signal y in an overcomplete dictionary A • Intractable combinatorial optimization problem • Are there tractable alternatives that might produce the same result? • Empirical observation:l1-norm-based techniques produce solutions that look sparse • l1 cost function can be optimized by linear programming!

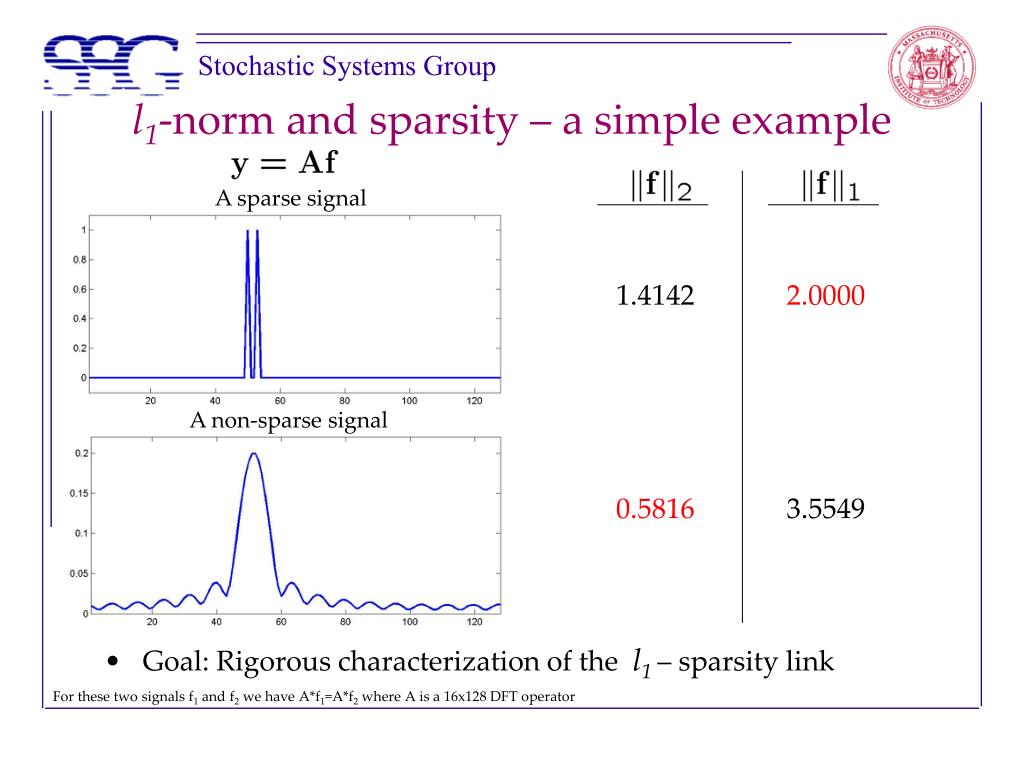

  4. l1-norm and sparsity – a simple example A sparse signal 1.4142 2.0000 A non-sparse signal 0.5816 3.5549 • Goal: Rigorous characterization of the l1 – sparsity link For these two signals f1 and f2 we have A*f1=A*f2 where A is a 16x128 DFT operator

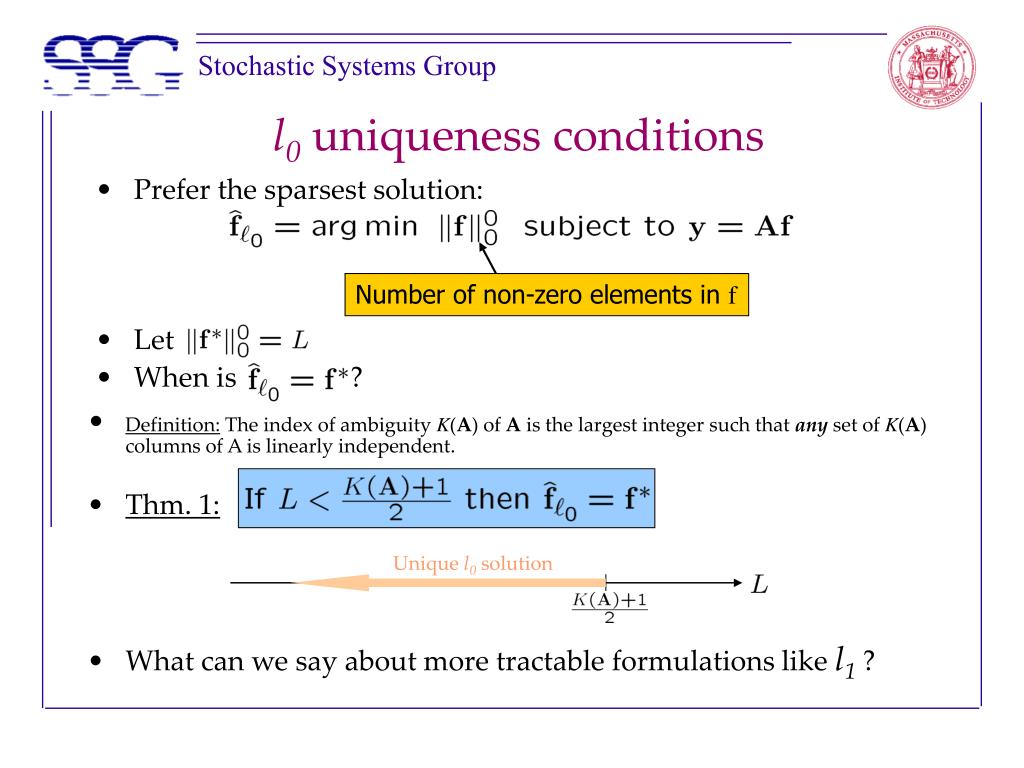

  5. Number of non-zero elements in f • Thm. 1: • What can we say about more tractable formulations like l1 ? where and K(A) is the largest integer such that any set of K(A) columns of A is linearly independent. Unique l0solution l0 uniqueness conditions • Prefer the sparsest solution: • Let where • When is ?

  6. Thm. 2(*): • is sparse enough exact solution by l1 optimization • Can solve a combinatorial optimization problem by convex optimization! where (*) Donoho and Elad obtained a similar result concurrently. l1solution = l0solution ! l1 equivalence conditions • Consider the l1 problem: • Can we ever hope to get ?

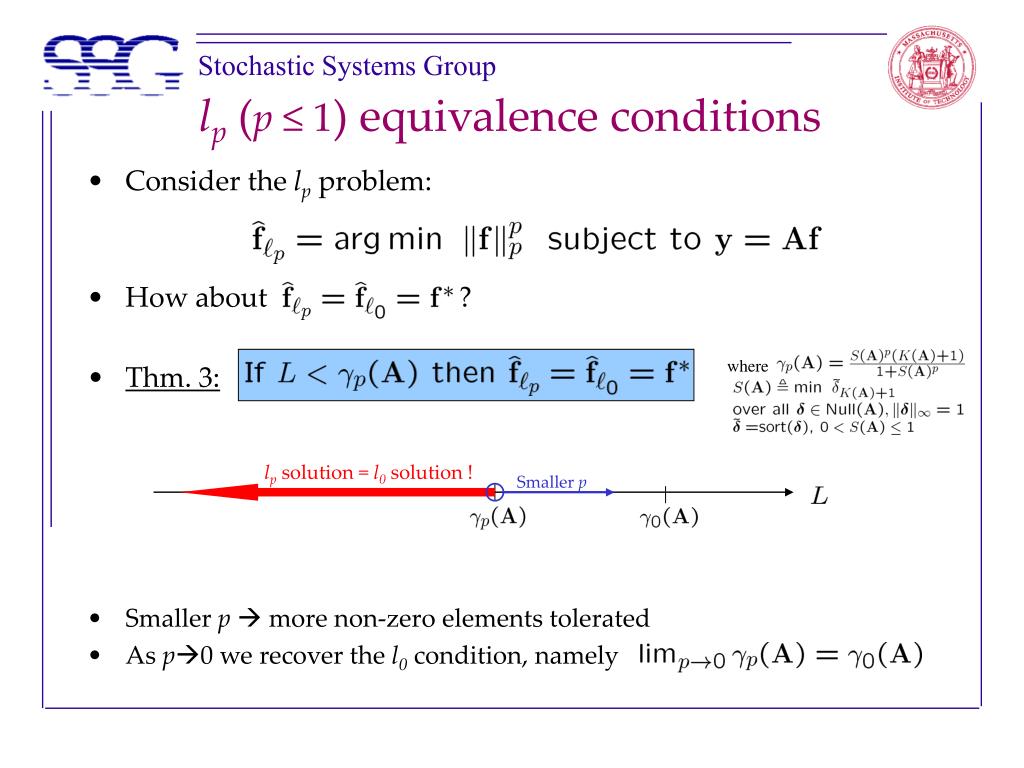

  7. Thm. 3: where lpsolution = l0solution ! • Smaller p  more non-zero elements tolerated • As p0 we recover the l0 condition, namely Smaller p lp (p ≤ 1) equivalence conditions • Consider the lp problem: • How about ?

  8. Number of non-zero elements in f • Definition: The index of ambiguity K(A) of A is the largest integer such that any set of K(A) columns of A is linearly independent. • Thm. 1: • What can we say about more tractable formulations like l1 ? Unique l0solution l0 uniqueness conditions • Prefer the sparsest solution: • Let • When is ?

  9. Definition: Maximum absolute dot product of columns • Thm. 2(*): • is sparse enough exact solution by l1 optimization • Can solve a combinatorial optimization problem by convex optimization! (*) Donoho and Elad obtained a similar result concurrently. l1solution = l0solution ! l1 equivalence conditions • Consider the l1 problem: • Can we ever hope to get ?

  10. Definition: • Thm. 3: Smaller p lpsolution = l0solution ! • Smaller p  more non-zero elements tolerated • As p0 we recover the l0 condition, namely lp (p ≤ 1) equivalence conditions • Consider the lp problem: • How about ?
