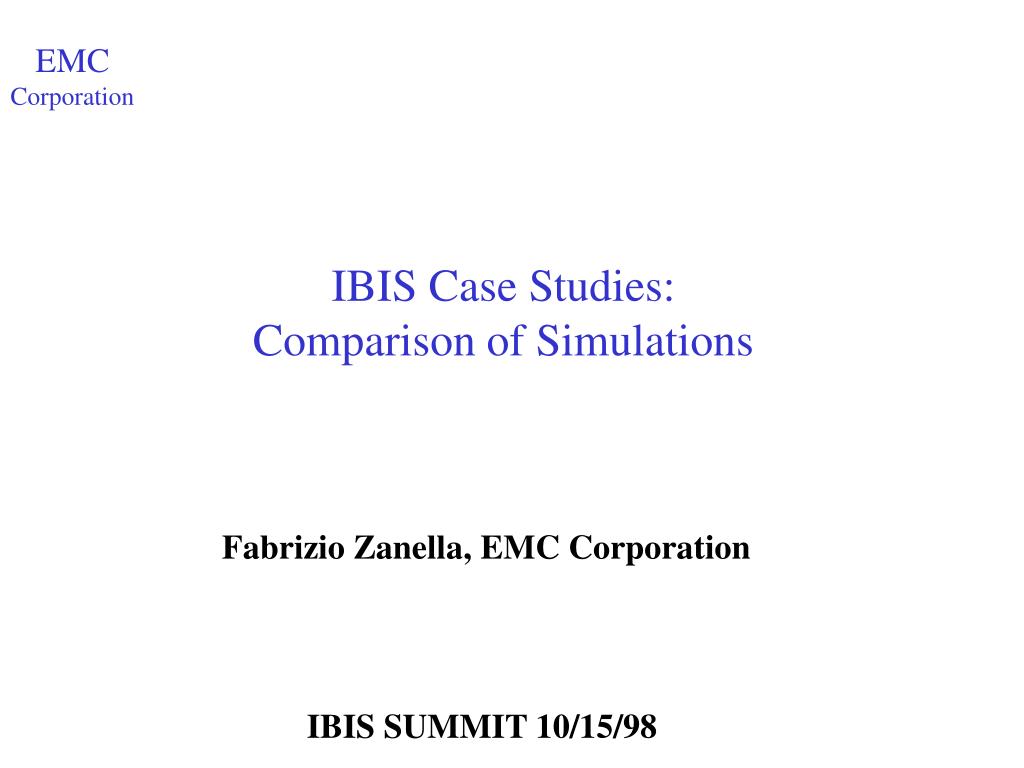

  1. IBIS Case Studies:Comparison of Simulations Fabrizio Zanella, EMC Corporation IBIS SUMMIT 10/15/98

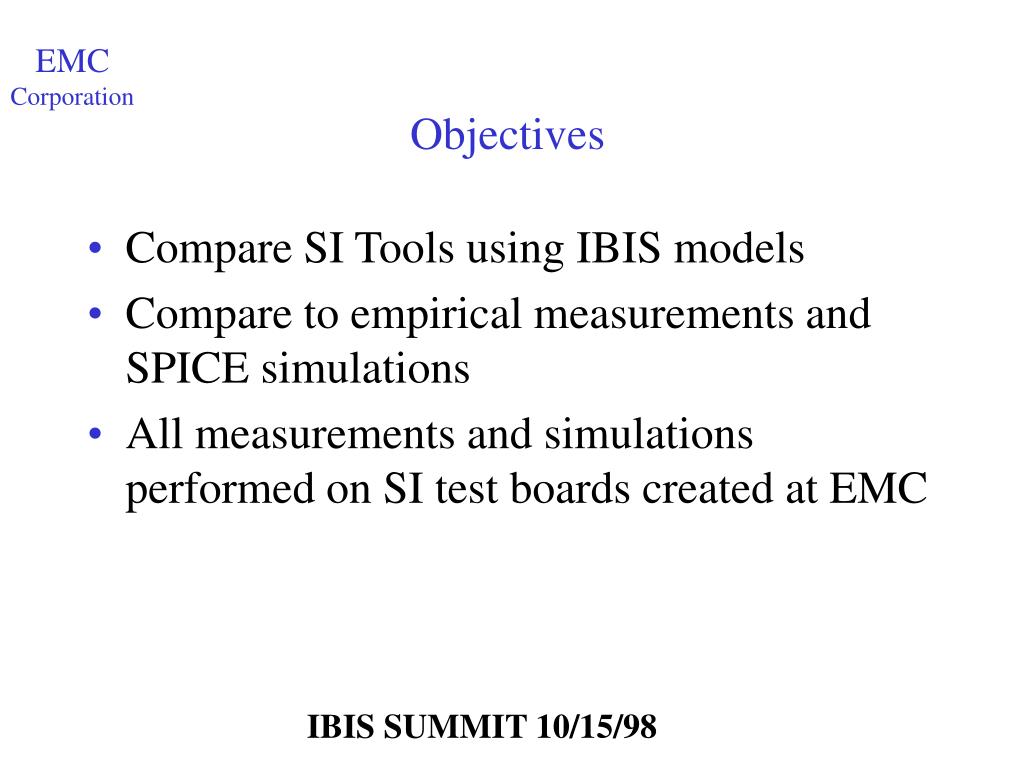

  2. Objectives • Compare SI Tools using IBIS models • Compare to empirical measurements and SPICE simulations • All measurements and simulations performed on SI test boards created at EMC IBIS SUMMIT 10/15/98

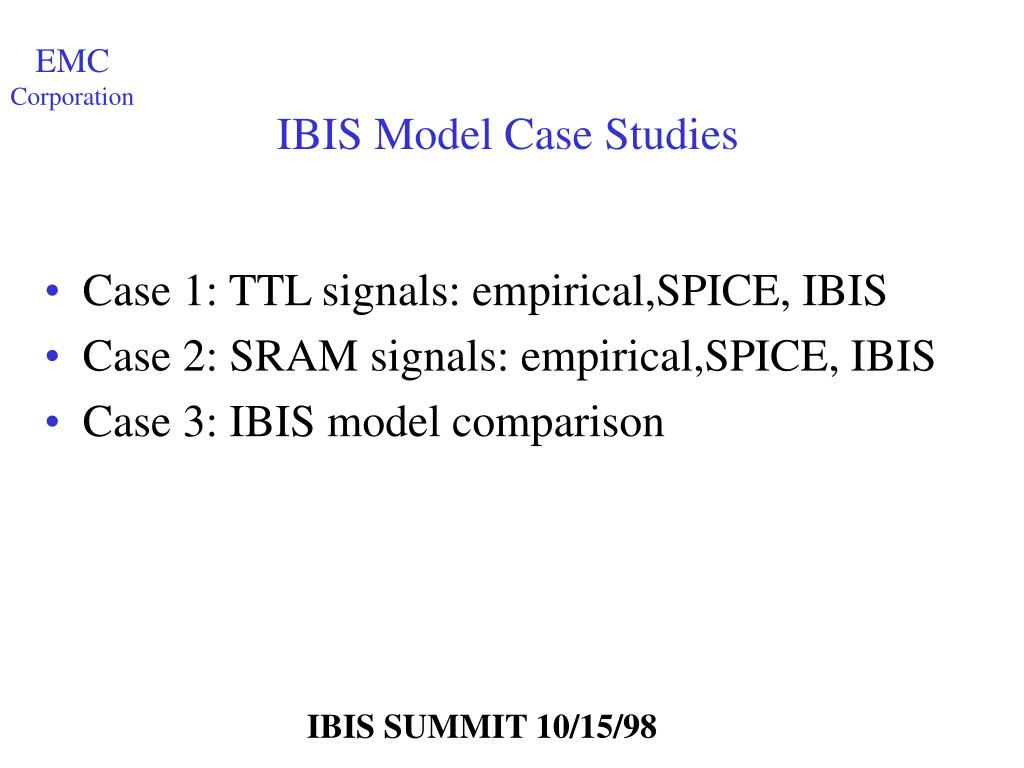

  3. IBIS Model Case Studies • Case 1: TTL signals: empirical,SPICE, IBIS • Case 2: SRAM signals: empirical,SPICE, IBIS • Case 3: IBIS model comparison IBIS SUMMIT 10/15/98

  4. Case 1: Lab measurement IBIS SUMMIT 10/15/98

  5. Case 1: SPICE IBIS SUMMIT 10/15/98

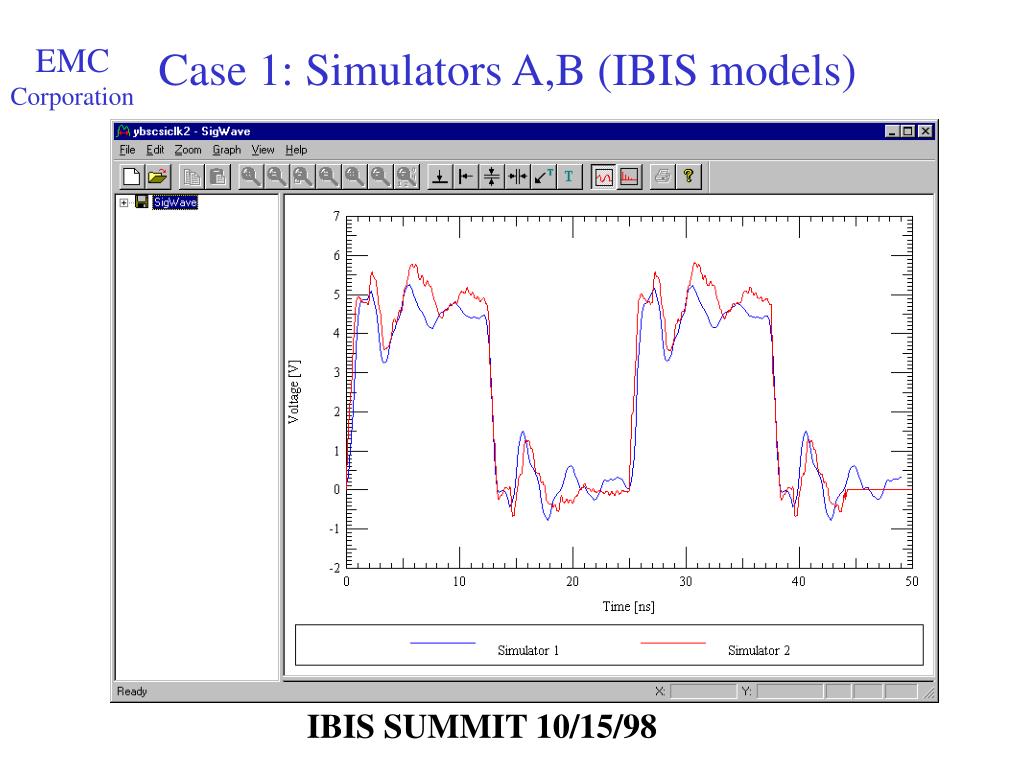

  6. Case 1: Simulators A,B (IBIS models) IBIS SUMMIT 10/15/98

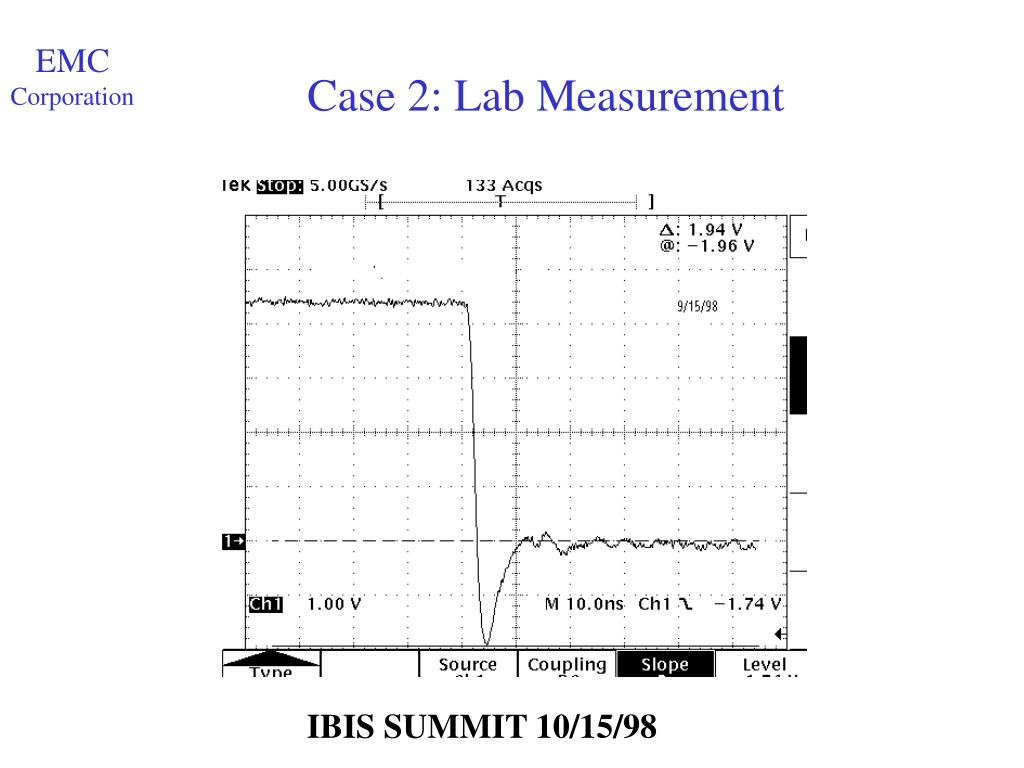

  7. Case 2: Lab Measurement IBIS SUMMIT 10/15/98

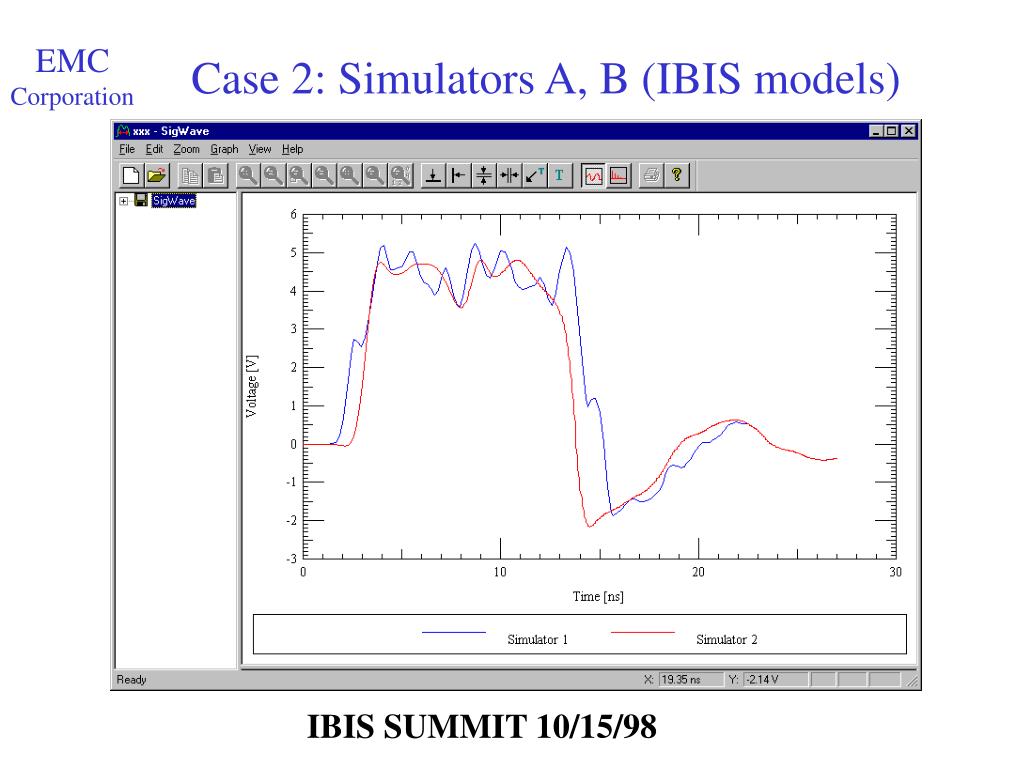

  8. Case 2: Simulators A, B (IBIS models) IBIS SUMMIT 10/15/98

  9. Case 2: SPICE IBIS SUMMIT 10/15/98

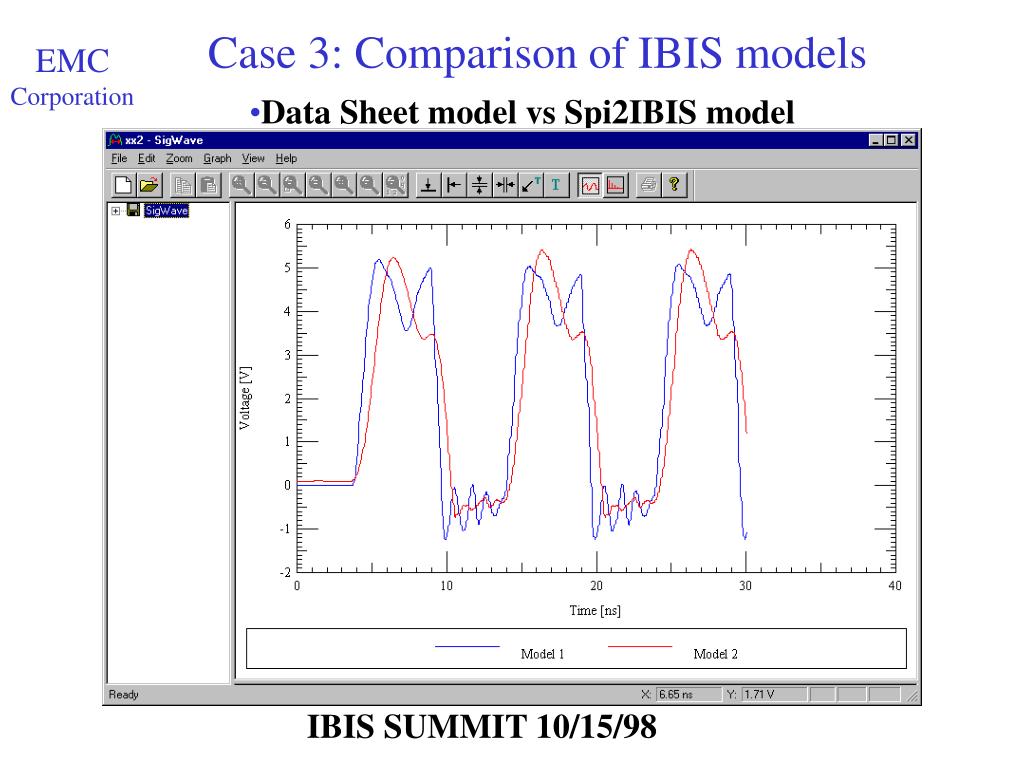

  10. Case 3: Comparison of IBIS models Data Sheet model vs Spi2IBIS model IBIS SUMMIT 10/15/98

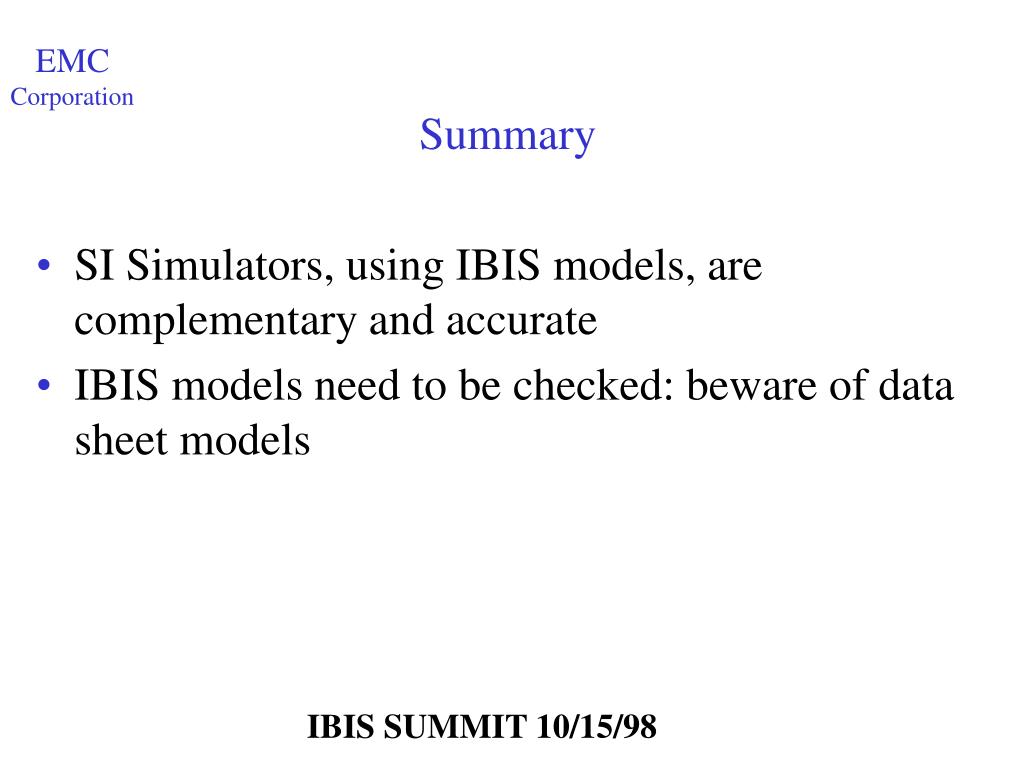

  11. Summary • SI Simulators, using IBIS models, are complementary and accurate • IBIS models need to be checked: beware of data sheet models IBIS SUMMIT 10/15/98
