1. BLUETOOTH TECHNOLOGY/SECURITYPrepared By: Lo’ai HattarSupervised By: Dr. Lo’ai TawalbehNew York Institute of Technology (NYIT)Jordan’s campus-2006

2. What’s With the Name? • The name ‘Bluetooth’ was named after 10th century Viking king in Denmark Harald Bluetooth who united and controlled Denmark and Norway. • The name was adopted because Bluetooth wireless technology is expected to unify the telecommunications and computing industries

3. Who Started Bluetooth? • Bluetooth Special Interest Group (SIG) • Founded in Spring 1998 • By Ericsson, Intel, IBM, Nokia, Toshiba; • Now more than 2000 organizations joint the SIG

4. What Is Bluetooth? ☼ Bluetooth is an open standard for short-range digital radio to interconnect a variety of devices Cell phones, PDA, notebook computers, modems, cordless phones, pagers, laptop computers, printers, cameras by developing a single-chip, low-cost, radio-based wireless network technology

5. Bluetooth • Simplifying communications between: - devices and the internet - data synchronization • Operates in licensed exempt ISM band at 2.4ghz • Uses frequency hoping spread spectrum • Omni directional, no requiring line of sight • Bluetooth offers data speeds of up to 1 Mbps up to 10 meters (Short range wireless radio technology ) • Unlike IrDA, Bluetooth supports a LAN-like mode where multiple devices can interact with each other. • The key limitations of Bluetooth are security and interference with wireless LANs. • Short range wireless radio technology

6. Bluetooth • Bluetooth is a PAN Technology • Offers fast and reliable transmission for both voice and data • Can support either one asynchronous data channel with up to three simultaneous synchronous speech channels or one channel that transfers asynchronous data and synchronous speech simultaneously • Support both packet-switching and circuit-switching

7. Bluetooth • Personal Area Network (PAN) Bluetooth is a standard that will … • Eliminate wires and cables between both stationary and mobile devices • Facilitate both data and voice communications • Offer the possibility of ad hoc networks and deliver synchronicity between personal devices

8. Bluetooth Topology • Bluetooth-enabled devices can automatically locate each other • Topology is established on a temporary and random basis • Up to eight Bluetooth devices may be networked together in a master-slave relationship to form a Piconet

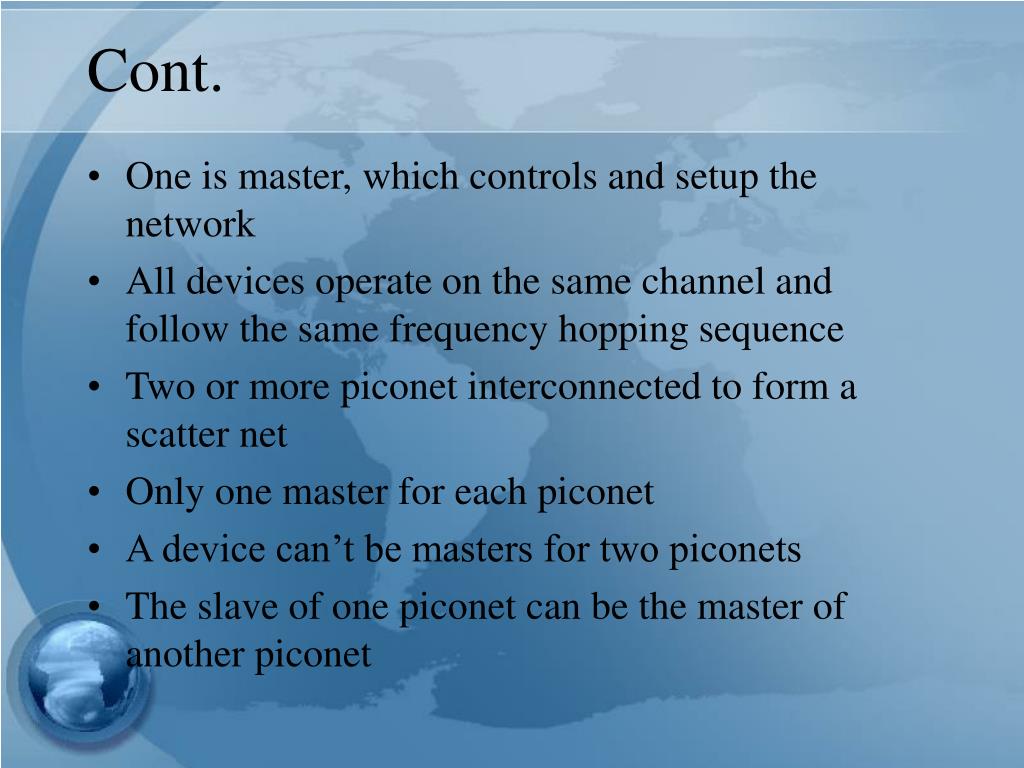

9. Cont. • One is master, which controls and setup the network • All devices operate on the same channel and follow the same frequency hopping sequence • Two or more piconet interconnected to form a scatter net • Only one master for each piconet • A device can’t be masters for two piconets • The slave of one piconet can be the master of another piconet

10. Ad-hoc • is a network connection method which is most often associated with wireless devices. • The connection is established for the duration of one session and requires no base station. • Instead, devices discover others within range to form a network for those computers. • Devices may search for target nodes that are out of range by flooding the network with broadcasts that are forwarded by each node. • Connections are possible over multiple nodes (multihop ad hoc network). • Routing protocols then provide stable connections even if nodes are moving around

11. A piconet • is an ad-hoc computer network of devices using Bluetooth technology protocols to allow one master device to interconnect with up to seven active slave devices • Up to 255 further slave devices can be inactive, or parked, which the master device can bring into active status at any time.

12. A Typical Bluetooth Network Piconet • Master sends its globally unique 48-bit id and clock • Hopping pattern is determined by the 48-bit device ID • Phase is determined by the master’s clock • Why at most 7 slaves? • (because a three-bit MAC adress is used). • Parked and standby nodes • Parked devices can not actively participate in the piconet but are known to the network and can be reactivated within some milliseconds • 8-bit for parked nodes • No id for standby nodes • Standby nodes do not participate in the piconet

14. Security Protocol • There are five phases of Simple Pairing: · Phase 1: Public key exchange · Phase 2: Authentication Stage 1 · Phase 3: Authentication Stage 2 · Phase 4: Link key calculation · Phase 5: LMP Authentication and Encryption • Phases 1, 3, 4 and 5 are the same for all protocols whereas phase 2 (Authentication Stage 1) is different depending on • the protocol used. Distributed through these five phases are 13 steps.

16. Bluetooth Frequency • Has been set aside by the ISM( industrial ,sientific and medical ) for exclusive use of Bluetooth wireless products • Communicates on the 2.45 GHz frequency

17. Frequency Selection • FH is used for interference mitigation and media access; • TDD (Test-Driven Development) is used for separation of the transmission directions In 3-slot or 5-slot packets

18. FH-CDMA (Frequency Hopping - Code Division Multiple Access) • Frequency hopping (FH) is one of two basic modulation techniques used in spread spectrum signal transmission. • It is the repeated switching of frequencies during radio transmission, often to minimize the effectiveness of the unauthorized interception or jamming of telecommunications. • It also is known as frequency- hopping code division multiple access (FH-CDMA). • Bluetooth uses a technique called spread-spectrum frequency hopping.

19. Avoiding Interference : Hopping • In this technique, a device will use 79 individual, randomly chosen frequencies within a designated range • Transmitters change frequency 1600 times a second

20. Cont. • Each channel is divided into time slots 625 microseconds long • Packets can be up to five time slots wide • Data in a packet can be up to 2,745 bits in length

21. Cont. • FH-CDMA to separate piconets within a scatternet • More piconets within a scatter net degrades performance • Possible collision because hopping patterns are not coordinated • At any instant of time, a device can participate only in one piconet • If the device participates as a slave, it just synchronize with the master’s hop sequence

22. Cont. • The master for a piconet can join another piconet as a slave; in this case, all communication within in the former piconet will be suspended . • When leaving a piconet, a slave notifies the master about its absence for certain amount of time. • Communication between different piconets takes place by devices jumping back and forth between these nets

24. Simplified Bluetooth stack

25. Bluetooth Profile Structure

26. How Does It Work? • Bluetooth is a standard for tiny, radio frequency chips that can be plugged into your devices • These chips were designed to take all of the information that your wires normally send, and transmit it at a special frequency to something called a receiver Bluetooth chip. • The information is then transmitted to your device

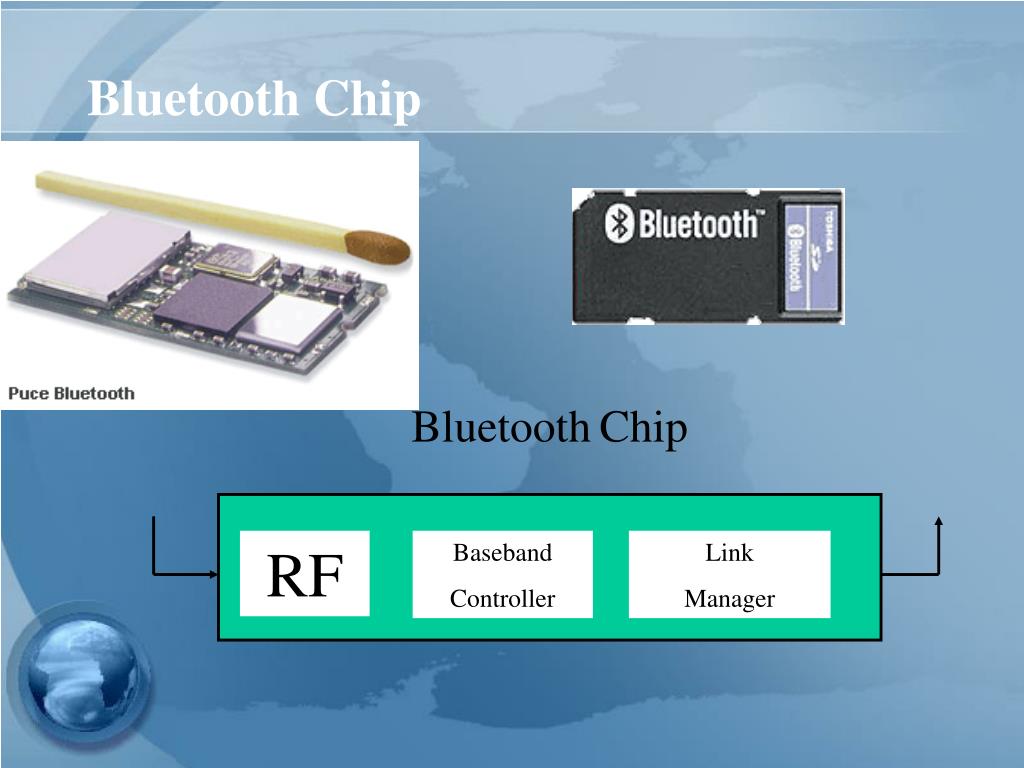

27. BluetoothChip RF Baseband Controller Link Manager Bluetooth Chip

28. SPECIFICATIONS • Bluetooth specifications are divided into two: • Core SpecificationsThis bluetooth specification contains the Bluetooth Radio Specification as well as the Baseband, Link Manager, L2CAP, Service Discovery, RFCOMM and other specifications.

29. SPECIFICATIONS • Application Specifications • These specifications include the following • Profiles Cordless Telephony • Serial Port • Headset • Intercom • Dialup Networking • Fax • File Transfer • Service Discovery Application • Generic Access

30. RADIO POWER CLASSES • The Bluetooth specification allows for three different types of radio powers: • Class 1 = 100mW • Class2 = 2.5mW • Class 3 = 1mW • These power classes allow Bluetooth devices to connect at different ranges • High power radius have longer ranges. The maximum range for a Class 1, 100mW is about 100 meters. There is also a minimum range for a Bluetooth connection. The minimum range is around 10cm.

31. Power Management Benefits • Cable Replacement • Replace the cables for peripheral devices • Ease of file sharing • Panel discussion, conference, etc. • Wireless synchronization • Synchronize personal information contained in the address books and date books between different devices such as PDAs, cell phones, etc. • Bridging of networks • Cell phone connects to the network through dial-up connection while connecting to a laptop with Bluetooth.

32. Bluetooth Devices Bluetooth will soon be enabled in everything from: • Telephones • Headsets • Computers • Cameras • PDAs • Cars • Etc …

33. Bluetooth Products 1 • Bluetooth-enabled PC Card

34. Bluetooth Products 2 • Bluetooth-enabled PDA

35. Bluetooth Products 3 • Bluetooth-enabled Cell Phone

36. Bluetooth Products 4 • Bluetooth-enabled Head Set

37. Usage Models • Cordless computer • Ultimate headset • Three-in-one phone • Interactive conference (file transfer) • Direct network access • Instant postcard

39. Wireless Technologies • There are two technologies that have been developed as wireless cable replacements: Infrared (IRDA) and radio (Bluetooth).

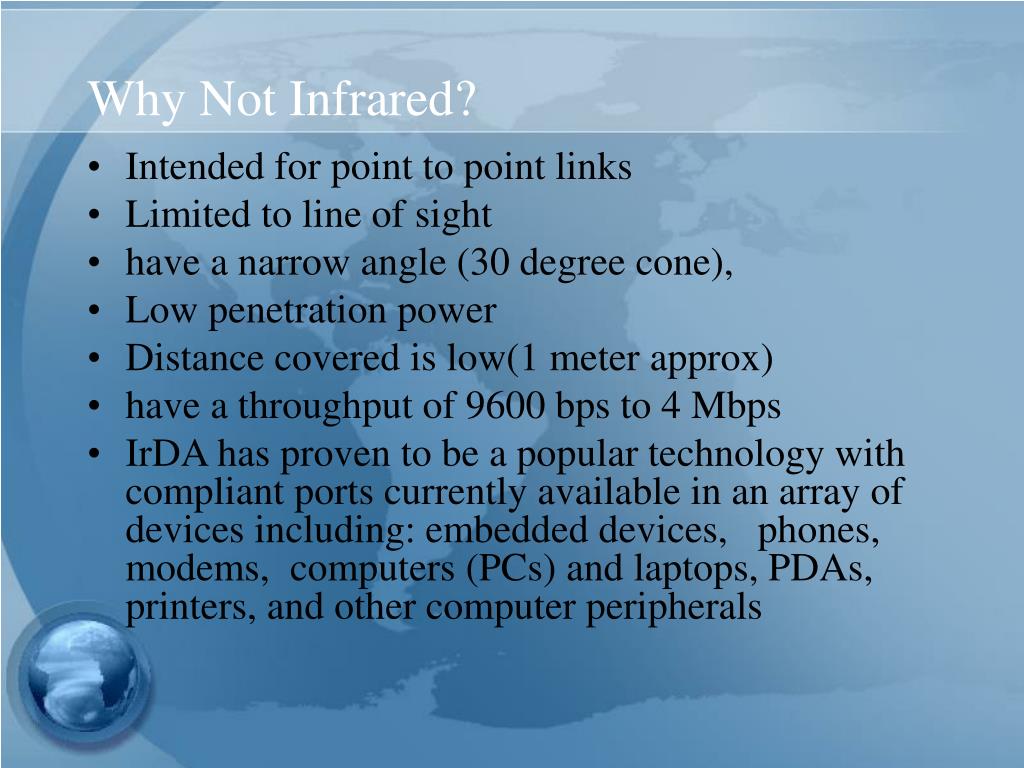

40. Why Not Infrared? • Intended for point to point links • Limited to line of sight • have a narrow angle (30 degree cone), • Low penetration power • Distance covered is low(1 meter approx) • have a throughput of 9600 bps to 4 Mbps • IrDA has proven to be a popular technology with compliant ports currently available in an array of devices including: embedded devices, phones, modems, computers (PCs) and laptops, PDAs, printers, and other computer peripherals

41. Compare Infrared, Bluetooth

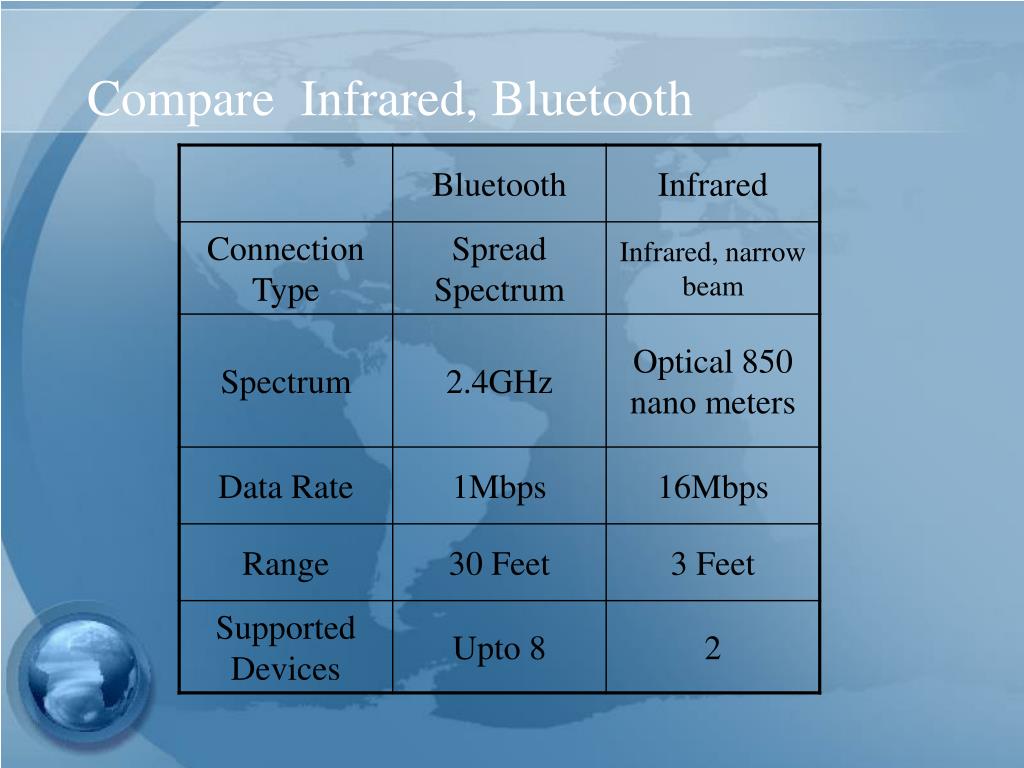

42. Cont…..

43. Our Focus • Bluetooth security

44. Security of Bluetooth • Security in Bluetooth is provided on the radio paths only • Link authentication and encryption may be provided • True end-to-end security relies on higher layer security solutions on top of Bluetooth • Bluetooth provides three security services • Authentication – identity verification of communicating devices • Confidentiality – against information compromise • Authorization – access right of resources/services • Fast FH together with link radio link power control provide protection from eavesdropping and malicious access • Fast FH makes it harder to lock the frequency • Power control forces the adversary to be in relatively close proximity

45. Security Modes (Authentication ) • Exchange Business Cards • Needs a secret key • A security manager controls access to services and to devices • Security mode 2 does not provide any security until a channel has been established • Key Generation from PIN • PIN: 1-16 bytes. PINs are fixed and may be permanently stored. Many users use the four digit 0000

46. Bluetooth Key Generation From PIN • Bluetooth Initialization Procedure (Pairing) • Creation of an initialization key (ki) • Creation of a link key Authentication (ka)

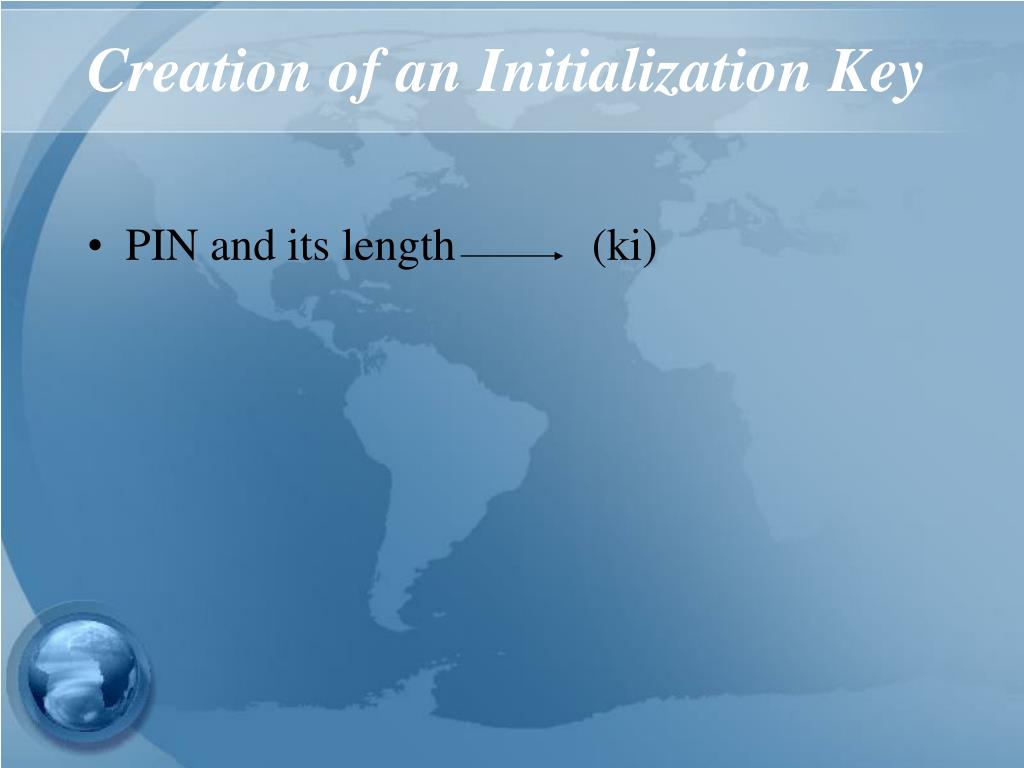

47. Creation of an Initialization Key • PIN and its length (ki)

48. Creation of a link key Authentication • Challenge-Response Based • Claimant: intends to prove its identity, to be verified • Verifier: validating the identity of another device • Use challenge-response to verify whether the claimant knows the secret (link key) or not . If fail, the claimant must wait for an interval to try a new attempt. • The waiting time is increased exponentially to defend the “try-and-error” authentication attack • Mutual authentication is supported • Challenge (128-bit) • Response (32-bit) • 48-bit device address

49. Confidentiality • ACO (Authenticated Cipher Offset) is 96-bit, generated during the authentication procedure • ACO and the link key are never transmitted • Encryption key Kc is generated from the current link key • Kc is 8-bit to 128-bit, negotiable between the master and the slave Master suggests a key size Set the “minimum acceptable” key size parameter to prevent a malicious user from driving the key size down to the minimum of 8 bits • The key stream is different for different packet since slot number is different

50. Three Encryption Modes for Confidentiality • Encryption Mode 1: -- No encryption is performed on any traffic • Encryption Mode 2: -- Broadcast traffic goes unprotected • while uni cast traffic is protected by the unique key • Encryption Mode 3: -- All traffic is encrypted
