  1. EARLY PALEOZOIC LIFE Metazoan Invertebrates Mollusca Cephalopods Chambered Nautilus

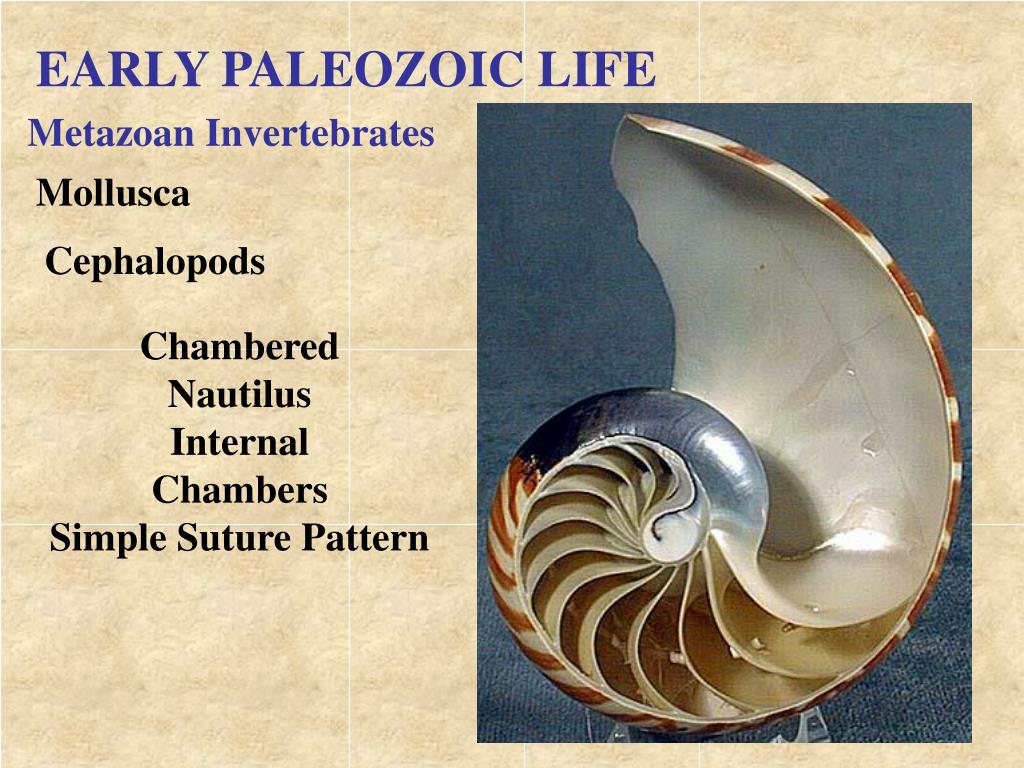

  2. EARLY PALEOZOIC LIFE Metazoan Invertebrates Mollusca Cephalopods Chambered Nautilus Internal Chambers Simple Suture Pattern

  3. EARLY PALEOZOIC LIFE Metazoan Invertebrates Mollusca Cephalopods Ammonoid Cephalopod Complex Suture Pattern

  4. EARLY PALEOZOIC LIFE Metazoan Invertebrates Mollusca The Cephalopod Eye

  5. EARLY PALEOZOIC LIFE Metazoan Invertebrates Mollusca • Gastropods • Shell and viscera twisted 180 above foot ("Torsion") • Shell grows in asymmetrical spiral ("Lateral Coiling") • Radula changes form and function in different lineages • scraping plants • grazing on plants • scavenging animals • hunting animals • Early Cambrian to Recent

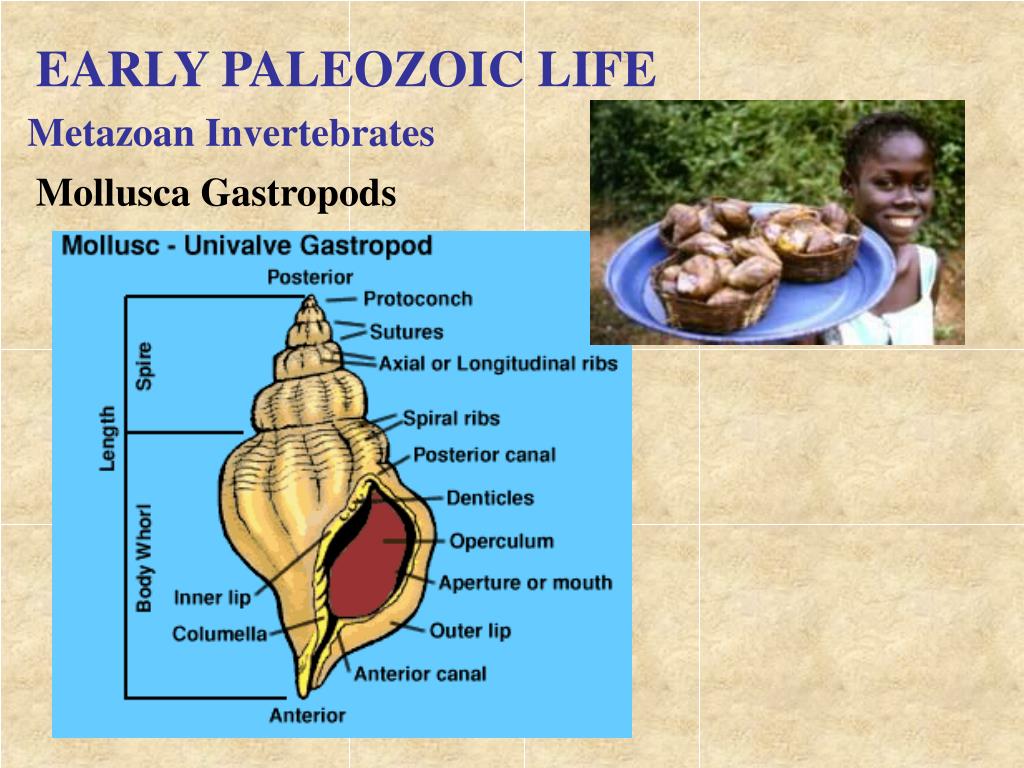

  6. EARLY PALEOZOIC LIFE Metazoan Invertebrates Mollusca Gastropods

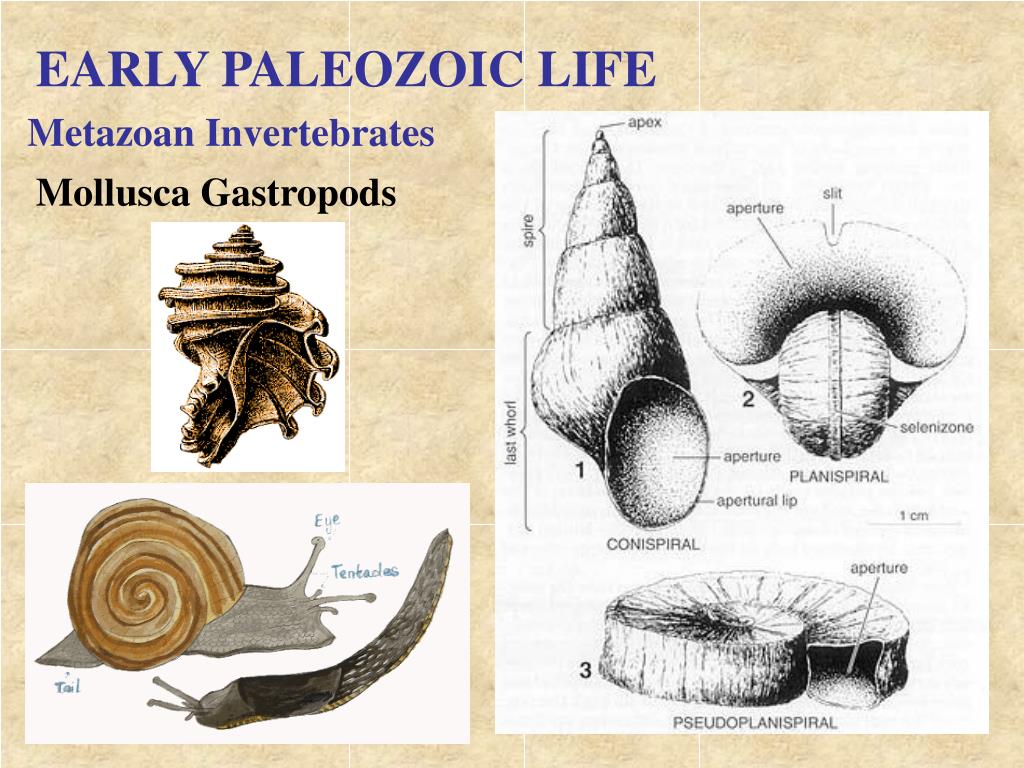

  7. EARLY PALEOZOIC LIFE Metazoan Invertebrates Mollusca Gastropods

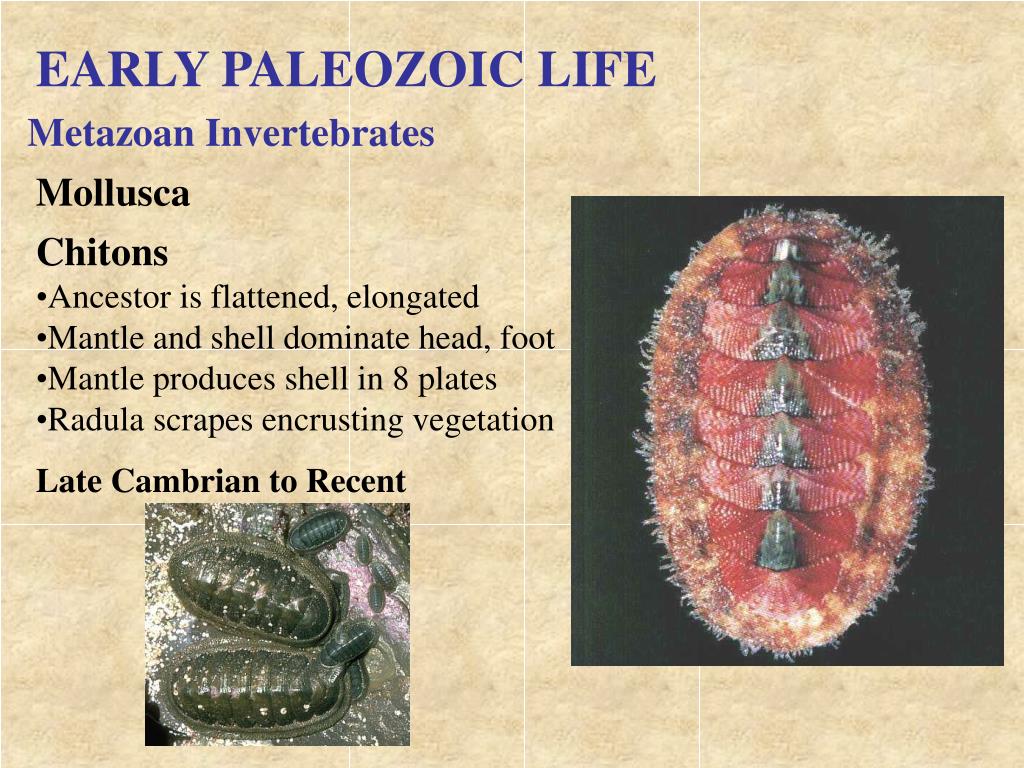

  8. EARLY PALEOZOIC LIFE Metazoan Invertebrates Mollusca • Chitons • Ancestor is flattened, elongated • Mantle and shell dominate head, foot • Mantle produces shell in 8 plates • Radula scrapes encrusting vegetation • Late Cambrian to Recent

  9. EARLY PALEOZOIC LIFE Metazoan Invertebrates Arthropoda Very large phylum Chitinous, external skeleton Segmented body Paired and jointed appendages Highly developed nervous system sensory organs

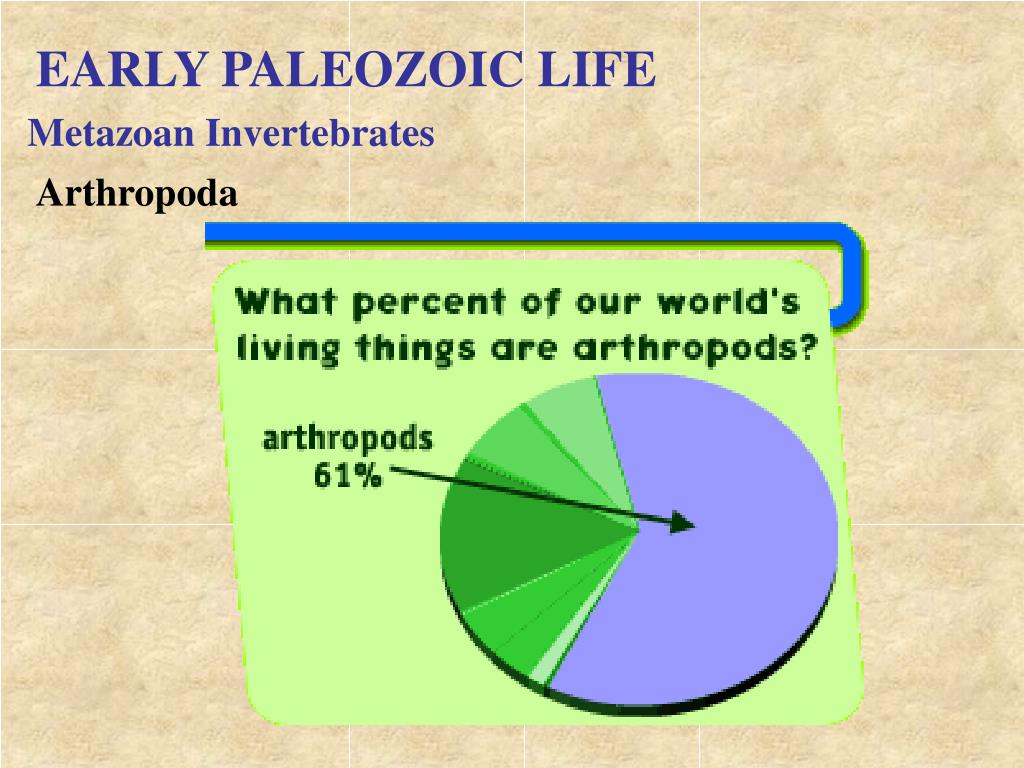

  10. EARLY PALEOZOIC LIFE Metazoan Invertebrates Arthropoda

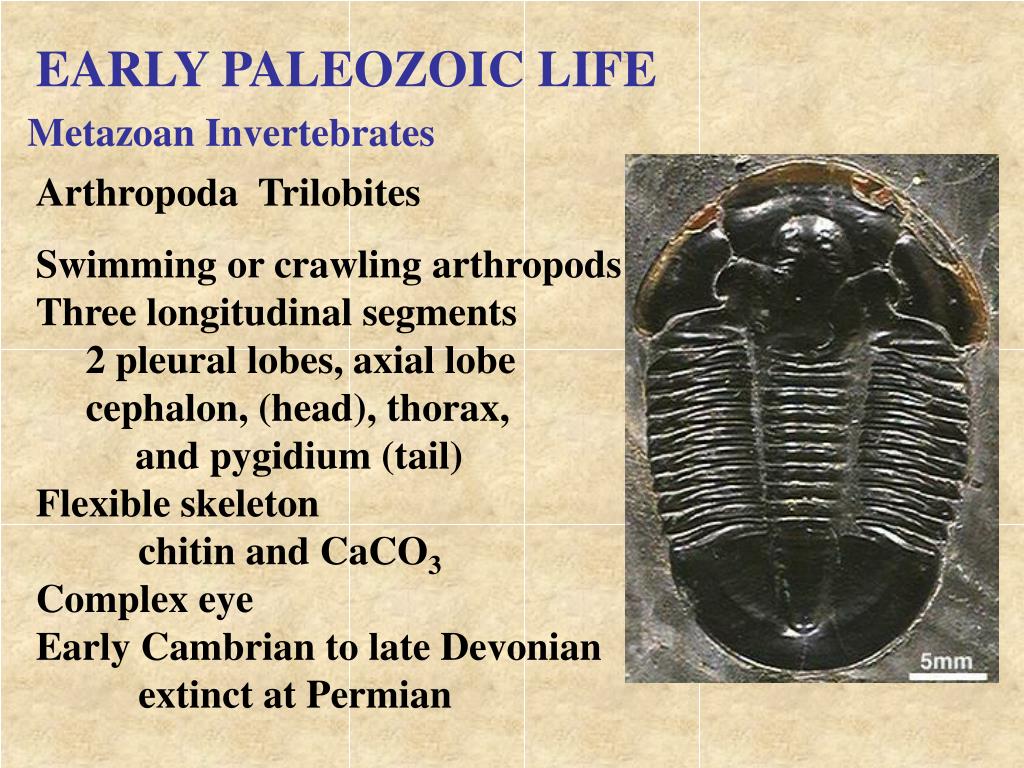

  11. EARLY PALEOZOIC LIFE Metazoan Invertebrates Arthropoda Trilobites Swimming or crawling arthropods Three longitudinal segments 2 pleural lobes, axial lobe cephalon, (head), thorax, and pygidium (tail) Flexible skeleton chitin and CaCO3 Complex eye Early Cambrian to late Devonian extinct at Permian

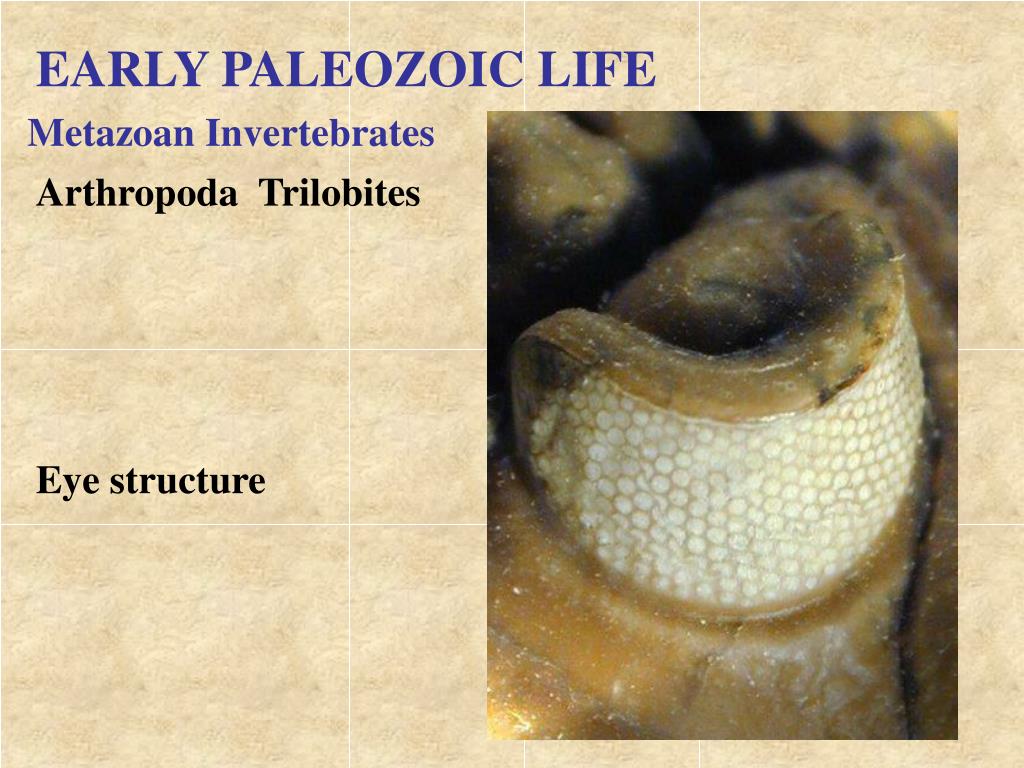

  12. EARLY PALEOZOIC LIFE Metazoan Invertebrates Arthropoda Trilobites Eye structure

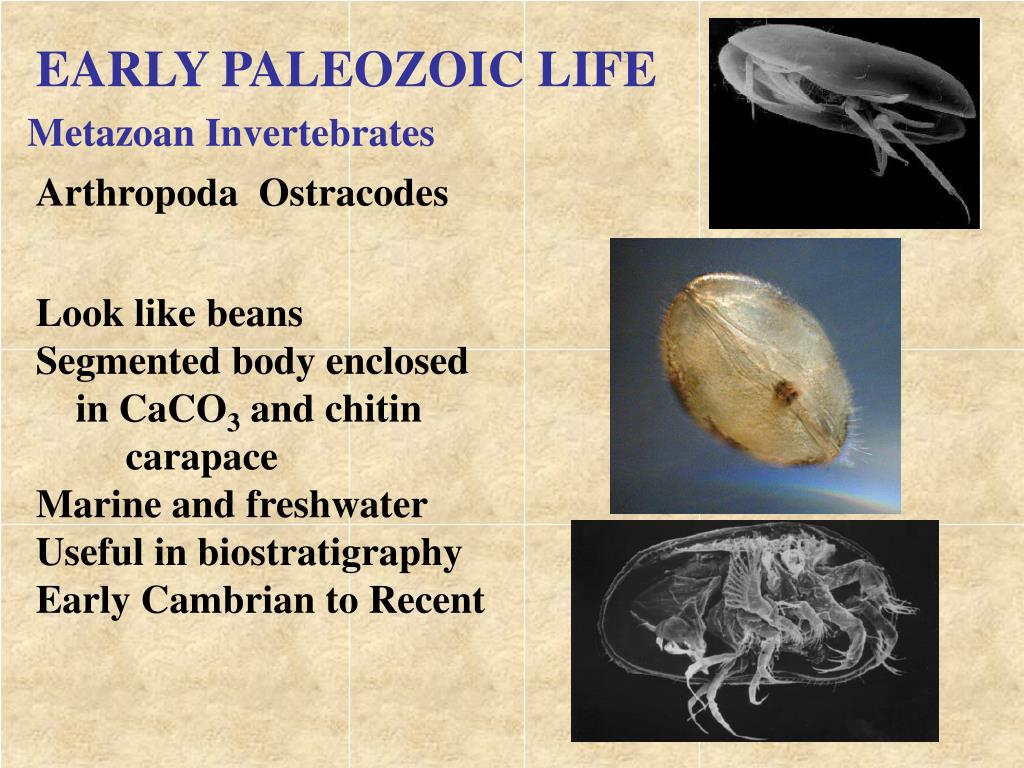

  13. EARLY PALEOZOIC LIFE Metazoan Invertebrates Arthropoda Ostracodes Look like beans Segmented body enclosed in CaCO3 and chitin carapace Marine and freshwater Useful in biostratigraphy Early Cambrian to Recent

  14. EARLY PALEOZOIC LIFE Metazoan Invertebrates Arthropoda Eurypterids Swimming or crawling arthropods Some up to 3 m in length Ordovician to Permian Mostly Silurian and Devonian

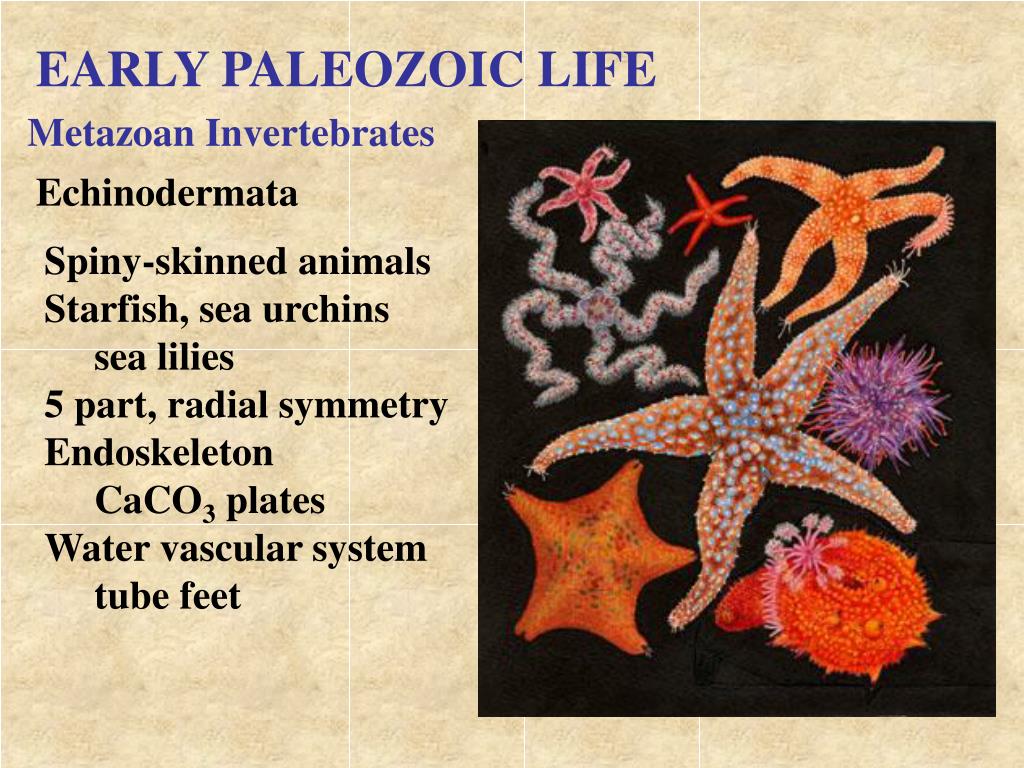

  15. EARLY PALEOZOIC LIFE Metazoan Invertebrates Echinodermata Spiny-skinned animals Starfish, sea urchins sea lilies 5 part, radial symmetry Endoskeleton CaCO3 plates Water vascular system tube feet

  16. EARLY PALEOZOIC LIFE Metazoan Invertebrates Echinodermata

  17. EARLY PALEOZOIC LIFE Metazoan Invertebrates Echinodermata Sessile, benthonic forms common in Paleozoic Vagrant, benthonic forms common in Mesozoic and Cenozoic

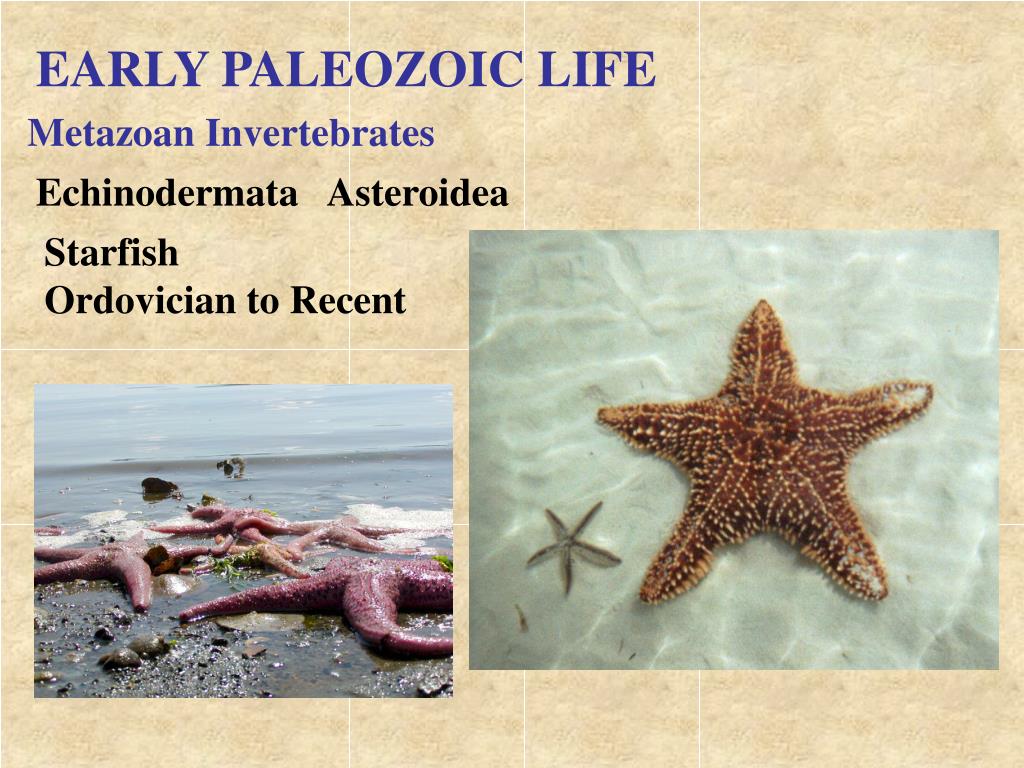

  18. EARLY PALEOZOIC LIFE Metazoan Invertebrates Echinodermata Asteroidea Starfish Ordovician to Recent

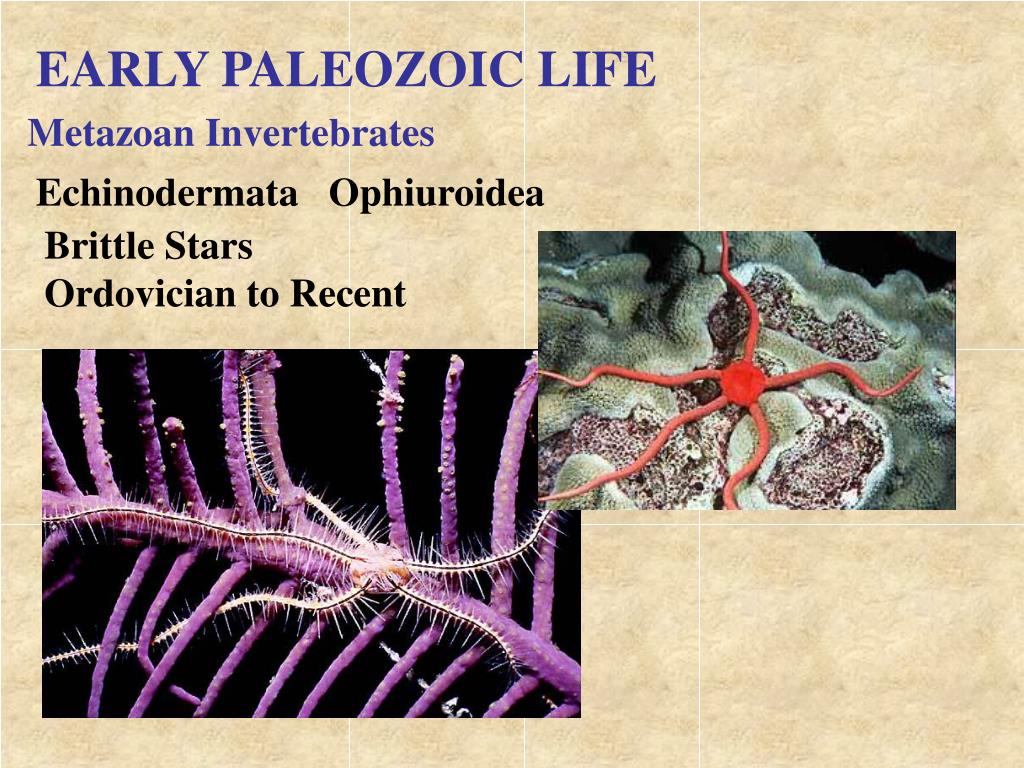

  19. EARLY PALEOZOIC LIFE Metazoan Invertebrates Echinodermata Ophiuroidea Brittle Stars Ordovician to Recent

  20. EARLY PALEOZOIC LIFE Metazoan Invertebrates Echinodermata Echinoidea Sea Urchins Early Cambrian to Recent

  21. EARLY PALEOZOIC LIFE Metazoan Invertebrates Echinodermata Crinoidea Crinoids Middle Cambrian to Recent

  22. EARLY PALEOZOIC LIFE Metazoan Invertebrates Echinodermata Blastoidea Blastoids Early Cambrian to Permian

  23. EARLY PALEOZOIC LIFE Metazoan Invertebrates Graptolithina (Graptolites) Marine Planktonic or epiplanktonic Sessile benthonic Chitin skeleton Cambrian to Mississippian? Good index fossil for Ord-Sil

  24. EARLY PALEOZOIC LIFE Metazoan Invertebrates Graptolithina (Graptolites)

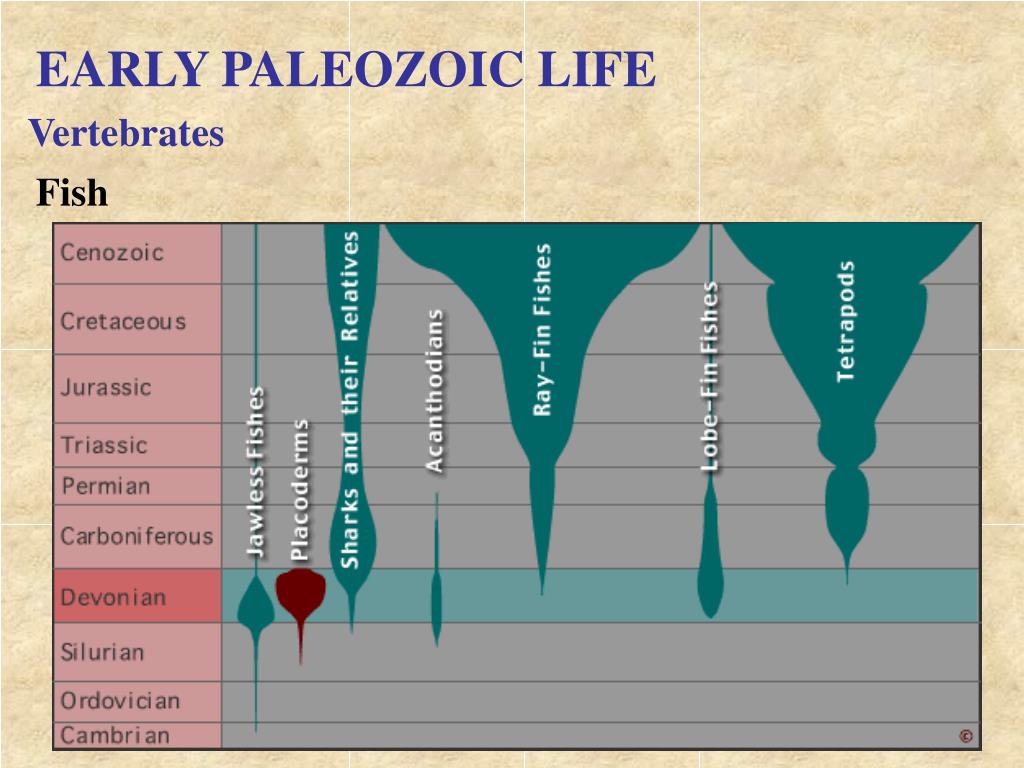

  25. EARLY PALEOZOIC LIFE Vertebrates Fish

  26. EARLY PALEOZOIC LIFE Vertebrates Cambrian to Recent Fish Agnatha (Agnathids) Jawless fish

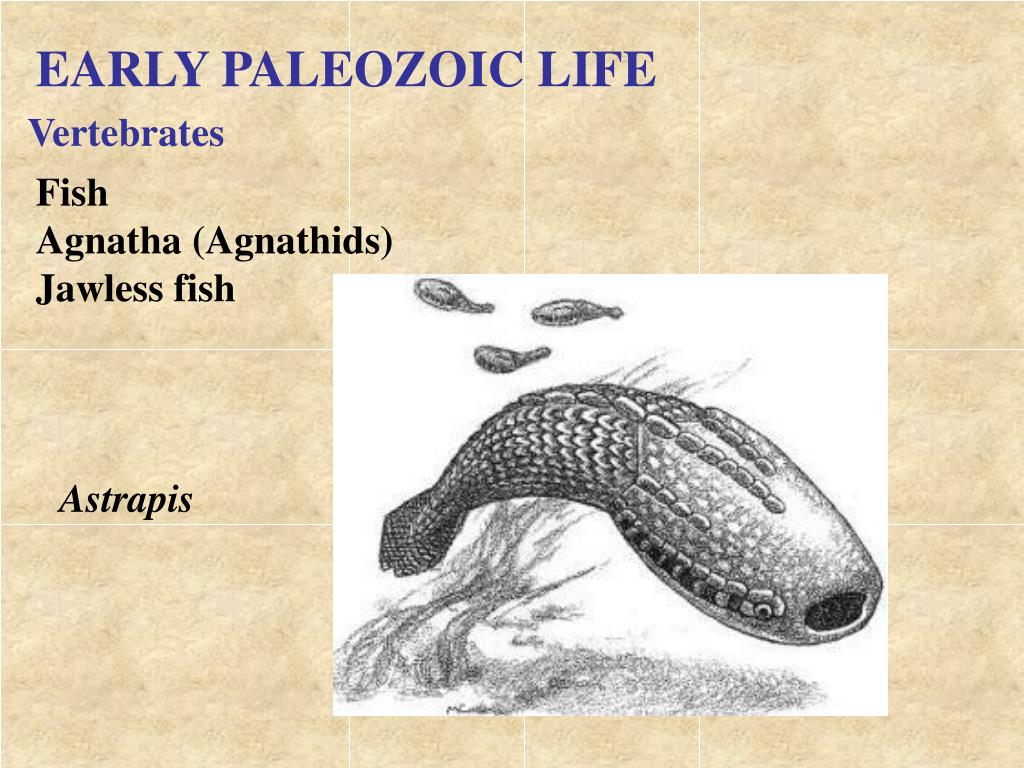

  27. EARLY PALEOZOIC LIFE Vertebrates Fish Agnatha (Agnathids) Jawless fish Astrapis

  28. EARLY PALEOZOIC LIFE Vertebrates Fish Acanthodii (Acanthodians) Early jawed fish Late Silurian to Permian

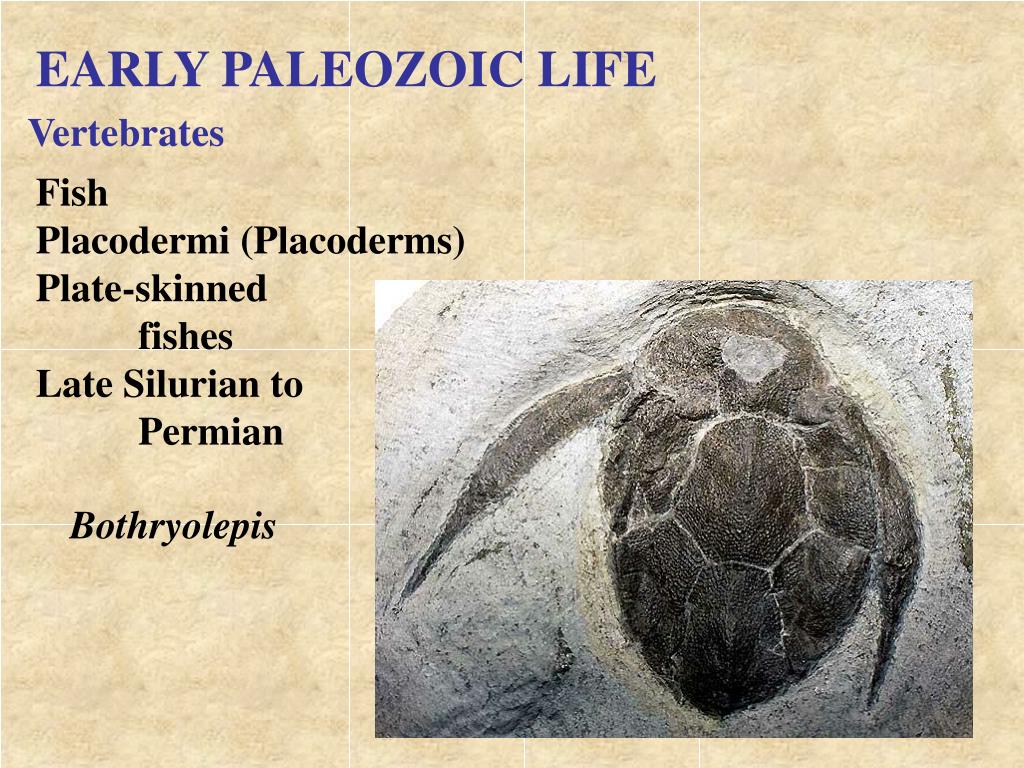

  29. EARLY PALEOZOIC LIFE Vertebrates Fish Placodermi (Placoderms) Plate-skinned fishes Late Silurian to Permian Bothryolepis

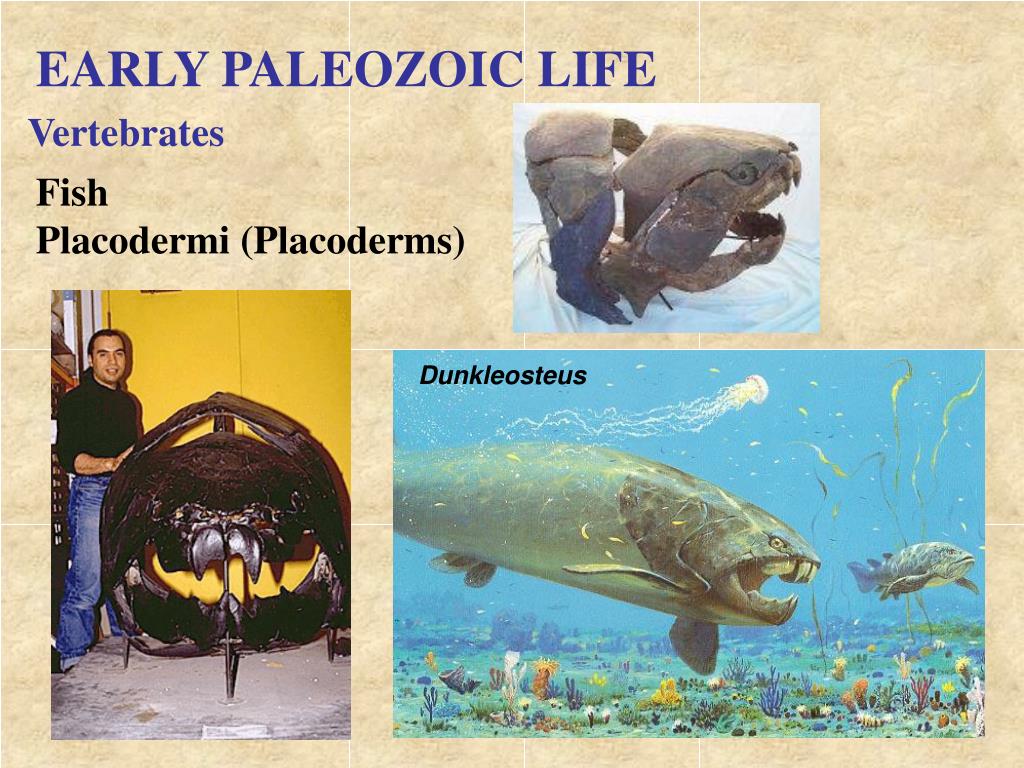

  30. EARLY PALEOZOIC LIFE Vertebrates Fish Placodermi (Placoderms) Dunkleosteus

  31. EARLY PALEOZOIC LIFE Vertebrates Conodonts Chordate Resemble teeth Proterozoic to Triassic Calcium phosphate

  32. EARLY PALEOZOIC LIFE Vertebrates Conodonts

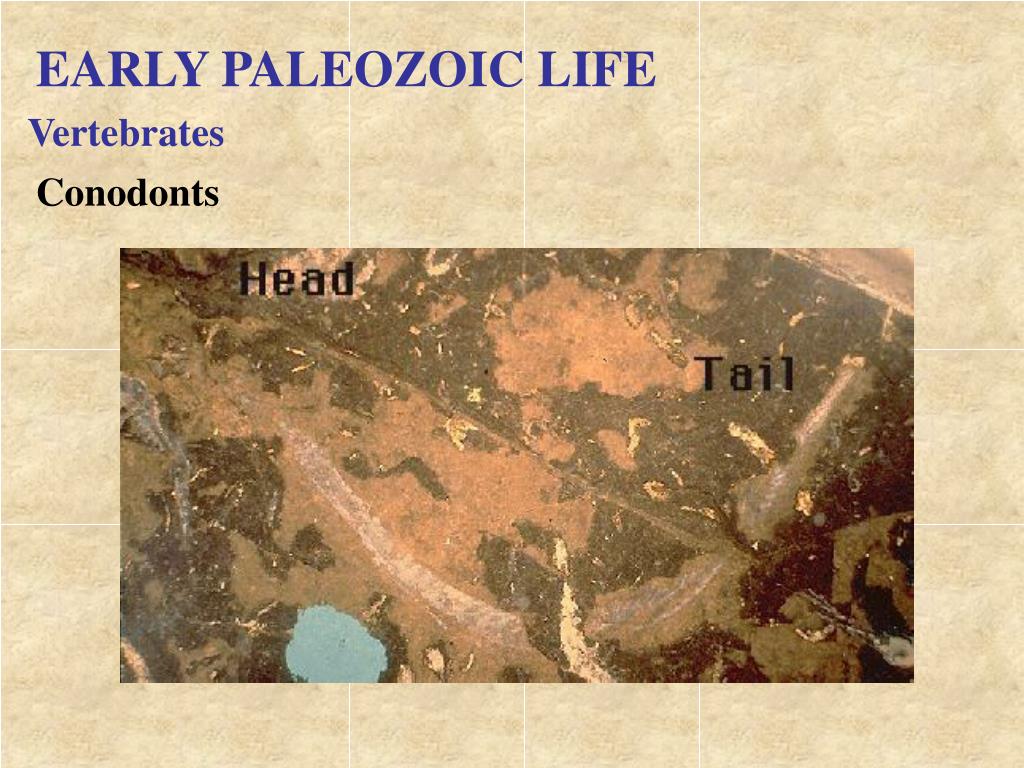

  33. EARLY PALEOZOIC LIFE Vertebrates Conodonts
