  1. Open, Scalable Real-Time Solutions RT-LAB Wanda 3 17 inches43.2 cm HIL, Rapid Control Prototyping and FPGA Development System System 5.25 inches13.3 cm 14 inches35.5 cm • Pentium Core Solo or Duo 1.6 to 2 GHz or • Single or dual-core Pentium support in hard real-time • up to 5 VIRTEX II Pro FPGA board • RT-LAB, SIMULINK, RTW, XILINX SG compatible • QNX or REDHAWKS LINUX for hard real-time • Model loop time as low as 10 us (100 kHz update rate) • Compact and robust case 17’’ x 14’’ x 3U • IO sections for four OPXI IO format available on the back of chassis • Up to 128 fast DIO and 16-bit AD and DA channels • Integrated signal conditioning up to 16 V, 5 mA Powerful, Reconfigurable Compactandmodular designFor desktopor on-the-road

  2. MX Station 3, Overview Key Features • Intel Core 2 Duo processorwith up to 5 VIRTEX II Pro FPGA • RT-LAB, SIMULINK, RTW, XILINX SG compatible • Compact and robust case 17’’ x 14’’ x 3U Computer Section • Pentium M, Mini-ITX, 2Ghz or Pentium 4 Hyperhread Dual-core support. 1 slot PCI OR SBC Half-size, 2 slot PCI OR A second IO section increasing the number of IO slot has eight. • One OP5110 XILINX FPGA board for IO management • QNX or REDHAWK LINUX PSIX RTOS IO Section • Capacity of four IO carriers to create many IO configurations using 16-channel high-speed IO modules: • Up to 128ch of Opto-isolated DIO • Up to 128ch of DAC(5ma) or ADC • 16-ch. A/D modules,16-bit 2-us total sampling time • 16-ch. D/A modules, 16-bit, 1us update time. • Optional additional OP5130 FPGA boards for fast model execution and control prototyping. • Auto Switching Isolated power supply for IO. Allow individual +-18V for each slot. Front View Rear View IO Section Computer Section

  3. MX Station 3, PC Section The PC section can accommodate many configuration 2 • 120W Power supply 120/240V ATX PS for 12V input available 2) FAN and removable filter for cooling • Pentium M, Mini-ITX, 2Ghz or Core 2 Duo • Half-Size Single Board Computer 1 3 Mini-ITX format, One PCI slot 2 1 4 Half-Size SBC format, Two PCI slot

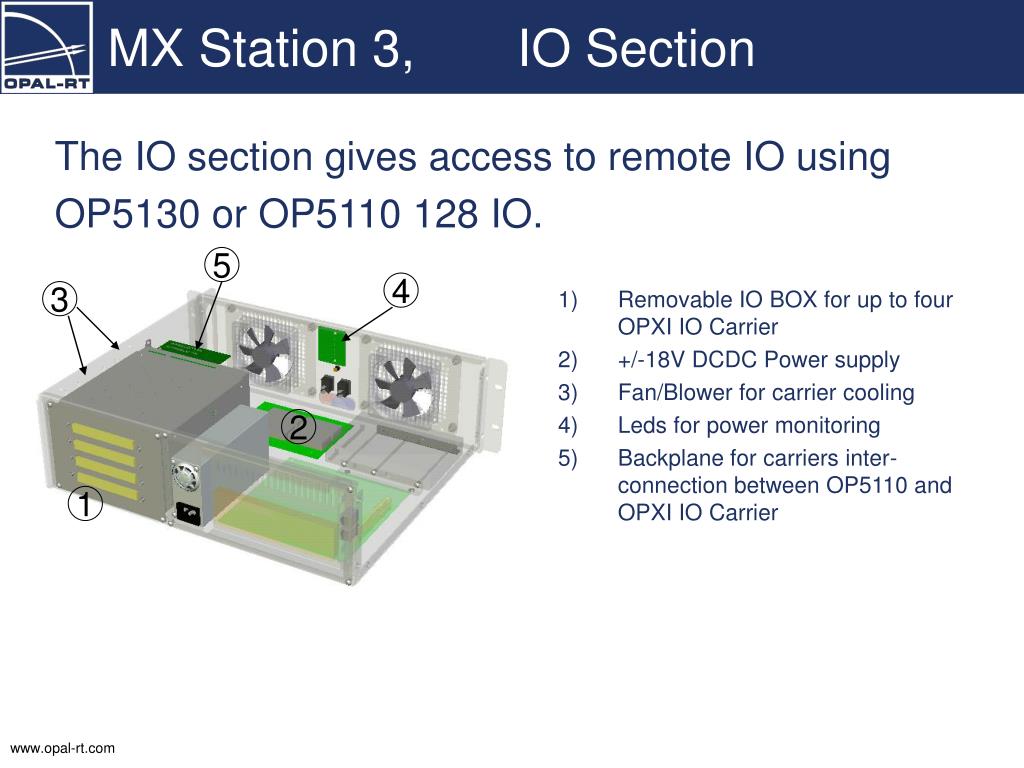

  4. MX Station 3, IO Section The IO section gives access to remote IO using OP5130 or OP5110 128 IO. 5 • Removable IO BOX for up to four OPXI IO Carrier • +/-18V DCDC Power supply • Fan/Blower for carrier cooling • Leds for power monitoring • Backplane for carriers inter-connection between OP5110 and OPXI IO Carrier 4 3 2 1

  5. MX Station 3, IO Section The IO section can also be used has a remote IO Box without any computer • Signal wire input. Optical option also available 2) Free section for custom conditioning. Can be used as a mapping box. 3) Blank removable plate for specific cut-out connectors 1 8 OPXI remote I/O 2 1 3 4 OPXI remote I/O
