1 / 15

Status of front-end electronics for the OPERA Target Tracker

O scillation P roject with E mulsion-t R acking A pparatus. Status of front-end electronics for the OPERA Target Tracker. LAL Orsay S.BONDIL, J. BOUCROT, J.E.CAMPAGNE, A.CAZES, C. de LA TAILLE, A. LUCOTTE, G. MARTIN-CHASSARD, L. RAUX, J.P. REPELLIN BERN University K.BORER, M.HESS. Contents.

amora
Télécharger la présentation

Status of front-end electronics for the OPERA Target Tracker

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. OscillationProject withEmulsion-tRackingApparatus Status offront-end electronics for the OPERA Target Tracker LAL Orsay S.BONDIL, J. BOUCROT, J.E.CAMPAGNE, A.CAZES, C. de LA TAILLE, A. LUCOTTE, G. MARTIN-CHASSARD, L. RAUX, J.P. REPELLIN BERN University K.BORER, M.HESS OPERA Collaboration Meeting - Gran Sasso

  2. Contents • Version 2 chip prototype (Reminder) • Chip characteristics • Measurements (made in collaboration with Bern) • Version 3 chip prototype – OPERA-ROC (ReadOut Chip) • Chip characteristics • Measurements (made in collaboration with Bern) • Conclusion and perspectives • Comparison: Version 2 vs version 3 • Production schedule • Production cost OPERA Collaboration Meeting - Gran Sasso

  3. Version 2 prototype front-end chip – Submitted in September 2002 – Received in March 2003 – Validated in April 2003 • 32 inputs (Ch1-Ch32), trigger output + 1 multiplexed charge output • Variable gain preamplifier : range 1-3, resolution = 4 bits (1, 0.5, 0.25, 0.125) • Fast shaper (tp = 20 ns, G ~ 20) for auto-trigger (1/3 pe) • Slow shaper (tp = 100 ns, G ~ 1) for charge measurement • On chip track & hold and output multiplexer • Technology: AMS 0.8 m BiCMOS • Chip area : 10 mm2 • Package : QFP100 • Power consumption : 250 mW OPERA Collaboration Meeting - Gran Sasso

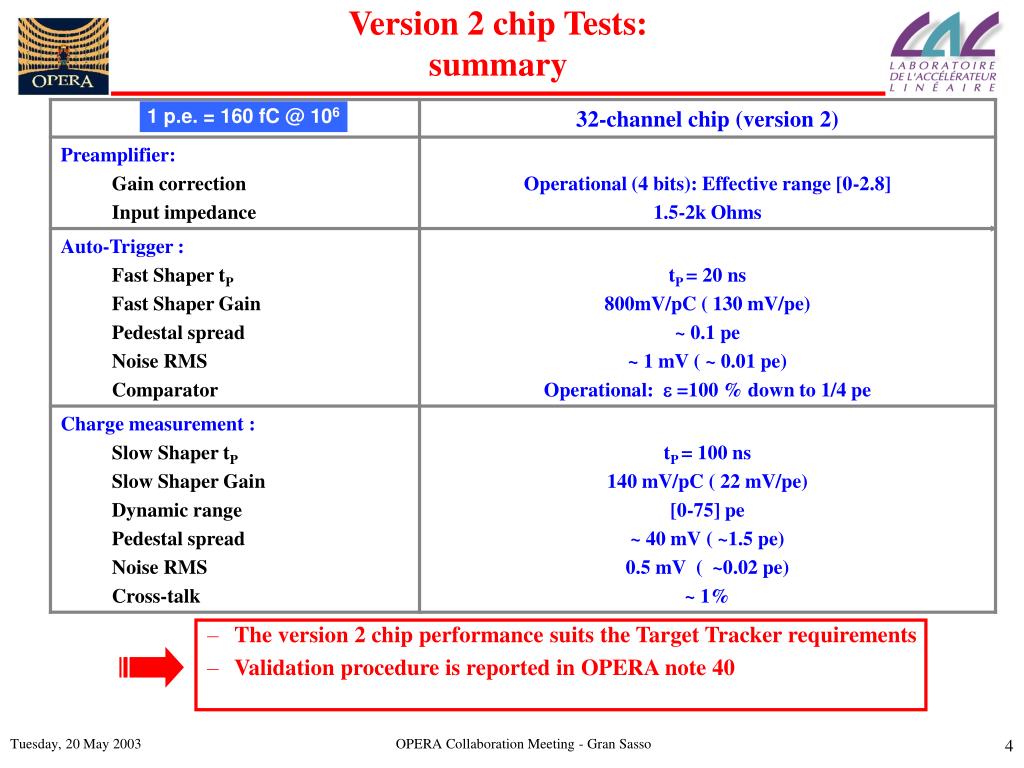

  4. Version 2 chip Tests: summary 1 p.e. = 160 fC @ 106 • The version 2 chip performance suits the Target Tracker requirements • Validation procedure is reported in OPERA note 40 OPERA Collaboration Meeting - Gran Sasso

  5. Version 3 chip (Reminder) – Submitted in November 2002 – Received in March 2003 – Validated in May 2003 • Version 3 chip – OPERA ROC(ReadOut Chip) • Significant improvements • Reduced cross-talk (decreased preamplifier input impedance) • Reduced pedestal spread in charge measurement and autotrigger • Main new features included: (tested in a previous test chip: « meccano chip ») • New preamplifier architecture with low input impedance and increased gain correction range (on 6 bits) : from 0 to ~ 4 • New Fast Shaper structure (differential configuration amplifier) : low offset • New Slow Shaper structure (Sallen-Key structure and differential configuration amplifier):low offset • Improved Track & Hold based on Widlar structure • Register to identify the triggered channel • Technology: AMS BiCMOS 0.8 m • Chip area : 10 mm2 • Package : QFP100 • Power consumption : 185 mW OPERA Collaboration Meeting - Gran Sasso

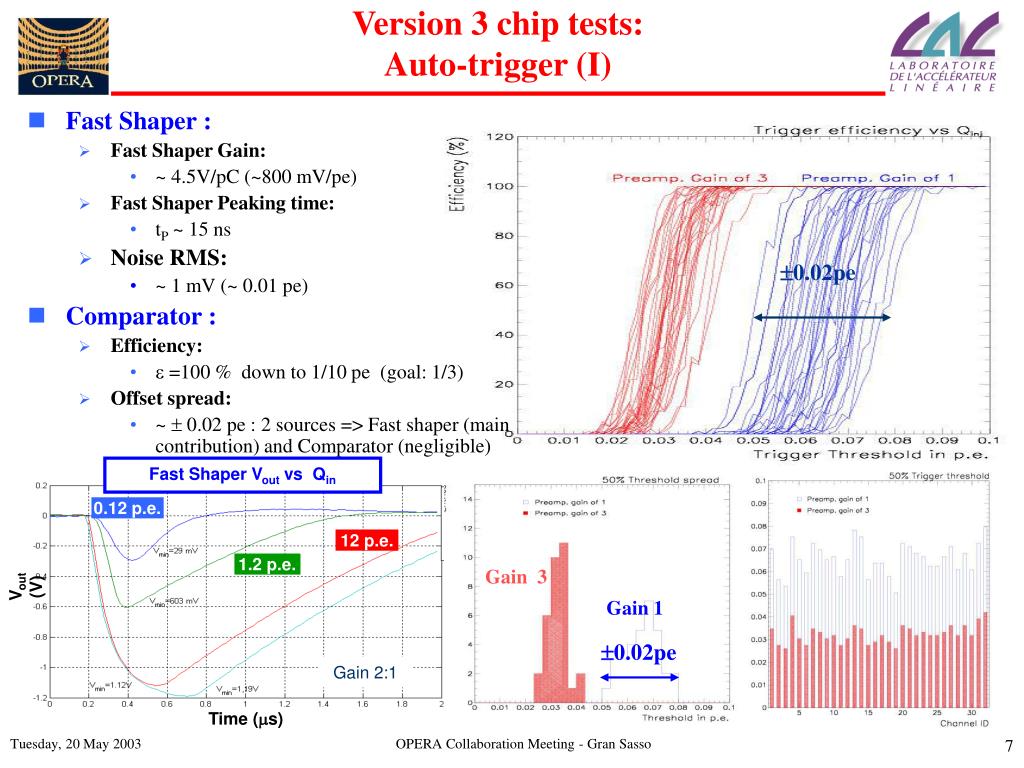

  6. Version 3 chip tests: Auto-trigger (I) Fast Shaper Vout vs Qin 0.12 p.e. 12 p.e. 1.2 p.e. Vout (V) Gain 2:1 Time (ms) • Fast Shaper : • Fast Shaper Gain: • ~ 4.5V/pC (~800 mV/pe) • Fast Shaper Peaking time: • tP ~ 15 ns • Noise RMS: • ~ 1 mV (~ 0.01 pe) • Comparator : • Efficiency: •  =100 % down to 1/10 pe (goal: 1/3) • Offset spread: • ~  0.02 pe : 2 sources => Fast shaper (main contribution) and Comparator (negligible) 0.02pe Gain 3 Gain 1 0.02pe OPERA Collaboration Meeting - Gran Sasso

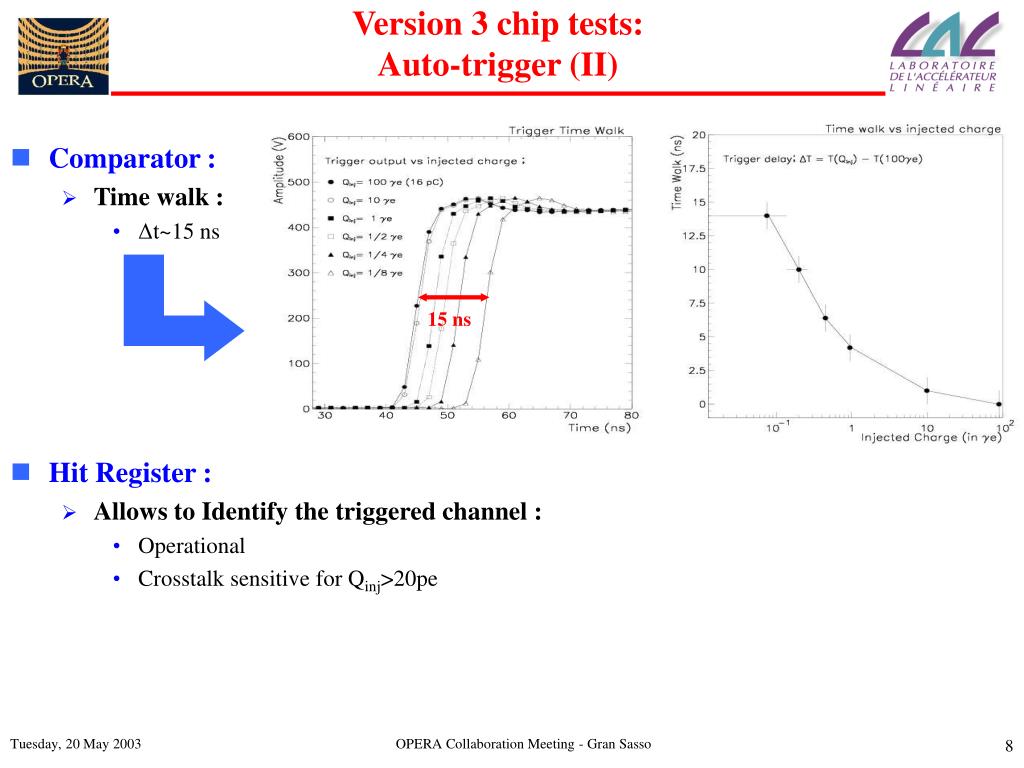

  7. Version 3 chip tests: Auto-trigger (II) • Comparator : • Time walk : • Δt~15 ns 15 ns • Hit Register : • Allows to Identify the triggered channel : • Operational • Crosstalk sensitive for Qinj>20pe OPERA Collaboration Meeting - Gran Sasso

  8. Version 3 chip tests: Charge measurement (I) Slow Shaper Vout vs Qin Time (s) • Measured Performance: • Dynamic Range: • Linearity: < 1% [0-20] pC  [0-125] pe • Slow shaper Gain (G=1): • ~125 mV/pC (20 mV/pe) • Slow shaper peaking time: • tp~160 ns Dynamic range [0-75] pe Dynamic range [0-125] pe Version 2 Version 3 OPERA Collaboration Meeting - Gran Sasso

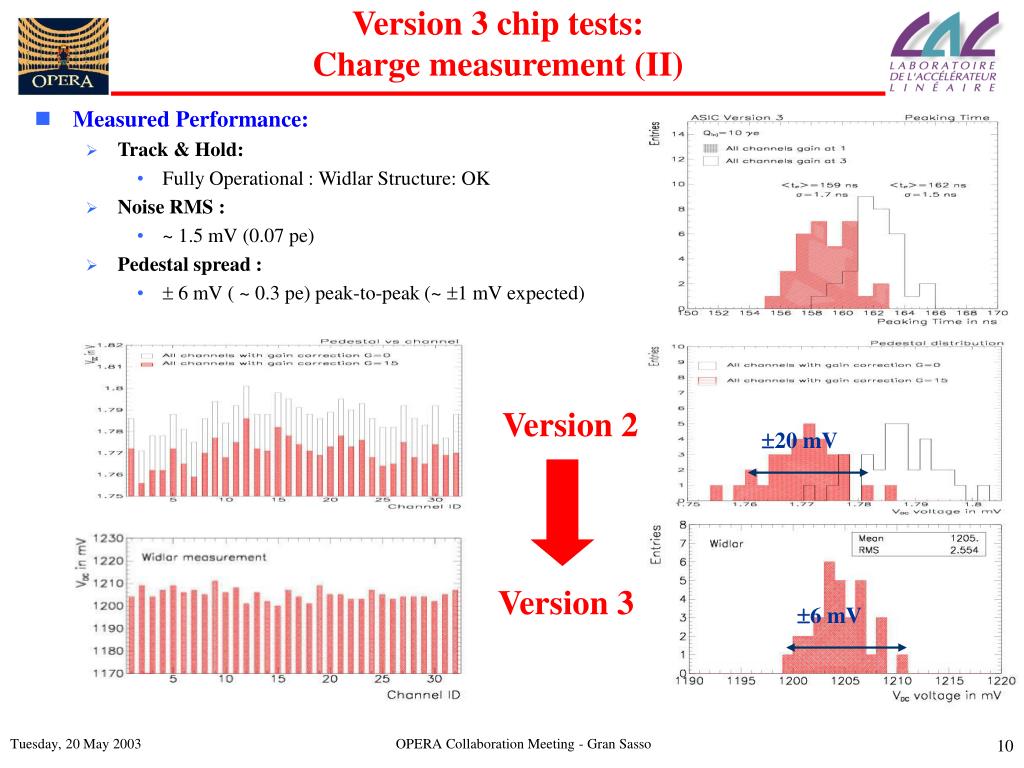

  9. Version 3 chip tests: Charge measurement (II) • Measured Performance: • Track & Hold: • Fully Operational : Widlar Structure: OK • Noise RMS: • ~ 1.5 mV (0.07 pe) • Pedestal spread : •  6 mV ( ~ 0.3 pe) peak-to-peak (~ 1 mV expected) Version 2 20 mV Version 3 6 mV OPERA Collaboration Meeting - Gran Sasso

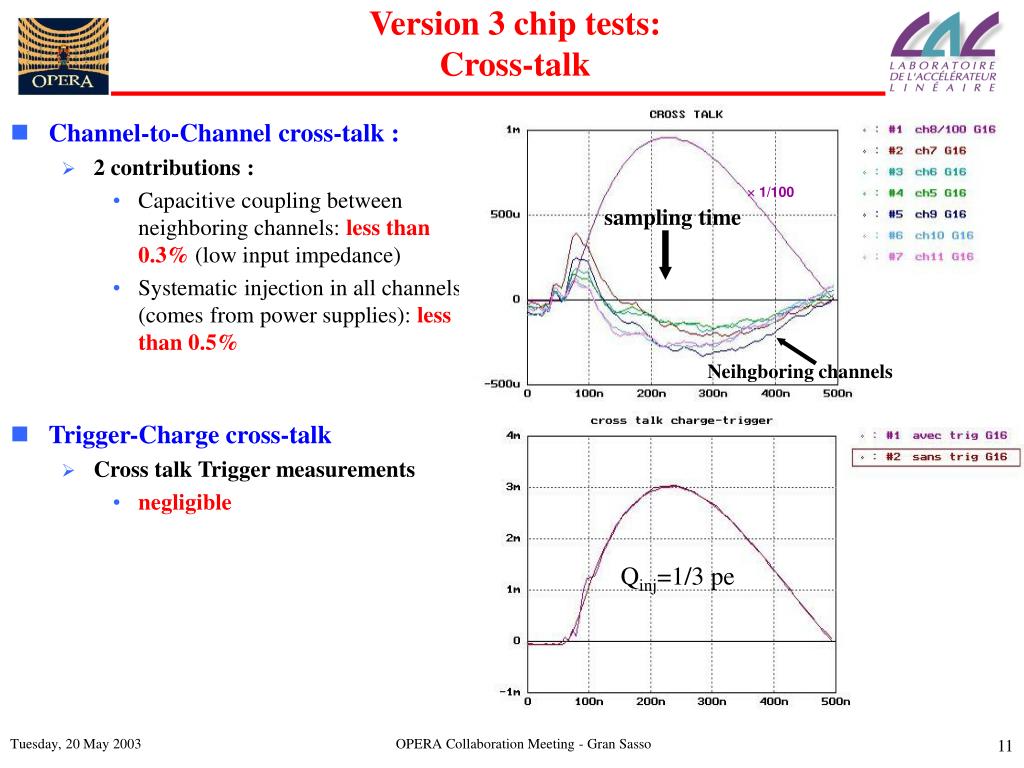

  10. Version 3 chip tests: Cross-talk • Channel-to-Channel cross-talk : • 2 contributions : • Capacitive coupling between neighboring channels: less than 0.3% (low input impedance) • Systematic injection in all channels (comes from power supplies): less than 0.5% • Trigger-Charge cross-talk • Cross talk Trigger measurements • negligible  1/100 sampling time Neihgboring channels Qinj=1/3 pe OPERA Collaboration Meeting - Gran Sasso

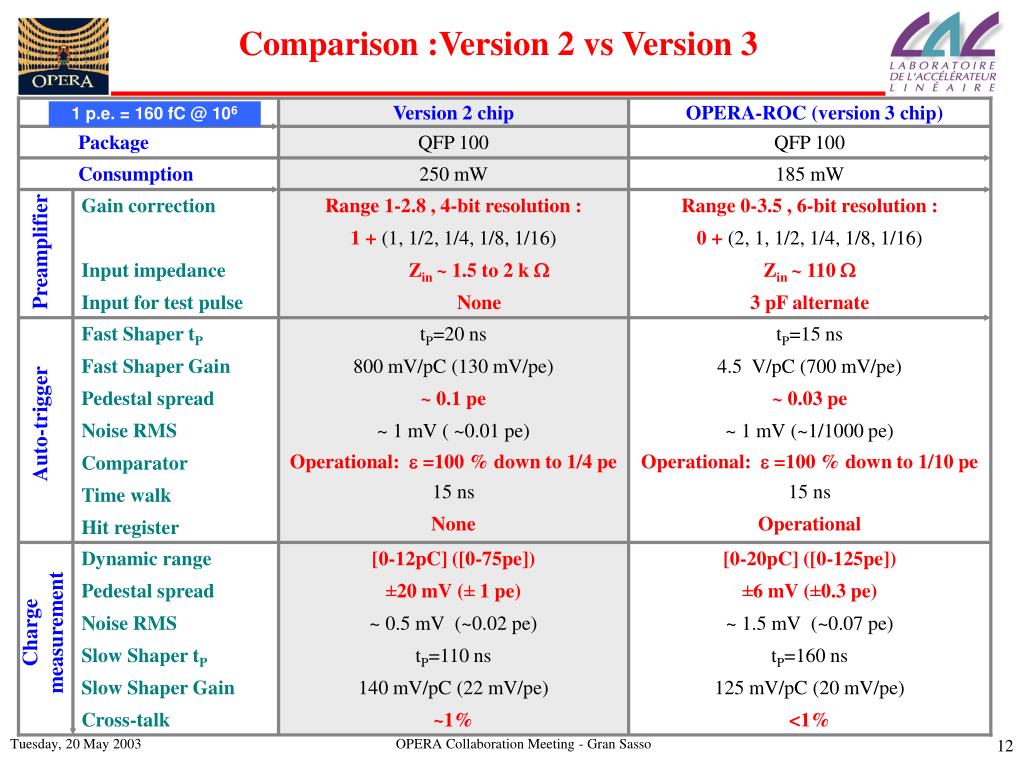

  11. Comparison :Version 2 vs Version 3 Version 2 chip OPERA-ROC (version 3 chip) 1 p.e. = 160 fC @ 106 Package QFP 100 QFP 100 Consumption 250 mW 185 mW Preamplifier Gain correction Input impedance Input for test pulse Range 1-2.8 , 4-bit resolution : 1 + (1, 1/2, 1/4, 1/8, 1/16) Zin ~ 1.5 to 2 k  None Range 0-3.5 , 6-bit resolution : 0 + (2, 1, 1/2, 1/4, 1/8, 1/16) Zin ~ 110  3 pF alternate Fast Shaper tP Fast Shaper Gain Pedestal spread Noise RMS Comparator Time walk Hit register tP=20 ns 800 mV/pC (130 mV/pe) ~ 0.1 pe ~ 1 mV ( ~0.01 pe) Operational:  =100 % down to 1/4 pe 15 ns None tP=15 ns 4.5 V/pC (700 mV/pe) ~ 0.03 pe ~ 1 mV (~1/1000 pe) Operational:  =100 % down to 1/10 pe 15 ns Operational Auto-trigger Dynamic range Pedestal spread Noise RMS Slow Shaper tP Slow Shaper Gain Cross-talk [0-12pC] ([0-75pe]) ±20 mV (± 1 pe) ~ 0.5 mV (~0.02 pe) tP=110 ns 140 mV/pC (22 mV/pe) ~1% [0-20pC] ([0-125pe]) ±6 mV (±0.3 pe) ~ 1.5 mV (~0.07 pe) tP=160 ns 125 mV/pC (20 mV/pe) <1% Chargemeasurement OPERA Collaboration Meeting - Gran Sasso

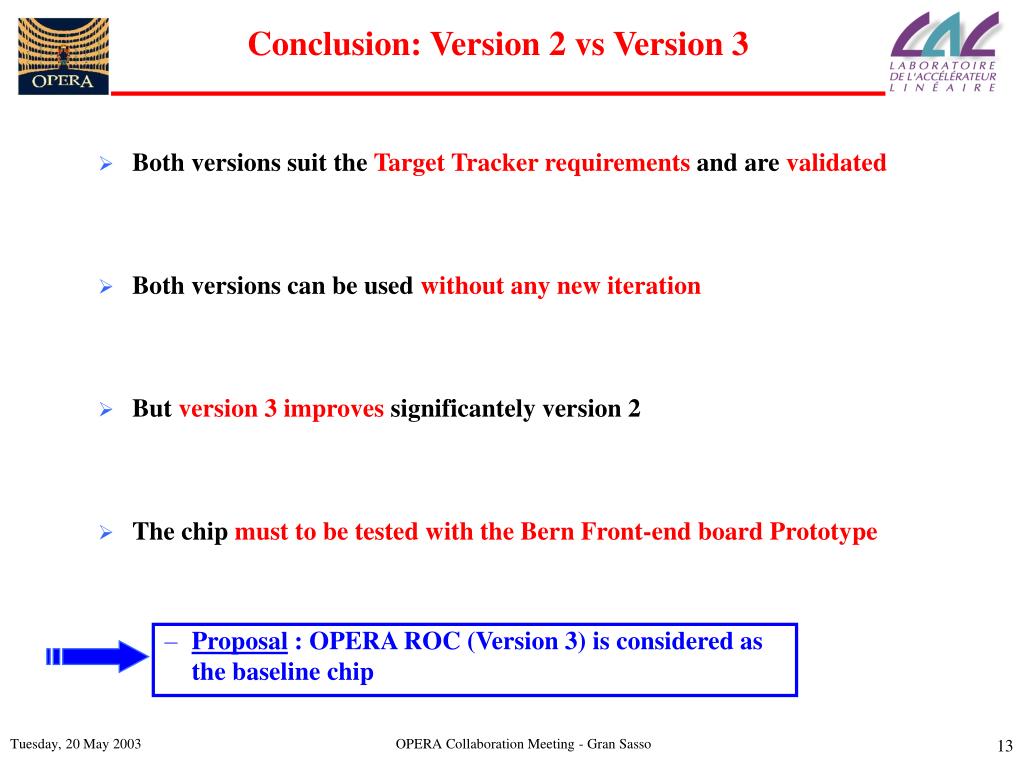

  12. Conclusion: Version 2 vs Version 3 • Both versions suit the Target Tracker requirements and are validated • Both versions can be used without any new iteration • But version 3 improves significantely version 2 • The chip must to be tested with the Bern Front-end board Prototype • Proposal : OPERA ROC (Version 3) is considered as the baseline chip OPERA Collaboration Meeting - Gran Sasso

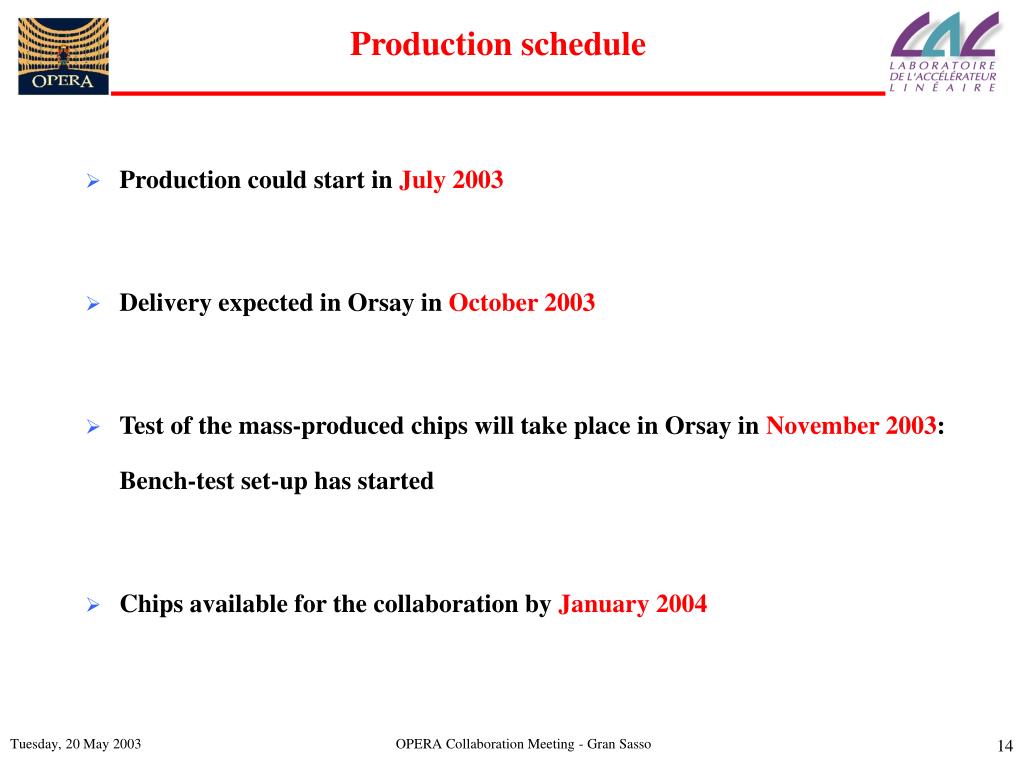

  13. Production schedule • Production could start in July 2003 • Delivery expected in Orsay in October 2003 • Test of the mass-produced chips will take place in Orsay in November 2003: Bench-test set-up has started • Chips available for the collaboration by January 2004 OPERA Collaboration Meeting - Gran Sasso

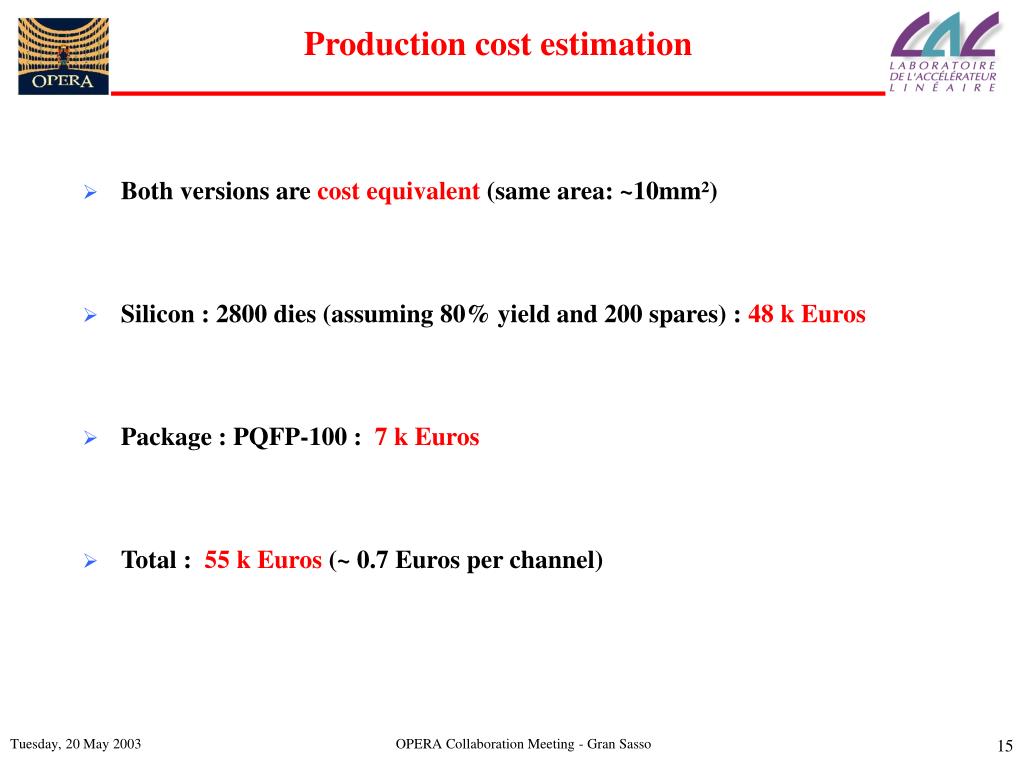

  14. Production cost estimation • Both versions are cost equivalent (same area: ~10mm²) • Silicon : 2800 dies (assuming 80% yield and 200 spares) : 48 k Euros • Package : PQFP-100 : 7 k Euros • Total : 55 k Euros (~ 0.7 Euros per channel) OPERA Collaboration Meeting - Gran Sasso

  15. Version 3 chip tests: Auto-trigger (I) Fast Shaper Vout vs Qin 0.12 p.e. 12 p.e. 1.2 p.e. Vout (V) Gain 2:1 Time (ms) • Fast Shaper : • Fast Shaper Gain: • ~ 4.5V/pC (~800 mV/pe) • Fast Shaper Peaking time: • tP ~ 15 ns • Noise RMS: • ~ 1 mV (~ 0.01 pe) • Comparator : • Efficiency: •  =100 % down to 1/10 pe (goal: 1/3) • Offset spread: • ~ 0.05 pe : 2 sources => Fast shaper (main contribution) and Comparator (negligible) OPERA Collaboration Meeting - Gran Sasso

More Related
