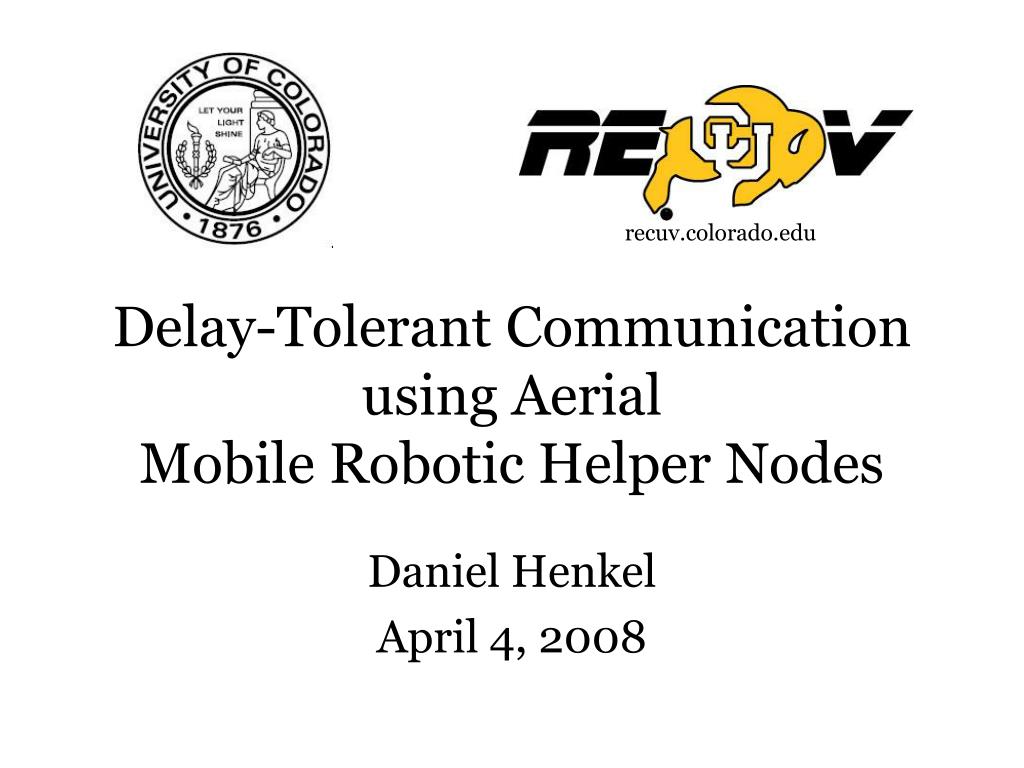

  1. Delay-Tolerant Communication using AerialMobile Robotic Helper Nodes recuv.colorado.edu Daniel Henkel April 4, 2008

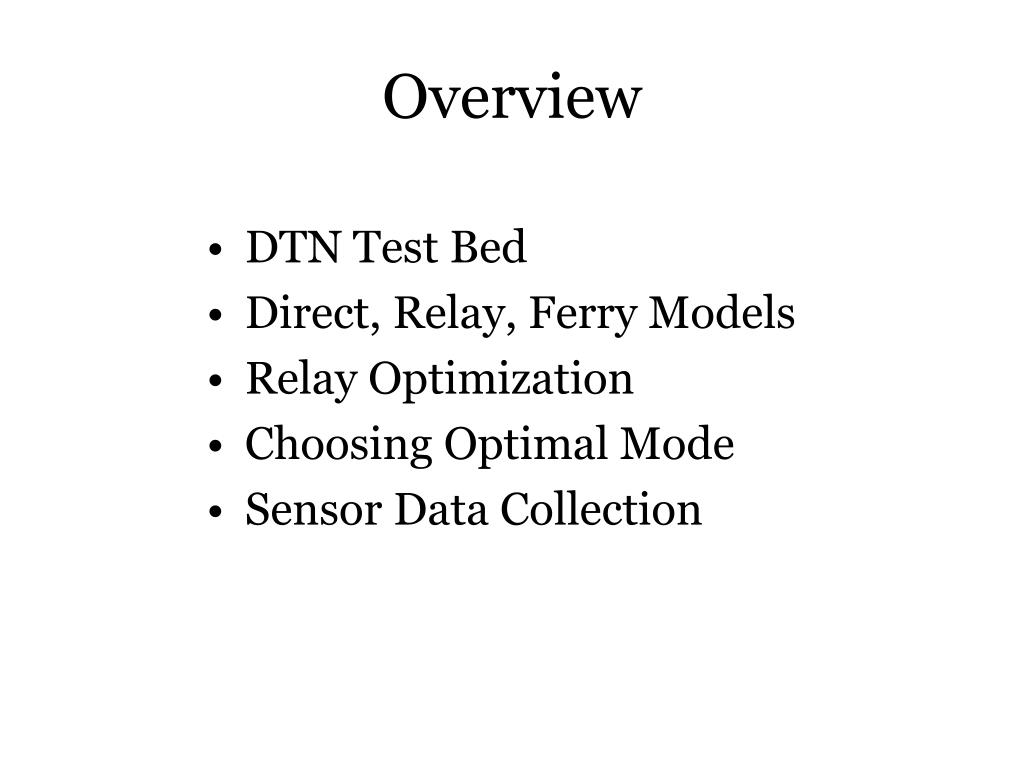

  2. Overview • DTN Test Bed • Direct, Relay, Ferry Models • Relay Optimization • Choosing Optimal Mode • Sensor Data Collection

  3. University of ColoradoLocation

  4. Unmanned Aerial Vehicles (UAVs) • Small (10kg) Low-Cost (<$10k) UAVs • 60-100km/h, 1hr endurance • 5HP gas engine • Built in-house

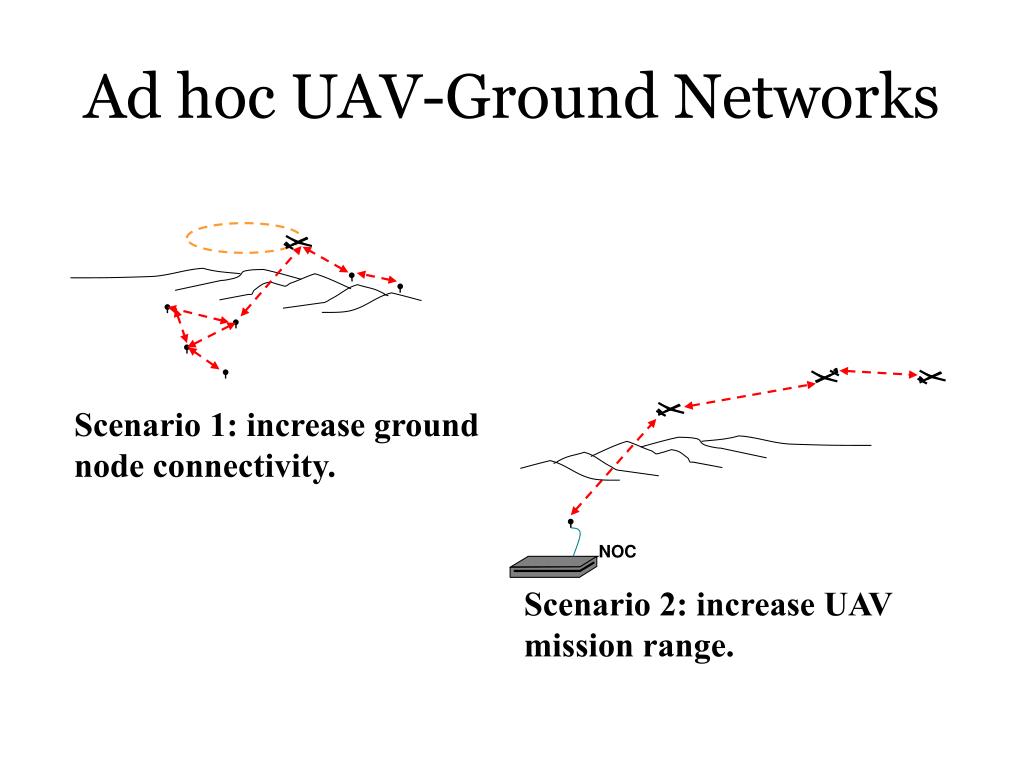

  5. Ad hoc UAV-Ground Networks Scenario 1: increase ground node connectivity. NOC Scenario 2: increase UAV mission range.

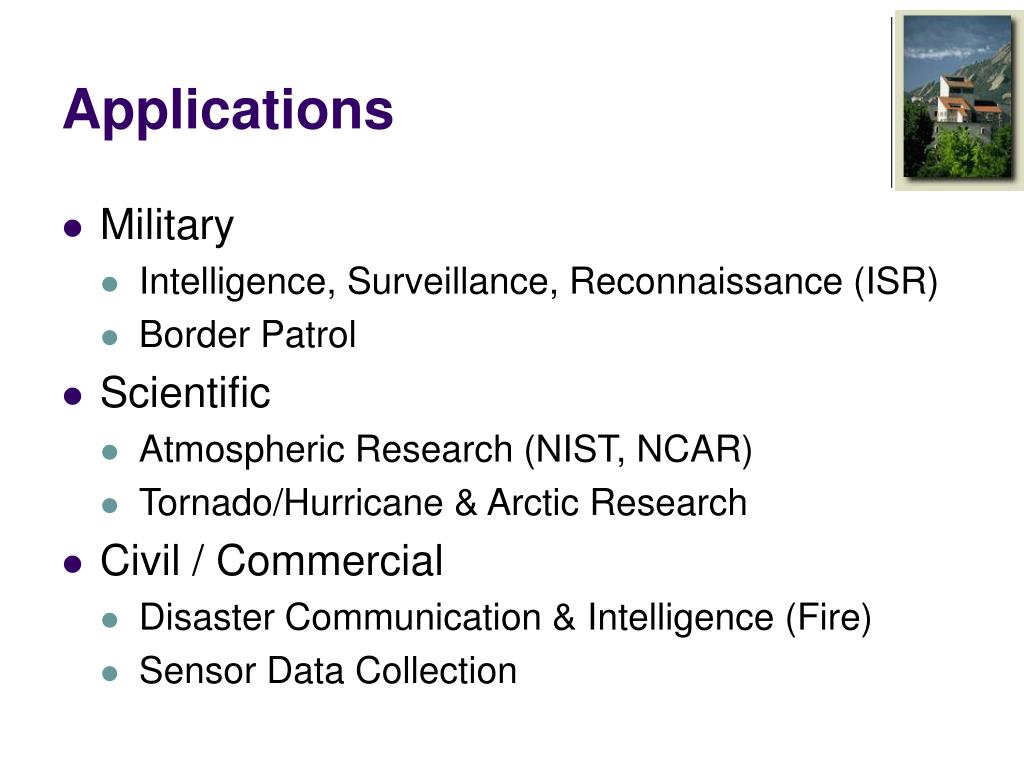

  6. Applications • Military • Intelligence, Surveillance, Reconnaissance (ISR) • Border Patrol • Scientific • Atmospheric Research (NIST, NCAR) • Tornado/Hurricane & Arctic Research • Civil / Commercial • Disaster Communication & Intelligence (Fire) • Sensor Data Collection

  7. 16cm 241cm AUGNet Group 1 Group 2 Ad Hoc UAV Ground Network recuv.colorado.edu

  8. AUGNET as Delay Tolerant / Challenged Network • Plane bankingSimultaneous end-to-end paths might not exist • Antenna configurationLinks might be very lossy • Unmanned planesNodes might move at high speeds • Links might have extremely long delays • Links might be intermittently up or down

  9. Research Goal Using node mobility control to enhancenetwork performance UAV2 Ferrying Relay Direct UAV1 UAV3 GS1 GS2

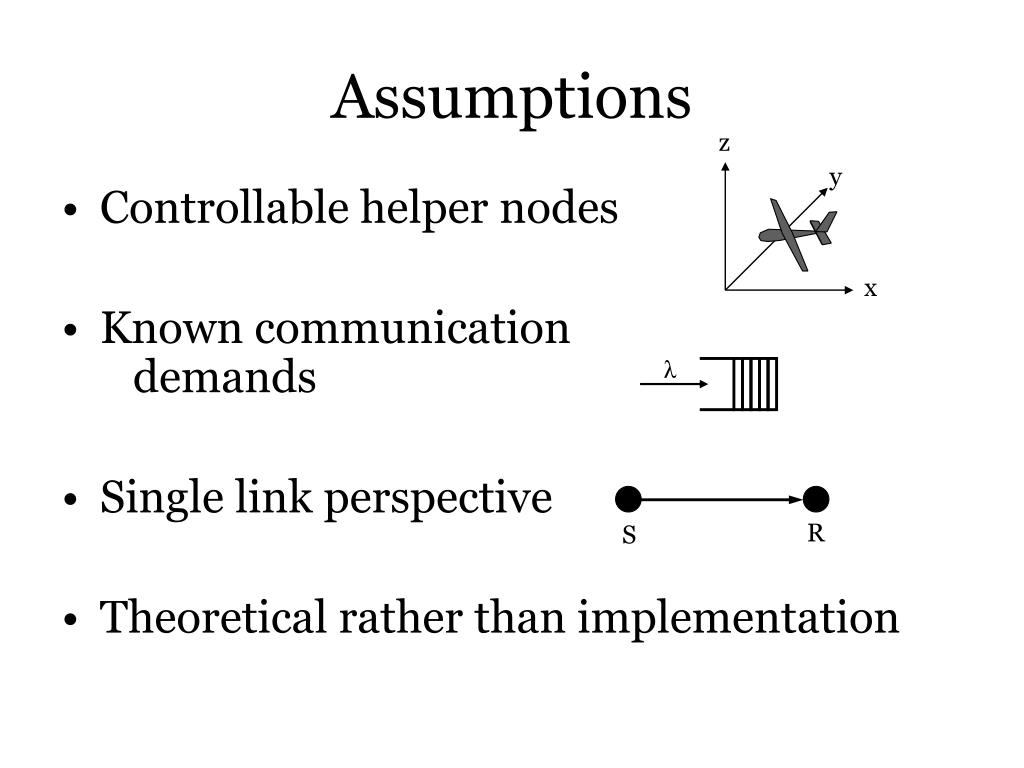

  10. Assumptions z y • Controllable helper nodes • Known communication demands • Single link perspective • Theoretical rather than implementation x λ R S

  11. Direct Communication Shannon capacity law Signal strength Thermal noise (normalized) Data rate

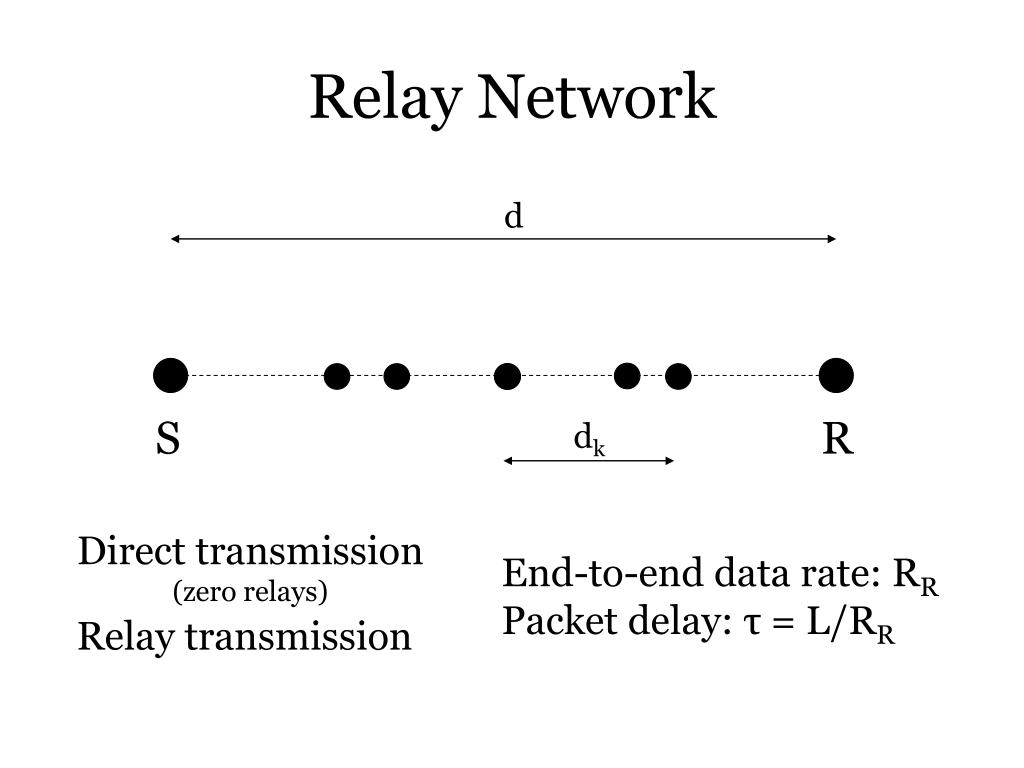

  12. dk Relay Network d S R Direct transmission(zero relays) End-to-end data rate: RR Packet delay: τ = L/RR Relay transmission

  13. “Single Tx” Relay Model a.k.a., the noise-limited case t=0 dk S R

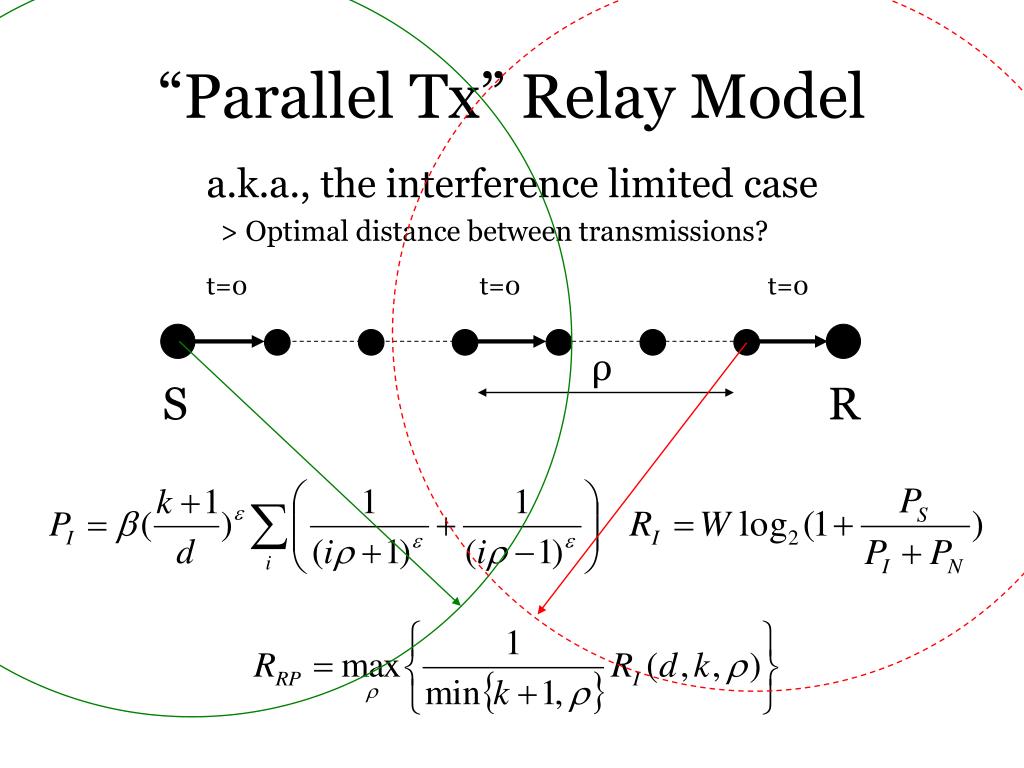

  14. “Parallel Tx” Relay Model a.k.a., the interference limited case > Optimal distance between transmissions? t=0 t=0 t=0 ρ S R

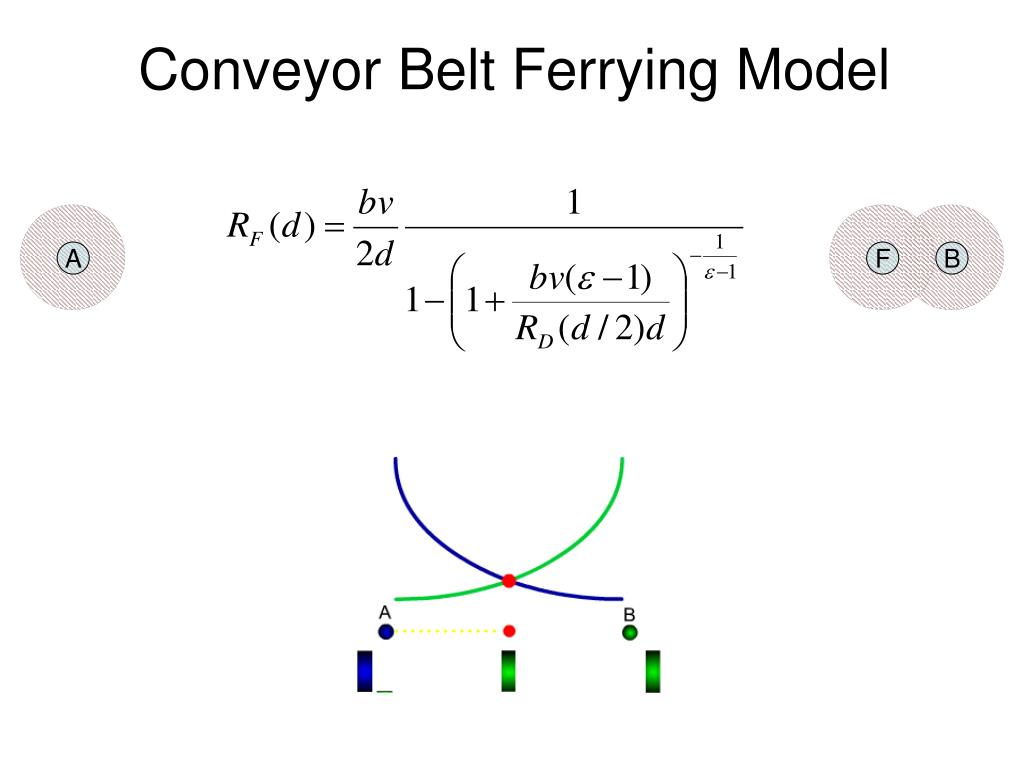

  15. A B F Conveyor Belt Ferrying Model

  16. Optimizing “Single Tx” • Where is the trade-off? dk vs. # of transmissions • Optimal number of relays: with

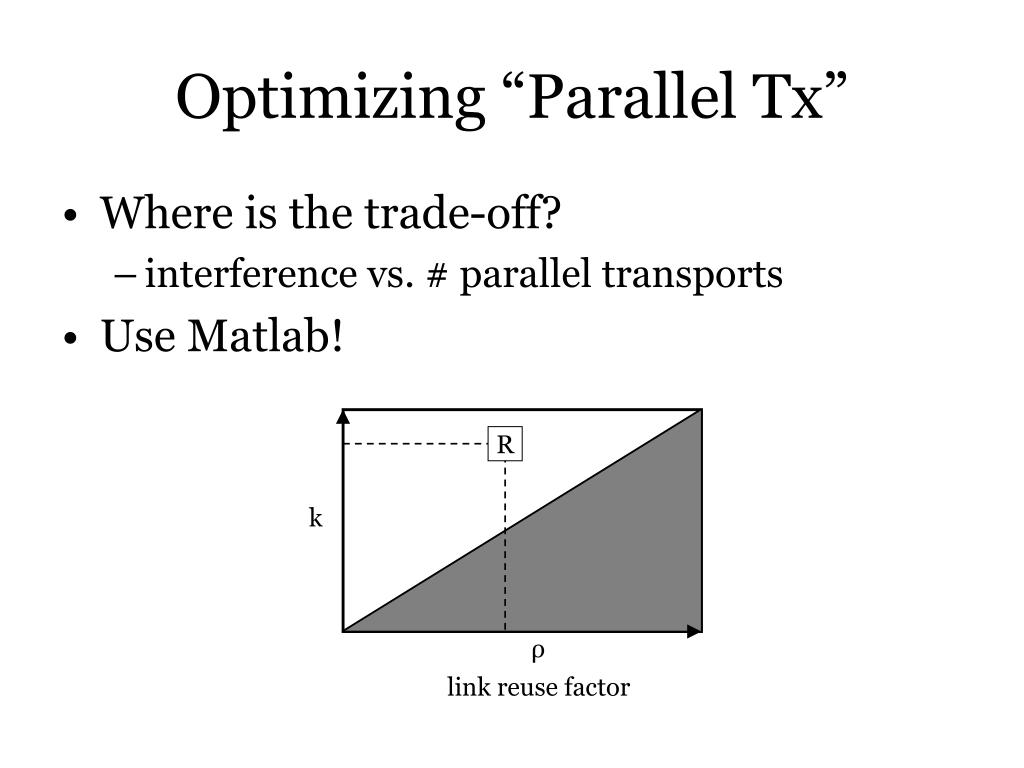

  17. Optimizing “Parallel Tx” • Where is the trade-off? • interference vs. # parallel transports • Use Matlab! R k ρ link reuse factor

  18. “Triple Play” 4km 8km 16km 2km eps=5 PN=10-15 W

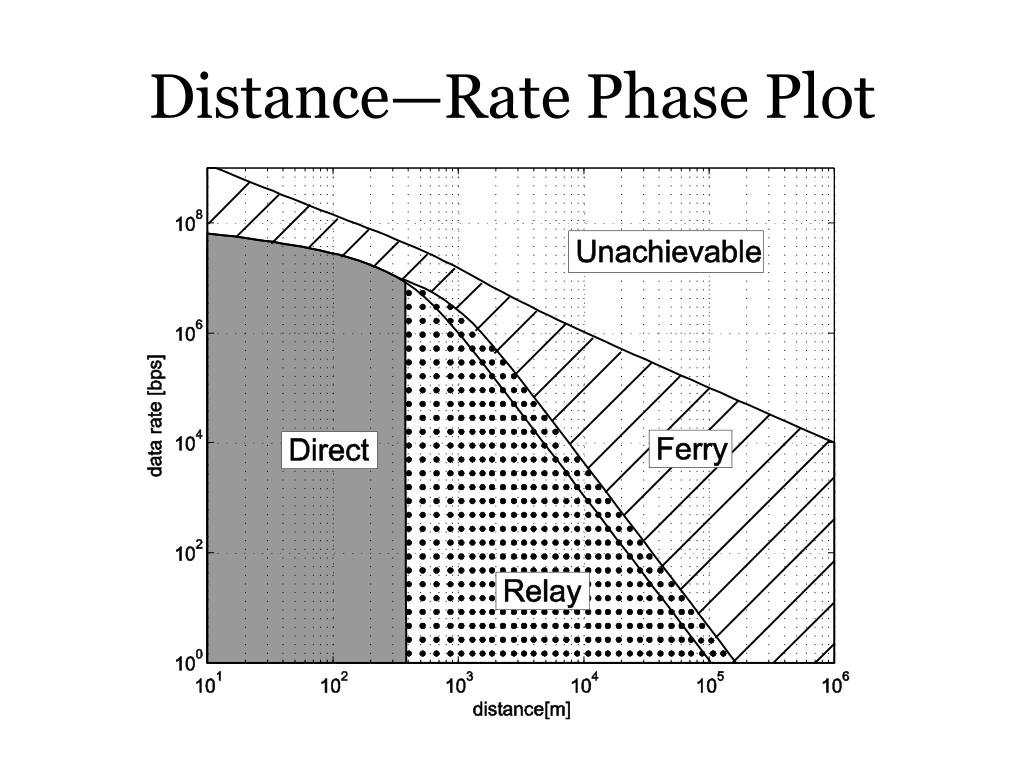

  19. Distance—Rate Phase Plot

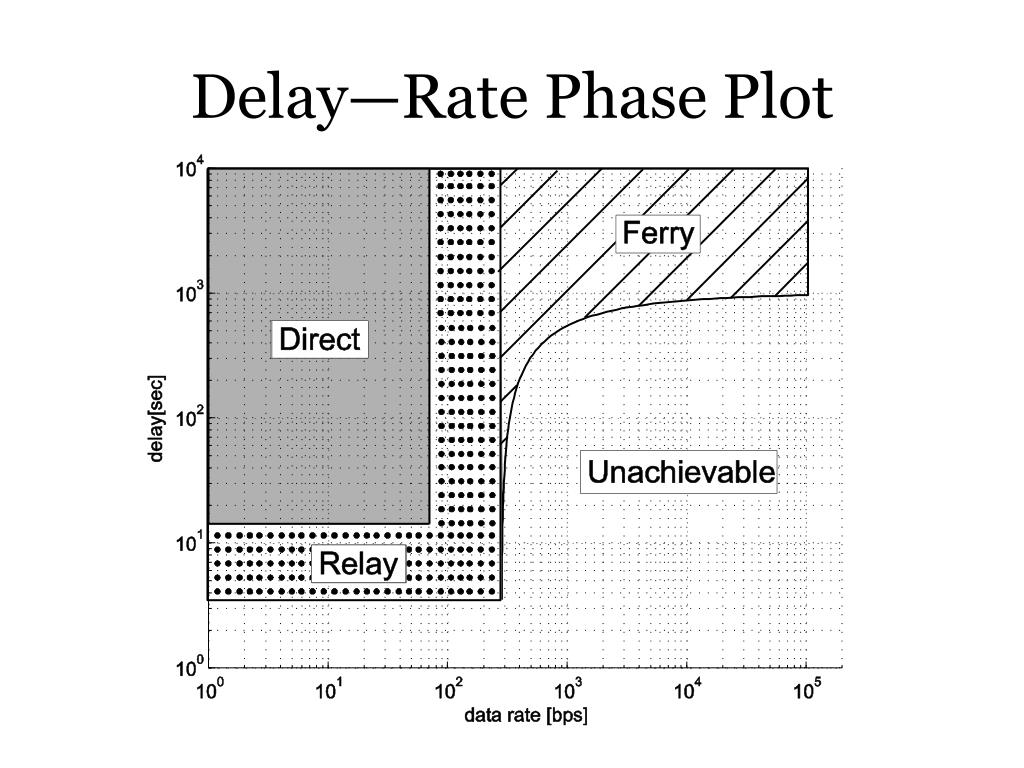

  20. Delay—Rate Phase Plot

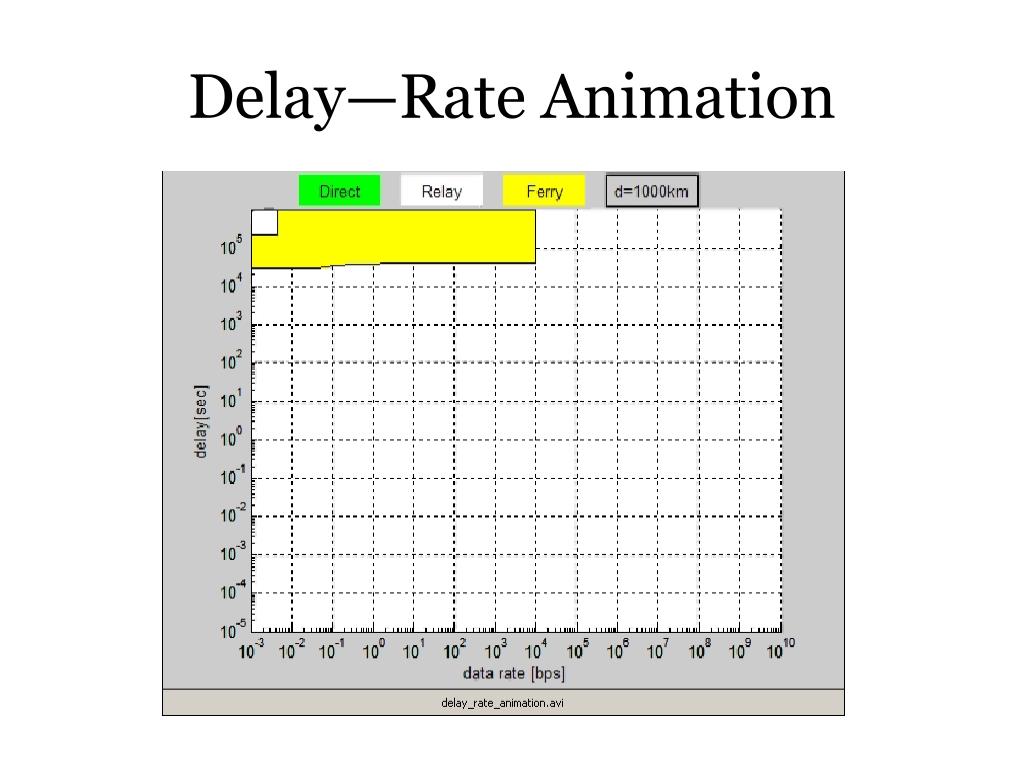

  21. Delay—Rate Animation

  22. SMS-3 CDMA Gateway-2 SMS-1 Gateway-1 SMS-2 Sensor Data Collection • Challenges: • No end-to-end connection • Intermittent connectivity • Sensors and SMS unknown Sensor-1 Sensor-2 Sensor-3 • Sparsely distributed sensors • Limited radio range, power • Multiple monitoring stations

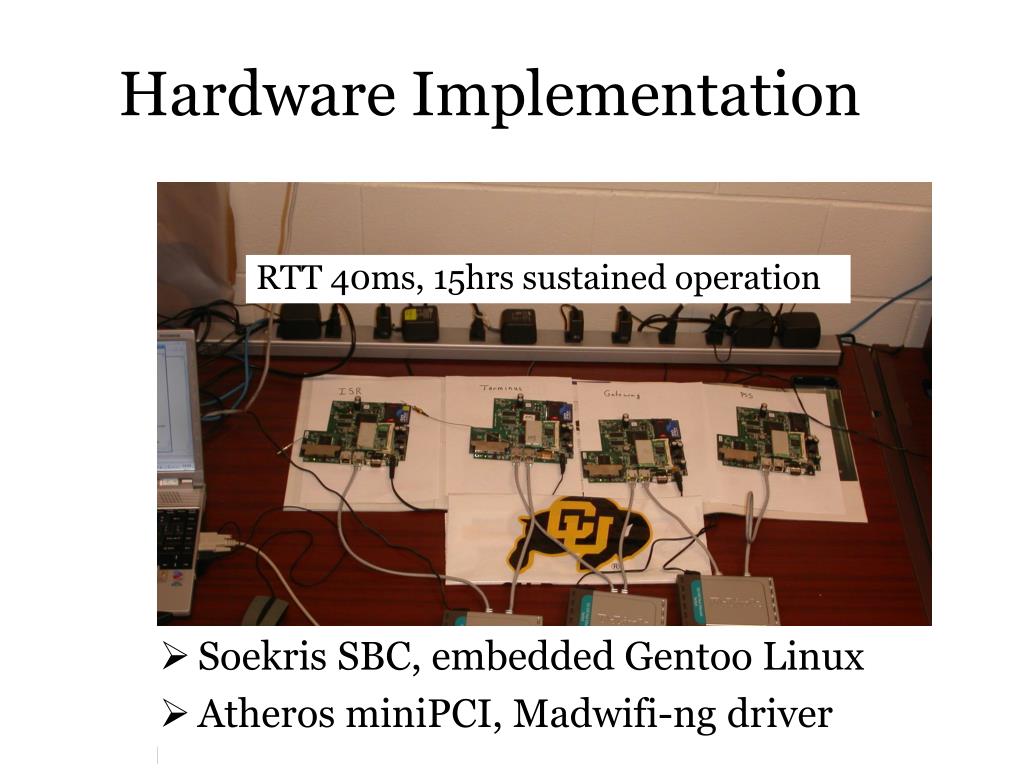

  23. Hardware Implementation RTT 40ms, 15hrs sustained operation • Soekris SBC, embedded Gentoo Linux • Atheros miniPCI, Madwifi-ng driver

  24. Functional Evaluation FS2 83 on & off 84 85 FS1 82 81

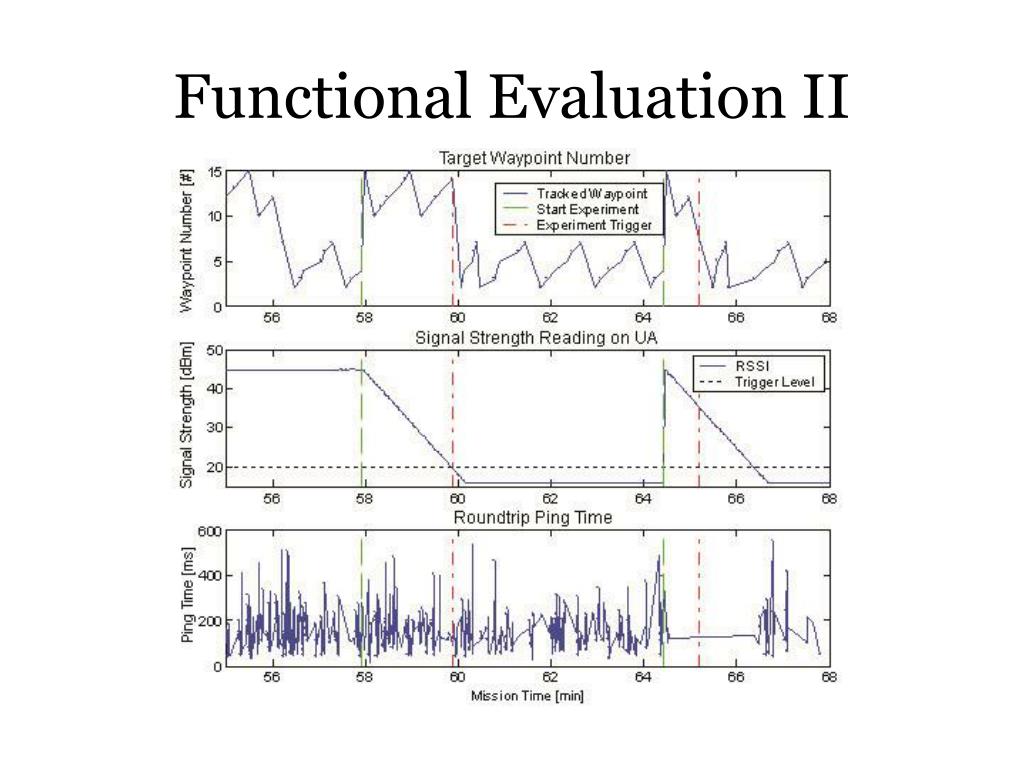

  25. Functional Evaluation II

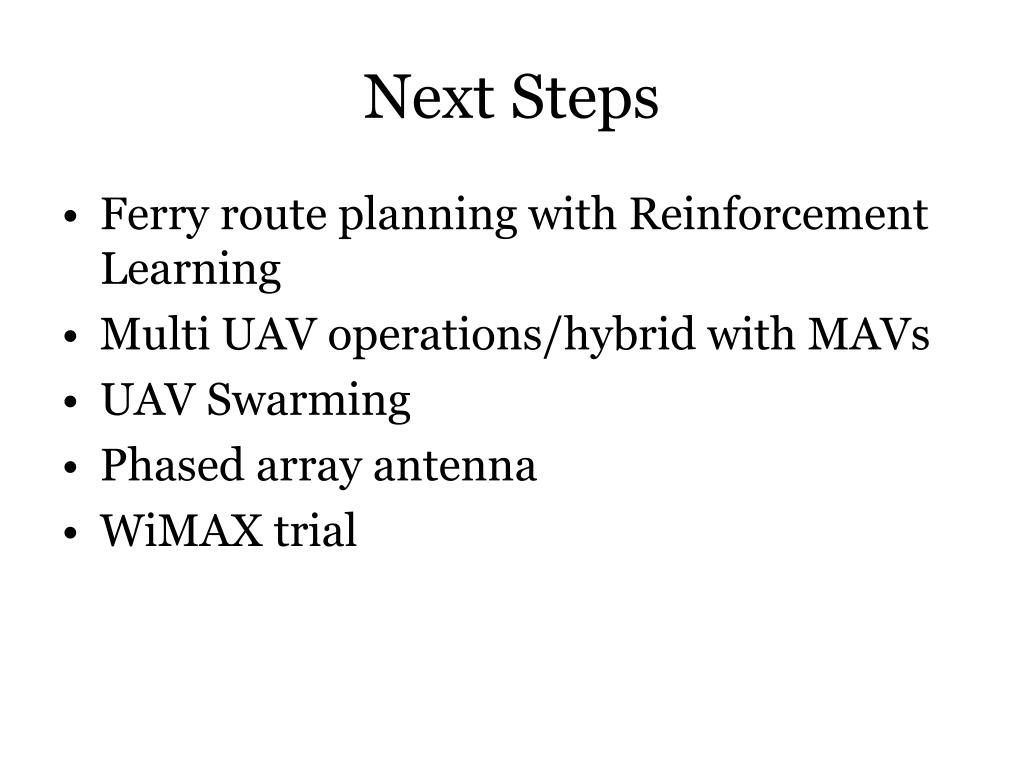

  26. Next Steps • Ferry route planning with Reinforcement Learning • Multi UAV operations/hybrid with MAVs • UAV Swarming • Phased array antenna • WiMAX trial

  27. Research and Engineering Center forUnmanned Vehicles (RECUV) Daniel Henkel, henk@gmx.com recuv.colorado.edu
