  1. Heart Models

  2. External Heart – AnteriorHEART CHAMBERS Right Atrium Right Ventricle Apex Left Atrium Left Ventricle

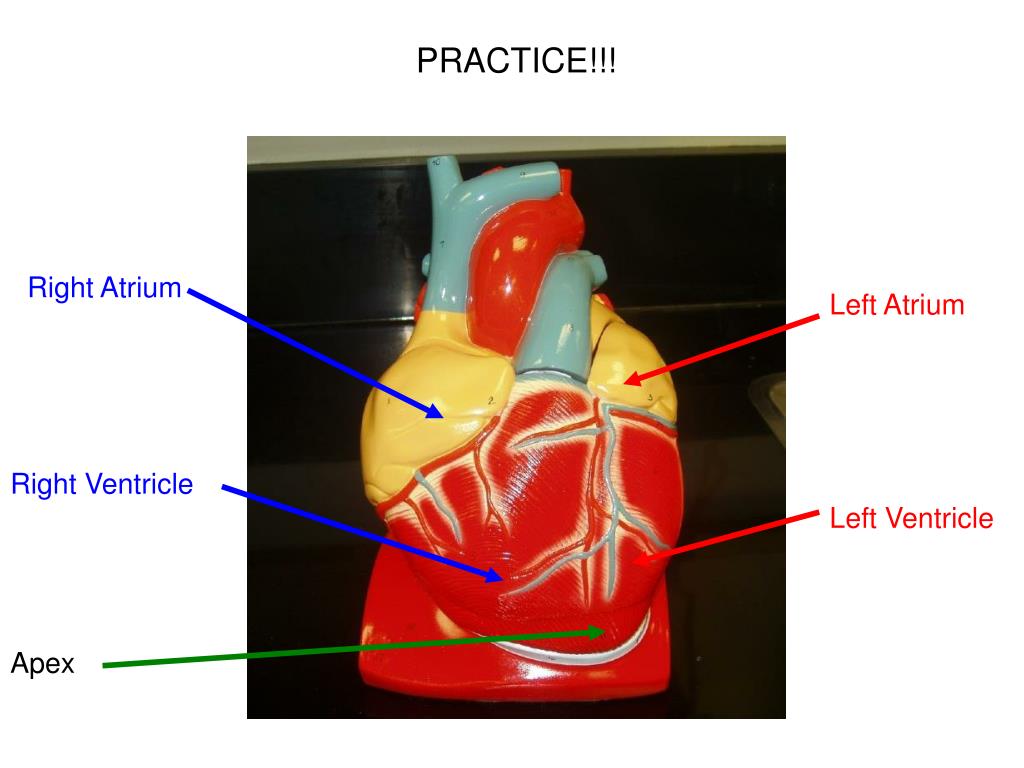

  3. PRACTICE!!! Right Atrium Left Atrium Right Ventricle Left Ventricle Apex

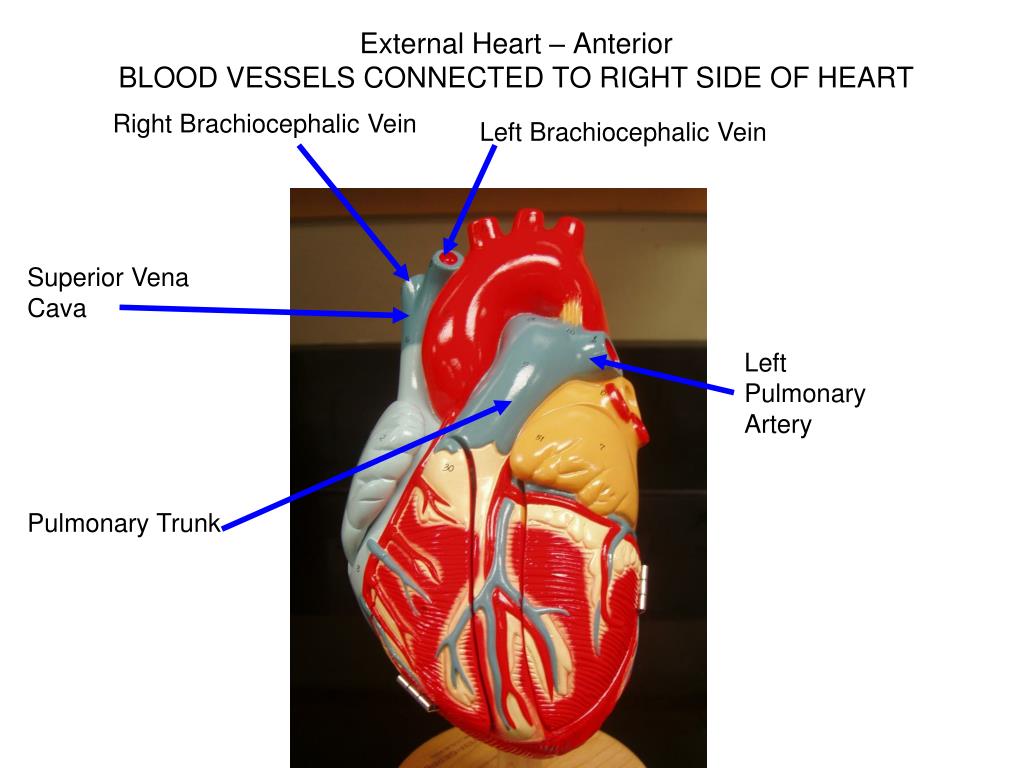

  4. External Heart – AnteriorBLOOD VESSELS CONNECTED TO RIGHT SIDE OF HEART Right Brachiocephalic Vein Left Brachiocephalic Vein Superior Vena Cava Pulmonary Trunk Left Pulmonary Artery

  5. External Heart – AnteriorBLOOD VESSELS CONNECTED TO L EFT SIDE OF HEART Brachiocephalic artery Left common carotid artery Left subclavian artery Ligamentum Arteriosum (can only be seen on this model) Left Pulmonary Veins Aortic Arch

  6. PRACTICE!!! Left common carotid artery Brachiocephalic trunk Left subclavian artery Ligamentum Arteriosum Superior Vena Cava Left Pulmonary Artery Aortic Arch

  7. PRACTICE!!! Left Brachiocephalic Vein Left Pulmonary Vein Pulmonary Trunk

  8. External Heart – AnteriorBLOOD VESSELS Right Coronary artery Left Coronary artery Circumflex artery Anterior Interventricular Artery Great Cardiac Vein

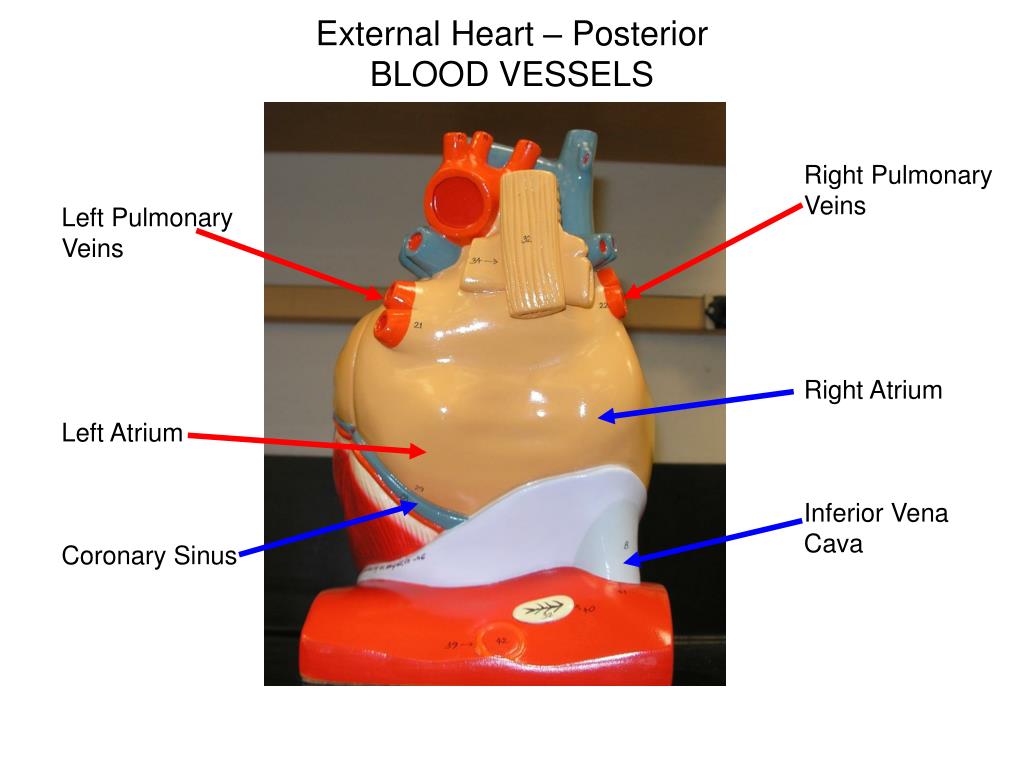

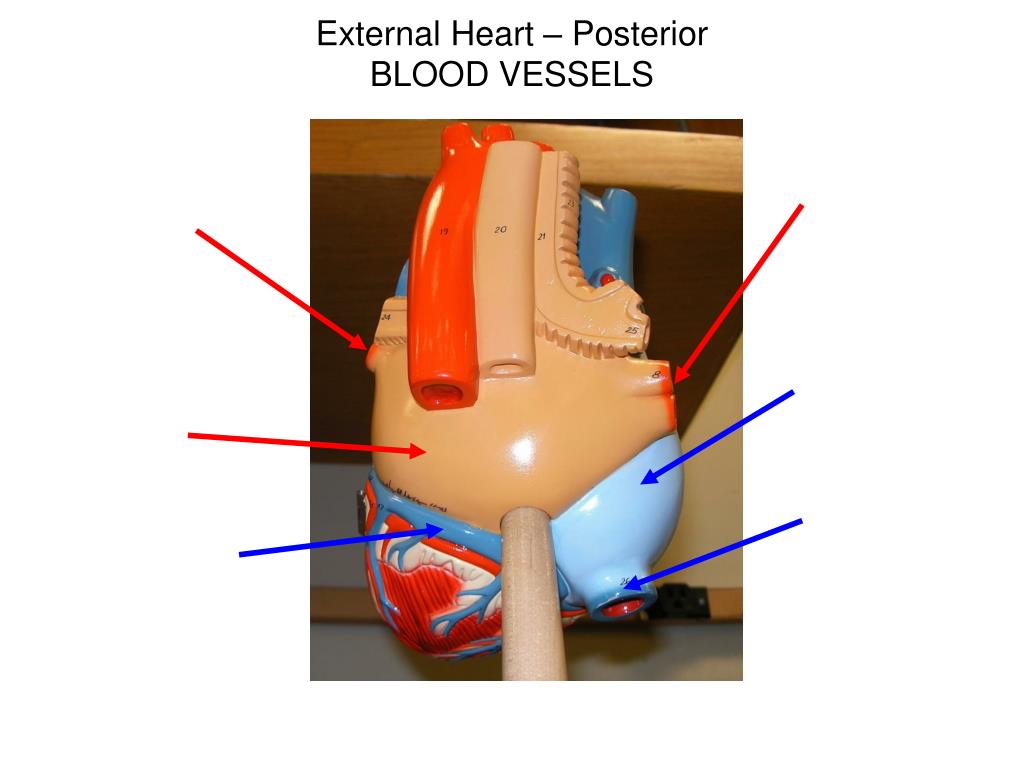

  9. External Heart – PosteriorBLOOD VESSELS Right Pulmonary Veins Right Atrium Inferior Vena Cava Left Pulmonary Veins Left Atrium Coronary Sinus

  10. External Heart – PosteriorBLOOD VESSELS Right Pulmonary Veins Right Atrium Inferior Vena Cava Left Pulmonary Veins Left Atrium Coronary Sinus

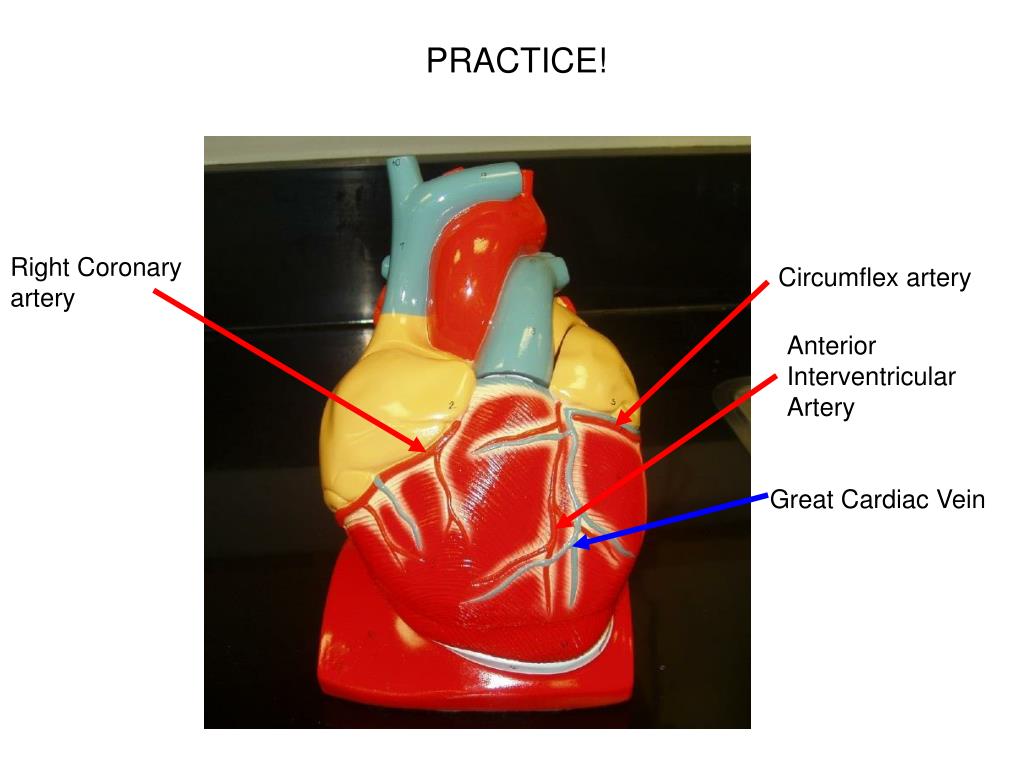

  11. PRACTICE! Right Coronary artery Circumflex artery Anterior Interventricular Artery Great Cardiac Vein

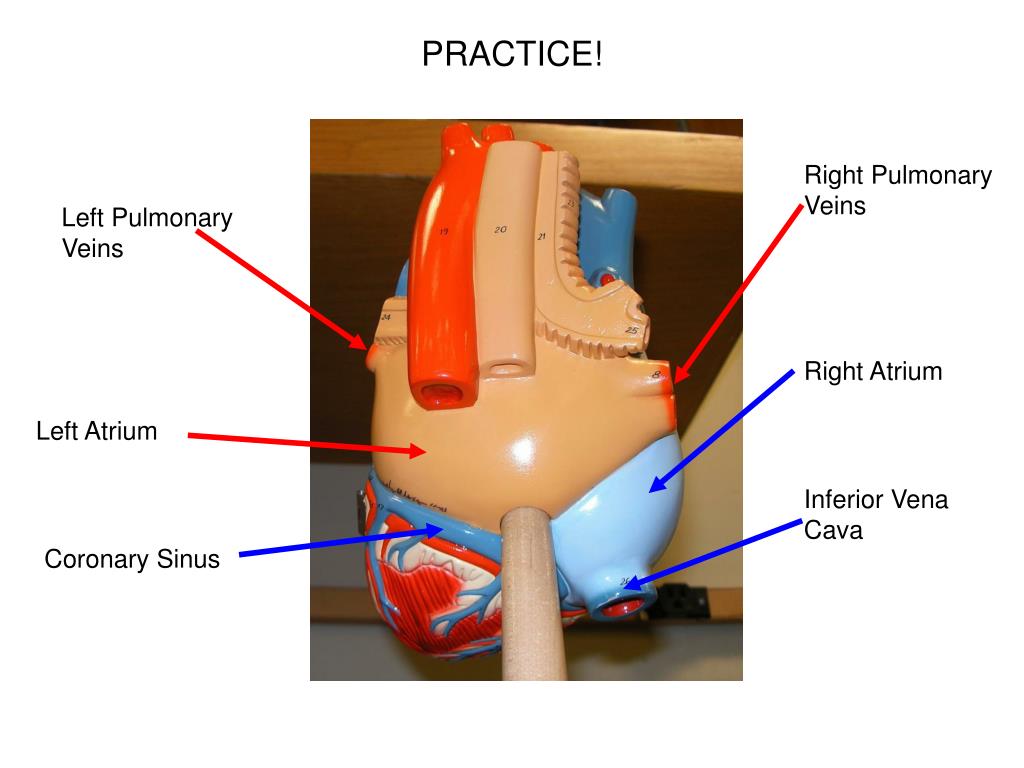

  12. PRACTICE! Right Pulmonary Veins Left Pulmonary Veins Right Atrium Left Atrium Inferior Vena Cava Coronary Sinus

  13. PRACTICE! Right Pulmonary Veins Right Atrium Inferior Vena Cava Left Pulmonary Veins Left Atrium Coronary Sinus

  14. Internal Heart – Right Side Pulmonary Semilunar Valve Bicuspid Valve (Left AV Valve or Mitral valve) Chordae Tendineae Interventricular Septum Tricuspid Valve (Right AV Valve) Chordae tendineae Apex

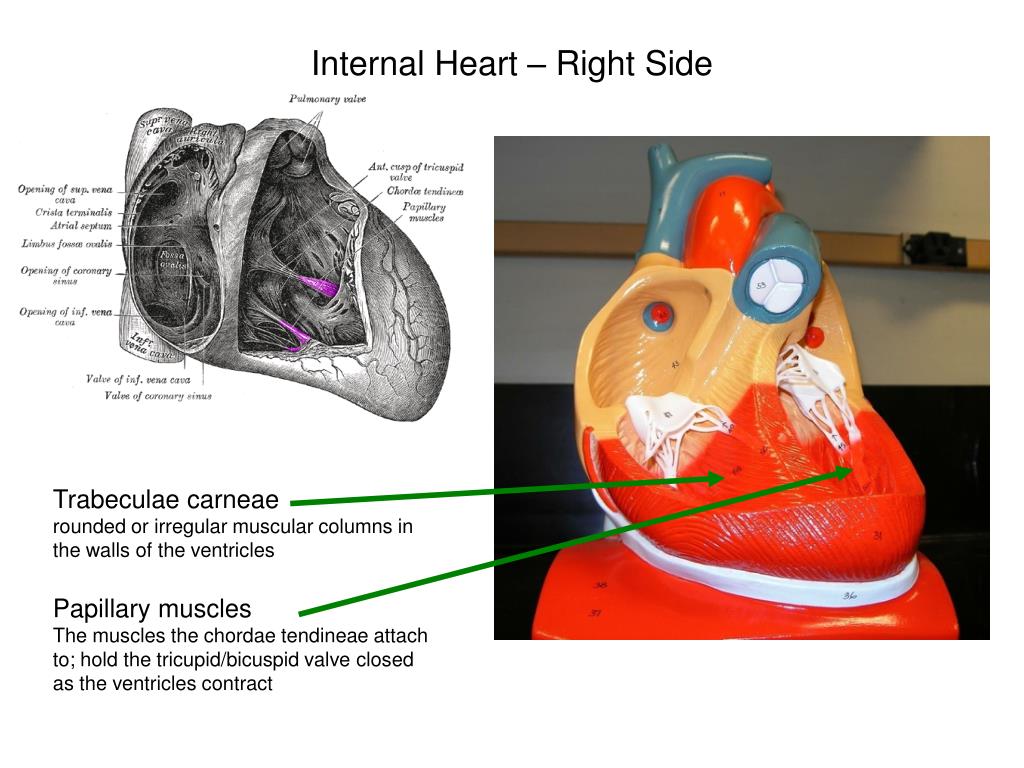

  15. Internal Heart – Right Side Trabeculae carneae rounded or irregular muscular columns in the walls of the ventricles Papillary muscles The muscles the chordae tendineae attach to; hold the tricupid/bicuspid valve closed as the ventricles contract

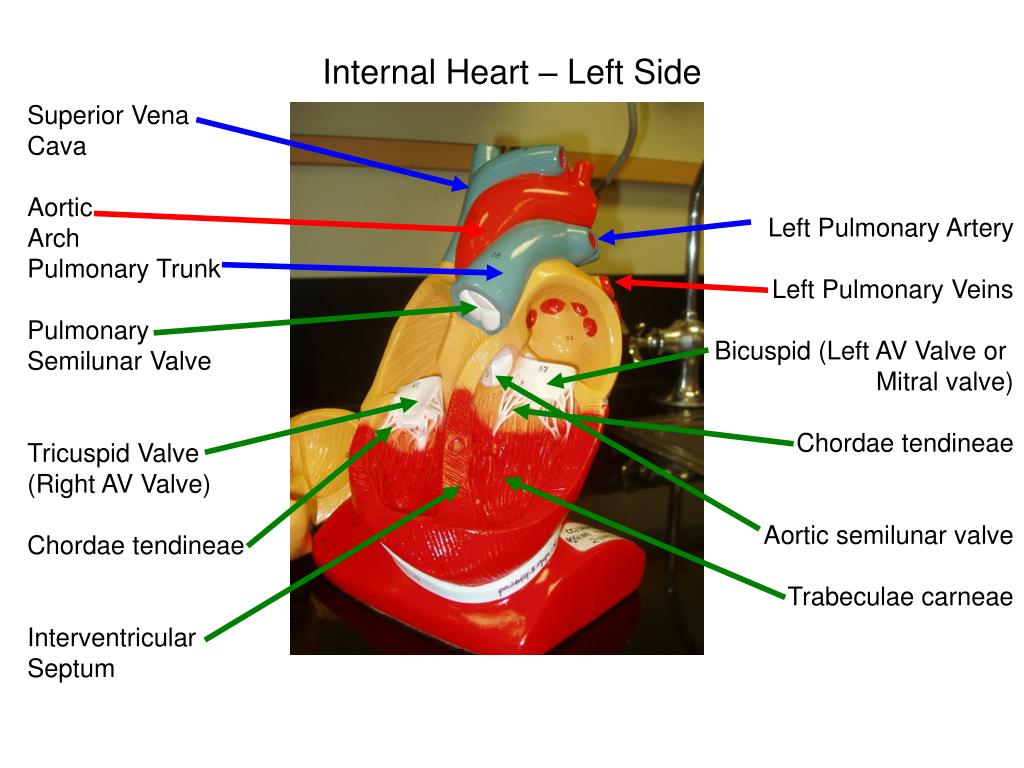

  16. Internal Heart – Left Side Superior Vena Cava Aortic Arch Pulmonary Trunk Pulmonary Semilunar Valve Tricuspid Valve (Right AV Valve) Chordae tendineae Interventricular Septum Left Pulmonary Artery Left Pulmonary Veins Bicuspid (Left AV Valve or Mitral valve) Chordae tendineae Aortic semilunar valve Trabeculae carneae

  17. Internal Heart – Right Side Superior Vena Cava Pectinate muscles Ridges of muscles on the wall of the ANTERIOR Atria Right Atrium Fossa Ovalis Right Ventricle Inferior Vena Cava

  18. Internal Heart – Left Side Left Atrium Bicuspid Valve (Left AV Valve or Mitral valve) Chordae tendineae Aortic Semilunar Valve Trabeculae carneae Left Ventricle

  19. PRACTICE!!! Pulmonary Semilunar Valve Tricuspid Valve (Right AV Valve) Bicuspid Valve (Left AV Valve or Mitral valve) Chordae tendineae Chordae Tendineae Interventricular Septum Apex

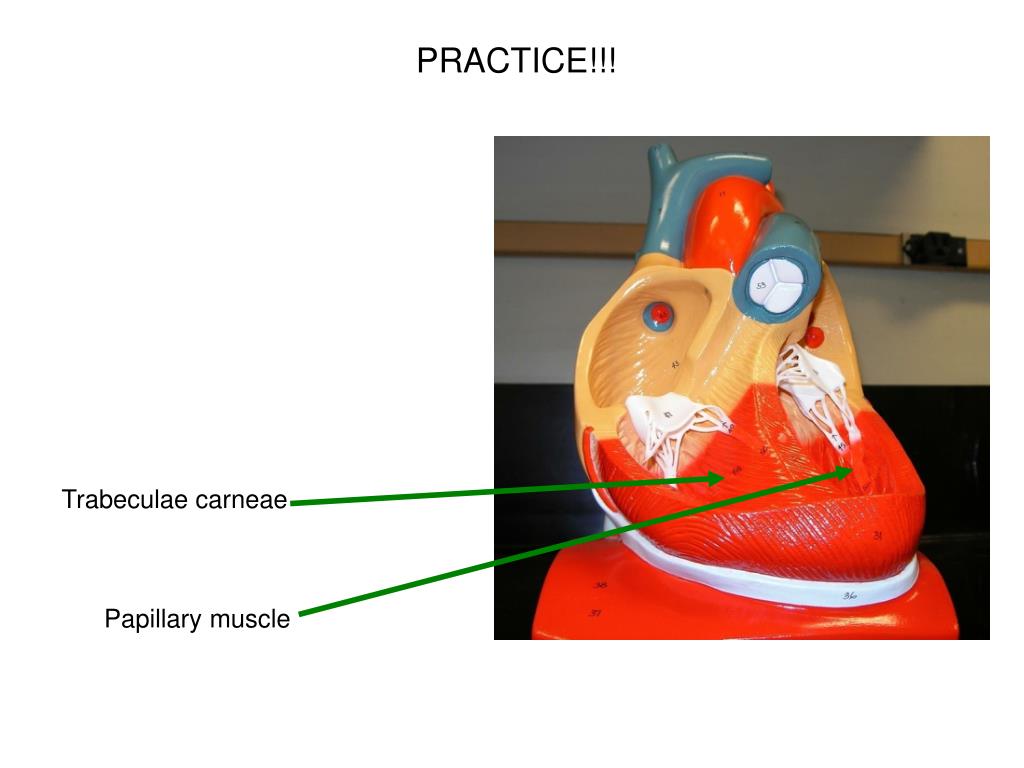

  20. PRACTICE!!! Trabeculae carneae Papillary muscle

  21. PRACTICE!!! Superior Vena Cava Aorta Left Pulmonary Veins Pulmonary Semilunar Valve Tricuspid or Right Atrioventricular Valve Aortic Semilunar Valve Chordae Tendineae

  22. PRACTICE!!! Pulmonary Trunk Left Pulmonary Artery Bicuspid or Left Atrioventricular Valve Interventricular Septum Trabeculae carneae

  23. PRACTICE!!! Pectinate Muscles Right Atrium Fossa Ovalis Inferior Vena Cava

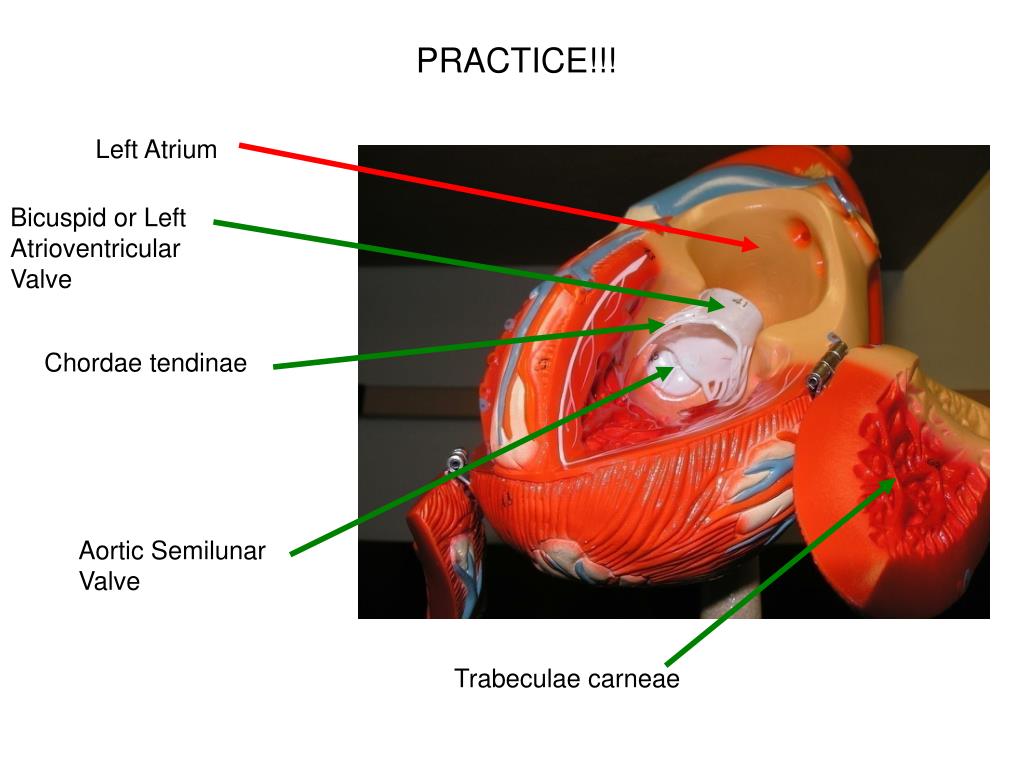

  24. PRACTICE!!! Left Atrium Bicuspid or Left Atrioventricular Valve Chordae tendinae Aortic Semilunar Valve Trabeculae carneae

  25. Practice SlidesLabel your own pictures!

  26. External Heart – AnteriorHEART CHAMBERS

  27. External Heart – AnteriorBLOOD VESSELS

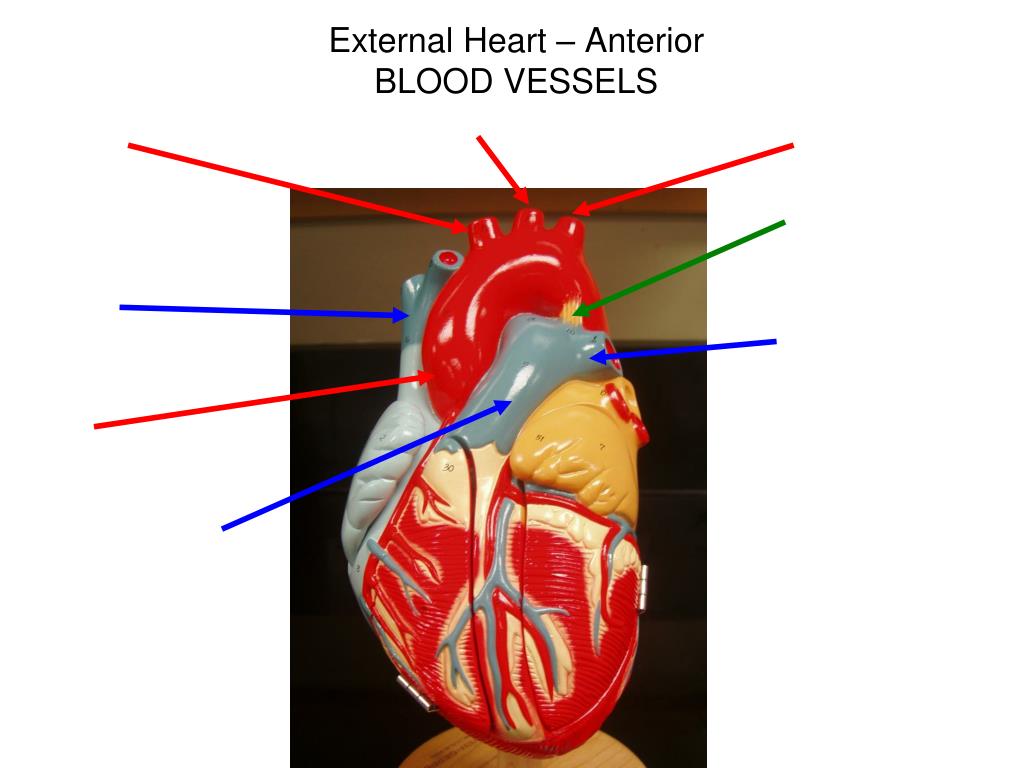

  28. External Heart – AnteriorBLOOD VESSELS

  29. External Heart – PosteriorBLOOD VESSELS

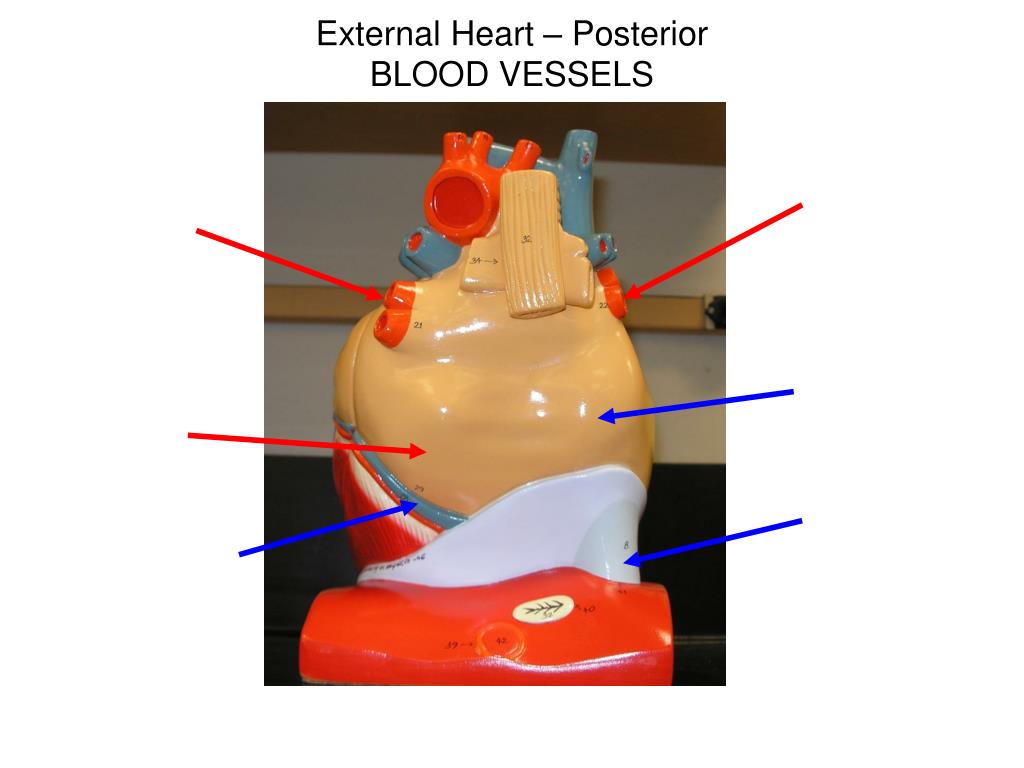

  30. External Heart – PosteriorBLOOD VESSELS

  31. Internal Heart – Right Side

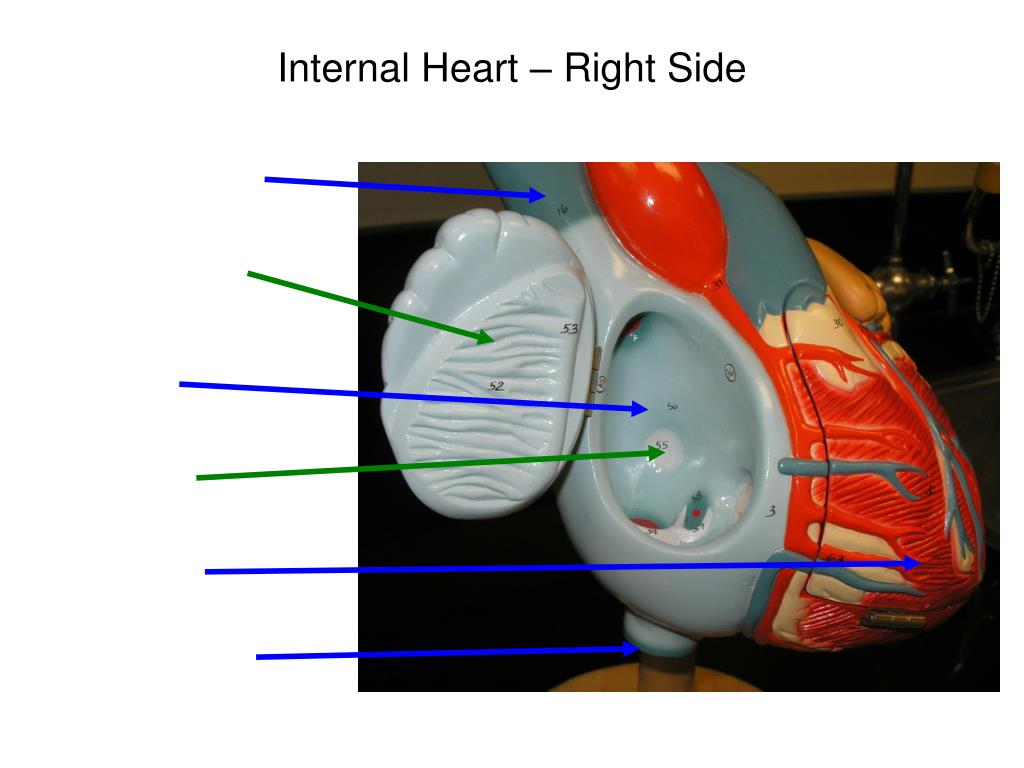

  32. Internal Heart – Right Side

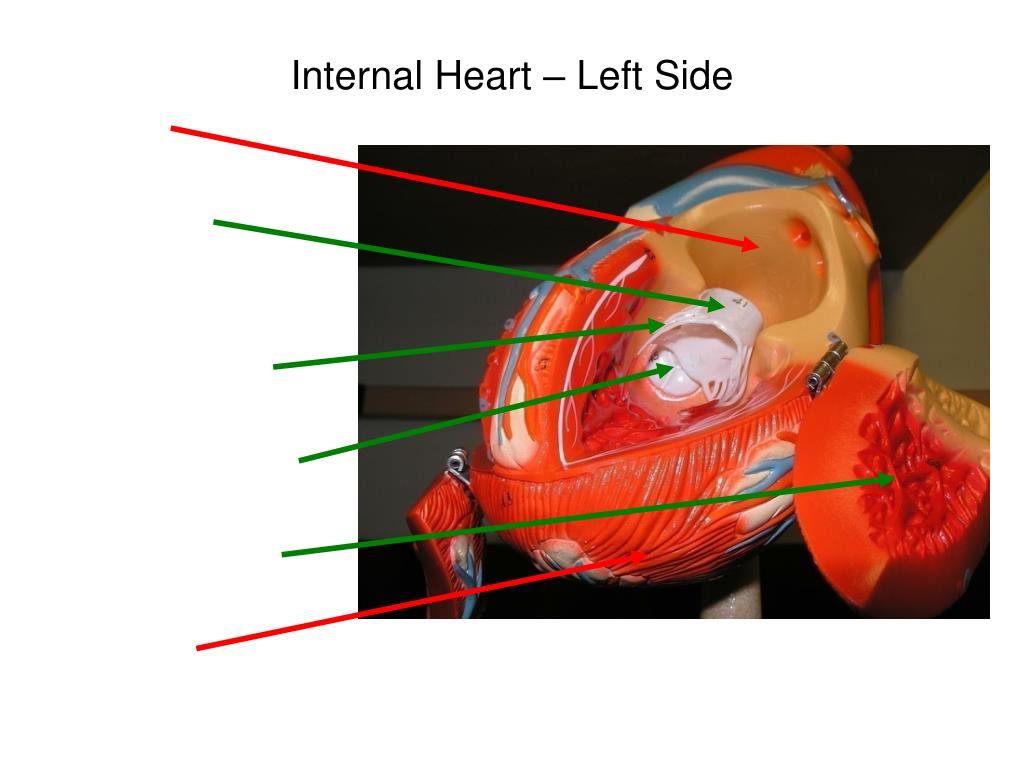

  33. Internal Heart – Left Side

  34. Internal Heart – Right Side

  35. Internal Heart – Left Side
