  1. Feedback Control of Cumuliform Cloud Formation based on Computational Fluid Dynamics Kam, Hyeong Ryeol

  2. Contents • Abstract • Introduction • Related Work • Simulation of Cumuliform Cloud Formation • Our Control Method for Cloud Formation • Controlling Cloud Simulation • Results • Discussion and Future Work • Conclusion • Appendix

  3. Abstract • Cloud play an important role for creating realistic images • The atmospheric fluid dynamics already exists • But difficult to adjust parameters and the initial status • So, we focus on • Controlling cumuliform cloud formation • The user specifies the shape of the clouds • Automatically adjusts parameters to form that shape

  4. 1. Introduction • Although CFD(Computational fluid dynamics) methods can generate realistic shapes and motion, it is difficult for the user to control the simulation result and impossible to adjust the parameters manually. • In previous methods, the motion of smoke and water such as letters and animals has been calculated. • In this paper, we focus on controlling cloud formation.

  5. 1. Introduction • We only focus on cumuliform clouds(적운). • Our method generates realistic clouds. • The user specifies the contours of the clouds. • Previous approach did not produce convincing results because there are several physical processes : phase transition from water vapor to water droplets •  We developed a new method that controls the physical parameters affecting the cloud formation process.

  6. 2. Related Work • Fluid Control • After the pioneering work by Treuille et al. [2003] • Control smoke and water by using the adjoint method • McNamara et al [2004] • Control smoke by adding external forces • Fattal and Lischinski [2004] • Calculate the motion of smoke by using a potential field • Hong and Kim [2004] • Feedback control mechanism • Shi and Yu [2005], Kim et al [2007] • SIMILAR, but NOT directly APPLICABLE to CLOUDS • Since physical phenomena involved in cloud formation is not concerned.

  7. 2. Related Work • Fluid Control • More recently, • Control the motion of water by using control particles • Thurey et al. [2006] • Make smoke move along a user-specified path • Kim et al. [2006] • There are NO methods for controlling the formation of clouds based on computational fluid dynamics

  8. 2. Related Work • Cloud Simulation • 1. procedural techniques • Generate the density distribution of clouds using the idea of fractals. • Ebert et al [2002] • Modeling without generating 3d density distributions • Trembilski and Brobler [2002], Bouthors and Neyret [2002], Neyret [1997], Gardner [1985] • Although the cost is very low and it’s possible to generate the desired cloud shapes, a trial and error process is required.

  9. 2. Related Work • Cloud Simulation • 2. physical simulation of formation process • Generate clouds by numerical simulation • Dobashi et al [2000], Kajiya and Herzen [1984], Miyazaki et al [2001], Miyazaki et al [2002], Harris et al [2003] • Although these methods have the potential to generate realistic clouds, many physical parameters have to be adjusted to generate convincing results. • Adjusting the parameters MANUALLY is almost impossible.

  10. 3. Simulation of Cumuliform Cloud Formation • The numerical simulation of cumuliform cloud formation • (b) the temperature of the rising air currents decreases due to adiabatic cooling. • (c) the latent heat is liberated, which creates additional buoyancy forces and promotes further growth of the clouds. • Our method mainly controls the amount of latent heat.

  11. 3.1 Simulation of CCF- Governing Equations • The density of air is assumed to be constant • The atmosphere is assumed to be an incompressible and inviscid fluid media.

  12. 3.1 Simulation of CCF- Governing Equations • The motion of the atmosphere is expressed by Navier-Stokes equations • , • B : buoyancy force / f : an external forces (such as wind) • T : the temperature / z=(0,0,1) ↑ / kb : the buoyancy coefficient • Tamb : the ambient temperature, inverse-proportion to the height • 1st term : proportional to the difference between the temperature of the rising air parcel and the surrounding air • 2nd term : the drag force due to the falling water droplets

  13. 3.1 Simulation of CCF- Governing Equations • The phase transition between the water vapor and the clouds • , • , • Cc : the amount of clouds generated by the phase transition • Sv : the amount of water vapor / α : the phase transition ratio • qs : the saturation vapor content • If Cc < 0 then, the amount of clouds qc is reduced • It means : the evaporation of water droplets

  14. 3.1 Simulation of CCF- Governing Equations • The temperature • Γd : the adiabatic lapse rate • ω : the z component of the fluid velocity • Q : the coefficient of the latent heat • ST : the heat supplied from the ground • 1st term : the advection by the flow field • 2nd term : the adiabatic cooling of rising air • 3rd term : the latent heat • The amount of the latent heat is assumed to be proportional to the amount of cloud generated by the phase transition

  15. 3.2 Simulation of CCF- Initial Status and Boundary Conditions • T0(the initial temperature)=Tamb(the ambient temp) • qv,0(the initial water vapor) • Decrease exponentially from the bottom of sim. space • The initial temperature and water vapor • Are constant in the horizontal direction • qc,0(the initial cloud density) = zero • u0(the initial velocity) = zero • For the boundary conditions, • A periodic boundary condition is used in the horizontal • A fixed boundary condition(u=0) is used on the bottom and top of the simulation space

  16. 4. Our Control Method for Cloud Formation • pink curve = the desired shape • The contour line is projected onto a plane perpendicular to the xy component of the vector connecting the viewpoint and the center of the simulation space • 3d shape(target shape) is generated from the contour line

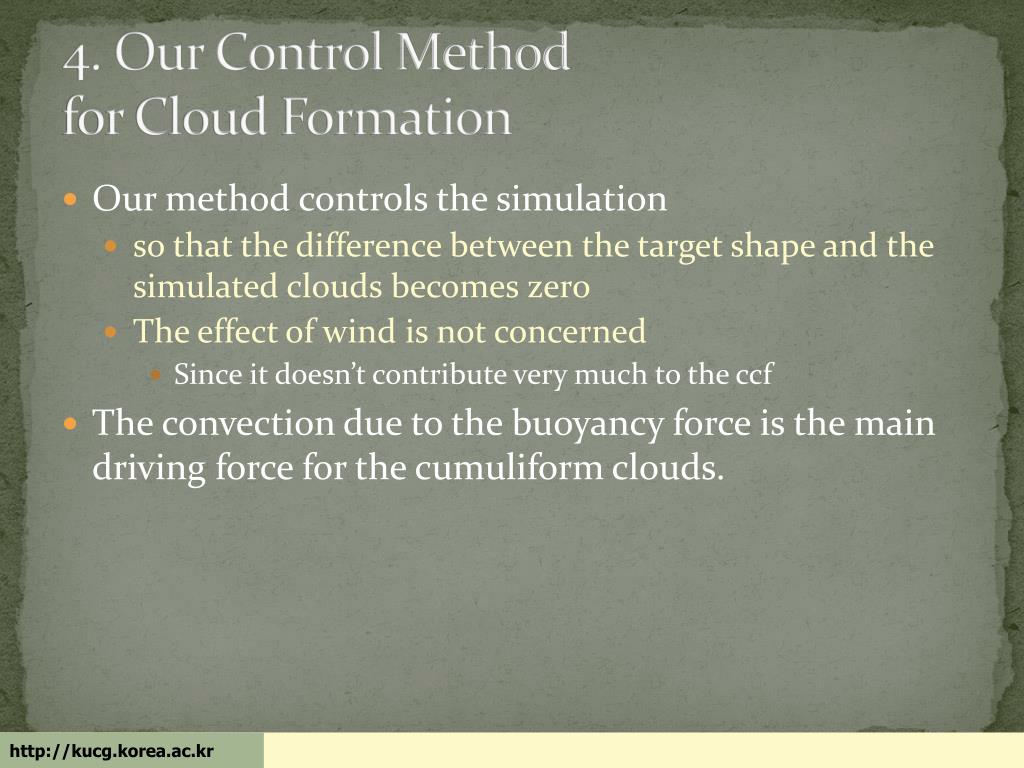

  17. 4. Our Control Method for Cloud Formation • Our method controls the simulation • so that the difference between the target shape and the simulated clouds becomes zero • The effect of wind is not concerned • Since it doesn’t contribute very much to the ccf • The convection due to the buoyancy force is the main driving force for the cumuliform clouds.

  18. 4. Our Control Method for Cloud Formation • To measure the difference, we use the height ratio R of the top of the simulated clouds to the top of the target shape.

  19. 4. Our Control Method for Cloud Formation • Key features in our control method • 1. Feedback control • adjusts the vertical extent of the clouds • 2. Geometric potential field • adjusts the horizontal extent of the clouds

  20. 4. Our Control Method for Cloud Formation • 1. Feedback controller • Promotes the cloud growth until the clouds reach the top of the target shape (R(i,j)=1.0) • 2. Geometric potential field • When the target shape is not a height field, the clouds may grow outside of the target shape • So, geometric potential field is used • External forces preventing the clouds from growing outside • We use only the horizontal components of the external forces.

  21. 4. Our Control Method for Cloud Formation • 1. Feedback controller • Cloud growth is promoted by controlling the latent heat and by supplying additional water vapor • 2 functions • The latent heat controller • controls the coefficient for the latent heat Q (old : constant). • - updates Qc(i,j) that was for the grid point (i,j,0) as a control variable • - the coefficient for latent heat for grid point (i,j,k) = Qc(i,j) • The water vapor supplier • adds water vapor where clouds does not reach the top of the target shape (old: at the bottom of the simulation space + topof the clouds) • - determines the amount of water vapor, Sv,c(i,j), to be supplied • There are Nx*Ny*2 control variables • To adjust these parameters, we employ PID controller • PID=proportional-integral-derivative

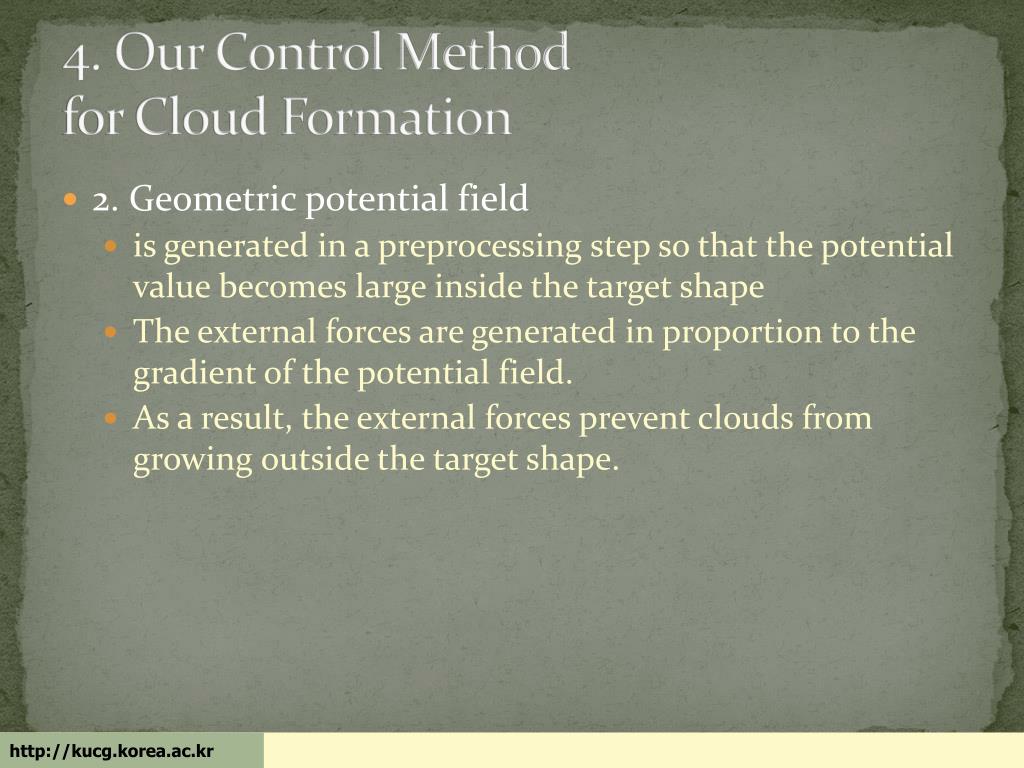

  22. 4. Our Control Method for Cloud Formation • 2. Geometric potential field • is generated in a preprocessing step so that the potential value becomes large inside the target shape • The external forces are generated in proportion to the gradient of the potential field. • As a result, the external forces prevent clouds from growing outside the target shape.

  23. 4. Our Control Method for Cloud Formation • How our control mechanism works? • 1. Compute the height ratio R(i,j) • Ratio is sent to latent heat controller, the water vapor supplier • 2. the water vapor supplier • determines the amount of the water vapor, Sv,c • and adds this at the grid points corresponding to the top of the simulated clouds. • Promotes the phase transition from water vapor to clouds.

  24. 4. Our Control Method for Cloud Formation • How our control mechanism works? • 3. the latent heat controller • Increases Qc where the clouds have not reached the top of the target shape (R(i,j)<1.0) • Qc increases the temperature when the clouds are generated due to the phase transition • The increase in temperature results in an increase in the buoyancy force • This promotes the cloud growth to higher regions. • 4. During cloud growth • The external forces due to the geometric potential field push clouds inwards the inside the target shape

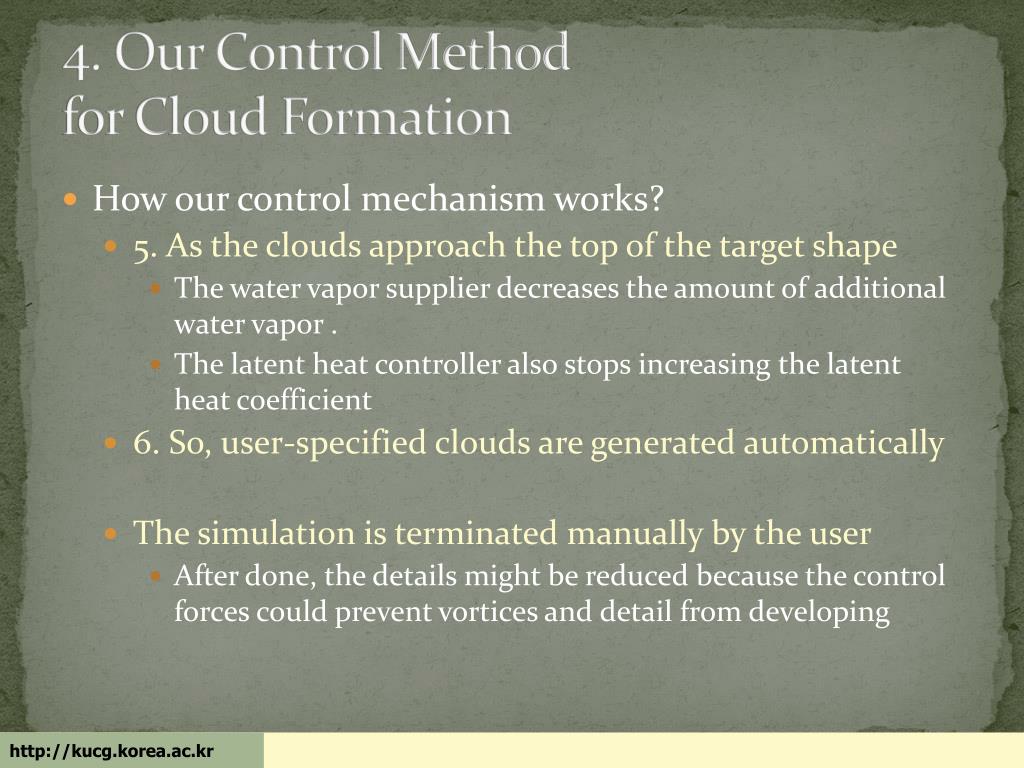

  25. 4. Our Control Method for Cloud Formation • How our control mechanism works? • 5. As the clouds approach the top of the target shape • The water vapor supplier decreases the amount of additional water vapor . • The latent heat controller also stops increasing the latent heat coefficient • 6. So, user-specified clouds are generated automatically • The simulation is terminated manually by the user • After done, the details might be reduced because the control forces could prevent vortices and detail from developing

  26. 5. Controlling Cloud Simulation • 1. The generation of the target shape • 2. The geometric potential field • 3. The feedback control of the simulation • 4. The water vapor supplier

  27. 5.1 Controlling Cloud Simulation- Generation of Target Shape • The target shape is generated from the user specified contours of the desired cloud shape. • 1. the user specifies the generating region • The center of the simulation space is placed at the center of the specified region • 2. the user draws the contours on the screen • 3. the contours are projected onto a plane • 4. the target shape is generated • Thickens the 2d sketch by extracting its medial axis • 5. a bounding box of the target shape is generated and is subdivided into a 3d grid • Grid is used to compute the geometric potential field and to simulate the cloud formation process

  28. 5.2 Controlling Cloud Simulation- Geometric Potential Field • 1. An initial potential field is generated • 1 : inside grid points • 0 : outside grid points • 2. Applying a 3d Gaussian filter to the initial field in order to create a smooth and continuous potential field • The result field is the geometric potential field.

  29. 5.2 Controlling Cloud Simulation- Geometric Potential Field • During simulation, • F, the external force due to the geometric potential filed is calculated at each grid point • Because of using only the horizontal component of F, • qc : the density of clouds / ψ: the potential field • Since the external force is proportional to the gradient of the potential field, it only works near the boundary of the target shape. • No external forces are generated at the grid points where no clouds exist since F is also proportional to qc

  30. 5.3 Controlling Cloud Simulation- Latent Heat Controller • updates the coefficient for the latent heat, Qc(i,j) • Using PID control mechanism -> PI control • ∆H(i,j) : the normalized height difference between the top of the clouds and the target shape

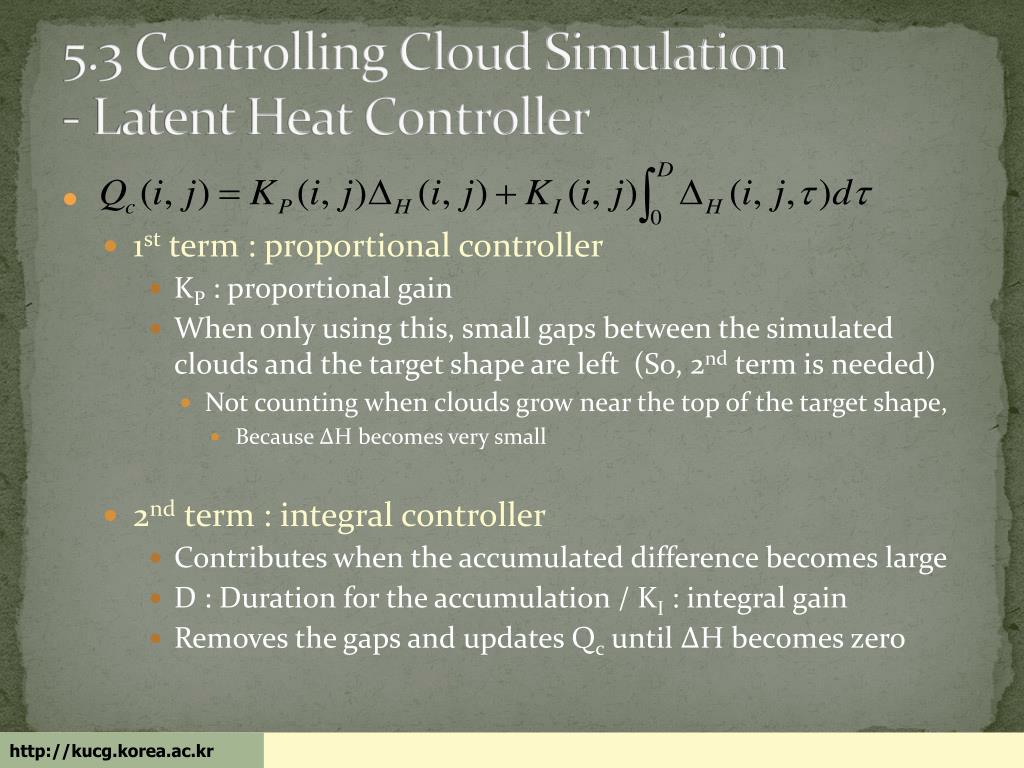

  31. 5.3 Controlling Cloud Simulation- Latent Heat Controller • 1st term : proportional controller • KP : proportional gain • When only using this, small gaps between the simulated clouds and the target shape are left (So, 2nd term is needed) • Not counting when clouds grow near the top of the target shape, • Because ∆H becomes very small • 2nd term : integral controller • Contributes when the accumulated difference becomes large • D : Duration for the accumulation / KI : integral gain • Removes the gaps and updates Qc until ∆H becomes zero

  32. 5.3 Controlling Cloud Simulation- Latent Heat Controller • The control parameters need to be specified. • We determine KP and KI experimentally • It is difficult to determine all these parameter • From experiments, we found that larger values are required for KP and KI where the top of the target shape is high • Because the cloud growth in such regions has to be promoted further than the regions where the top of the target shape is low. • We assume that KP and KI are proportional to the height of the target shape. • кP,кI : proportionality coefficients • Ĥtarget : the height of the target shape divided by the height of the simulation space. • As a result, кP,кI are specified by the user.

  33. 5.4 Controlling Cloud Simulation- Water Vapor Supplier • Adds water vapor • if • Indicates that the water vapor is supplied at the grid points where the ratio R(i,j) < the average of the ratios • The water vapor supplier tries to make the ratio of the cloud growth the same for all grid points •  The top of the cloud at all grid point reaches the top of the target shape almost simultaneously. • The amount of additional water vapor • Cv : a control parameter for the water vapor supplier, specified by the user / qv,0 : the initial water vapor at the beginning • (i,j,ktop) : the grid point corresponding to the top of the clouds

  34. 6. Results • Intel Core2 Extreme X9650 with nVidia GeForce 8800 GTX • The simulation space : 320 * 80 * 100 grid • The average computation time for each time step of the simulation : 7 seconds • The additional computational cost due to control mechanism is very low and is less than one percent of the total computation cost

  35. 6. Results • кP=4.95, кI=0.6, cv=0.5 • cv is from process of trial and error • Once the appropriate values for these parameters have been found, we can generate various shapes of clouds

  36. 6. Results • Comparing to Fattal’s method • In Fattal’s method, clouds are generated where they should not be • Our method can generate realistic clouds while their shapes closely match the target shapes.

  37. 6. Results • Case that is not the height field

  38. 6. Results • The target shapes are completely different from height fields.

  39. 6. Results • Generating clouds resembling real clouds in a photo

  40. 7. Discussion and Future Work • Our control mechanism is fairly indirect. • Feedback controllers cannot guarantee that the clouds will completely form the desired shape. • The indirect control makes it possible to promote the cloud growth as naturally as possible (realistic-looking) • The indirect control allows the user to specify the rough shape of the clouds and finally generate the realistic clouds.

  41. 7. Discussion and Future Work • Our method controls the cloud motion in the vertical direction • The horizontal movement of the clouds is not controlled • Since the forces due to cloud formation work only in the vertical direction • It is difficult to control the horizontal movement by controlling the cloud formation process • The previous fluid control methods might be suitable for horizontal control •  it is expected that the combination of methods to control the cloud motion in both vertical and horizontal directions.

  42. 7. Discussion and Future Work • Our method can handle a desired shape that is not a height field. • However, it is still difficult to handle a shape that is very different from a height field •  the cumuliform cloud formation process affects the vertical movement of the clouds • Horizontal external forces are required • Our goal for generating realistic clouds forming the desired shape has been achieved. • Extending the method to handling multiple target shapes is our next important research direction

  43. 7. Discussion and Future Work • The user specifies the shape of clouds viewed from only a single direction. •  solution : to specify the multiple target shapes viewed from multiple viewpoints. • Ziegler-Nichols method doesn’t always provide ‘good’ parameters. • A trial and error process is still required. • Extension of our method to other types of clouds such as stratus is also an interesting area for future work

  44. 8. Conclusion • Controlling cumuliform cloud simulation • Our method can generate clouds with desired shapes • Controlled by our feedback controller and external forces calculated by the geometric potential field. • For feedback control, we developed a latent heat controller and a water vapor supplier. • By controlling the amounts of latent heat and additional water vapor, clouds grow naturally and converge into the desired shape • Our method provides a simple way to generate realistic clouds with desire shapes

  45. Appendix A.Ziegler-Nichols Method • We determine кP,кI based on this method • 1. Experimental simulations are carried out several times with the proportional controller only. • 2. Carried out with increasing кC and the controller tries to make the clouds reach a target height • In experiment, the target height is set to 80% of space • When кC is small, the clouds cannot reach • As кC increases, the clouds can reach • At a certain value of кC, the cloud growth exhibits periodical oscillations •  Clouds repeatedly exceed and fall below the target height • 2. TC : the period of the oscillation

  46. THANK YOU • Any questions?
