  1. GNMS Daniel Grum Larry Price Eric Ellett Jason Rice

  2. What is GNMS? GNMS is a tabletop, multi-touch, computing surface. This surface will primarily be used for entertainment purposes but can conceivably be used for anything that a regular computer is used.

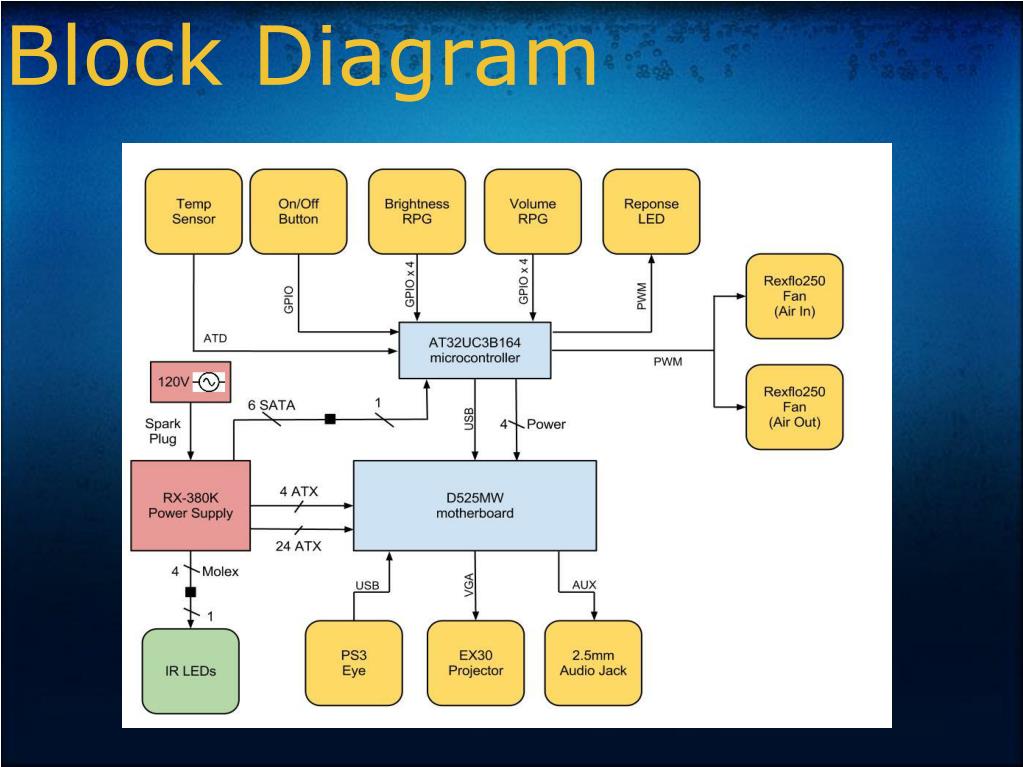

  3. Block Diagram

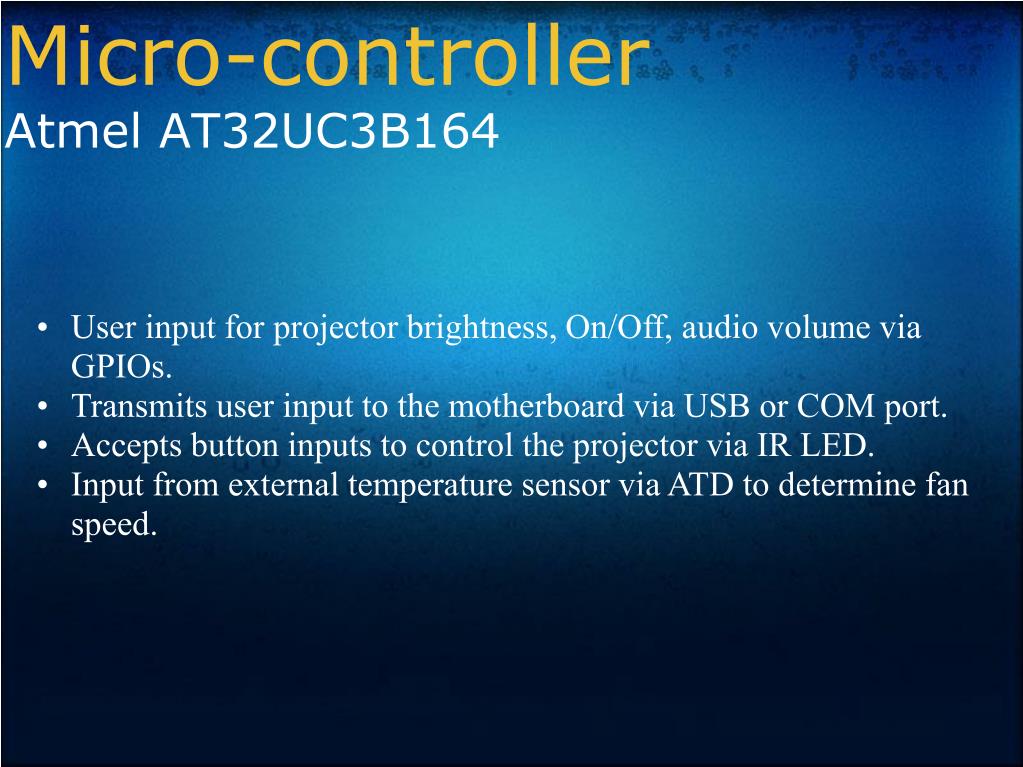

  4. Micro-controllerAtmel AT32UC3B164 • User input for projector brightness, On/Off, audio volume via GPIOs. • Transmits user input to the motherboard via USB or COM port. • Accepts button inputs to control the projector via IR LED. • Input from external temperature sensor via ATD to determine fan speed.

  5. Target size 60 in2 • No size constraints due to packaging • Allows separation of noisy parts • Eases routing concerns • Also allows easy separation of different voltage levels (5V, 12V, 3.3V 1.8V) • Eventually get most, if not all the microprocessor pins hooked up to headers • Traces may be too big? PCB-Strategy

  6. Power • A RaidMax RX-380K will be used as the power supply. • 5V from the 5-pin Molex will be regulated to 3.3V to power the micro-controller. • LM361 used to convert from 5V to 3.3V. • Internal voltage converter on microcontroller will convert 3.3V to 1.8V for logic unit of processor. • Two separate12V Molex will power the fans.

  7. 12V Molex will power the fans.   • 2N3904 BJT used to control fan speeds from PWM • BJT is opto isolated from rest of circuit • Fan speed is determined from temperature sensors Fan Control

  8. We will use a single IR LED to control the projector   • Microprocessor accepts input from a variety of buttons and outputs the correct IR wavelengths to control LED • Have successfully captured IR signals on oscilloscope, still need to replicate on PWM. • Controlled by 2N3904 BJT Remote IR LED Control

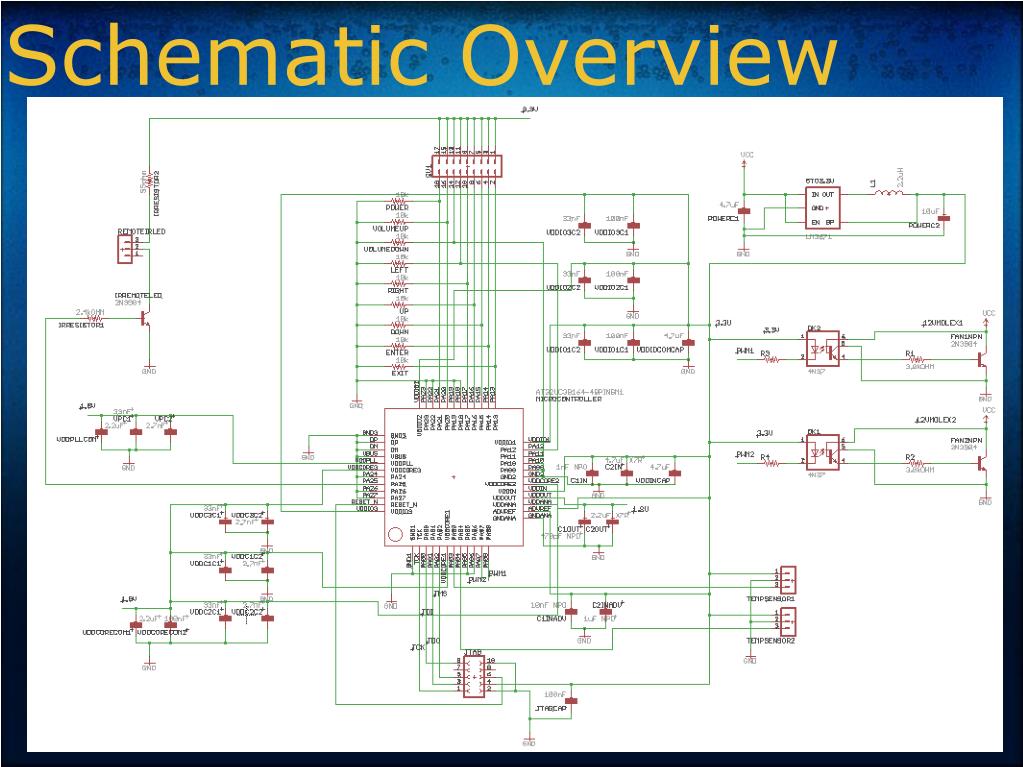

  9. Schematic Overview

  10. Schematic Fans

  11. Schematic JTAG

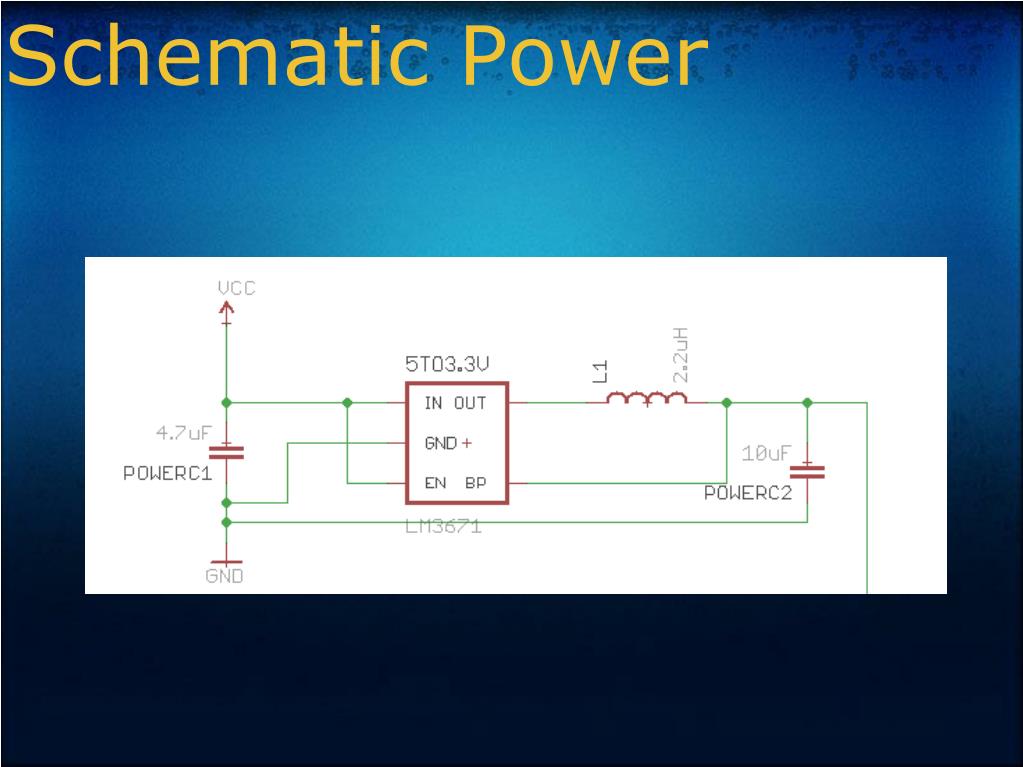

  12. Schematic Power

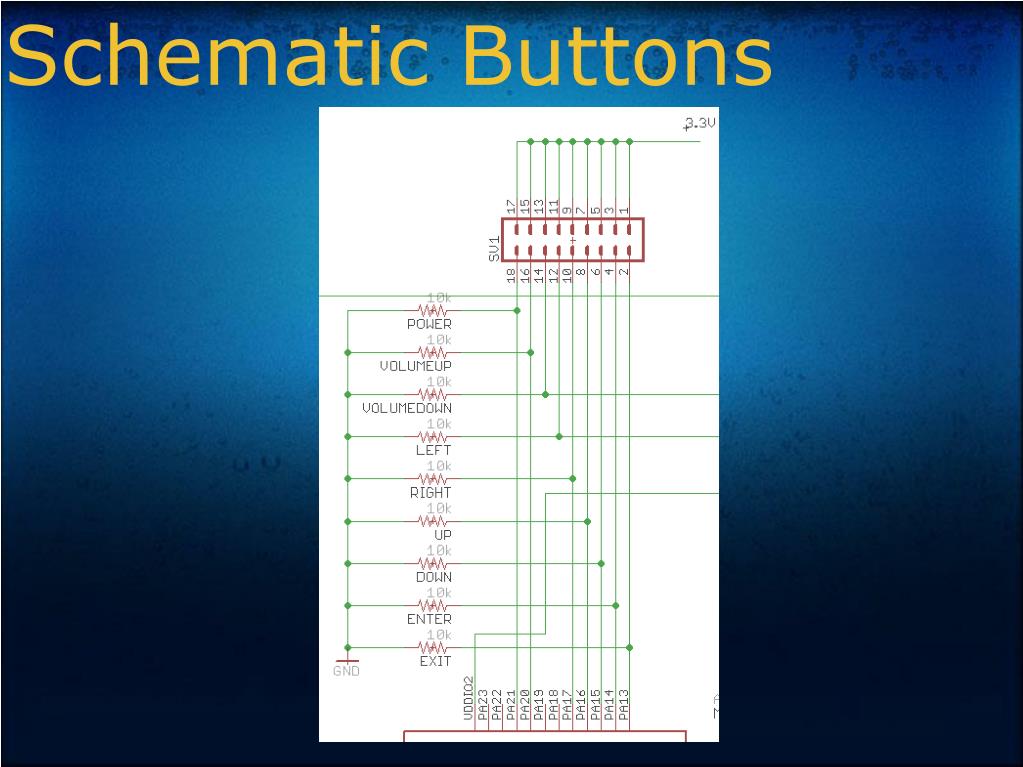

  13. Schematic Buttons

  14. Schematic IR LED

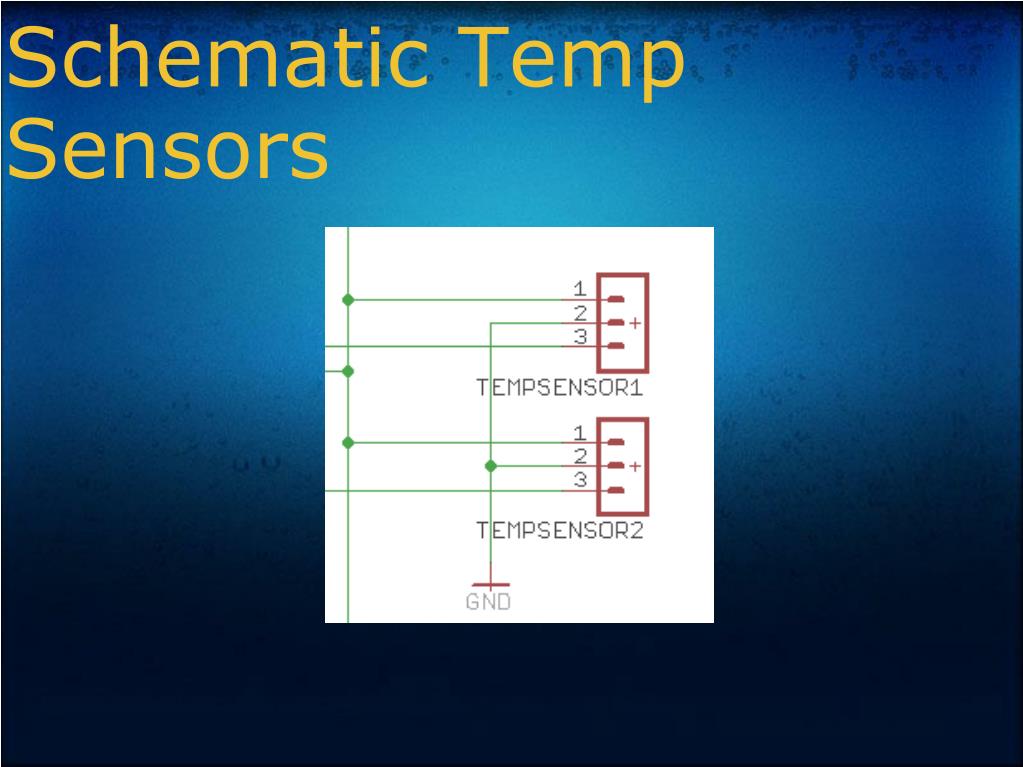

  15. Schematic Temp Sensors

  16. Board Overall

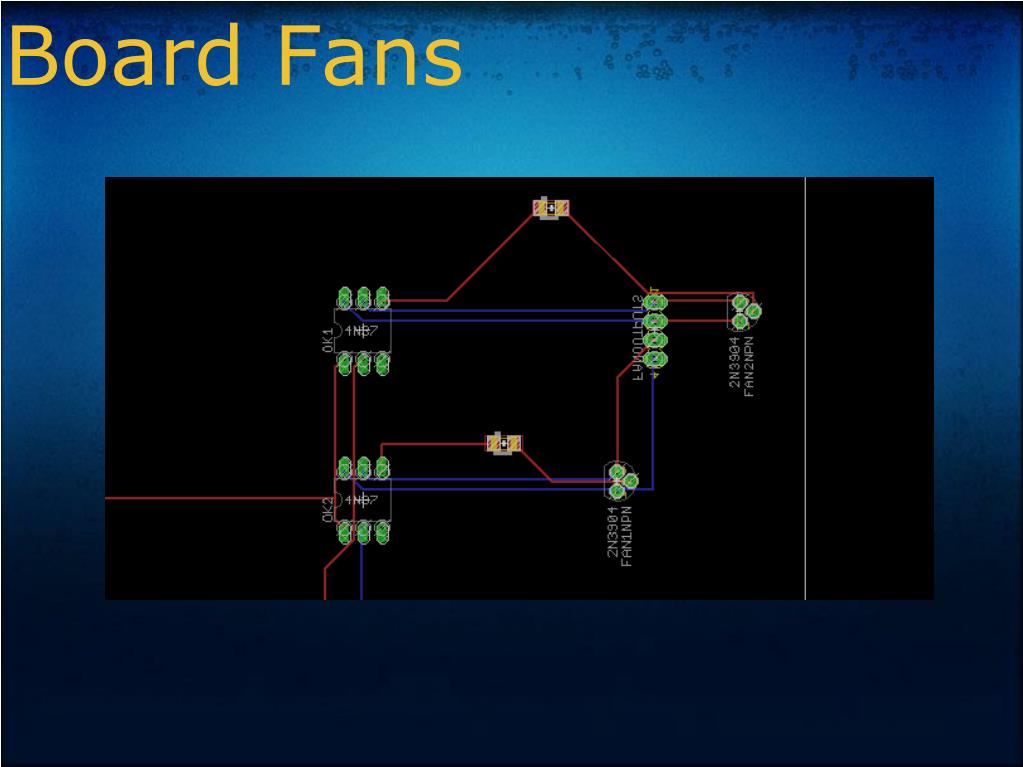

  17. Board Fans

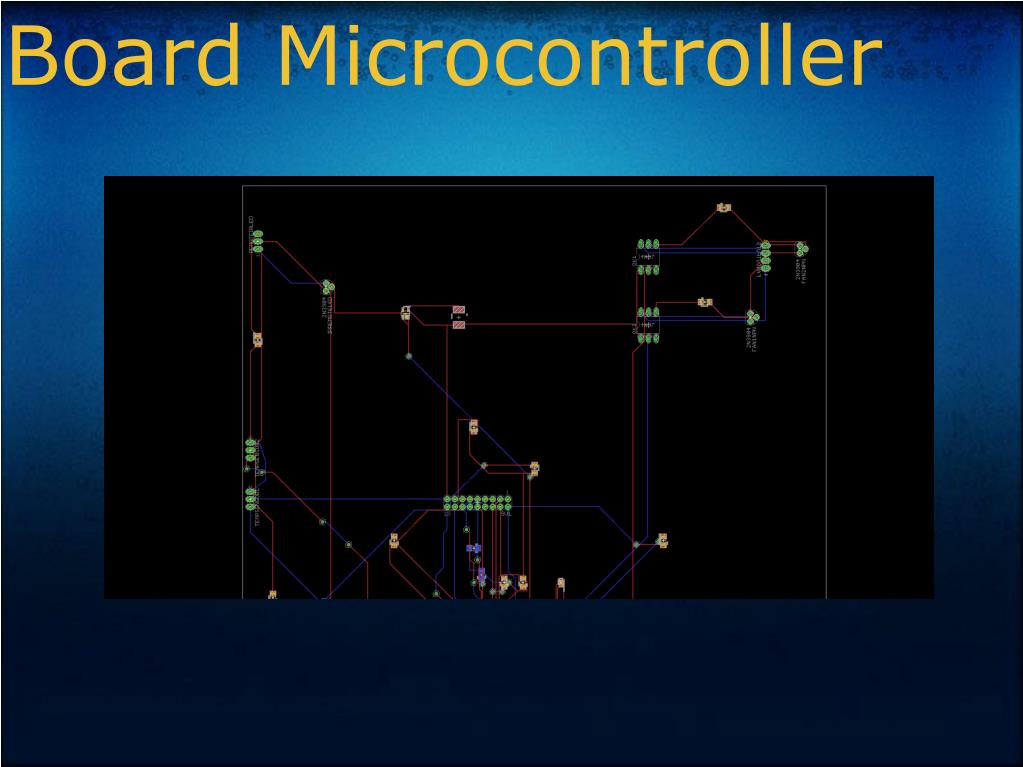

  18. Board Microcontroller

  19. Board Microcontroller

  20. ?
