3DES and Block Cipher Modes of Operation

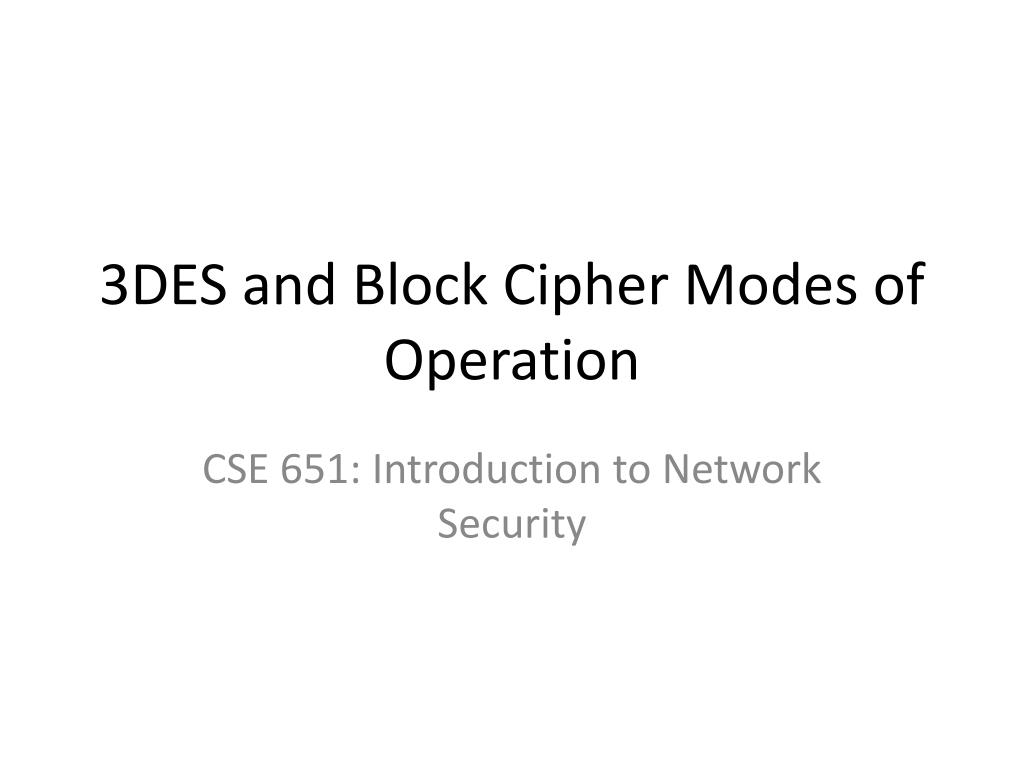

1. 3DES and Block Cipher Modes of Operation CSE 651: Introduction to Network Security

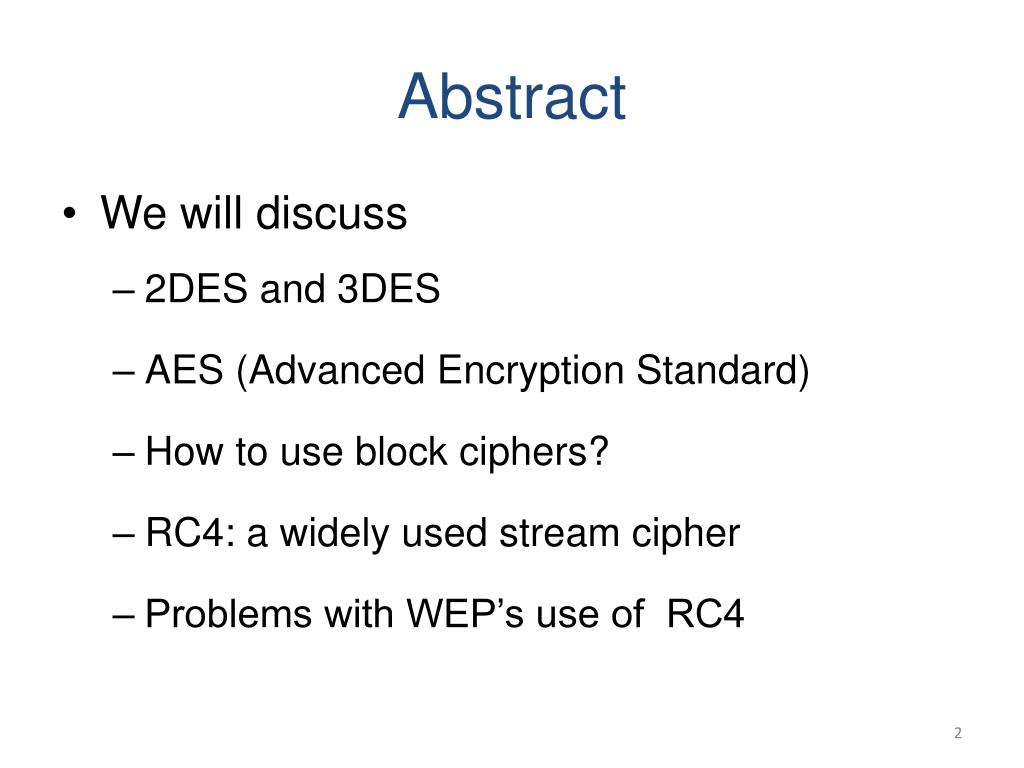

2. Abstract • We will discuss • 2DES and 3DES • AES (Advanced Encryption Standard) • How to use block ciphers? • RC4: a widely used stream cipher • Problems with WEP’s use of RC4

3. Multiple Encryption with DES • DES is not secure enough. • The once large key space, 256, is now too small. • In 2001, NIST published the Advanced Encryption Standard (AES) as an alternative. • But users in commerce and finance are not ready to give up on DES. • Solution: to use multiple DES with multiple keys

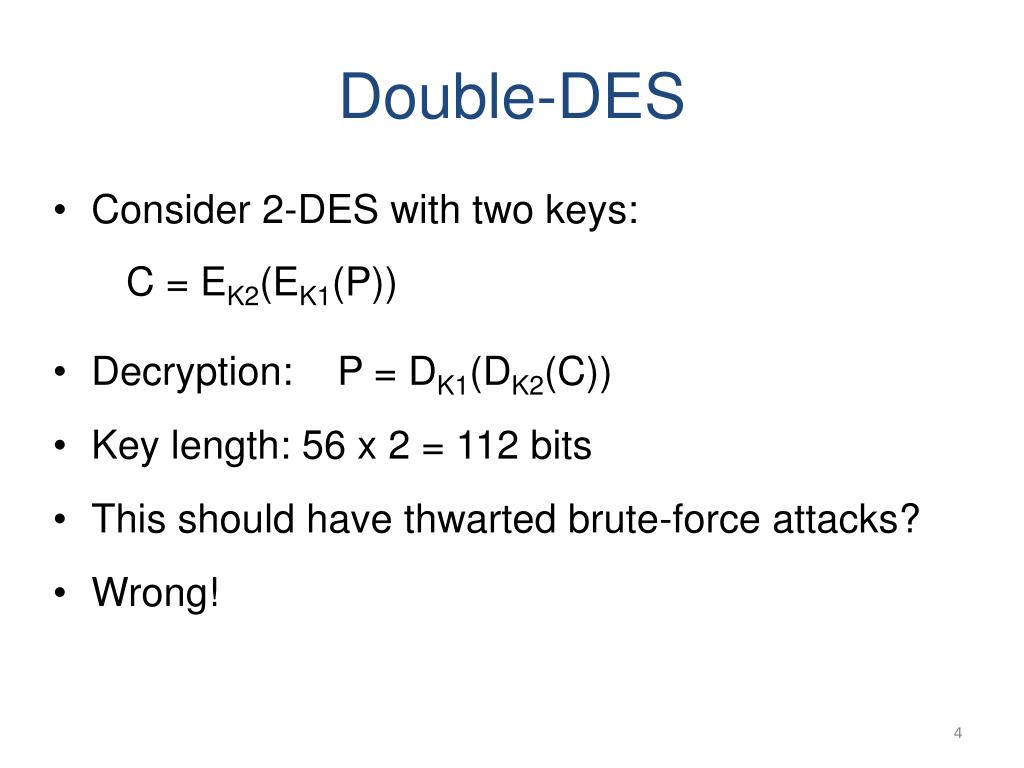

4. Double-DES • Consider 2-DES with two keys: C = EK2(EK1(P)) • Decryption: P = DK1(DK2(C)) • Key length: 56 x 2 = 112 bits • This should have thwarted brute-force attacks? • Wrong!

5. Meet-in-the-Middle Attack on 2DES • 2-DES: C = EK2(EK1(P)) • So, X = EK1(P) = DK2(C) • Given a known pair (P, C), attack as follows: • Encrypt P with all 256 possible keys for K1. • Decrypt C with all 256 possible keys for K2. • If EK1’(P) = DK2’(C), try the keys on another (P’, C’). • If works, (K1’, K2’) = (K1, K2) with high probability. • Takes O(256) steps; not much more than attacking 1-DES.

6. Triple DES with Two Keys • A straightforward implementation would be: C = EK1(EK2(EK1(P))) • In practice: C = EK1(DK2(EK1(P))) • Also referred to as EDE encryption • Reason: if K1=K2, then 3DES = 1DES. Thus, a 3DES software can be used as a single-DES. • Standardized in ANSI X9.17 & ISO8732 • No current known practical attacks • What about the meet-in-the-middle attack?

7. Meet-in-the-Middle Attack on 3DES K1 K2 K1 • For each possible key for K1, encrypt P to produce a possible value for A. • Using this A, and C, attack the 2DES to obtain a pair of keys (K2, K1’). • If K1’ = K1, try the key pair (K1, K2) on another (C’,P’). • If it works, (K1, K2) is the key pair with high probability. • It takes O(255 x 256) = O(2111) steps on average. A B P C E D E

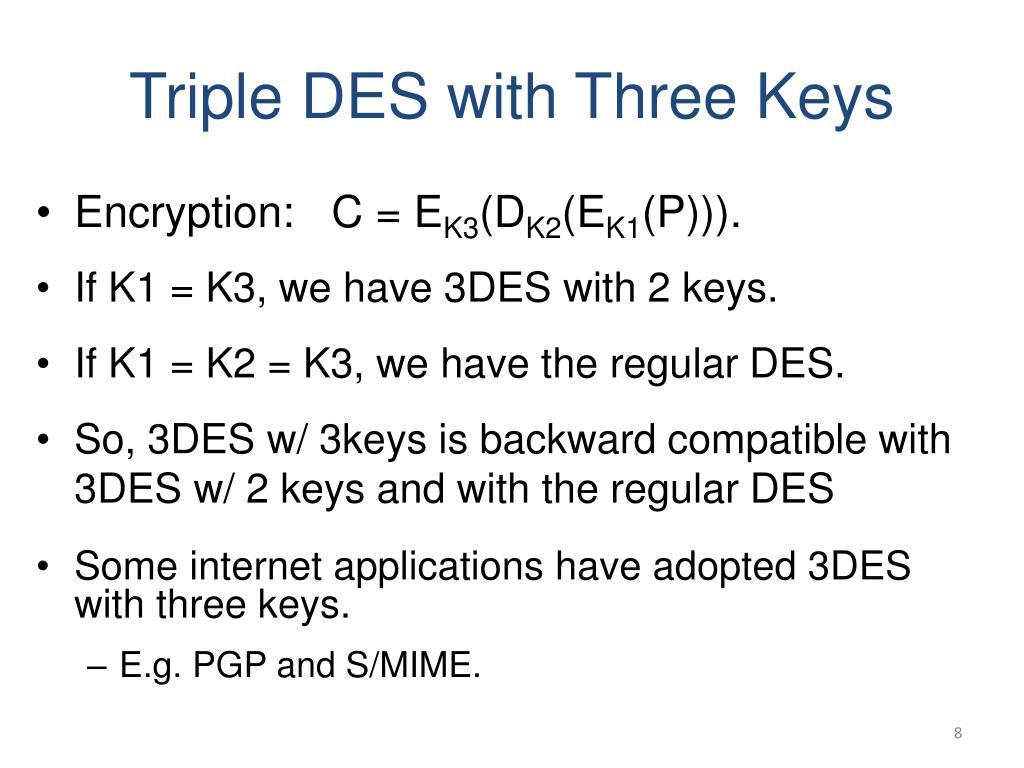

8. Triple DES with Three Keys • Encryption: C = EK3(DK2(EK1(P))). • If K1 = K3, we have 3DES with 2 keys. • If K1 = K2 = K3, we have the regular DES. • So, 3DES w/ 3keys is backward compatible with 3DES w/ 2 keys and with the regular DES • Some internet applications have adopted 3DES with three keys. • E.g. PGP and S/MIME.

9. Finite Fields Some mathematics used in AES

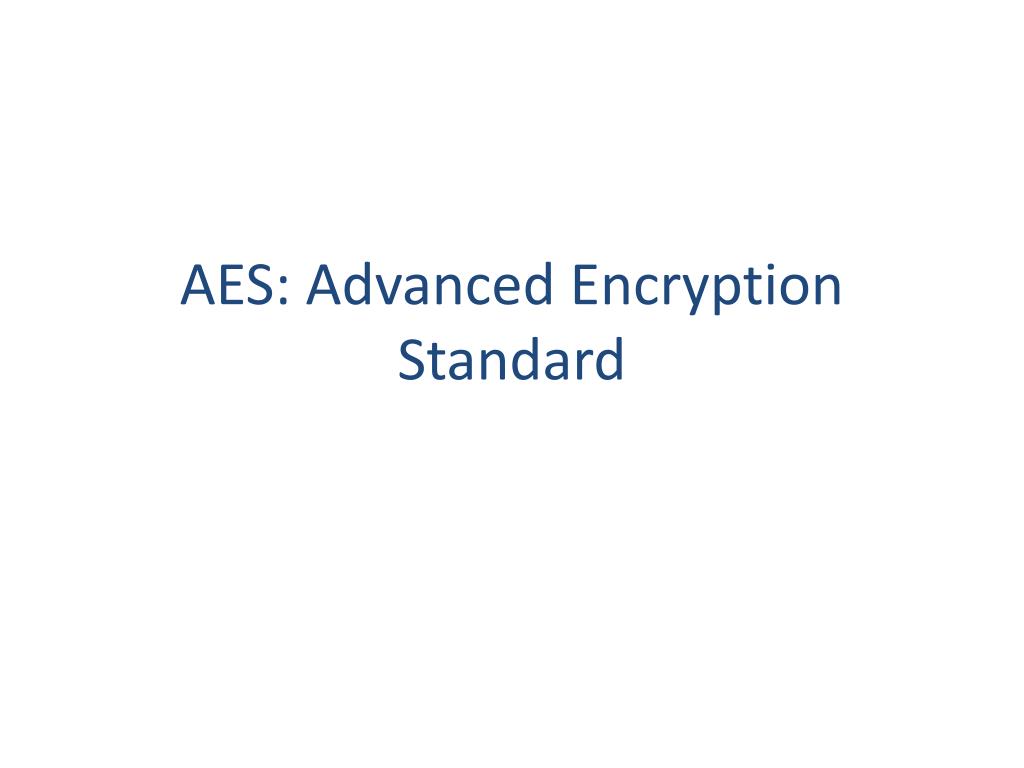

19. AES: Advanced Encryption Standard

20. AES: Advanced Encryption Standard • In1997, NIST began the process of choosing a replacement for DES and called it the Advanced Encryption Standard. • Requirements: block length of 128 bits, key lengths of 128, 192, and 256 bits. • In 2000, Rijndael cipher (by Rijmen and Daemen) was selected. • An iterated cipher, with 10, 12, or 14 rounds. • Rijndael allows various block lengths. • But AES allows only one block size: 128 bits.

27. Figure 5.1 AES Encryption and Decryption

36. Modes of Operations

37. How to use a block cipher? • Block ciphers encrypt fixed size blocks • E.g. DES encrypts 64-bit blocks • We need some way to encrypt arbitrary amounts of data • E.g. a message of 1000 bytes • NIST defines five ways to do it • Called modes of operations • Including block and stream modes

38. Five Modes of Operation • Electronic codebook mode (ECB) • Cipher block chaining mode (CBC) – most popular • Output feedback mode (OFB) • Cipher feedback mode (CFB) • Counter mode (CTR)

39. Electronic Code Book (ECB) • The plaintext is broken into blocks, P1, P2, P3, ... • Each block is encrypted independently of the other blocks Ci = EK(Pi) • For a given key, this mode behaves like we have a gigantic codebook, in which each plaintext block has an entry, hence the name Electronic Code Book

40. Remarks on ECB • Strength: it’s simple. • Weakness: • Repetitive information contained in the plaintext may show in the ciphertext, if aligned with blocks. • If the same message (e.g., your SSN) is encrypted (with the same key) and sent twice, their ciphertexts are the same. • Typical application: secure transmission of short pieces of information (e.g. an encryption key)

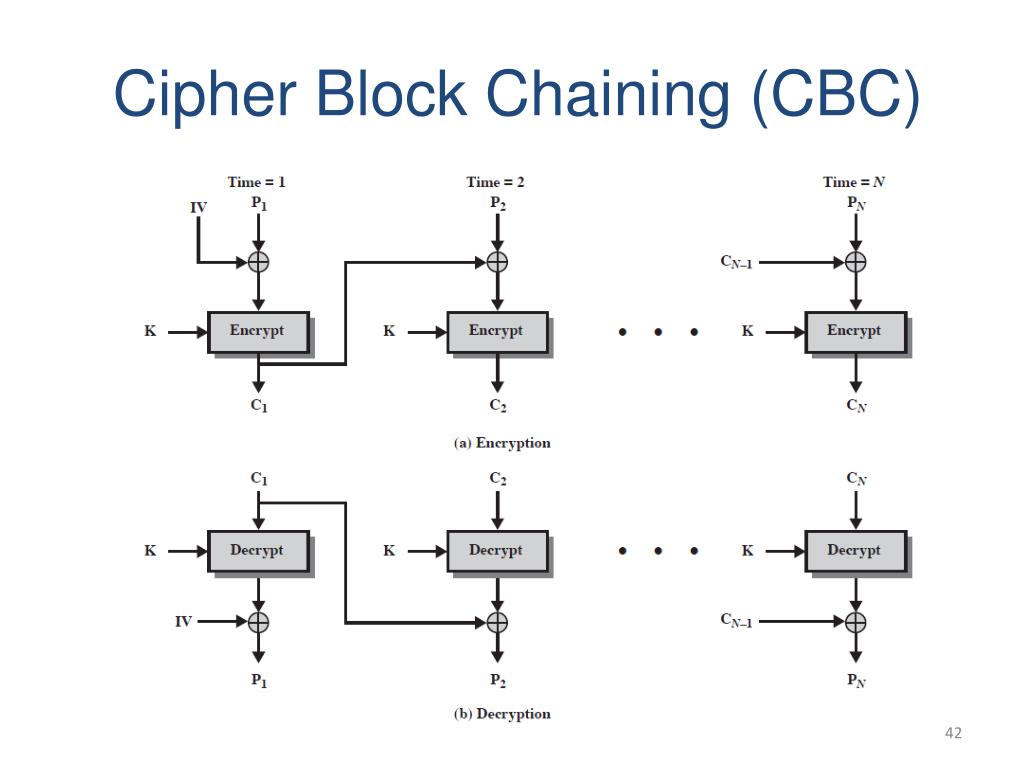

41. Cipher Block Chaining (CBC)

42. Cipher Block Chaining (CBC)

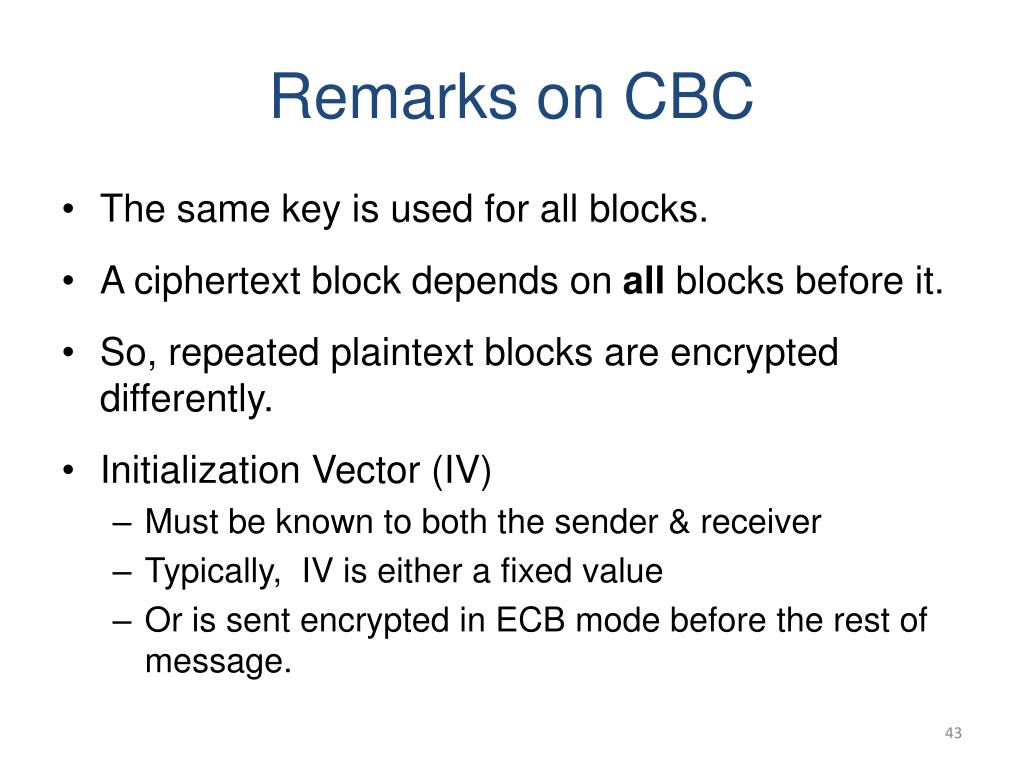

43. Remarks on CBC • The same key is used for all blocks. • A ciphertext block depends on all blocks before it. • So, repeated plaintext blocks are encrypted differently. • Initialization Vector (IV) • Must be known to both the sender & receiver • Typically, IV is either a fixed value • Or is sent encrypted in ECB mode before the rest of message.

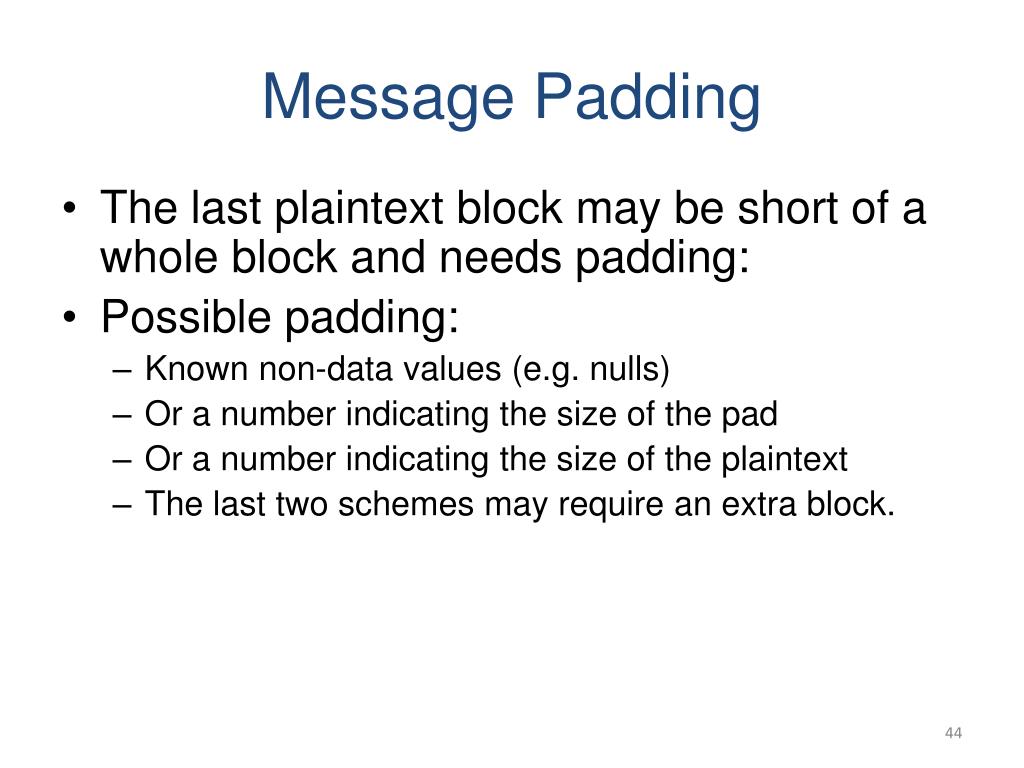

44. Message Padding • The last plaintext block may be short of a whole block and needs padding: • Possible padding: • Known non-data values (e.g. nulls) • Or a number indicating the size of the pad • Or a number indicating the size of the plaintext • The last two schemes may require an extra block.

45. Cipher feedback mode (basic version) • Plaintext blocks: p1, p2, … • Key: k • Basic idea: construct key stream k1, k2, k3, … • Encryption:

46. Cipher Feedback (CFB) Mode

47. Generating Key Stream for CFB

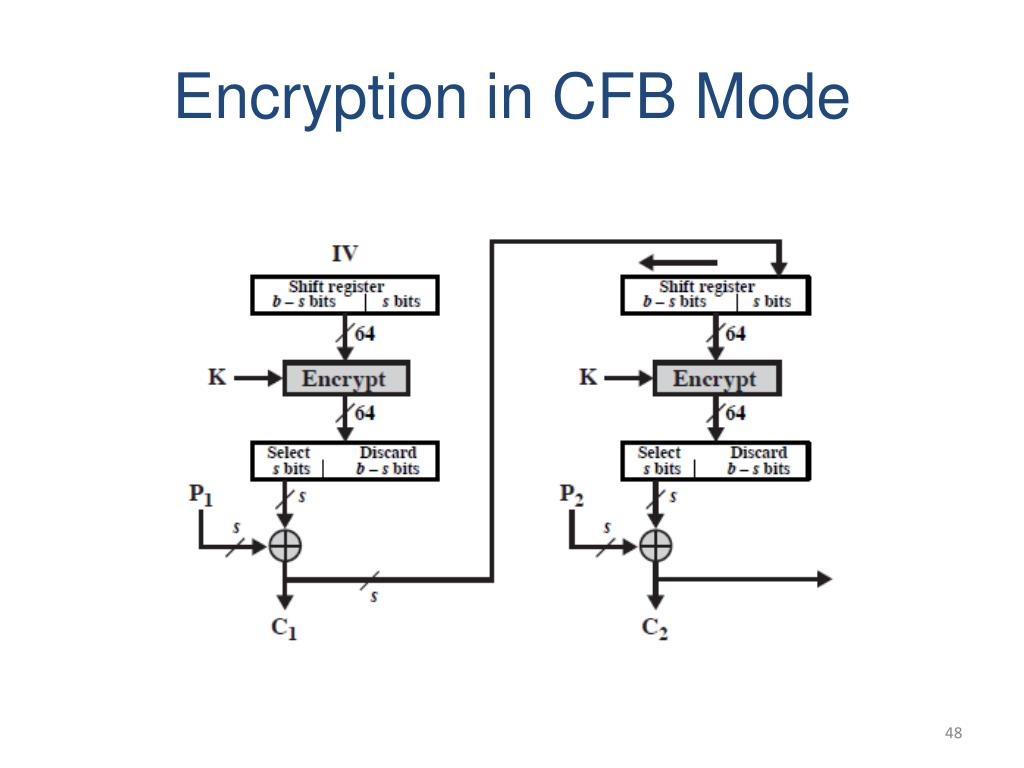

48. Encryption in CFB Mode

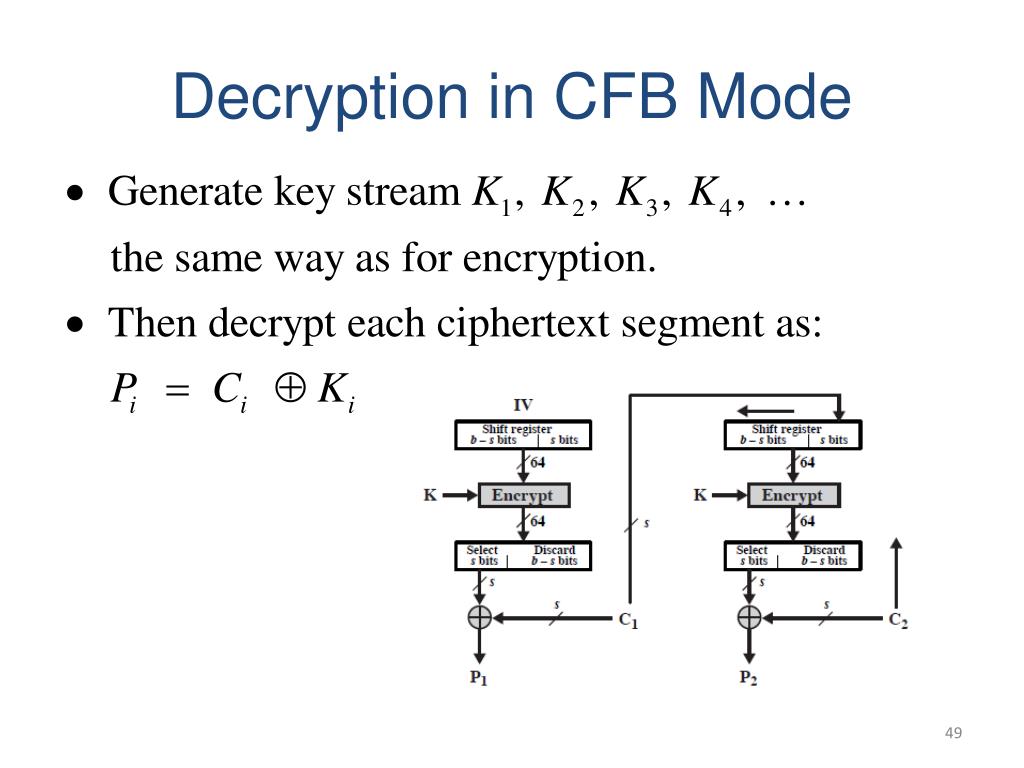

49. Decryption in CFB Mode

50. Remark on CFB • The block cipher is used as a stream cipher. • Appropriate when data arrives in bits/bytes. • s can be any value; a common value is s = 8. • A ciphertext segment depends on the current and all preceding plaintext segments. • A corrupted ciphertext segment during transmission will affect the current and next several plaintext segments. • How many plaintext segments will be affected?
