Linear Approximation and Differentials

Linear Approximation and Differentials. Lesson 4.8. Tangent Line Approximation. Consider a tangent to a function at a point x = a Close to the point, the tangent line is an approximation for f(x). y=f(x). The equation of the tangent line: y = f(a) + f ‘(a)(x – a). f(a). •. a.

andrew
Télécharger la présentation

Linear Approximation and Differentials

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

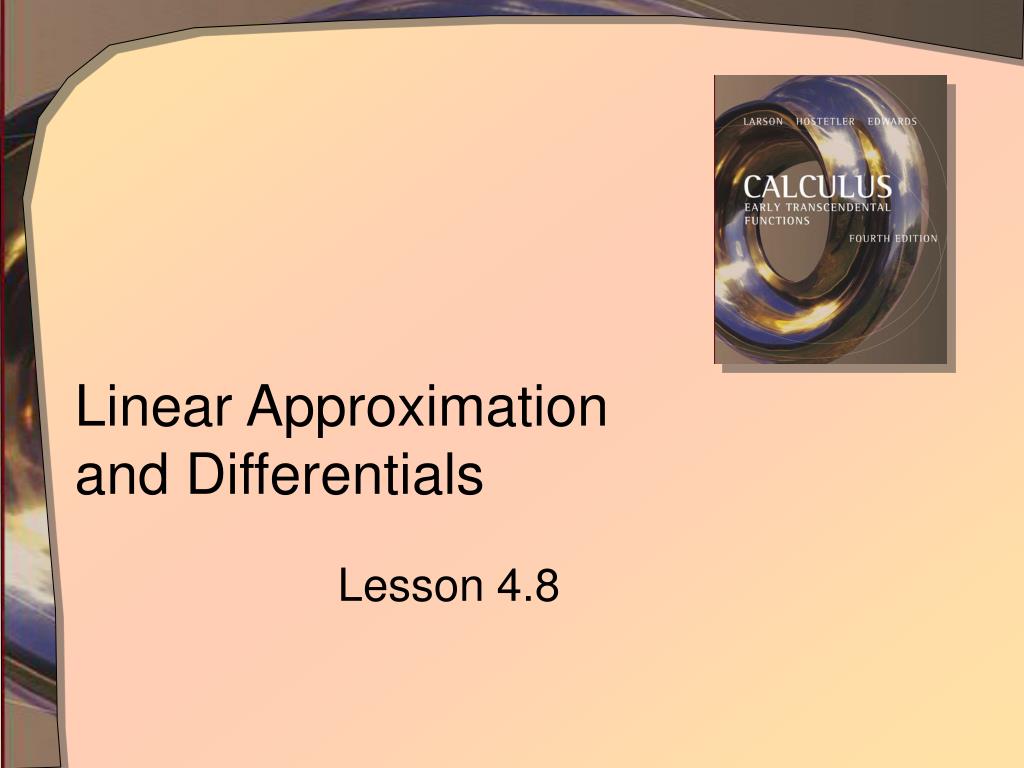

  1. Linear Approximation and Differentials Lesson 4.8

  2. Tangent Line Approximation • Consider a tangent to a function at a point x = a • Close to the point, the tangent line is an approximation for f(x) y=f(x) • The equation of the tangent line:y = f(a) + f ‘(a)(x – a) f(a) • a

  3. Tangent Line Approximation • We claim that • This is called linearization of the function at the point a. • Recall that when we zoom in on an interval of a function far enough, it looks like a line

  4. New Look at • dy = rise of tangent relative to x = dx • y = change in y that occurs relative to x = dx y dy • • • x + x x x = dx

  5. New Look at • We know that • then • Recall that dy/dx is NOT a quotient • it is the notation for the derivative • However … sometimes it is useful to use dy and dx as actual quantities

  6. The Differential of y • Consider • Then we can say • this is called the differential of y • the notation is d(f(x)) = f ’(x) * dx • it is an approximation of the actual change of y for a small change of x

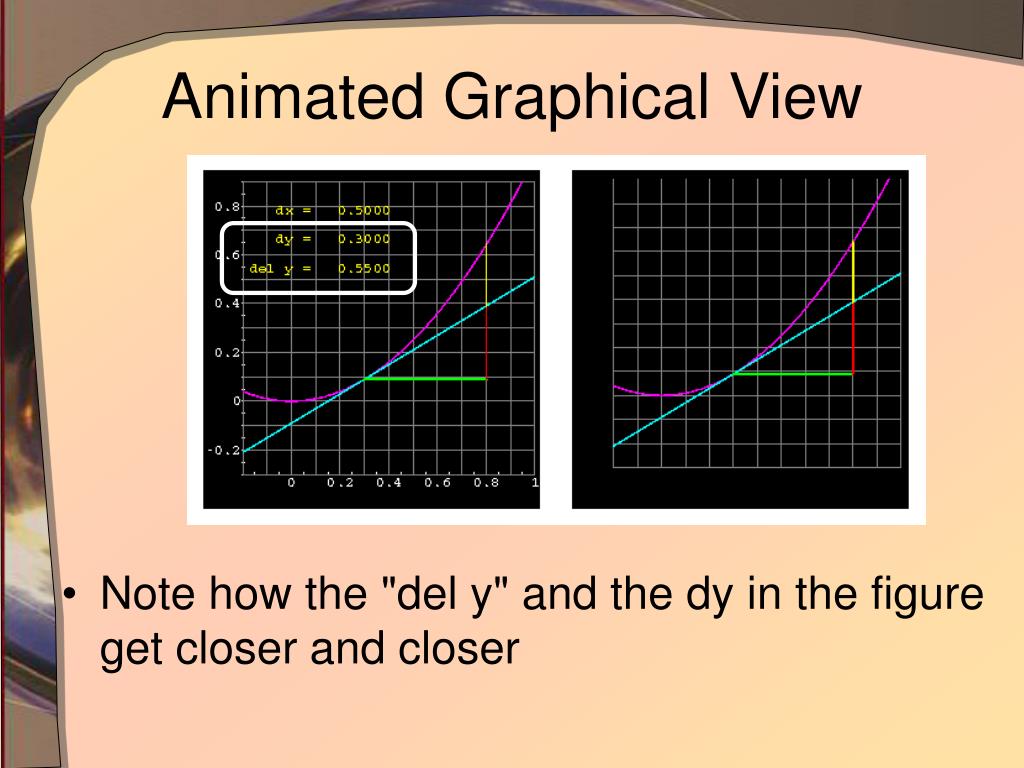

  7. Animated Graphical View • Note how the "del y" and the dy in the figure get closer and closer

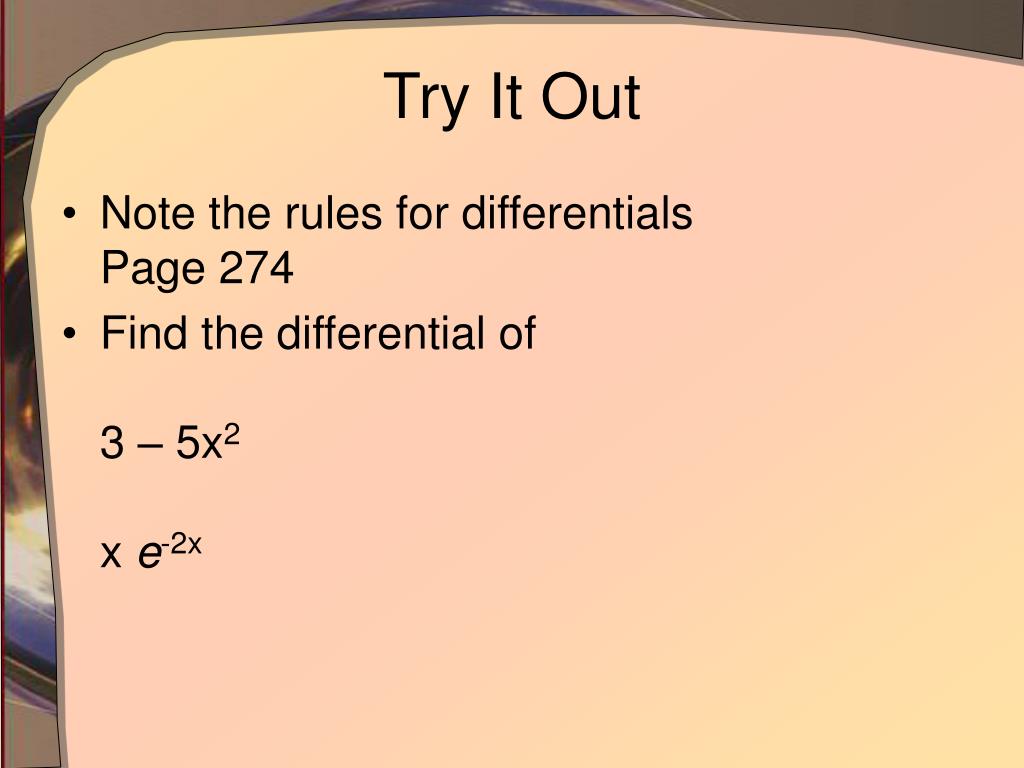

  8. Try It Out • Note the rules for differentialsPage 274 • Find the differential of3 – 5x2x e-2x

  9. Differentials for Approximations • Consider • Use • Then with x = 25, dx = .3 obtain approximation

  10. 2x x Propagated Error • Consider a rectangular box with a square base • Height is 2 times length of sides of base • Given that x = 3.5 • You are able to measure with 3% accuracy • What is the error propagated for the volume? x

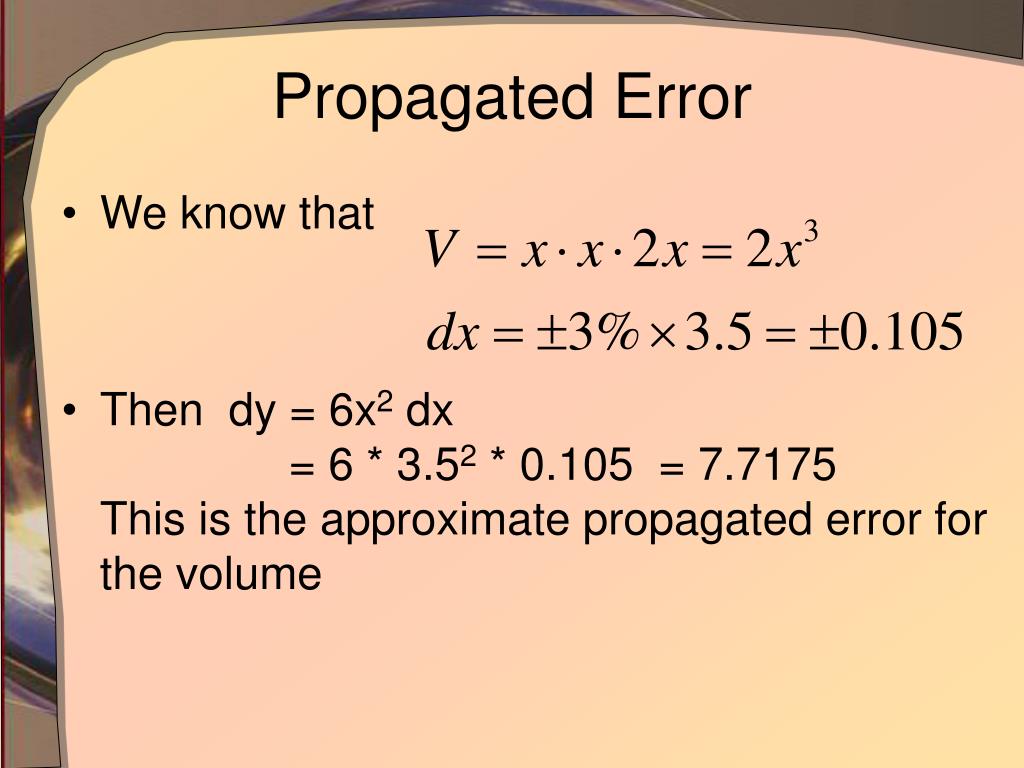

  11. Propagated Error • We know that • Then dy = 6x2 dx = 6 * 3.52 * 0.105 = 7.7175This is the approximate propagated error for the volume

  12. Propagated Error • The propagated error is the dy • sometimes called the df • The relative error is • The percentage of error • relative error * 100%

  13. Assignment • Lesson 4.8 • Page 276 • Exercises 1 – 45 odd
