The 1st open source and easy programmable Time Recorder on the market

The 1st open source and easy programmable Time Recorder on the market. You dream it, We plan it. Let’s do it together. Why do you need TR610?. Programmable  Customization No extra Cost. No MOQ. Easy & Fast. Consolidate and expend more business. Streamline human resource input.

andrew
Télécharger la présentation

The 1st open source and easy programmable Time Recorder on the market

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

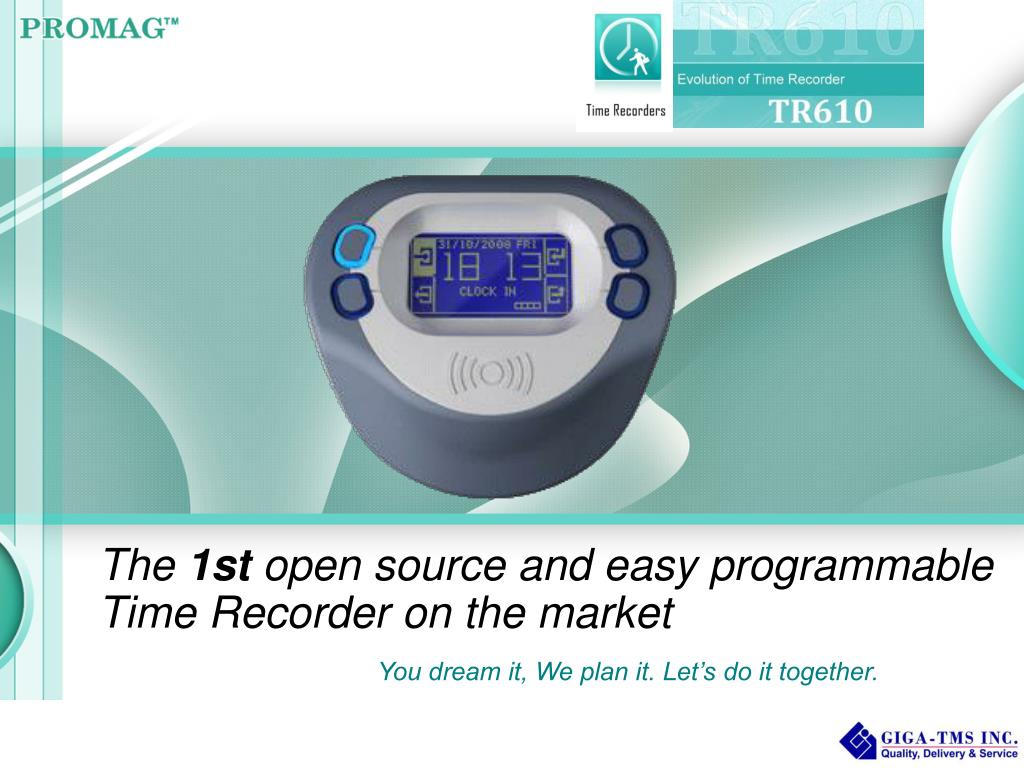

  1. The 1st open source and easy programmable Time Recorder on the market You dream it, We plan it. Let’s do it together.

  2. Why do you need TR610? Programmable  Customization No extra Cost. No MOQ. Easy & Fast. Consolidate and expend more business Streamline human resource input

  3. Ready for All Customers TR610 With our simple platform you can have your own icons and logo on display appearance of the Web Interface menu options beeps, or w/o beeps and more……..

  4. Simple design with strong functions TR610 • User Friendly Simple interface – Bright LCD display & 4 buttons Easy to operate through on-screen menu • Ethernet connectivity and an integrated web With Web Base – Download event log anytime anywhere! Built-in web server No need- additional software

  5. You Need More Functions? Shorten Development Schedule Meet Various Requirements Open Sources TIDE Easy & Ready Platform (TIBBO BASIC LANGUAGE) TIDE Create Unique Product Show ability to gain customers’ interest, confidence and trust Easy Solution EXTRA DEVELOPMENT KIT No Need

  6. TR610 More than Time Recorder! Programmable Time Server To keep time and date precise, the TR610 can automatically synchronize the internal clock with an Internet time server, while taking into account the pre-set time zone. Custom-made to meet different request. With 2 relay RS232 Interface Two relays to control external loads, such as an electric bell and a turnstile. RS232 serial port for connecting external serial devices (such as a barcode scanner and keypad).

  7. Set Up & Management TR610 On Screen Master Card – Access set-up menu 4 Buttons Navigator - Configure Web Server It doesn’t require additional software to administer. Remote Management For large system- Manage multiple terminals by multiple connections in different areas.

  8. ON-SCREEN TR610 • Simply use Master Card to access set-up menu on the screen. • Complete your setting and management through 4 buttons.

  9. Web Server TR610 • Access the web-based menu system • Make all setting and management

  10. Get Even Log Record Easily! TR610 Event Filter - search the internal event log by date, event, and user ID Event Log Record – Browse / Download the data easily

  11. Remote Management TR610 Manage numbers of TR610 simultaneously Save cost and simplify system management Allow to upload / download data from numbers of TR610 No Need Real IP for all Terminals!! All you need is Internet & Aggregate!! AggreGate

  12. Main Features TR610 • Bright, clear LCD display • Based on RFID (Proximity) technology • 10/100 Base-T Ethernet port • RS232 serial port for connecting external serial devices (such as a barcode scanner) • Two relays to control external loads, such as an electric bell and a turnstile • Internal flash memory stores approx. 6,000 event log records • Wall-mount or desktop operation (display image orientation may be configured) • Internal backup battery for the real-time clock • Firmware and internal application may be upgraded through the network or serial port • Built-in Web server for administration and event log download • IP address configuration using DHCP • Time/Date synchronization through SNTP (time-zone can be preset) • Works with Tibbo AggreGate • Internal application written in Tibbo BASIC and may be changed or customized

  13. SPECIFICATIONS TR610

  14. Our Best Support Get more supports and information from here: http://www.programmableterminal.com/

  15. Thank you GIGA-TMS INC. Website: http://www.gigatms.com.tw/ E-MAIL: PROMAG@GIGATMS.COM.TW TEL: 886 2 26954214 FAX: 886 2 26954213 2008.Dec. 31
