  1. The Efficacy of Matching Information Systems Development Methodologies with Application Characteristics – An Empirical Study Present by Saidur Rahman Muayah Angas

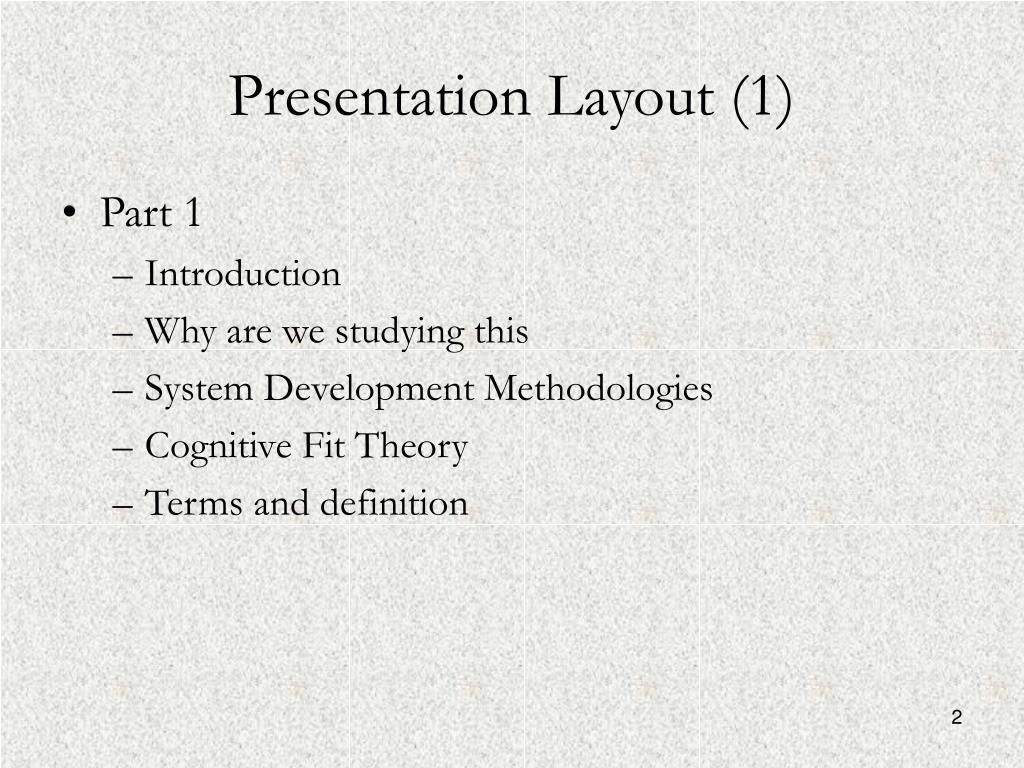

  2. Presentation Layout (1) • Part 1 • Introduction • Why are we studying this • System Development Methodologies • Cognitive Fit Theory • Terms and definition

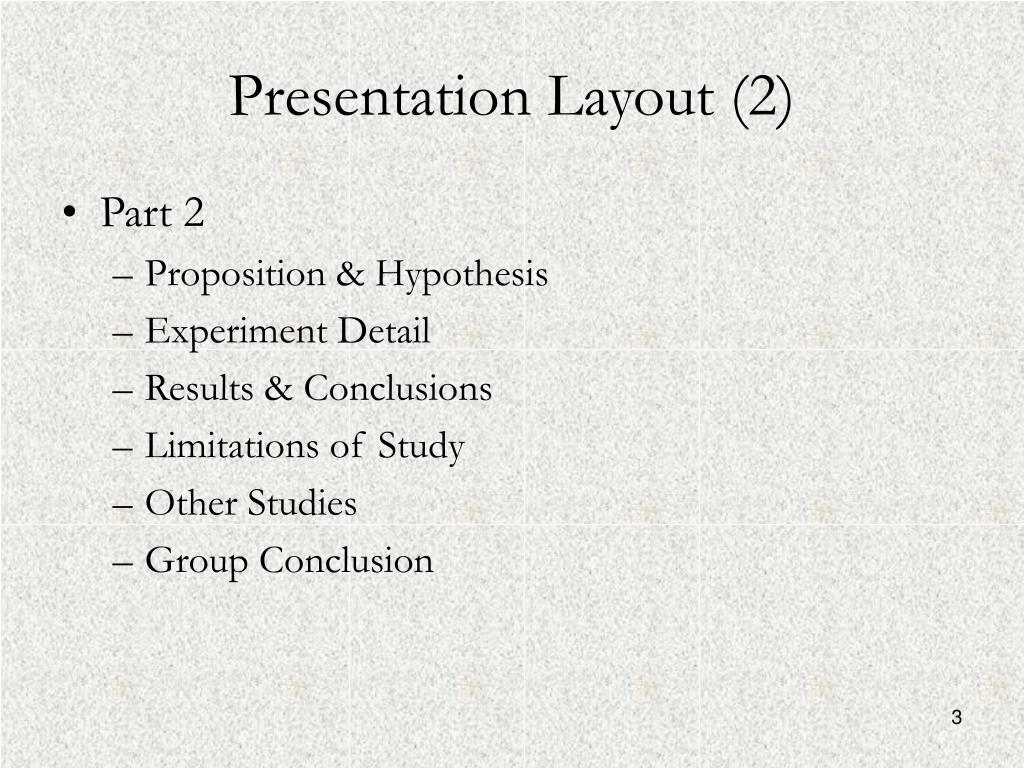

  3. Presentation Layout (2) • Part 2 • Proposition & Hypothesis • Experiment Detail • Results & Conclusions • Limitations of Study • Other Studies • Group Conclusion

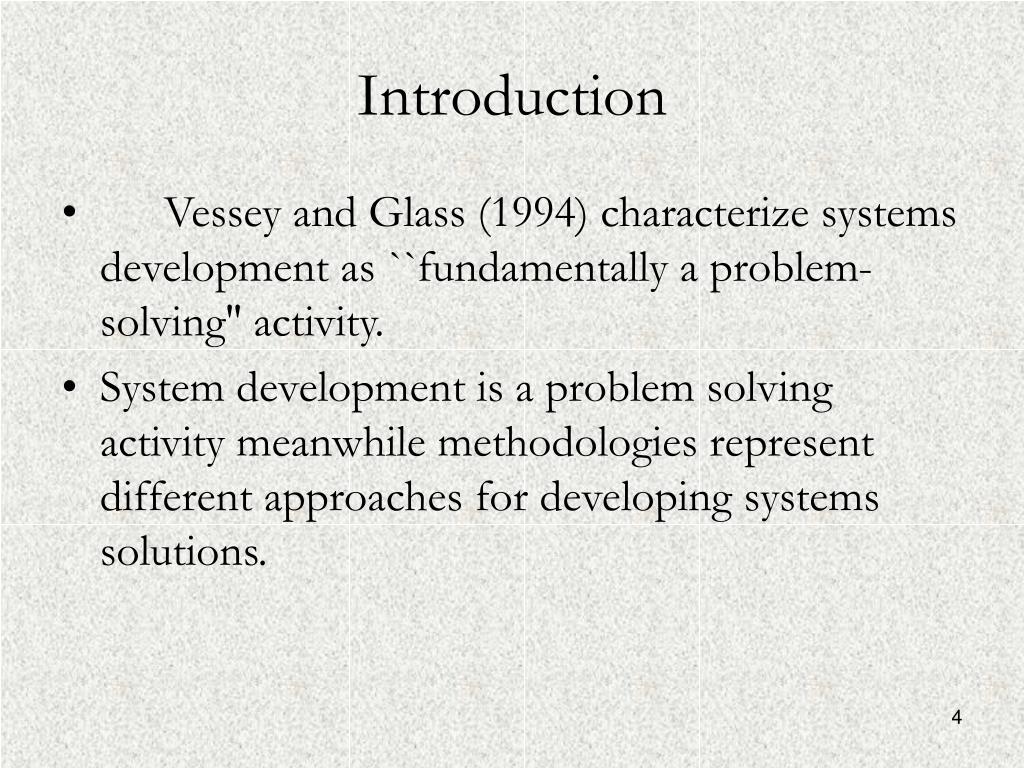

  4. Introduction • Vessey and Glass (1994) characterize systems development as ``fundamentally a problem-solving'' activity. • System development is a problem solving activity meanwhile methodologies represent different approaches for developing systems solutions.

  5. Why we are studying this? • Nakajo & Kume, 1991 – Examined programs developed with/without the SDM. Programs developed with methodolgy assistance resulted in fewer errors. • Nosek & Schwartz, 1991 – claims no difference in users’ understanding of requirements from both Data flow diagrams and Straight narrative descriptions, this is supported by Cioch, 1991.

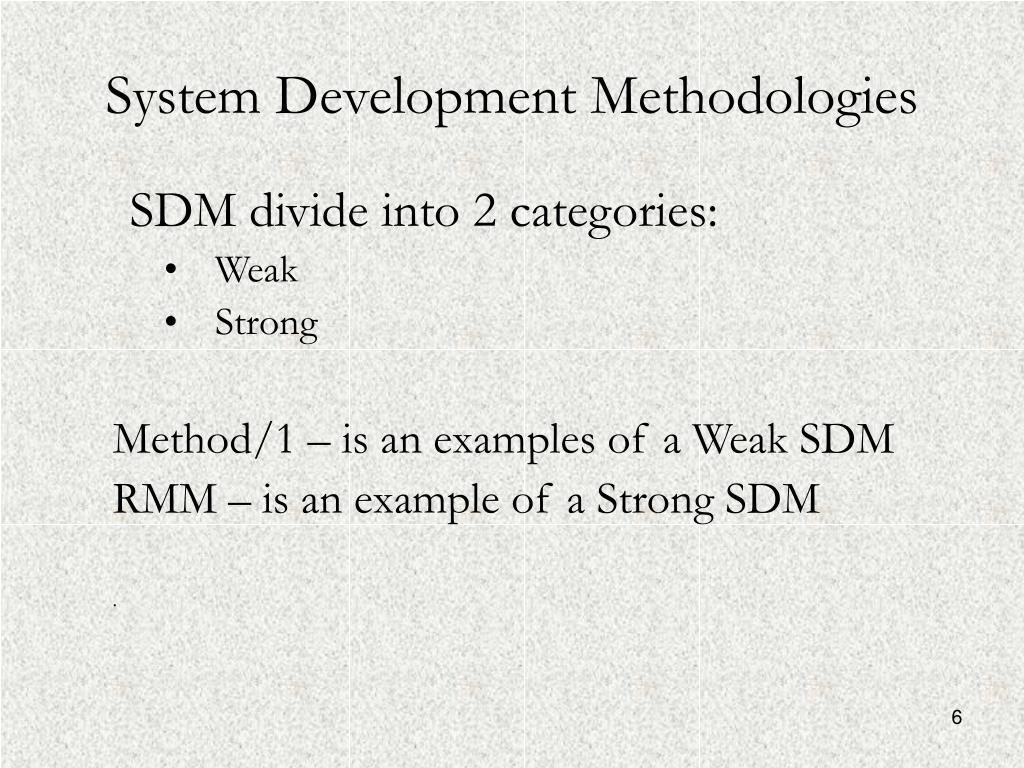

  6. System Development Methodologies SDM divide into 2 categories: • Weak • Strong Method/1 – is an examples of a Weak SDM RMM – is an example of a Strong SDM .

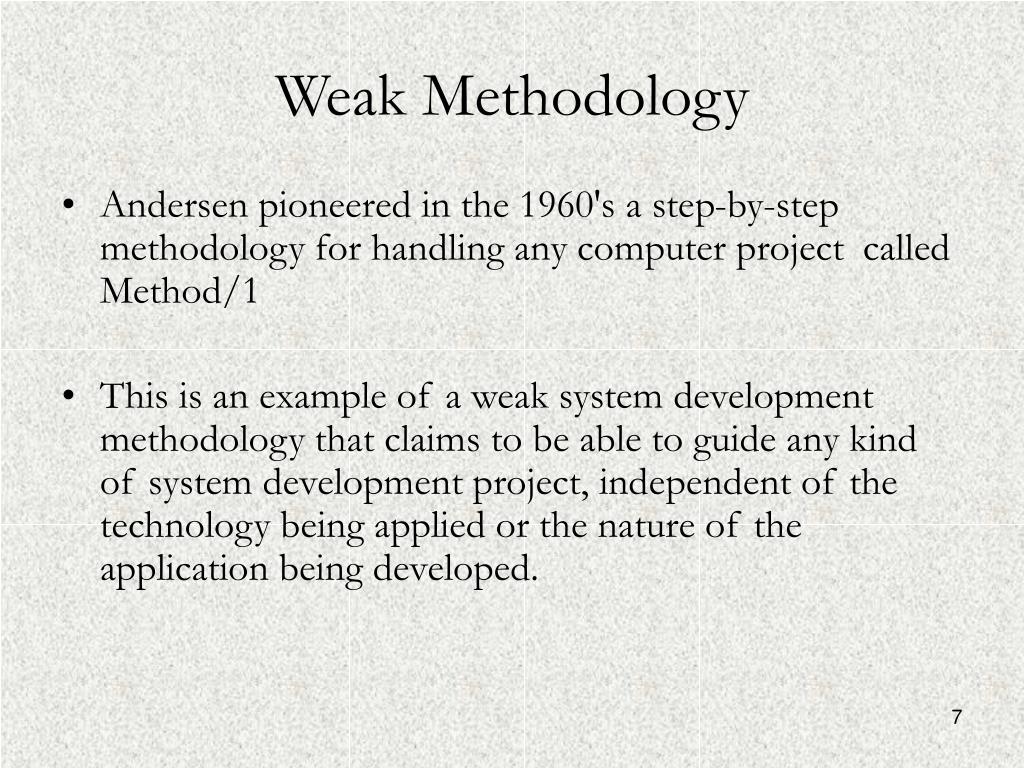

  7. Weak Methodology • Andersen pioneered in the 1960's a step-by-step methodology for handling any computer project called Method/1 • This is an example of a weak system development methodology that claims to be able to guide any kind of system development project, independent of the technology being applied or the nature of the application being developed.

  8. Strong Methodology • RMM ( Relationship Management Methodology) is a systems development and project management technique used mainly for the design and construction of hypermedia applications – (Isakowitz and Thring.) RMM facilitates the design of WWW sites, and their seamless integration with databases and enterprise-wide information systems

  9. Figure 1

  10. Cognitive Fit Theory • The theory proposes that the correspondence between task and information presentation format leads to superior task performance for individual users. In several studies, cognitive fit theory has provided an explanation for performance differences among users across different presentation formats such as tables, graphs, and schematic faces (e.g., Vessey, 1991, 1994; Vessey & Galletta, 1991; Umanath & Vessey, 1994)

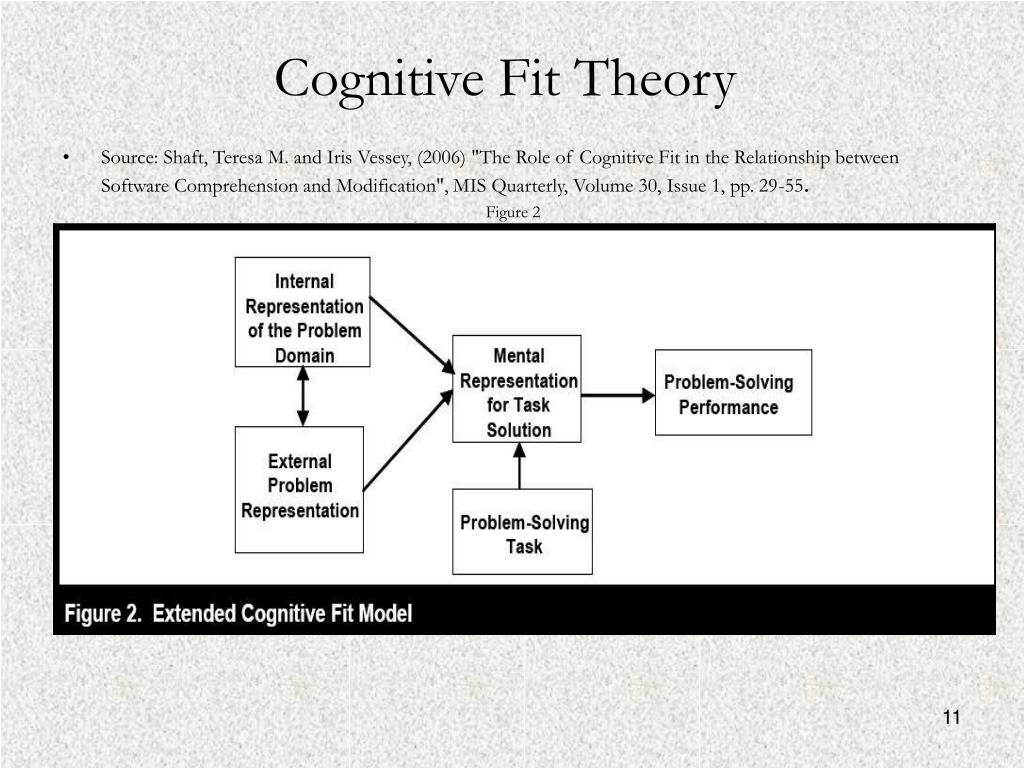

  11. Cognitive Fit Theory • Source: Shaft, Teresa M. and Iris Vessey, (2006) "The Role of Cognitive Fit in the Relationship between Software Comprehension and Modification", MIS Quarterly, Volume 30, Issue 1, pp. 29-55. Figure 2

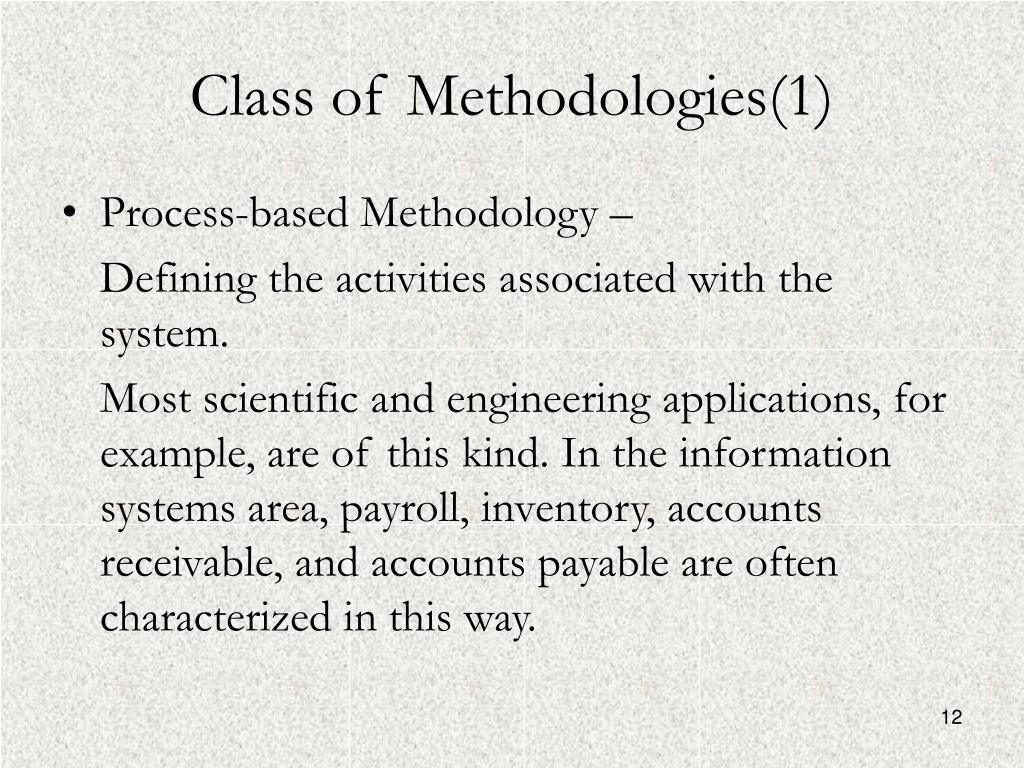

  12. Class of Methodologies(1) • Process-based Methodology – Defining the activities associated with the system. Most scientific and engineering applications, for example, are of this kind. In the information systems area, payroll, inventory, accounts receivable, and accounts payable are often characterized in this way.

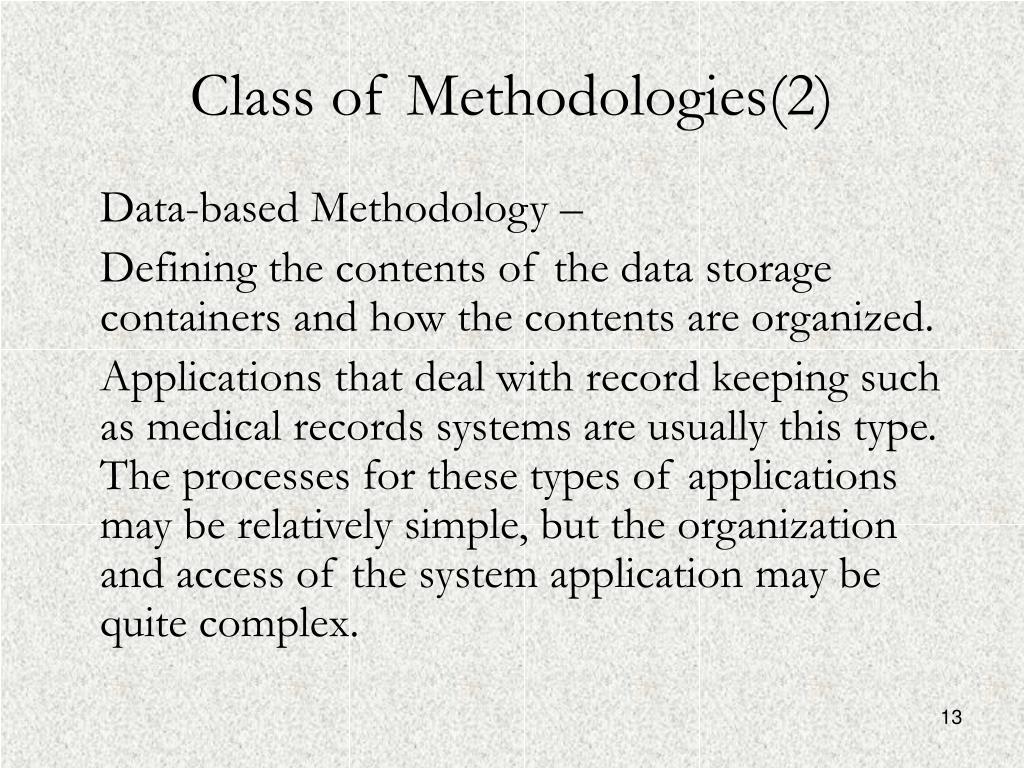

  13. Class of Methodologies(2) Data-based Methodology – Defining the contents of the data storage containers and how the contents are organized. Applications that deal with record keeping such as medical records systems are usually this type. The processes for these types of applications may be relatively simple, but the organization and access of the system application may be quite complex.

  14. Class of Methodologies(3) The object-oriented approach to handling complexity treats both data and process as a package. An object is a component of the real world, a cohesive collection of data coupled with the processes that act on that data. The act of systems development using the object-oriented approach interleaves analysis and design of objects with analysis and design of the operations relating to these objects. The rationale for the object-oriented approach is that application problems often evolve around real-world objects and the ways in which they interact.

  15. Proposition Use of a Data-based Methodology to guide development of a data-based application will produce a higher quality system than Process-base Methodology

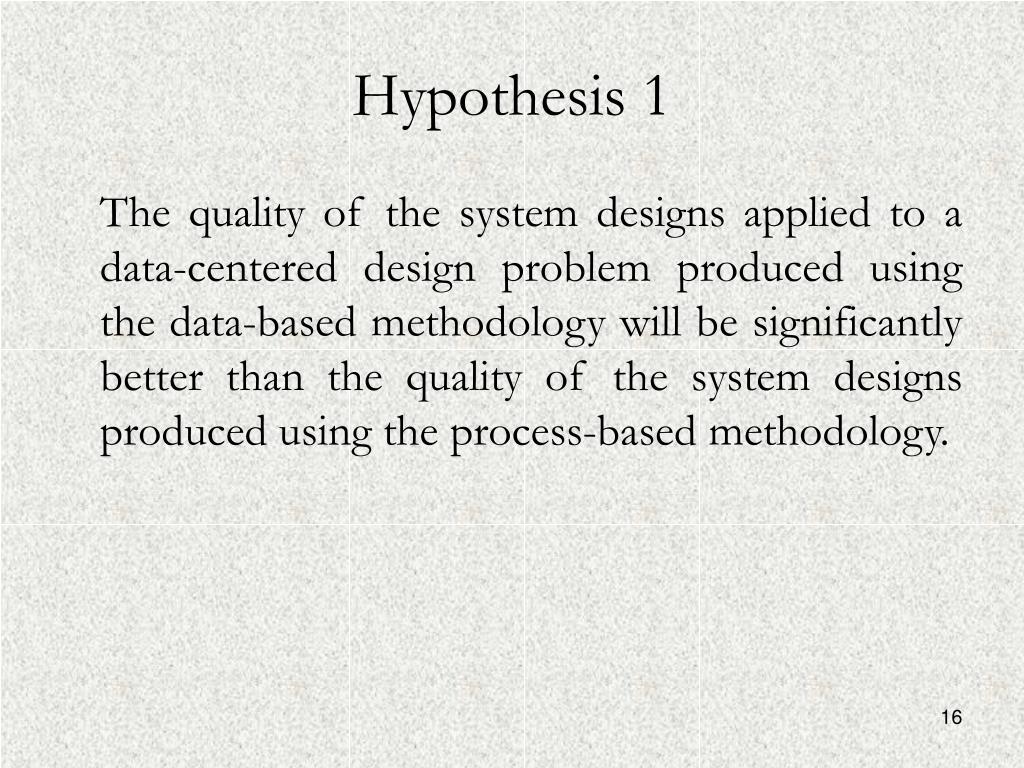

  16. Hypothesis 1 The quality of the system designs applied to a data-centered design problem produced using the data-based methodology will be significantly better than the quality of the system designs produced using the process-based methodology.

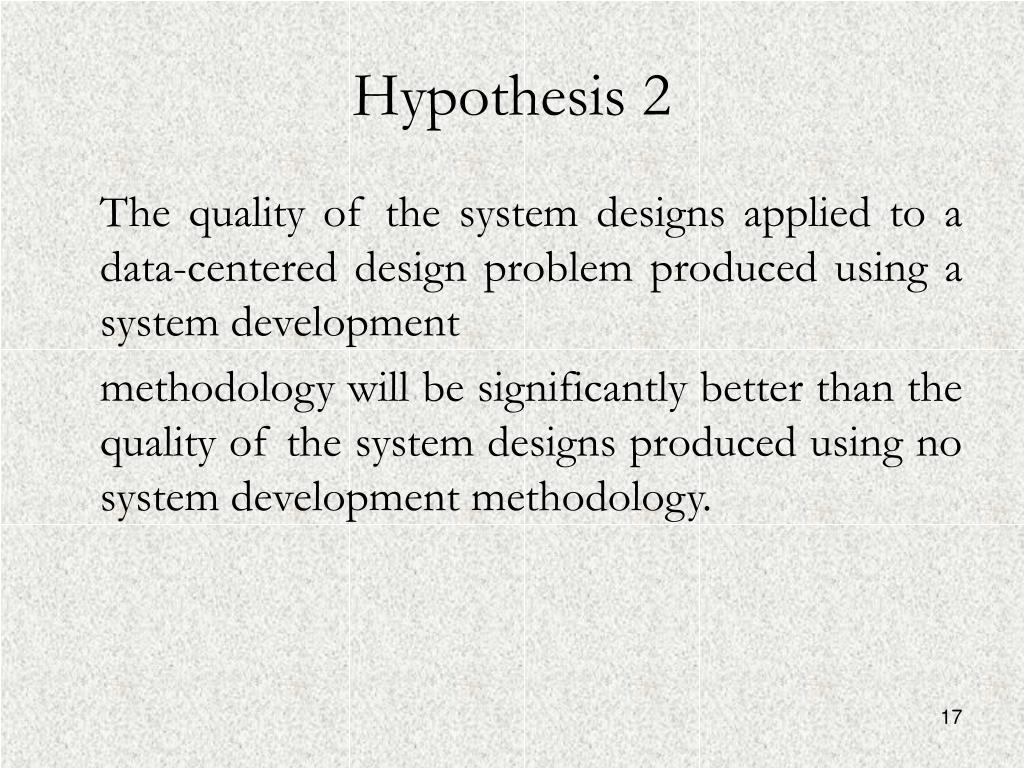

  17. Hypothesis 2 The quality of the system designs applied to a data-centered design problem produced using a system development methodology will be significantly better than the quality of the system designs produced using no system development methodology.

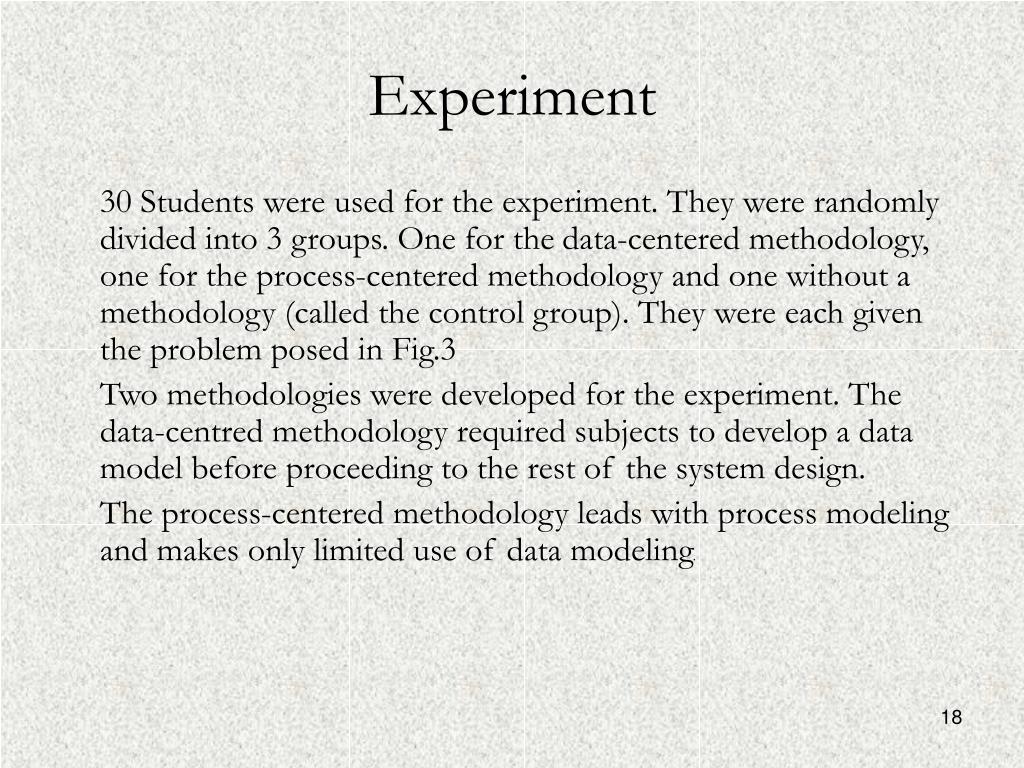

  18. Experiment 30 Students were used for the experiment. They were randomly divided into 3 groups. One for the data-centered methodology, one for the process-centered methodology and one without a methodology (called the control group). They were each given the problem posed in Fig.3 Two methodologies were developed for the experiment. The data-centred methodology required subjects to develop a data model before proceeding to the rest of the system design. The process-centered methodology leads with process modeling and makes only limited use of data modeling.

  19. Results of Empirical Evaluation

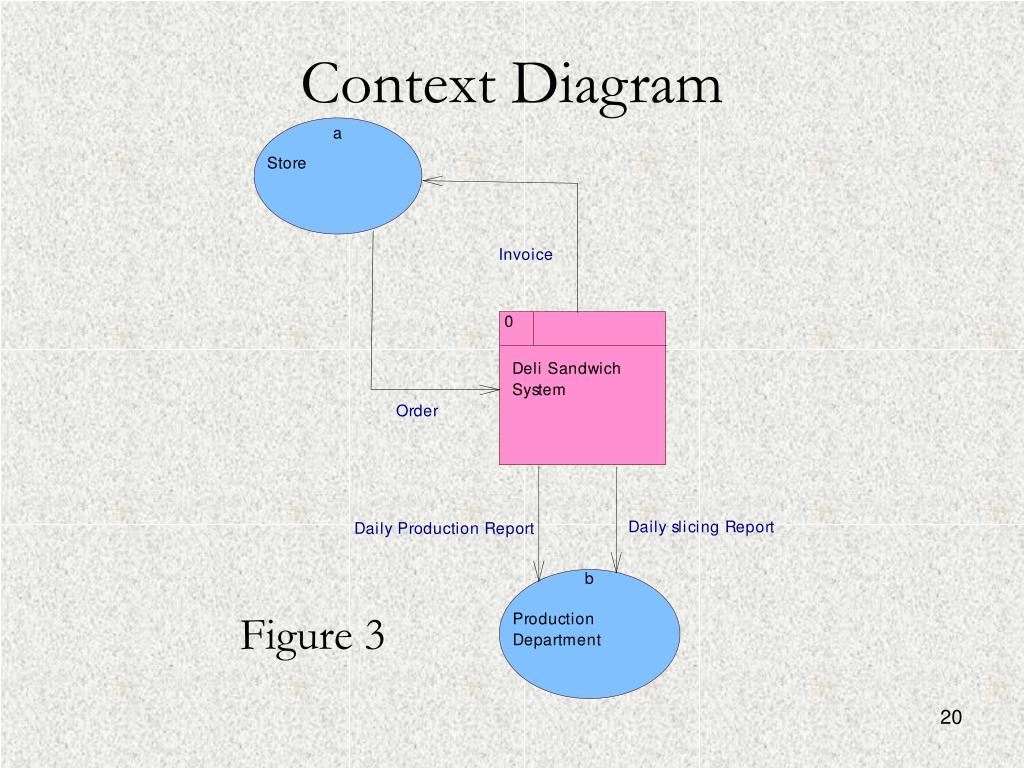

  20. Context Diagram Figure 3

  21. Entity Relationship Diagram Figure 4 ChainID StoreID OrderID + SandID OrderID SandID SandID + IngredientID IngredientID

  22. Order Entry Subsystem Accounting Subsystem Decomposition Diagram Deli Sandwich Context Figure 5 Deli Sandwich System Production System Order Entry Generate Daily Production Schedule Generate Daily Slicing Schedule Generate Daily Invoices

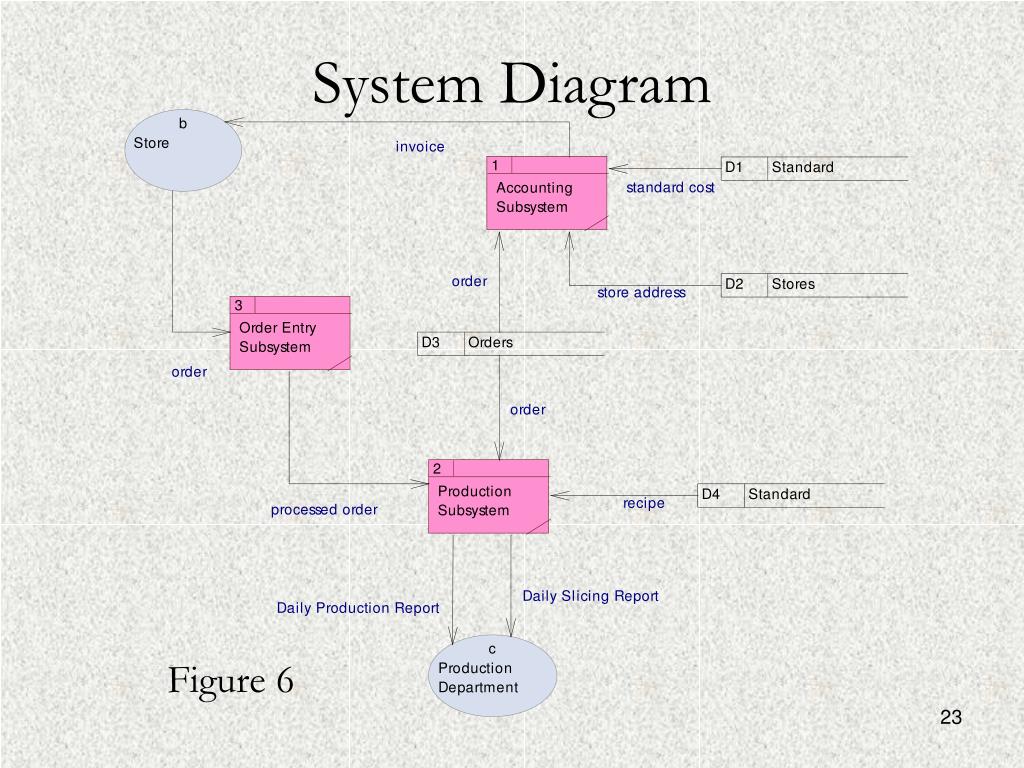

  23. System Diagram Figure 6

  24. Hypothesis tests results

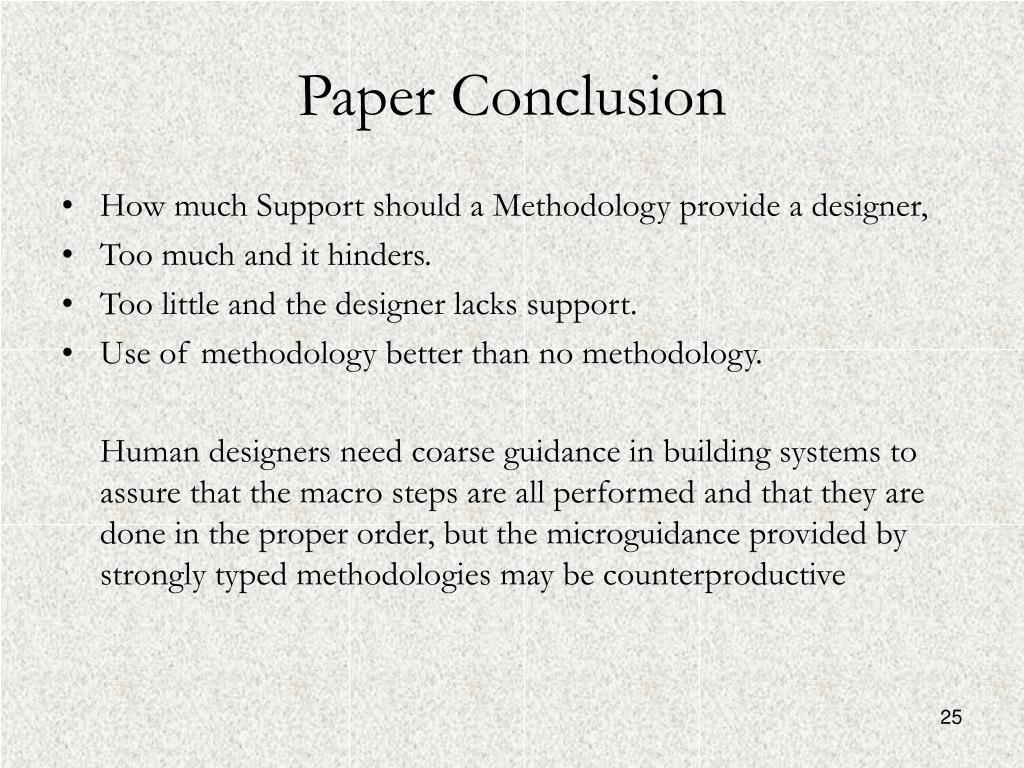

  25. Paper Conclusion • How much Support should a Methodology provide a designer, • Too much and it hinders. • Too little and the designer lacks support. • Use of methodology better than no methodology. Human designers need coarse guidance in building systems to assure that the macro steps are all performed and that they are done in the proper order, but the microguidance provided by strongly typed methodologies may be counterproductive

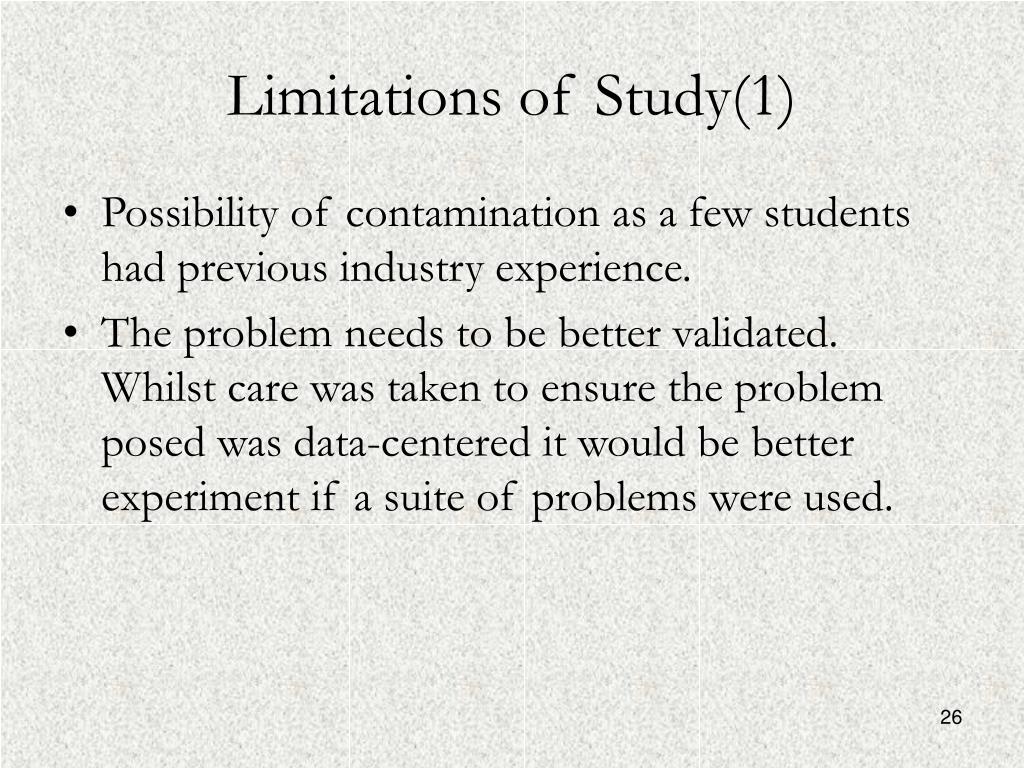

  26. Limitations of Study(1) • Possibility of contamination as a few students had previous industry experience. • The problem needs to be better validated. Whilst care was taken to ensure the problem posed was data-centered it would be better experiment if a suite of problems were used.

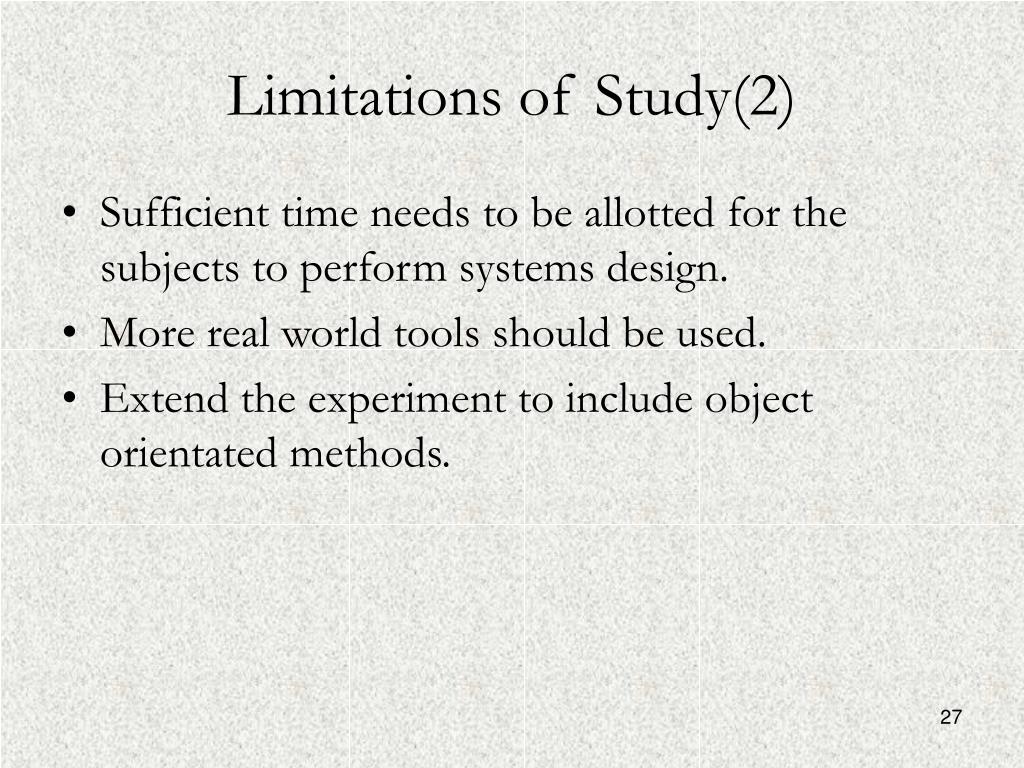

  27. Limitations of Study(2) • Sufficient time needs to be allotted for the subjects to perform systems design. • More real world tools should be used. • Extend the experiment to include object orientated methods.

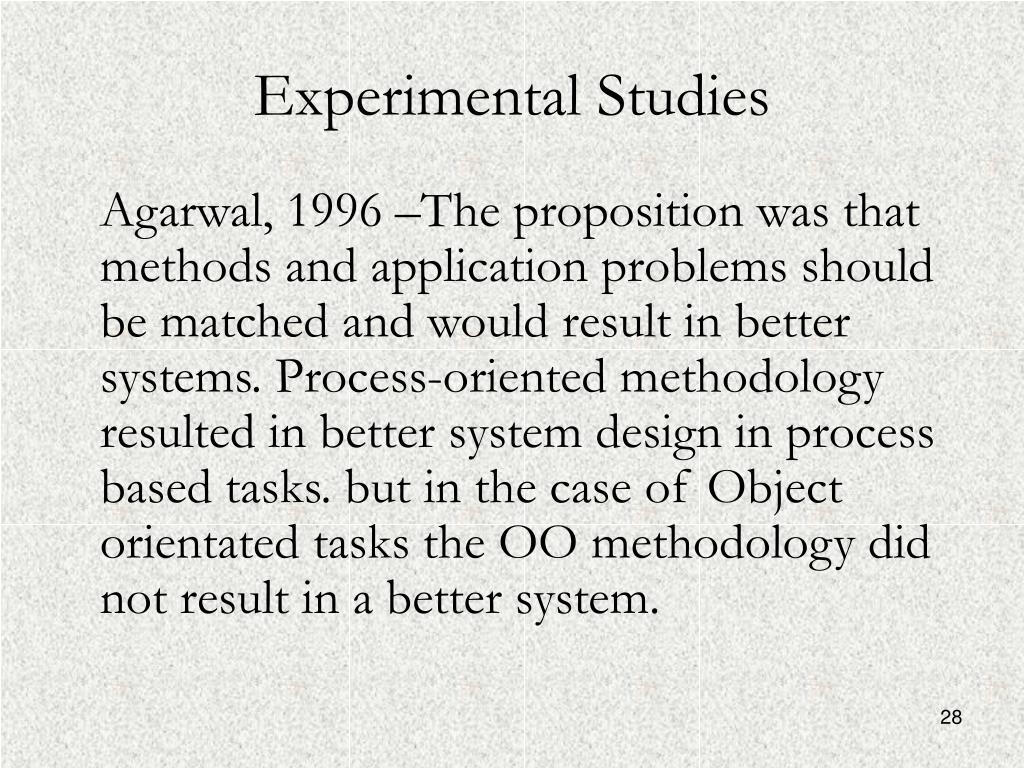

  28. Experimental Studies Agarwal, 1996 –The proposition was that methods and application problems should be matched and would result in better systems. Process-oriented methodology resulted in better system design in process based tasks. but in the case of Object orientated tasks the OO methodology did not result in a better system.

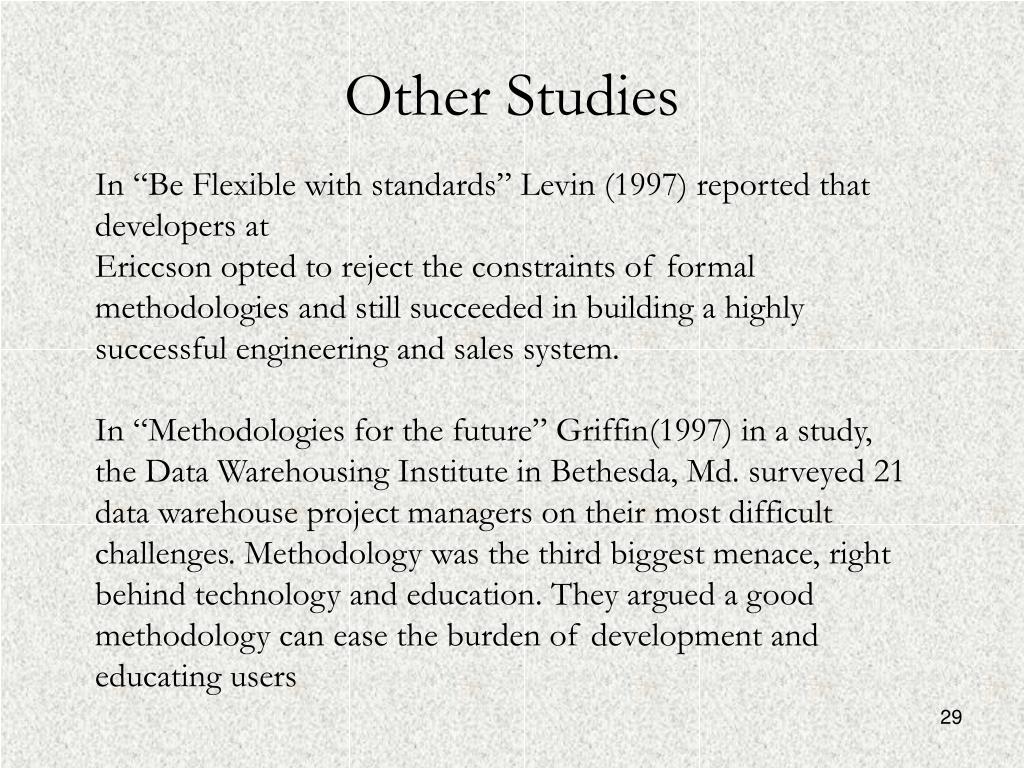

  29. Other Studies In “Be Flexible with standards” Levin (1997) reported that developers at Ericcson opted to reject the constraints of formal methodologies and still succeeded in building a highly successful engineering and sales system. In “Methodologies for the future” Griffin(1997) in a study, the Data Warehousing Institute in Bethesda, Md. surveyed 21 data warehouse project managers on their most difficult challenges. Methodology was the third biggest menace, right behind technology and education. They argued a good methodology can ease the burden of development and educating users

  30. Group Conclusion • Flaws in experiment as shown by Limitations of study • Flaws in reasoning (seem to have already decided what answer was before test disproved it and then were hesitant in supporting it) • Result of study shows that data-centred methodology are little better than the process centred one, but it doesn’t show it to be counter productive. Why have they drawn this conclusion?

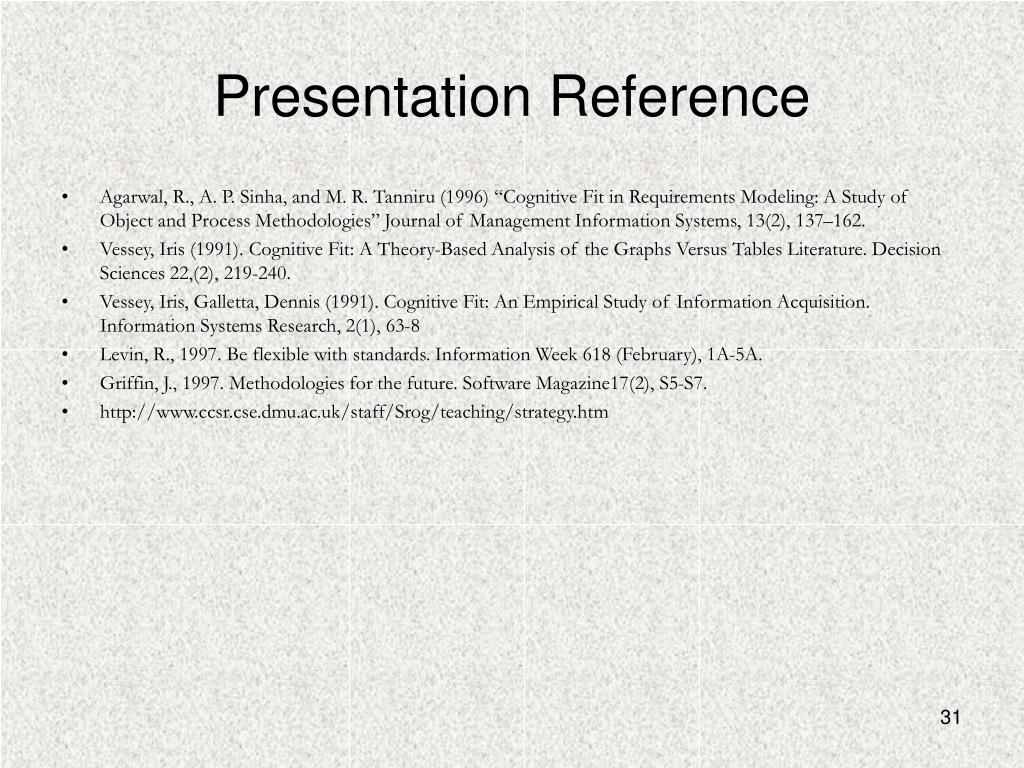

  31. Presentation Reference • Agarwal, R., A. P. Sinha, and M. R. Tanniru (1996) “Cognitive Fit in Requirements Modeling: A Study of Object and Process Methodologies” Journal of Management Information Systems, 13(2), 137–162. • Vessey, Iris (1991). Cognitive Fit: A Theory-Based Analysis of the Graphs Versus Tables Literature. Decision Sciences 22,(2), 219-240. • Vessey, Iris, Galletta, Dennis (1991). Cognitive Fit: An Empirical Study of Information Acquisition. Information Systems Research, 2(1), 63-8 • Levin, R., 1997. Be flexible with standards. Information Week 618 (February), 1A-5A. • Griffin, J., 1997. Methodologies for the future. Software Magazine17(2), S5-S7. • http://www.ccsr.cse.dmu.ac.uk/staff/Srog/teaching/strategy.htm
