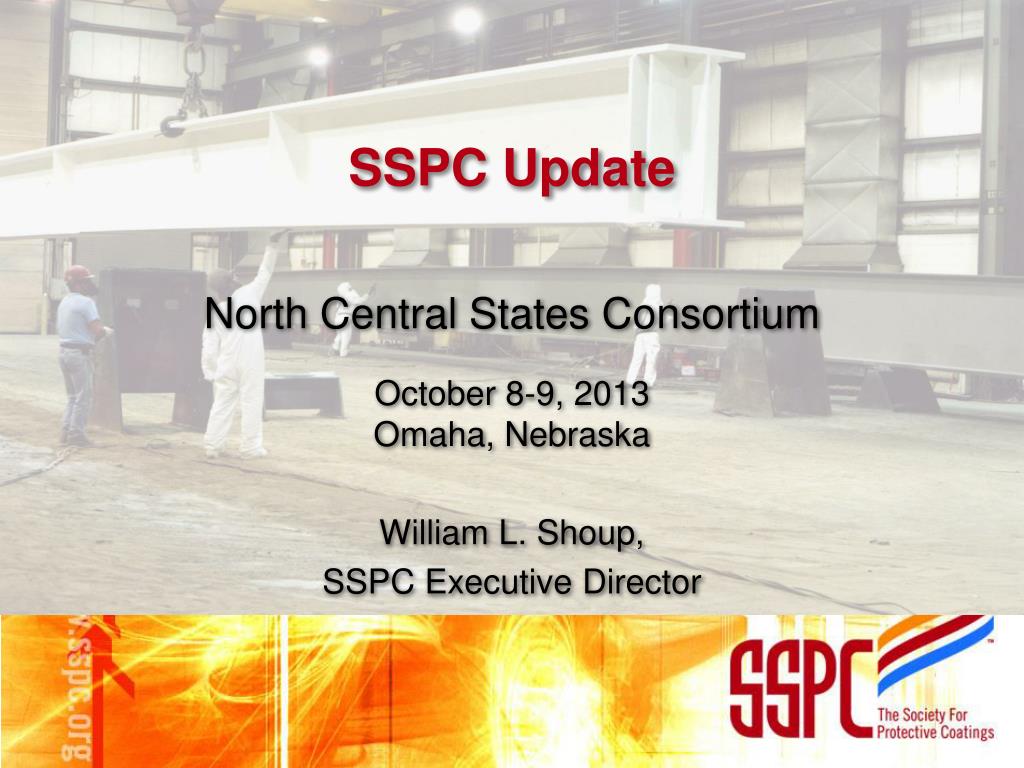

  1. SSPC Update North Central States Consortium October 8-9, 2013Omaha, Nebraska William L. Shoup, SSPC Executive Director

  2. Learning Objectives • Update status of SSPC standards useful to DOTs • Completed new standards • Completed revisions of standards • New standards projects starting in 2013

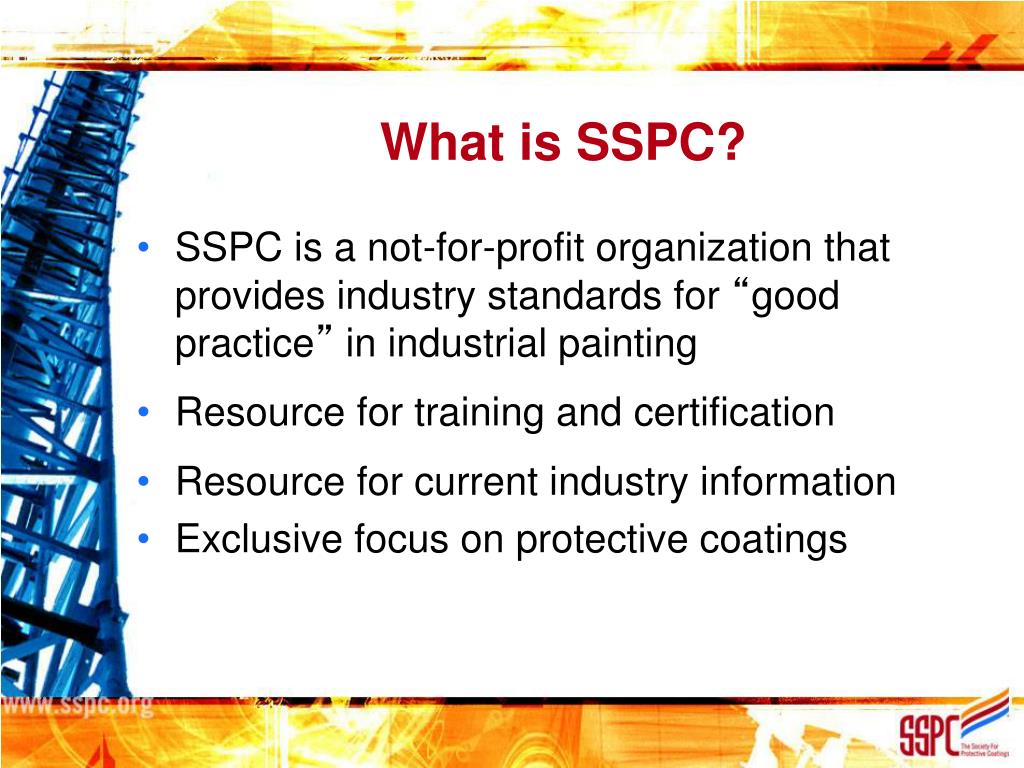

  3. What is SSPC? • SSPC is a not-for-profit organization that provides industry standards for “good practice” in industrial painting • Resource for training and certification • Resource for current industry information • Exclusive focus on protective coatings

  4. New Standards Issued 2012 • Waterjet Cleaning of Metals - 4 Standards (formerly SSPC-SP 12/NACE No. 5) • SSPC-SP WJ-1/NACE WJ-1, Clean to Bare Substrate • SSPC-SP WJ-2/NACE WJ-2, Very Thorough Cleaning • SSPC-SP WJ-3/NACE WJ-3, Thorough Cleaning • SSPC-SP WJ-4/NACE WJ-4, Light Cleaning • Determining Compliance with Specified Profile (SSPC-PA 17) • Guide to Selecting Coatings for Galvanized Steel (SSPC-Guide 19)

  5. Joint Waterjetting Standards • SSPC-SP 12/NACE No. 5 now 4 separate standards based on level of cleanliness • WJ 1 – Clean to Bare Substrate • WJ 2 – Very Thorough Cleaning • WJ 3 – Thorough Cleaning • WJ 4 -- Light Cleaning • May be an alternative to dry blast cleaning for maintenance work

  6. WJ 2 Definition • Free of all visible oil, grease, dirt, rust, and other corrosion products except for • randomly dispersed stains of rust and other corrosion products • tightly adherent thin coatings • other tightly adherent foreign matter

  7. 2012 ChangesWaterjetting Standards • 2 new non-mandatory appendices for assessing levels of flash rust • wipe test (based on NSRP Flash Rust Evaluation Guidelines) • tape pull test (based on ISO dust level test) • Added distribution clarification in WJ-2 and WJ-3: Staining or tightly adherent matter limited to no more than • 5% of each 9 in2 area of surface (WJ-2) • 10% of each 9 in2 area of surface (WJ-3)

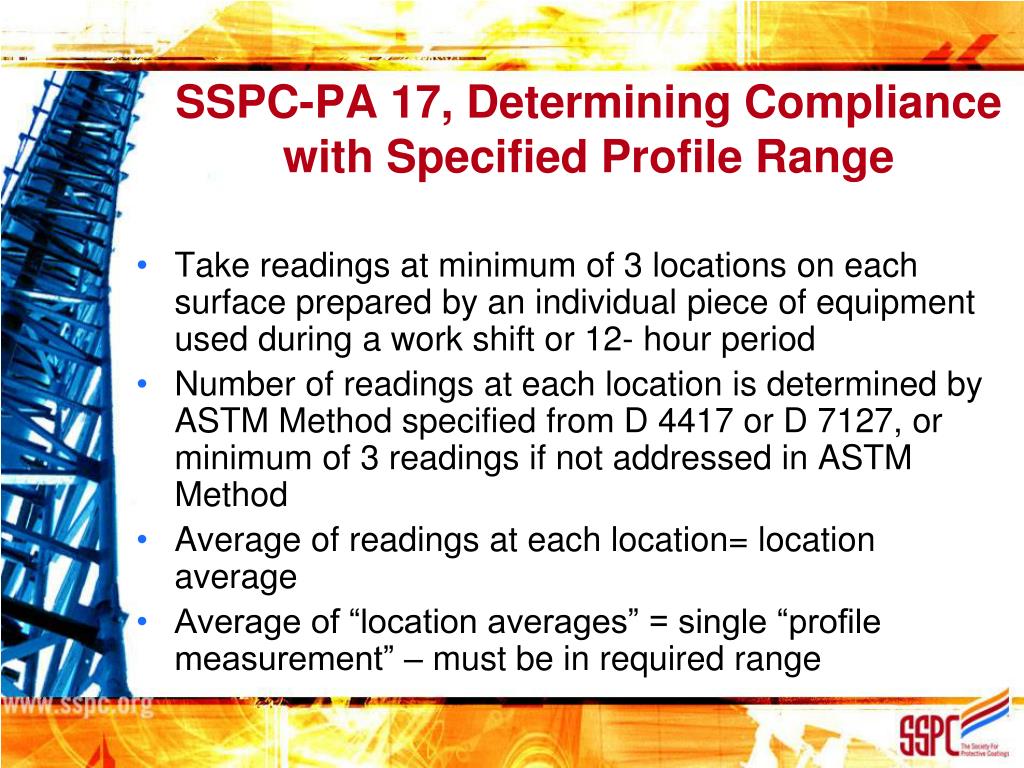

  8. SSPC-PA 17, Determining Compliance with Specified Profile Range • Take readings at minimum of 3 locations on each surface prepared by an individual piece of equipment used during a work shift or 12- hour period • Number of readings at each location is determined by ASTM Method specified from D 4417 or D 7127, or minimum of 3 readings if not addressed in ASTM Method • Average of readings at each location= location average • Average of “location averages” = single “profile measurement” – must be in required range

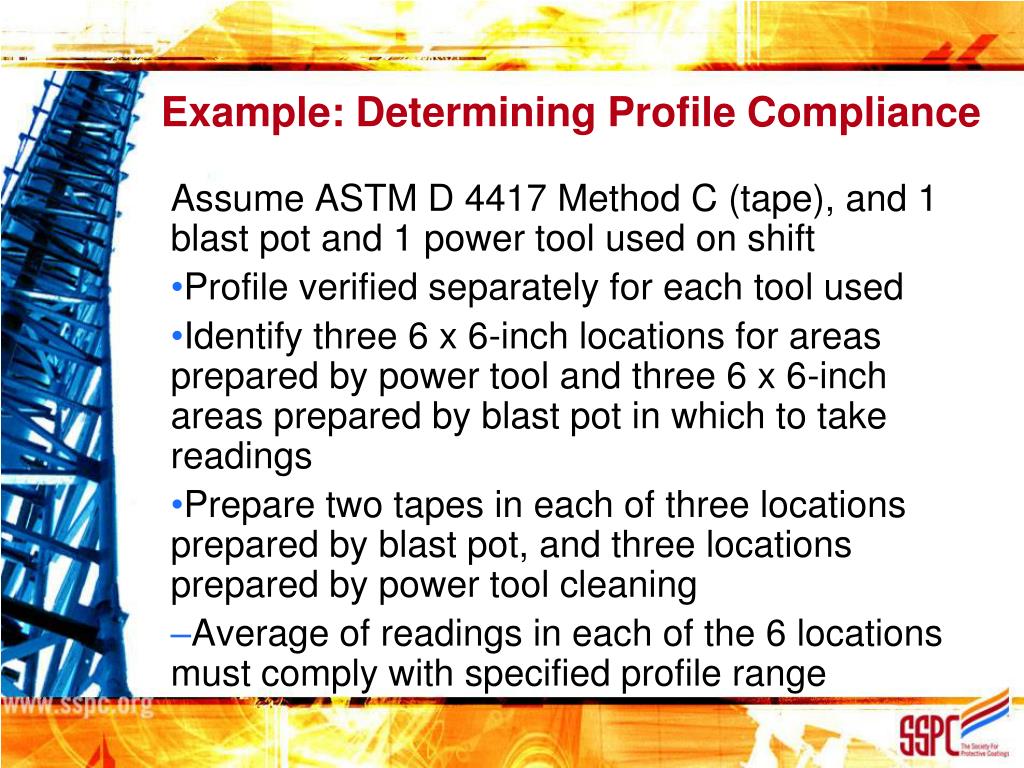

  9. Example: Determining Profile Compliance Assume ASTM D 4417 Method C (tape), and 1 blast pot and 1 power tool used on shift • Profile verified separately for each tool used • Identify three 6 x 6-inch locations for areas prepared by power tool and three 6 x 6-inch areas prepared by blast pot in which to take readings • Prepare two tapes in each of three locations prepared by blast pot, and three locations prepared by power tool cleaning • Average of readings in each of the 6 locations must comply with specified profile range

  10. PA 17 Extent of Nonconforming Areas • Similar to PA 2 procedure • Determine averages for locations spaced at 5-ft. intervals radiating in 4 equally-spaced directions from non-conforming area • Each location average must comply with project requirements • Stop measuring in a given direction when 2 consecutive locations are in compliance • Document location of nonconforming areas

  11. Dashed line indicates boundary of area prepared by single tool during work shift OK OK OK OK NO OK OK STOP STOP STOP STOP 5 ft 5 ft 5 ft 5 ft Initial Nonconforming Location OK OK 5 ft 5 ft 5 ft (Limit of area prepared during work shift)

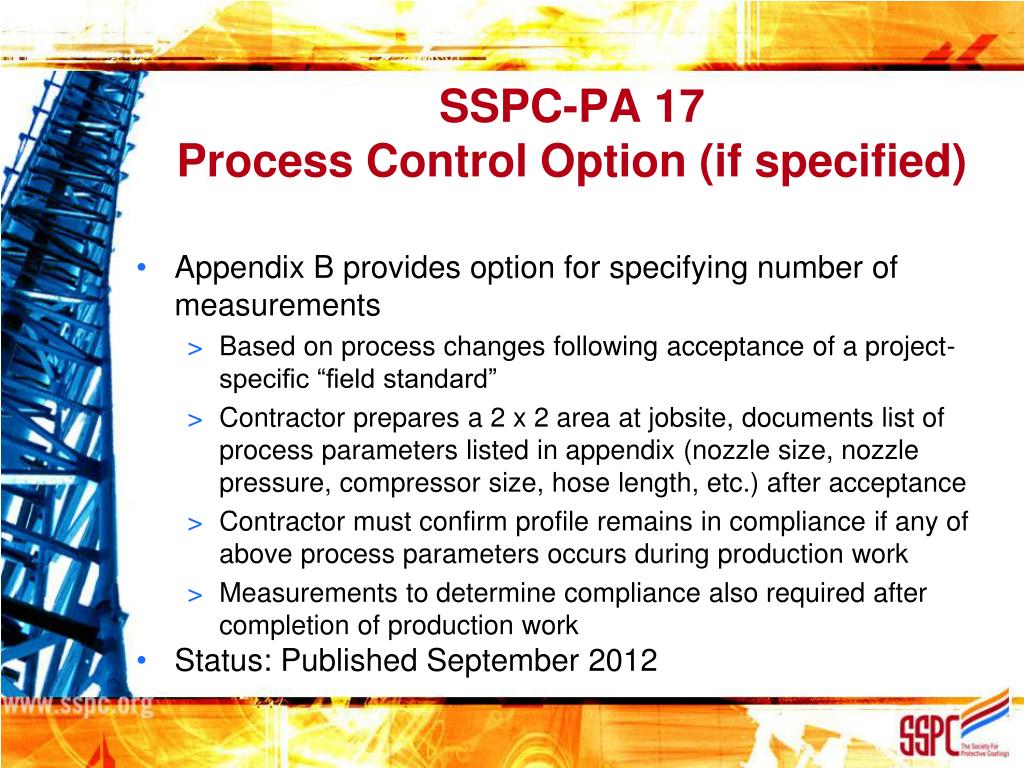

  12. SSPC-PA 17 Process Control Option (if specified) • Appendix B provides option for specifying number of measurements • Based on process changes following acceptance of a project-specific “field standard” • Contractor prepares a 2 x 2 area at jobsite, documents list of process parameters listed in appendix (nozzle size, nozzle pressure, compressor size, hose length, etc.) after acceptance • Contractor must confirm profile remains in compliance if any of above process parameters occurs during production work • Measurements to determine compliance also required after completion of production work • Status: Published September 2012

  13. Guide 19 - Selecting Coatingsfor Galvanized Steel • Contains recommendations for selecting coatings for galvanized steel based on • Service environment (buried, marine, immersion, insulated, atmospheric • Condition of galvanized surface (new, weathered, deteriorated) • Extent of area being coated (repair, topcoat) • Status: Published November 2012

  14. Revised Standards Issued2012 to date • Mineral and Slag Abrasives (SSPC-AB 1) • Determining Compliance with Dry Coating Thickness Requirements (SSPC-PA 2) • Power Tool Cleaning to Bare Metal (SSPC-SP 11) • Commercial Grade Power Tool Cleaning(SSPC-SP 15) • Field Methods for Extraction and Analysis of Soluble Salts on Steel and Other Nonporous Substrates (SSPC-Guide 15)

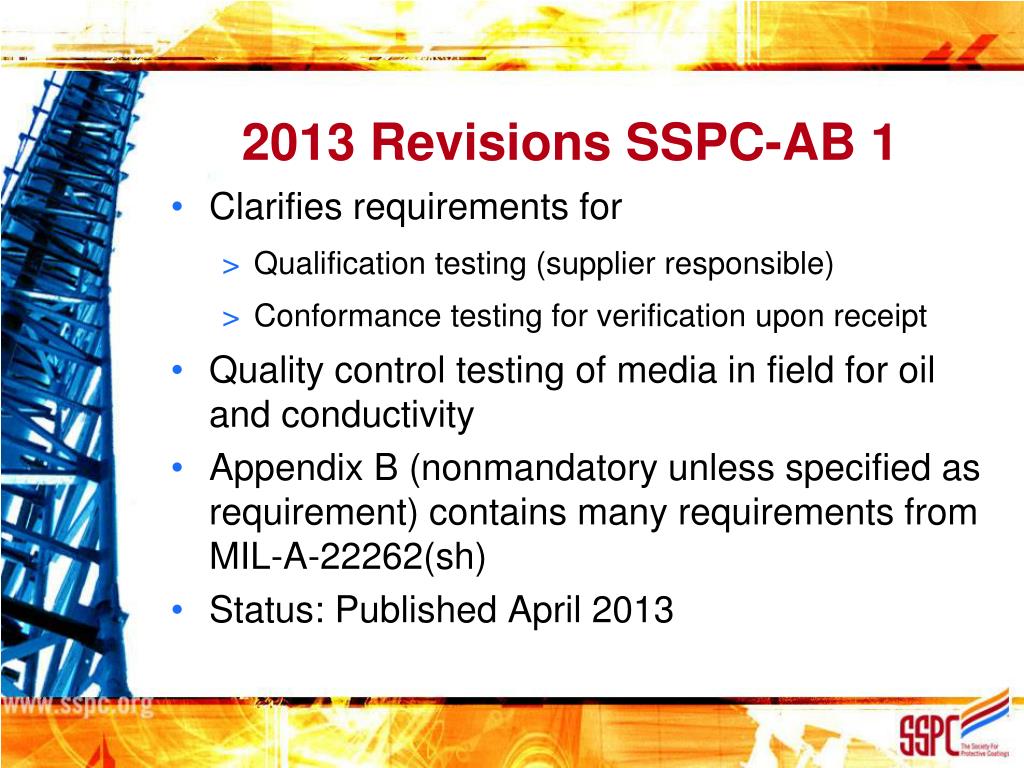

  15. 2013 Revisions SSPC-AB 1 • Clarifies requirements for • Qualification testing (supplier responsible) • Conformance testing for verification upon receipt • Quality control testing of media in field for oil and conductivity • Appendix B (nonmandatory unless specified as requirement) contains many requirements from MIL-A-22262(sh) • Status: Published April 2013

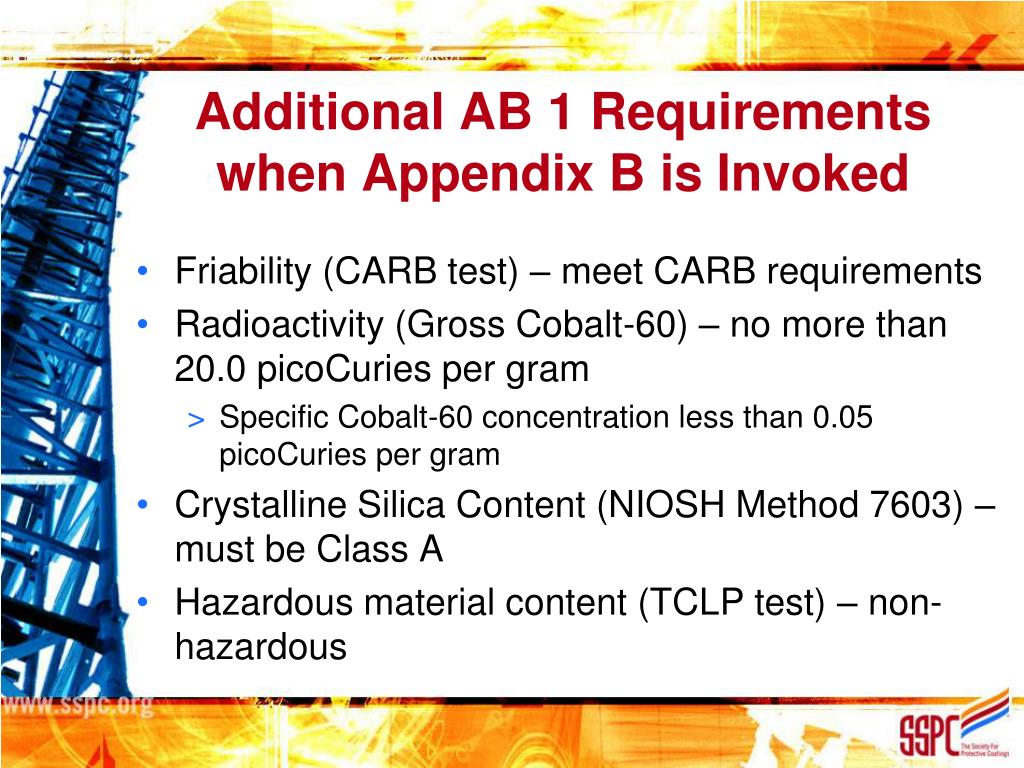

  16. Additional AB 1 Requirements when Appendix B is Invoked • Friability (CARB test) – meet CARB requirements • Radioactivity (Gross Cobalt-60) – no more than 20.0 picoCuries per gram • Specific Cobalt-60 concentration less than 0.05 picoCuries per gram • Crystalline Silica Content (NIOSH Method 7603) – must be Class A • Hazardous material content (TCLP test) – non-hazardous

  17. 2012 Revisions SSPC-PA 2 • “Procedure for Determining Conformance to Dry Coating Thickness Requirements” • Options for specifying more or less stringent compliance requirements • Clarified process for defining extent of nonconforming areas • Added appendices with info on measuring DFT on edges, pipe exteriors • Status: Published May 2012

  18. PA 2 Options for Specifier

  19. Dashed line indicates boundary of area painted during work shift OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK NO OK OK OK OK OK STOP STOP STOP STOP STOP STOP STOP STOP STOP STOP 5 ft area preceding a nonconfor-ming spot must be remeasured after corrections are made Initial Nonconforming 100 ft2 Area 5 ft 5 ft 5 ft 5 ft 5 ft 5 ft NO NO

  20. Dashed line indicates boundary of area painted during work shift OK OK OK OK OK OK OK OK OK OK NO OK OK STOP STOP STOP STOP STOP STOP STOP STOP 5 ft 5 ft Suspect area preceding a nonconforming spot must be remeasured after corrections are made 5 ft 5 ft 5 ft 5 ft Dashed line indicates boundary of area painted during work shift Dashed line indicates boundary of area painted during work shift Initial Nonconforming 100 ft2 Area 5 ft 5 ft 5 ft 5 ft OK OK NO (Limit of area coated during work shift) 5 ft 5 ft 5 ft (Limit of area coated during work shift) 5 ft (Limit of area coated during work shift) Dashed line indicates boundary of area painted during work shift

  21. 2012 Revisions to Power Tool Cleaning Standards • Affects SSPC-SP 11 and SSPC-SP 15 • Default for profile measurement is ASTM D 4417 Method B (depth micrometer) unless otherwise specified • Allows use of ”wire bristle impact tool” as well as conventional wire brushes, abrasive discs, needle guns, etc. • Feathering of existing coating is required unless otherwise specified

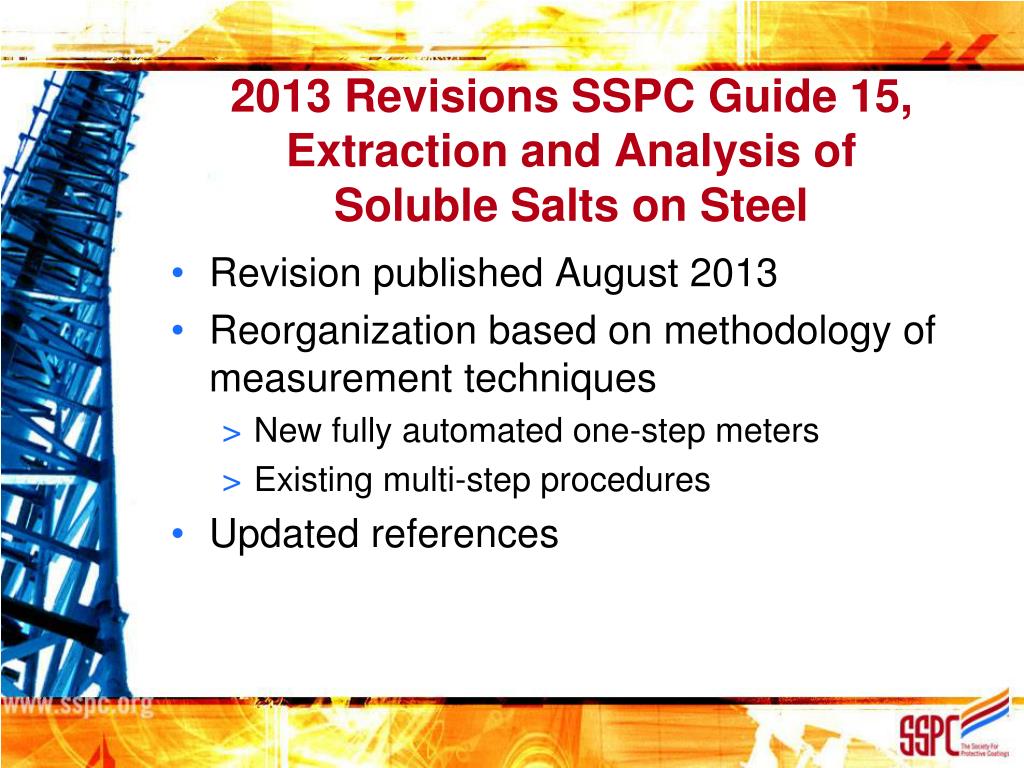

  22. 2013 Revisions SSPC Guide 15, Extraction and Analysis ofSoluble Salts on Steel • Revision published August 2013 • Reorganization based on methodology of measurement techniques • New fully automated one-step meters • Existing multi-step procedures • Updated references

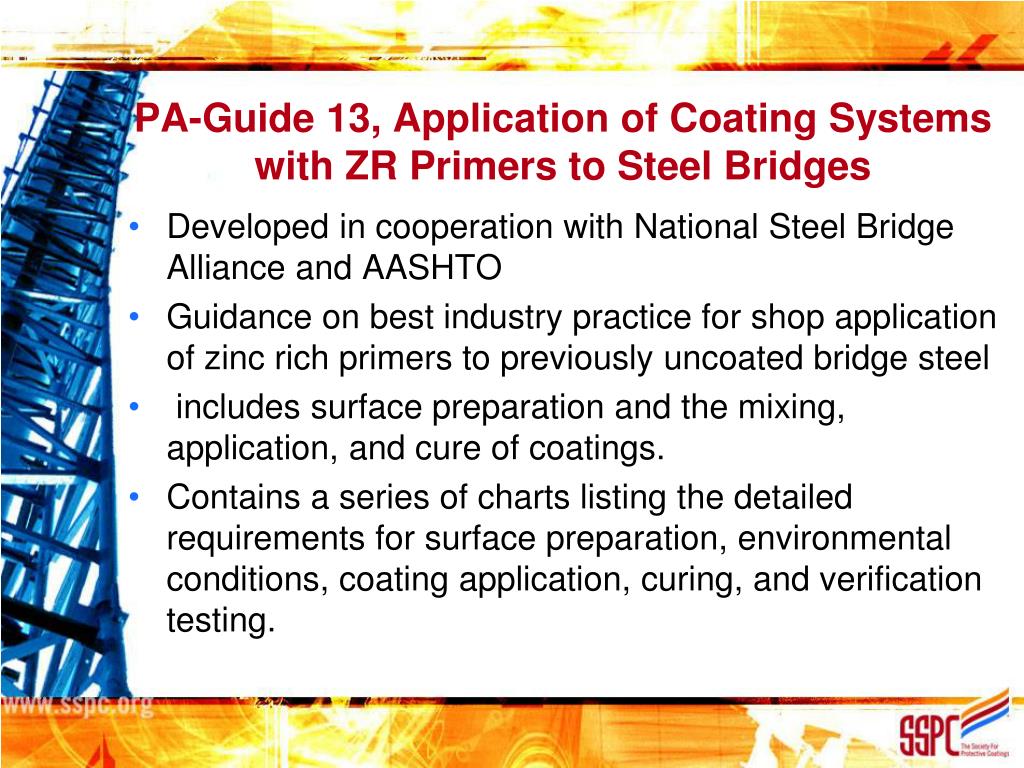

  23. PA-Guide 13, Application of Coating Systems with ZR Primers to Steel Bridges • Developed in cooperation with National Steel Bridge Alliance and AASHTO • Guidance on best industry practice for shop application of zinc rich primers to previously uncoated bridge steel • includes surface preparation and the mixing, application, and cure of coatings. • Contains a series of charts listing the detailed requirements for surface preparation, environmental conditions, coating application, curing, and verification testing.

  24. SSPC Training Programs • Specification Essentials • Bridge Coatings Inspector Program • Protective Coating Inspector Program • Coating Application Specialist (CAS) Program • Airless Spray Basics • Plural Component Basics • Basics of Steel Surface Preparation (online) • Applicator Training Basics (online)

  25. SSPC Services to the Fabrication Industry • Standards for best surface preparation and painting practices • Publications on state-of-the-art practices • Training and certification programs - Coating Specialists, Inspectors, Blasters and Painters • Technical resource line - 1/877-281-7772 ext. 2224 or 2223 • Contractor Qualification Program (QP 3) • Coatings Talk and DOT list serve information exchange

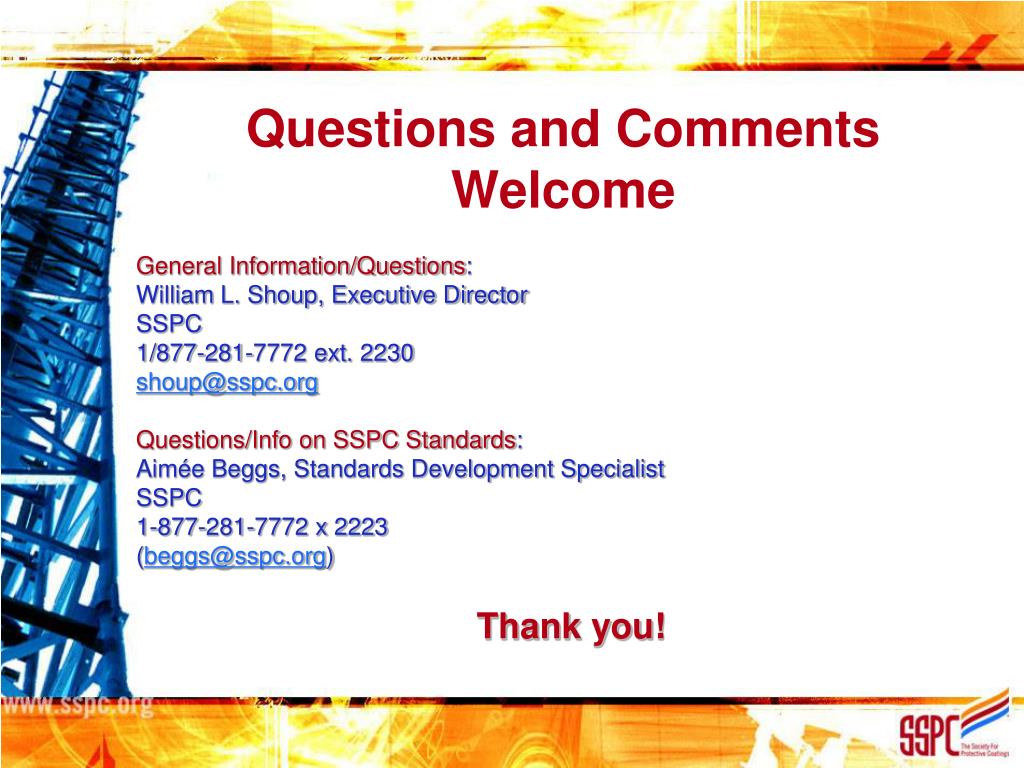

  26. Questions and Comments Welcome General Information/Questions: William L. Shoup, Executive Director SSPC 1/877-281-7772 ext. 2230 shoup@sspc.org Questions/Info on SSPC Standards: Aimée Beggs, Standards Development Specialist SSPC 1-877-281-7772 x 2223 (beggs@sspc.org) Thank you!
