  1. SunGuideSM Software Development ProjectOperator TrainingCDRL 5-1.3 SunGuide-TM-Oper-1.1.0

  2. Agenda • SunGuideSM Overview • User Interface Topics: • GUI / Graphical Map • CCTV • Video Switching • Video Wall • Detectors • DMS and Message Queues • Incident Management • Preferences • American Dynamics Keyboard • Style • Slides (“live” demo immediately after slide) • Hands-on Operator Training

  3. SunGuideSM Overview Operator Training

  4. SunGuideSM Architecture Operator Training

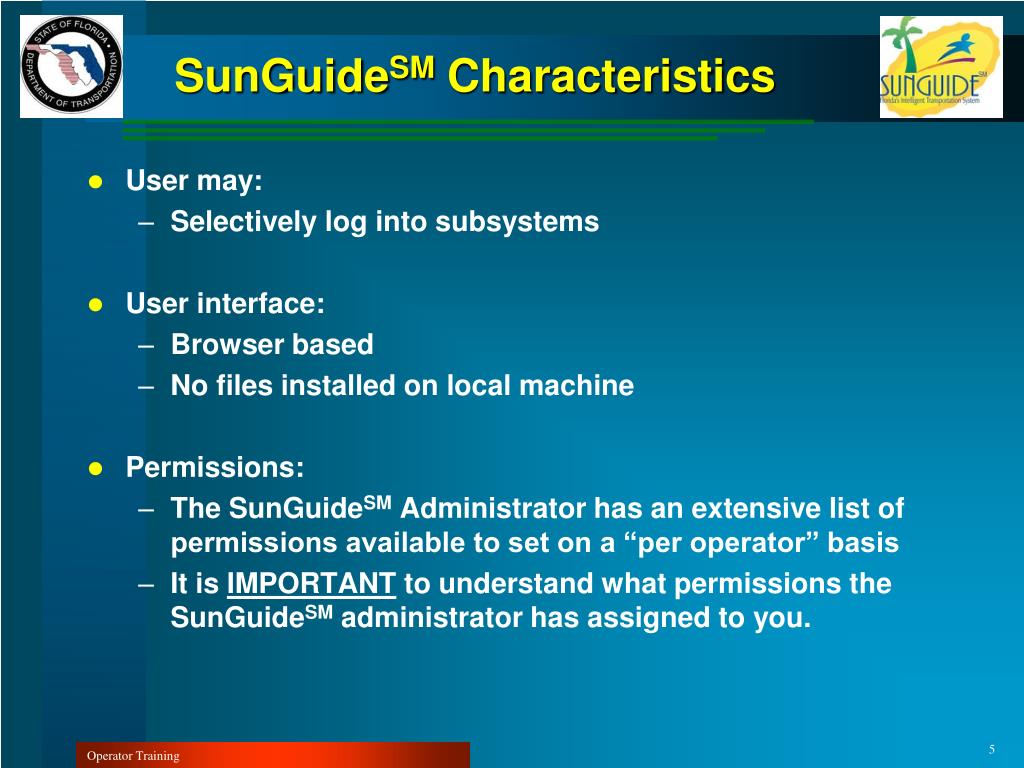

  5. SunGuideSM Characteristics • User may: • Selectively log into subsystems • User interface: • Browser based • No files installed on local machine • Permissions: • The SunGuideSM Administrator has an extensive list of permissions available to set on a “per operator” basis • It is IMPORTANT to understand what permissions the SunGuideSM administrator has assigned to you. Operator Training

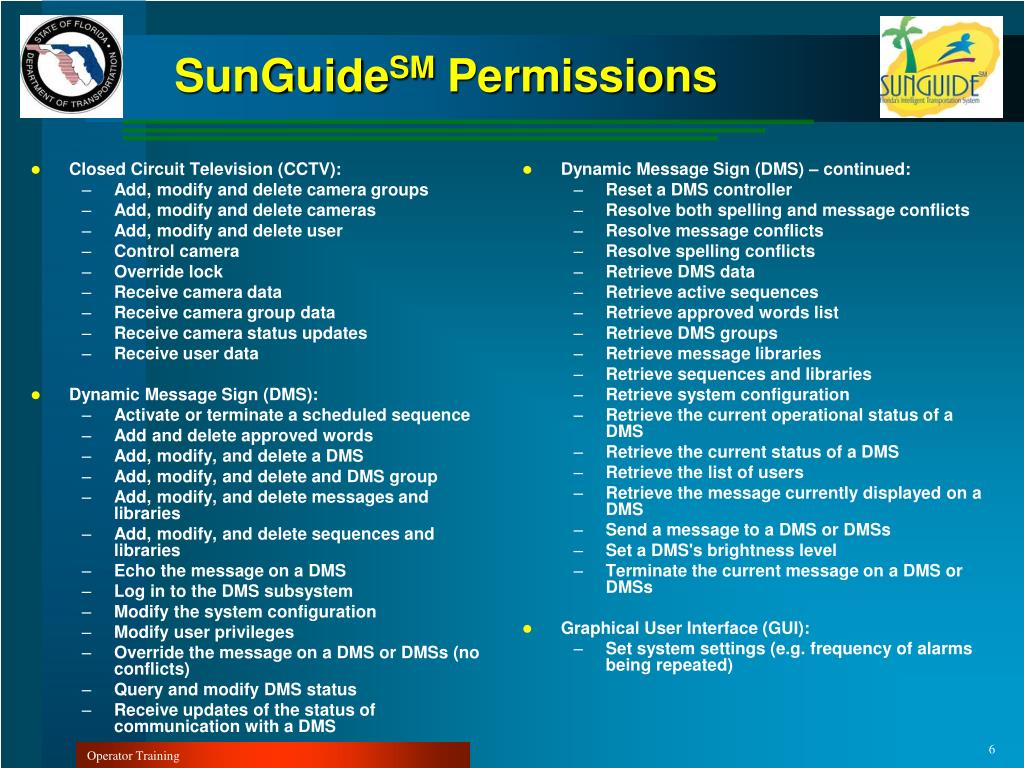

  6. Closed Circuit Television (CCTV): Add, modify and delete camera groups Add, modify and delete cameras Add, modify and delete user Control camera Override lock Receive camera data Receive camera group data Receive camera status updates Receive user data Dynamic Message Sign (DMS): Activate or terminate a scheduled sequence Add and delete approved words Add, modify, and delete a DMS Add, modify, and delete and DMS group Add, modify, and delete messages and libraries Add, modify, and delete sequences and libraries Echo the message on a DMS Log in to the DMS subsystem Modify the system configuration Modify user privileges Override the message on a DMS or DMSs (no conflicts) Query and modify DMS status Receive updates of the status of communication with a DMS Dynamic Message Sign (DMS) – continued: Reset a DMS controller Resolve both spelling and message conflicts Resolve message conflicts Resolve spelling conflicts Retrieve DMS data Retrieve active sequences Retrieve approved words list Retrieve DMS groups Retrieve message libraries Retrieve sequences and libraries Retrieve system configuration Retrieve the current operational status of a DMS Retrieve the current status of a DMS Retrieve the list of users Retrieve the message currently displayed on a DMS Send a message to a DMS or DMSs Set a DMS's brightness level Terminate the current message on a DMS or DMSs Graphical User Interface (GUI): Set system settings (e.g. frequency of alarms being repeated) SunGuideSM Permissions Operator Training

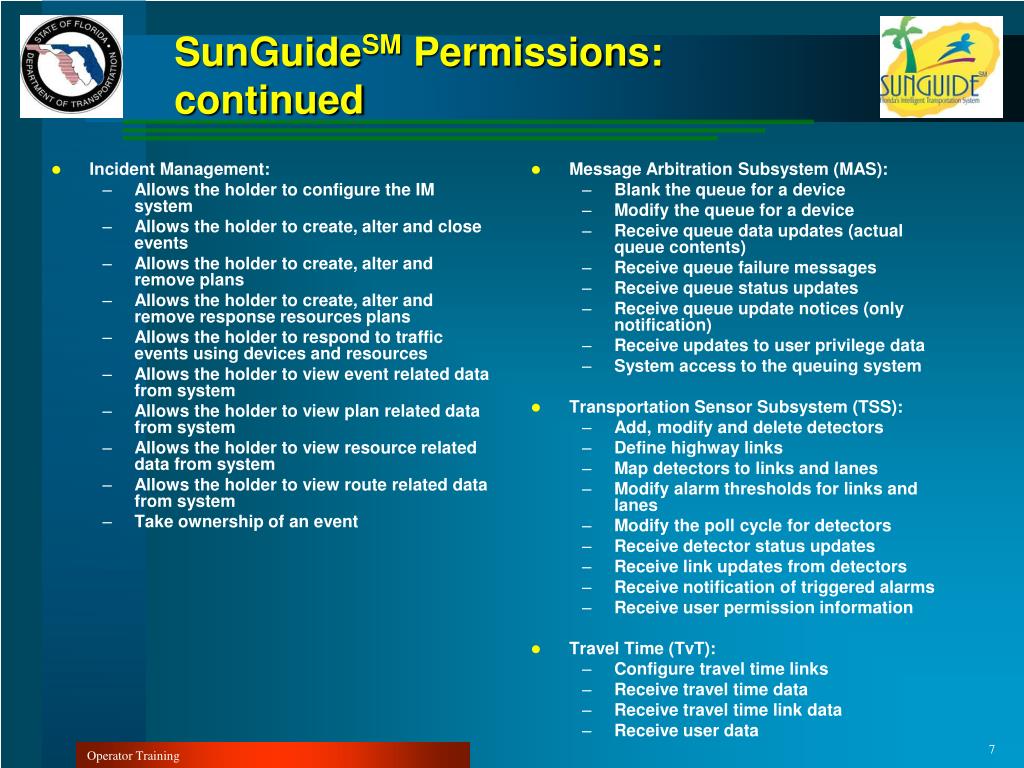

  7. Incident Management: Allows the holder to configure the IM system Allows the holder to create, alter and close events Allows the holder to create, alter and remove plans Allows the holder to create, alter and remove response resources plans Allows the holder to respond to traffic events using devices and resources Allows the holder to view event related data from system Allows the holder to view plan related data from system Allows the holder to view resource related data from system Allows the holder to view route related data from system Take ownership of an event Message Arbitration Subsystem (MAS): Blank the queue for a device Modify the queue for a device Receive queue data updates (actual queue contents) Receive queue failure messages Receive queue status updates Receive queue update notices (only notification) Receive updates to user privilege data System access to the queuing system Transportation Sensor Subsystem (TSS): Add, modify and delete detectors Define highway links Map detectors to links and lanes Modify alarm thresholds for links and lanes Modify the poll cycle for detectors Receive detector status updates Receive link updates from detectors Receive notification of triggered alarms Receive user permission information Travel Time (TvT): Configure travel time links Receive travel time data Receive travel time link data Receive user data SunGuideSM Permissions: continued Operator Training

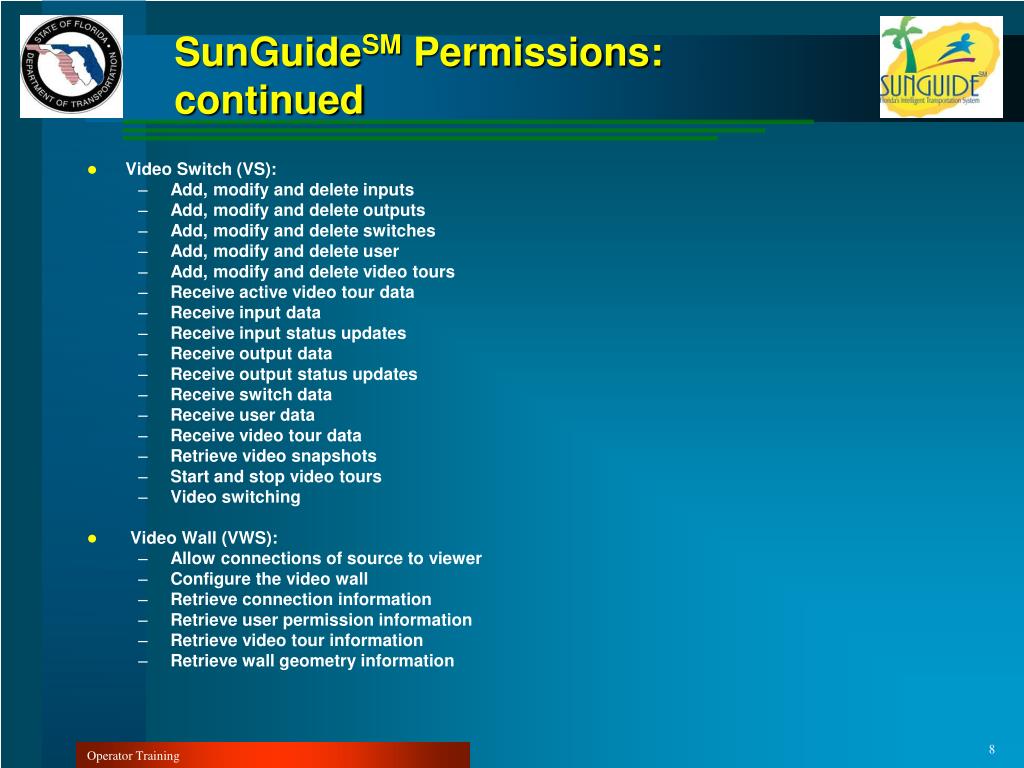

  8. SunGuideSM Permissions: continued • Video Switch (VS): • Add, modify and delete inputs • Add, modify and delete outputs • Add, modify and delete switches • Add, modify and delete user • Add, modify and delete video tours • Receive active video tour data • Receive input data • Receive input status updates • Receive output data • Receive output status updates • Receive switch data • Receive user data • Receive video tour data • Retrieve video snapshots • Start and stop video tours • Video switching • Video Wall (VWS): • Allow connections of source to viewer • Configure the video wall • Retrieve connection information • Retrieve user permission information • Retrieve video tour information • Retrieve wall geometry information Operator Training

  9. GUI / Graphical Map Operator Training

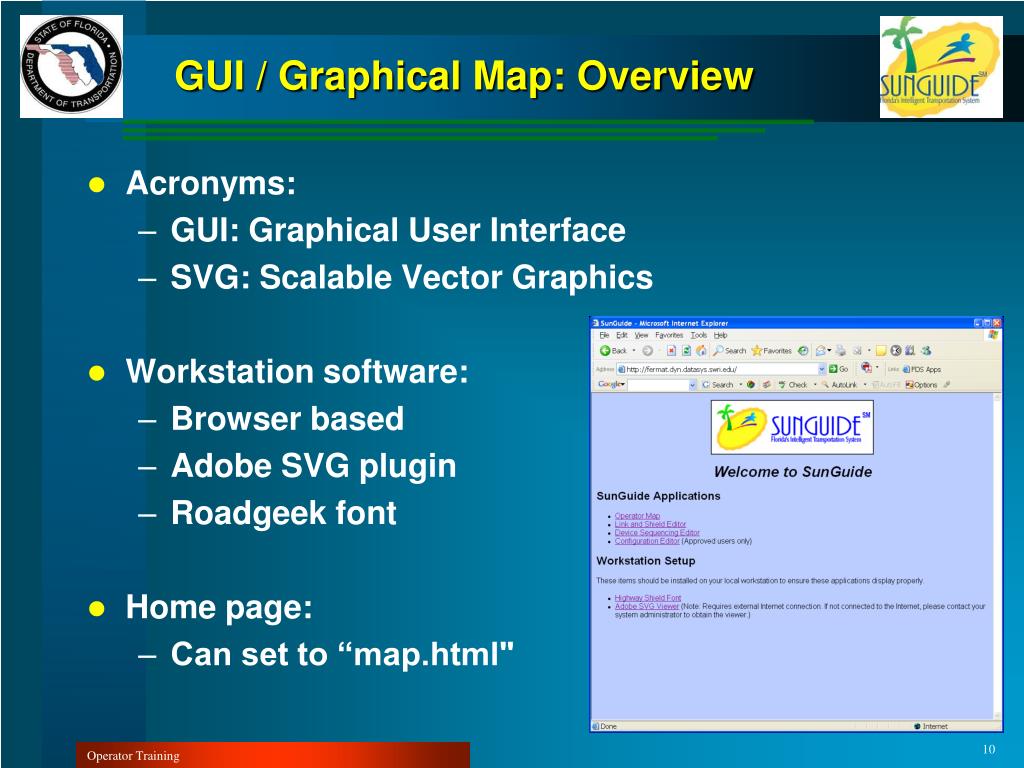

  10. GUI / Graphical Map: Overview • Acronyms: • GUI: Graphical User Interface • SVG: Scalable Vector Graphics • Workstation software: • Browser based • Adobe SVG plugin • Roadgeek font • Home page: • Can set to “map.html" Operator Training

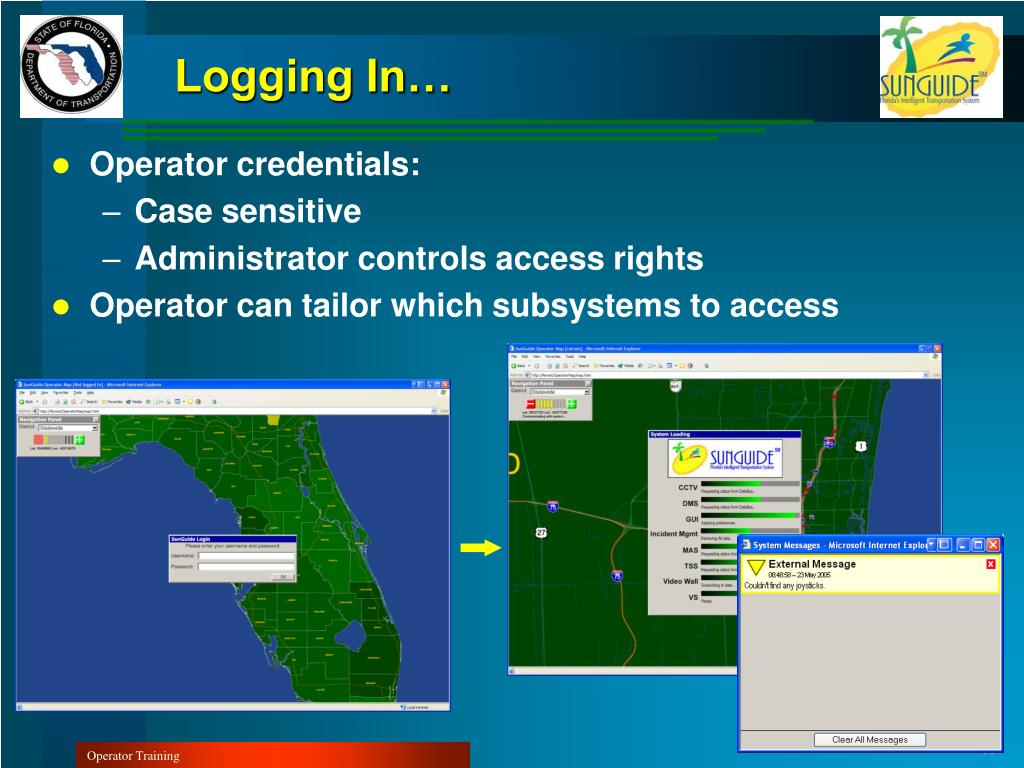

  11. Logging In… • Operator credentials: • Case sensitive • Administrator controls access rights • Operator can tailor which subsystems to access Operator Training

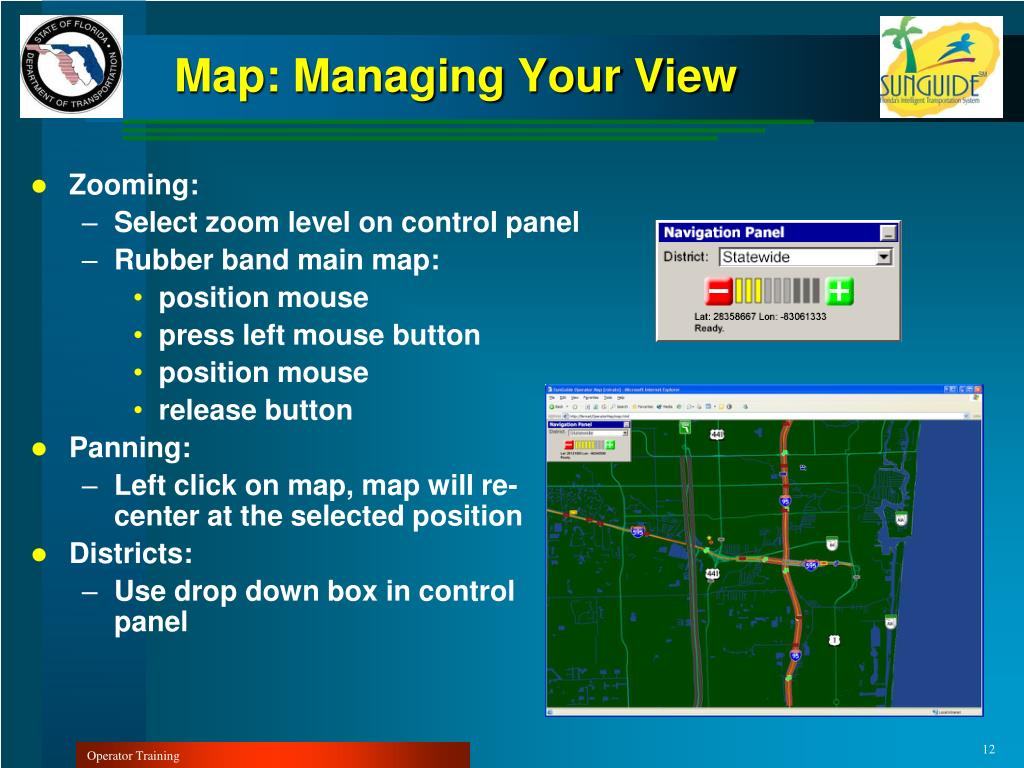

  12. Map: Managing Your View • Zooming: • Select zoom level on control panel • Rubber band main map: • position mouse • press left mouse button • position mouse • release button • Panning: • Left click on map, map will re-center at the selected position • Districts: • Use drop down box in control panel Operator Training

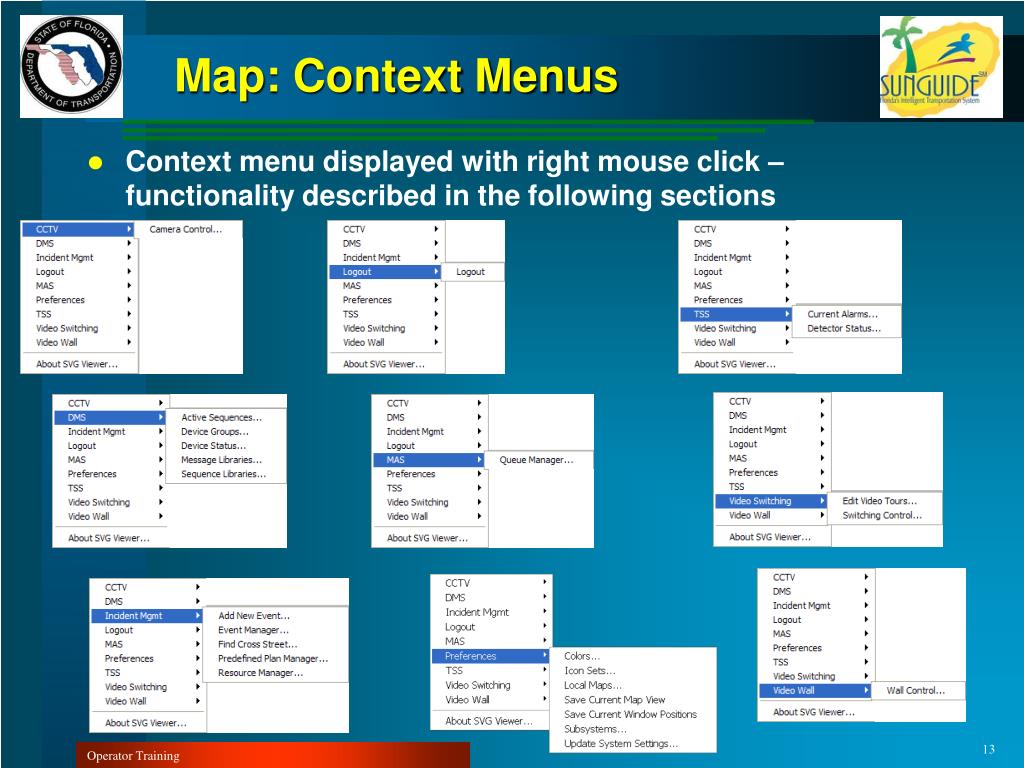

  13. Map: Context Menus • Context menu displayed with right mouse click – functionality described in the following sections Operator Training

  14. CCTV Operator Training

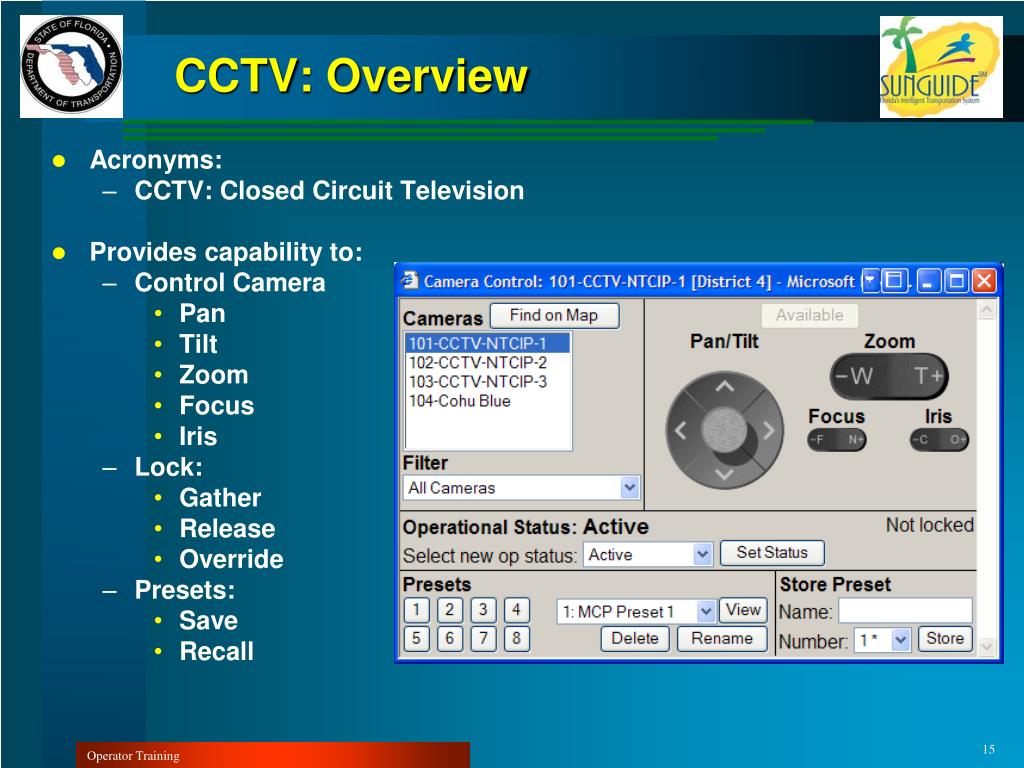

  15. CCTV: Overview • Acronyms: • CCTV: Closed Circuit Television • Provides capability to: • Control Camera • Pan • Tilt • Zoom • Focus • Iris • Lock: • Gather • Release • Override • Presets: • Save • Recall Operator Training

  16. Video Switching Operator Training

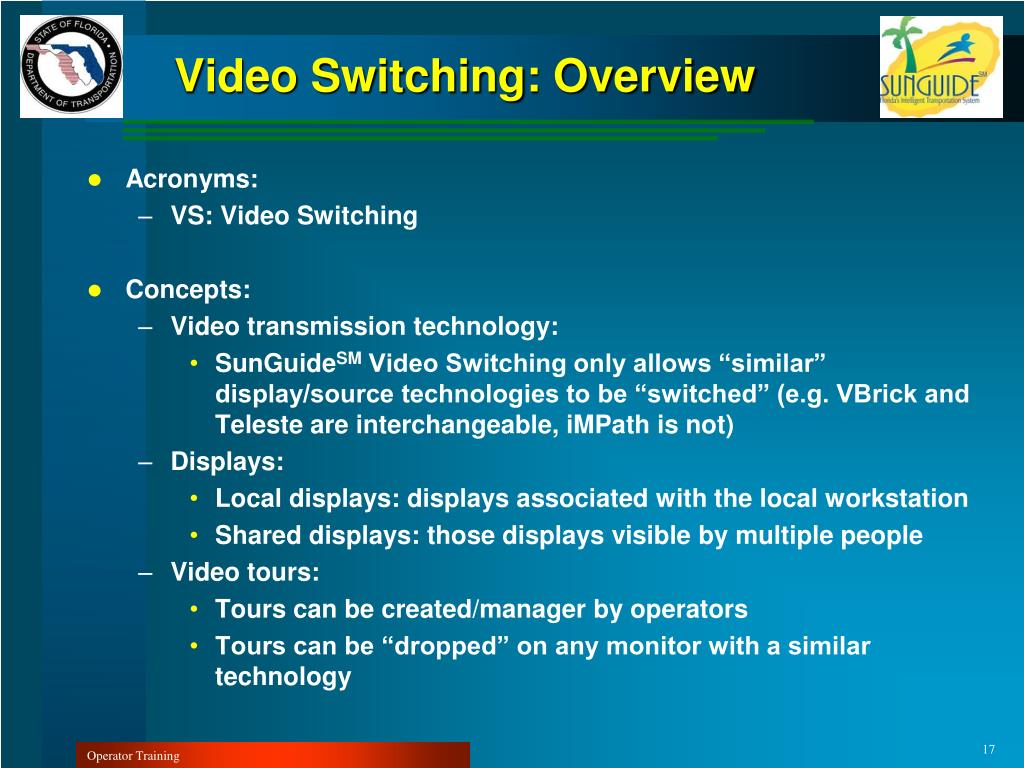

  17. Video Switching: Overview • Acronyms: • VS: Video Switching • Concepts: • Video transmission technology: • SunGuideSM Video Switching only allows “similar” display/source technologies to be “switched” (e.g. VBrick and Teleste are interchangeable, iMPath is not) • Displays: • Local displays: displays associated with the local workstation • Shared displays: those displays visible by multiple people • Video tours: • Tours can be created/manager by operators • Tours can be “dropped” on any monitor with a similar technology Operator Training

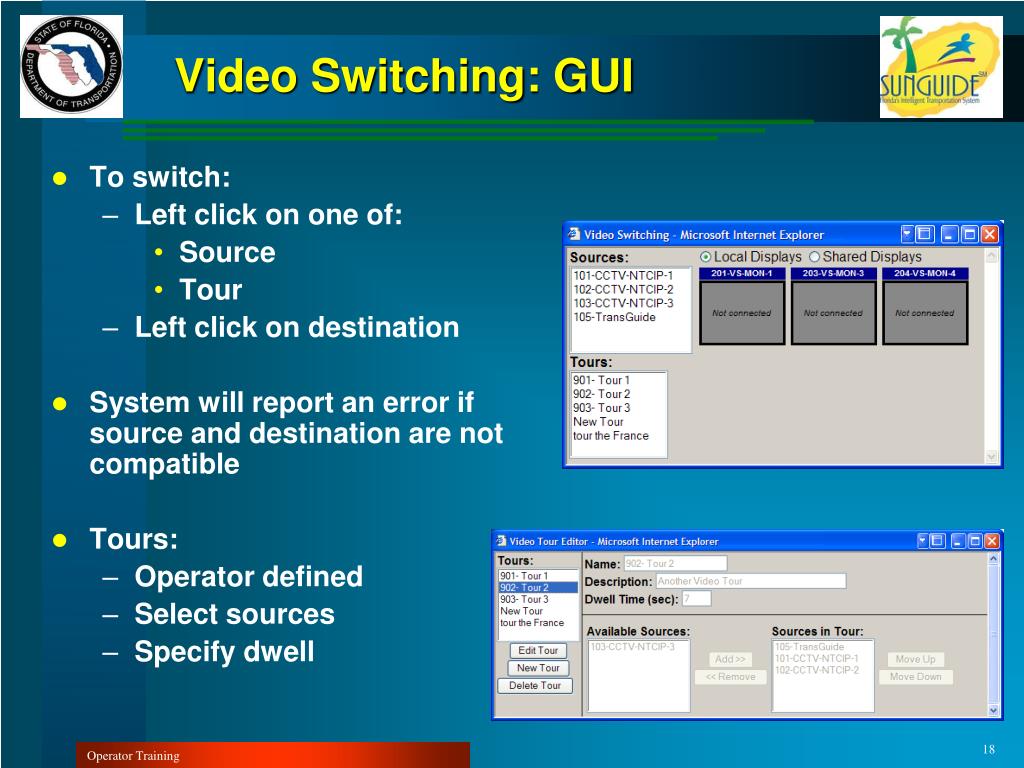

  18. Video Switching: GUI • To switch: • Left click on one of: • Source • Tour • Left click on destination • System will report an error if source and destination are not compatible • Tours: • Operator defined • Select sources • Specify dwell Operator Training

  19. Video Wall Operator Training

  20. Video Wall • Acronyms: • VW: Video Wall • Relies on using the configurations performed by the Barco software • To switch: • Left click on one of: • Source • Tour • Left click on Barco “Viewer” • Layouts: • Operator may change an EXISTING layout: • Deactivate current layout • Select layout • Activate Operator Training

  21. Detectors Operator Training

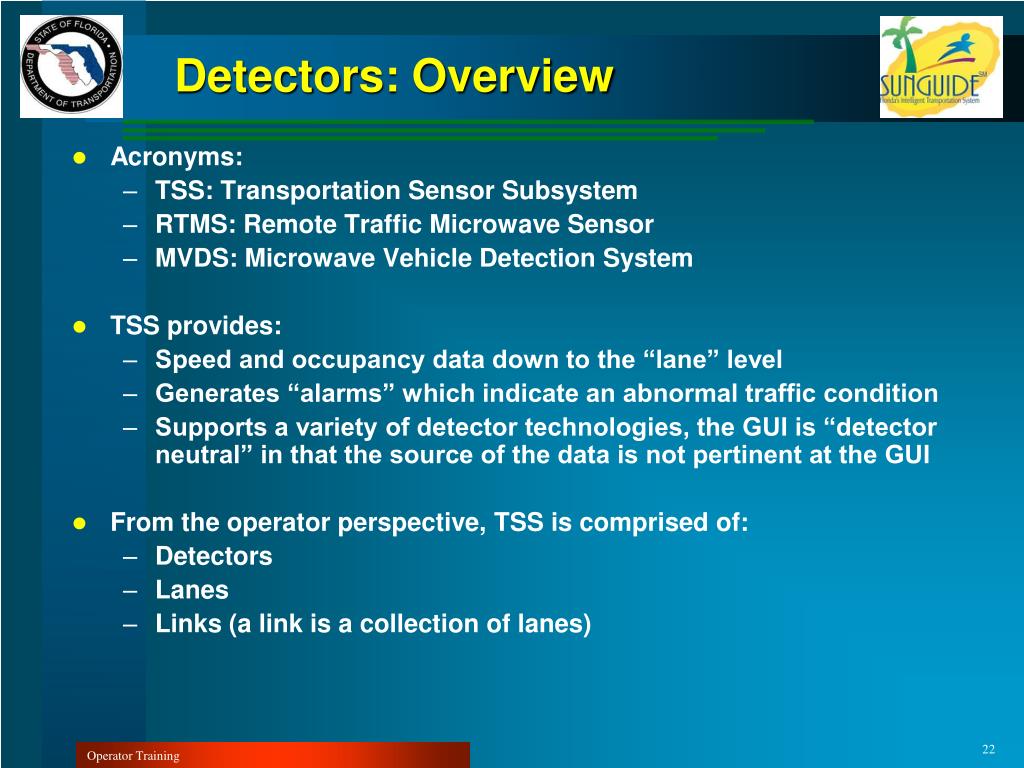

  22. Detectors: Overview • Acronyms: • TSS: Transportation Sensor Subsystem • RTMS: Remote Traffic Microwave Sensor • MVDS: Microwave Vehicle Detection System • TSS provides: • Speed and occupancy data down to the “lane” level • Generates “alarms” which indicate an abnormal traffic condition • Supports a variety of detector technologies, the GUI is “detector neutral” in that the source of the data is not pertinent at the GUI • From the operator perspective, TSS is comprised of: • Detectors • Lanes • Links (a link is a collection of lanes) Operator Training

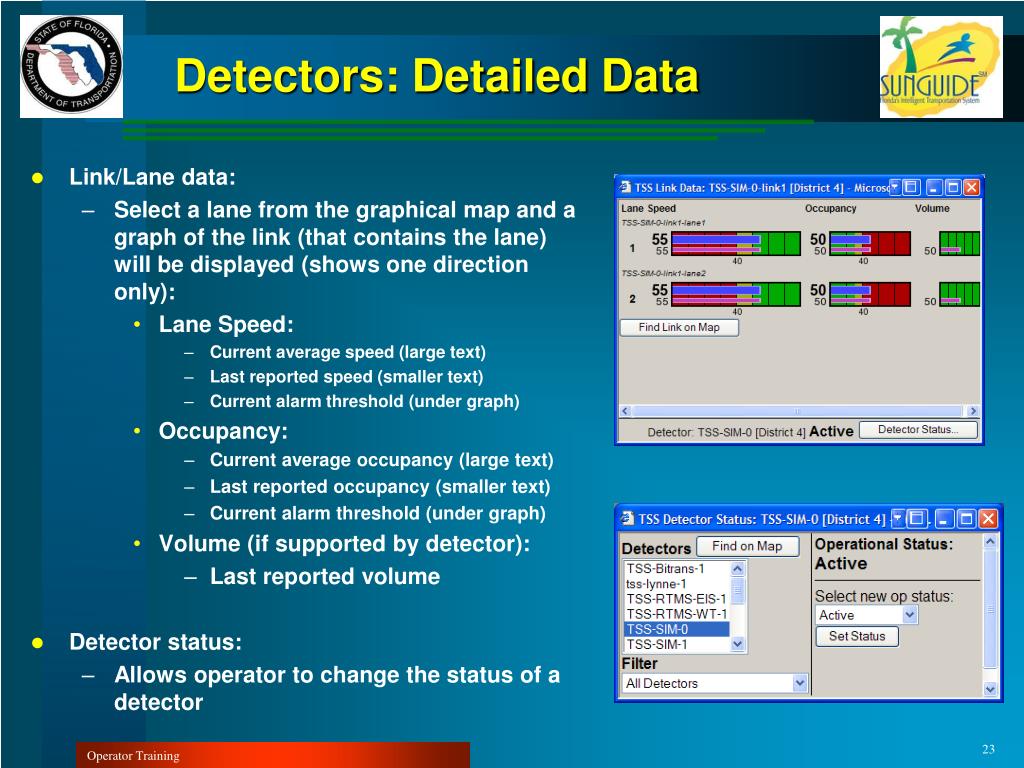

  23. Detectors: Detailed Data • Link/Lane data: • Select a lane from the graphical map and a graph of the link (that contains the lane) will be displayed (shows one direction only): • Lane Speed: • Current average speed (large text) • Last reported speed (smaller text) • Current alarm threshold (under graph) • Occupancy: • Current average occupancy (large text) • Last reported occupancy (smaller text) • Current alarm threshold (under graph) • Volume (if supported by detector): • Last reported volume • Detector status: • Allows operator to change the status of a detector Operator Training

  24. Detectors: Current Alarms • Alarms are generated when the speed and/or occupancy crosses the SunGuideSM Administrator established thresholds (these thresholds can vary by time of day) • Current alarms are displayed, the operator may: • Dismiss: remove from the system • Generate Incident: start the process of managing an incident (details of incident management will be provided later) Operator Training

  25. DMS and Message Queues Operator Training

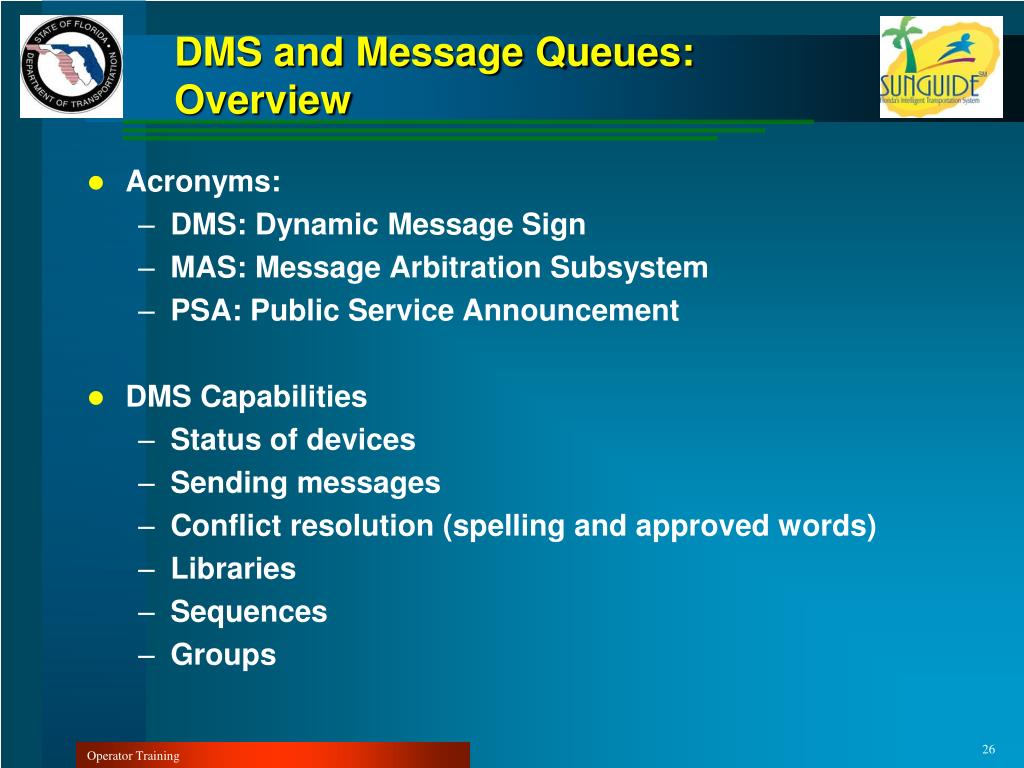

  26. DMS and Message Queues: Overview • Acronyms: • DMS: Dynamic Message Sign • MAS: Message Arbitration Subsystem • PSA: Public Service Announcement • DMS Capabilities • Status of devices • Sending messages • Conflict resolution (spelling and approved words) • Libraries • Sequences • Groups Operator Training

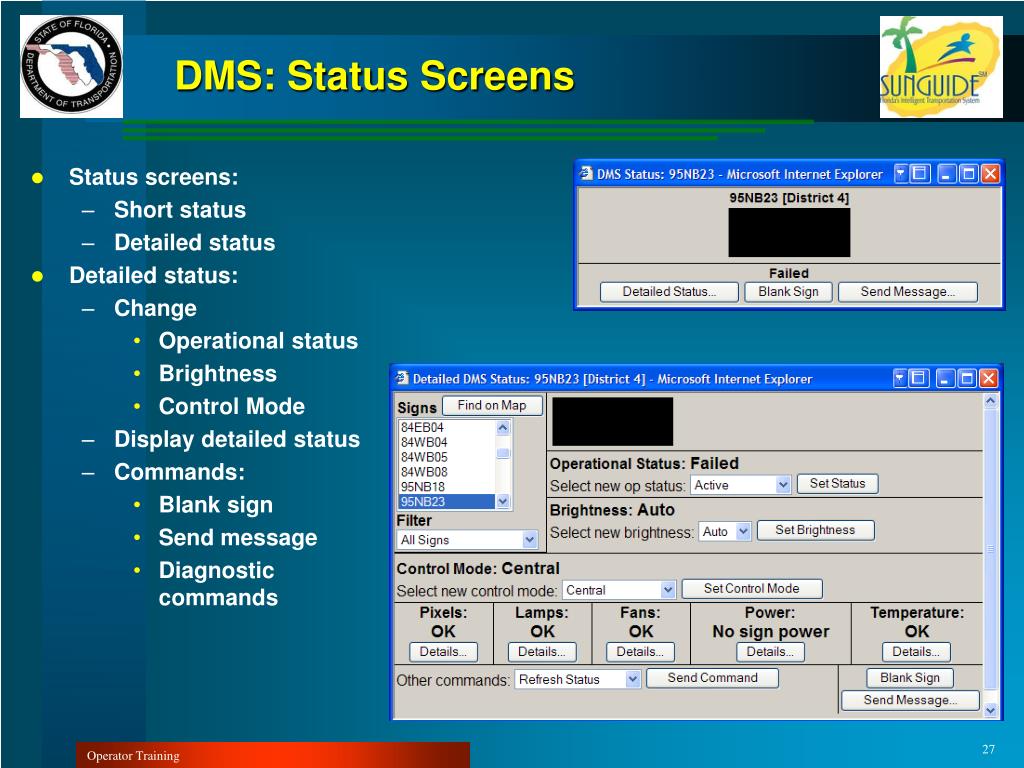

  27. DMS: Status Screens • Status screens: • Short status • Detailed status • Detailed status: • Change • Operational status • Brightness • Control Mode • Display detailed status • Commands: • Blank sign • Send message • Diagnostic commands Operator Training

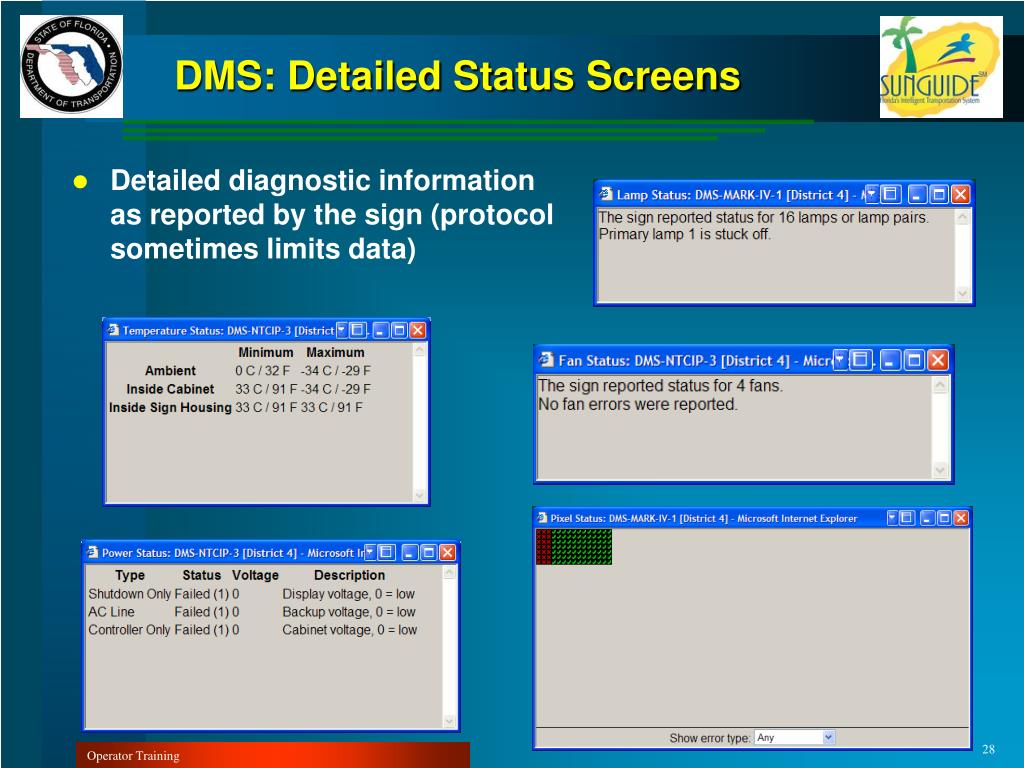

  28. DMS: Detailed Status Screens • Detailed diagnostic information as reported by the sign (protocol sometimes limits data) Operator Training

  29. DMS: Send Message • Allows operator to: • Edit a message (will be formatted for the sign geometry) • Set attributes of the message • Search message library for a “saved message” • Message is sent to MAS for “processing” Operator Training

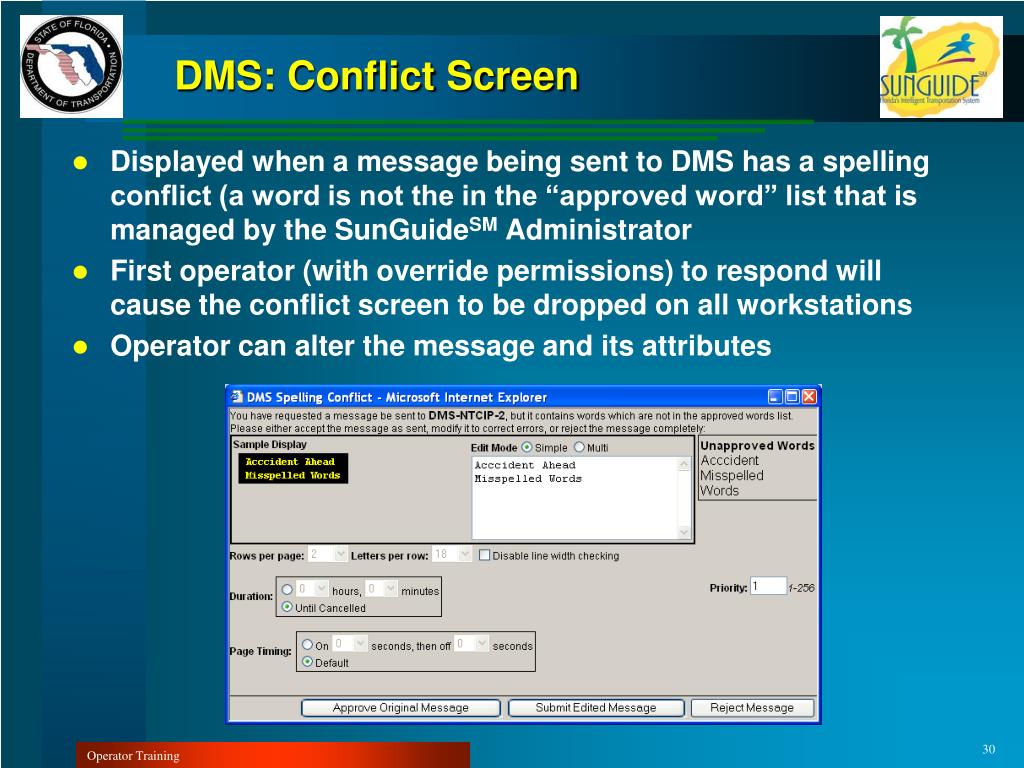

  30. DMS: Conflict Screen • Displayed when a message being sent to DMS has a spelling conflict (a word is not the in the “approved word” list that is managed by the SunGuideSM Administrator • First operator (with override permissions) to respond will cause the conflict screen to be dropped on all workstations • Operator can alter the message and its attributes Operator Training

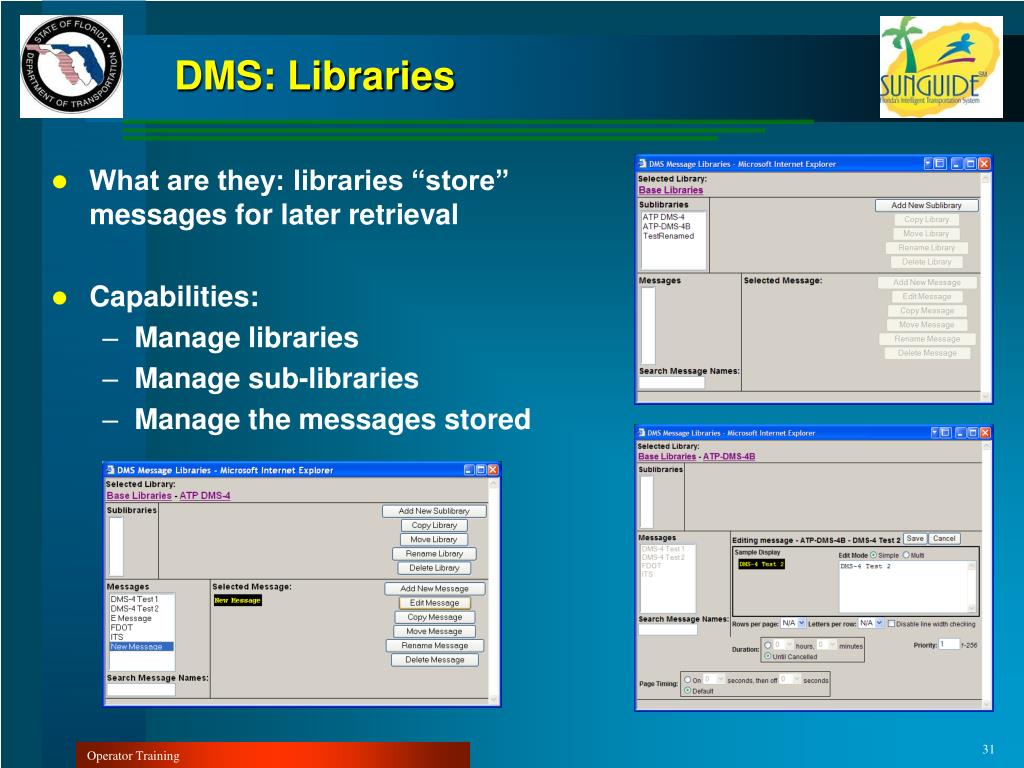

  31. DMS: Libraries • What are they: libraries “store” messages for later retrieval • Capabilities: • Manage libraries • Manage sub-libraries • Manage the messages stored Operator Training

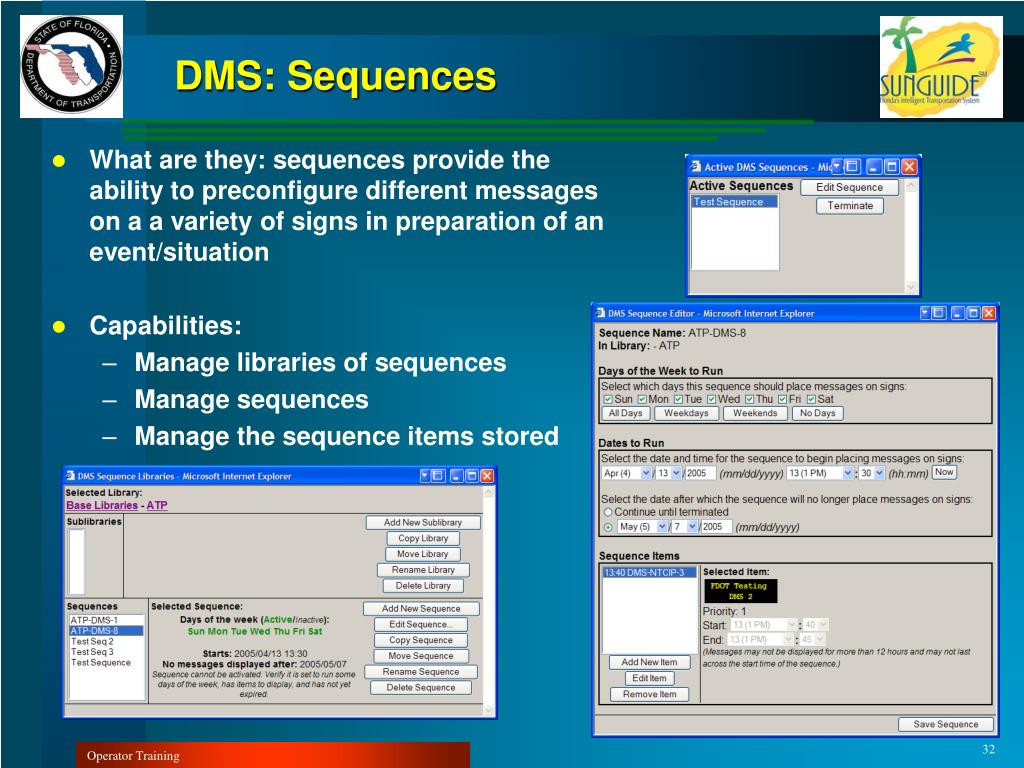

  32. DMS: Sequences • What are they: sequences provide the ability to preconfigure different messages on a a variety of signs in preparation of an event/situation • Capabilities: • Manage libraries of sequences • Manage sequences • Manage the sequence items stored Operator Training

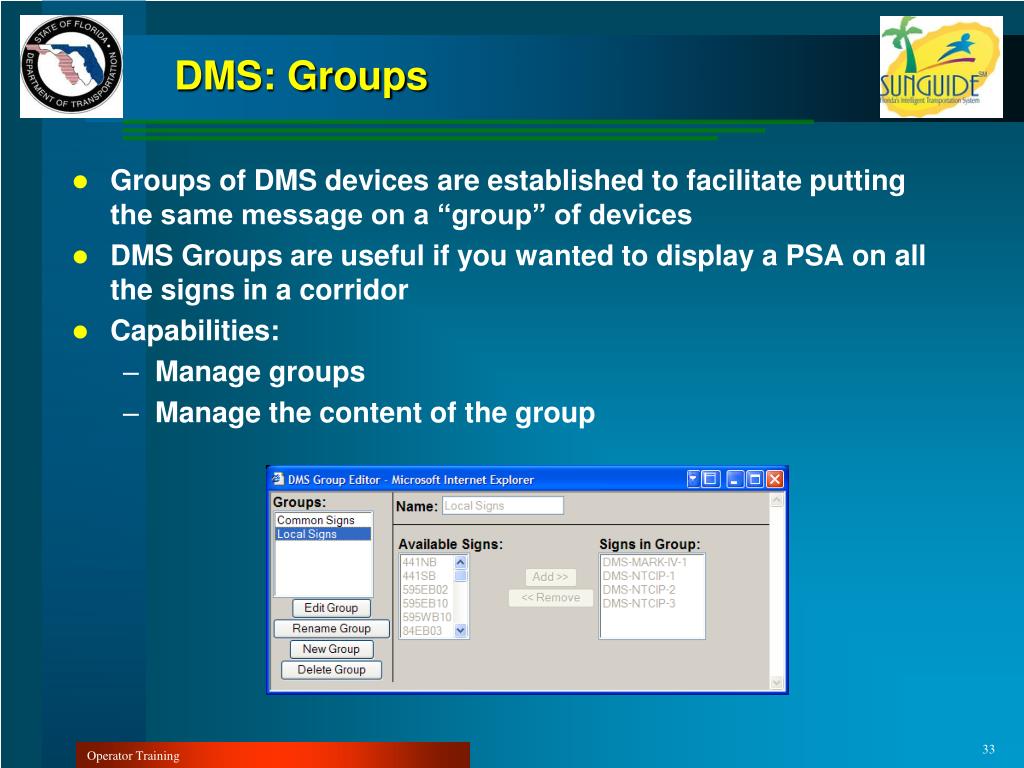

  33. DMS: Groups • Groups of DMS devices are established to facilitate putting the same message on a “group” of devices • DMS Groups are useful if you wanted to display a PSA on all the signs in a corridor • Capabilities: • Manage groups • Manage the content of the group Operator Training

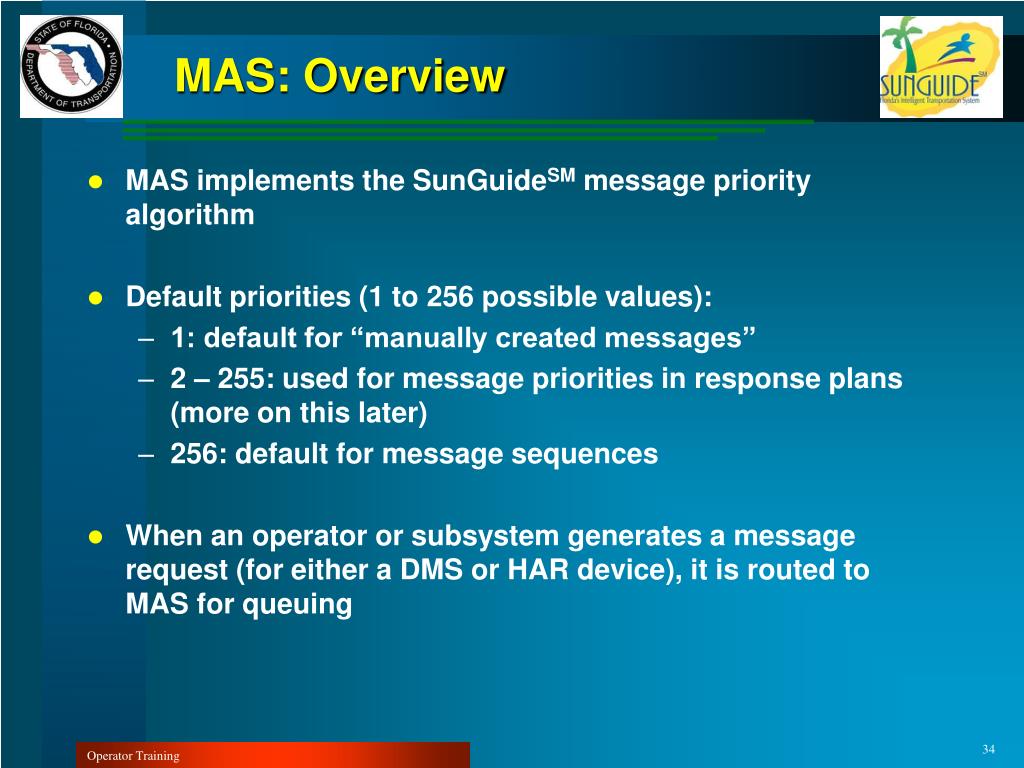

  34. MAS: Overview • MAS implements the SunGuideSM message priority algorithm • Default priorities (1 to 256 possible values): • 1: default for “manually created messages” • 2 – 255: used for message priorities in response plans (more on this later) • 256: default for message sequences • When an operator or subsystem generates a message request (for either a DMS or HAR device), it is routed to MAS for queuing Operator Training

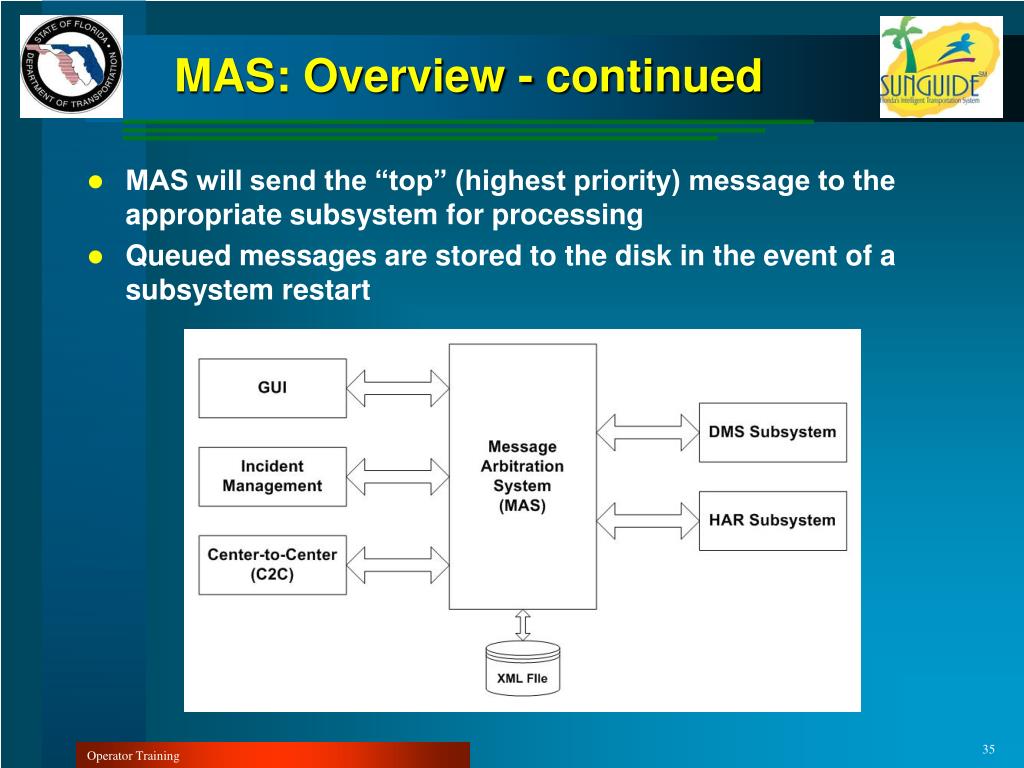

  35. MAS: Overview - continued • MAS will send the “top” (highest priority) message to the appropriate subsystem for processing • Queued messages are stored to the disk in the event of a subsystem restart Operator Training

  36. MAS: GUIs • MAS queue shows all devices (can be filtered) • Individual queue for one device can be displayed • Priorities of messages can be manually controlled • DMS sequences do not appear until “activated” Operator Training

  37. Incident Management Operator Training

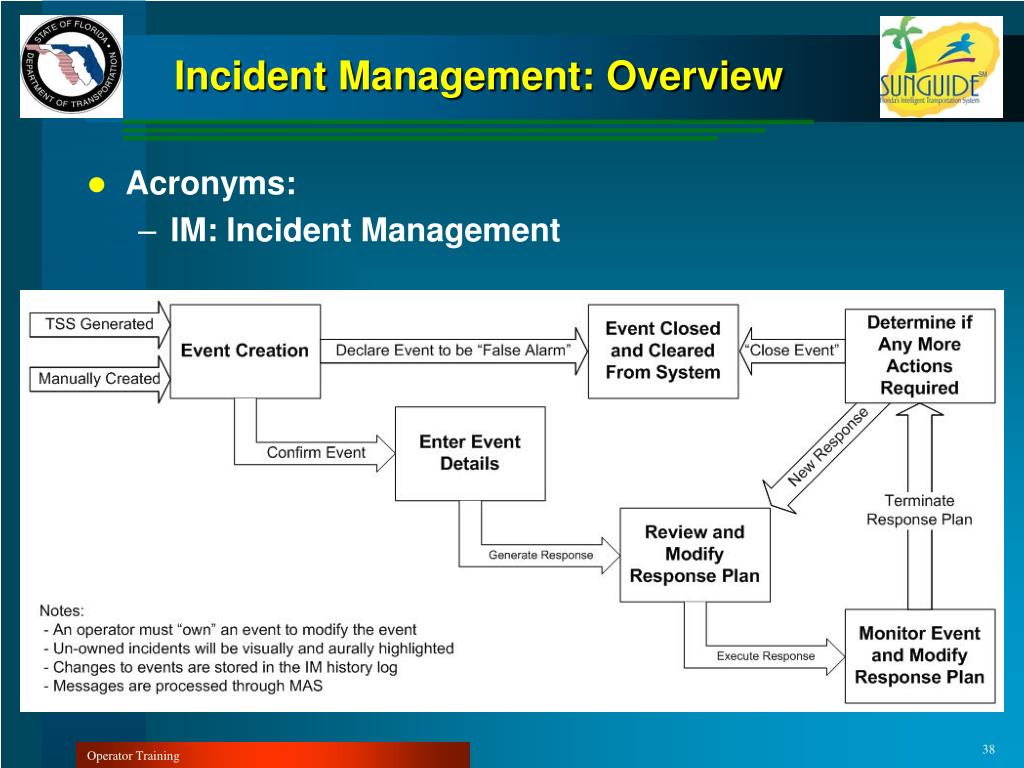

  38. Incident Management: Overview • Acronyms: • IM: Incident Management Operator Training

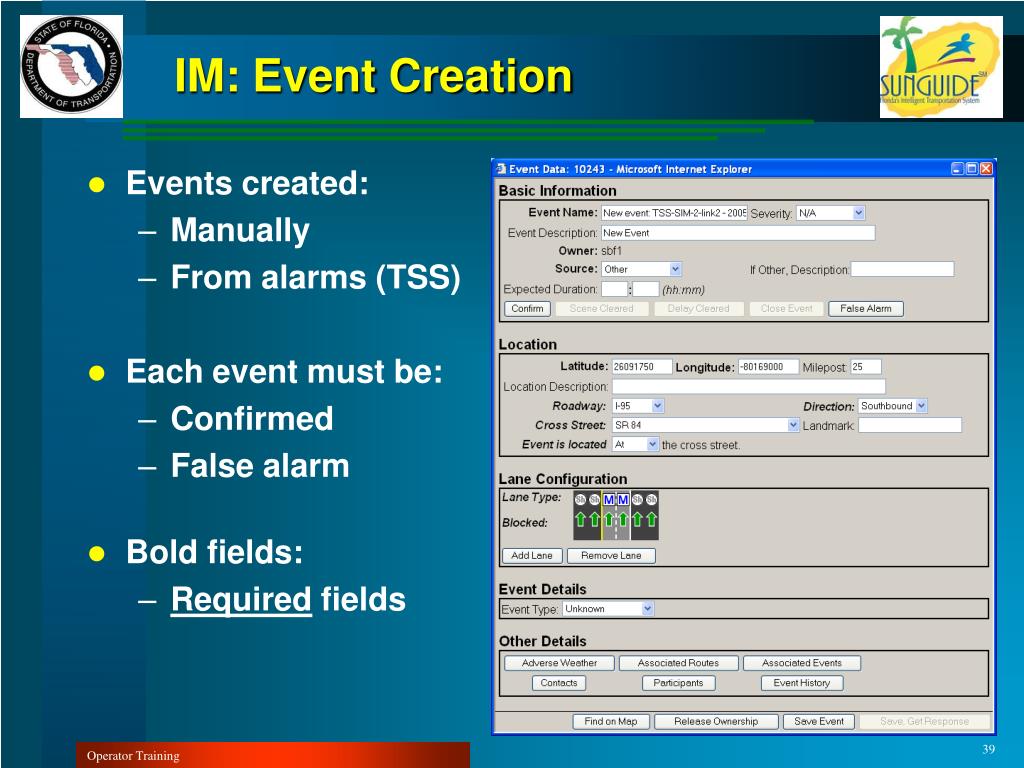

  39. IM: Event Creation • Events created: • Manually • From alarms (TSS) • Each event must be: • Confirmed • False alarm • Bold fields: • Required fields Operator Training

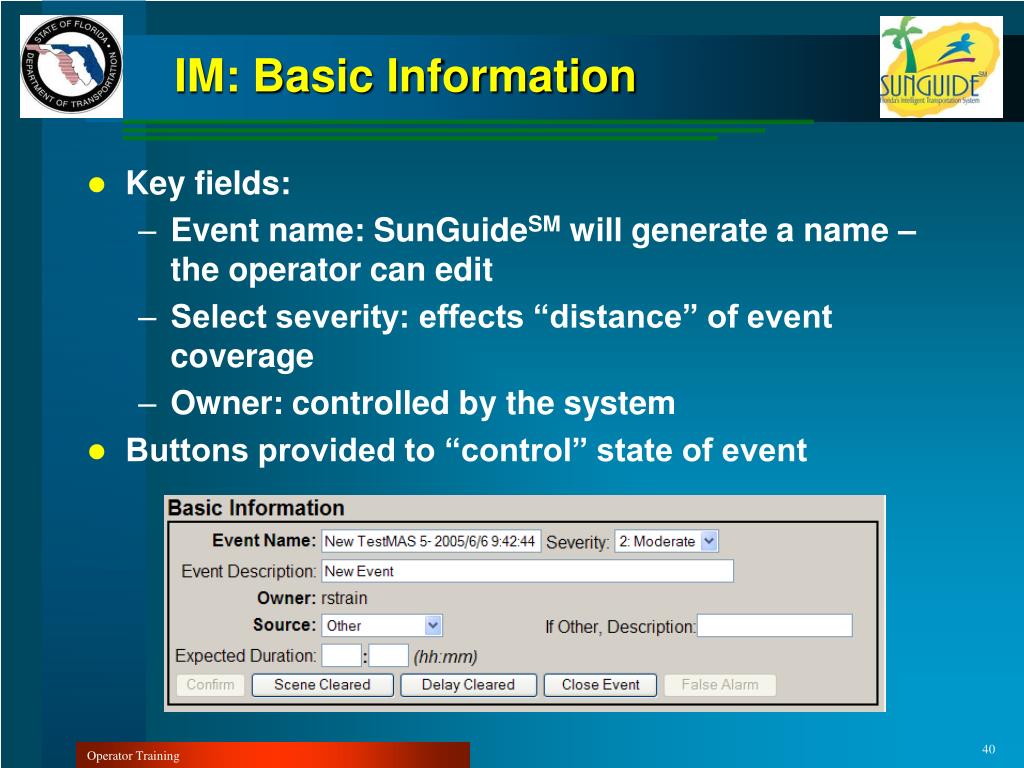

  40. IM: Basic Information • Key fields: • Event name: SunGuideSM will generate a name – the operator can edit • Select severity: effects “distance” of event coverage • Owner: controlled by the system • Buttons provided to “control” state of event Operator Training

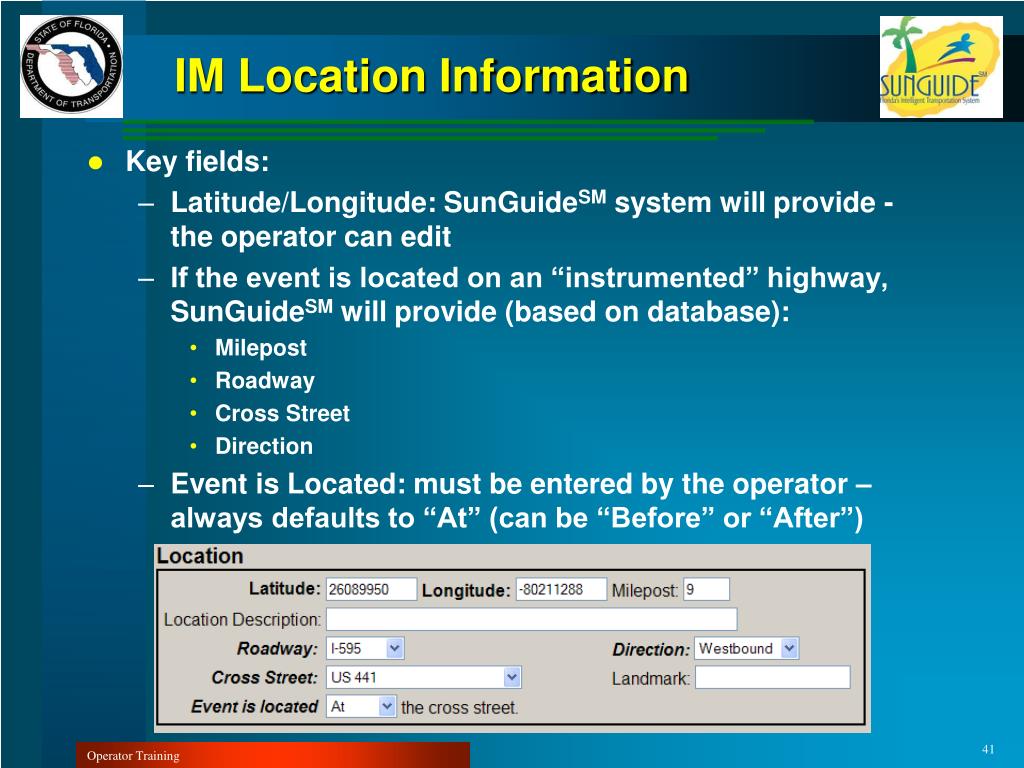

  41. IM Location Information • Key fields: • Latitude/Longitude: SunGuideSM system will provide - the operator can edit • If the event is located on an “instrumented” highway, SunGuideSM will provide (based on database): • Milepost • Roadway • Cross Street • Direction • Event is Located: must be entered by the operator – always defaults to “At” (can be “Before” or “After”) Operator Training

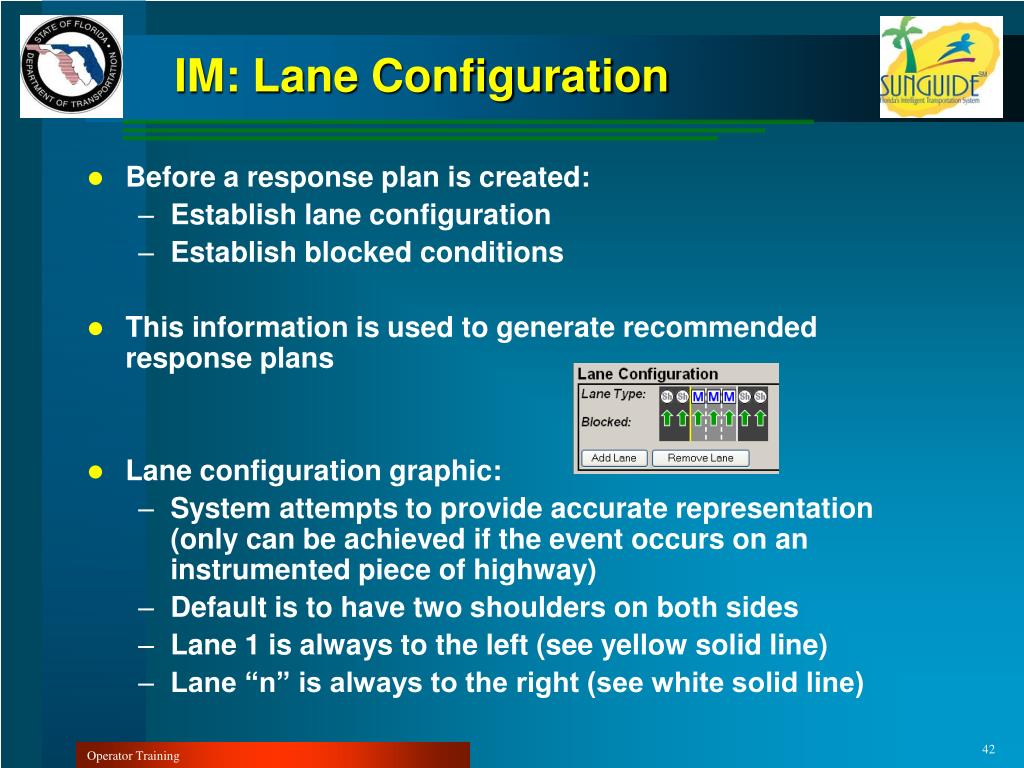

  42. IM: Lane Configuration • Before a response plan is created: • Establish lane configuration • Establish blocked conditions • This information is used to generate recommended response plans • Lane configuration graphic: • System attempts to provide accurate representation (only can be achieved if the event occurs on an instrumented piece of highway) • Default is to have two shoulders on both sides • Lane 1 is always to the left (see yellow solid line) • Lane “n” is always to the right (see white solid line) Operator Training

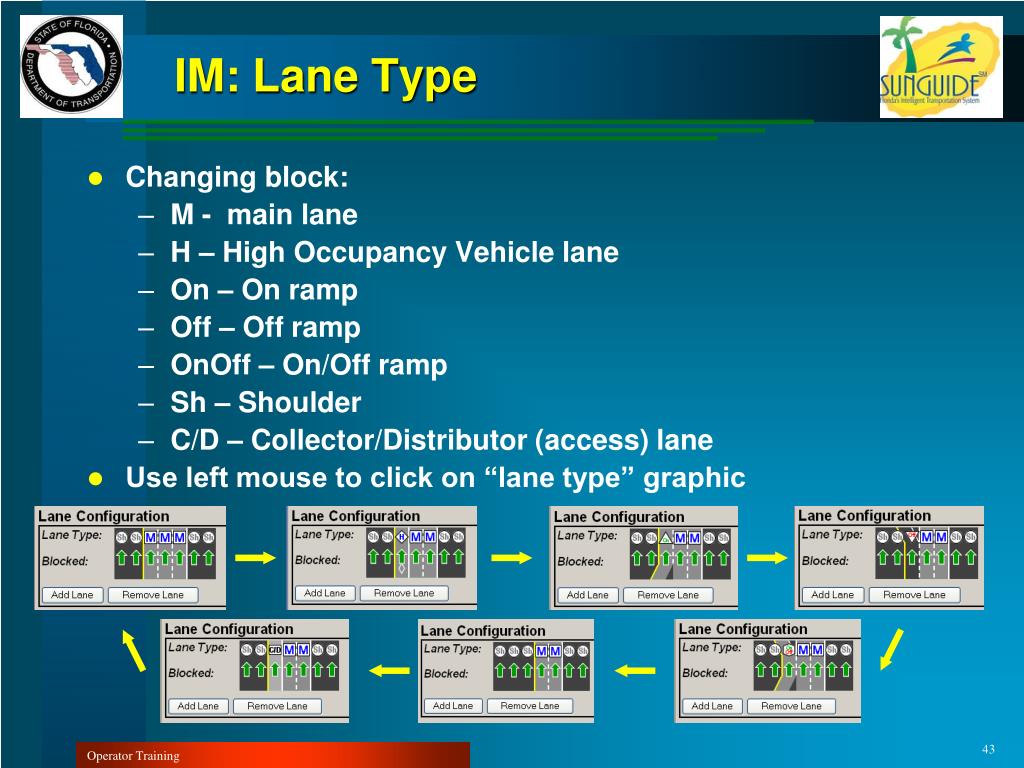

  43. IM: Lane Type • Changing block: • M - main lane • H – High Occupancy Vehicle lane • On – On ramp • Off – Off ramp • OnOff – On/Off ramp • Sh – Shoulder • C/D – Collector/Distributor (access) lane • Use left mouse to click on “lane type” graphic Operator Training

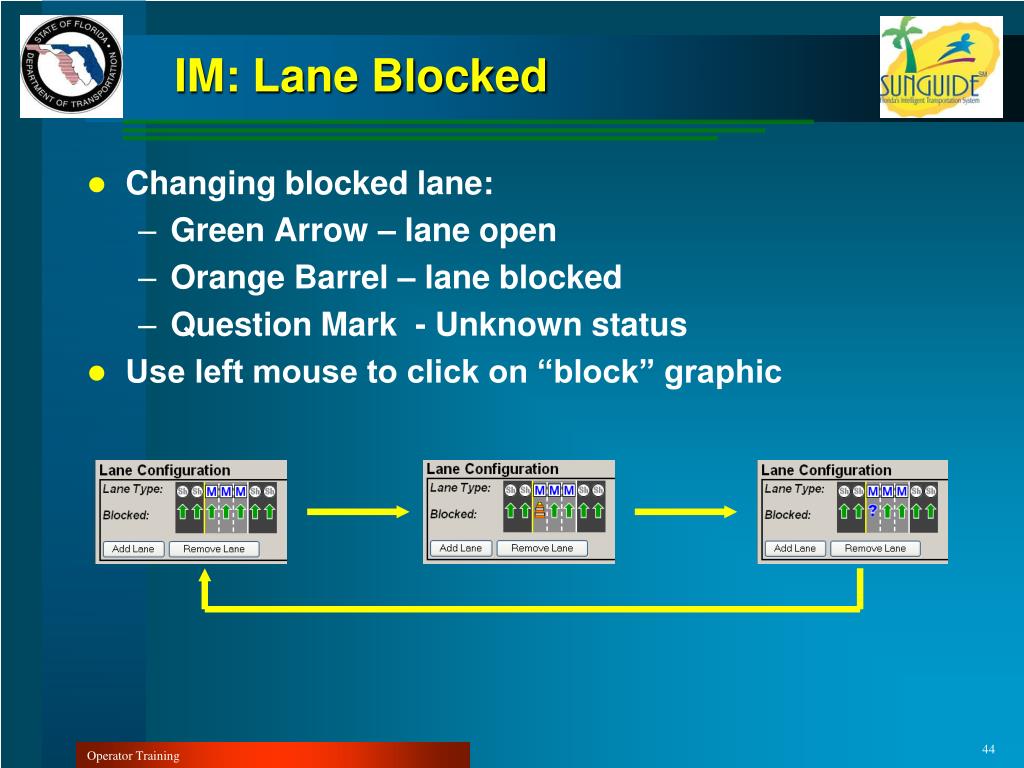

  44. IM: Lane Blocked • Changing blocked lane: • Green Arrow – lane open • Orange Barrel – lane blocked • Question Mark - Unknown status • Use left mouse to click on “block” graphic Operator Training

  45. IM: Event Details • Select one type of event (and enter appropriate data): • Congestion • Special Event • Weather • Construction • Disabled Vehicle • Safety Message • Action Required • Incident Operator Training

  46. IM: Other Details • Weather Conditions: • Provide a “notation” of the current weather conditions in the event record Operator Training

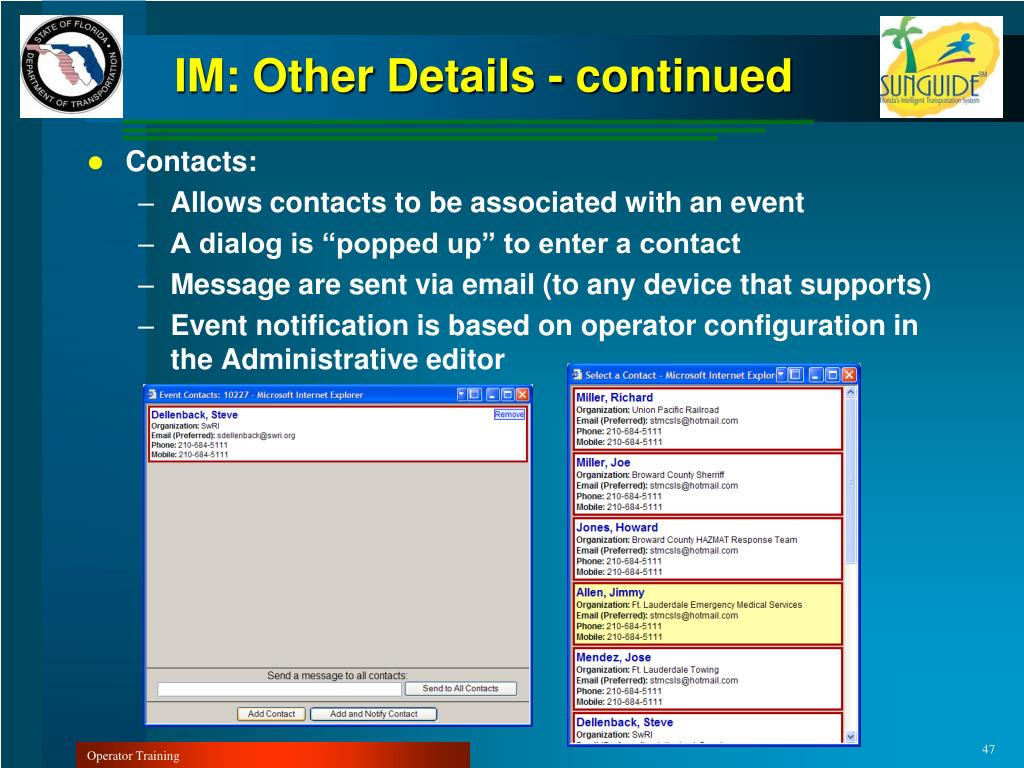

  47. IM: Other Details - continued • Contacts: • Allows contacts to be associated with an event • A dialog is “popped up” to enter a contact • Message are sent via email (to any device that supports) • Event notification is based on operator configuration in the Administrative editor Operator Training

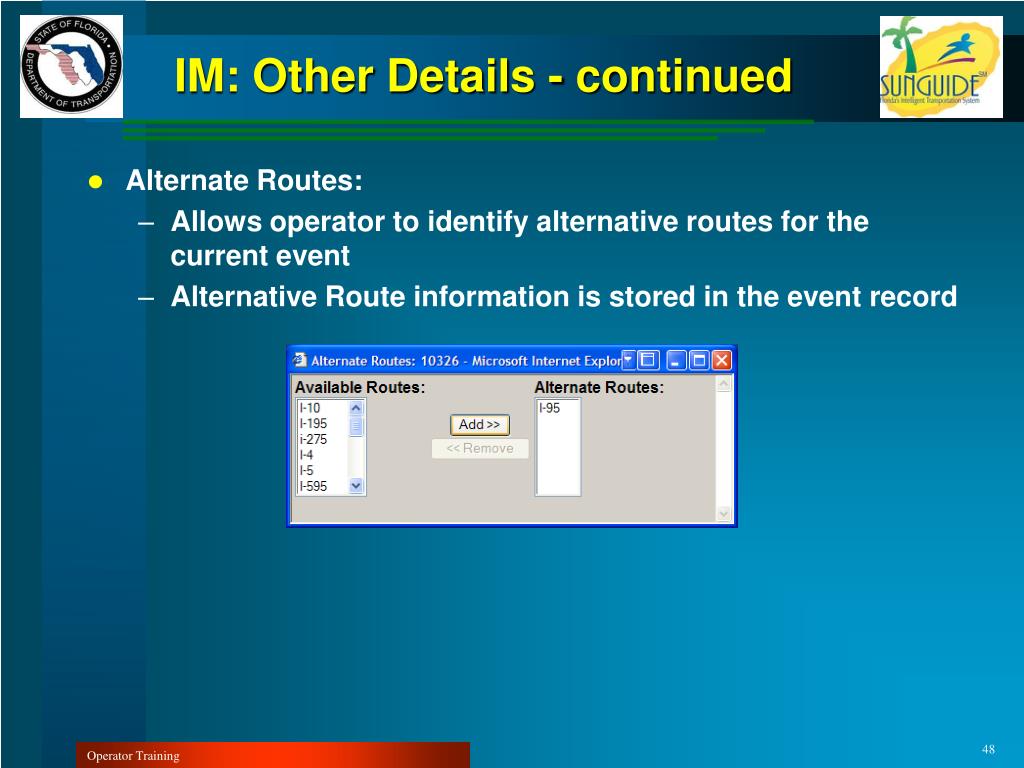

  48. IM: Other Details - continued • Alternate Routes: • Allows operator to identify alternative routes for the current event • Alternative Route information is stored in the event record Operator Training

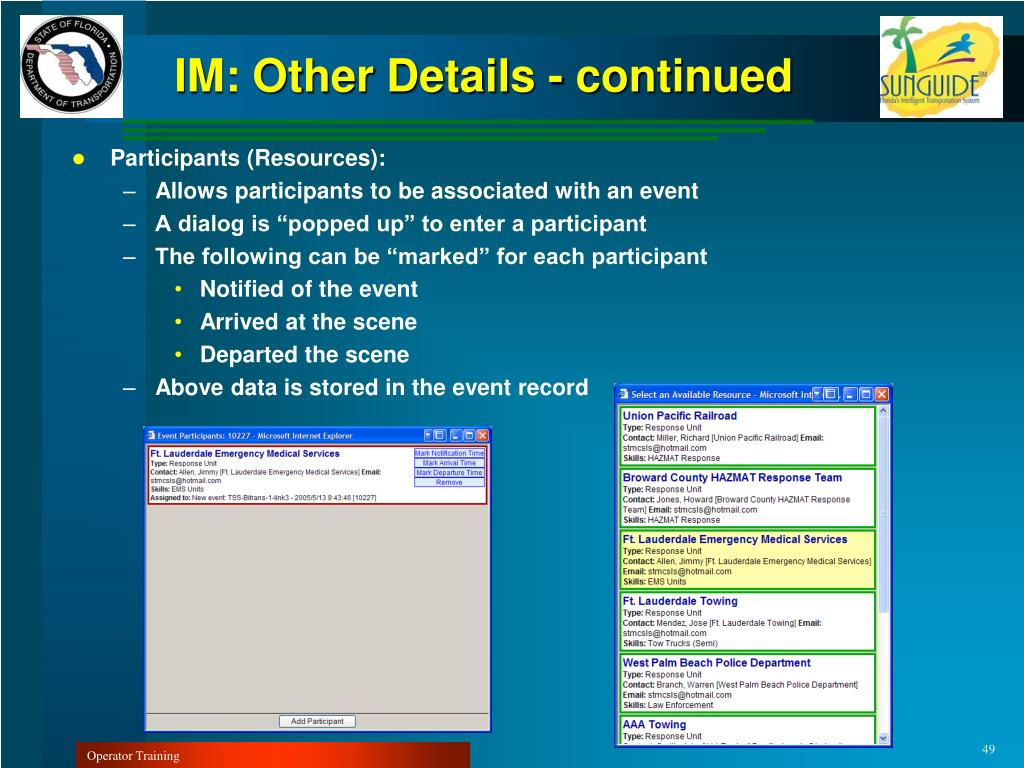

  49. IM: Other Details - continued • Participants (Resources): • Allows participants to be associated with an event • A dialog is “popped up” to enter a participant • The following can be “marked” for each participant • Notified of the event • Arrived at the scene • Departed the scene • Above data is stored in the event record Operator Training

  50. IM: Other Details - continued • Associated Events: • Allows events to be associated with each other • A dialog is “popped up” to enter a event • Associated an event does not “tie” the manipulation of the event together – it is simply a logical association • Associations are stored in the event record Operator Training
