INSTRUCTION SET OF MICROPROCESSOR 8085

INSTRUCTION SET OF MICROPROCESSOR 8085. 8085 has 246 instructions Each instruction of microprocessor 8085 consists of opcode & operand . Opcode tells about the type of operation while operand can be data (8 or 16 bit), address, registers, register pair, etc.

anisa
Télécharger la présentation

INSTRUCTION SET OF MICROPROCESSOR 8085

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. INSTRUCTION SET OF MICROPROCESSOR 8085

  2. 8085 has 246 instructions Each instruction of microprocessor 8085 consists of opcode & operand. Opcode tells about the type of operation while operand can be data (8 or 16 bit), address, registers, register pair, etc.

  3. Addressing mode is format of specifying on operands Microprocessor has five addressing modes

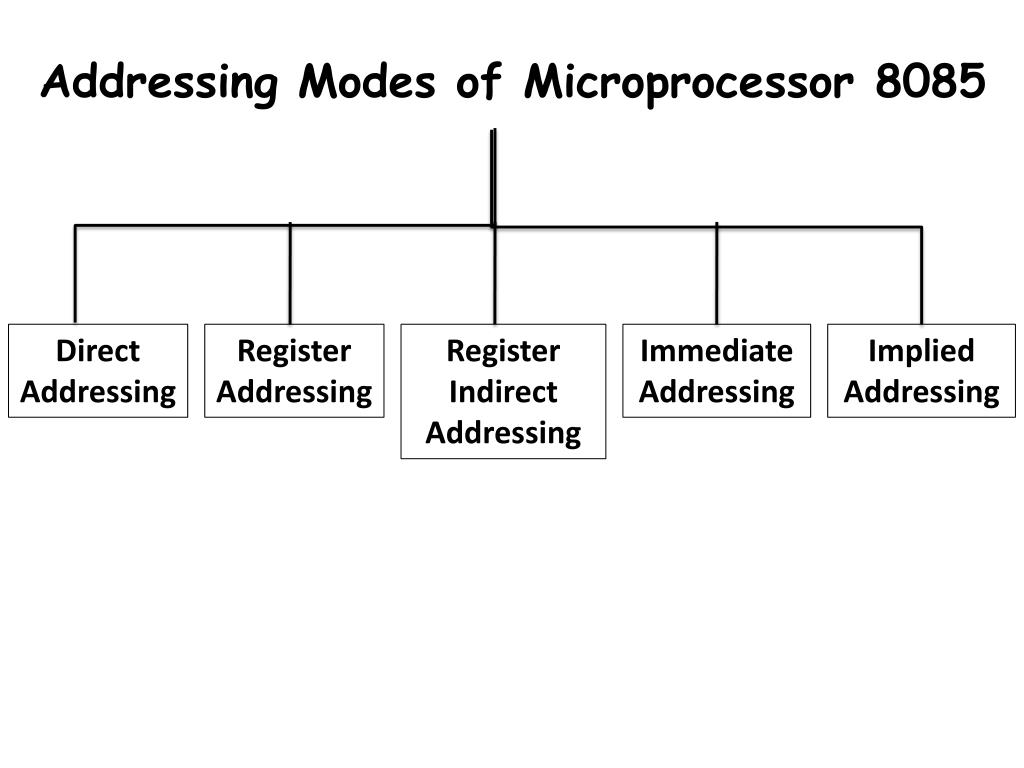

  4. Addressing Modes of Microprocessor 8085 Direct Addressing Register Addressing Register Indirect Addressing Immediate Addressing Implied Addressing

  5. Direct Addressing : • Address appears after opcode of instruction • The address of operand is specified within instruction • These are 3 byte instructions. • Byte 1 is opcode while byte 2 & 3 are of address. • Example : LDA D500 H • This instruction will load accumulator with content of memory location D500 H. • Example : STA 95FF H • This instruction will store the content of accumulator to memory location 95FF H

  6. Register Addressing : • Register appears after opcode • Operands are general purpose registers specified within instruction • These are single byte instructions. • All actions occur within CPU • Example : MOV A,B • This instruction transfers the content of register B to accumulator without modifying the content of B • Example : INR B • This instruction will increment the content of register B by 1 • Example : ADD C • This instruction will add the content of register C to accumulator without modifying the content of C

  7. Register Indirect Addressing : • Content of register pair points to the address of operand. • A register pair (H-L pair) is specified for addressing 16-bit address of memory location. • These generally are single byte instructions. • Example : MOV M,B • This instruction transfers the content of register B to memory location whose address is placed in HL register pair without modifying the content of B • Example : MOV A,M • This instruction transfers the content of memory location whose address is placed in HL register pair to accumulator without modifying the content of memory location • Example : ADD M • This instruction will add the content of memory location whose address is placed in HL register pair to accumulator without modifying the content of memory location

  8. Immediate Addressing : • Data (8 or 16-bit) appears immediately after opcode of instruction. • In these instructions actual data is specified within the instruction. • These may be 2 to 3 byte instructions. • Example : MVI A,99H • This instruction will load the accumulator with 8-bit immediate data 99H which is specified within second byte of instruction. • Example : LXI D,8C50H • This instruction will load DE register pair with 16-bit immediate data 8C50H. Where D=8C & E=50 • Example : ADI A,88H • This instruction will add the 8-bit immediate data 88H to accumulator

  9. Implied/Implicit Addressing : • Operand is generally not specified within the instruction but it is predetermined. • Generally operand is accumulator. • Most of the logical group instructions belong to this addressing mode. • These are single byte instructions. • All actions occur within CPU • Example : CMA • This instruction complements the content of accumulator. Result is placed in accumulator. • Example : RLC • This instruction rotates the content of accumulator to left by 1-bit position without modifying the content of memory location • CY A7 A6 A5 A4 A3 A2 A1 A0

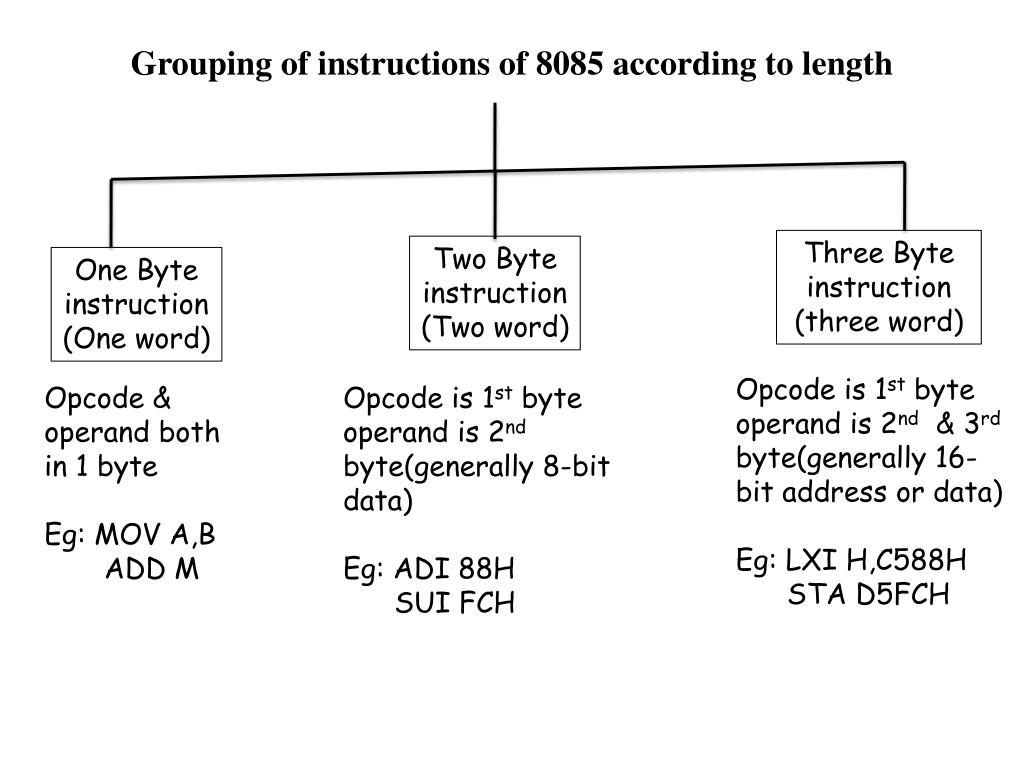

  10. Grouping of instructions of 8085 according to length Three Byte instruction (three word) Two Byte instruction (Two word) One Byte instruction (One word) Opcode is 1st byte operand is 2nd & 3rd byte(generally 16-bit address or data) Eg: LXI H,C588H STA D5FCH Opcode & operand both in 1 byte Eg: MOV A,B ADD M Opcode is 1st byte operand is 2nd byte(generally 8-bit data) Eg: ADI 88H SUI FCH

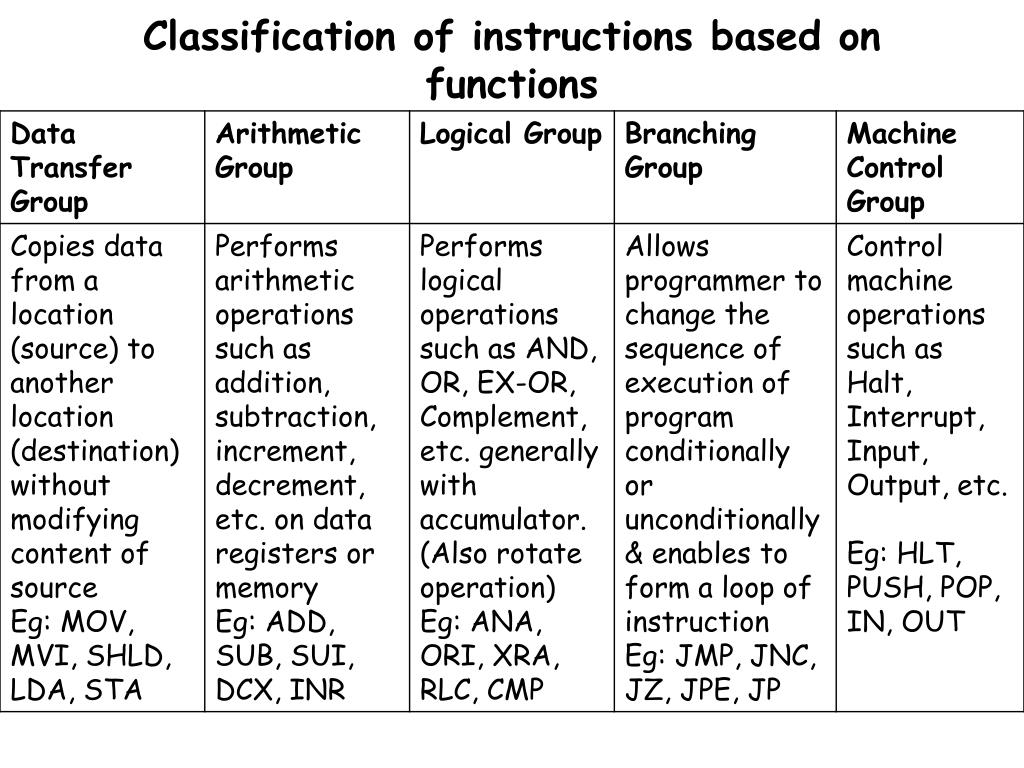

  11. Classification of instructions based on functions

  12. I] Data Transfer Group • MOV rd, rs : MOVE REGISTER Format: [rd] [rs] Addressing: Register addressing Group: Data transfer group Bytes: 1 byte Flags: None This instruction will copy contents of source register to destination register without modifying content of source register. Example: Let [A] = 87 H & [C] = 55 H Instruction: MOV C,A (hence ‘A’ is rs & ‘C’ is rd) After execution: [A] = 87 H & [C] = 87 H

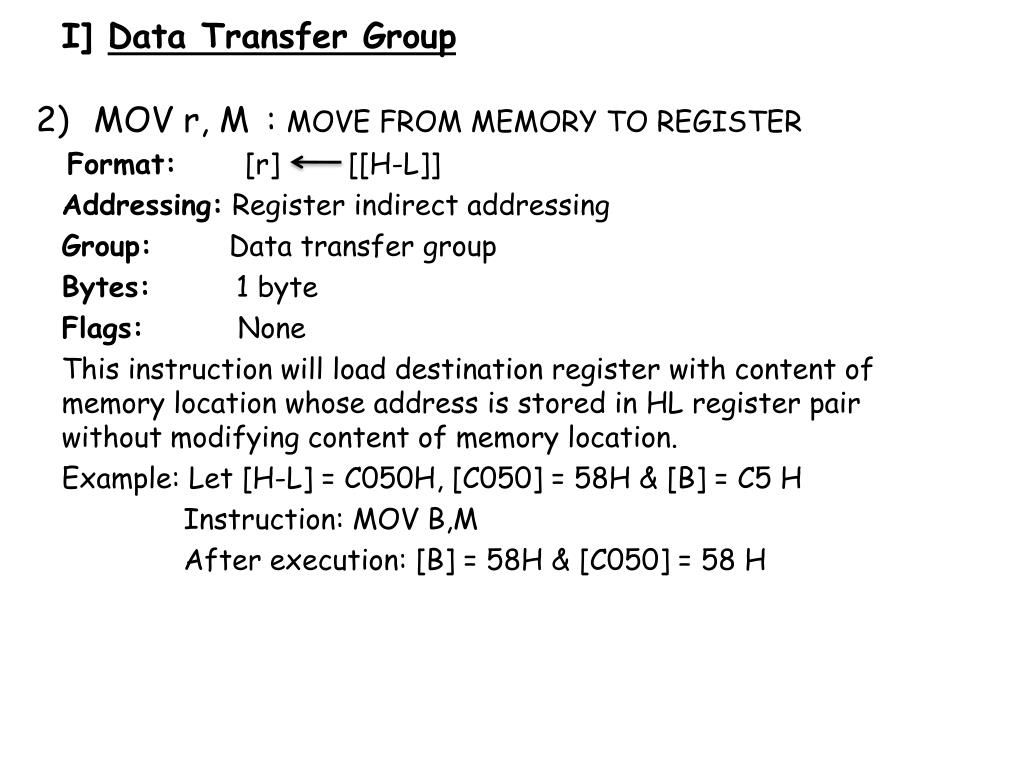

  13. I] Data Transfer Group • MOV r, M : MOVE FROM MEMORY TO REGISTER Format: [r] [[H-L]] Addressing: Register indirect addressing Group: Data transfer group Bytes: 1 byte Flags: None This instruction will load destination register with content of memory location whose address is stored in HL register pair without modifying content of memory location. Example: Let [H-L] = C050H, [C050] = 58H & [B] = C5 H Instruction: MOV B,M After execution: [B] = 58H & [C050] = 58 H

  14. I] Data Transfer Group • MOV M, r : MOVE FROM REGISTER TO MEMORY Format: [[H-L]] [r] Addressing: Register indirect addressing Group: Data transfer group Bytes: 1 byte Flags: None This instruction will copy content of source register to the memory location whose address is stored in HL register pair without modifying content of source. Example: Let [H-L] = C050H, [C050] = 58H & [A] = C5 H Instruction: MOV M,A After execution: [A] = C5H & [C050] = C5H

  15. I] Data Transfer Group • MVI r, data : MOVE IMMEDIATE 8-BIT DATA TO REGISTER Format: [r] data (2nd byte) Addressing: Immediate addressing Group: Data transfer group Bytes: 2 byte Flags: None This instruction will load register r with 8-bit immediate data specified in 2nd byte of instruction. Example: Instruction: MVI C, 23H After execution: [C] = 23H

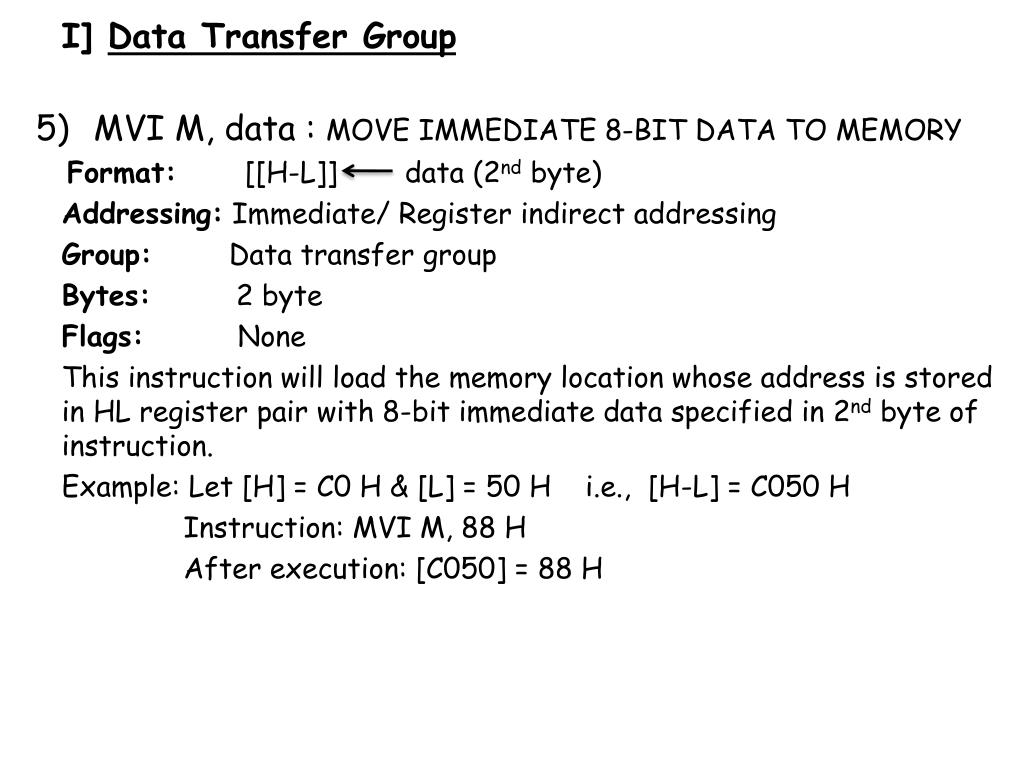

  16. I] Data Transfer Group • MVI M, data : MOVE IMMEDIATE 8-BIT DATA TO MEMORY Format: [[H-L]] data (2nd byte) Addressing: Immediate/ Register indirect addressing Group: Data transfer group Bytes: 2 byte Flags: None This instruction will load the memory location whose address is stored in HL register pair with 8-bit immediate data specified in 2nd byte of instruction. Example: Let [H] = C0 H & [L] = 50 H i.e., [H-L] = C050 H Instruction: MVI M, 88 H After execution: [C050] = 88 H

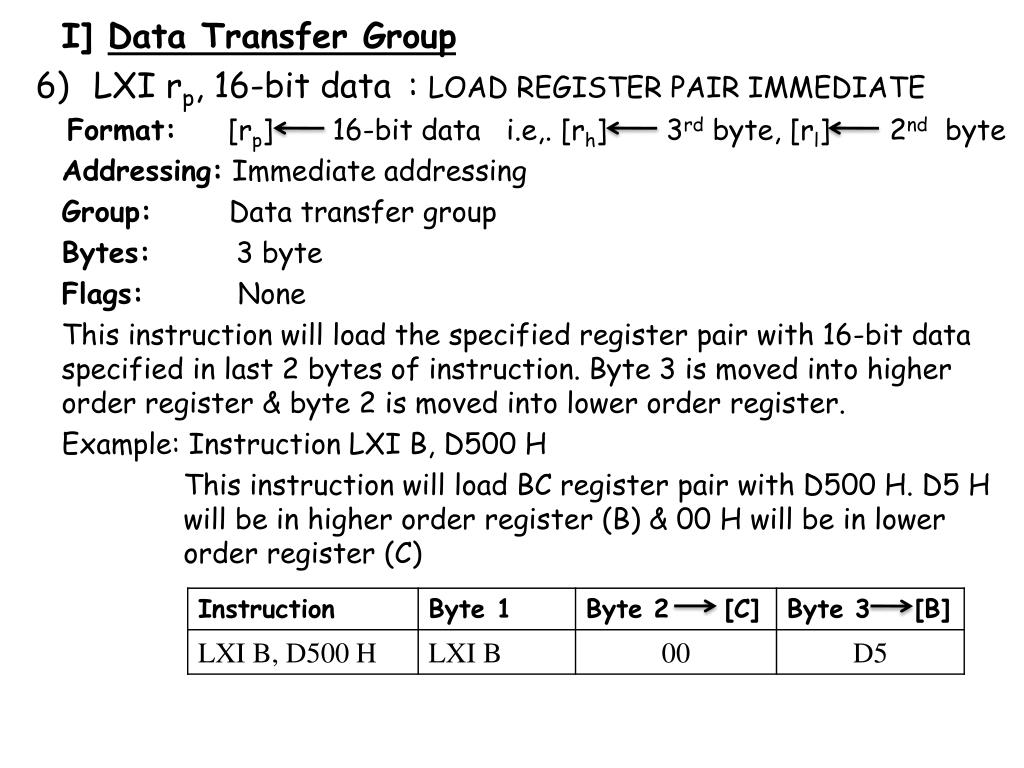

  17. I] Data Transfer Group • LXI rp, 16-bit data : LOAD REGISTER PAIR IMMEDIATE Format: [rp] 16-bit data i.e,. [rh] 3rd byte, [rl] 2nd byte Addressing: Immediate addressing Group: Data transfer group Bytes: 3 byte Flags: None This instruction will load the specified register pair with 16-bit data specified in last 2 bytes of instruction. Byte 3 is moved into higher order register & byte 2 is moved into lower order register. Example: Instruction LXI B, D500 H This instruction will load BC register pair with D500 H. D5 H will be in higher order register (B) & 00 H will be in lower order register (C)

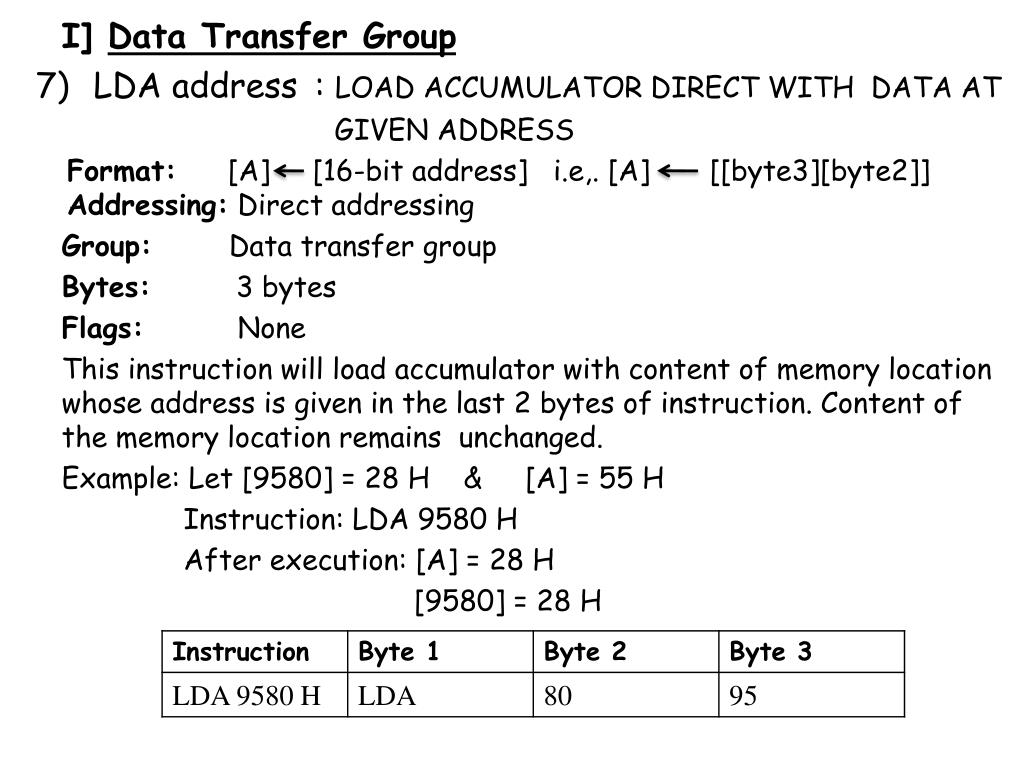

  18. I] Data Transfer Group • LDA address : LOAD ACCUMULATOR DIRECT WITH DATA AT GIVEN ADDRESS Format: [A] [16-bit address] i.e,. [A] [[byte3][byte2]] Addressing: Direct addressing Group: Data transfer group Bytes: 3 bytes Flags: None This instruction will load accumulator with content of memory location whose address is given in the last 2 bytes of instruction. Content of the memory location remains unchanged. Example: Let [9580] = 28 H & [A] = 55 H Instruction: LDA 9580 H After execution: [A] = 28 H [9580] = 28 H

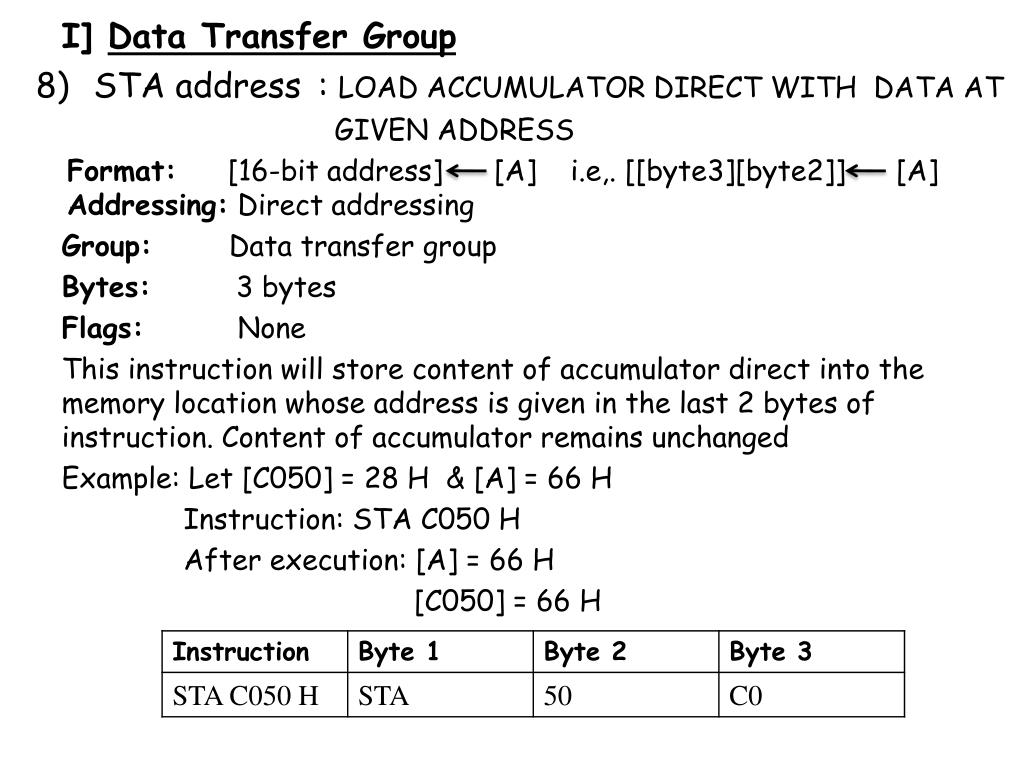

  19. I] Data Transfer Group • STA address : LOAD ACCUMULATOR DIRECT WITH DATA AT GIVEN ADDRESS Format: [16-bit address] [A] i.e,. [[byte3][byte2]] [A] Addressing: Direct addressing Group: Data transfer group Bytes: 3 bytes Flags: None This instruction will store content of accumulator direct into the memory location whose address is given in the last 2 bytes of instruction. Content of accumulator remains unchanged Example: Let [C050] = 28 H & [A] = 66 H Instruction: STA C050 H After execution: [A] = 66 H [C050] = 66 H

  20. I] Data Transfer Group • LHLD address : LOAD H & L REGISTER DIRECT Format: [L] [16-bit addr] i.e., [L] [[byte3][byte2]] [H] [16-bit addr +1] i.e., [H] [[byte3][byte2]+1] Addressing: Direct addressing Group: Data transfer group Bytes: 3 bytes Flags: None 1st byte is opcode, 2nd & 3rd byte give 16-bit address of memory location. The content of memory location whose address is given in the last 2 bytes of instruction is loaded into register L & the content of next memory location is loaded into register H. Example: Let [C050] = 28 H & [C051] = 66 H Instruction: LHLD C050 H After execution: [H] = 66 H & [L] = 28 H

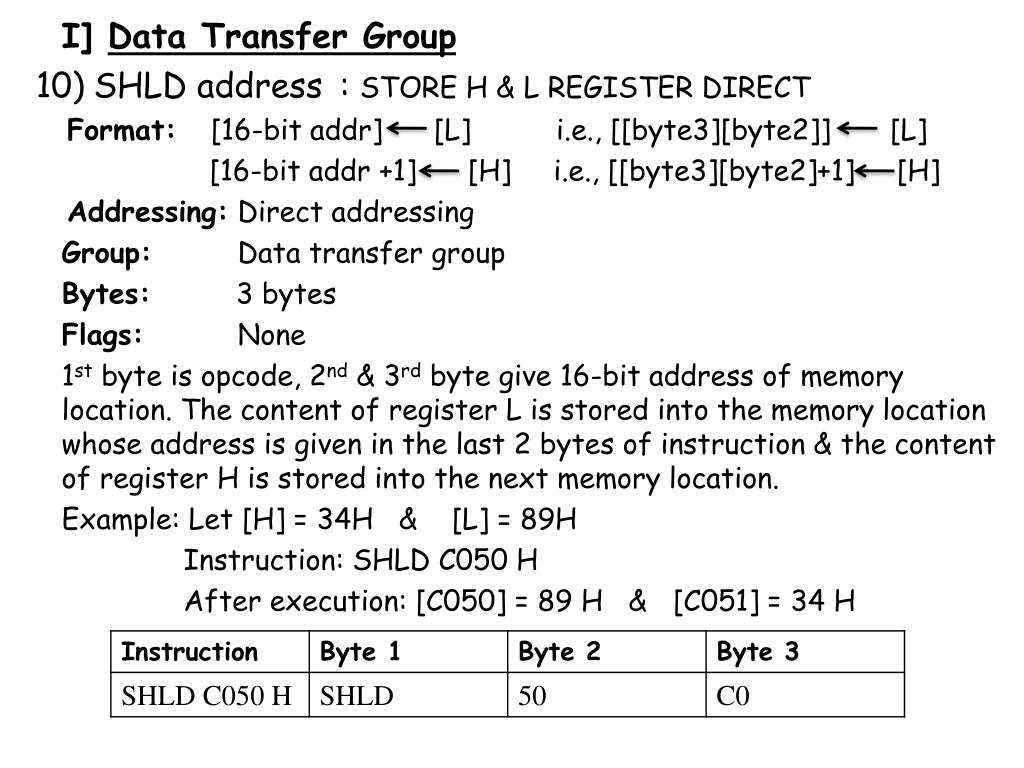

  21. I] Data Transfer Group • SHLD address : STORE H & L REGISTER DIRECT Format: [16-bit addr] [L] i.e., [[byte3][byte2]] [L] [16-bit addr +1] [H] i.e., [[byte3][byte2]+1] [H] Addressing: Direct addressing Group: Data transfer group Bytes: 3 bytes Flags: None 1st byte is opcode, 2nd & 3rd byte give 16-bit address of memory location. The content of register L is stored into the memory location whose address is given in the last 2 bytes of instruction & the content of register H is stored into the next memory location. Example: Let [H] = 34H & [L] = 89H Instruction: SHLD C050 H After execution: [C050] = 89 H & [C051] = 34 H

  22. I] Data Transfer Group • LDAX rp : LOAD ACCUMULATOR INDIRECT Format: [A] [[rp]] Addressing: Register Indirect addressing Group: Data transfer group Bytes: 1 byte Flags: None The content of memory location whose address is stored in register pair specified in instruction is loaded into accumulator. The content of memory location remains unchanged. Here rp can be B (B-C pair) or D (D-E pair). Example: Let [B] = 35H & [C] = 45H & [3545] = 22H Instruction: LDAX B After execution: [A] = 22 H & [3545] = 22 H

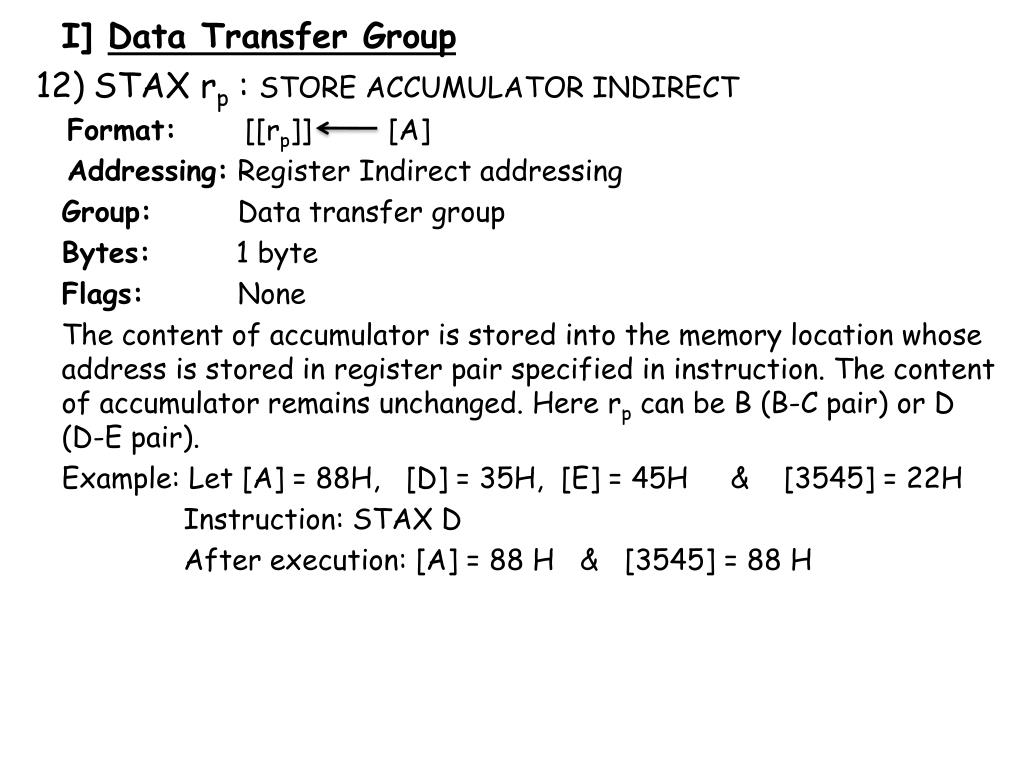

  23. I] Data Transfer Group • STAX rp : STORE ACCUMULATOR INDIRECT Format: [[rp]] [A] Addressing: Register Indirect addressing Group: Data transfer group Bytes: 1 byte Flags: None The content of accumulator is stored into the memory location whose address is stored in register pair specified in instruction. The content of accumulator remains unchanged. Here rp can be B (B-C pair) or D (D-E pair). Example: Let [A] = 88H, [D] = 35H, [E] = 45H & [3545] = 22H Instruction: STAX D After execution: [A] = 88 H & [3545] = 88 H

  24. I] Data Transfer Group • XCHG : EXCHANGE H & L WITH D & E Format: [H] [D] [L] [E] Addressing: Register addressing Group: Data transfer group Bytes: 1 byte Flags: None The content of register H is exchanged with that of register D & the content of register L is exchanged with that of register E. Example: Let [H] = 28H, [L] = 35H, [D] = 45H & [E] = 22H Instruction: XCHG After execution: [H] = 45 H & [L] = 22 H [D] = 28 H & [E] = 35 H

  25. II] Arithmetic Group • ADD r : ADD REGISTER Format: [A] [A] + [r] Addressing: Register addressing Group: Arithmetic group Bytes: 1 byte Flags: All The content of register r is added to the content of accumulator. The result is stored in accumulator. All flags may be affected Example: Let [C] = 27H & [A] = 15H Instruction: ADD C Addition: 27H = 0 0 1 0 0 1 1 1 +15H = 0 0 0 1 0 1 0 1 ------- ----------------- 3C H = 0 0 1 1 1 1 0 0 S = 0, Z = 0, Ac = 0 P = 1, Cy = 0 After execution: [A] = 3C H [C] = 27 Flag register -

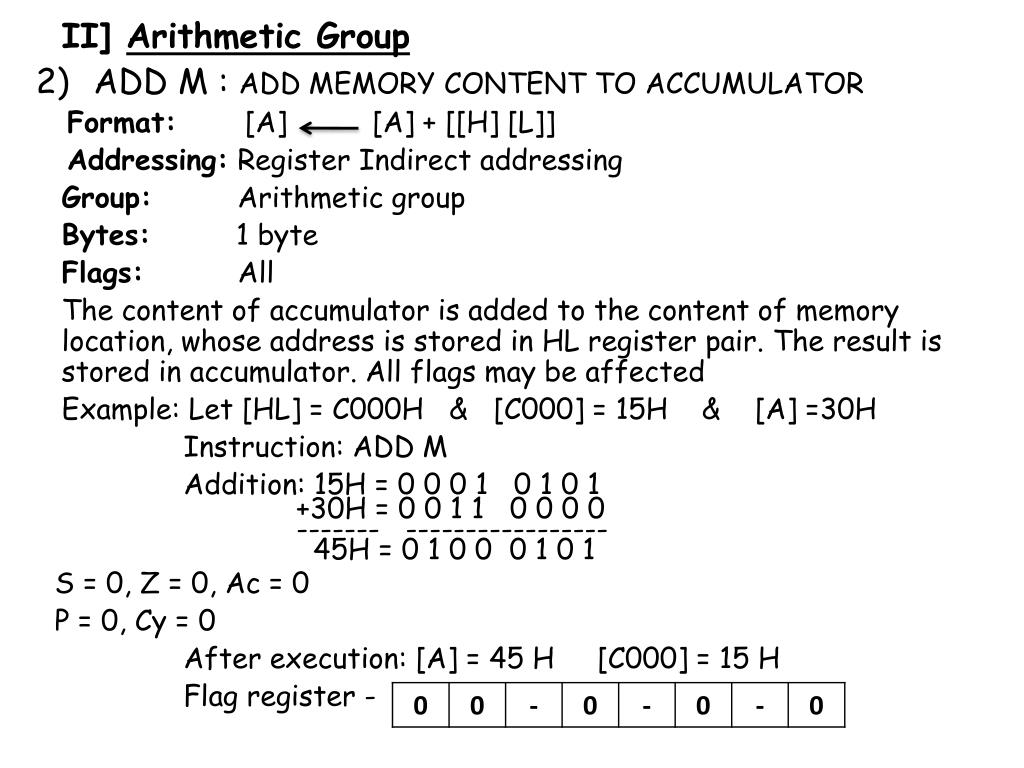

  26. II] Arithmetic Group • ADD M : ADD MEMORY CONTENT TO ACCUMULATOR Format: [A] [A] + [[H] [L]] Addressing: Register Indirect addressing Group: Arithmetic group Bytes: 1 byte Flags: All The content of accumulator is added to the content of memory location, whose address is stored in HL register pair. The result is stored in accumulator. All flags may be affected Example: Let [HL] = C000H & [C000] = 15H & [A] =30H Instruction: ADD M Addition: 15H = 0 0 0 1 0 1 0 1 +30H = 0 0 1 1 0 0 0 0 ------- ----------------- 45H = 0 1 0 0 0 1 0 1 S = 0, Z = 0, Ac = 0 P = 0, Cy = 0 After execution: [A] = 45 H [C000] = 15 H Flag register -

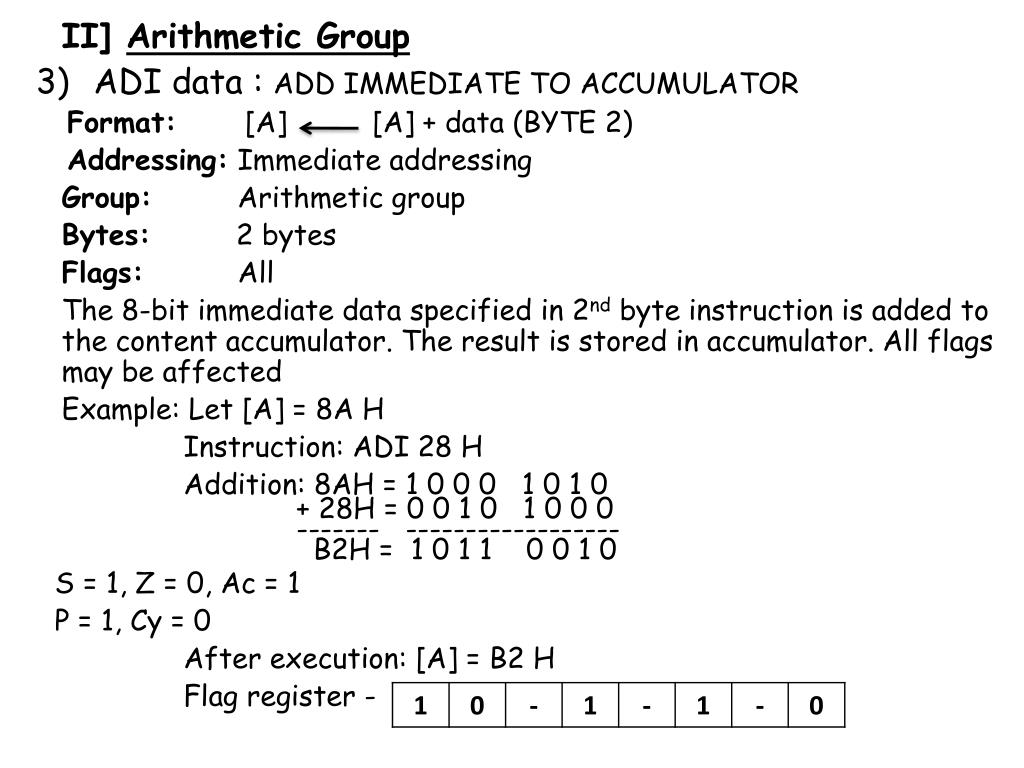

  27. II] Arithmetic Group • ADI data : ADD IMMEDIATE TO ACCUMULATOR Format: [A] [A] + data (BYTE 2) Addressing: Immediate addressing Group: Arithmetic group Bytes: 2 bytes Flags: All The 8-bit immediate data specified in 2nd byte instruction is added to the content accumulator. The result is stored in accumulator. All flags may be affected Example: Let [A] = 8A H Instruction: ADI 28 H Addition: 8AH = 1 0 0 0 1 0 1 0 + 28H = 0 0 1 0 1 0 0 0 ------- ------------------ B2H = 1 0 1 1 0 0 1 0 S = 1, Z = 0, Ac = 1 P = 1, Cy = 0 After execution: [A] = B2 H Flag register -

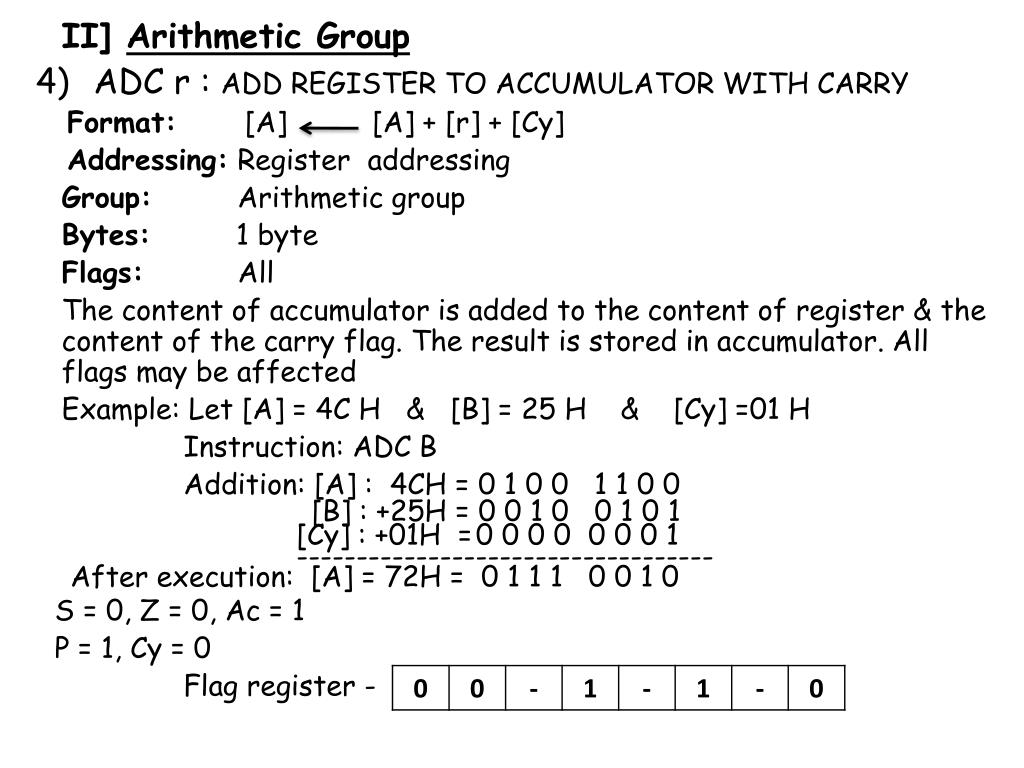

  28. II] Arithmetic Group • ADC r : ADD REGISTER TO ACCUMULATOR WITH CARRY Format: [A] [A] + [r] + [Cy] Addressing: Register addressing Group: Arithmetic group Bytes: 1 byte Flags: All The content of accumulator is added to the content of register & the content of the carry flag. The result is stored in accumulator. All flags may be affected Example: Let [A] = 4C H & [B] = 25 H & [Cy] =01 H Instruction: ADC B Addition: [A] : 4CH = 0 1 0 0 1 1 0 0 [B] : +25H = 0 0 1 0 0 1 0 1 [Cy] : +01H =0 0 0 0 0 0 0 1 ----------------------------------- After execution: [A] = 72H = 0 1 1 1 0 0 1 0 S = 0, Z = 0, Ac = 1 P = 1, Cy = 0 Flag register -

  29. Note: The instruction ADC r is used in 16-bit addition. Eg: to add content of BC register pair to DE register pair, this instruction is used to account for the carry generated by the lower data byte.

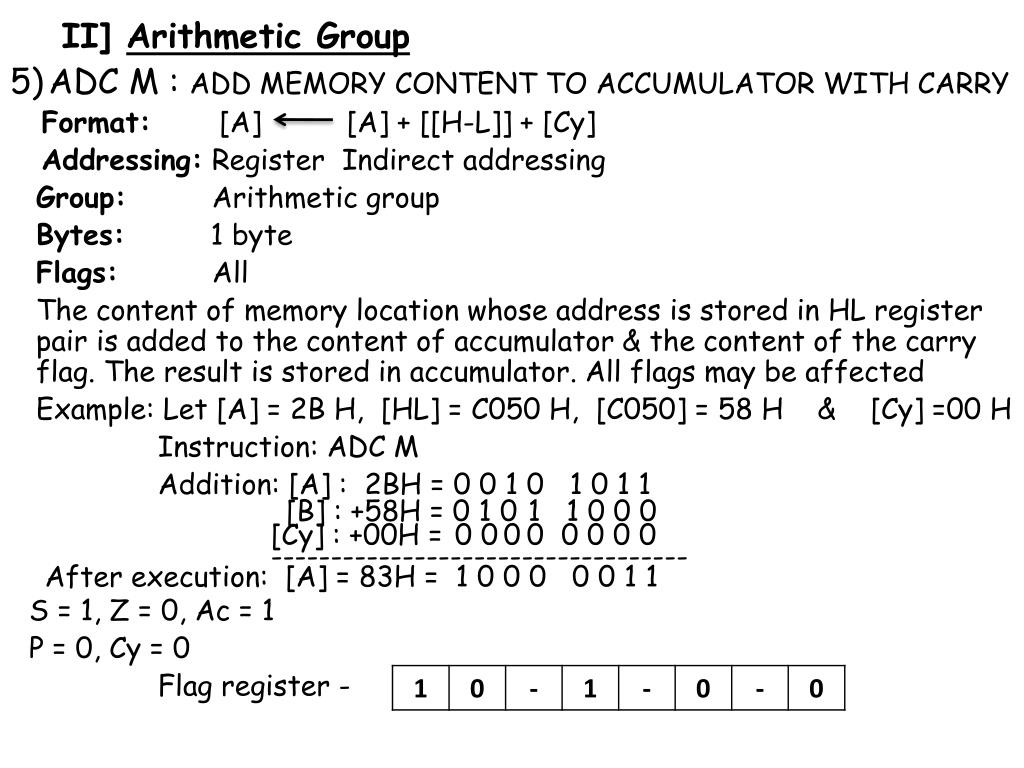

  30. II] Arithmetic Group • ADC M : ADD MEMORY CONTENT TO ACCUMULATOR WITH CARRY Format: [A] [A] + [[H-L]] + [Cy] Addressing: Register Indirect addressing Group: Arithmetic group Bytes: 1 byte Flags: All The content of memory location whose address is stored in HL register pair is added to the content of accumulator & the content of the carry flag. The result is stored in accumulator. All flags may be affected Example: Let [A] = 2B H, [HL] = C050 H, [C050] = 58 H & [Cy] =00 H Instruction: ADC M Addition: [A] : 2BH = 0 0 1 0 1 0 1 1 [B] : +58H = 0 1 01 1 0 0 0 [Cy] : +00H = 0 000 0 0 0 0 ----------------------------------- After execution: [A] = 83H = 1 0 0 0 0 0 1 1 S = 1, Z = 0, Ac = 1 P = 0, Cy = 0 Flag register -

  31. II] Arithmetic Group • ACI data : ADD IMMEDIATE TO ACCUMULATOR WITH CARRY Format: [A] [A] + data + [Cy] Addressing: Immediate addressing Group: Arithmetic group Bytes: 2 bytes Flags: All The 8-bit immediate data specified in 2nd byte instruction is added to the content accumulator & to the contents of carry flag. The result is stored in accumulator. All flags may be affected Example: Let [A] = 8A H & [Cy] = 01 H Instruction: ACI 28 H Addition: 8AH = 1 0 0 0 1 0 1 0 +28H = 0 0 1 0 1 0 00 +00H = 0 0 0 0 0000 ------- ------------------ B2H = 1 0 1 1 0 0 1 0 S = 1, Z = 0, Ac = 1 P = 1, Cy = 0 After execution: [A] = B2 H Flag register -

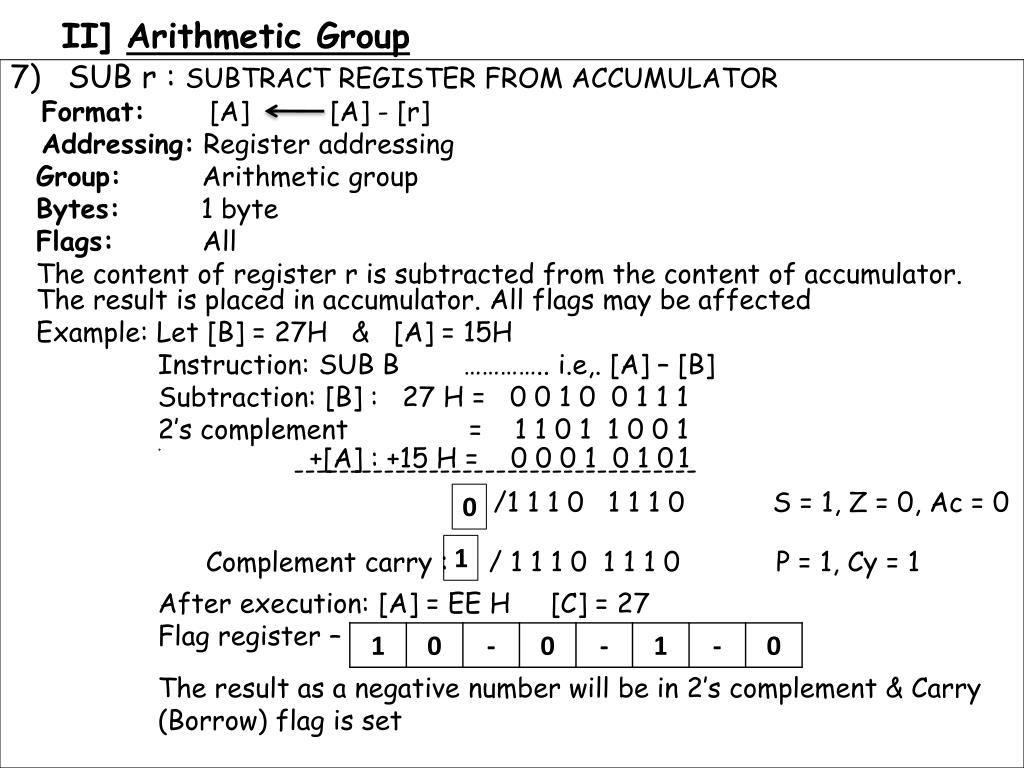

  32. II] Arithmetic Group • SUB r : SUBTRACT REGISTER FROM ACCUMULATOR Format: [A] [A] - [r] Addressing: Register addressing Group: Arithmetic group Bytes: 1 byte Flags: All The content of register r is subtracted from the content of accumulator. The result is placed in accumulator. All flags may be affected Example: Let [B] = 27H & [A] = 15H Instruction: SUB B ………….. i.e,. [A] – [B] Subtraction: [B] : 27 H = 0 0 1 0 0 1 1 1 2’s complement = 1 1 0 1 1 0 0 1 + +[A] : +15 H = 0 0 0 1 0 1 01 ------------------------------------ /1 1 1 0 1 1 1 0 S = 1, Z = 0, Ac = 0 Complement carry : / 1 1 1 0 1 1 1 0 P = 1, Cy = 1 After execution: [A] = EE H [C] = 27 Flag register – The result as a negative number will be in 2’s complement & Carry (Borrow) flag is set 0 1

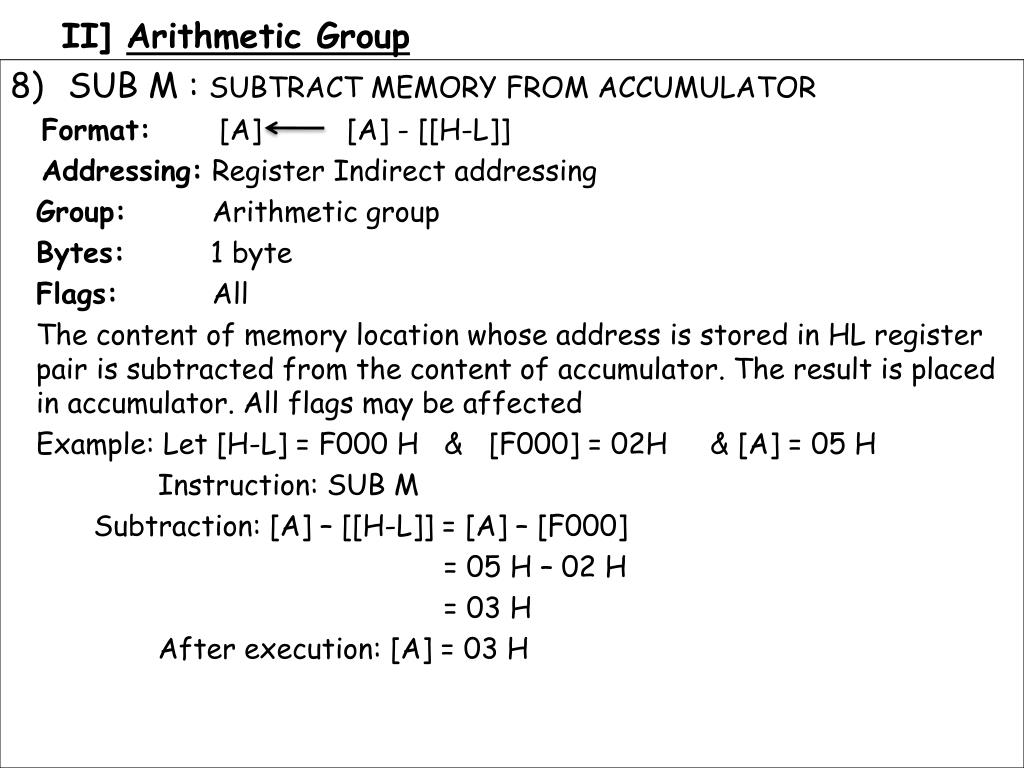

  33. II] Arithmetic Group • SUB M : SUBTRACT MEMORY FROM ACCUMULATOR Format: [A] [A] - [[H-L]] Addressing: Register Indirect addressing Group: Arithmetic group Bytes: 1 byte Flags: All The content of memory location whose address is stored in HL register pair is subtracted from the content of accumulator. The result is placed in accumulator. All flags may be affected Example: Let [H-L] = F000 H & [F000] = 02H & [A] = 05 H Instruction: SUB M Subtraction: [A] – [[H-L]] = [A] – [F000] = 05 H – 02 H = 03 H After execution: [A] = 03 H

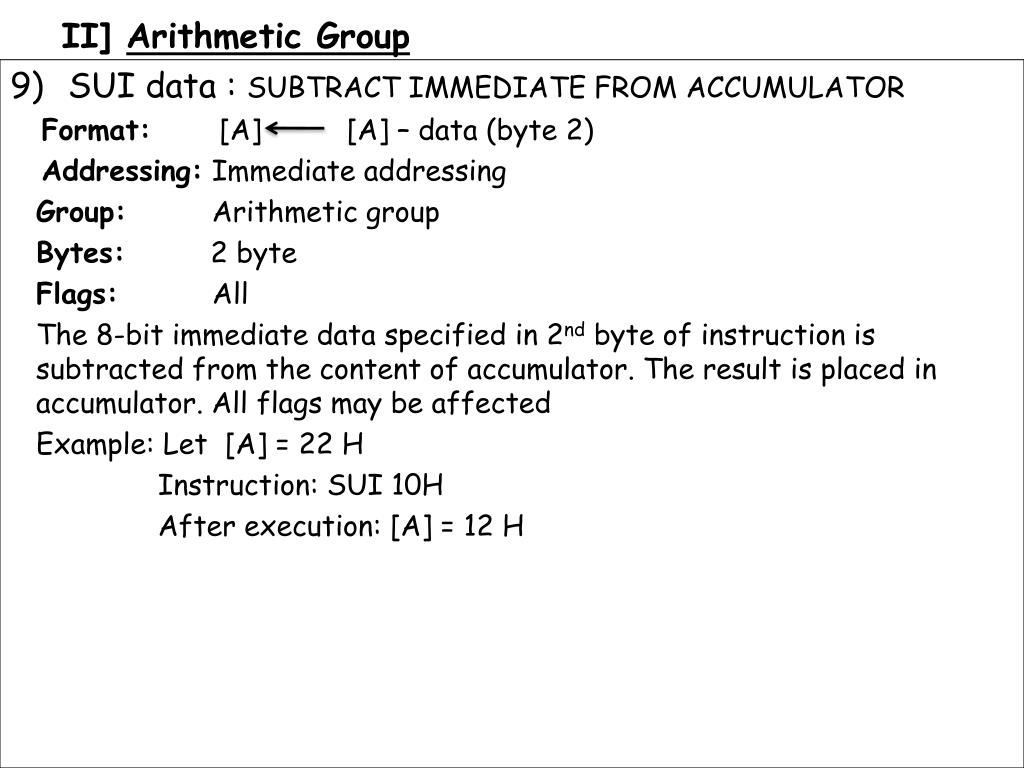

  34. II] Arithmetic Group • SUI data : SUBTRACT IMMEDIATE FROM ACCUMULATOR Format: [A] [A] – data (byte 2) Addressing: Immediate addressing Group: Arithmetic group Bytes: 2 byte Flags: All The 8-bit immediate data specified in 2nd byte of instruction is subtracted from the content of accumulator. The result is placed in accumulator. All flags may be affected Example: Let [A] = 22 H Instruction: SUI 10H After execution: [A] = 12 H

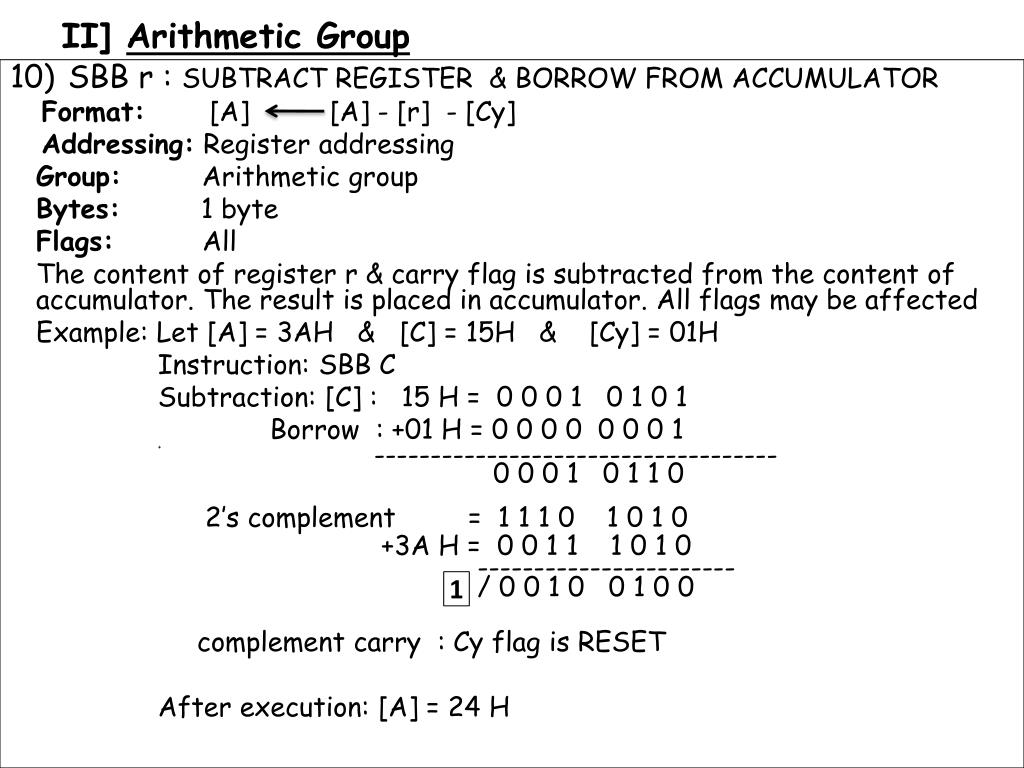

  35. II] Arithmetic Group • SBB r : SUBTRACT REGISTER & BORROW FROM ACCUMULATOR Format: [A] [A] - [r] - [Cy] Addressing: Register addressing Group: Arithmetic group Bytes: 1 byte Flags: All The content of register r & carry flag is subtracted from the content of accumulator. The result is placed in accumulator. All flags may be affected Example: Let [A] = 3AH & [C] = 15H & [Cy] = 01H Instruction: SBB C Subtraction: [C] : 15 H = 0 0 0 1 0 1 0 1 Borrow : +01 H = 0 0 0 0 0 0 0 1 + ------------------------------------ 0 0 0 1 0 1 1 0 2’s complement = 1 1 1 0 1 0 1 0 +3A H = 0 0 1 1 1 0 1 0 ----------------------- / 0 0 1 0 0 1 0 0 complement carry : Cy flag is RESET After execution: [A] = 24 H 1

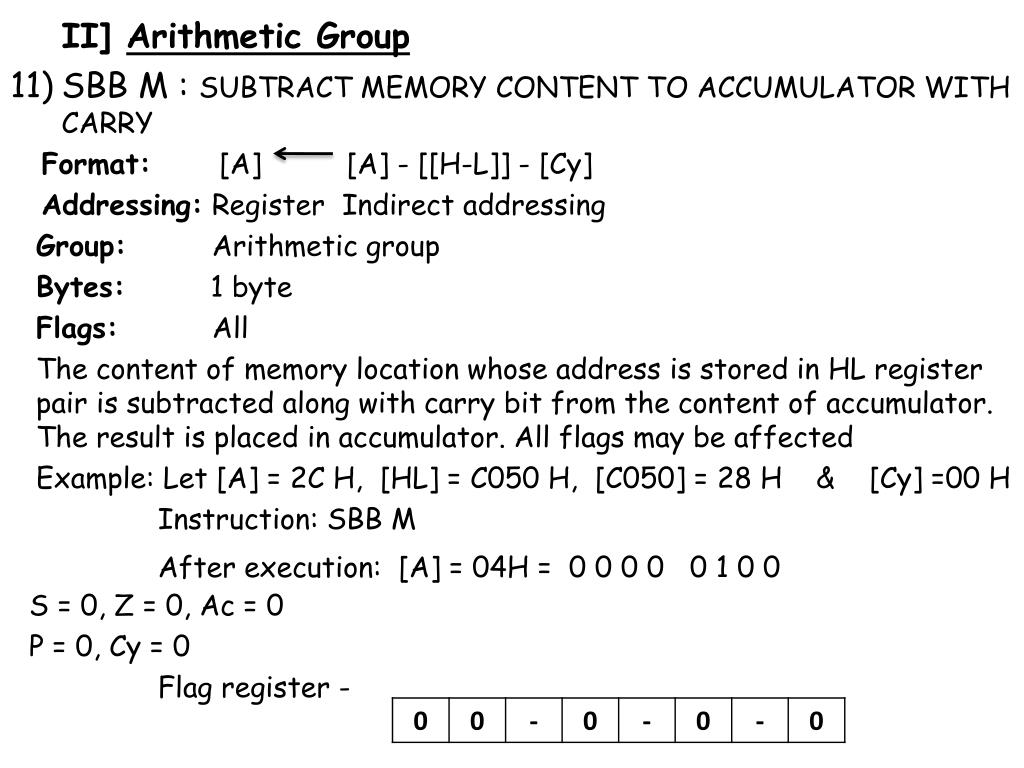

  36. II] Arithmetic Group • SBB M : SUBTRACT MEMORY CONTENT TO ACCUMULATOR WITH CARRY Format: [A] [A] - [[H-L]] - [Cy] Addressing: Register Indirect addressing Group: Arithmetic group Bytes: 1 byte Flags: All The content of memory location whose address is stored in HL register pair is subtracted along with carry bit from the content of accumulator. The result is placed in accumulator. All flags may be affected Example: Let [A] = 2C H, [HL] = C050 H, [C050] = 28 H & [Cy] =00 H Instruction: SBB M After execution: [A] = 04H = 0 0 0 0 0 1 0 0 S = 0, Z = 0, Ac = 0 P = 0, Cy = 0 Flag register -

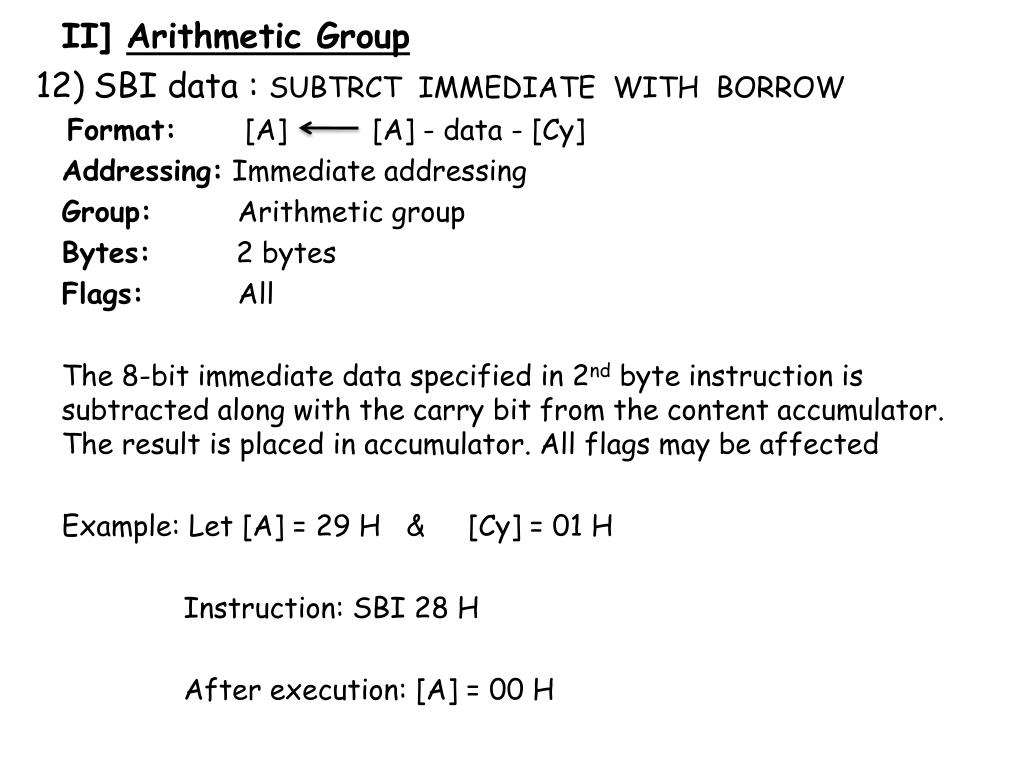

  37. II] Arithmetic Group • SBI data : SUBTRCT IMMEDIATE WITH BORROW Format: [A] [A] - data - [Cy] Addressing: Immediate addressing Group: Arithmetic group Bytes: 2 bytes Flags: All The 8-bit immediate data specified in 2nd byte instruction is subtracted along with the carry bit from the content accumulator. The result is placed in accumulator. All flags may be affected Example: Let [A] = 29 H & [Cy] = 01 H Instruction: SBI 28 H After execution: [A] = 00 H

  38. II] Arithmetic Group • INR r : INCREMENT REGISTER CONTENT BY 1 Format: [r] [r] + 1 Addressing: Register addressing Group: Arithmetic group Bytes: 1 byte Flags: S, Z, P, Ac The content of register r is incremented by 1 & the result is placed in the same register. All flags except carry flag may be affected. Here r can be A, B, C, D, E, H & L Example: Let [C] = FF H Instruction: INR C After execution: [C] = 00 H

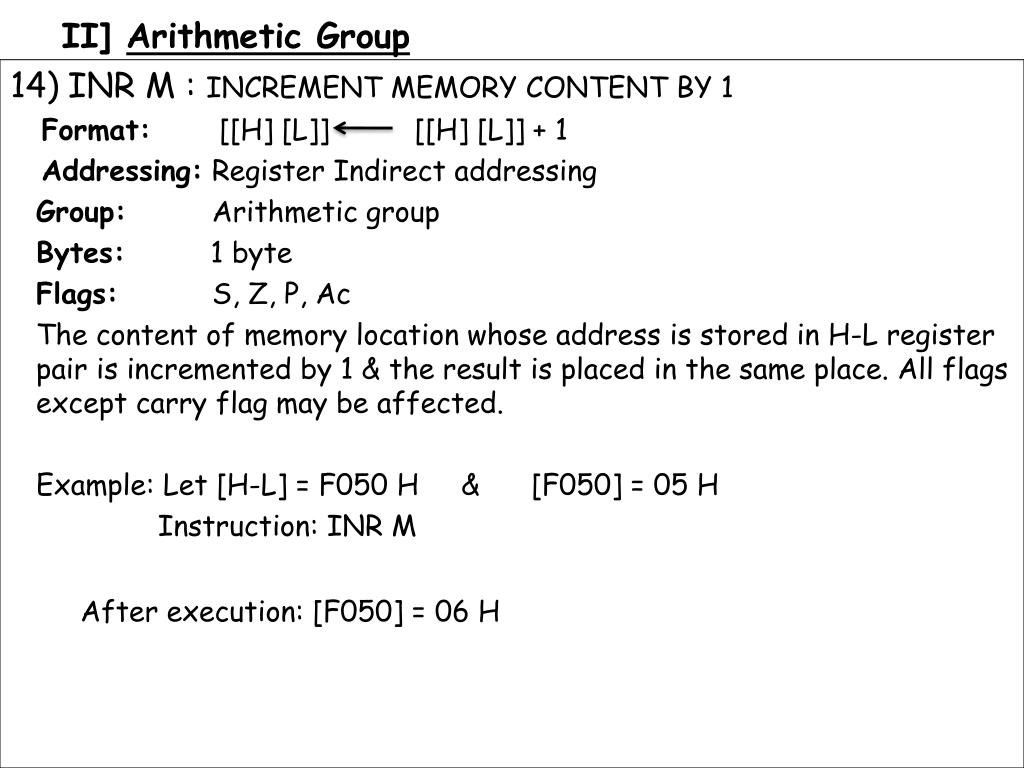

  39. II] Arithmetic Group • INR M : INCREMENT MEMORYCONTENT BY 1 Format:[[H] [L]] [[H] [L]] + 1 Addressing:Register Indirect addressing Group: Arithmetic group Bytes: 1 byte Flags: S, Z, P, Ac The content of memory location whose address is stored in H-L register pair is incremented by 1 & the result is placed in the same place. All flags except carry flag may be affected. Example: Let [H-L] = F050 H & [F050] = 05 H Instruction: INR M After execution: [F050] = 06 H

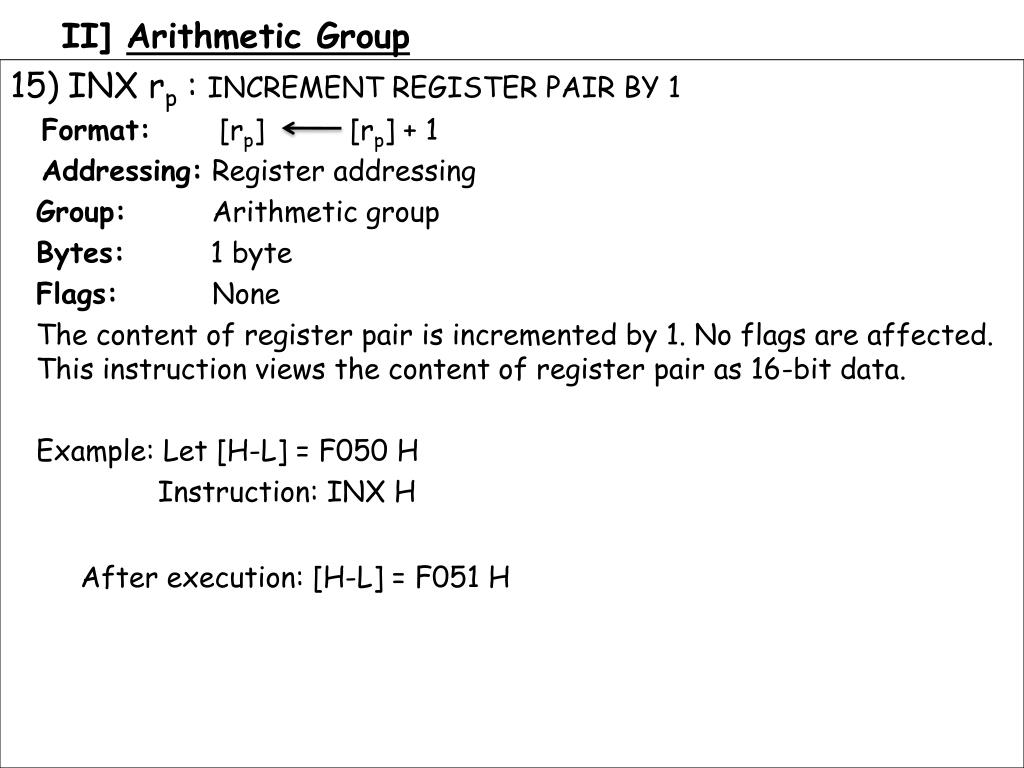

  40. II] Arithmetic Group • INX rp: INCREMENT REGISTER PAIR BY 1 Format:[rp] [rp] + 1 Addressing:Register addressing Group: Arithmetic group Bytes: 1 byte Flags:None The content of register pair is incremented by 1. No flags are affected. This instruction views the content of register pair as 16-bit data. Example: Let [H-L] = F050 H Instruction: INX H After execution: [H-L] = F051 H

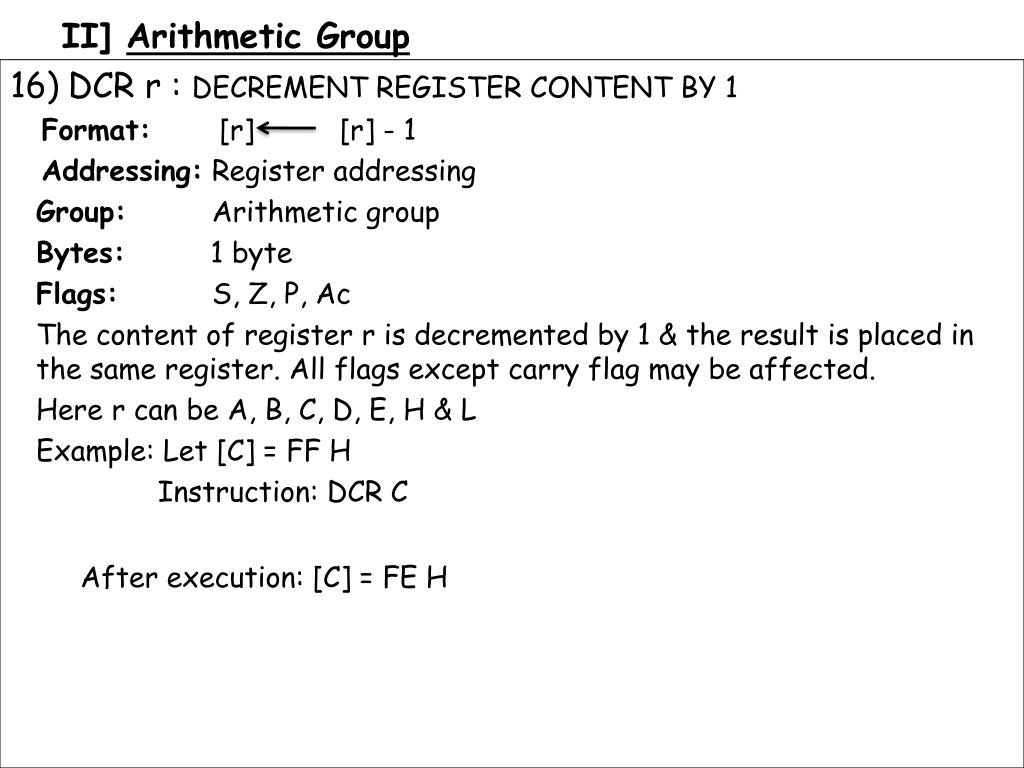

  41. II] Arithmetic Group • DCR r : DECREMENT REGISTER CONTENT BY 1 Format: [r] [r] - 1 Addressing: Register addressing Group: Arithmetic group Bytes: 1 byte Flags: S, Z, P, Ac The content of register r is decremented by 1 & the result is placed in the same register. All flags except carry flag may be affected. Here r can be A, B, C, D, E, H & L Example: Let [C] = FF H Instruction: DCR C After execution: [C] = FE H

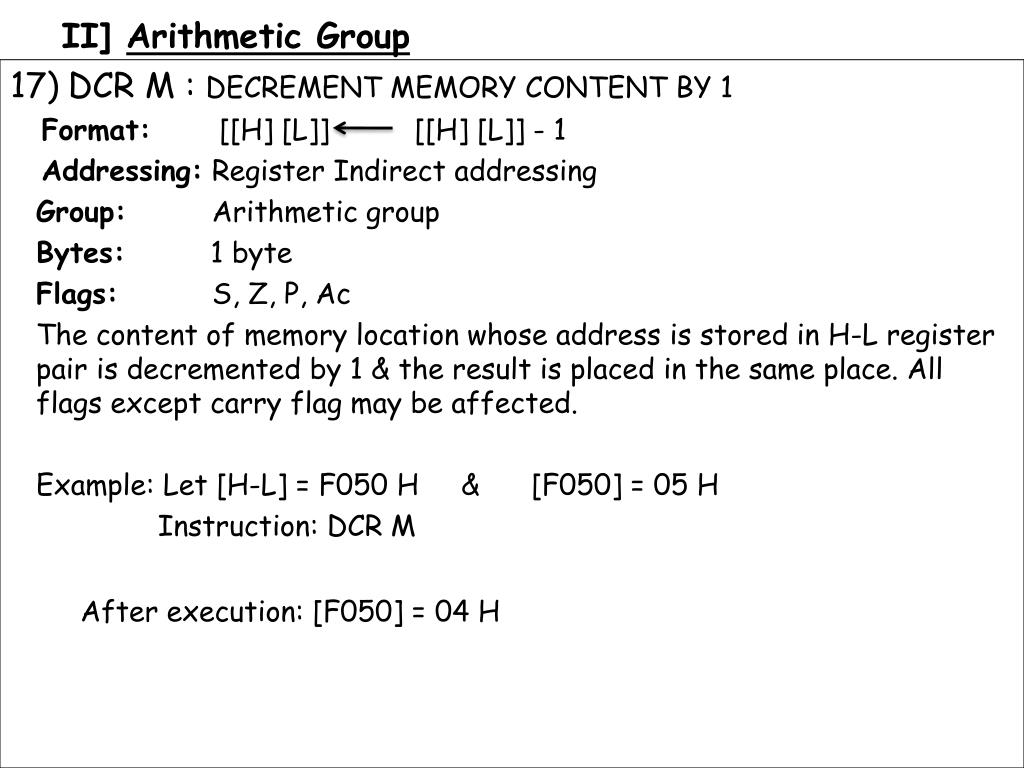

  42. II] Arithmetic Group • DCR M : DECREMENT MEMORYCONTENT BY 1 Format:[[H] [L]] [[H] [L]] - 1 Addressing:Register Indirect addressing Group: Arithmetic group Bytes: 1 byte Flags: S, Z, P, Ac The content of memory location whose address is stored in H-L register pair is decremented by 1 & the result is placed in the same place. All flags except carry flag may be affected. Example: Let [H-L] = F050 H & [F050] = 05 H Instruction: DCR M After execution: [F050] = 04 H

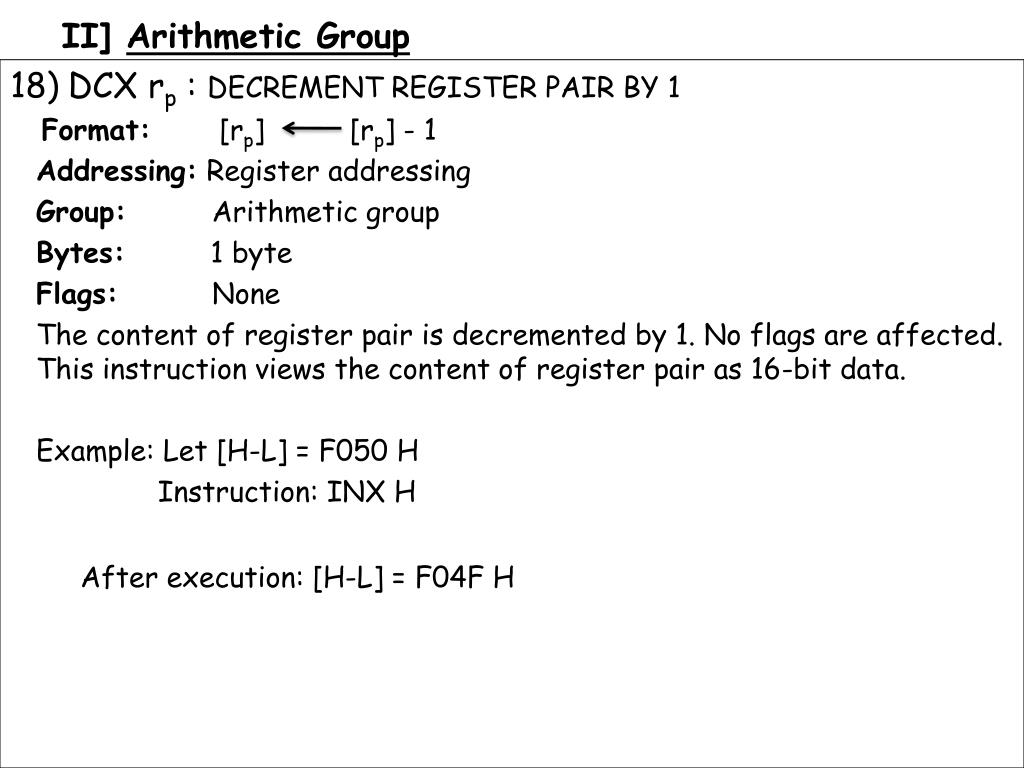

  43. II] Arithmetic Group • DCX rp: DECREMENT REGISTER PAIR BY 1 Format:[rp] [rp] -1 Addressing:Register addressing Group: Arithmetic group Bytes: 1 byte Flags:None The content of register pair is decremented by 1. No flags are affected. This instruction views the content of register pair as 16-bit data. Example: Let [H-L] = F050 H Instruction: INX H After execution: [H-L] = F04F H

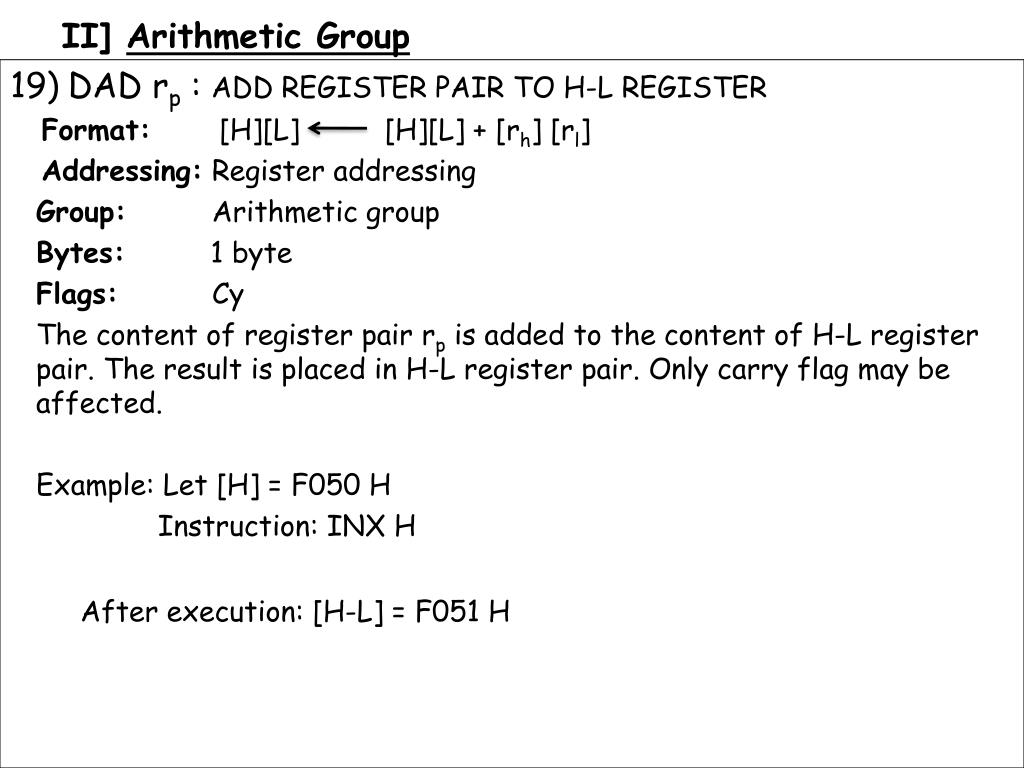

  44. II] Arithmetic Group • DAD rp: ADD REGISTER PAIR TO H-L REGISTER Format:[H][L] [H][L] + [rh] [rl] Addressing:Register addressing Group: Arithmetic group Bytes: 1 byte Flags:Cy The content of register pair rpis added to the content of H-L register pair. The result is placed in H-L register pair. Only carryflag may be affected. Example: Let [H] = F050 H Instruction: INX H After execution: [H-L] = F051 H
