  1. MINERnA (Main INjector ExpeRiment v-A) To Perform a High-Statistics Neutrino ScatteringExperiment using an On-Axis Fine-grained Detectorin the NuMI Beam Argonne - Athens - California/Irvine - Colorado - Dortmund - Duke - Fermilab - Hampton - I I T - INR/Moscow -James Madison - Jefferson Lab - M I T - Minnesota - Pittsburgh - Rochester - Rutgers - South Carolina - Tufts 19 Groups:Red = HEP, Blue = NP, Green = Theorists only MINERnA Collaboration Meeting 27-28 June 2003 Neutrino Scattering in the NuMI Beam

  2. 52 Collaborators (so far…) J.Arrington, D.H.Potterveld, P.E.Reimer, T.Joffe-Minor Argonne National Laboratory, Argonne, Illinois C.Andreopoulos, G.Mavromanolakis, P.Stamoulis, N.Saoulidou, G.Tzanakos, M.Zois University of Athens, Athens, Greece D.Casper University of California, Irvine, California E.R.Kinney University of Colorado, Boulder, Colorado E. Paschos University of Dortmund, Dortmund, Germany D.Dutta Duke University, Durham, North Carolina D.Harris, M. Kostin, J.G.Morfin, P.Shanahan Fermi National Accelerator Laboratory, Batavia, IL M.E.Christy Hampton University, Hampton, Virginia N.Solomey Illinois Institute of Technology, Chicago, Illinois I.Niculescu James Madison University, Harrisonburg, Virginia R. Carlini, R.Ent, D.Gaskell, J. Gomez, C.E.Keppel. W.Melnitchouk, S.Wood Jefferson Lab, Newport News, Virginia A.Bruell M.I.T., Cambridge, Massachusetts M.DuVernois University of Minnesota, Minneapolis, Minnesota S. Kulagin Institute for Nuclear Resarch, Moscow, Russia S.Boyd, D.Naples, V. Paolone University of Pittsburgh, Pittsburgh, Pennsylvania A.Bodek, H. Budd, P. de Babaro, G. Ginther, S, Manly, K. McFarland, W. Sakumoto, P. Slattery, M. Zielinsky University of Rochester, Rochester, New York R.Gilman, C.Glasshausser, R.Ransome Rutgers University, New Brunswick, New Jersey T.Bergfeld, A.Godley, S.R.Mishra, C.Rosenfeld University of South Carolina, Columbia, South Carolina H.Gallagher, W.A.Mann Tufts University, Medford, Massachusetts Neutrino Scattering in the NuMI Beam

  3. Collaboration Meeting Agenda - Friday SOFTWARE TOPICS 9:30 - 10:15 Physics Monte Carlo - Dave & Hugh 10:15 - 10:45 Break 10:45 - 12:30 Description of GEANT Simulation and chance to play with the program - Steve B. PHYSICS CHAPTERS 14:00 - 14:45 Elastic Channel - Arie and Howard 14:45 - 15:15 Resonance Production - Thia (for Steve W.) 15:15 - 15:45 Dynamical Model Of Weak Pion Production - Harry Lee 15:45 - 16:15 Break 16:15 - 16:45 Strange Particle Production - Nick and Tony 16:45 - 17:00 Charm Production - Vittorio 17:00 - 17:45 Cross-sections, Structure Functions, Duality and Nuclear Effects - Thia and Jorge 9:30 - 9:45 NC/CC - Donna 9:45 - 10:25 MINERvA and Oscillation Physics - Debbie and Hugh 10:25 - 10:30 Generalized Parton Distributions - 10:30 - 10:45 Break 10:45 - 11:30 General Discussion including Overall Software Organization (Dave, Hugh & Steve) Neutrino Scattering in the NuMI Beam

  4. Collaboration Meeting Agenda - Saturday DETECTOR ISSUES 11:35 - 12:00 Magnetized detector - George 12:00 - 12:30 NOMAD detector experience - Sanjib 2:00 - 2:30 Optimizing scintillator strips - Steve B. PHOTOSENSOR FEST! 2:30 - 2:35 Ground rules - Kevin 2:35 - 3:00 APDs - Howard 3:00 - 3:25 II/CCD - Steve M./ Ron R. 3:25 - 3:50 Double-ended readout Arie 3:50 - 4:15 MAPMT costs - Kevin 4:15 - 4:45 Break 4:45 - 5:15 Discussion Photosensors 5:15 - 5:35 Splatter and TOF Status - Nick 5:35 - 6:00 Next steps: "default design” and costing - Kevin Neutrino Scattering in the NuMI Beam

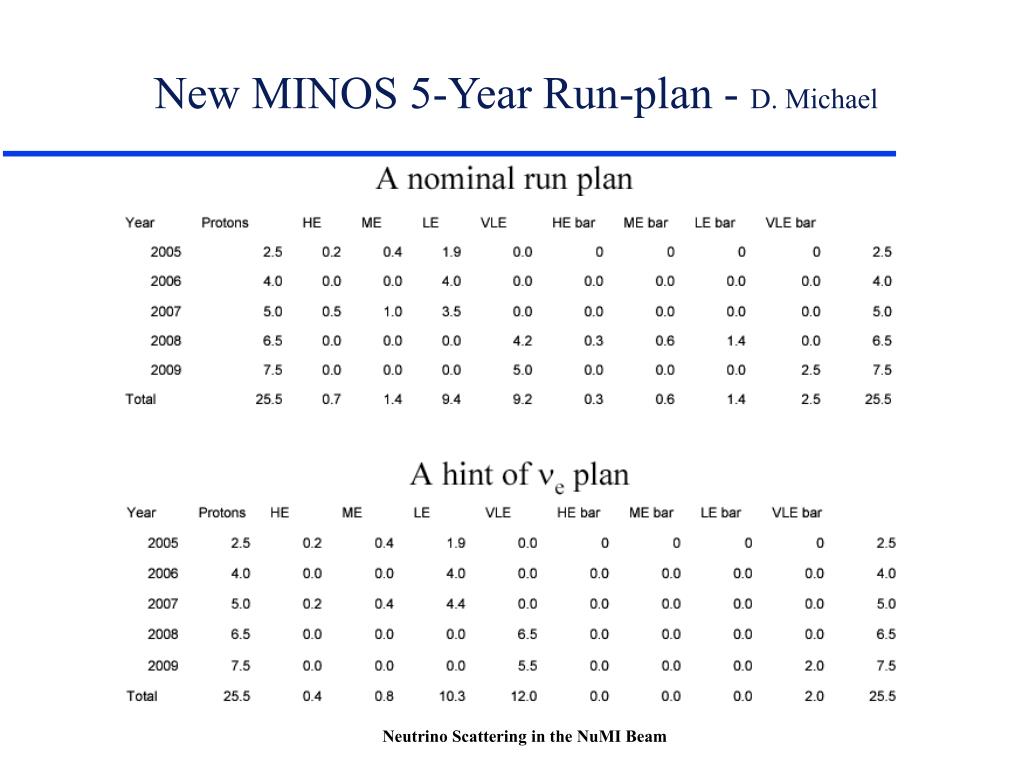

  5. New MINOS 5-Year Run-plan - D. Michael Neutrino Scattering in the NuMI Beam

  6. Latest NuMI Beam Monte Carlo - M. Messier Neutrino Scattering in the NuMI Beam

  7. Change in le-beam flux: V14 to V15 Neutrino Scattering in the NuMI Beam

  8. Le, s-me and s-he Beams le beam s-me beam hs-he beam Neutrino Scattering in the NuMI Beam

  9. Biggest Uncertainty isHadron Momentum Distributions Neutrino Scattering in the NuMI Beam

  10. Pt Distributions from Monte Carlos Neutrino Scattering in the NuMI Beam

  11. Dependence of le-beam n spectrum on model Neutrino Scattering in the NuMI Beam

  12. DON’T FORGET! WITH E-907 (MIPP) THIS UNCERTAINTY IN HADRON PRODUCTION SPECTRA WILL BE RESOLVED BY MEASURING THE SPECTRA OF HADRONS COMING OFF THE NUMI TARGET Neutrino Scattering in the NuMI Beam

  13. Obtaining the Latest NuMI Beam Simulations Neutrino Scattering in the NuMI Beam

  14. sTot, Fi(x,Q2),Duality and Nuclear Effects • Experiment: n (only) on nuclear targets: • ds/dxdQ off, mainly, carbon • Could say F2 = xF3 at high x, but … • Concentrate on careful measurement of transition region • Low energy (< 10 GeV) primarily from the 70’s and 80’s suffering from low statistics and large systematics (mainly from n flux measurements). • Mainly bubble chamber results --> larger correction for missing neutrals. D. Naples - NuInt02 Neutrino Scattering in the NuMI Beam

  15. How well do we model sTot ? S. Zeller - NuInt02 Neutrino Scattering in the NuMI Beam

  16. D. Naples Conclusions from NuInt02 Neutrino Scattering in the NuMI Beam

  17. Nuclear Effects • Without n can’t measure flavor dependence of nuclear effects • However, can make careful measurement of ratio of ds/dxdQoff C, Fe and Pb. Never measured before. Study shadowing and EMC effect with neutrinos! • Can measure dD(z)/dxdQoff C, Fe and Pb which would be a convolution of all nuclear effects including: boson (quark-flavor dependence) and transparency (final-state interactions / formation-length /color transparency)effects. • Behavior of F2 as x --> 1.0 in Nuclear Environment • Few-nucleon-correlation and multi-quark models allow quarks to have higher momentum ---> high x tail with F2e- ax • CCFR: a = 8.3 ± 0.7 ± 0.7, m/e: a = 16 ± 0.5 Neutrino Scattering in the NuMI Beam

  18. Nuclear Effects with Neutrinos Q2 = 0.7 GeV2 (n running only) Ratio Fe/C: Statistical Errors From MINOS Parasitic Run xBjMINOS MINOS all DIS 0.0 - .011.8 % xxx .01 - .02 1.4 10 % .02 - .03 1.3 6 .03 - .04 1.2 4 .04 - .05 1.1 3 .05 - .06 1.1 2.6 .06 - .07 1.0 2.3 Neutrino Scattering in the NuMI Beam

  19. Add an n run • Experiment: nand n on nuclear targets: • Also measure ds/dxdQ off, mainly, C • Concentrate on careful measurement of transition region • In addition can extract all 6 structure functions individual PDF's in a given x,Q bin. R = Rwhitlow Neutrino 1 year he-beam Anti-Neutrino 2 years he-beam X = 0.1 - 0.125 Q2 = 2 - 4 GeV2 (1-y)2 Neutrino Scattering in the NuMI Beam

  20. Physics Results: High-xBj Parton Distribution Functions • The particular case of what is happening at high- xBj is currently a bit of controversial with indications that current global results not correct: • Drell-Yan production results ( E-866) may indicate that high-xBj (valence) quarksOVERESTIMATED. • A Jlab analysis of Jlab and SLAC high x DIS indicate high-xBj quarks UNDERESTIMATED. ≈ Statistical Errors for 1 year of he-n xBj CH LH2 LD2 .6 - .65 0.6% 2.2% 1.5% .65 - .7 0.7 2.6 1.7 .7 - .75 1.0 3.7 2.5 .75 - .8 1.3 5 3 .8 - .85 2 7 5 .85 - .9 3 11 7 .9 - 1.0 4 14 10 Measured / CTEQ6 Might be d/u ratio SLAC points CTEQ6 Neutrino Scattering in the NuMI Beam

  21. Nuclear Effects with both n and n • First real measurement of flavor dependent nuclear effects of particular importance for neutrino scattering experiments. • Major difference in predictions Kumano (valence LESS shadowed than sea) vs Kulagin (valence MORE shadowed than sea) : Ca Neutrino Scattering in the NuMI Beam
