  1. TVT PROCEDURE – TOT PROCEDURE

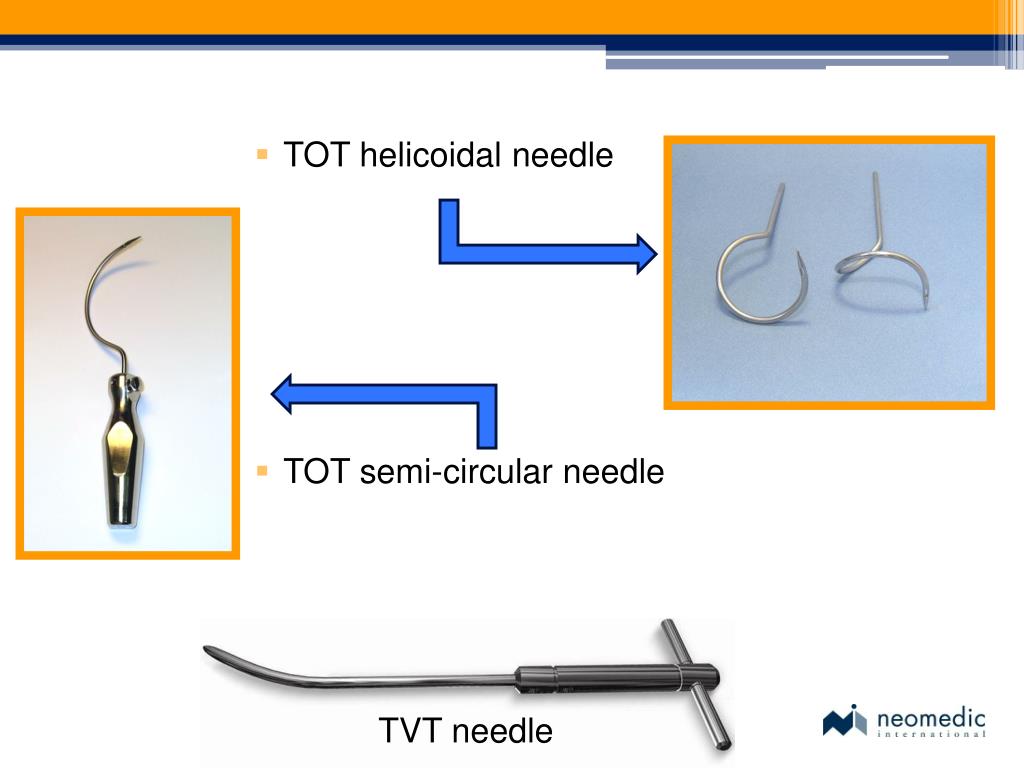

  2. TOT helicoidal needle • TOT semi-circular needle TVT needle

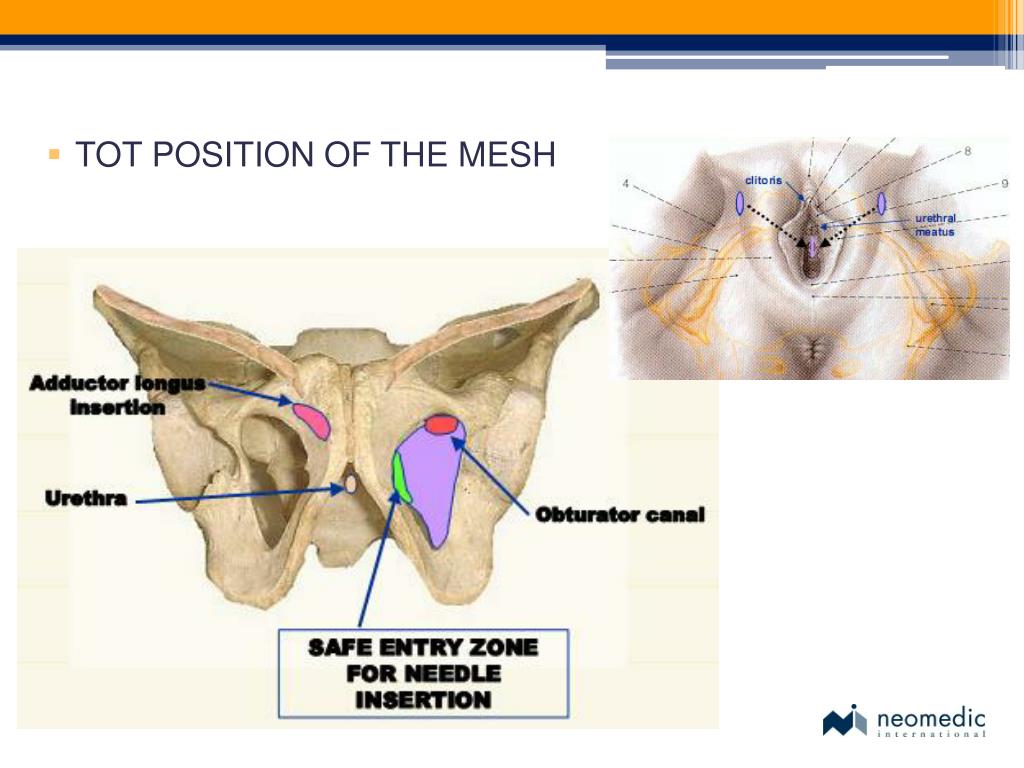

  3. TOT POSITION OF THE MESH Themeshis placed underthemid-urethra and thetips of themesh come outfromthebodythroughtheObturator foramen.

  4. TOT POSITION OF THE MESH

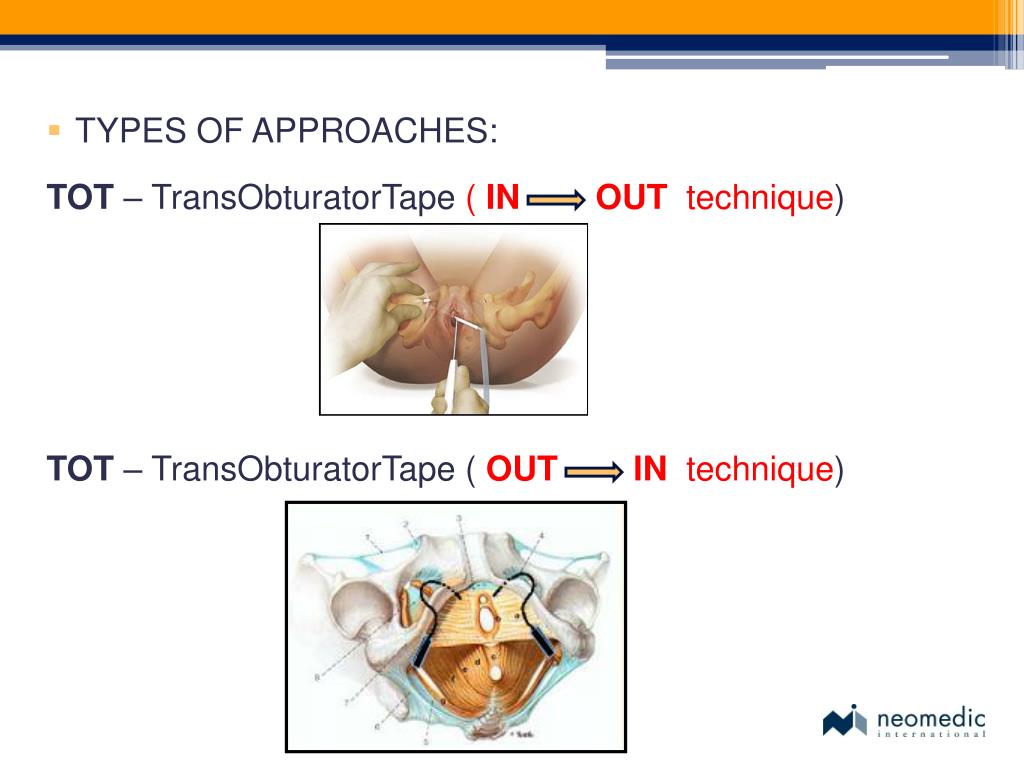

  5. TYPES OF APPROACHES: TOT – TransObturatorTape( INOUTtechnique) TOT – TransObturatorTape ( OUTINtechnique)

  6. Step 1 • out-in TOT PROCEDURE (mostcommon) • 2 cm anterior vaginal wall incision • Periurethral scissor dissection.

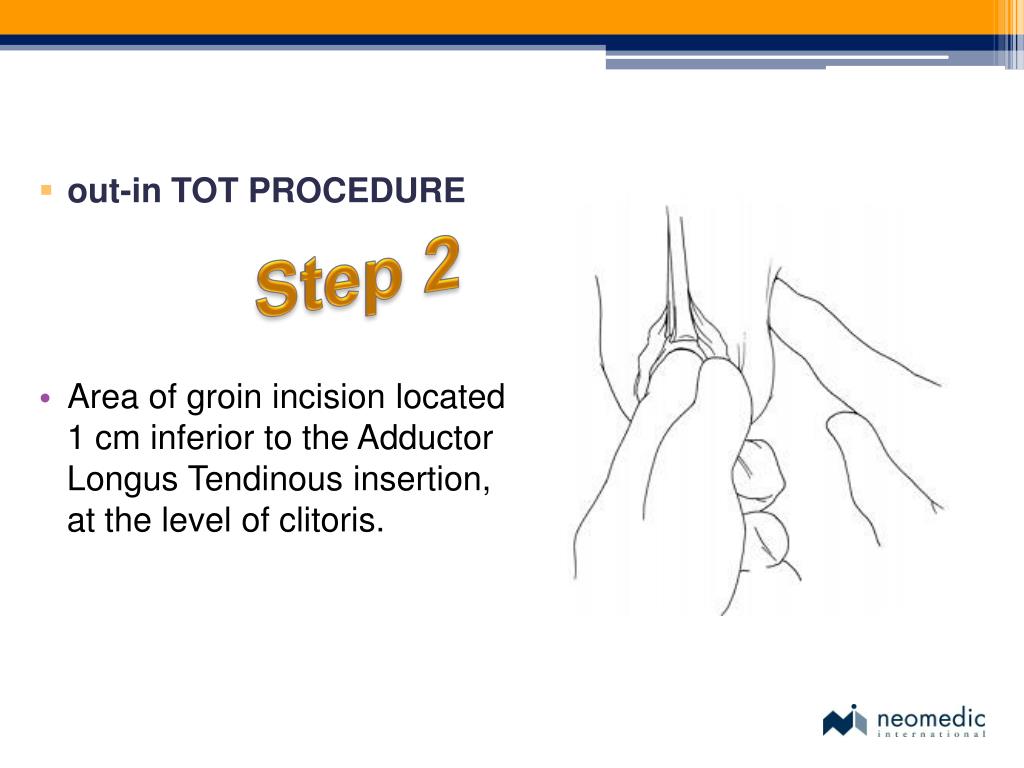

  7. Step 2 • out-in TOT PROCEDURE • Area of groin incision located 1 cm inferior to the Adductor LongusTendinous insertion, at the level of clitoris.

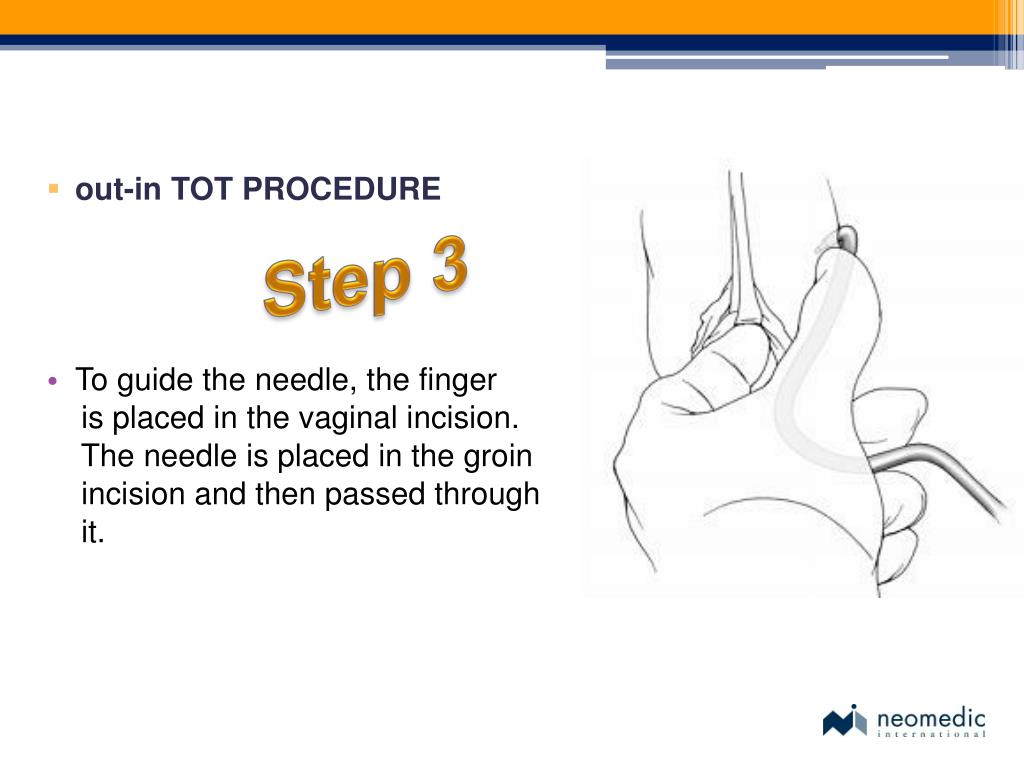

  8. Step 3 • out-in TOT PROCEDURE • To guide the needle, the finger is placed in the vaginal incision. The needle is placed in the groin incision and then passed through it.

  9. Step 4 • out-in TOT PROCEDURE • The needle passed through the groin incision, through the Obturator membrane and muscles and brought into the vaginal incision.

  10. Step 5 • out-in TOT PROCEDURE • Once the needle is brought into the vaginal incision, it is connected to the tip of the mesh inserting the threads in the needle’s hole.

  11. Step 6 • out-in TOT PROCEDURE • The needle with the attached thread of the mesh is then brought back through the groin incision.

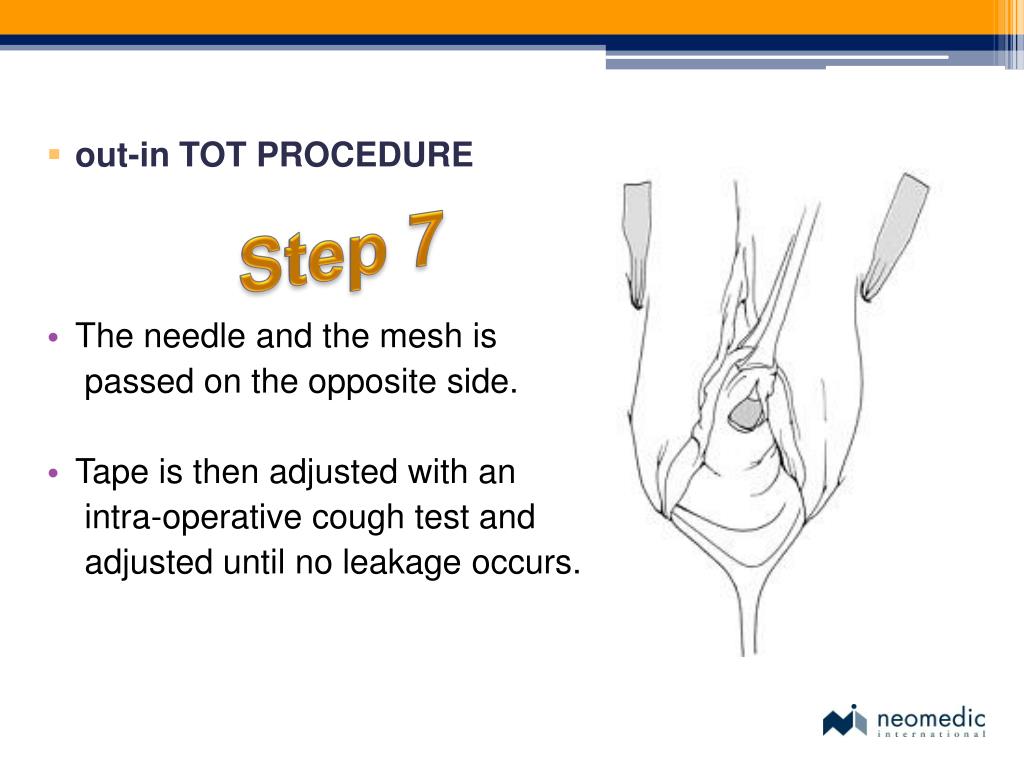

  12. Step 7 • out-in TOT PROCEDURE • The needle and the mesh is passed on the opposite side. • Tape is then adjusted with an intra-operative cough test and adjusted until no leakage occurs.

  13. Step 8 • out-in TOT PROCEDURE • Excess mesh is cut off at the groin incisions and these are closed with steri-strips. • Vaginal incision is closed.

  14. TOT PROCEDURE IN-OUT • Exactly the same as TOT OUT-IN procedure but the introduction of the needle is made from the vaginal incision to the groin incision, instead of the contrary. • The needle used for this technique are semi-circular.

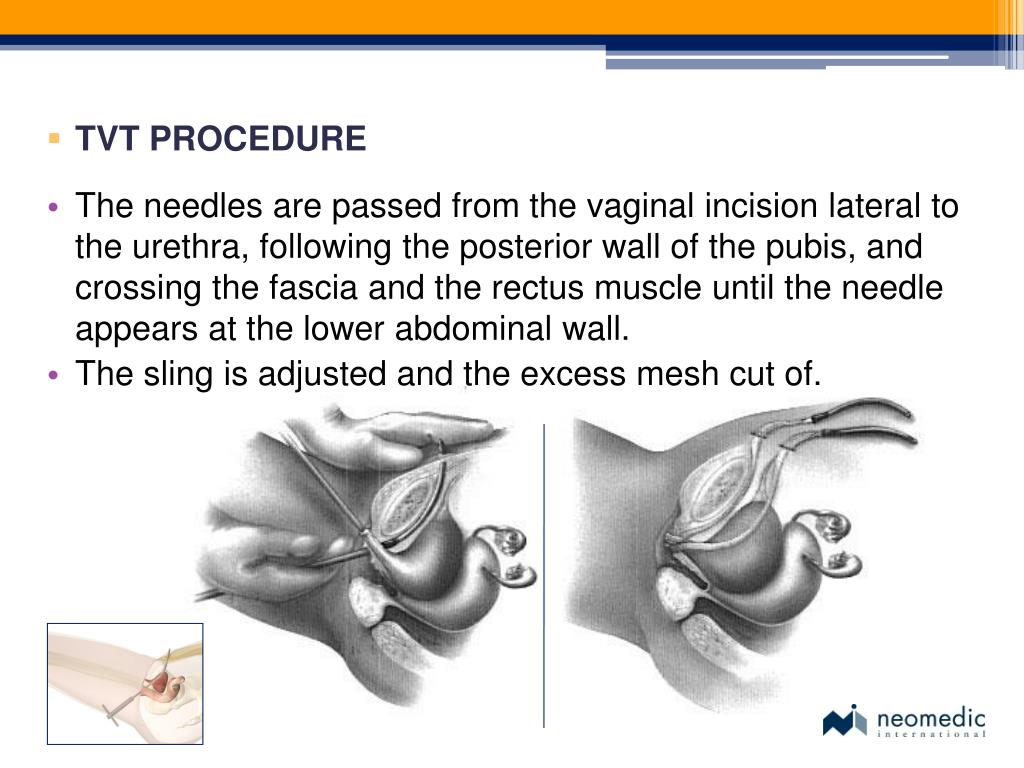

  15. TVT PROCEDURE • The needles are passed from the vaginal incision lateral to the urethra, following the posterior wall of the pubis, and crossing the fascia and the rectus muscle until the needle appears at the lower abdominal wall. • The sling is adjusted and the excess mesh cut of.
