Wei-ping Liu 柳卫平 wpliu@iris.ciae.ac China Institute of Atomic Energy, CIAE 中国原子能科学研究院

1. Nuclear astrophysical reactions by unstable beams andProgress of BRIF and BRIFII不稳定核束核天体物理反应北京放射性核束装置的进展 Wei-ping Liu 柳卫平 wpliu@iris.ciae.ac.cn China Institute of Atomic Energy, CIAE 中国原子能科学研究院 6th China Japan Joint Nuclear Physics Symposium 第六届中日核物理会议 May 16-20, 2006 Shanghai 上海

2. Study of some key nuclear astrophysical reactions by unstable nuclear beams

3. Interplay between astrophysics and nuclear physics Exp Exp The The Astro. Model Nucl. Data Astro. Obs. Abundance Dist. • Nuclear process • Main energy of star to balance gravitational collapse • Mechanism of isotope synthesis apart from Hydrogen • Rule the evolution process from the first few minutes after big bang to just before the end of star life • Nuclear astrophysics • Using nuclear physics to explain the energy production and element synthesis in star and cosmos

4. Nuclear astrophysics and physics of unstable nuclei • primordial and super novae high temperature and density environment, large amount of unstable nuclear involved into nuclear burning RIKEN RIBF proposal

5. Nuclear astrophysics ‘Lab’ B. Pfeiffer, et al., Z. Physik A357, 253 (1997)

6. Reaction network b g Cross section Decay half-life

7. Challenge to experiment 11C(p,)12N • Gamow window • Extremely low energy • Vanishing low cross section

8. Our solution: indirect method RIB production (d,n) or (d,p) measurement W.P. Liu, NIM B204(2003)62 W.P. Liu, PRL77(1996)611 Astrophysical reaction rates ANC or Spec factor

9. Direct capture process of 11C(p,g) • Key reaction in hot pp chain • Dominated by direct capture N. C. Shu,…, W. P. Liu et al., Nucl. Phys. A 758 (2005) 419c W. P. Liu et al., NPA728(2003)275

10. First measurement of primordial 8Li(n,g)9Li reaction rate • Destroy reaction of 8Li: 8Li(n,g)9Li, 8Li(d,p)9Li in inhomogeneous big bang，APJ429(1994)499 • Half-life of 8Li: 0.83 s，direct (n,g) exp. impossible Z. H. Li, W.P. Liu et al.，PRC 71, 052801(R) (2005)

11. Comment on our results • The paper presents excellent experimental work and removes a longstanding debate about the absolute cross section of 8Li(n,g) • As far as I know, so far, no results have been published to determine a neutron capture rate of astrophysical importance

12. 13N(d,n)14O13N(p,g)14O PRC, submitted

13. Summary of reaction studied 18Ne 17F 14O 12N 9C

14. Opportunities from BRIF and BRIF II BRIF: Beijing Radioactive Ion Facility

15. Physics : why BRIF Intensity 1-109, energy 100 keV-10 MeV/u, RIA proposal

16. The current Tandem lab • Beam type, only stable, no noble gas • Energy range, less than 14 MeV/q • Instrumentation, no RMS, no ISOL • Beam time: 100 % overdue

17. BRIF 100 MeV 200 mA compact proton cyclotron 20000 mass resolution ISOL, 2 MeV/q super-conducting LINAC

18. BRIF energy and mass resolution

19. BRIF research opportunities and combinations • 100 MeV neutron • ISOL • current terminals • limitation of instrument and machine time • Tandem with unstable beam, proton-rich, fission • heavy ion beam with higher beam energy, 20 MeV/q • 100 MeV proton and neutron beams • available by the year 2010 Ion Source Stable Beam 100 MeV, 200 mA Proton Cyclotron ISOL Mass Resolution 20000 Tandem Accelerator 15 MV Super Conducting LINAC RIB Nuclear data Radiation physics Nuclear structure Reaction Astrophysics Atomic Physics Applications Radiation physics Nuclear structure Reaction Astrophysics Atomic Physics Decay data Material physics Neutron data Radiation physics

20. More n-rich beam: CARRISOL • Horizontal tube • He-jet + ISOL • Neutron flux 1X1014 /cm2/s • Available in 2007

21. Low b RFQ for new injector 17 MeV/q super-conducting LINAC RMS Large acceptance spectrometer Decay measurements

22. Beam energy

23. RFQ/DTL 36MHz Low energy normal temp RFQ+ finger type DTL, multi charge heavy ion beam up to the energy accepted by SC LINAC

24. SC LINAC QWR • Energy gain 17 MeV/q • 36 ¼ wave length QWR • 9 100 L LHe tank LHe tank

25. Large acceptancespectrometer • Large D Q + detectors • Mass range 100-200，energy 5-10 MeV/u • Solid angle 80 mSr，P acceptance 10％ • Mass resolution 300 via TOF and tracking

26. RMS 12 m Quadruples Quadruples Dipole Electro Deflector Electro Deflector Target chamber Detector chamber Beam diagnostics Beam diagnostics

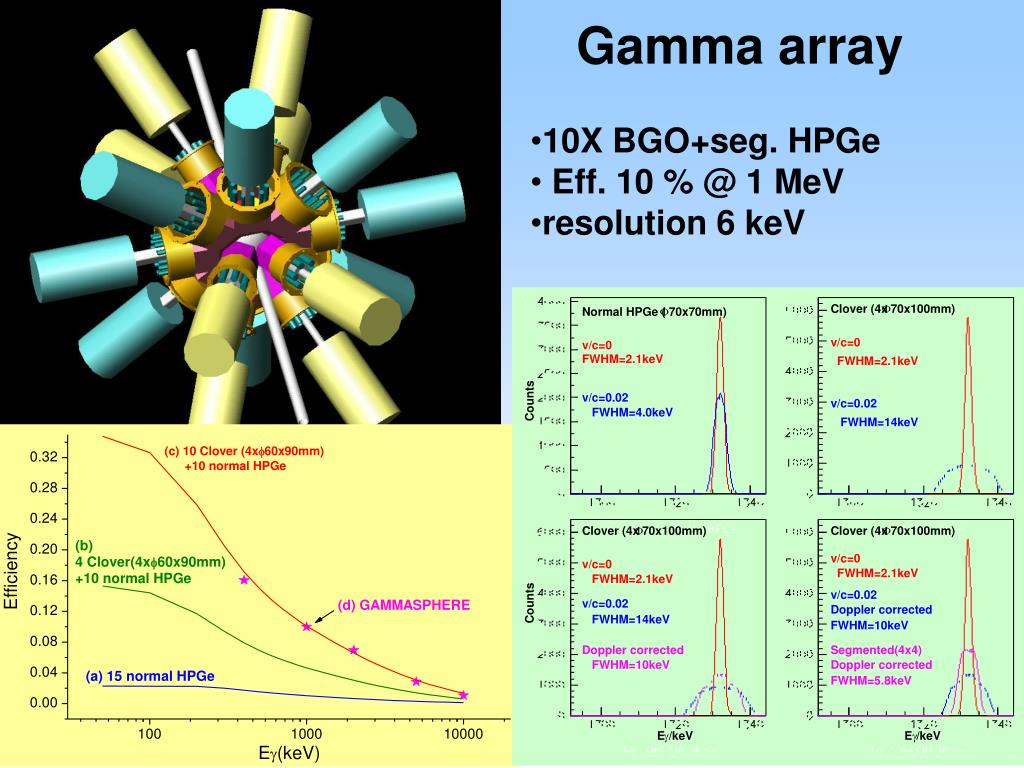

27. Gamma array • 10X BGO+seg. HPGe • Eff. 10 % @ 1 MeV • resolution 6 keV

28. Research opportunities • Systematic study of shell evolution • Nuclear astrophysics • Mechanism of SHE • Properties of medium mass neutron rich nuclei • New decay modes • Gamma array • Recoil mass separator • Large acceptance spectrometer • Decay setup
