  1. Minimizing the Impact of Storage on Your Network W. Curtis Preston President The Storage Group

  2. Networked Storage vs. Network Administrators • Increased Traffic • Network-based backups • NFS & CIFS shares from NAS filers • Management difficulties • Proprietary networks being managed by non-network personnel • Proprietary networks being managed by network personnel

  3. Networked Storage vs. Network Administrators • Security implications • One server’s data can be accessed via other servers • New connections can be made remotely • Bad information and little security training

  4. Storage for Network Admins • Fibre Channel = Serial implementation of SCSI that can be networked via FC equipment • iSCSI = Serial implementation of SCSI that can be networked via IP/Ethernet equipment • SAN = Storage connected via Fibre Channel or iSCSI network (blocks) • NAS = Storage connected via IP and NFS or CIFS (file sharing)

  5. Storage for Network Admins • HBA =~ NIC • WWN =~ MAC Address • Zoning =~ VLANS • Soft zoning =~ Server w/o firewall • Hard zoning =~ Server behind firewall • WWN-based zoning = Zone members specified by WWN • Port-based zoning = Zone members specified by port

  6. Good news: LAN-free, Client-free and Server-free backup • LAN-free backups (blue) • Shared tape library • Backup traffic off the LAN • Client-free backups (red) • Shared disk array • Backs up one client’s data through another • Server-free backups (green) • Direct disk-to-tape data transfer

  7. Good news: Disk-to-Disk Backups • Really inexpensive disk arrays based on ATA/IDE • Addressable via Fibre Channel, SCSI, NFS, or CIFS • JBOD and RAID configurations (Use their RAID controller or a software volume manager) • As low as $3,000/TB for off-shelf units!

  8. What to do with them? • Connect array to backup servers via Fibre Channel & SANs, or GbE & NFS/CIFS • Back up to disk first using backup or replication software • If backups, Duplicate disk backups to tape • If replication, make second backup to tape • Except in disaster, restores come from disk

  9. Why would you do that? • Increase ease and integrity of backups, especially incremental backups • Can reduce backup traffic by reducing frequency of full backups • Can reduce backup traffic even more using synthetic full backups • Can also be used as target for HSM, again reducing network traffic

  10. Mixed News: What about iSCSI • What is iSCSI? • Ethernet NIC with iSCSI drivers (Hopefully TOE) • Standard Ethernet switch • SCSI over IP • iSCSI is here. • A number of disk vendors releasing products • There’s a lot of interest for middle-tier storage apps

  11. Mixed News: What about iSCSI? • Storage devices everywhere and anywhere?!?! • Should implement via dedicated LANs, just as with NAS • Must consider security implications of plain text blocks • Consider encryption

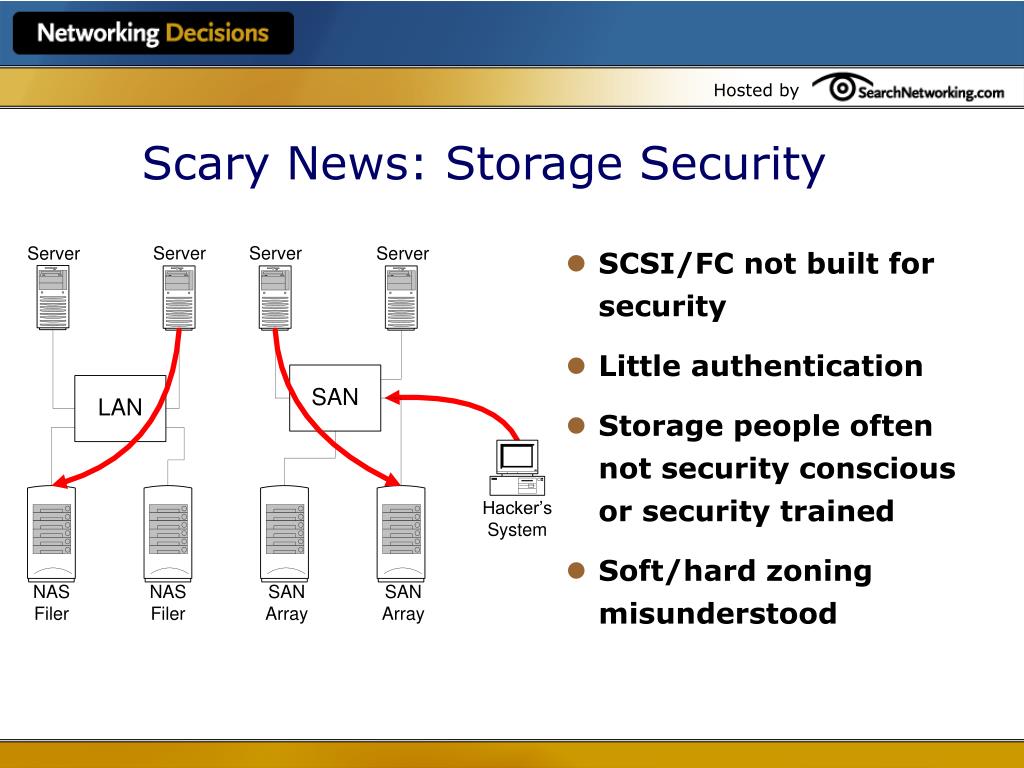

  12. Scary News: Storage Security • SCSI/FC not built for security • Little authentication • Storage people often not security conscious or security trained • Soft/hard zoning misunderstood

  13. Scary News: Storage Security • WWN used for auth., but WWN can be changed • Soft zoning allows non-members to communicate • Management interfaces open to backbone and use plain text protocols • NAS filers on backbone

  14. Security Questions for your Storage Administrator • Are we using port-based zoning? • Are we using hard zoning? • Are our NAS or iSCSI systems on a separate, firewalled, non-routable LAN? • Can I reach the storage device management interfaces from my desktop without going through a firewall?

  15. Summary • LAN/Client/Server-free backups can reduce traffic • Disk-to-disk backups can reduce traffic • iSCSI is coming, but should be on a separate LAN • Learn all you can about storage security and use it

  16. Resources

  17. Resources A free directory of all things Storage • Storage Mountain http://www.storagemountain.com

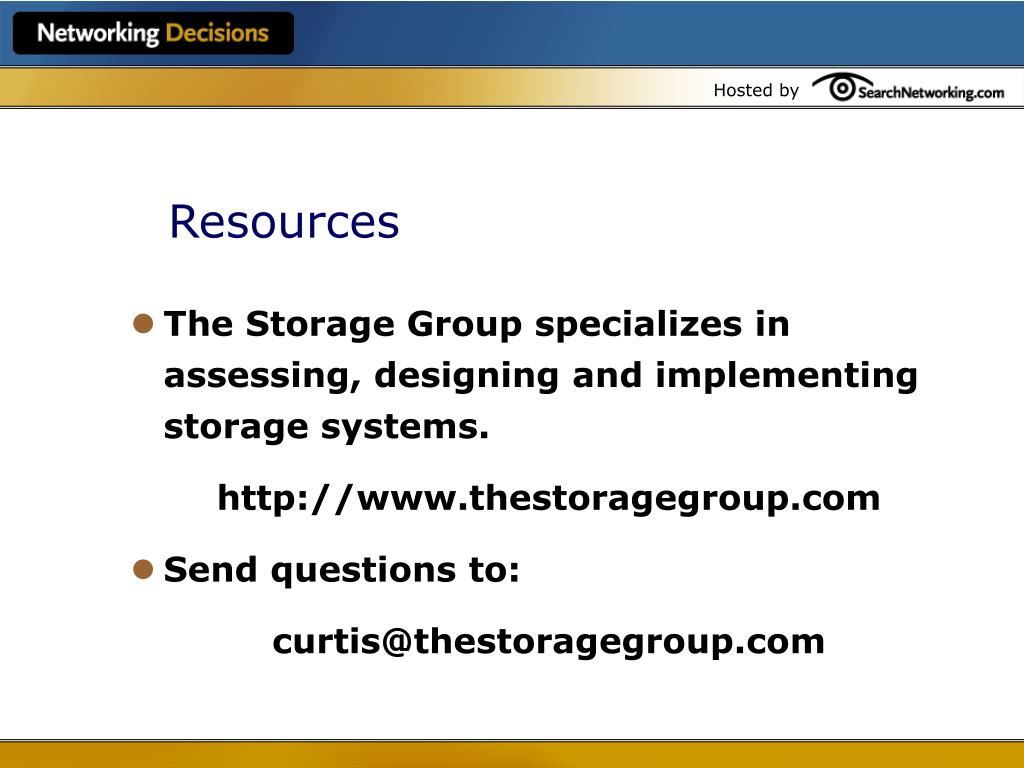

  18. Resources • The Storage Group specializes in assessing, designing and implementing storage systems. http://www.thestoragegroup.com • Send questions to: curtis@thestoragegroup.com

  19. Thank you!W. Curtis Preston
