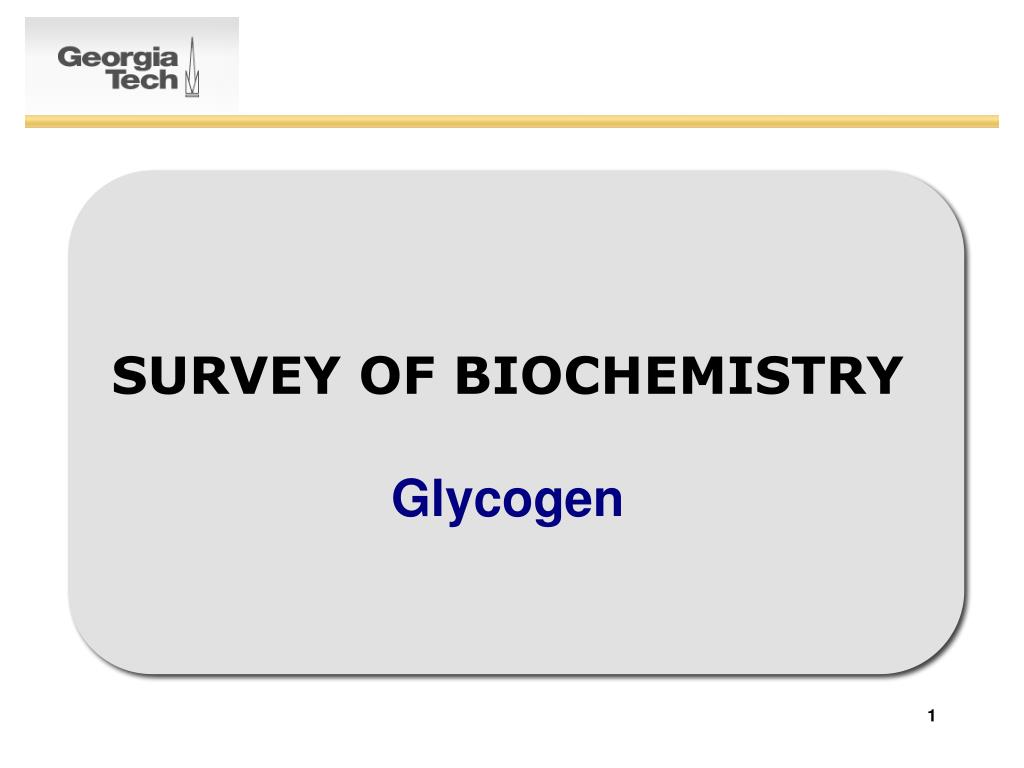

  1. SURVEY OF BIOCHEMISTRYGlycogen

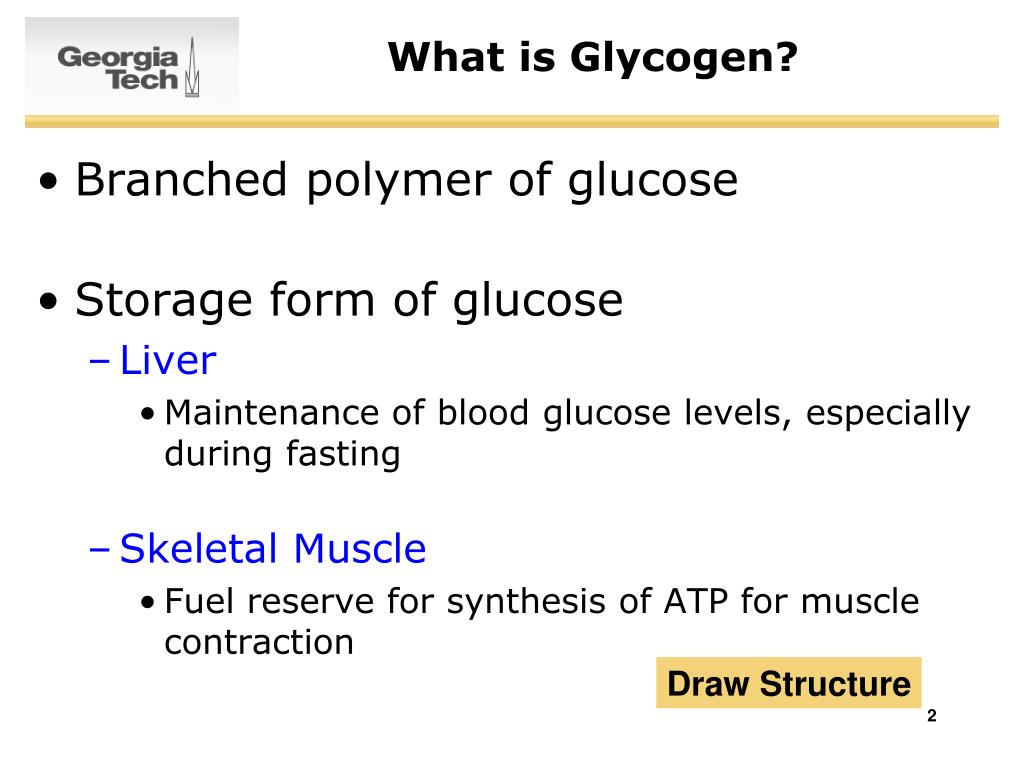

  2. What is Glycogen? • Branched polymer of glucose • Storage form of glucose • Liver • Maintenance of blood glucose levels, especially during fasting • Skeletal Muscle • Fuel reserve for synthesis of ATP for muscle contraction Draw Structure

  3. Types of Polysaccharide Linkages • What is an alpha 1->4 linkage? • What is a beta 1->4 linkage? • How are monosaccharides branched at C6? Illustrate

  4. Branched Structure of Glycogen What is meant bynon-reducing vs.reducing end?

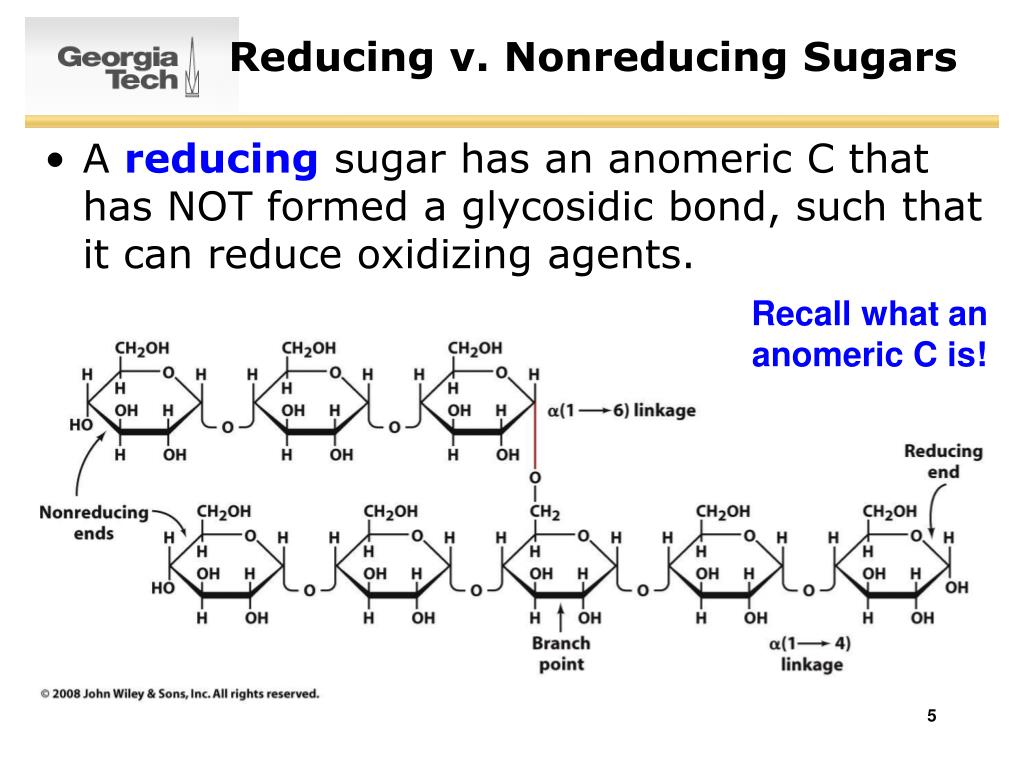

  5. Reducing v. Nonreducing Sugars • A reducing sugar has an anomeric C that has NOT formed a glycosidic bond, such that it can reduce oxidizing agents. Recall what ananomeric C is!

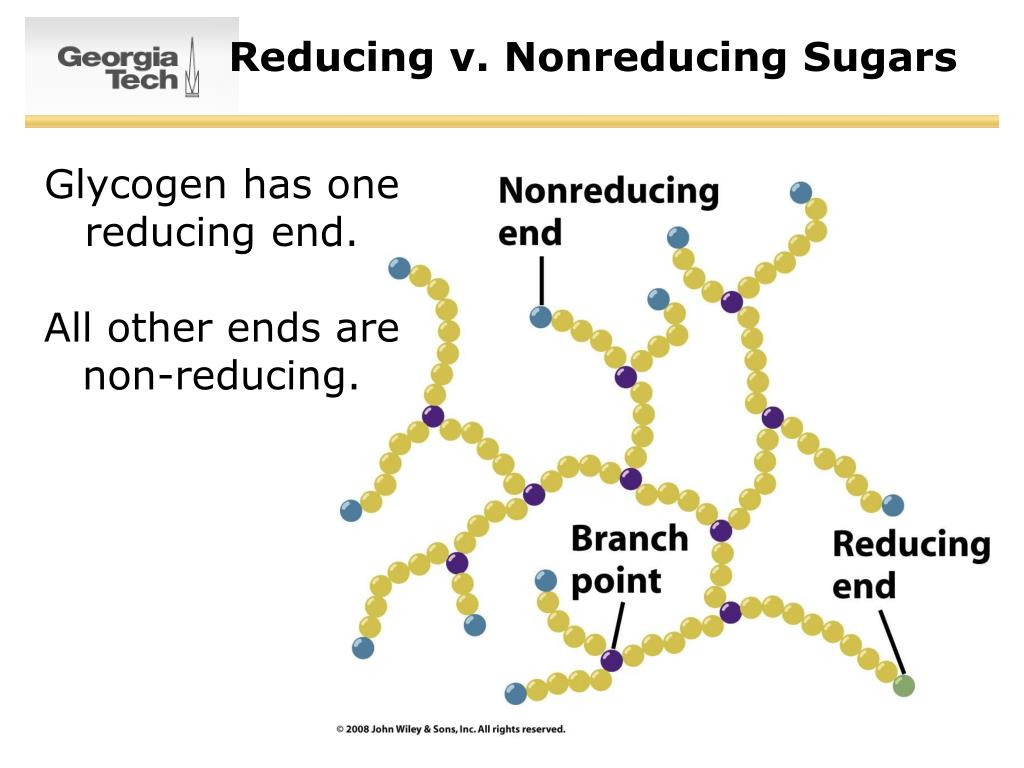

  6. Reducing v. Nonreducing Sugars Glycogen has one reducing end. All other ends are non-reducing.

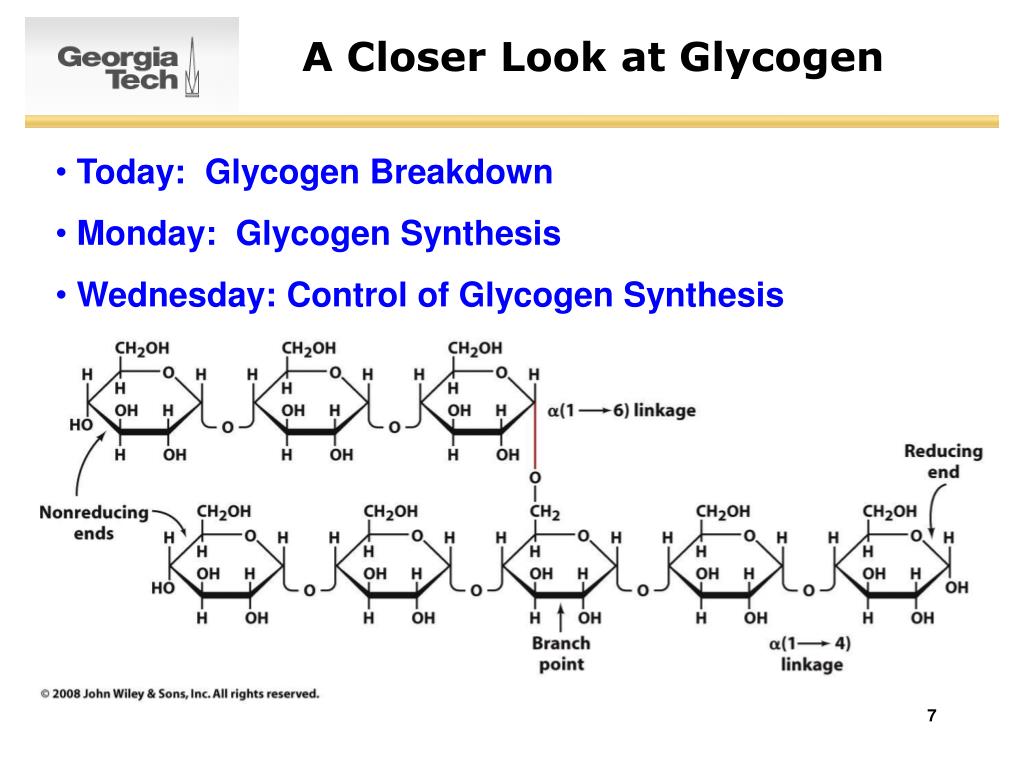

  7. A Closer Look at Glycogen • Today: Glycogen Breakdown • Monday: Glycogen Synthesis • Wednesday: Control of Glycogen Synthesis

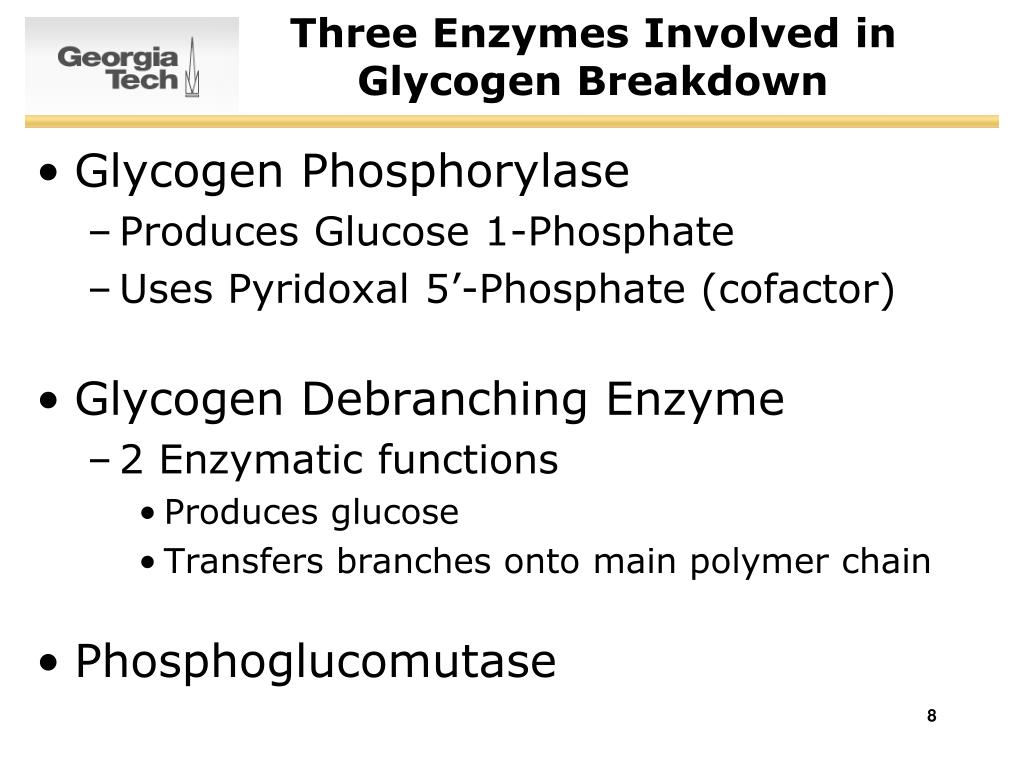

  8. Three Enzymes Involved in Glycogen Breakdown • Glycogen Phosphorylase • Produces Glucose 1-Phosphate • Uses Pyridoxal 5’-Phosphate (cofactor) • Glycogen Debranching Enzyme • 2 Enzymatic functions • Produces glucose • Transfers branches onto main polymer chain • Phosphoglucomutase

  9. Glycogen Phosphorylase Glycogen phosphorylase uses the cofactor pyridoxal 5’-phosphate to catalyze production of glucose 1-phosphate from a terminal end of glycogen.

  10. Glycogen+ Pi+ Glycogen Phosphorylase Mechanism • Formation of a ternary complex

  11. Glycogen Phosphorylase Mechanism 2. Formation of an oxonium intermediate

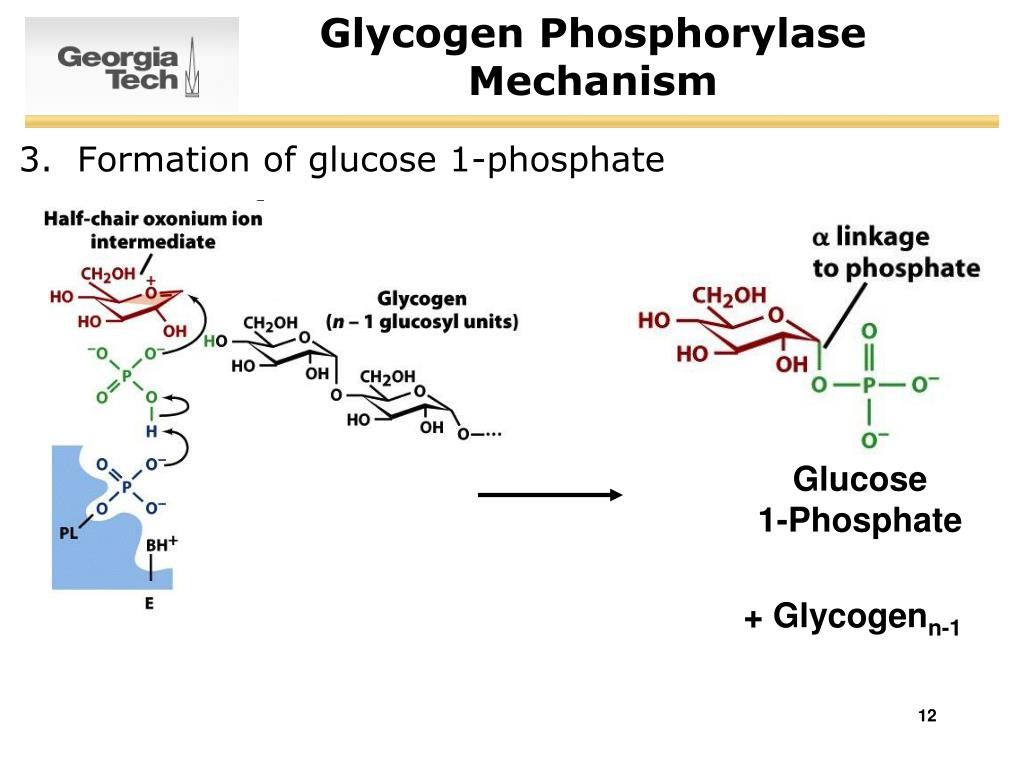

  12. Glycogen Phosphorylase Mechanism 3. Formation of glucose 1-phosphate Glucose1-Phosphate + Glycogenn-1

  13. Three Enzymes Involved in Glycogen Breakdown • Glycogen Phosphorylase • Produces Glucose 1-Phosphate • Uses Pyridoxal 5’-Phosphate (cofactor) • Glycogen Debranching Enzyme • 2 Enzymatic functions • Produces glucose • Transfers branches onto main polymer chain • Phosphoglucomutase

  14. Glycogen Debranching Enzyme Transferase activity

  15. Phosphoglucomutase

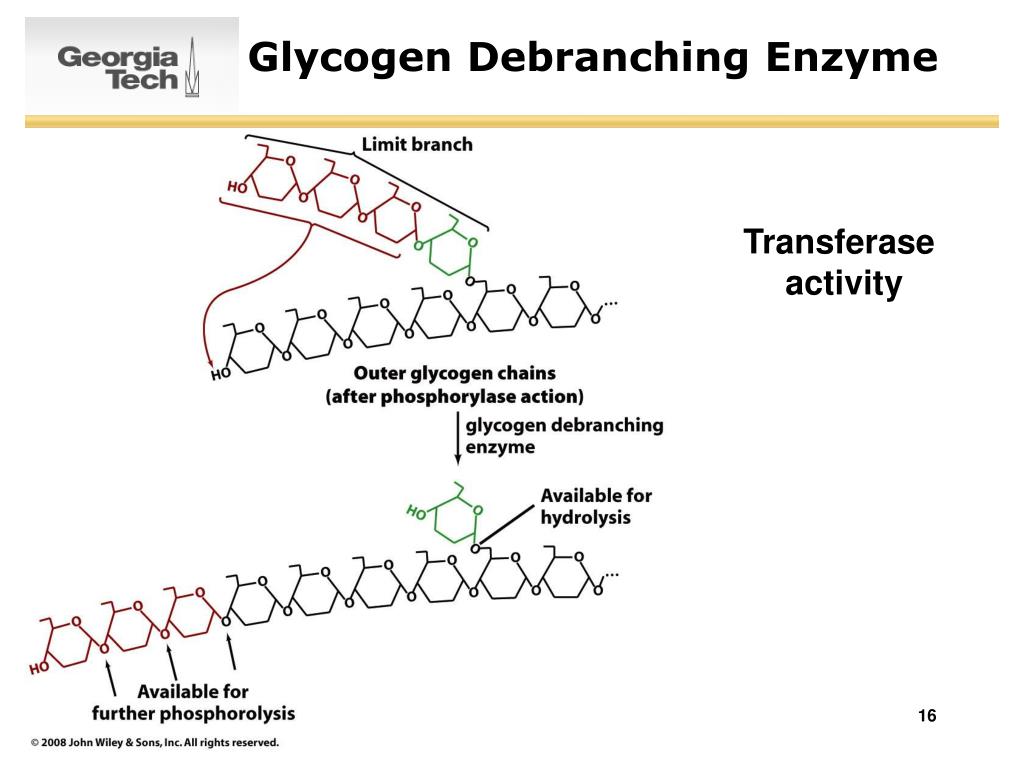

  16. Glycogen Debranching Enzyme Transferase activity

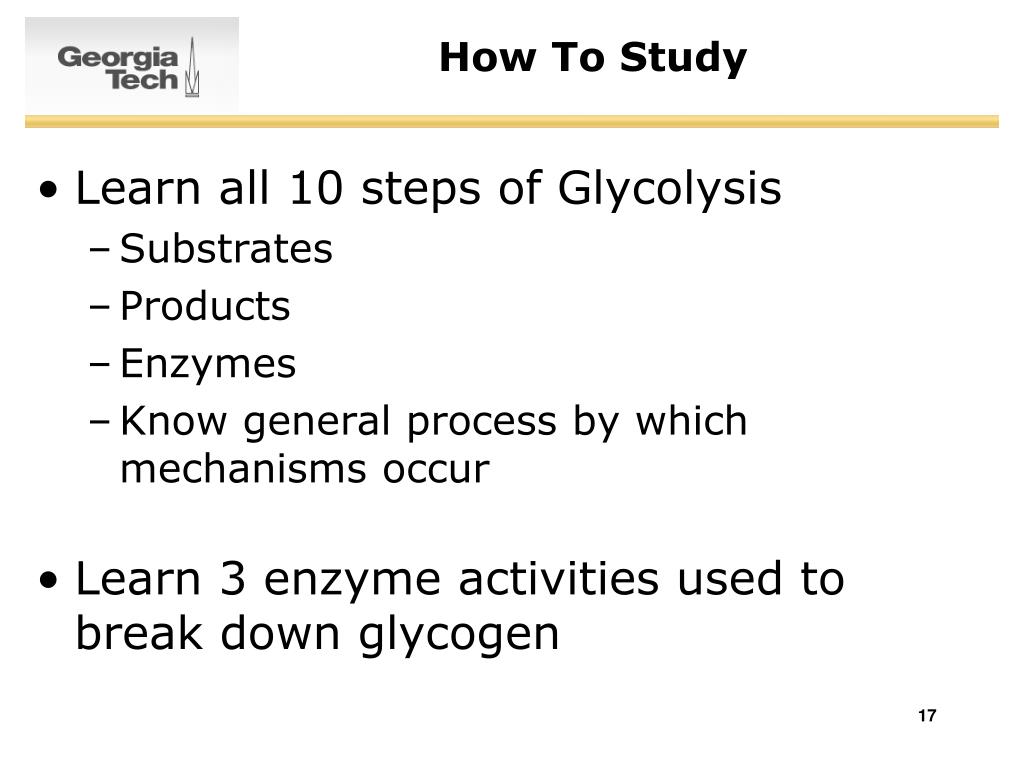

  17. How To Study • Learn all 10 steps of Glycolysis • Substrates • Products • Enzymes • Know general process by which mechanisms occur • Learn 3 enzyme activities used to break down glycogen

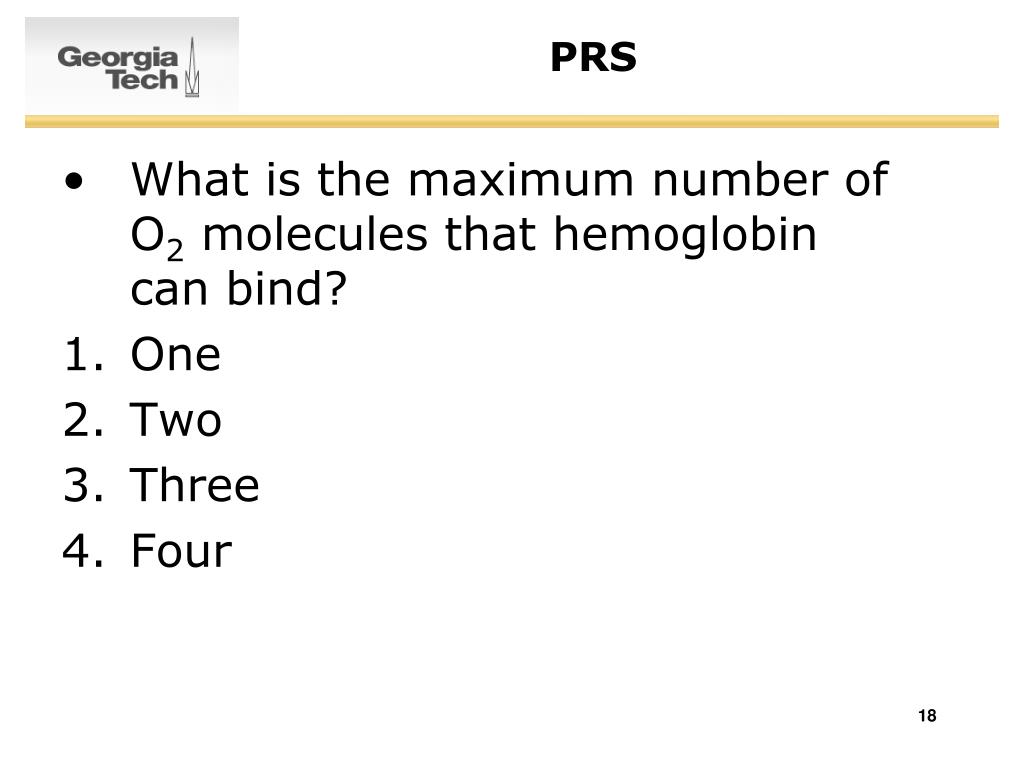

  18. PRS • What is the maximum number of O2 molecules that hemoglobin can bind? • One • Two • Three • Four

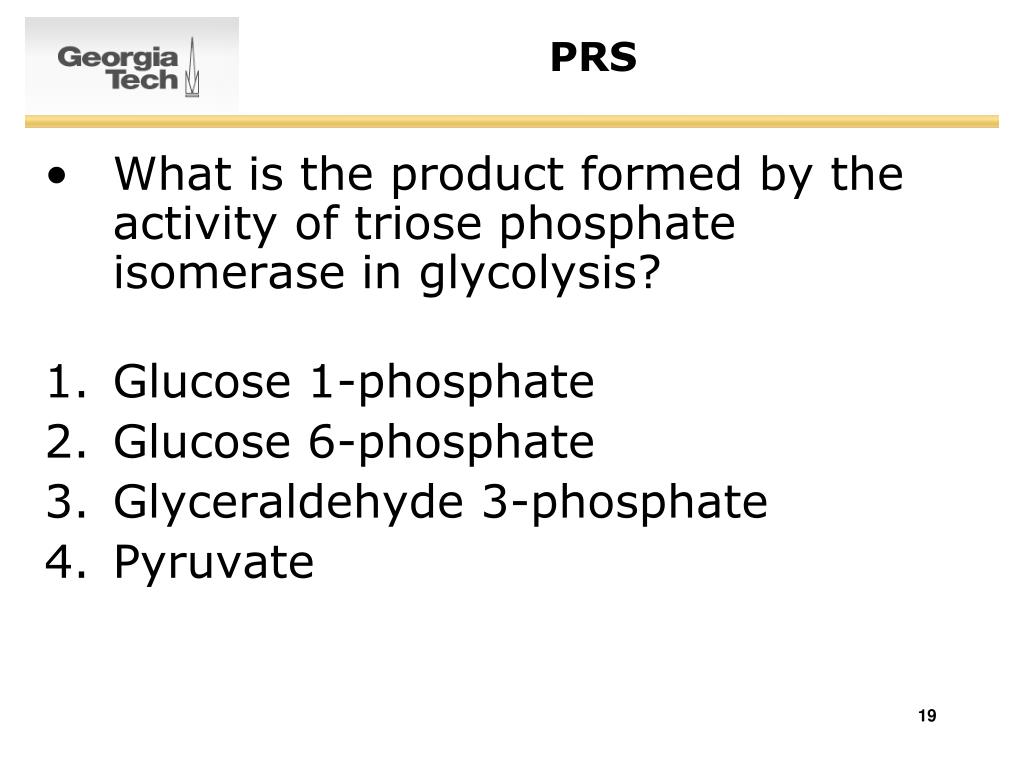

  19. PRS • What is the product formed by the activity of triose phosphate isomerase in glycolysis? • Glucose 1-phosphate • Glucose 6-phosphate • Glyceraldehyde 3-phosphate • Pyruvate

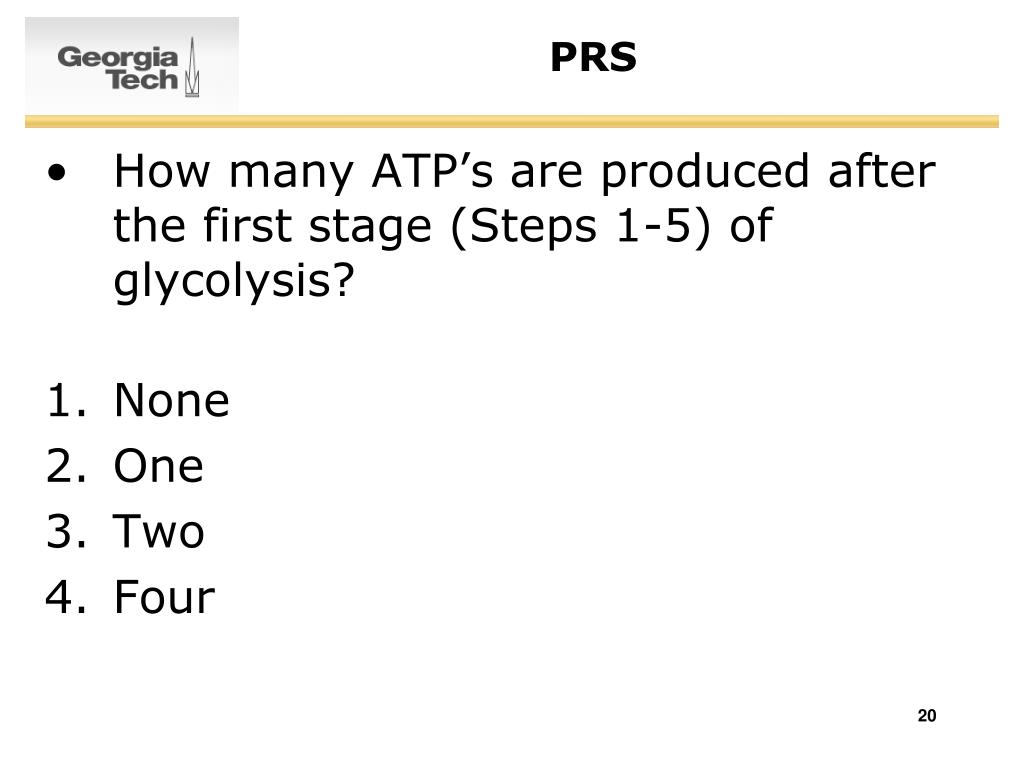

  20. PRS • How many ATP’s are produced after the first stage (Steps 1-5) of glycolysis? • None • One • Two • Four

  21. PRS • Which of the following vitamins are fat soluble? • Vitamin C • Vitamin A • Riboflavin • Folate

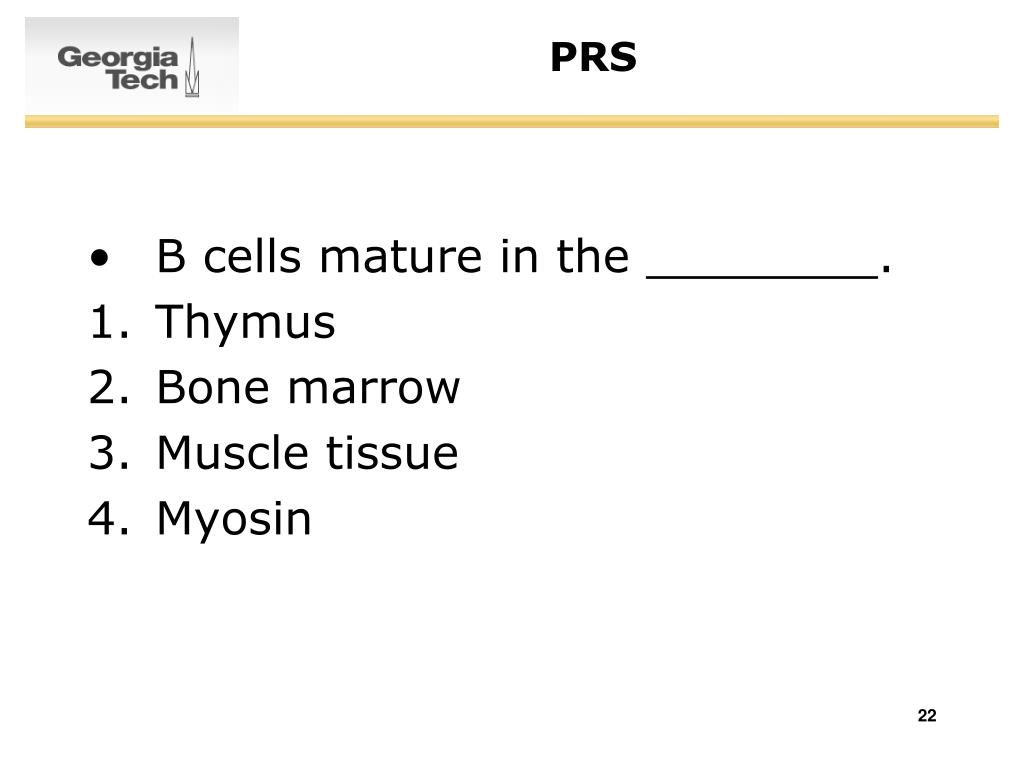

  22. PRS • B cells mature in the ________. • Thymus • Bone marrow • Muscle tissue • Myosin

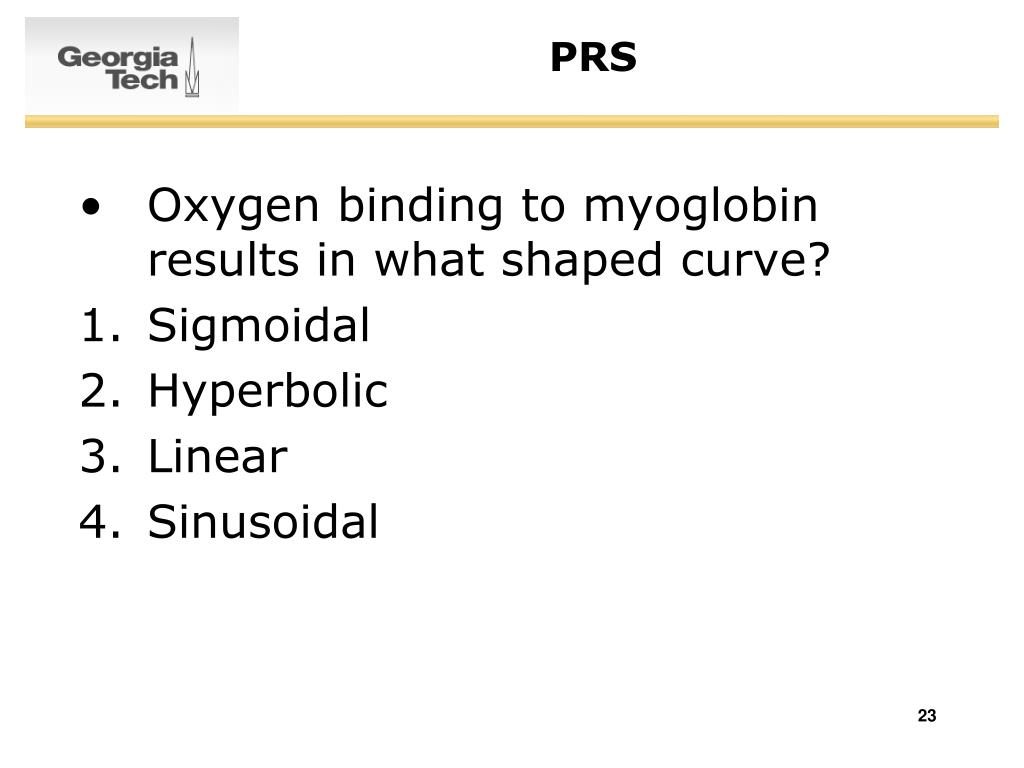

  23. PRS • Oxygen binding to myoglobin results in what shaped curve? • Sigmoidal • Hyperbolic • Linear • Sinusoidal

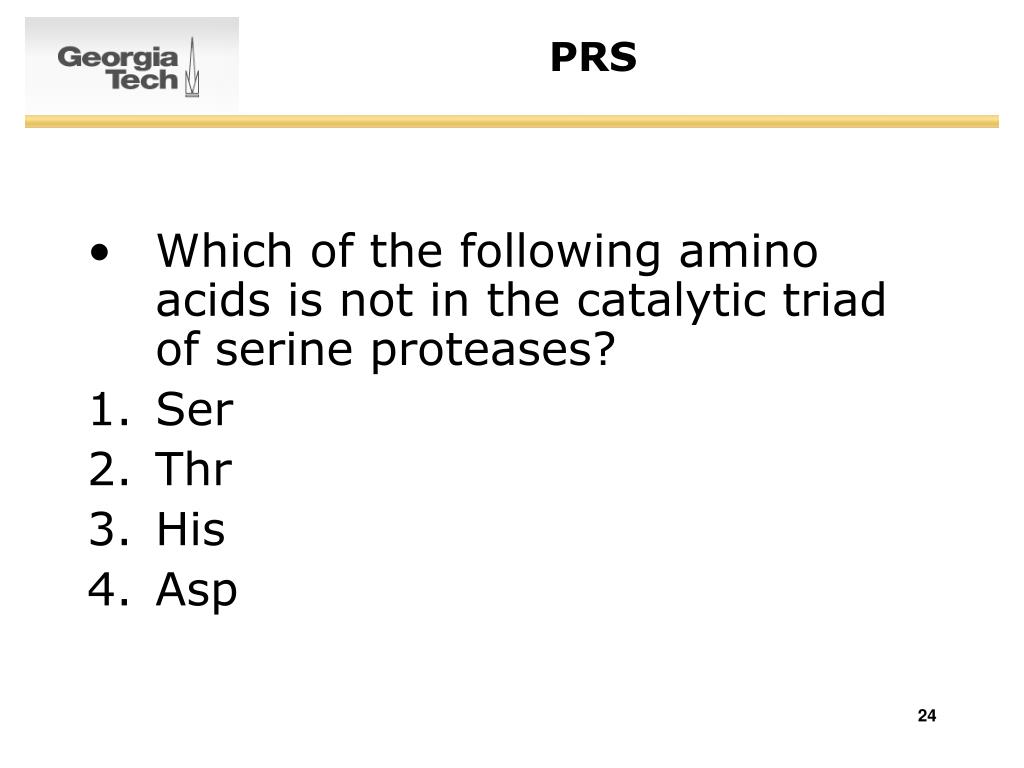

  24. PRS • Which of the following amino acids is not in the catalytic triad of serine proteases? • Ser • Thr • His • Asp

  25. PRS • What is Km? • The catalytic efficiency • The catalytic rate constant • 1/2 Vmax • [S] at 1/2 Vmax
