File 5. MOUSE sequences used in target gene promoter regions to detect NFATc1 protein binding by ChIP. UCSC Genome Browser on Mouse Dec 2011 (GRCm38/mm10) Assembly. >chr2:33215795-33216118. ANGPTL2 (324 bp amplicon ). F. R. Forward Primer.

aretha-rivera
Télécharger la présentation

File 5

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. File 5 MOUSE sequences used in target gene promoter regions to detect NFATc1 protein binding by ChIP

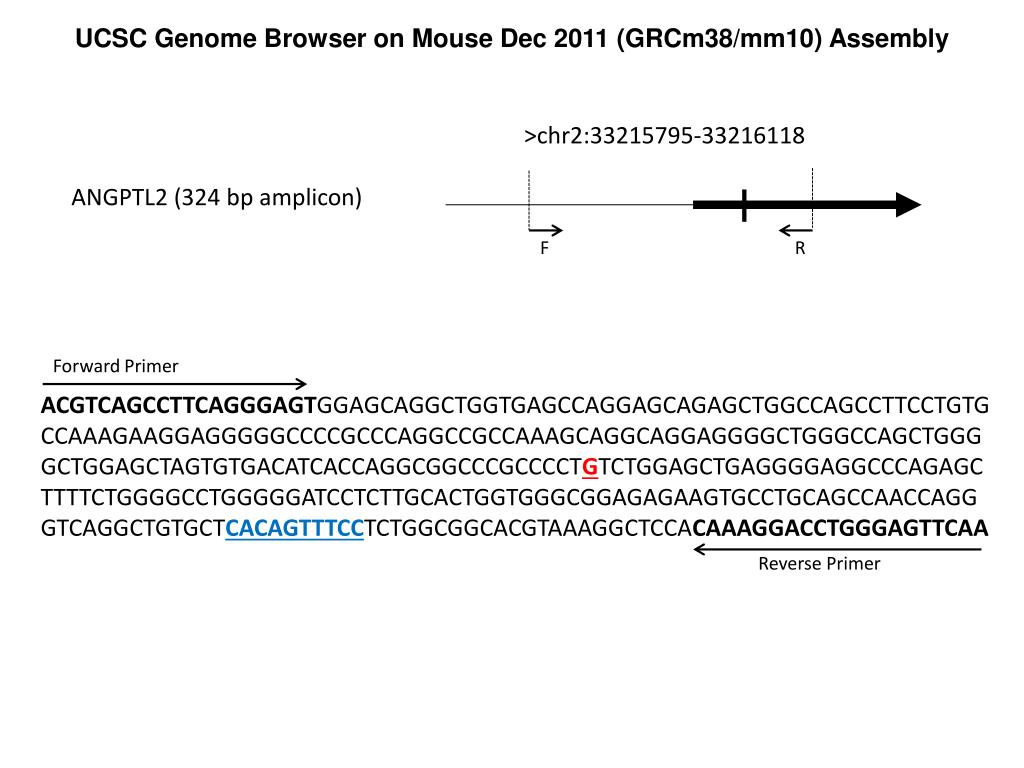

  2. UCSC Genome Browser on Mouse Dec 2011 (GRCm38/mm10) Assembly >chr2:33215795-33216118 ANGPTL2 (324 bpamplicon) F R Forward Primer ACGTCAGCCTTCAGGGAGTGGAGCAGGCTGGTGAGCCAGGAGCAGAGCTGGCCAGCCTTCCTGTGCCAAAGAAGGAGGGGGCCCCGCCCAGGCCGCCAAAGCAGGCAGGAGGGGCTGGGCCAGCTGGG GCTGGAGCTAGTGTGACATCACCAGGCGGCCCGCCCCTGTCTGGAGCTGAGGGGAGGCCCAGAGCTTTTCTGGGGCCTGGGGGATCCTCTTGCACTGGTGGGCGGAGAGAAGTGCCTGCAGCCAACCAGGGTCAGGCTGTGCTCACAGTTTCCTCTGGCGGCACGTAAAGGCTCCACAAAGGACCTGGGAGTTCAA Reverse Primer

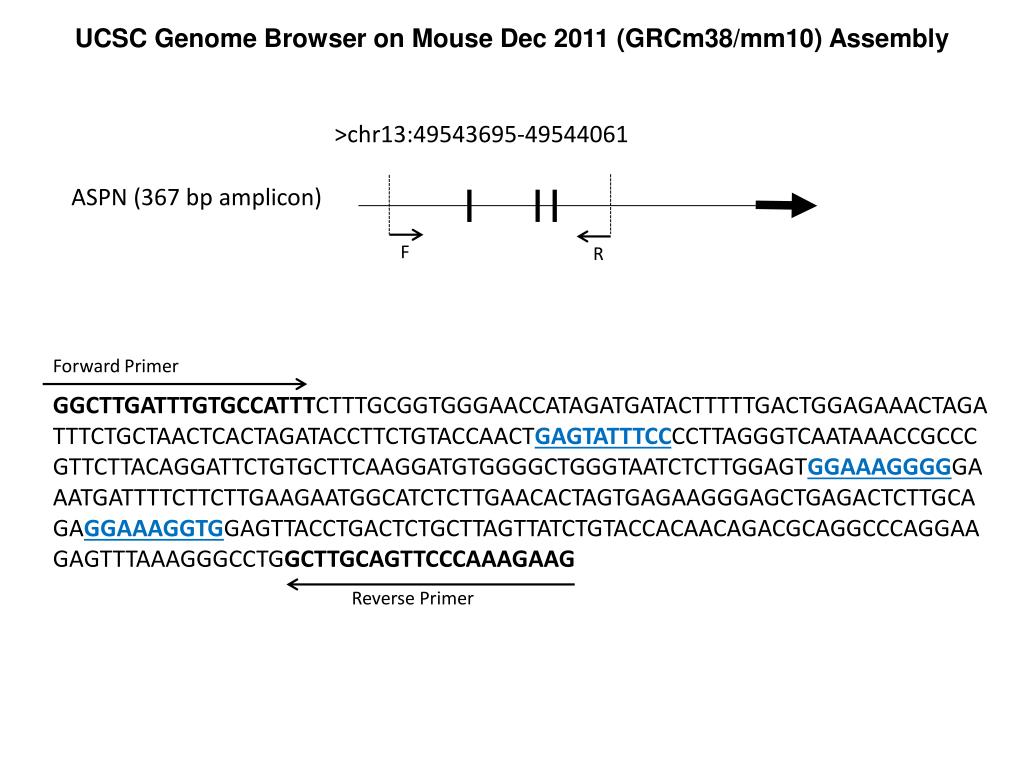

  3. UCSC Genome Browser on Mouse Dec 2011 (GRCm38/mm10) Assembly >chr13:49543695-49544061 ASPN (367 bpamplicon) F R Forward Primer GGCTTGATTTGTGCCATTTCTTTGCGGTGGGAACCATAGATGATACTTTTTGACTGGAGAAACTAGATTTCTGCTAACTCACTAGATACCTTCTGTACCAACTGAGTATTTCCCCTTAGGGTCAATAAACCGCCCGTTCTTACAGGATTCTGTGCTTCAAGGATGTGGGGCTGGGTAATCTCTTGGAGTGGAAAGGGGGAAATGATTTTCTTCTTGAAGAATGGCATCTCTTGAACACTAGTGAGAAGGGAGCTGAGACTCTTGCAGAGGAAAGGTGGAGTTACCTGACTCTGCTTAGTTATCTGTACCACAACAGACGCAGGCCCAGGAAGAGTTTAAAGGGCCTGGCTTGCAGTTCCCAAAGAAG Reverse Primer

  4. UCSC Genome Browser on Mouse Dec 2011 (GRCm38/mm10) Assembly >chr1:45311266-45311543 Col3A1 (278 bpamplicon) R F Forward Primer CGGAGAATGGGAGTCAAAACACTTTTTCAAATTCAGACAGTTTTTACTGTTTCAGAGGGAAATTTAAAAACACACAAACAATTGTTGTAGGCTATCACAAAGCACATTCCTATGTGTTTCTGTCATGCAAATATGTATTTAAGACTAATGCATGTTATAAACATATGCATAGGCTGATGTACACATGCTCCAGATGTGCTGTTTCTGTGTCTGTGGGTTGTGTCCTCTACACACAGGGAAAAATATATTAATCATTGCTTTTACTGCTGAGGGGATGG Reverse Primer

  5. UCSC Genome Browser on Mouse Dec 2011 (GRCm38/mm10) Assembly FAP (286 bpamplicon) >chr2:62563670-62563955 F R Forward Primer AGCTGGAGCTCATGGAGGTATTTCCCCAACTGAAGCTCCCTTCTCTGTGATAACTCCAGCCTGTGTCAAGTTGACACACAAAACCAACCAGTACAAACTTGGACTTTAAACCCATCTGATTATAGAGGCTGAGTACATTACCATTATTGTTTAACATGAAAGCACACTTGTAGTAAAACAATAACAAATATAAAAACTAGAGCAAGAACCAAACAACACACAACACGTAGAAAAGTTATGCTTCAAAGCATAGATGATAAGAAAAGAAAGAAATCTGAGCTGCTTG Reverse Primer

  6. UCSC Genome Browser on Mouse Dec 2011 (GRCm38/mm10) Assembly >chr6:136875513-136875742 MGP (230 bpamplicon) F R Forward Primer TGATCATGGAAACAGGGAAGACTACTTCGTGGTACTTTGGCTTGTAATAGAGAACGGGAAAGATGAGGAAGAAGGGGAGAGAGACAGTGAGGAGCGTGAAGGGAAGTCCAAGGTAGGGAGGGAAAACCCACAGACAGCAGGGAGAGAGGTTTCTCACCGTAGCACAGGGTTGCCACGGCCAGCGCAGCCAGGATGGCCAGAGGGAGCAGGCTCTTCATGGTGTCTCGGGT Reverse Primer

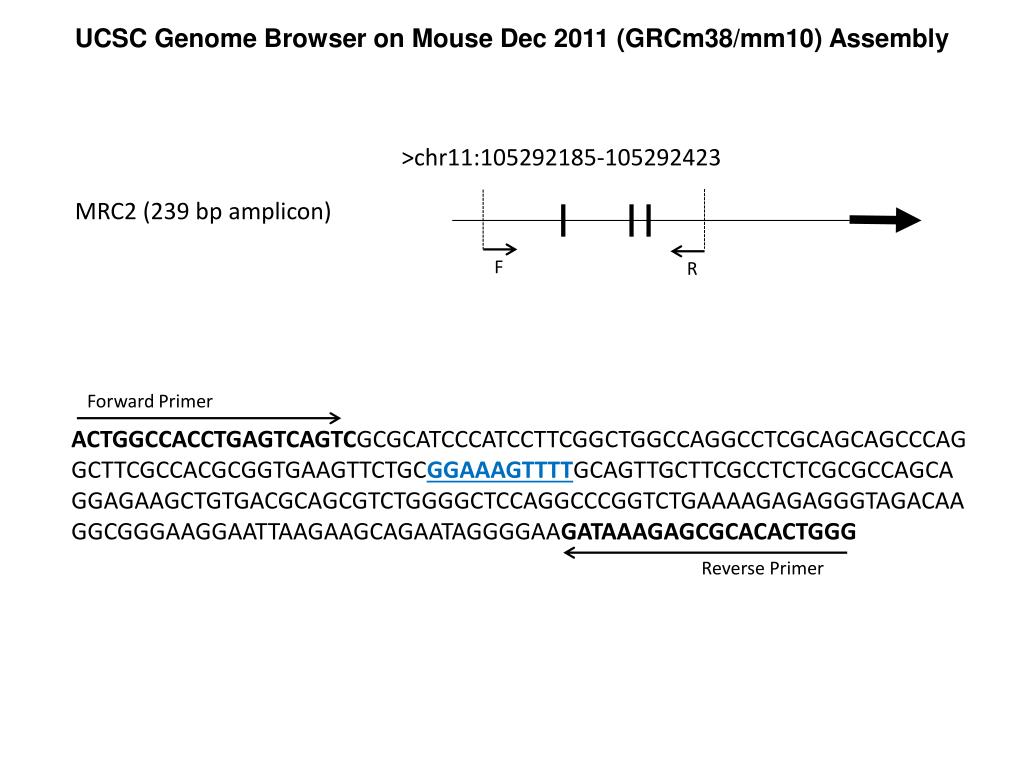

  7. UCSC Genome Browser on Mouse Dec 2011 (GRCm38/mm10) Assembly >chr11:105292185-105292423 MRC2 (239 bpamplicon) F R Forward Primer ACTGGCCACCTGAGTCAGTCGCGCATCCCATCCTTCGGCTGGCCAGGCCTCGCAGCAGCCCAGGCTTCGCCACGCGGTGAAGTTCTGCGGAAAGTTTTGCAGTTGCTTCGCCTCTCGCGCCAGCAGGAGAAGCTGTGACGCAGCGTCTGGGGCTCCAGGCCCGGTCTGAAAAGAGAGGGTAGACAAGGCGGGAAGGAATTAAGAAGCAGAATAGGGGAAGATAAAGAGCGCACACTGGG Reverse Primer

  8. UCSC Genome Browser on Mouse Dec 2011 (GRCm38/mm10) Assembly >chr11:100970847-100971109 PTRF (263 bpamplicon) F R Forward Primer GACTGGGGCAGAGGAATGTGAGCTGCGGAAAGGAATTAGGTCTTCGGAGTGTGCTCTACTCTTTCTCTTTCCTCACCCACAAACCCACTCCAGCCTTTTAAGATCAAGCTGAGGTCCAAATGGCGCGTGAATTGGGTGTAAACGAGTAGTTTGTGTCTATGCCTCATGTCCTTGGAGGATCCTTGCCCTATACAATCTTTTTCAAAGATTTGGGGGTCTGCCCCCATCGTCTATCTATACACTGAGTTACCACTGTCCCCCAA Reverse Primer

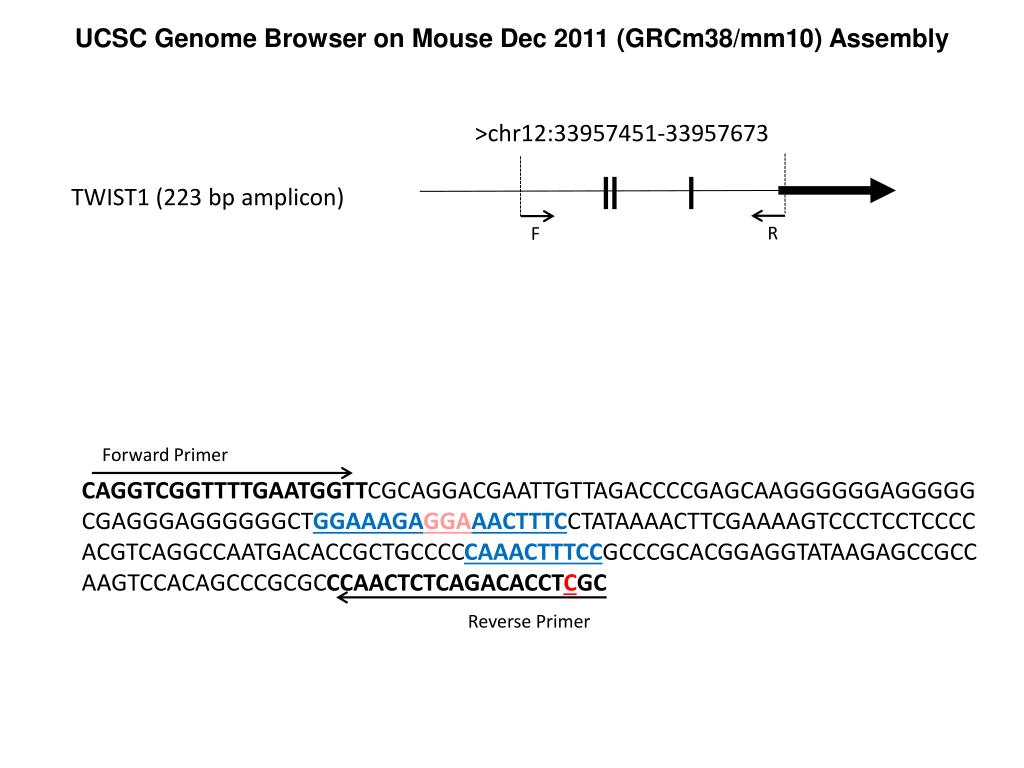

  9. UCSC Genome Browser on Mouse Dec 2011 (GRCm38/mm10) Assembly >chr12:33957451-33957673 TWIST1 (223 bpamplicon) R F Forward Primer CAGGTCGGTTTTGAATGGTTCGCAGGACGAATTGTTAGACCCCGAGCAAGGGGGGAGGGGGCGAGGGAGGGGGGCTGGAAAGAGGAAACTTTCCTATAAAACTTCGAAAAGTCCCTCCTCCCCACGTCAGGCCAATGACACCGCTGCCCCCAAACTTTCCGCCCGCACGGAGGTATAAGAGCCGCCAAGTCCACAGCCCGCGCCCAACTCTCAGACACCTCGC Reverse Primer

  10. UCSC Genome Browser on Mouse Dec 2011 (GRCm38/mm10) Assembly >chr3:37126166-37126414 IL2 (249 bpamplicon) F R Forward Primer GTCGGGTTAGCCCACACTTAGGTGGCAGTTTTAATTCATACAATGAACGCCTTCTGTATGAAACAAATTTTCCTCTTTGGGGTGGAGACACAAAAGTAACTCATGAAAATGTTCTCTTTGTCAAAACCATCCTGAACCTGTAAGCAGCCTGTTGTGGTGGACAAACGCAAGAGGAGATAGATGAAAAGAATAAATCTTTTAGATTTGTTGATTAGACAGGAAGGATATTGGTTTCCTGTTTCAAGATGG Reverse Primer
