  1. CLIC Cost at 3 TeV and 500 GeVCDC meeting, 9.12.2008Hans-H. Braun for CLIC cost & Schedule WGMick Draper, Katy Foraz, Claude Hauviller, Bernard Jeanneret,John Andrew Osborne, Germana Riddone, Pierre Strubin and Sylvain Weisz- Cost estimate at 3TeV & 0.5 TeV distributed according to PBS- Status and plans of cost study

  2. 2008 activities of CLIC cost & schedule WG • Established PBS • Reorganized 2007 estimate to adapt it to PBS (incl. CTC modifications) • Scaled estimate to 500 GeV version • Established specifications for cost estimate software tool (see EDMS#975066) • Launched development for cost estimate software tool in IT / AIS • Established template and organization structure for cost database input • Established schedule for underground construction and installation • Established coloaboration with ILC cost WG. Presently mostly on exchanged of informations.

  3. CLIC material cost estimate for 0.5 TeV and 3 TeV Estimate basis is same as end 2007, but adapted to new PBS structure Scaling to 0.5 TeV for time being very simplistic & optimistic

  4. CLIC material cost estimate main beam for 0.5 teV and 3 TeV relative to 3 TeV total Estimate basis is same as end 2007, but adapted to new PBS structure

  5. CLIC material cost estimate drive beam for 0.5 teV and 3 TeV relative to 3 TeV total Estimate basis is same as end 2007, but adapted to new PBS structure

  6. CLIC material cost estimate CE and Services for 0.5 teV and 3 TeVrelative to 3 TeV total Estimate basis is same as end 2007, but adapted to new PBS structure Scaling to 0.5 TeV for time being very simplistic & optimistic

  7. Cost tool Standardised EXCEL template to provide input Development of tool at CERN using Excel DBE, oracle database and web interface similar to existing CERN management tools (M. Draper, J. De Jonghe) • first prototype ready by 2nd quarter 2009 • final version by end of 2009

  8. Input Template 1/3

  9. Template 2/3

  10. Template 3/3

  11. Definition of roles • Role of the coordinator (PBS, levels 2 and 3) • Gather technical specifications, total numbers, delivery schedule • Cost estimate from experts based on cost template • Provide preliminary levels 2 and 3 estimates (even when level 4 is not available) • Filling template for level 4 estimate based on input from experts • Archive the system filled templates in EDMS • Role of experts • Provide cost estimate input for the related system (PBS level 4) • Role of accountant, M. Draper • Put all the numbers together

  12. PBS levels 2 and 3 cost coordinators

  13. PBS level 4 experts

  14. PBS comparison CLIC ILC

  15. Cost & Schedule Future work • Schedule for PBS level 2 areas (K. Foraz) • Preparation of templates (coordinators) • Schedule information • Number of units • Filling of template (coordinators) with input from experts (archive in CERN EDMS structure) • Selected area estimates - 2-beam module to be ready by Jan 09- BDS based on ILC estimate • Full cost estimate to be ready by end of 09 • Tool development in 2009 (prototype by 2Q 09, final version by end of 09) • Continue exchange with ILC colleagues (next WEBEX this Thursday)

  16. ILC-CLIC cost & schedule WG

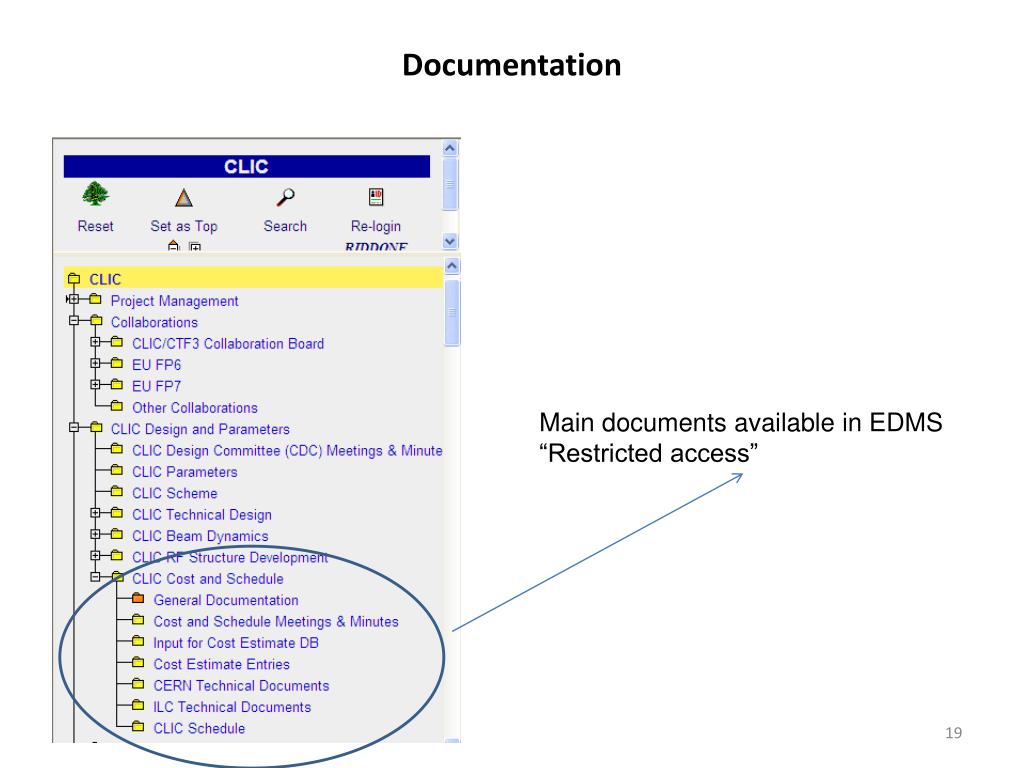

  17. Documentation Main documents available in EDMS “Restricted access”
