  1. I T Essentials I Chapter 7 JEOPARDY

  2. Printers Standards Printing Potpourri 1 Application 100 100 100 100 100 200 200 200 200 200 300 300 300 300 300 400 400 400 400 400 500 500 500 500 500

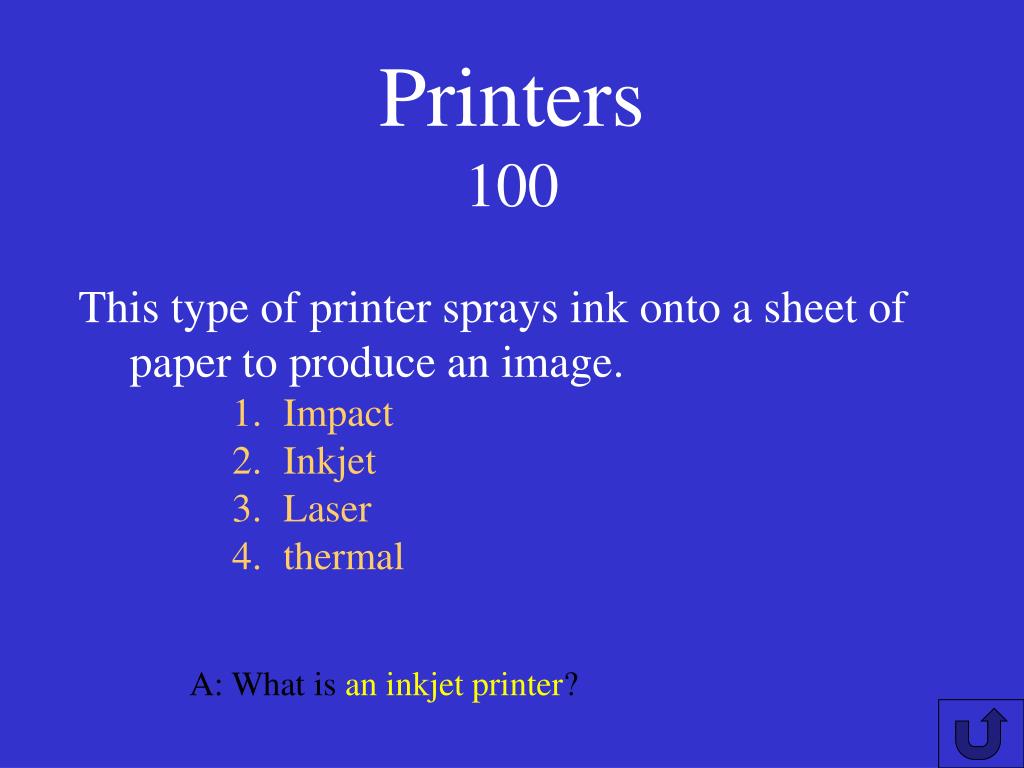

  3. Printers100 • This type of printer sprays ink onto a sheet of paper to produce an image. • Impact • Inkjet • Laser • thermal A: What is an inkjet printer?

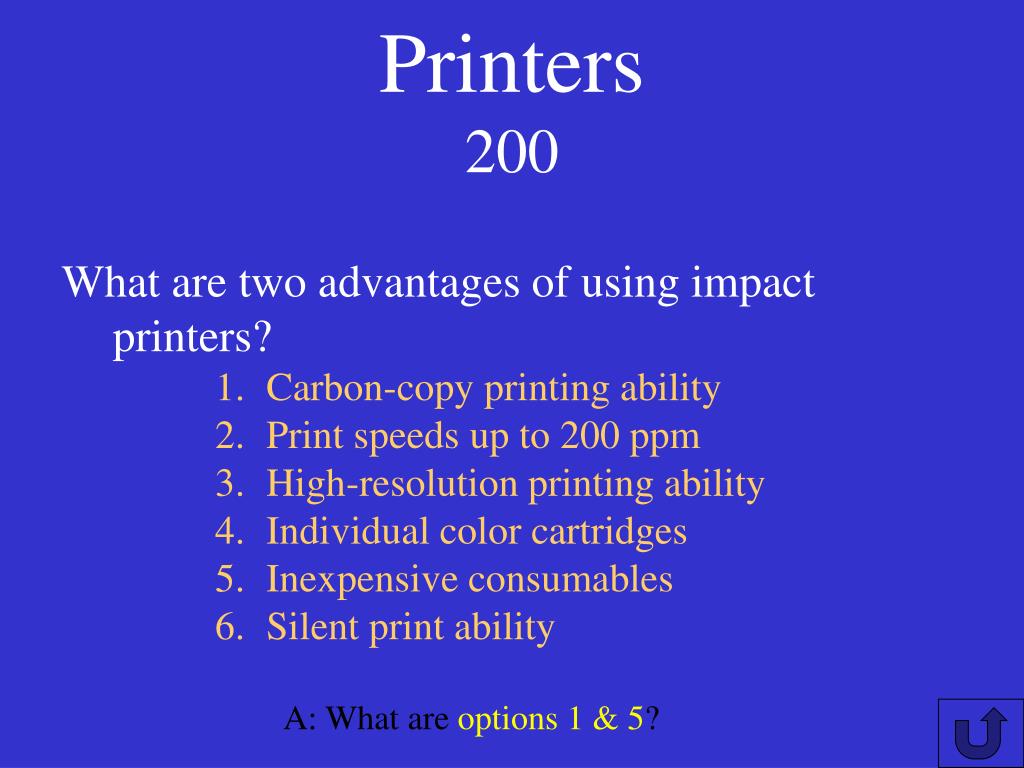

  4. Printers200 • What are two advantages of using impact printers? • Carbon-copy printing ability • Print speeds up to 200 ppm • High-resolution printing ability • Individual color cartridges • Inexpensive consumables • Silent print ability A: What are options 1 & 5?

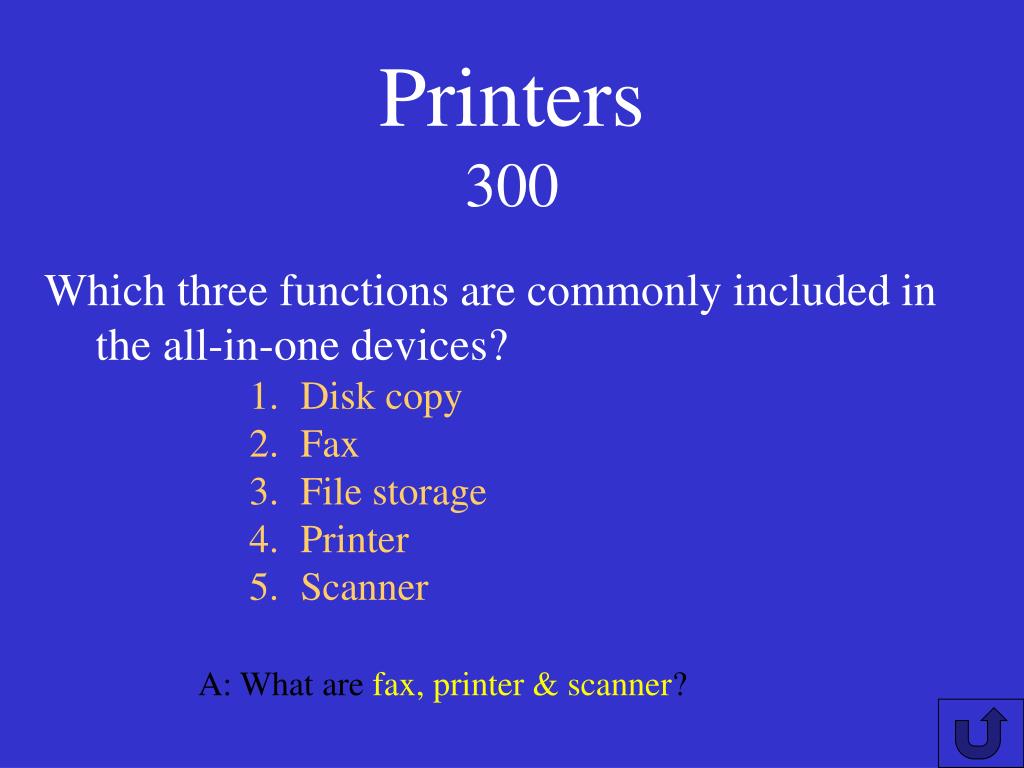

  5. Printers300 • Which three functions are commonly included in the all-in-one devices? • Disk copy • Fax • File storage • Printer • Scanner A: What are fax, printer & scanner?

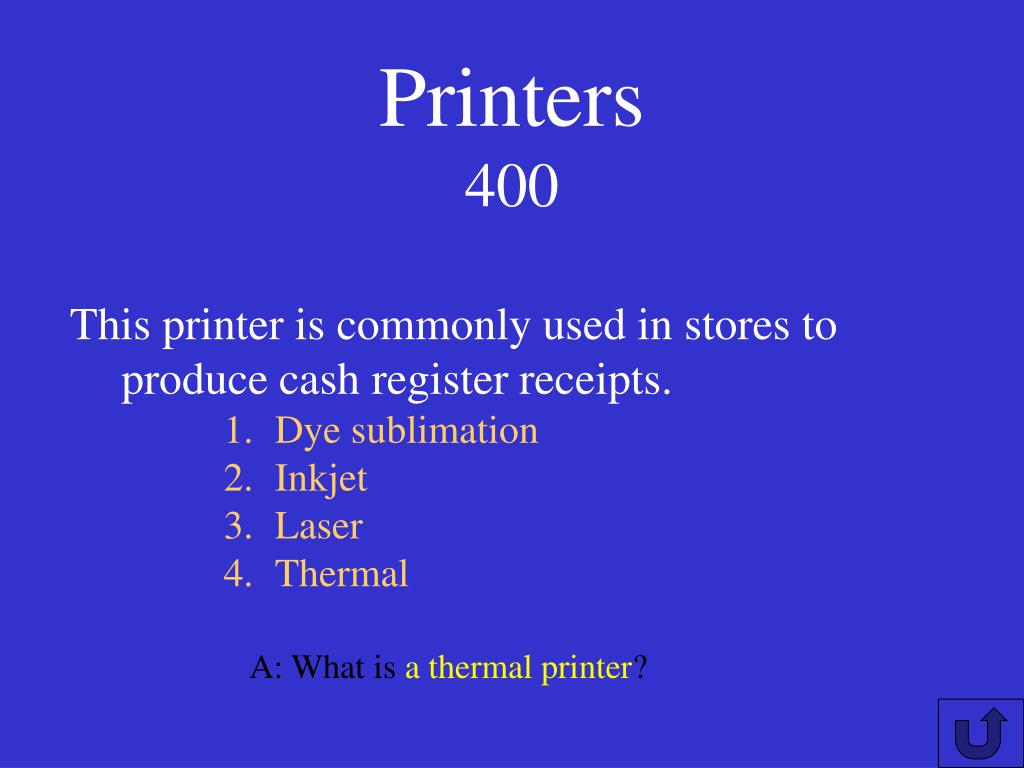

  6. Printers400 • This printer is commonly used in stores to produce cash register receipts. • Dye sublimation • Inkjet • Laser • Thermal A: What is a thermal printer?

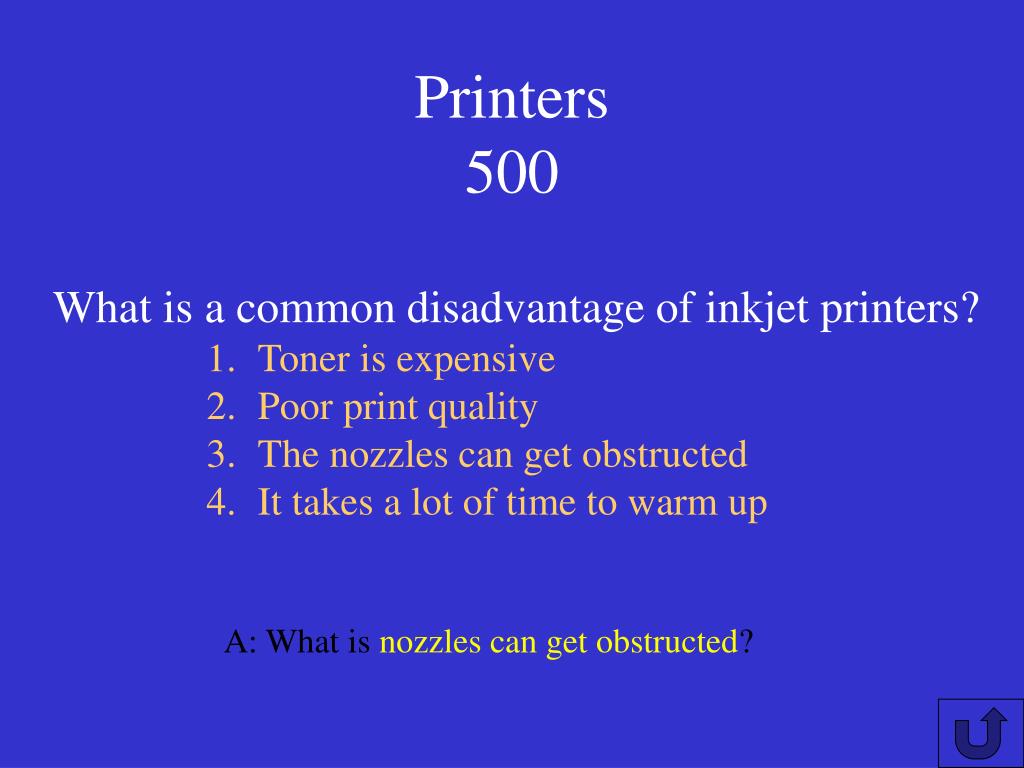

  7. Printers500 • What is a common disadvantage of inkjet printers? • Toner is expensive • Poor print quality • The nozzles can get obstructed • It takes a lot of time to warm up A: What is nozzles can get obstructed?

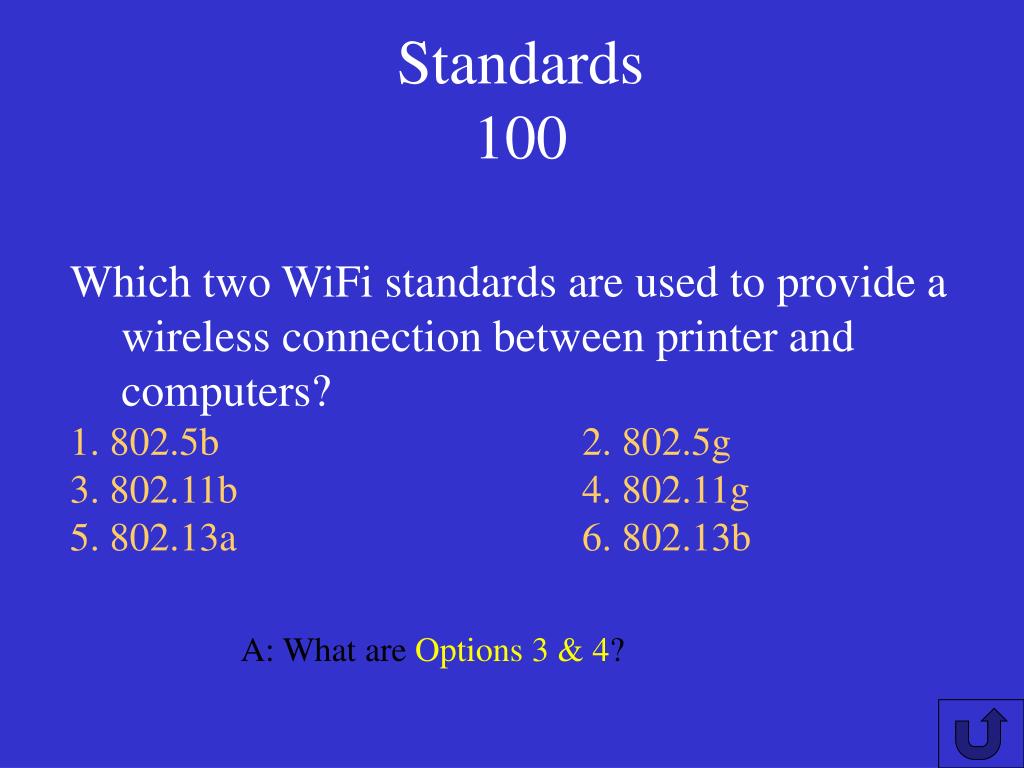

  8. Standards100 Which two WiFi standards are used to provide a wireless connection between printer and computers? 1. 802.5b 2. 802.5g 3. 802.11b 4. 802.11g 5. 802.13a 6. 802.13b A: What are Options 3 & 4?

  9. Standards200 • Which standard governs the use of parallel printer ports? • IEEE 973 • IEEE 1284 • IEEE 1394 • IEEE 802.4 A: What is IEEE 1284?

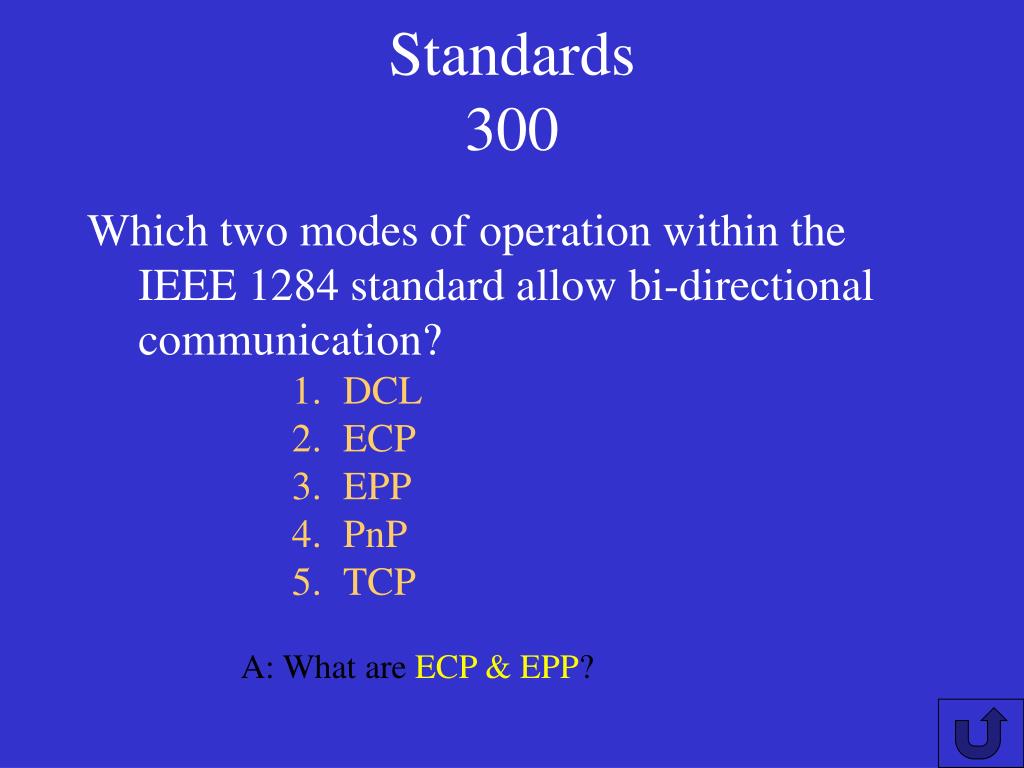

  10. Standards300 • Which two modes of operation within the IEEE 1284 standard allow bi-directional communication? • DCL • ECP • EPP • PnP • TCP A: What are ECP & EPP?

  11. Standards400 • Which two names refer to the IEEE 1394 standard? • Bluetooth • FireWire • i.Link • USB • WiFi A: What are FireWire & i.Link?

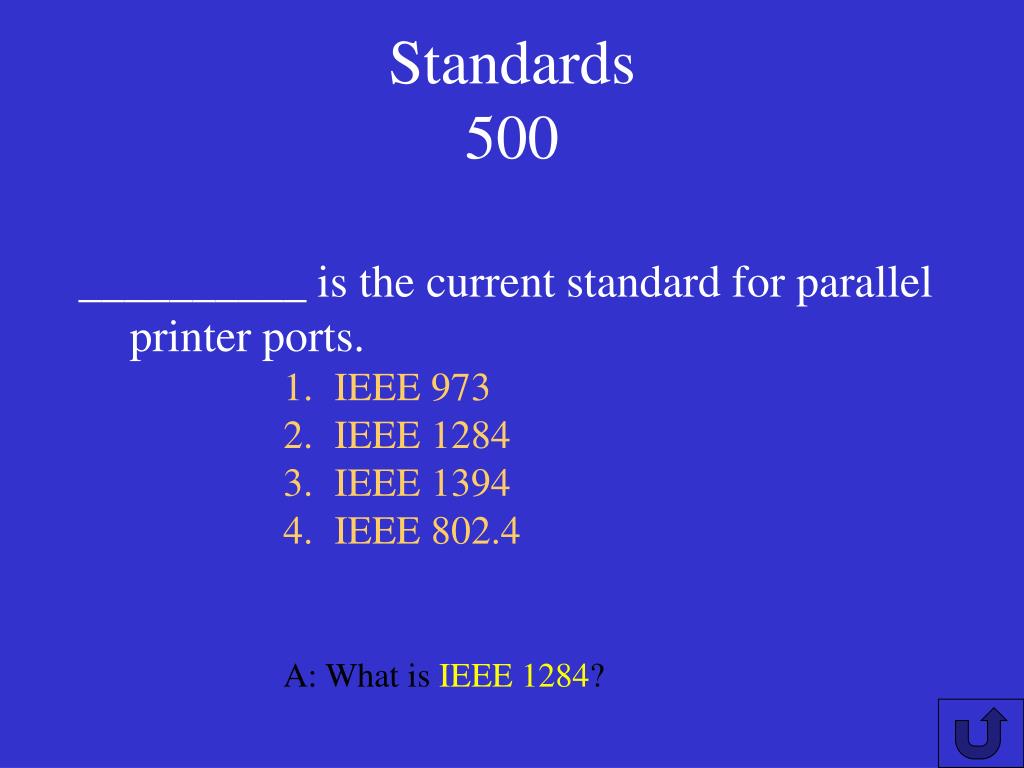

  12. Standards500 • __________ is the current standard for parallel printer ports. • IEEE 973 • IEEE 1284 • IEEE 1394 • IEEE 802.4 A: What is IEEE 1284?

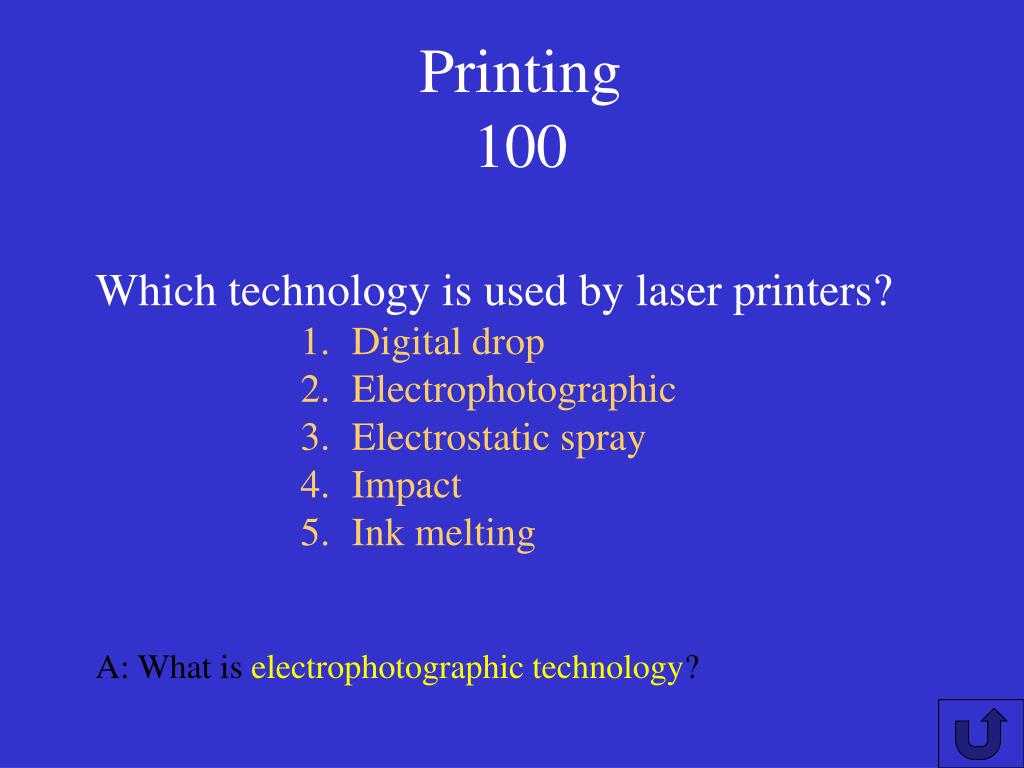

  13. Printing100 • Which technology is used by laser printers? • Digital drop • Electrophotographic • Electrostatic spray • Impact • Ink melting A: What is electrophotographic technology?

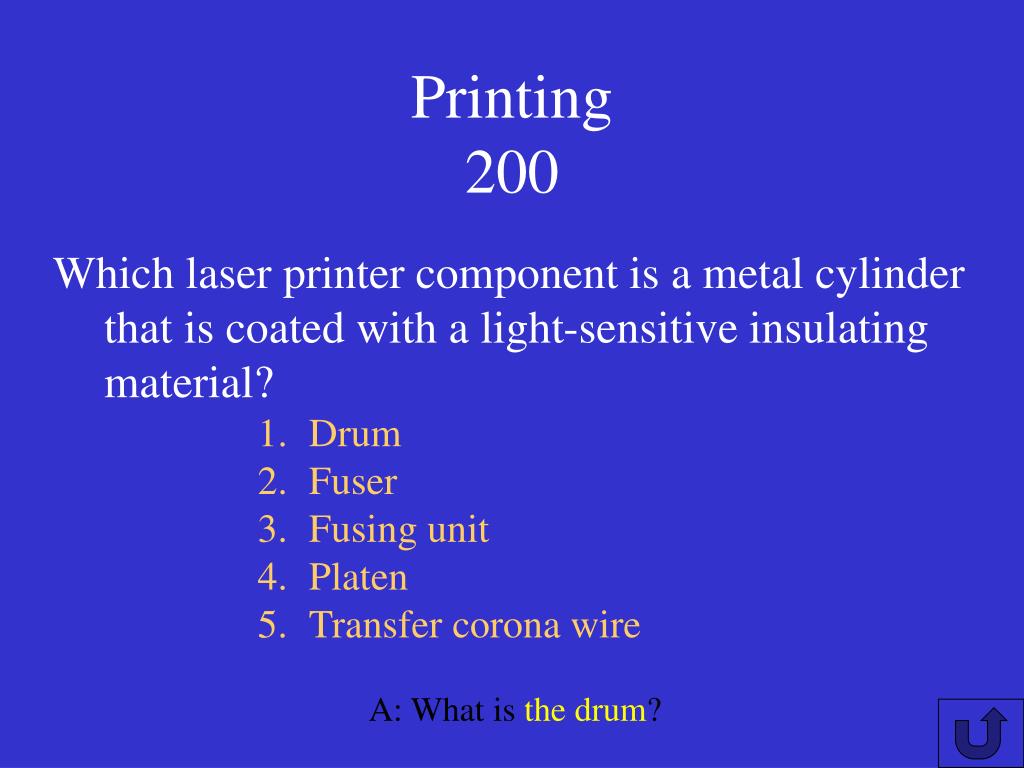

  14. Printing200 • Which laser printer component is a metal cylinder that is coated with a light-sensitive insulating material? • Drum • Fuser • Fusing unit • Platen • Transfer corona wire A: What is the drum?

  15. Printing300 • Which step of the laser printing process involves scanning the photosensitive drum with a laser? • Cleaning • Conditioning • Developing • Fusing • Transferring • Writing A: What is writing?

  16. Printing 400 • Which step in the laser printing process is the last step performed by a laser printer when printing a document? • 1.Cleaning 2. Conditioning • 3. Developing 4. Fusing • 5. Transferring 6. Writing A: What is fusing?

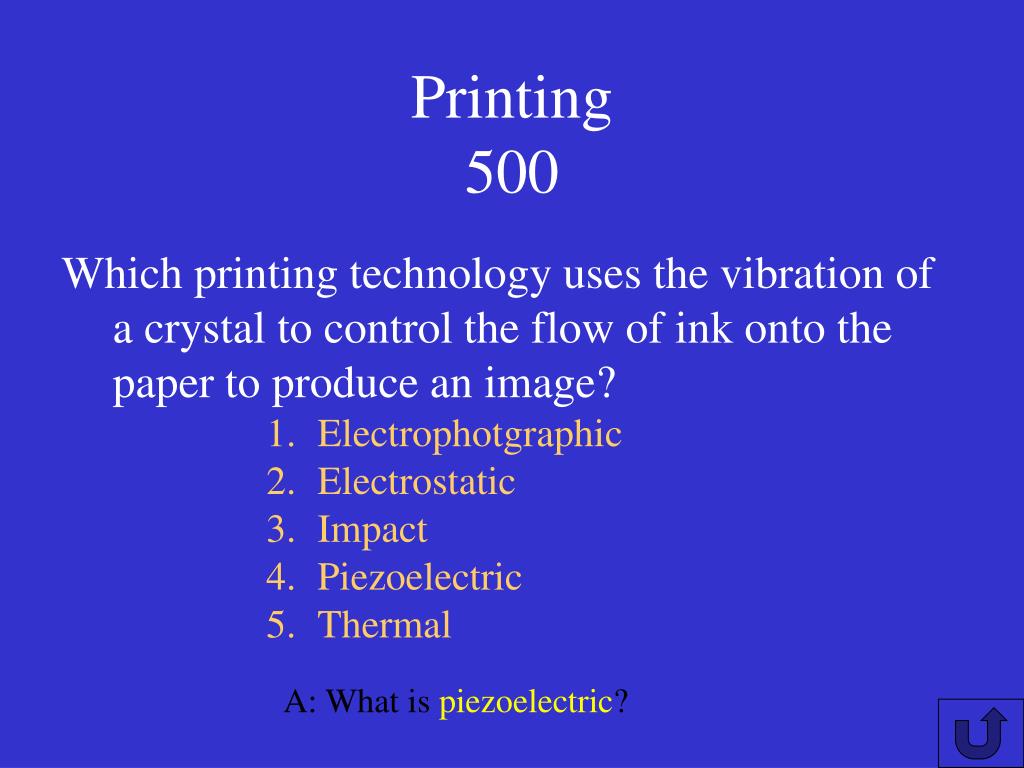

  17. Printing500 • Which printing technology uses the vibration of a crystal to control the flow of ink onto the paper to produce an image? • Electrophotgraphic • Electrostatic • Impact • Piezoelectric • Thermal A: What is piezoelectric?

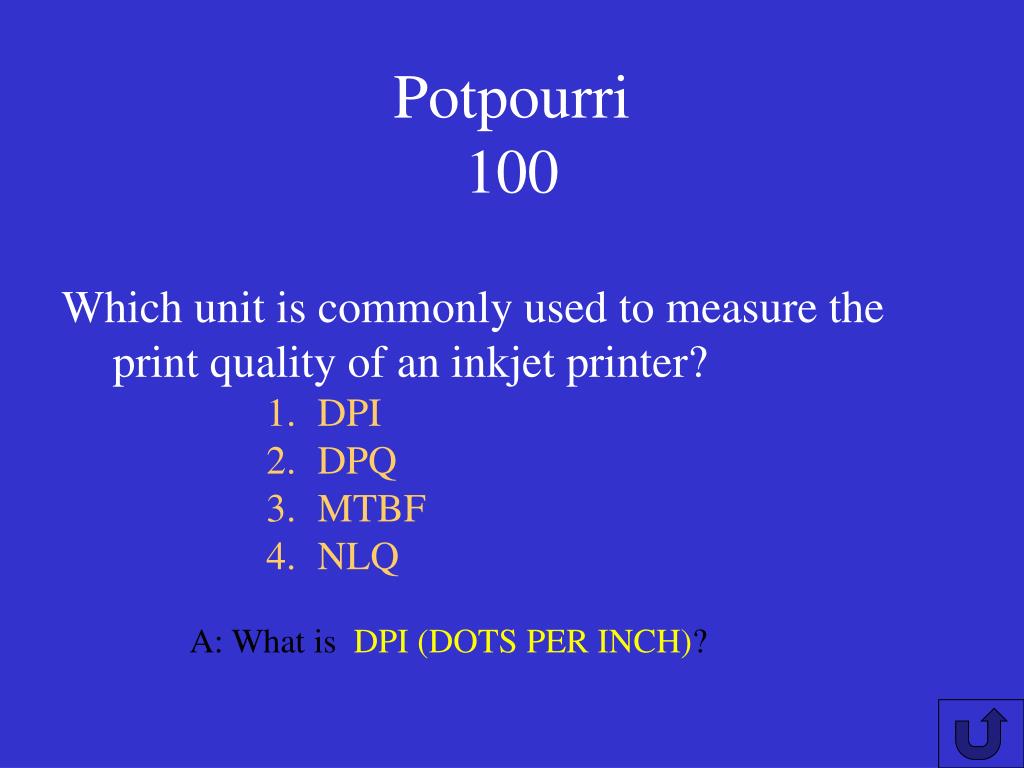

  18. Potpourri100 • Which unit is commonly used to measure the print quality of an inkjet printer? • DPI • DPQ • MTBF • NLQ A: What is DPI (DOTS PER INCH)?

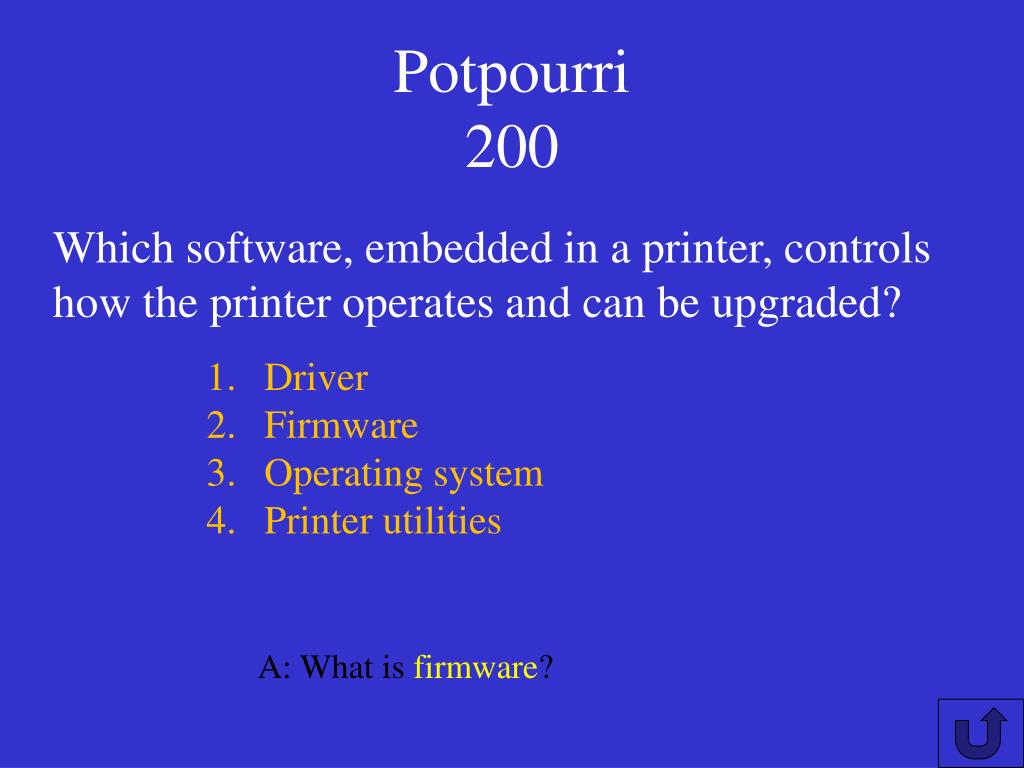

  19. Potpourri 200 • Which software, embedded in a printer, controls how the printer operates and can be upgraded? • Driver • Firmware • Operating system • Printer utilities A: What is firmware?

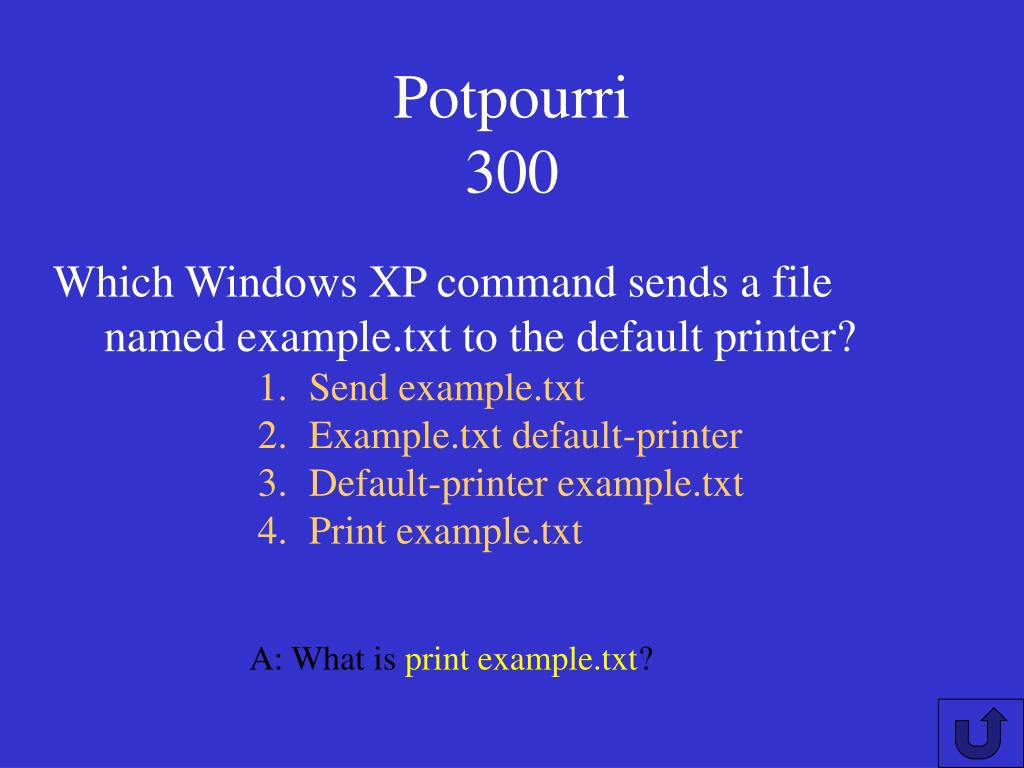

  20. Potpourri300 • Which Windows XP command sends a file named example.txt to the default printer? • Send example.txt • Example.txt default-printer • Default-printer example.txt • Print example.txt A: What is print example.txt?

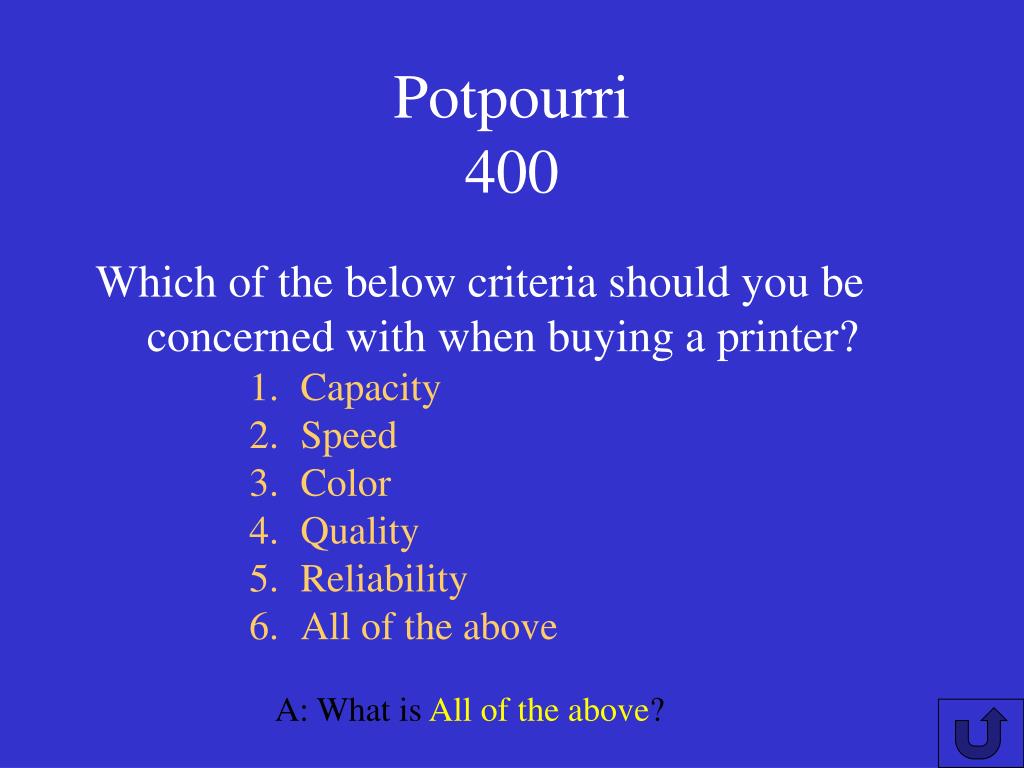

  21. Potpourri 400 • Which of the below criteria should you be concerned with when buying a printer? • Capacity • Speed • Color • Quality • Reliability • All of the above A: What is All of the above?

  22. Potpourri 500 • What is the maximum number of devices that can be connected to a single FireWire interface? • 10 • 24 • 63 • 127 • 256 A: What is 63?

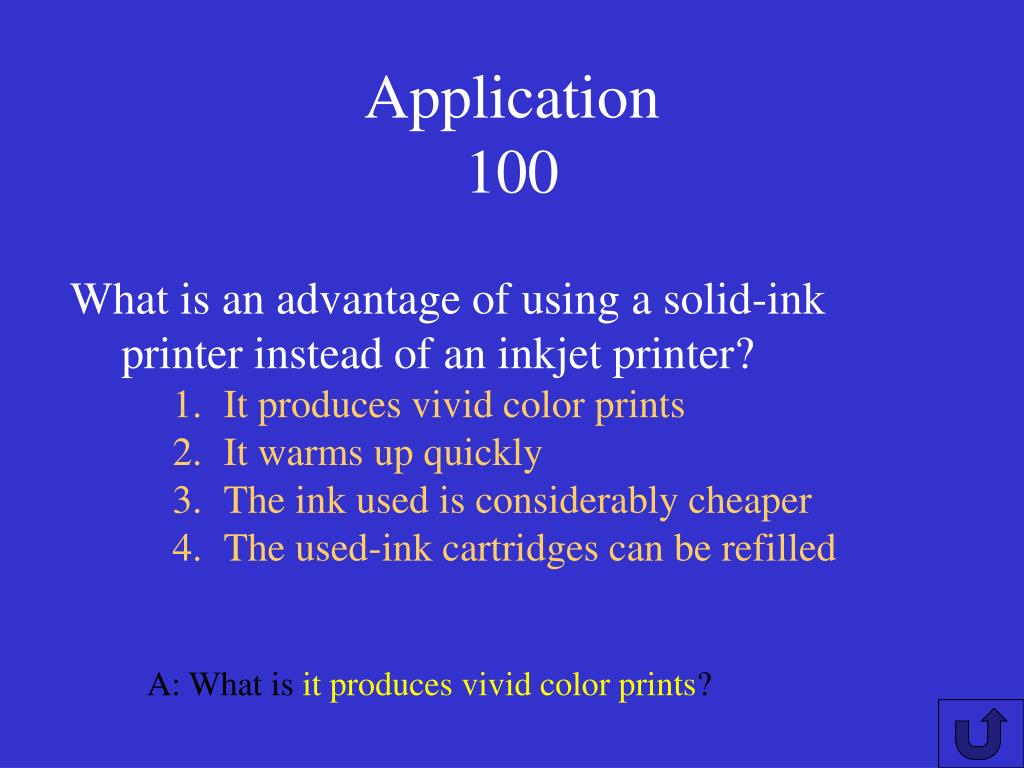

  23. Application 100 • What is an advantage of using a solid-ink printer instead of an inkjet printer? • It produces vivid color prints • It warms up quickly • The ink used is considerably cheaper • The used-ink cartridges can be refilled A: What is it produces vivid color prints?

  24. Application200 • What is the best source for a Window-compatible scanner driver? • Website for scanner manufacturer • Microsoft update website • Scanner installation disk • Windows device manager • Windows hardware profiles A: What is website for scanner manufacturer

  25. Application300 • Which software converts scanned pages into text? • Image text converter • Optical character recognition • Optical text recognition • Character image recognition A: What is optical character recognition?

  26. Application400 • A museum possesses several old painting that the curators wish to reproduce and sell in the museum gift shop. Which type of scanner can be used to produce the highest-quality reproduction? • All-in-one • Drum • Flatbed • Handheld A: What is drum?

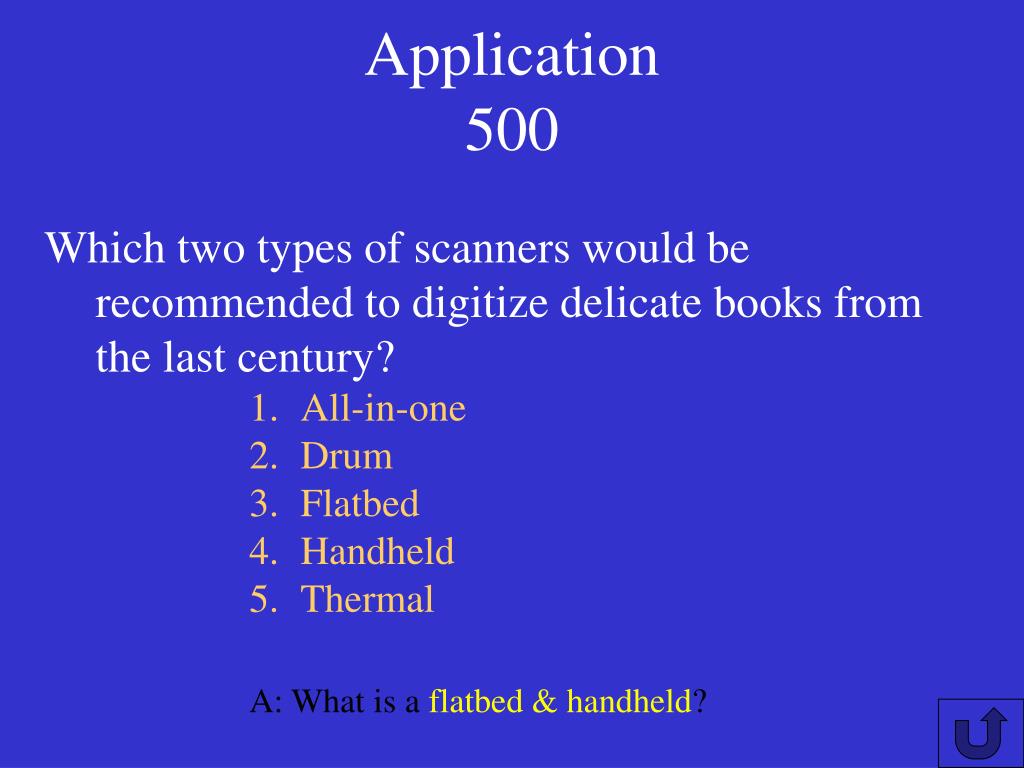

  27. Application500 • Which two types of scanners would be recommended to digitize delicate books from the last century? • All-in-one • Drum • Flatbed • Handheld • Thermal A: What is a flatbed & handheld?

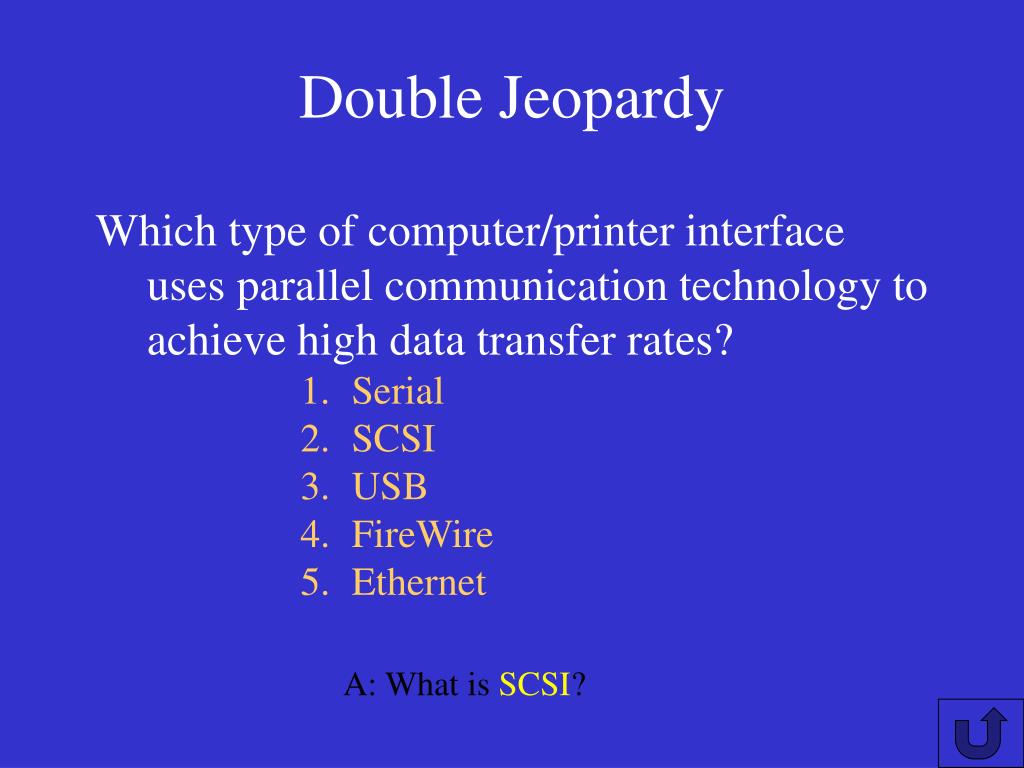

  28. Double Jeopardy • Which type of computer/printer interface uses parallel communication technology to achieve high data transfer rates? • Serial • SCSI • USB • FireWire • Ethernet A: What is SCSI?

  29. Double Jeopardy Subject: Interfaces
