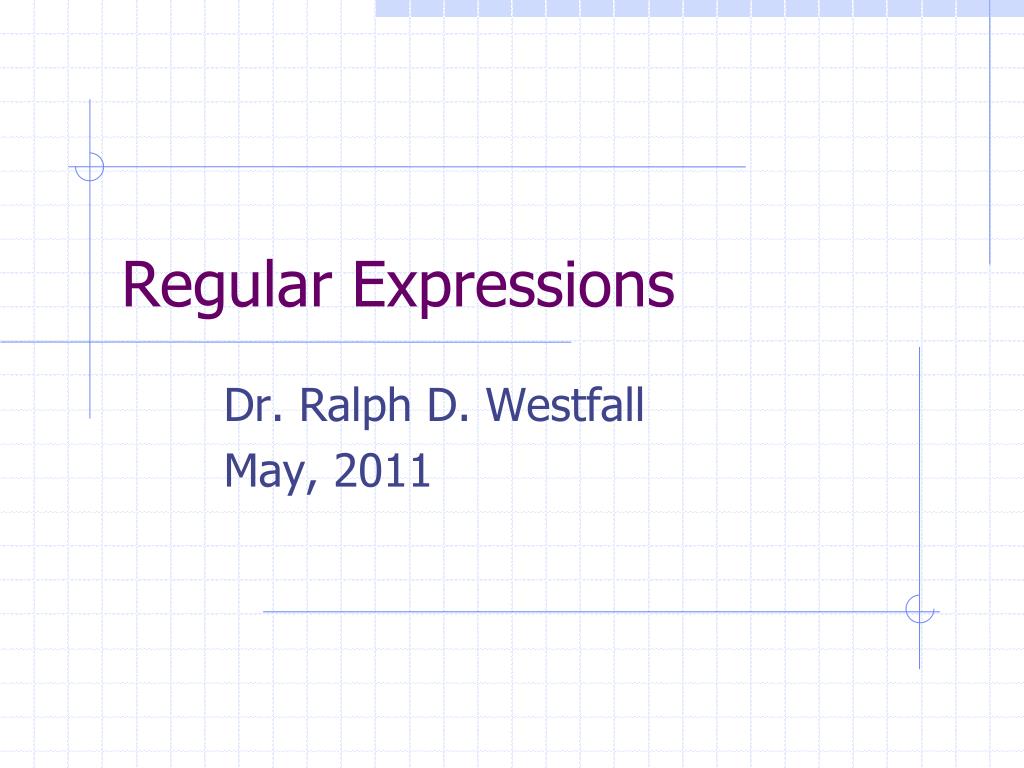

  1. Regular Expressions Dr. Ralph D. Westfall May, 2011

  2. RegEx Object • what does it do? • finds patterns in text • specific strings (all characters identified) • strings with "wild cards" (any character) • strings with certain characters, not others • how could it be used in VB.NET? • validating inputs on an input form e.g., • email addresses, telephone #s, etc. • searching the content of a large database

  3. Regular Expressions • based on the idea of wild cards • .e.g., dir s*.doc in DOS/Windows finds any .doc file starting with s, followed by any other character(s) • find much more complicated patterns • e.g., any of a specified list of characters rather than just one or all possibilities • e.g., any character except ones in a list

  4. Regular Expression Object • put import statement at top of code, just below Option Strict on Imports System.Text.RegularExpressions • create a regular expression object • Dim reg as Regex • reg = New Regex("[pattern]") • need to create a Regex with a pattern (can't add one later)

  5. VB.NET RegEx Special Characters • . ba. finds bat, bal, bac • period matches any single character • ? bottles? finds bottle and bottles • 0 or 1 of what is before the ? • [0-9] finds 0, 1, … or 9 • any 1 character in specified range • + to+ finds to and too • 1 or more of what is before + • {#} b{2} finds any bb • # = number of preceding matches

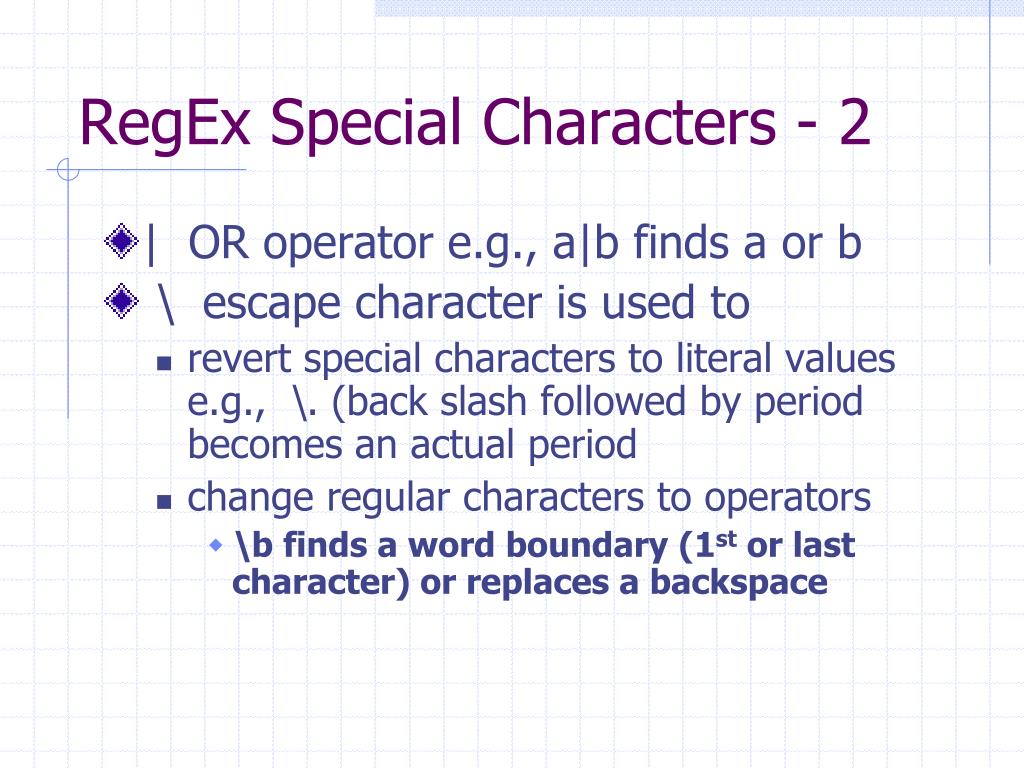

  6. RegEx Special Characters - 2 • | OR operator e.g., a|b finds a or b • \ escape character is used to • revert special characters to literal values e.g., \. (back slash followed by period becomes an actual period • change regular characters to operators • \b finds a word boundary (1st or last character) or replaces a backspace

  7. Combining Operators • can group character sequences • [a-z]{3} finds 3-letter lower case words • [0-9]{4}( |-)? finds any 4 #s • followed by space or dash or neither • (could use in credit card validation)

  8. Regular Expression Methods • reg.IsMatch([string to search]) • returns true if pattern is found in string • reg.Match([string to search]) • returns a match object each time pattern is found (use ToString to get object value) • reg.Replace([string1, string2]) • replaces every occurrence of string1 with string2‘Notes

  9. Regular Expression Match Object • can tell if a match was found • can also return the matching string • usually don't need the whole string, just want the matching part mach = reg.Match([string to search]) 'returns match object wherever pattern is found If mach.Success Then strZip = mach.ToString

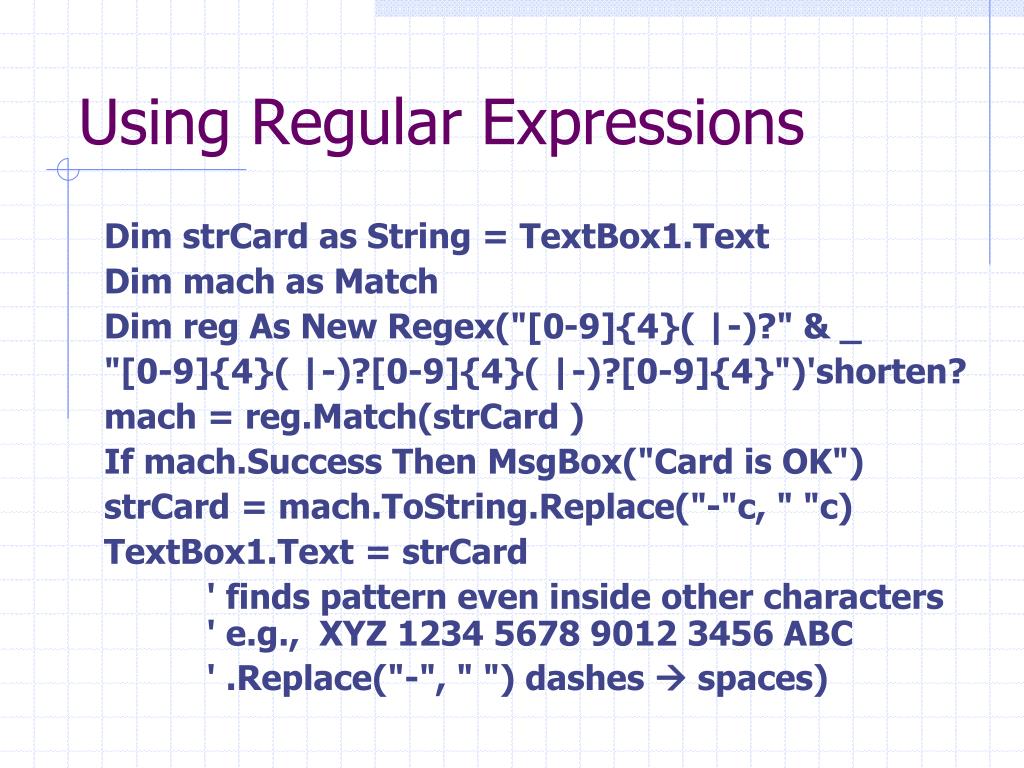

  10. Using Regular Expressions Dim strCard as String = TextBox1.Text Dim mach as Match Dim reg As New Regex("[0-9]{4}( |-)?" & _ "[0-9]{4}( |-)?[0-9]{4}( |-)?[0-9]{4}")'shorten? mach = reg.Match(strCard ) If mach.Success Then MsgBox("Card is OK") strCard = mach.ToString.Replace("-"c, " "c) TextBox1.Text = strCard ' finds pattern even inside other characters ' e.g., XYZ 1234 5678 9012 3456 ABC ' .Replace("-", " ") dashes  spaces)

  11. Warning • a regular expression may say a String is OK even if there are other characters around it e.g., so need to extract match from original String (other processing?) • Dim strCard as String • Dim ok as Boolean • strCard = "XYZ1234-4323-9876-6543XYZ" • ok = reg.IsMatch(strCard) 'credit card • If ok Then 'pattern • MsgBox(strCard & " is OK") • End If

  12. Extracting Matches from Strings • can use .Match() function to separate matching part from other characters around it e.g., • Dim strCard as String • strCard = "XYZ1234-4323-9876-6543XYZ" • If reg.IsMatch(strCard) Then • MsgBox(reg.Match(strCard).ToString & "is OK") • End If

  13. More Regular Expressions Info • Regular Expressions in .Net • JavaScript Regular Expressions Tester • A Better .NET Regular Expression Tester • Tee-Shirts, etc. (language alert)

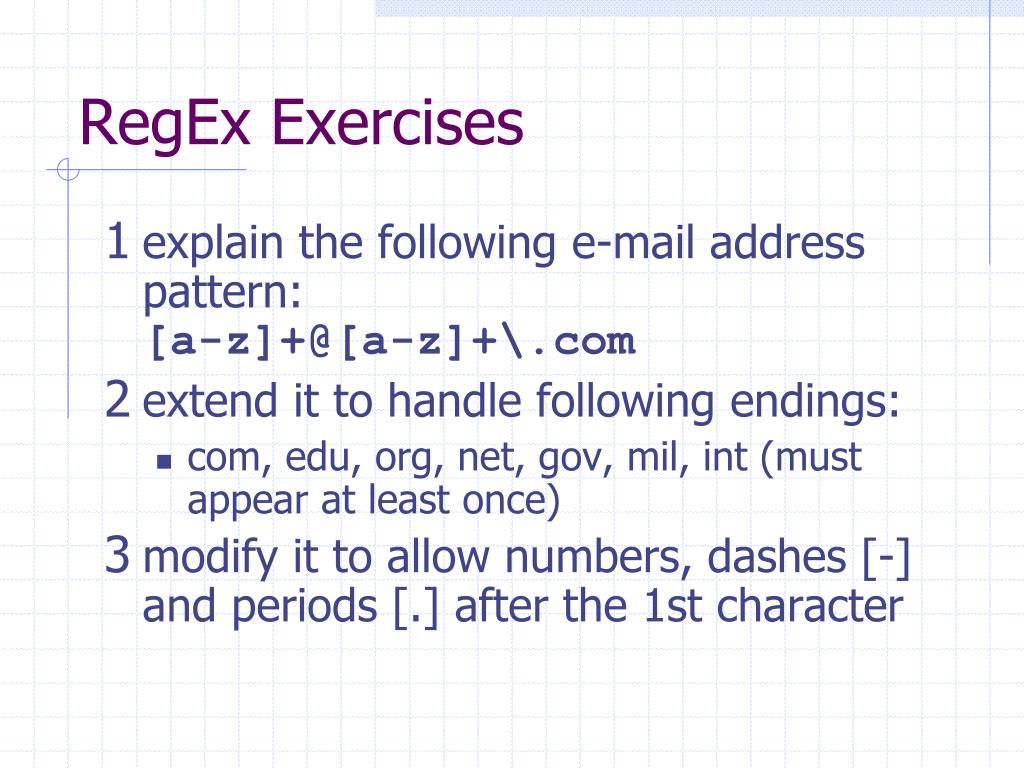

  14. RegEx Exercises • explain the following e-mail address pattern: [a-z]+@[a-z]+\.com • extend it to handle following endings: • com, edu, org, net, gov, mil, int (must appear at least once) • modify it to allow numbers, dashes [-] and periods [.] after the 1st character

  15. RegEx Exercises - 2 • create patterns to validate • zip codes both as 5-digit and Zip + 4 • e.g., 90702 or 90702-7934 • phone #s (intnl., long distance, and local) • Social Security #s 123-45-6789 (or spaces) • Cal Poly student ID numbers • names (including middle initial, von, de, etc.) • course #s (CIS, EBZ, CS; 1xx-4xx, etc.)

  16. RegEx Exercises - 3 • test text or files samples against regular expressions at Regular Expression Library's tester page and report back, using regular expressions • from previous pages in this PowerPoint • others that you make up • search for examples from Regular Expression Library

  17. RegEx Exercises - 4 • use Regular Expression Library's tester page to Load a Data Source from a URL and find data in the web page using a regular expression that you specify • and/or find free (trial) software that will do the same thing
