ecs150 Fall 2007 : Operating System #4: Memory Management (chapter 5)

1. ecs150 Fall 2007:Operating System#4: Memory Management(chapter 5) Dr. S. Felix Wu Computer Science Department University of California, Davis http://www.cs.ucdavis.edu/~wu/ sfelixwu@gmail.com ecs150, Fall 2007

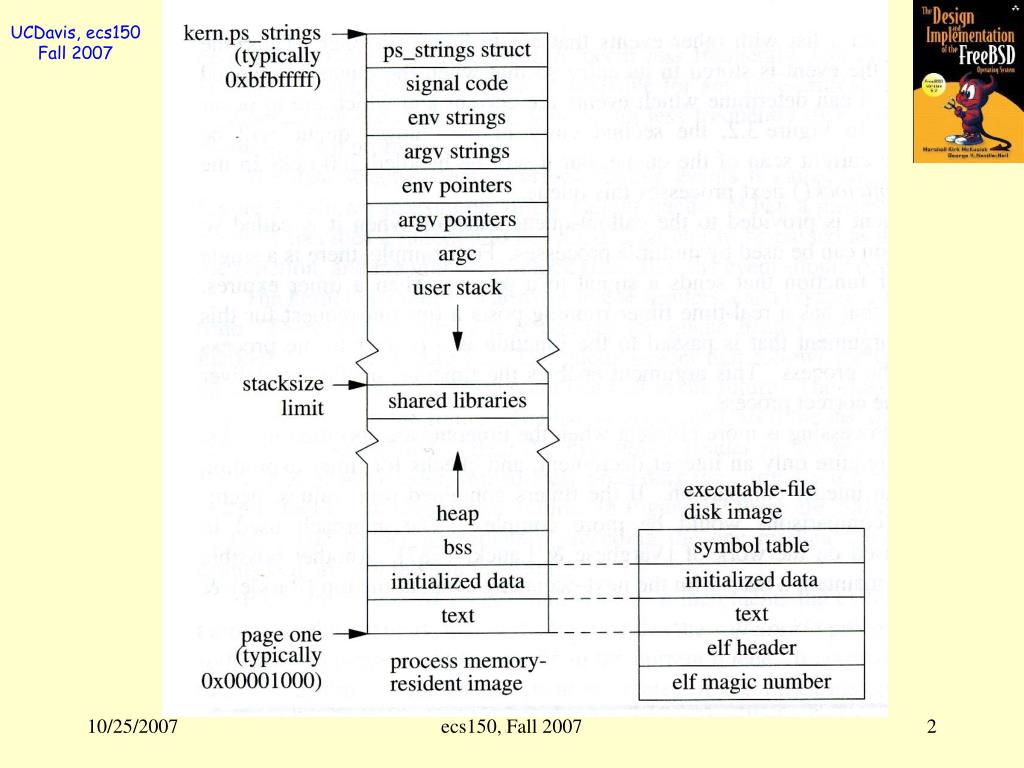

2. ecs150, Fall 2007

3. text data BSS user stack args/env kernel Modified (dirty) pages are pushed to backing store (swap) on eviction. file volume with executable programs data Fetches for clean text or data are typically fill-from-file. Paged-out pages are fetched from backing store when needed. Initial references to user stack and BSS are satisfied by zero-fill on demand. ecs150, Fall 2007

4. Logical vs. Physical Address • The concept of a logical address space that is bound to a separate physicaladdress space is central to proper memory management. • Logical address – generated by the CPU; also referred to as virtual address. • Physical address – address seen by the memory unit. • Logical and physical addresses are the same in compile-time and load-time address-binding schemes; logical (virtual) and physical addresses differ in execution-time address-binding scheme. ecs150, Fall 2007

5. Memory-Management Unit (MMU) CPU • Hardware device that maps virtual to physical address. • In MMU scheme, the value in the relocation register is added to every address generated by a user process at the time it is sent to memory. • The user program deals with logical addresses; it never sees the real physical addresses. Virtual address MMU Data Physical address Memory ecs150, Fall 2007

6. Paging: Page and Frame • Logical address space of a process can be noncontiguous; process is allocated physical memory whenever the latter is available. • Divide physical memory into fixed-sized blocks called frames(size is power of 2, between 512 bytes and 8192 bytes). • Divide logical memory into blocks of same size called pages. • Keep track of all free frames. • To run a program of size n pages, need to find n free frames and load program. • Set up a page table to translate logical to physical addresses. • Internal fragmentation. ecs150, Fall 2007

7. frames ecs150, Fall 2007

8. Address Translation Architecture ecs150, Fall 2007

9. Address Translation Scheme • Address generated by CPU is divided into: • Page number(p) – used as an index into a pagetable which contains base address of each page in physical memory. • Page offset(d) – combined with base address to define the physical memory address that is sent to the memory unit. ecs150, Fall 2007

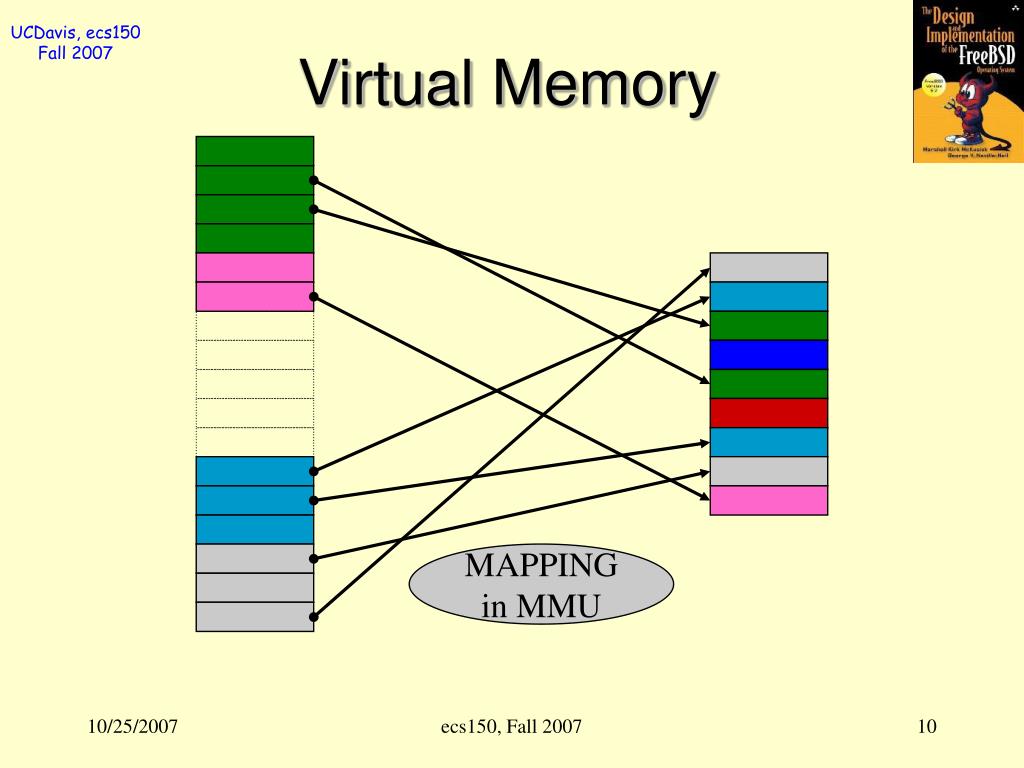

10. MAPPING in MMU Virtual Memory ecs150, Fall 2007

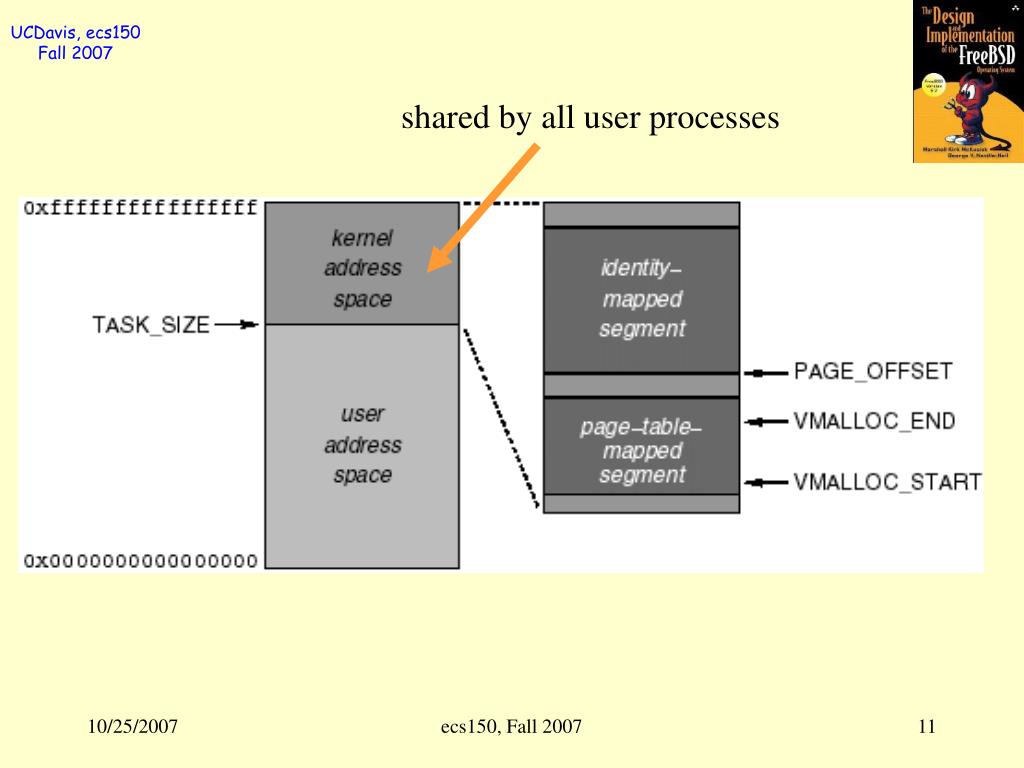

11. shared by all user processes ecs150, Fall 2007

12. kernel ecs150, Fall 2007

13. ecs150, Fall 2007

14. virtual memory (big) physical memory (small) backing storage executable file text data BSS header pageout/eviction text user stack data idata data args/env wdata kernel symbol table, etc. page fetch program sections physical page frames process segments MAPPING in MMU virtual-to-physical translations How to represent  ecs150, Fall 2007

15. Paging • Advantages? • Disadvantages? ecs150, Fall 2007

16. Fragmentation • External Fragmentation – total memory space exists to satisfy a request, but it is not contiguous. • Internal Fragmentation – allocated memory may be slightly larger than requested memory; this size difference is memory internal to a partition, but not being used. • Reduce external fragmentation by compaction • Shuffle memory contents to place all free memory together in one large block. • Compaction is possible only if relocation is dynamic, and is done at execution time. • I/O problem • Latch job in memory while it is involved in I/O. • Do I/O only into OS buffers. ecs150, Fall 2007

17. Page size? Page Table Size? ecs150, Fall 2007

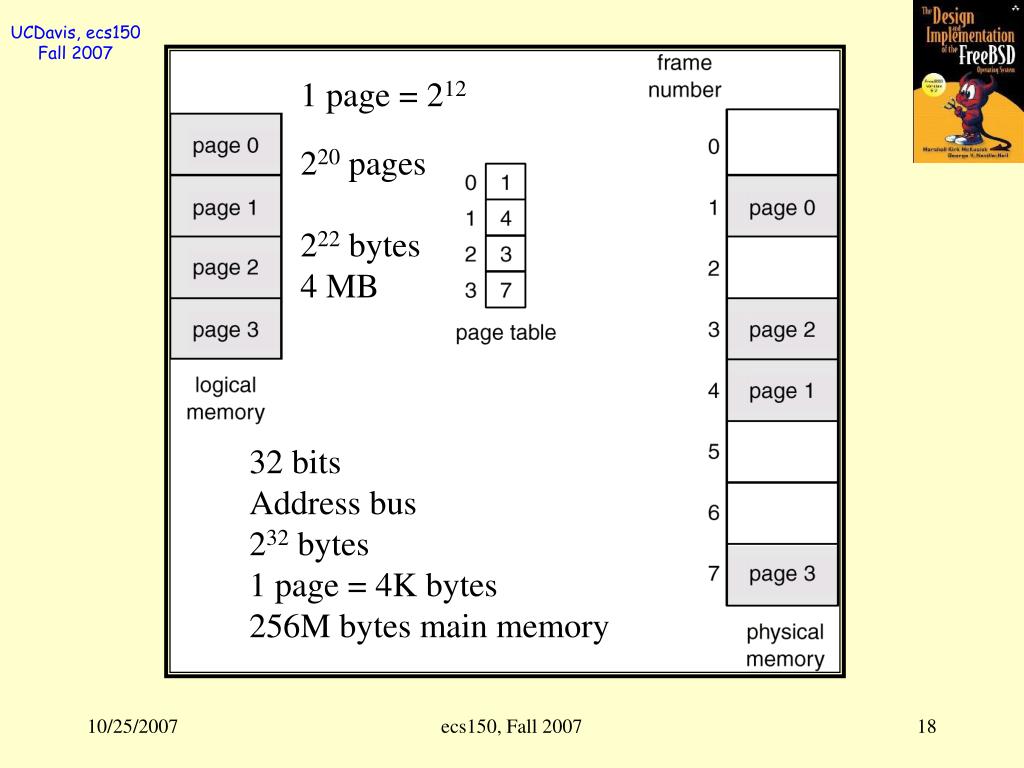

18. 1 page = 212 220 pages 222 bytes 4 MB 32 bits Address bus 232 bytes 1 page = 4K bytes 256M bytes main memory ecs150, Fall 2007

19. Page Table Entry referenced modified present/absent caching disabled protection page frame number ecs150, Fall 2007

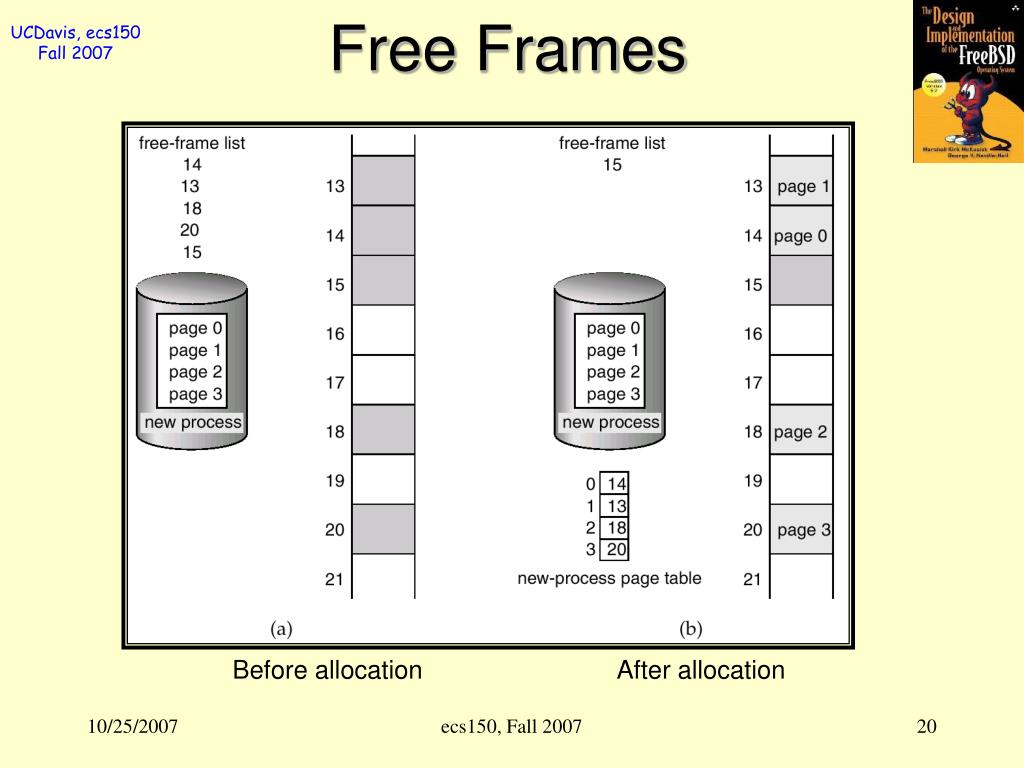

20. Free Frames Before allocation After allocation ecs150, Fall 2007

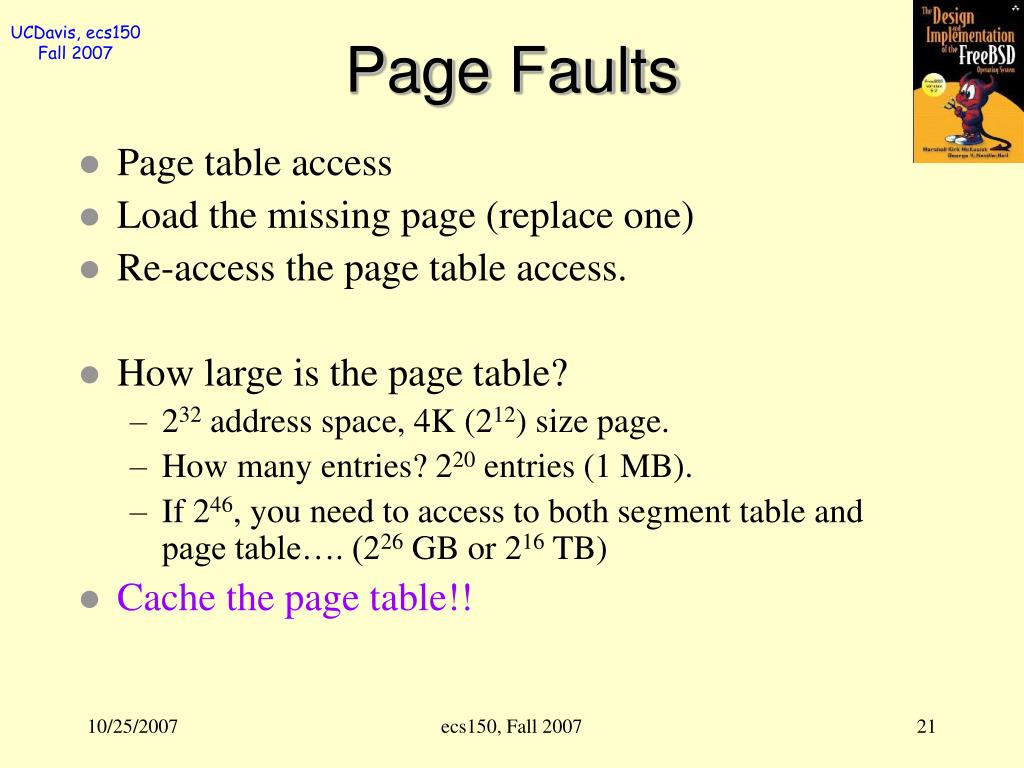

21. Page Faults • Page table access • Load the missing page (replace one) • Re-access the page table access. • How large is the page table? • 232 address space, 4K (212) size page. • How many entries? 220 entries (1 MB). • If 246, you need to access to both segment table and page table…. (226 GB or 216 TB) • Cache the page table!! ecs150, Fall 2007

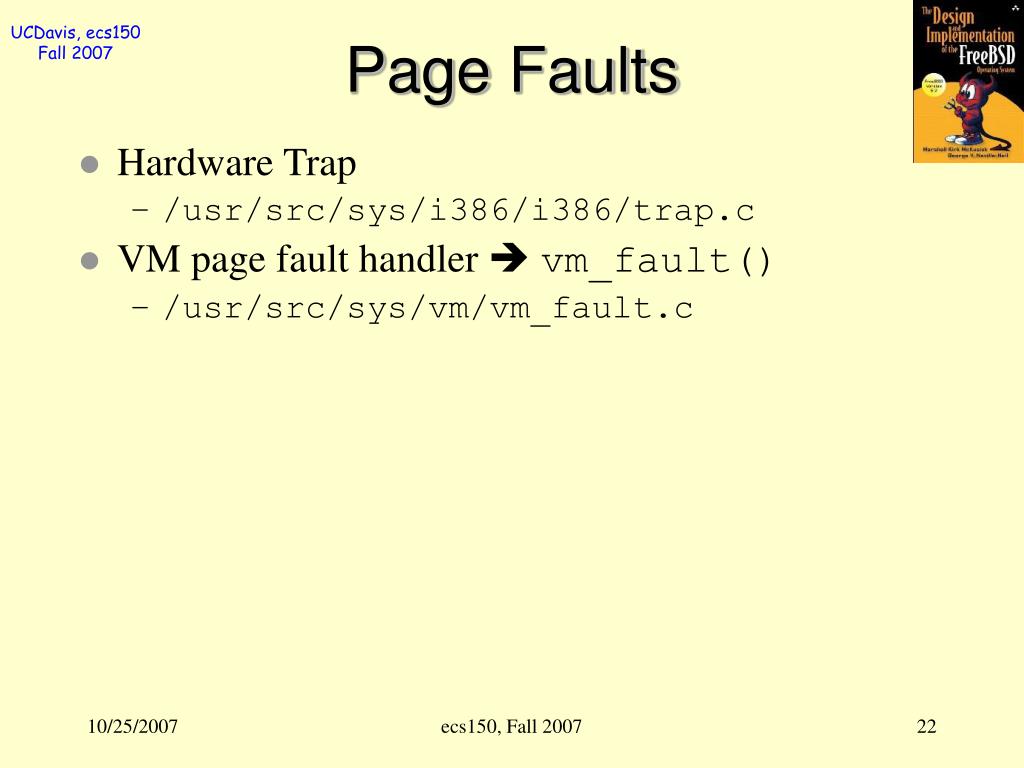

22. Page Faults • Hardware Trap • /usr/src/sys/i386/i386/trap.c • VM page fault handler  vm_fault() • /usr/src/sys/vm/vm_fault.c ecs150, Fall 2007

23. /usr/src/sys/vm/vm_map.h On the hard disk or Cache – Page Faults How to implement? ecs150, Fall 2007

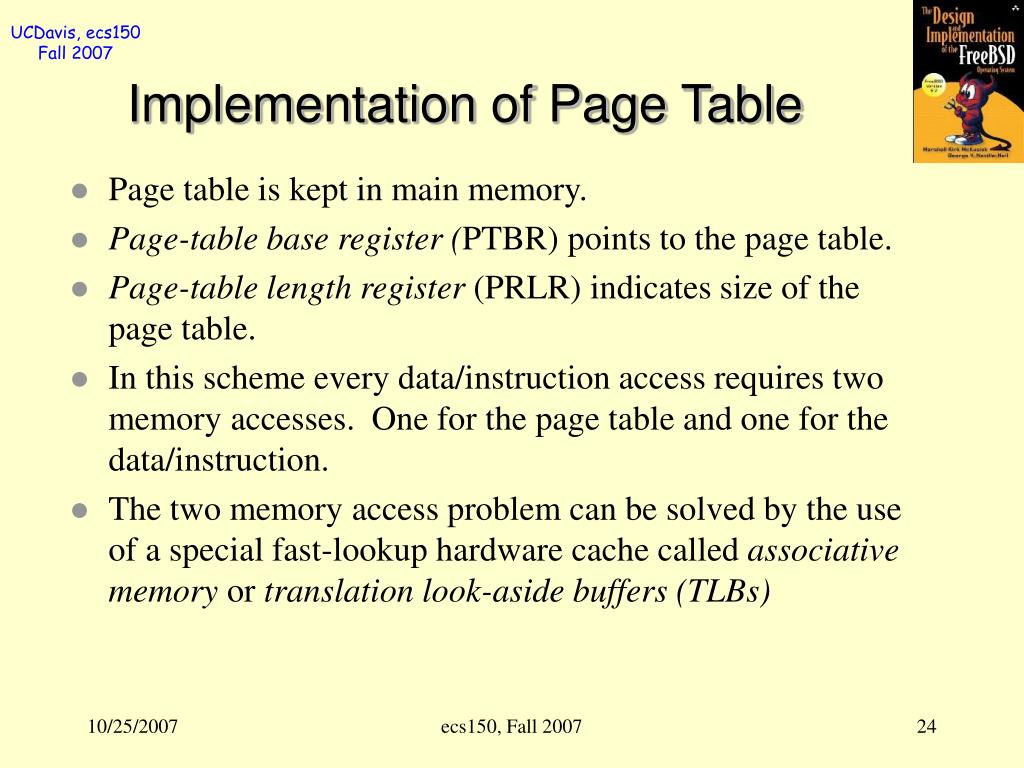

24. Implementation of Page Table • Page table is kept in main memory. • Page-tablebase register (PTBR) points to the page table. • Page-table length register (PRLR) indicates size of the page table. • In this scheme every data/instruction access requires two memory accesses. One for the page table and one for the data/instruction. • The two memory access problem can be solved by the use of a special fast-lookup hardware cache called associative memory or translation look-aside buffers(TLBs) ecs150, Fall 2007

25. Two Issues • Virtual Address Access Overhead • The size of the page table ecs150, Fall 2007

26. TLB (Translation Lookaside Buffer) • Associative Memory: • expensive, but fast -- parallel searching • TLB: select a small number of page table entries and store them in TLB virt-page modified protection page frame 140 1 RW 31 20 0 RX 38 130 1 RW 29 129 1 RW 62 ecs150, Fall 2007

27. Associative Memory • Associative memory – parallel search Address translation (A´, A´´) • If A´ is in associative register, get frame # out. • Otherwise get frame # from page table in memory Page # Frame # ecs150, Fall 2007

28. ecs150, Fall 2007

29. Paging Hardware With TLB TLB Miss Versus Page Fault ecs150, Fall 2007

30. Hardware or Software • TLB is part of MMU (hardware): • Automated page table entry (pte) update • OS handling TLB misses • Why software???? • Reduce HW complexity • Flexibility in Paging/TLB content management for different applications ecs150, Fall 2007

31. Inverted Page Table • 264 address space with 4K pages • page table: 252 ~ 1 million gigabytes ecs150, Fall 2007

32. Inverted Page Table (iPT) • 264 address space with 4K pages • page table: 252 ~ 1 million gigabytes • One entry per one page of real memory. • 128 MB with 4K pages ==> 214 entries • Disadvantage: • For every memory access, we need to search for the whole paging hash list. ecs150, Fall 2007

33. Page Table ecs150, Fall 2007

34. Inverted Page Table ecs150, Fall 2007

35. ecs150, Fall 2007

36. Brainstorming • How to design an “inverted page table” such that we can do it “faster”? ecs150, Fall 2007

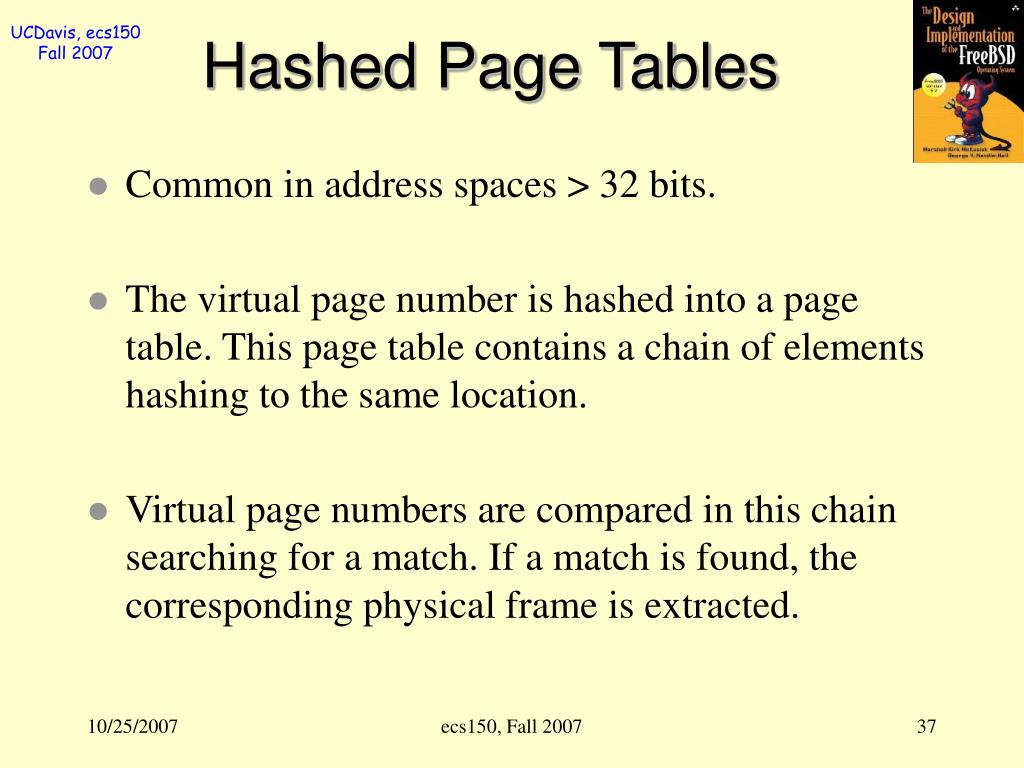

37. Hashed Page Tables • Common in address spaces > 32 bits. • The virtual page number is hashed into a page table. This page table contains a chain of elements hashing to the same location. • Virtual page numbers are compared in this chain searching for a match. If a match is found, the corresponding physical frame is extracted. ecs150, Fall 2007

38. Hash virtual page# virtual page# physical page# ecs150, Fall 2007

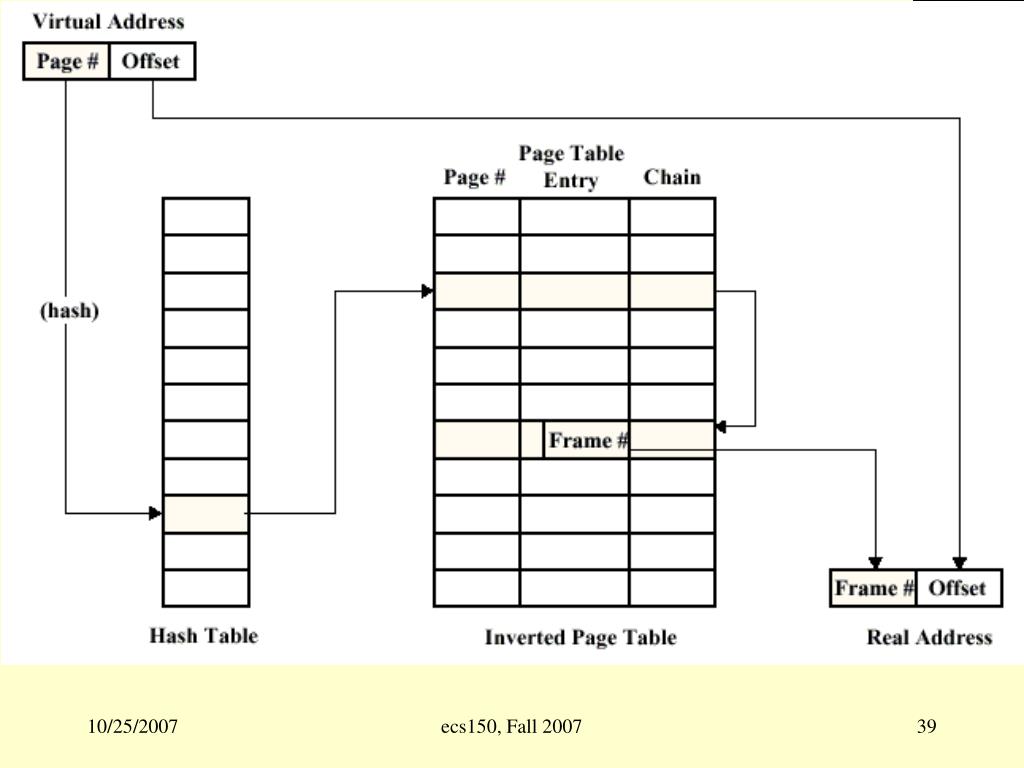

39. ecs150, Fall 2007

40. iPT/Hash Performance Issues • still do TLB (hw/sw) • if we can hit the TLB, we do NOT need to access the iPT and hash. • caching the iPT and/or Hash Table?? • any benefits under regular on-demand caching schemes? • hardware support for iPT/Hash ecs150, Fall 2007

41. TLB (Translation Lookaside Buffer) • Associative Memory: • expensive, but fast -- parallel searching • TLB: select a small number of page table entries and store them in TLB virt-page modified protection page frame 140 1 RW 31 20 0 RX 38 130 1 RW 29 129 1 RW 62 ecs150, Fall 2007

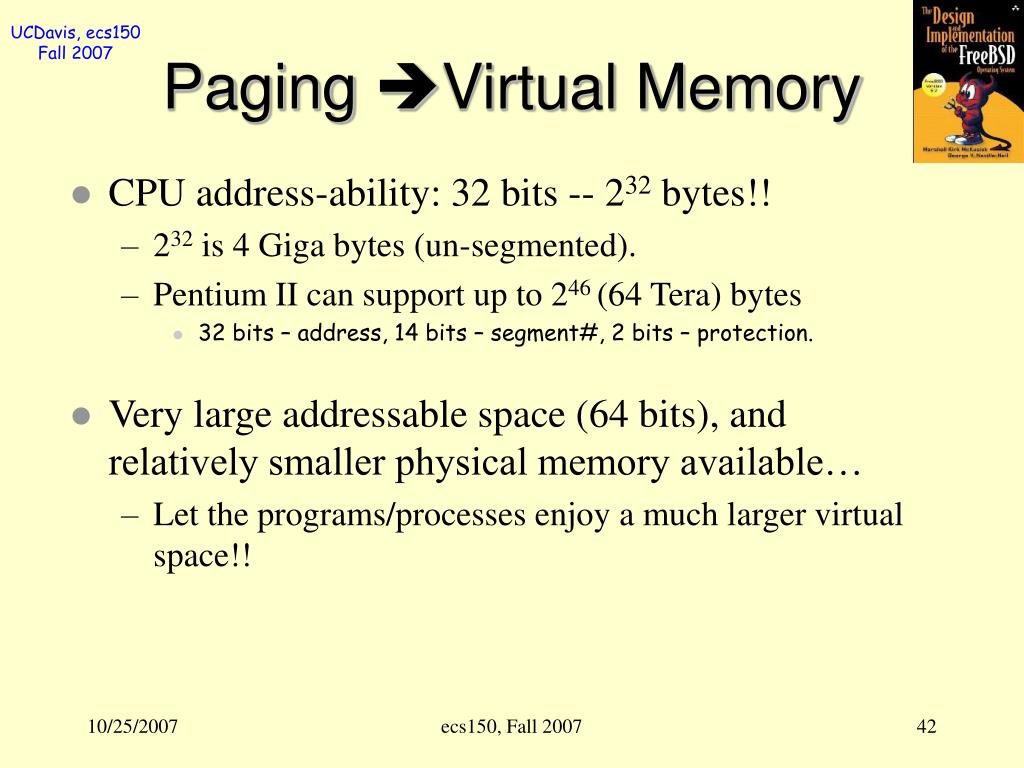

42. Paging Virtual Memory • CPU address-ability: 32 bits -- 232 bytes!! • 232 is 4 Giga bytes (un-segmented). • Pentium II can support up to 246 (64 Tera) bytes • 32 bits – address, 14 bits – segment#, 2 bits – protection. • Very large addressable space (64 bits), and relatively smaller physical memory available… • Let the programs/processes enjoy a much larger virtual space!! ecs150, Fall 2007

43. MAPPING in MMU VM with 1 Segment ecs150, Fall 2007

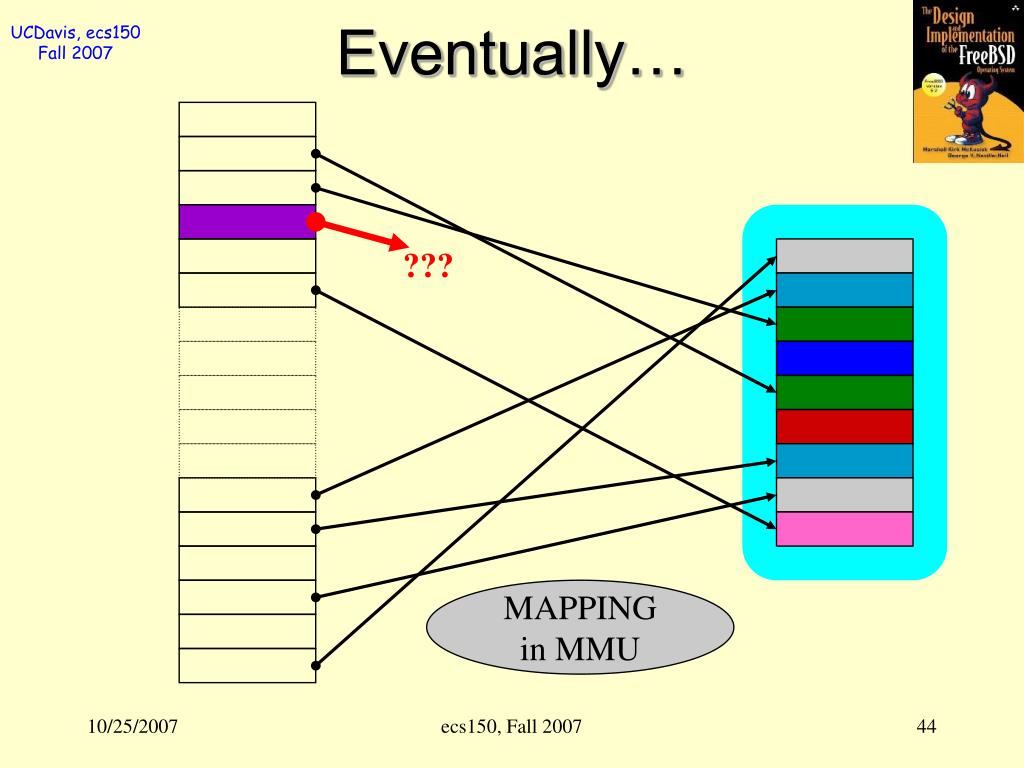

44. Eventually… ??? MAPPING in MMU ecs150, Fall 2007

45. On-Demand Paging • On-demand paging: • we have to kick someone out…. But which one? • Triggered by page faults. • Loading in advance. (Predictive/Proactive) • try to avoid page fault at all. ecs150, Fall 2007

46. Demand Paging • On a page fault the OS: • Save user registers and process state. • Determine that exception was page fault. • Find a free page frame. • Issue read from disk to free page frame. • Wait for seek and latency and transfers page into memory. • Restore process state and resume execution. ecs150, Fall 2007

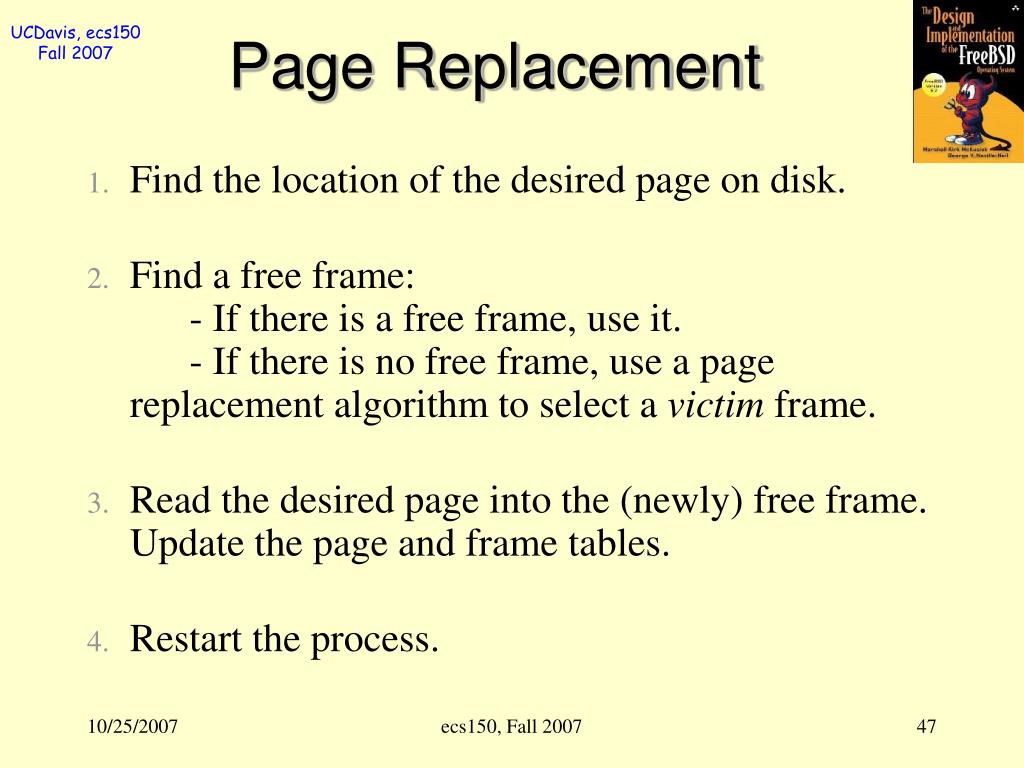

47. Page Replacement • Find the location of the desired page on disk. • Find a free frame: - If there is a free frame, use it. - If there is no free frame, use a page replacement algorithm to select a victim frame. • Read the desired page into the (newly) free frame. Update the page and frame tables. • Restart the process. ecs150, Fall 2007

48. Page Replacement Algorithms • minimize page-fault rate ecs150, Fall 2007

49. Page Replacement • Optimal • FIFO • Least Recently Used (LRU) • Not Recently Used (NRU) • Second Chance • Clock Paging ecs150, Fall 2007

50. Optimal • Estimate the next page reference time in the future. • Select the longest one. ecs150, Fall 2007
