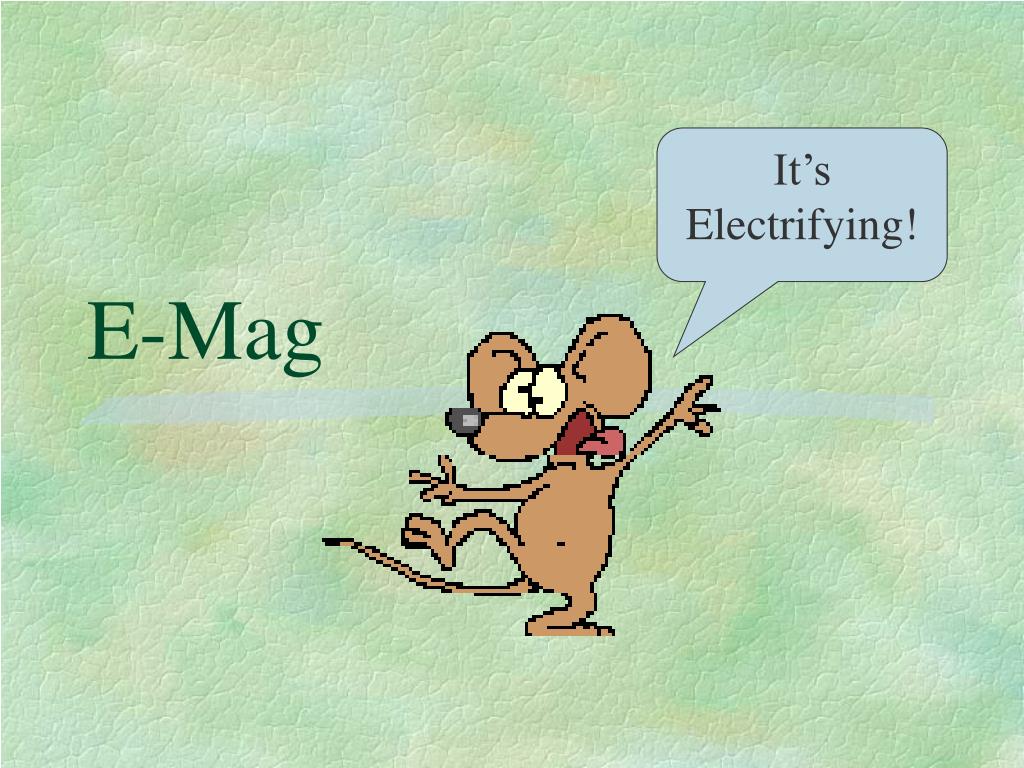

It’s Electrifying!. E-Mag. Electrostatics. Stored electricity, or electricity at rest. Static Electricity. A build up of electric charges in an object or in an area of an object. Rubbing your feet on the carpet so that you can “shock” someone.

arne
Télécharger la présentation

E-Mag

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. It’s Electrifying! E-Mag

  2. Electrostatics • Stored electricity, or electricity at rest

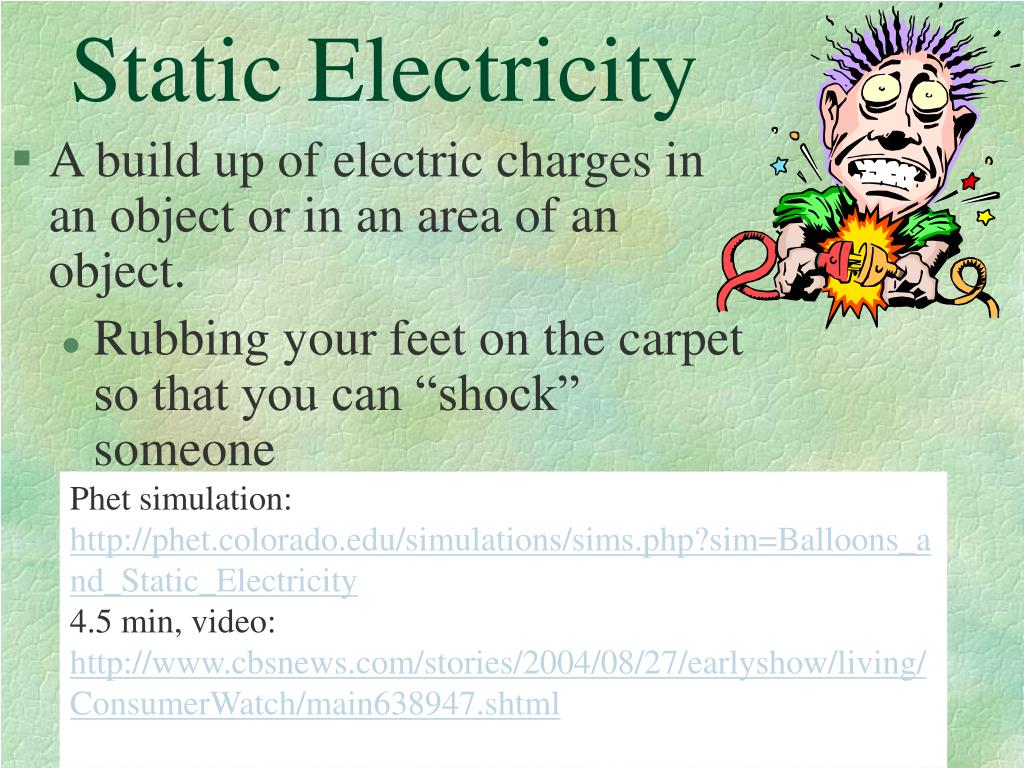

  3. Static Electricity • A build up of electric charges in an object or in an area of an object. • Rubbing your feet on the carpet so that you can “shock” someone Phet simulation: http://phet.colorado.edu/simulations/sims.php?sim=Balloons_and_Static_Electricity 4.5 min, video: http://www.cbsnews.com/stories/2004/08/27/earlyshow/living/ConsumerWatch/main638947.shtml

  4. How Do Refueling Fires Happen? • Static charge picked up when re-entering vehicle • Touching nozzle without discharging static electricity • A spark ignites fumes

  5. More Safety Guidelines • DO NOT get back into your car when refueling • DO NOT top off your tank • If a flash fire occurs, back away, contact attendant, and most important: LEAVE NOZZLE IN VEHICLE!

  6. Electrical Forces • unlike charges attract • like charges repel

  7. Rub a balloon on your hair, the balloon attracts you hair. Is the amount of charge in the balloon and your hair • A: more than before rubbing? • B: the same as before? • C: less than before?

  8. Conductors • allow charges to flow through them easily • electrons are not tightly anchored to the nucleus

  9. Electrical Conductor Allow charges to easily flow through them Not this kind of conductor!

  10. Insulators Plastic or rubber • Charges cannot easily flow through them. • Ex: plastic, styrofoam Metal, wire

  11. Charging by Friction • Transfer of electrons by friction between two objects • rubbing a balloon so that it will “stick” to a wall Travolta simulation: http://phet.colorado.edu/simulations/sims.php?sim=John_Travoltage

  12. Charging by Direct Contact • Conduction… transfer of electrons when one object touches another. • touching someone and “shocking” them

  13. Charging by Induction • Transfer of electrons when objects are brought near each other, but do NOT touch.

  14. How does Lightning start and end?

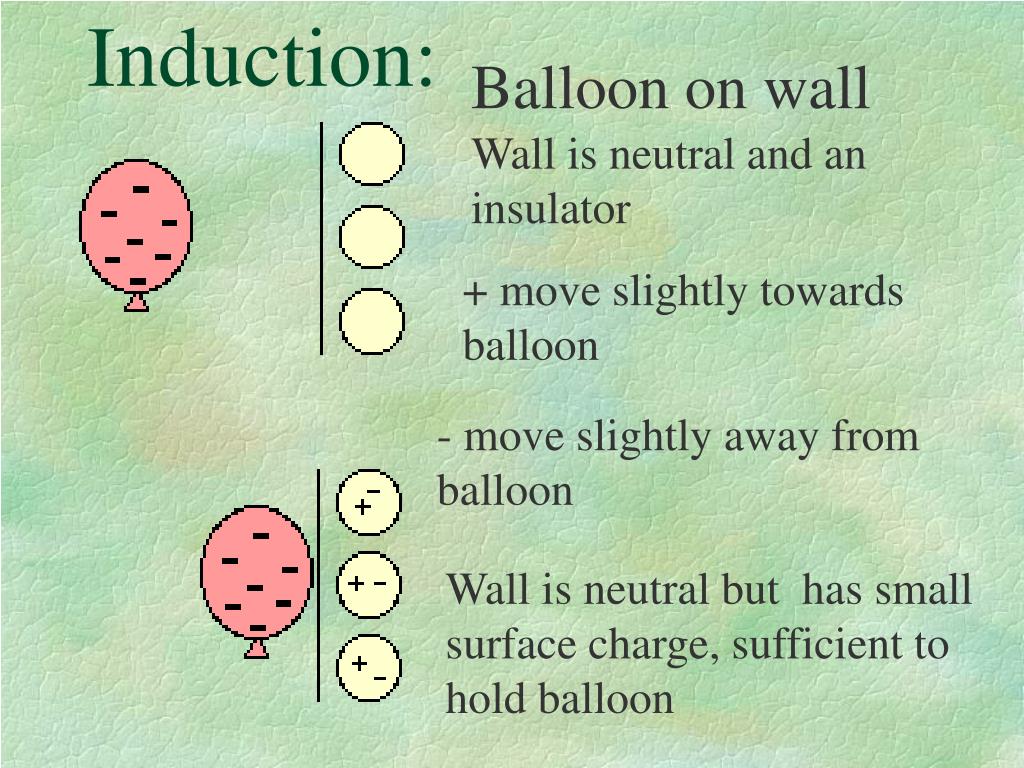

  15. Balloon on wall Induction: Wall is neutral and an insulator + move slightly towards balloon - move slightly away from balloon Wall is neutral but has small surface charge, sufficient to hold balloon

  16. Van De Graaff Generator • Robert Jemison Van de Graaff invented the Van de Graaff generator in 1931. • The device has the ability to produce extremely high voltages -- as high as 20 million volts.

  17. Electric Potential or Potential Difference • Commonly called Voltage Difference • Electric Potential is measured in volts (V)

  18. Electric Current (I) • The flow of electric charges. • Measured in amperes (A) • There must be a potential difference in order for current to flow

  19. Bird on a Power Line SAFE: both feet are on the same voltage line thus no potential difference! NOT SAFE: If one leg is on the ground or another wire and the other one is on the power line, then there is a potential difference between the bird’s two legs.

  20. Potential Difference and the flow of current:

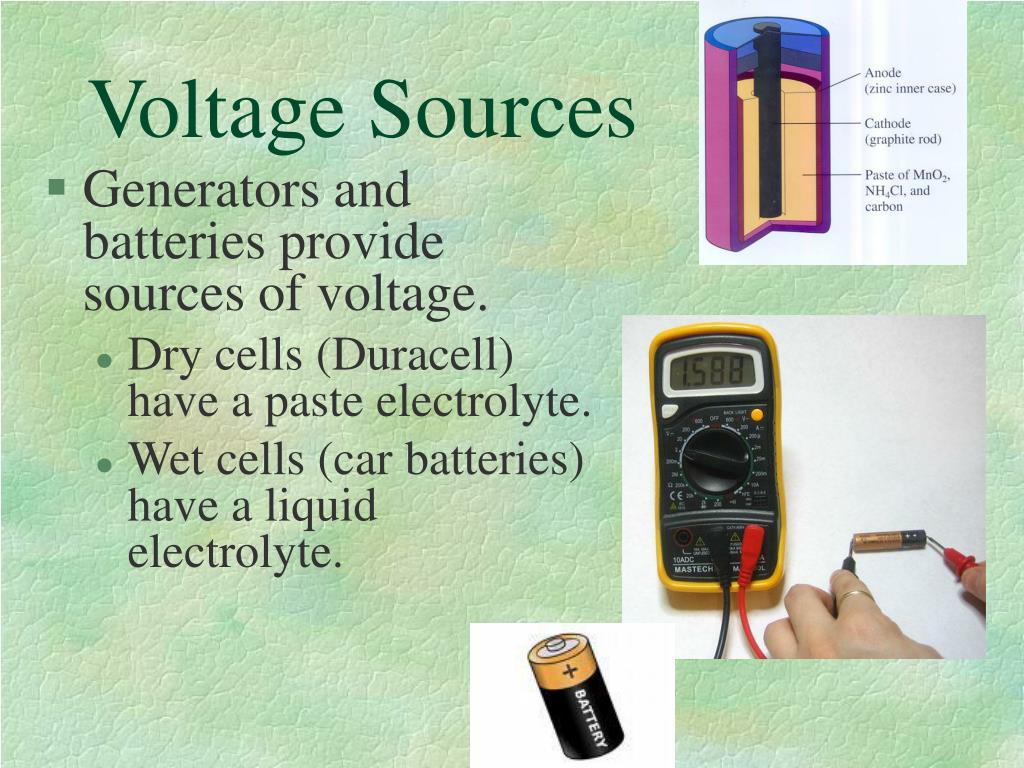

  21. Voltage Sources • Generators and batteries provide sources of voltage. • Dry cells (Duracell) have a paste electrolyte. • Wet cells (car batteries) have a liquid electrolyte.

  22. Generators • Convert mechanical energy into electrical energy • ex: household generators or car alternators

  23. Batteries • Energy is released during a chemical reaction. • Dry cells (Duracell) have a paste electrolyte. • Wet cells (car batteries) have a liquid electrolyte.

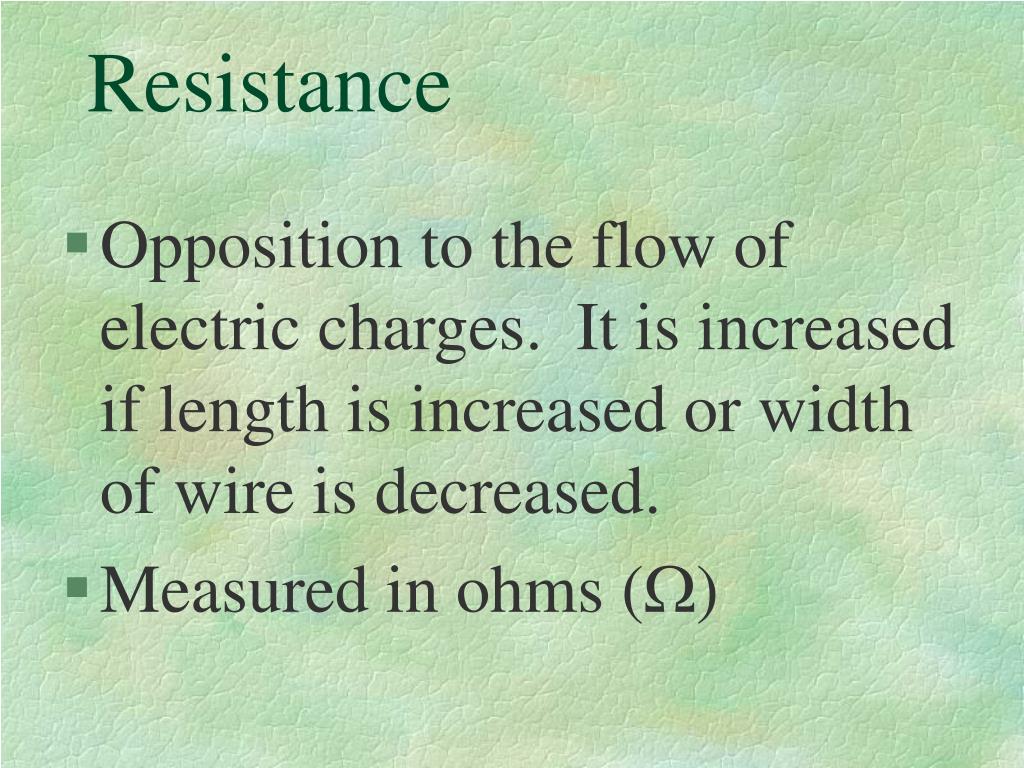

  24. Resistance • Opposition to the flow of electric charges. It is increased if length is increased or width of wire is decreased. • Measured in ohms ()

  25. Electrical Resistance

  26. Relationship between voltage (V), current (I) and resistance (R) • V = IR Ohm’s Law sim: http://phet.colorado.edu/simulations/sims.php?sim=Ohms_Law

  27. Electric Current • The flow of electrons

  28. Fact or Fiction? • When you turn on a light switch, electrons move rapidly from the socket to the lamp to light the bulb.

  29. Direct Current (DC) • Charges always flow in one direction. Ex: battery • electrons always flow from the neg. terminal to the pos. terminal AC/DC simulations http://phet.colorado.edu/simulations/sims.php?sim=Circuit_Construction_Kit_ACDC

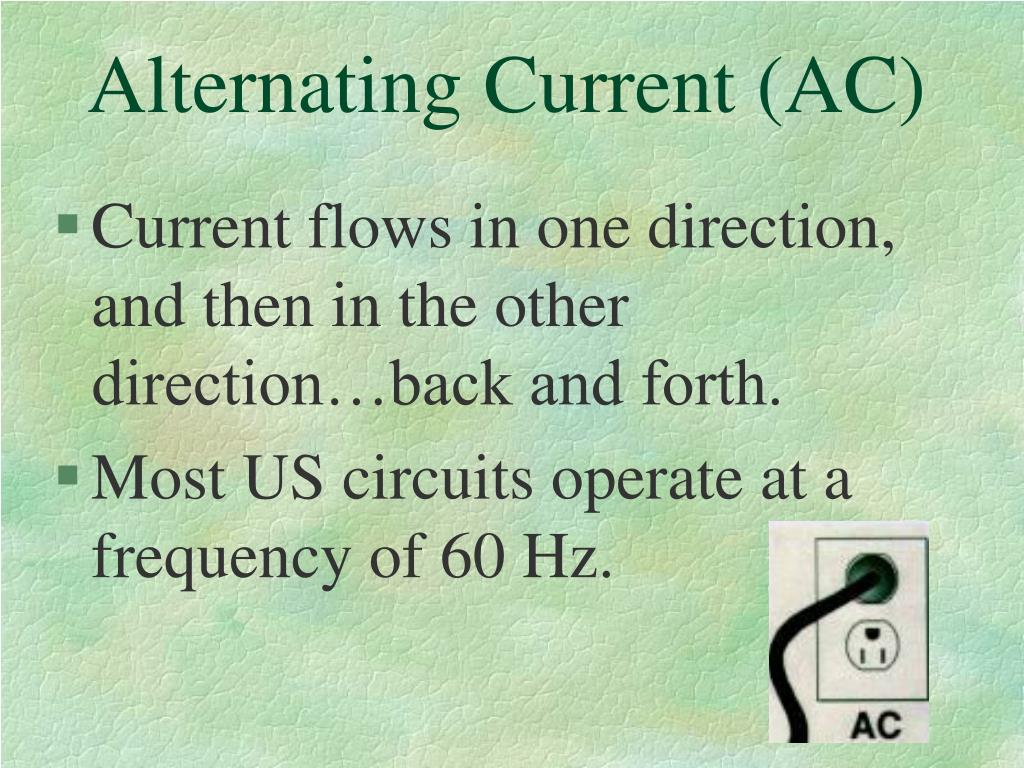

  30. Alternating Current (AC) • Current flows in one direction, and then in the other direction…back and forth. • Most US circuits operate at a frequency of 60 Hz.

  31. AC/DC

  32. Electrical Relationships

  33. Electric Power • Rate at which electric energy is converted into another form such as mechanical, heat or light energy.

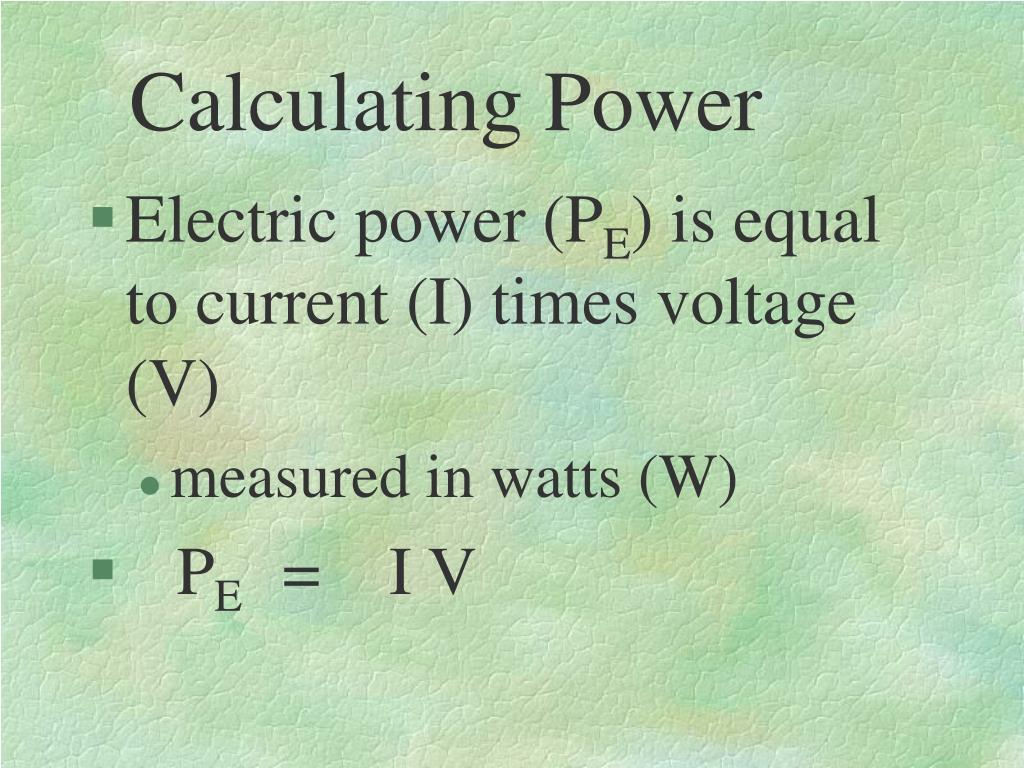

  34. Calculating Power • Electric power (PE) is equal to current (I) times voltage (V) • measured in watts (W) • PE = I V

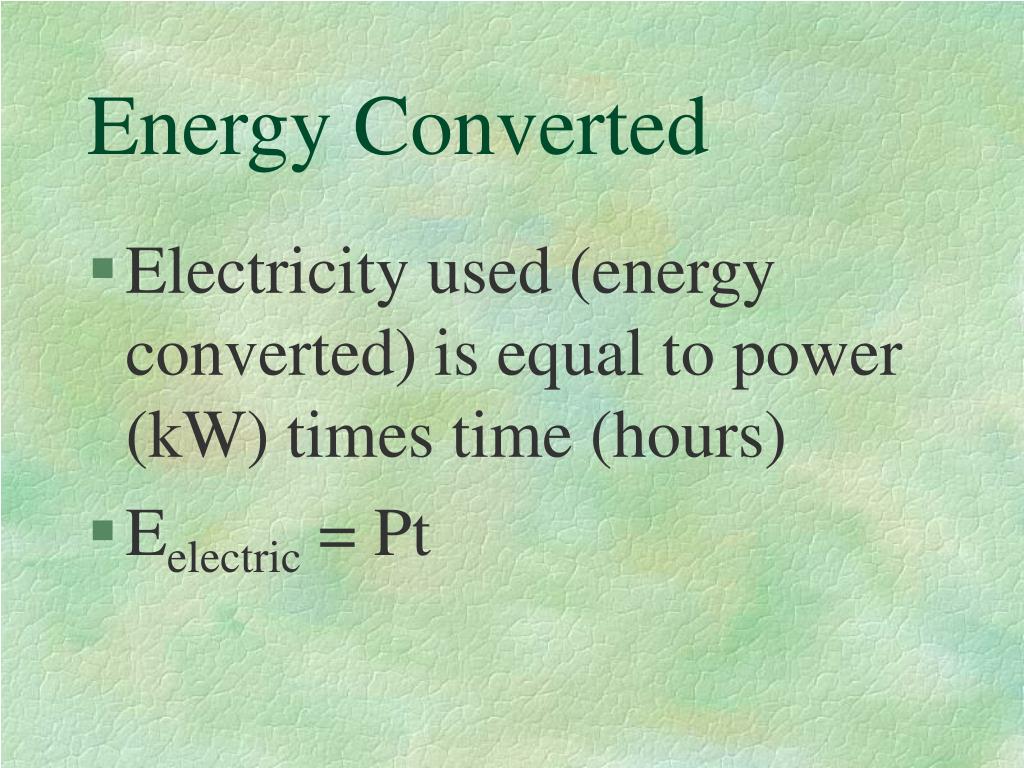

  35. Energy Converted • Electricity used (energy converted) is equal to power (kW) times time (hours) • Eelectric = Pt

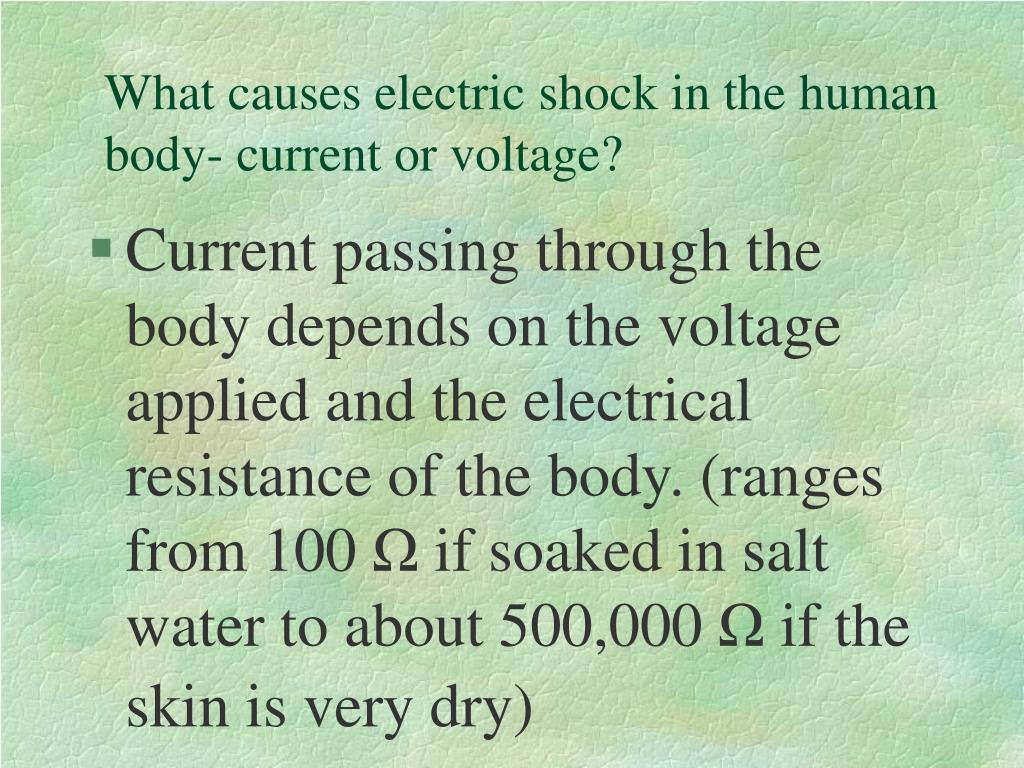

  36. What causes electric shock in the human body- current or voltage? • Current passing through the body depends on the voltage applied and the electrical resistance of the body. (ranges from 100 Ω if soaked in salt water to about 500,000 Ω if the skin is very dry)

  37. Effects of Current on the body • 0.001 A – barely felt • 0.005 A – painful • 0.010 A – muscle spasm • 0.015 A – loss of muscle control • 0.1 A (100 mA) can be fatal if current goes through the heart

  38. Electric Circuit • A closed path through which electrons can flow. • Ex: when you turn a light switch ON, you create a CLOSED circuit, when you turn it off you are opening the circuit Phet circuit http://phet.colorado.edu/simulations/sims.php?sim=circuit_construction_kit_dc_only

  39. Types of Circuits • Series: current has only one path to take • Parallel: current can follow different paths throughout the circuit.

  40. Series Circuits

  41. Parallel Circuit

  42. The basics of solving circuit problems… Parallel Circuits I adds up V is constant 1 = 1 + 1 + 1 + ... Req R1 R 2 R 3 SERIES CIRCUIT I is constant V adds up R adds up

  43. Circuit Breakers • Guards against overheating. It has a piece of wire that bends at high temps, causing a switch to “flip” which “opens” the circuit

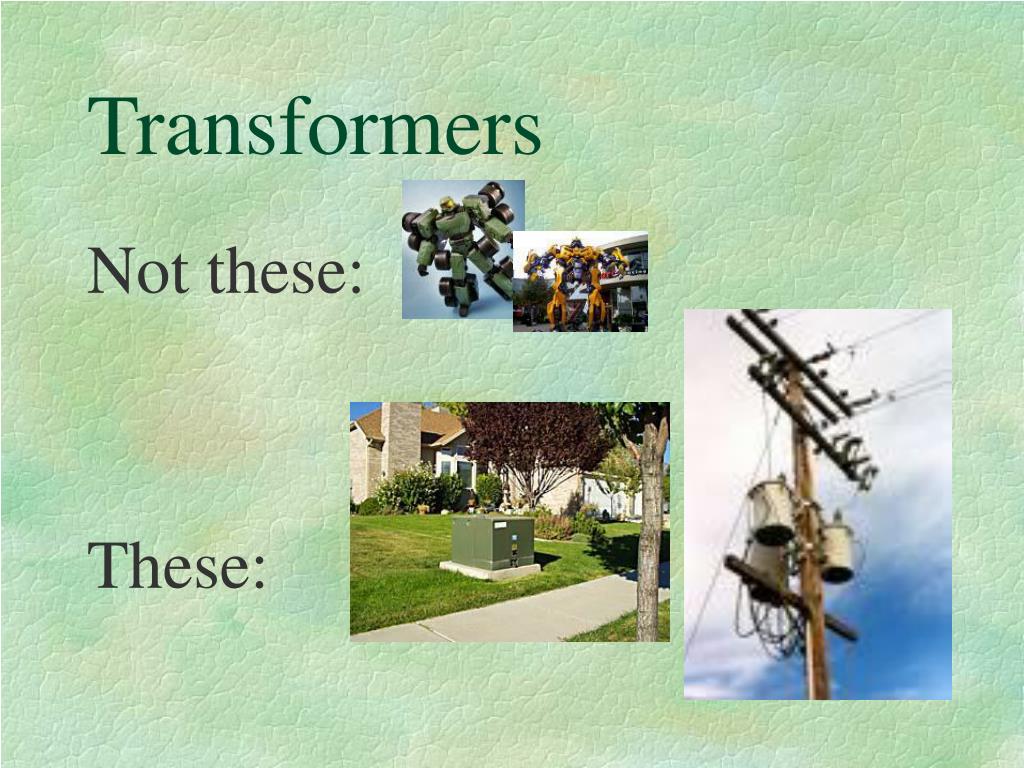

  44. Transformers Not these: These:

  45. Transformers • Used to step up (increase) or step down (decrease) voltage through electromagnetic induction

  46. Electromagnetic Induction • The process of inducing voltage by changing the magnetic field around a conductor

  47. Power Transmission • Power can be transmitted very long distances at high voltages and low currents, it begins at 120,000 V at power plants and is stepped down until it reaches the 120 V used in your home

  48. Power to Your Home

  49. 110 V vs. 220 V plug
