  1. Hot Topics in Networking Stefan Savage Department of Computer Science and Engineering University of Washington, Seattle

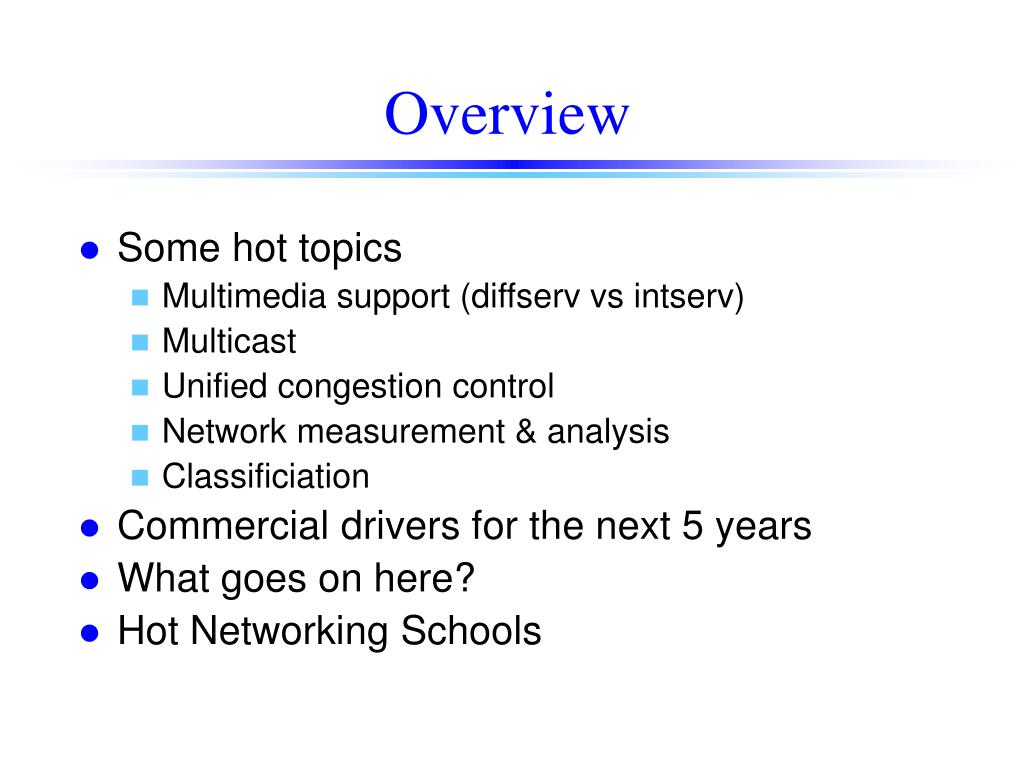

  2. Overview • Some hot topics • Multimedia support (diffserv vs intserv) • Multicast • Unified congestion control • Network measurement & analysis • Classificiation • Commercial drivers for the next 5 years • What goes on here? • Hot Networking Schools

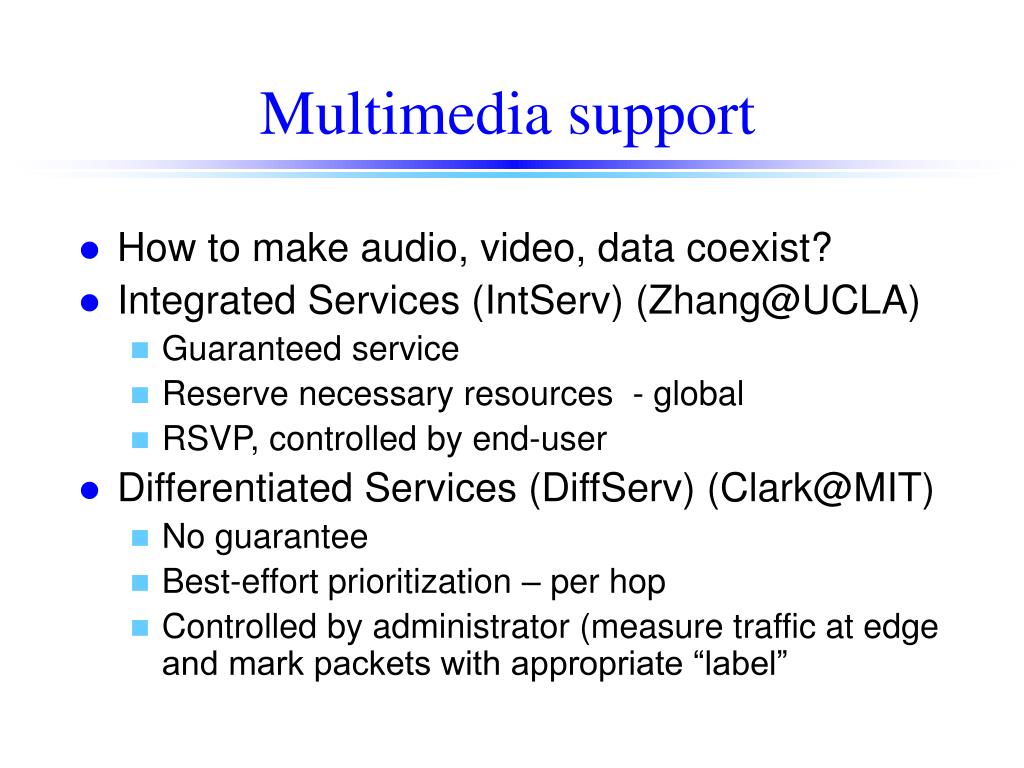

  3. Multimedia support • How to make audio, video, data coexist? • Integrated Services (IntServ) (Zhang@UCLA) • Guaranteed service • Reserve necessary resources - global • RSVP, controlled by end-user • Differentiated Services (DiffServ) (Clark@MIT) • No guarantee • Best-effort prioritization – per hop • Controlled by administrator (measure traffic at edge and mark packets with appropriate “label”

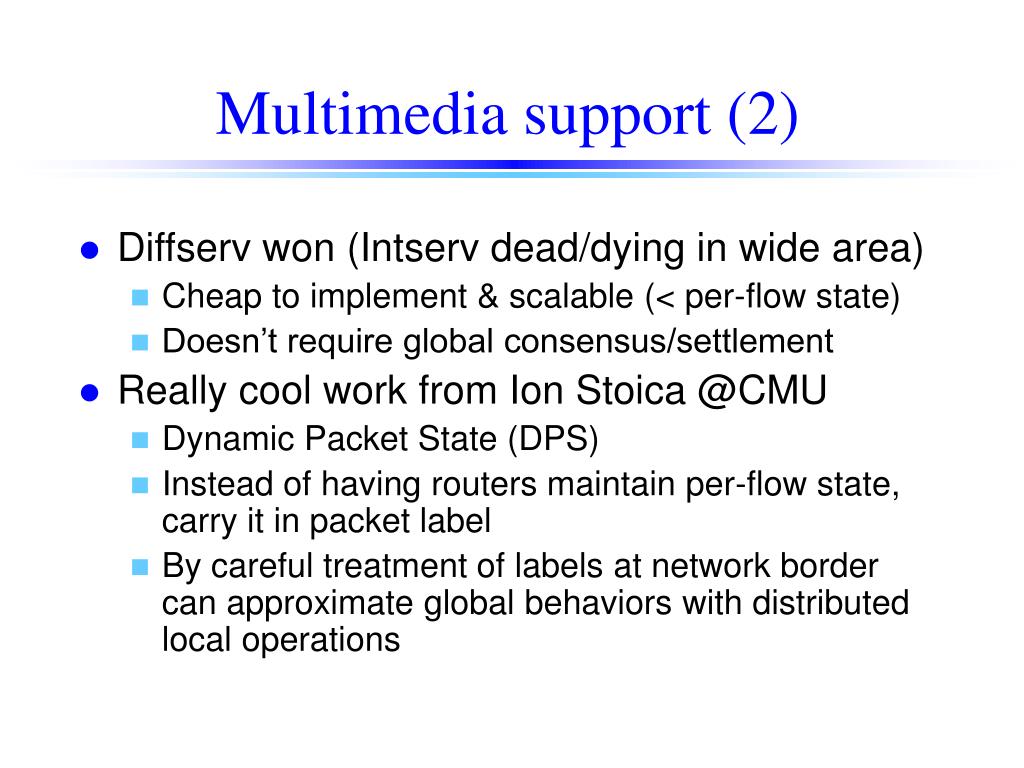

  4. Multimedia support (2) • Diffserv won (Intserv dead/dying in wide area) • Cheap to implement & scalable (< per-flow state) • Doesn’t require global consensus/settlement • Really cool work from Ion Stoica @CMU • Dynamic Packet State (DPS) • Instead of having routers maintain per-flow state, carry it in packet label • By careful treatment of labels at network border can approximate global behaviors with distributed local operations

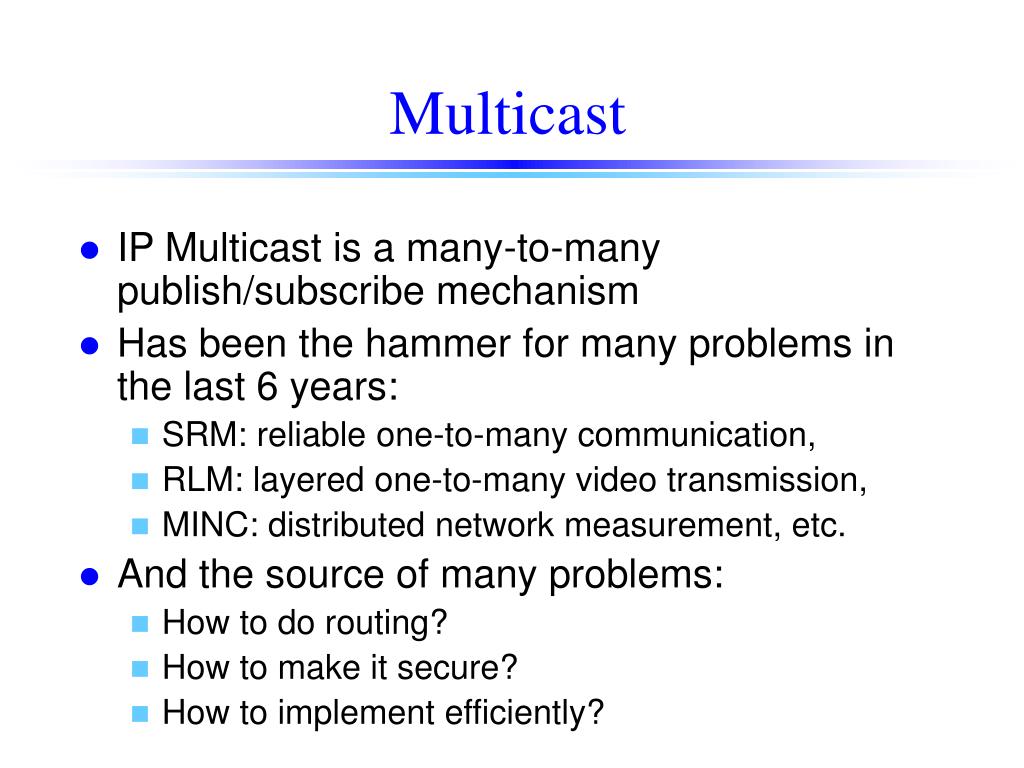

  5. Multicast • IP Multicast is a many-to-many publish/subscribe mechanism • Has been the hammer for many problems in the last 6 years: • SRM: reliable one-to-many communication, • RLM: layered one-to-many video transmission, • MINC: distributed network measurement, etc. • And the source of many problems: • How to do routing? • How to make it secure? • How to implement efficiently?

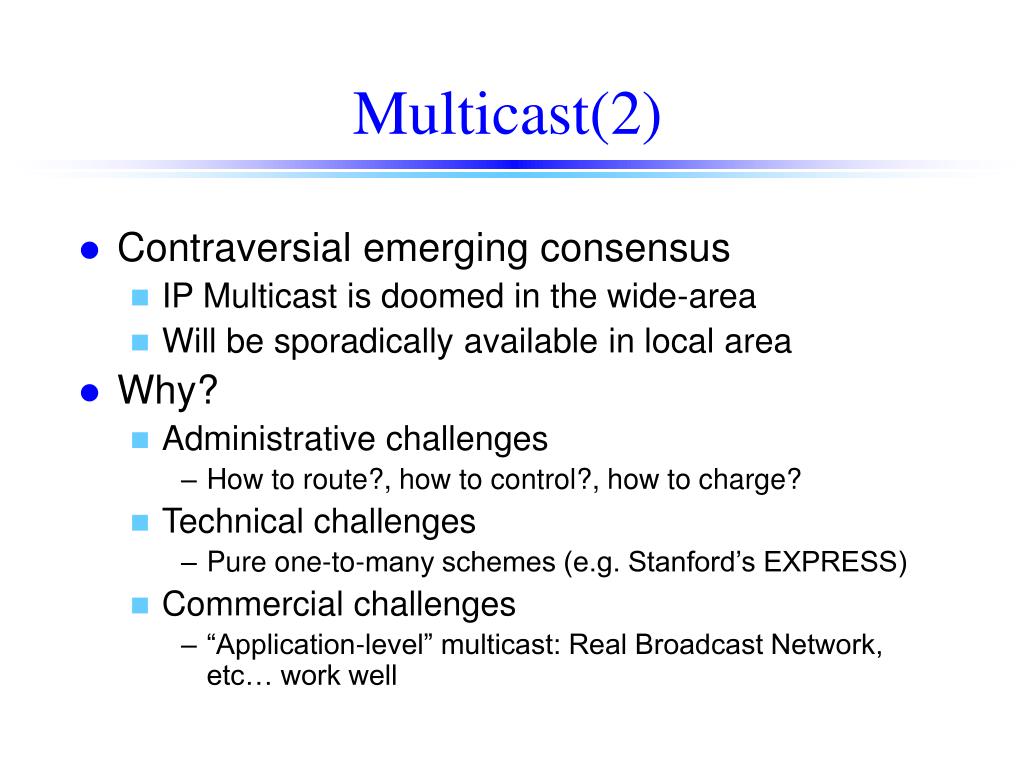

  6. Multicast(2) • Contraversial emerging consensus • IP Multicast is doomed in the wide-area • Will be sporadically available in local area • Why? • Administrative challenges • How to route?, how to control?, how to charge? • Technical challenges • Pure one-to-many schemes (e.g. Stanford’s EXPRESS) • Commercial challenges • “Application-level” multicast: Real Broadcast Network, etc… work well

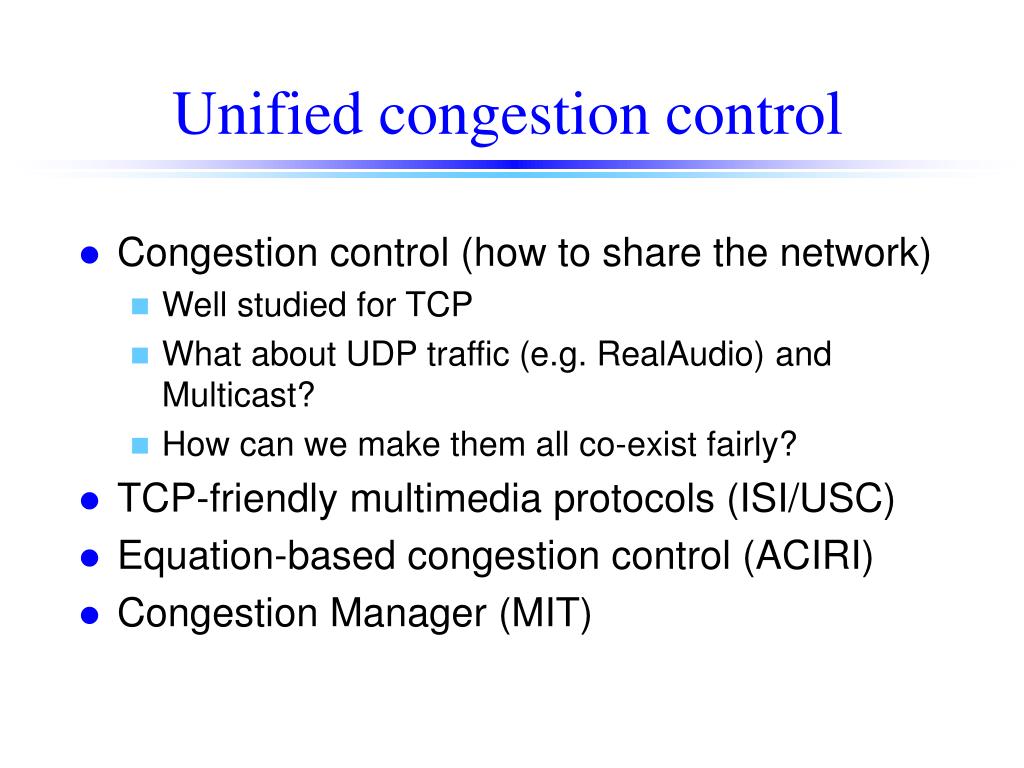

  7. Unified congestion control • Congestion control (how to share the network) • Well studied for TCP • What about UDP traffic (e.g. RealAudio) and Multicast? • How can we make them all co-exist fairly? • TCP-friendly multimedia protocols (ISI/USC) • Equation-based congestion control (ACIRI) • Congestion Manager (MIT)

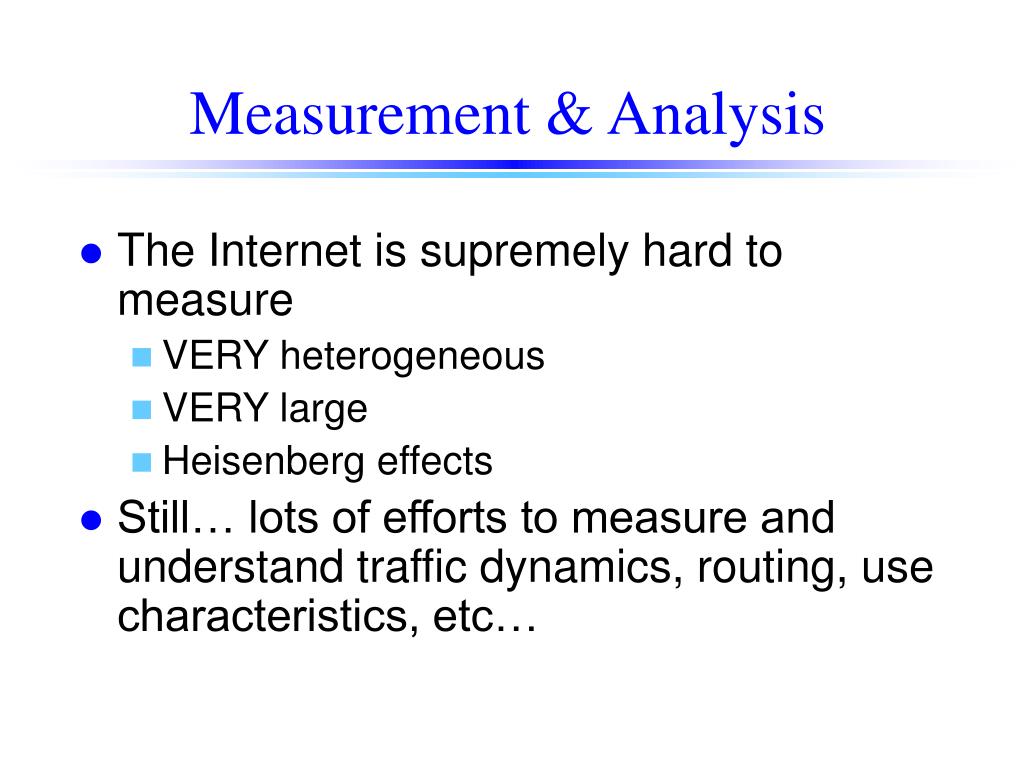

  8. Measurement & Analysis • The Internet is supremely hard to measure • VERY heterogeneous • VERY large • Heisenberg effects • Still… lots of efforts to measure and understand traffic dynamics, routing, use characteristics, etc…

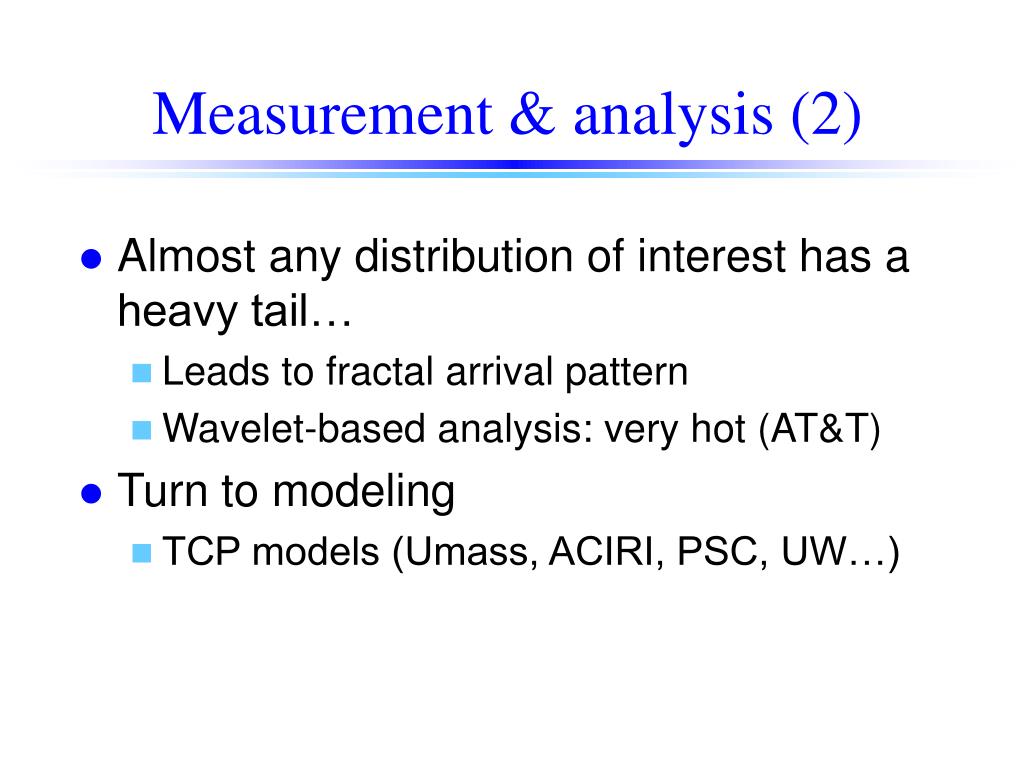

  9. Measurement & analysis (2) • Almost any distribution of interest has a heavy tail… • Leads to fractal arrival pattern • Wavelet-based analysis: very hot (AT&T) • Turn to modeling • TCP models (Umass, ACIRI, PSC, UW…)

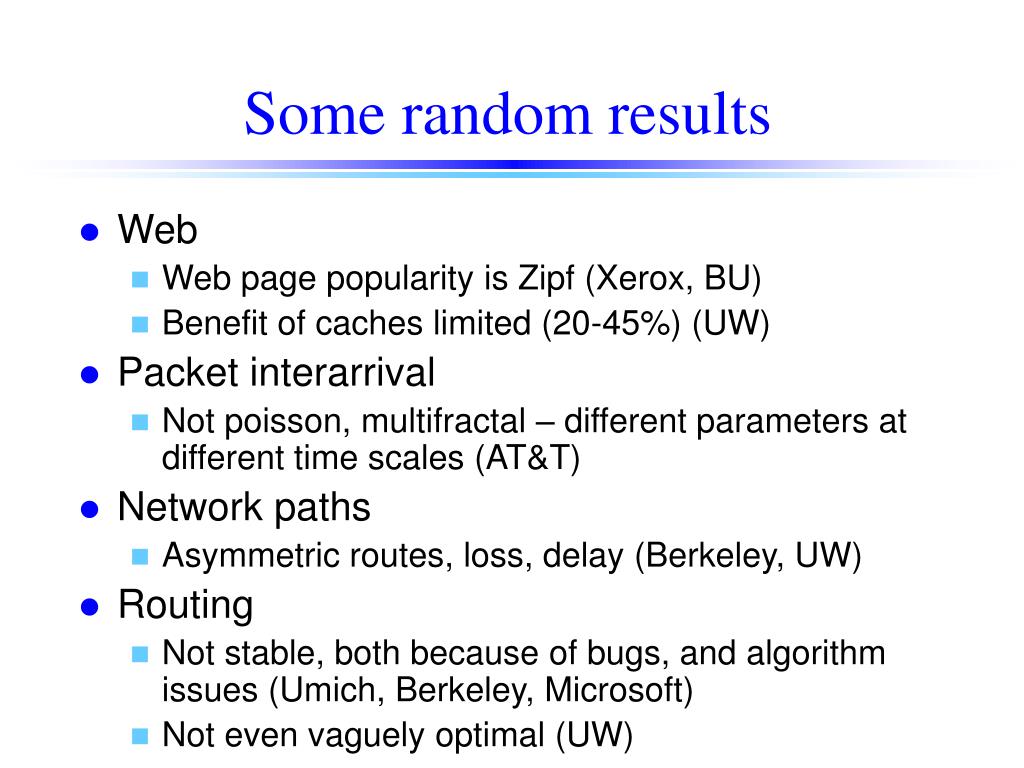

  10. Some random results • Web • Web page popularity is Zipf (Xerox, BU) • Benefit of caches limited (20-45%) (UW) • Packet interarrival • Not poisson, multifractal – different parameters at different time scales (AT&T) • Network paths • Asymmetric routes, loss, delay (Berkeley, UW) • Routing • Not stable, both because of bugs, and algorithm issues (Umich, Berkeley, Microsoft) • Not even vaguely optimal (UW)

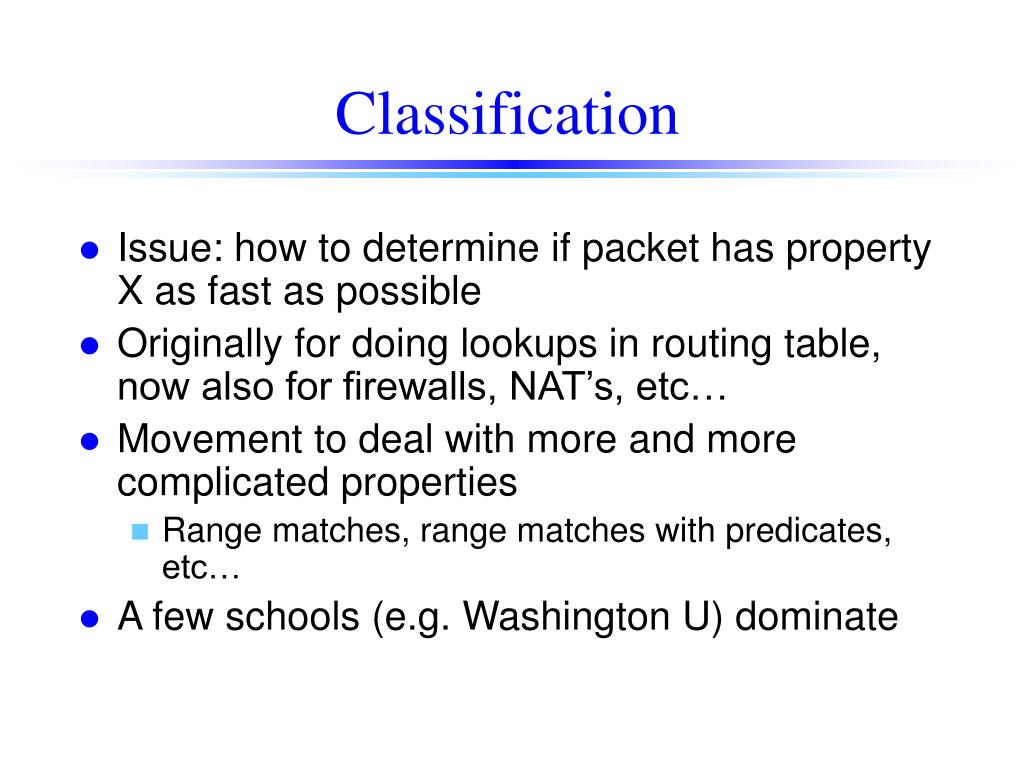

  11. Classification • Issue: how to determine if packet has property X as fast as possible • Originally for doing lookups in routing table, now also for firewalls, NAT’s, etc… • Movement to deal with more and more complicated properties • Range matches, range matches with predicates, etc… • A few schools (e.g. Washington U) dominate

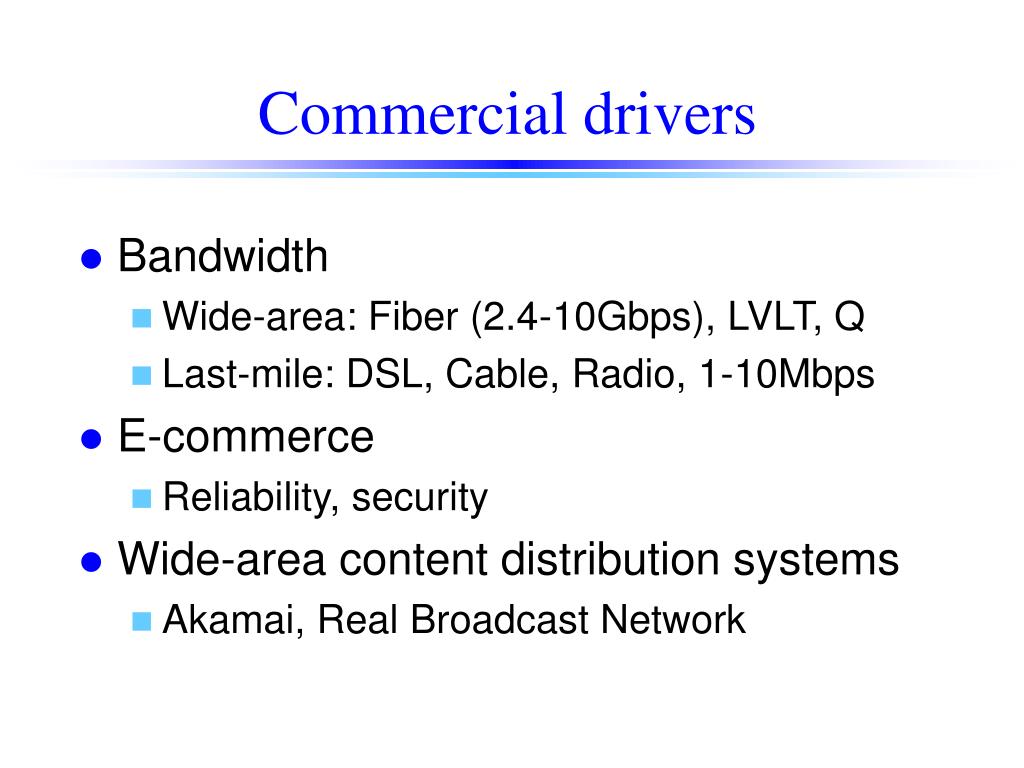

  12. Commercial drivers • Bandwidth • Wide-area: Fiber (2.4-10Gbps), LVLT, Q • Last-mile: DSL, Cable, Radio, 1-10Mbps • E-commerce • Reliability, security • Wide-area content distribution systems • Akamai, Real Broadcast Network

  13. Commercial drivers (2) • Voice/Data Integration • Border services • Web cache, NAT, Firewall, IDS, Transcoder, etc.. • Cost recovery • Settlement, preferred services, directed advertising, content-provider benefit model

  14. Hot networking schools • Berkeley: Katz, McCanne, Brewer • CMU: Hzang, Steekiste, Fisher • MIT: Morris, Balakrishnan, Clark • Stanford: Cheriton, McKeown, Baker • Michican: Shin, Jahanian, Jamin • Umass: Kurose, Towsley • Washington U:Parulkar,Schmidt,Turner,Varghese • USC: Estrin • Labs: ACIRI, AT&T, WRL (Mogul)

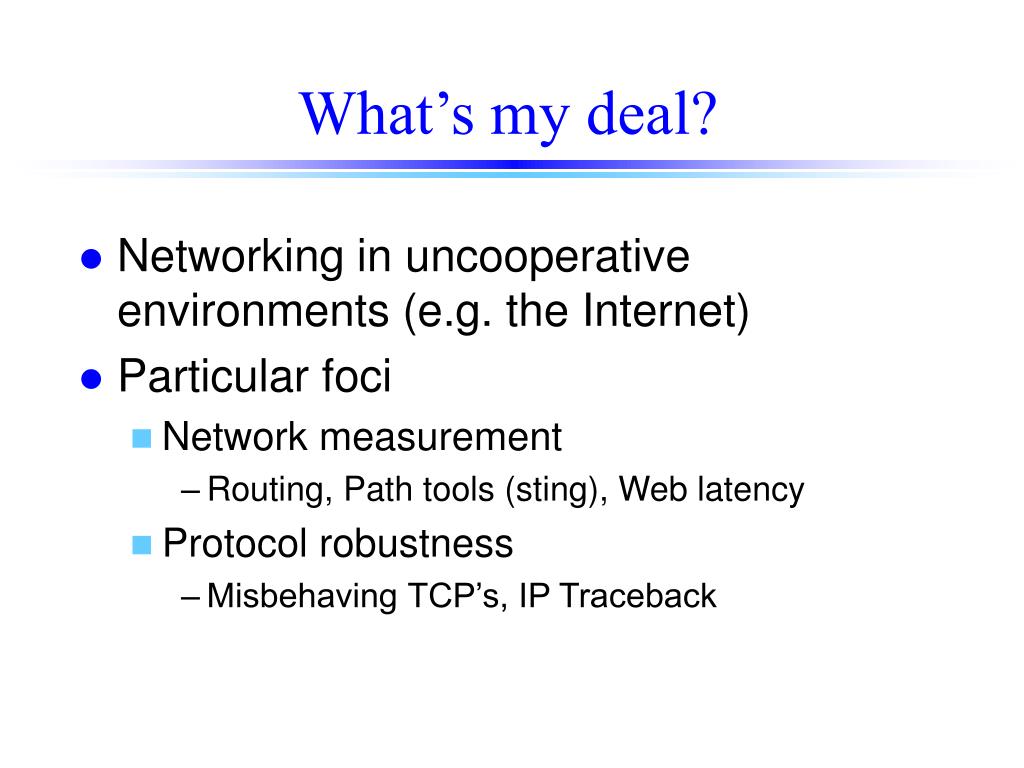

  15. What’s my deal? • Networking in uncooperative environments (e.g. the Internet) • Particular foci • Network measurement • Routing, Path tools (sting), Web latency • Protocol robustness • Misbehaving TCP’s, IP Traceback

  16. What’s going on here? • Tom Anderson: • Detour project: application level unicast routing • Lots of TCP congestion control work • Network measurement • Robustness (bad TCP’s & IP Traceback) • David Wetherall • Active Networks, compression, robustness stuff • Hank Levy • Web tracing, sharing among clients, limits of Web caches, tracing of multimedia traffic

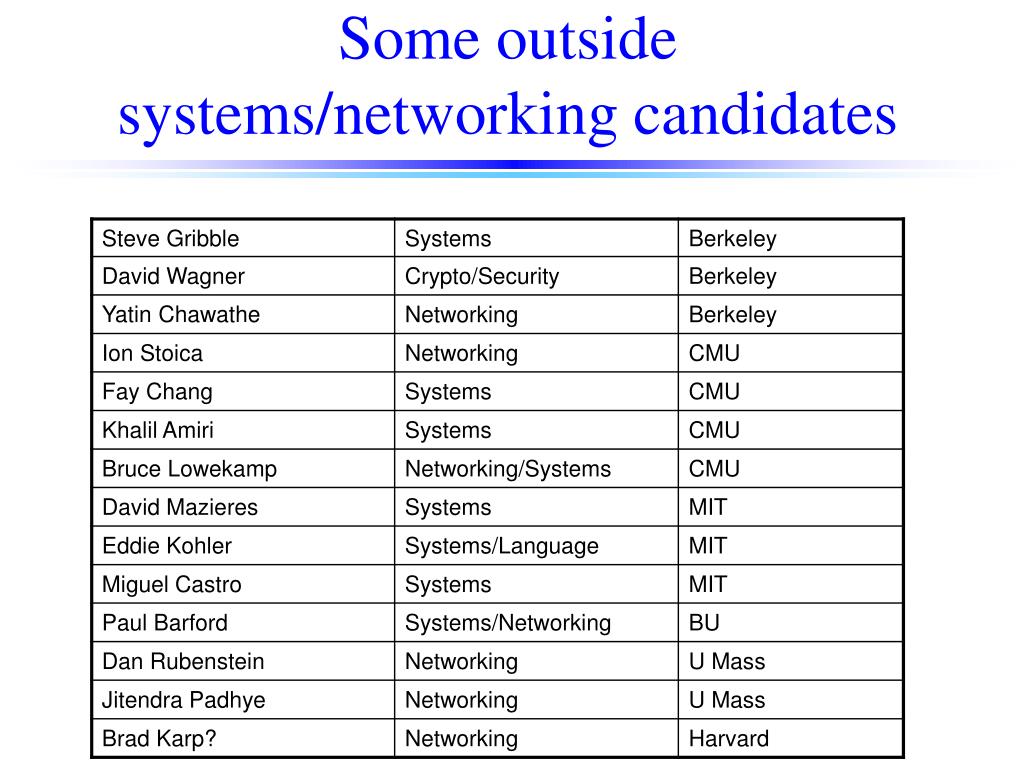

  17. Some outside systems/networking candidates
