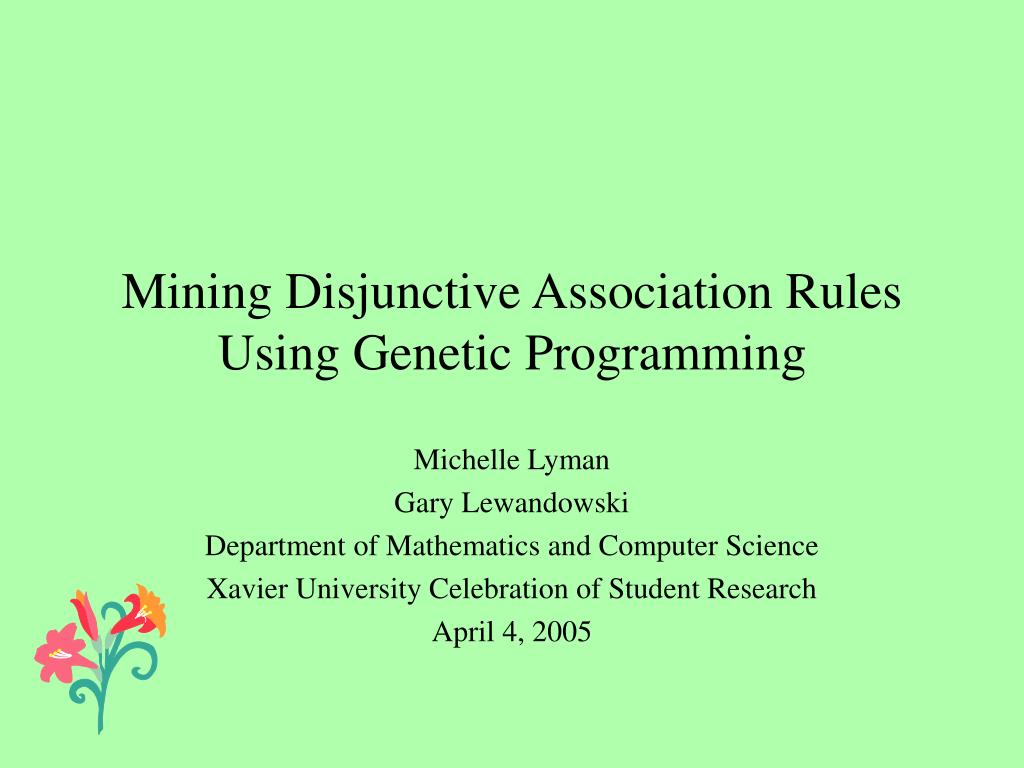

  1. Mining Disjunctive Association Rules Using Genetic Programming Michelle Lyman Gary Lewandowski Department of Mathematics and Computer Science Xavier University Celebration of Student Research April 4, 2005

  2. Genetic Algorithms • Target string: xavier • Generation 1: \iTksr fitness = 1 • Generation 504: \aT:sr fitness = 2 • Generation 1143: \aT:er fitness = 3 • Generation 1498: \av:er fitness = 4 • Generation 1701: xav:er fitness = 5 • Generation 1857: xavier fitness = 6 • What are they? (Example: string evolution) • Selection (Roulette Wheel) • Crossover • First string: xPki;& • Second string: \aT:er • Index:3 • Resulting strings: xPkier • \aT:;&

  3. Genetic Programming • Trees Arithmetic operation Logical operation

  4. Mutation • Change an operator or a value original tree mutated tree • Replace an existing subtree with a new subtree original tree mutated tree

  5. Original two trees Resulting trees Crossover

  6. Association Rules • Conjunctive • If a customer buys turkey and cranberry sauce, then the customer also buys corn and pumpkin pie. • Regular If a customer buys peanut butter, then the customer also buys jelly. • Disjunctive • If a customer buys ham or turkey, then the customer also buys wheat bread exclusive-or white bread. • If some condition a exists, then condition c exists. • a is the antecedent. • c is the consequent.

  7. Card Sorting

  8. Rule Format and and loop iteration tree recursion Antecedent Consequent If a student groups loop and iteration, then the student also groups tree and recursion.

  9. A Small Problem Assume we want to build a tree for the rule, if there exists a group that contains recursion and tree and there exists a group that contains loop and iteration, then there exists a group that contains function exclusive-or method exclusive-or there exists a group that contains scope exclusive-or thread. and xor and and xor xor recursion tree loop iteration function method scope thread Another possible interpretation of this rule is, if there exists a group that contains recursion and tree and loop and iteration, then there exists a group that contains function exclusive-or method exclusive-or scope exclusive-or thread. solution: SAND, SXOR, SOR, GAND, and GXOR

  10. Goals • to understand how students understand and relate concepts • high support - Let the set of sorts be called D. Let the set of sorts that fulfill the antecedent of rule R be called A. Let the set of sorts that fulfill the consequent be called C. Then the support for R is given by • high confidence - Using the same notation, the confidence for R is given by

  11. Goals (Continued) • a high number of cards used. Let the lower bound be called low, and the upper bound be called high. Using integer division, if the number of cards used in a tree is n, the score is given by • a large percentage of g operators • a high balance • 1. Card nodes have a balance of 1 • 2. G-operator nodes have a balance of 1 because each subtree must be true • for the g-operator to evaluate to true. • 3. S-operator nodes have a balance given by • where leftCount is the number of times the left side was true and rightCount • is the number of times the right side was true. The balance for the rule is the • minimum blance of the antecedent and the consequent.

  12. Fitness Function • Each of the following four factors is evaluated. Each can take on an integer value • between 0 and 100: • 1. support • 2. confidence • 3. card points • 4. g operator points • Each is weighted by a user specified multiplier, and the values are multiplied together. • The result is then scaled by the balance factor, which is a value between 0 and 1.

  13. Data • 1044 student sorts • 158 educator sorts • Performance subsets [1, 2): 37 people [2, 3): 140 people [3, 4): 447 people [4, 5): 223 people [5]: 97 people

  14. Results • Educators have more rules. • 90% Balance, 50% Confidence • Many sorts separate high-level concepts (i.e., abstraction, encapsulation) from low-level concepts (i.e., array, variable). • Concepts that often appear together: (procedure, function) (encapsulation, choice, decomposition, abstraction) (constant, variable, boolean, array) (tree, list) (loop, if-then-else) (choice, thread) • I don’t know.
