Previous week. Zinc deposition Thermal evaporation failed: Chamber wall and quartz crystal is coated But, no zinc coating on substrate (?) Zinc is deposited by RF sputtering: Cloudy gray film is appeared

asher
Télécharger la présentation

Previous week

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

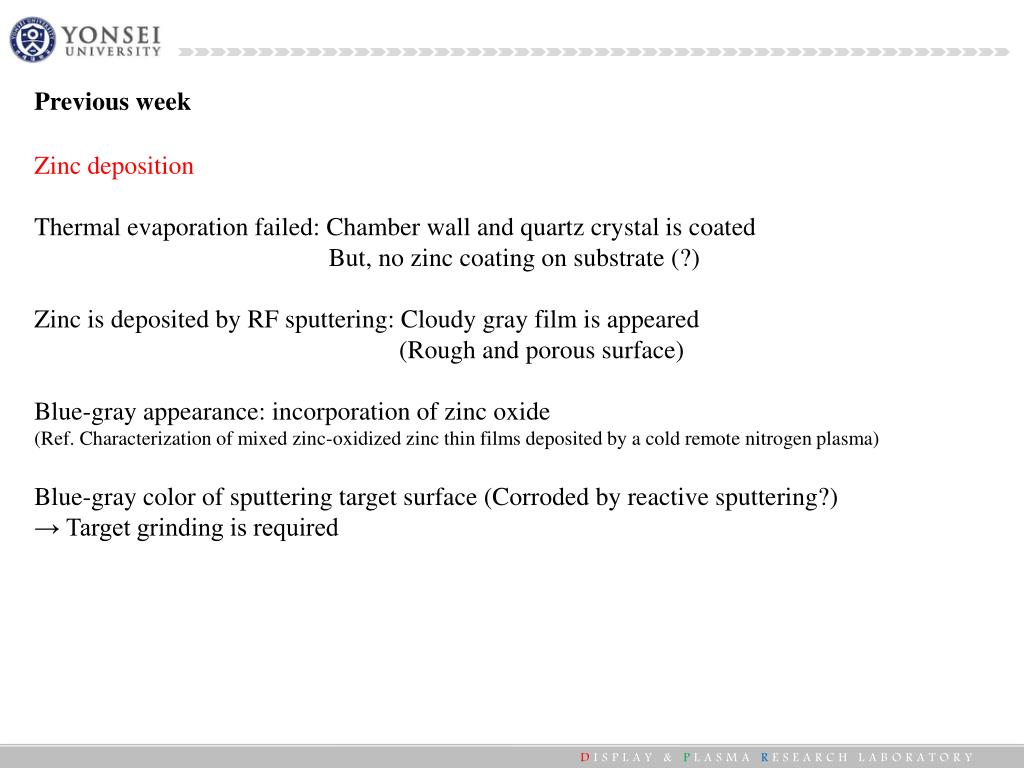

  1. Previous week Zinc deposition Thermal evaporation failed: Chamber wall and quartz crystal is coated But, no zinc coating on substrate (?) Zinc is deposited by RF sputtering: Cloudy gray film is appeared (Rough and porous surface) Blue-gray appearance: incorporation of zinc oxide (Ref. Characterization of mixed zinc-oxidized zinc thin films deposited by a cold remote nitrogen plasma) Blue-gray color of sputtering target surface (Corroded by reactive sputtering?) → Target grinding is required

  2. This week Phosphoric acid etching instead of grinding Zn target → Metallic color restored Deposition with cleaned target – failed to deposit better film Deposition at higher working pressure (30mTorr) → Metallic film color obtained Next week Failed experiment will be repeated Cell fabrication with properly deposited Zn electrode

  3. Previous week (-) (+) Silicon wafer Ag/Al on Glass ZnOnanowire Al,Ag deposition on glass

  4. Previous week Vertical growth during 2nd growth step Suspicion: (-) charges on (0001) plane at pH 10.9 (Optimum pH 10.5~10.9 by reference) prohibits surface passivation by citrate ions TPT filling ZnOnanowire growth PDMS cover TPT filling from side Removing PDMS

  5. Previous week Nanowire aligning → More precursor concentation (higher nucleation density) → Higher growth temperature Ohmic contact →ZnO growth on Al, ITO Vertical growth during 2nd growth step →ZnO lateral growth at pH 10.5 TPT filling → Plasma etching → Lateral growth from revealed nanowire heads → Confirm by SEM

  6. This week Nanorod growth with increased precursor concentration ITO substrate is used – Al film was dissolved Alignment was not improved

  7. This week TPT overcoat – PDMS conformal contact failed Plasma etching failed to reveal nanorod heads 2nd growth step is also failed

  8. Next week • - Replace Si counterelectrode with gold wire • Nanorod growth on AZO substrate • TPT injection with applied pressure to prevent overcoat • TPT Spin-coating and print instead injection • Repeat experiments that has failed in this week
