  1. Shape Measurement of Transparent Objects using Polarization and Geometrical Characteristics Daisuke MiyazakiInstitute of Industrial Science,The University of Tokyo

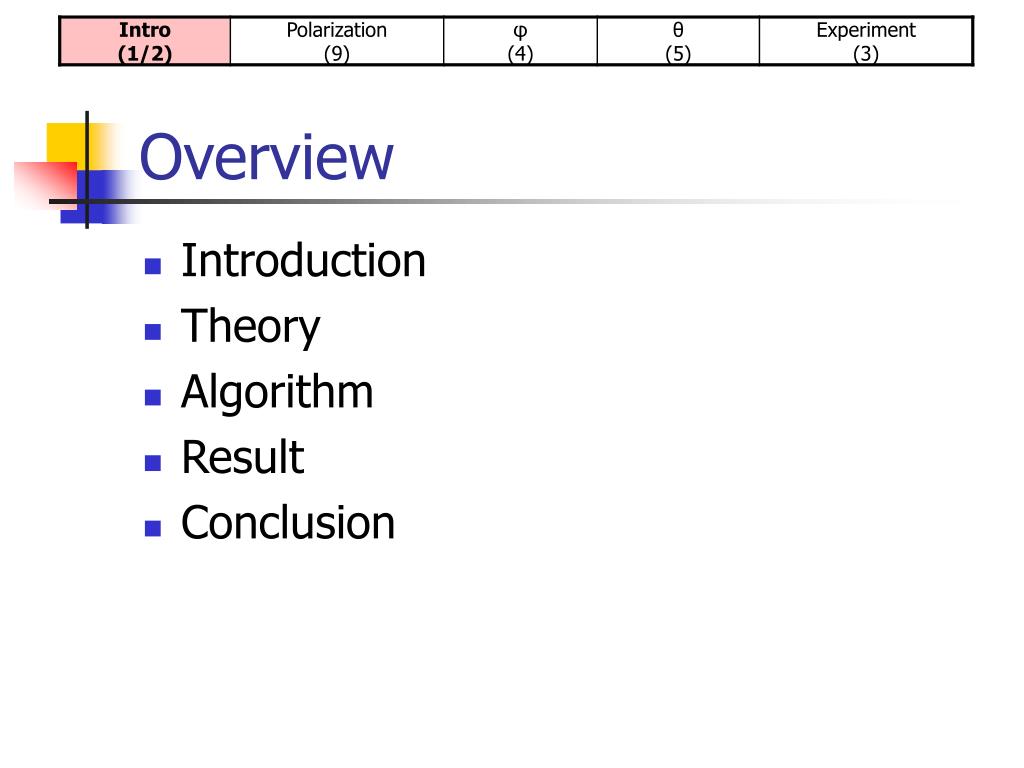

  2. Overview • Introduction • Theory • Algorithm • Result • Conclusion

  3. Aim • Shape measurement of transparent objects • Easy setup • Automatic calculation • Polarization and Geometrical Characteristics

  4. Location θ θ φ

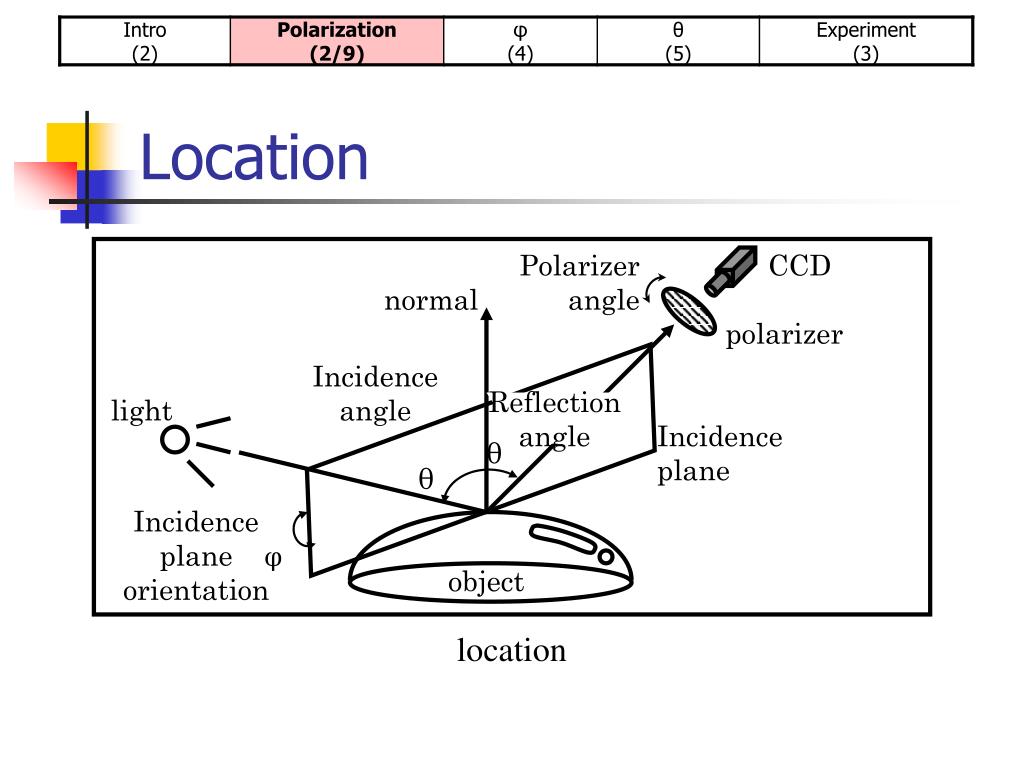

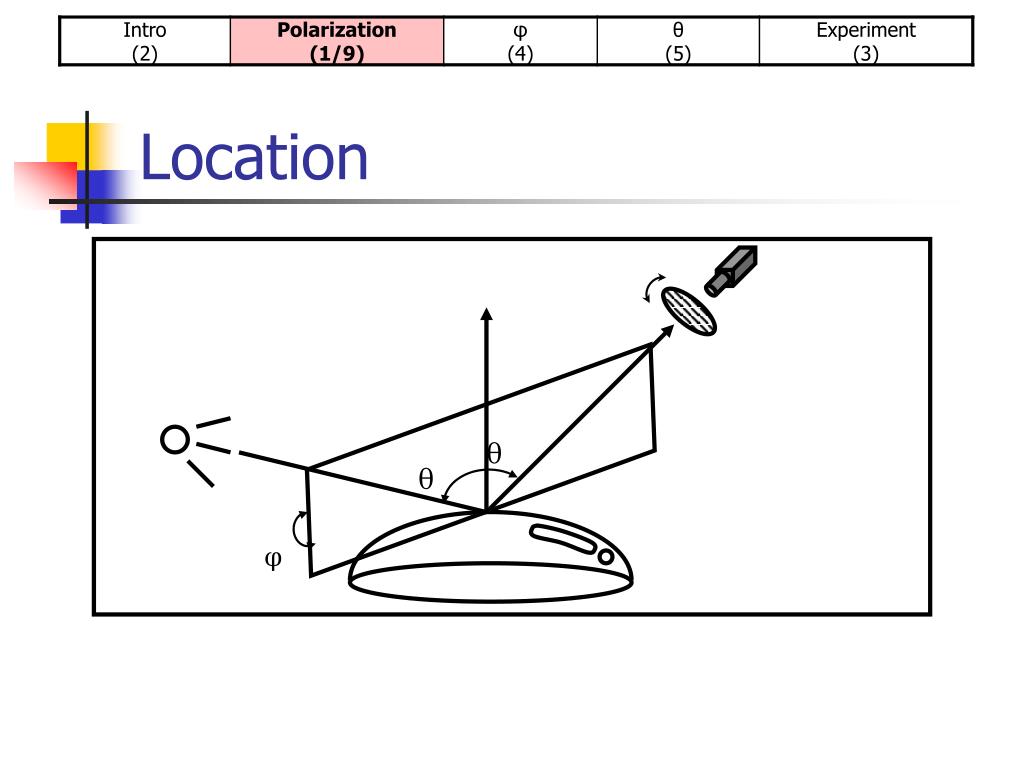

  5. Location Polarizerangle CCD normal polarizer Incidenceangle light Reflectionangle Incidenceplane θ θ Incidenceplaneorientation φ object location

  6. θ θ φ Light intensity and polarization • CCD camera and polarizer • Rotate polarizer • Light intensity

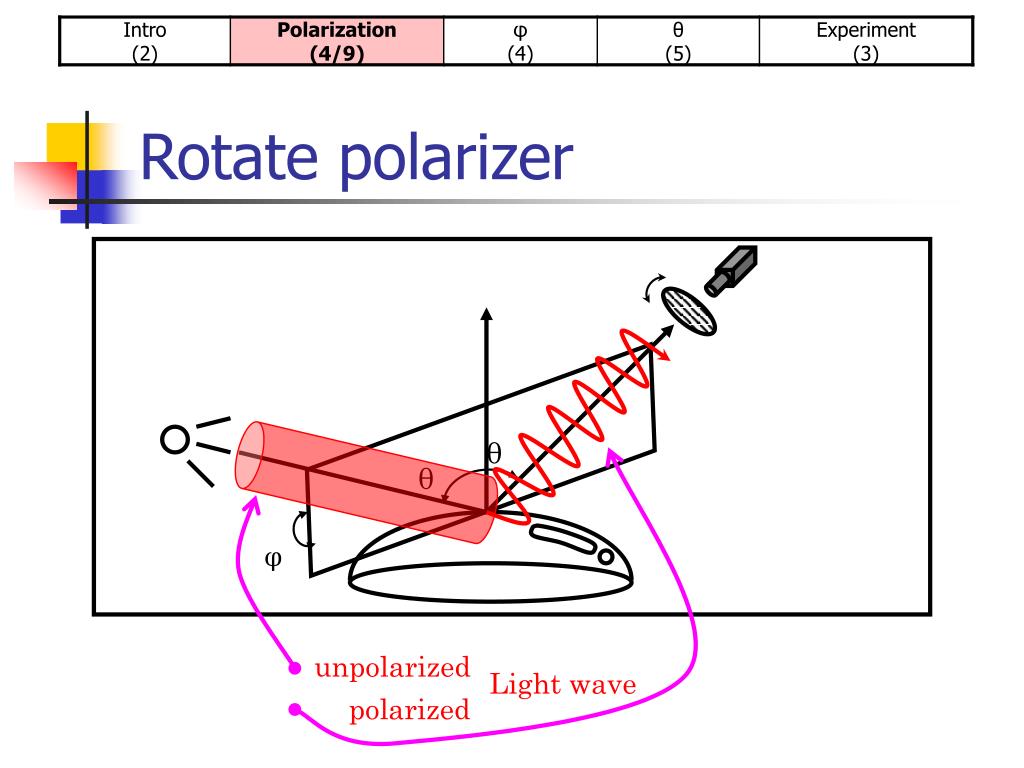

  7. Rotate polarizer θ θ φ unpolarized Light wave polarized

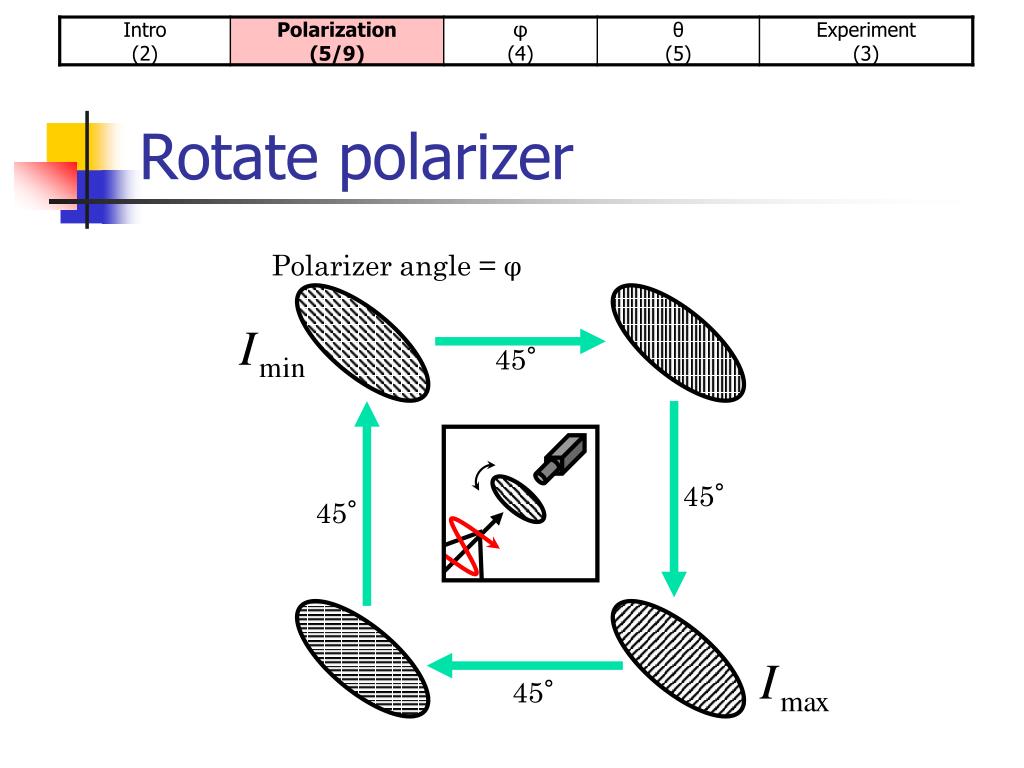

  8. Rotate polarizer Polarizer angle = φ 45° 45° 45° 45°

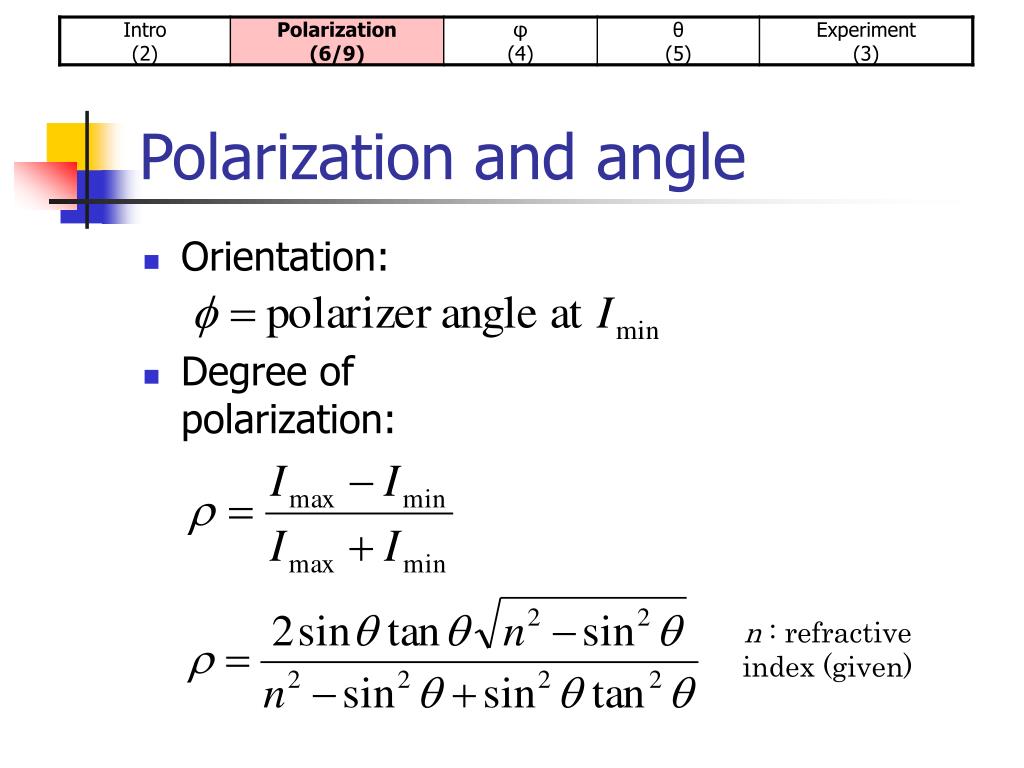

  9. Polarization and angle • Orientation: • Degree of polarization: n : refractive index (given)

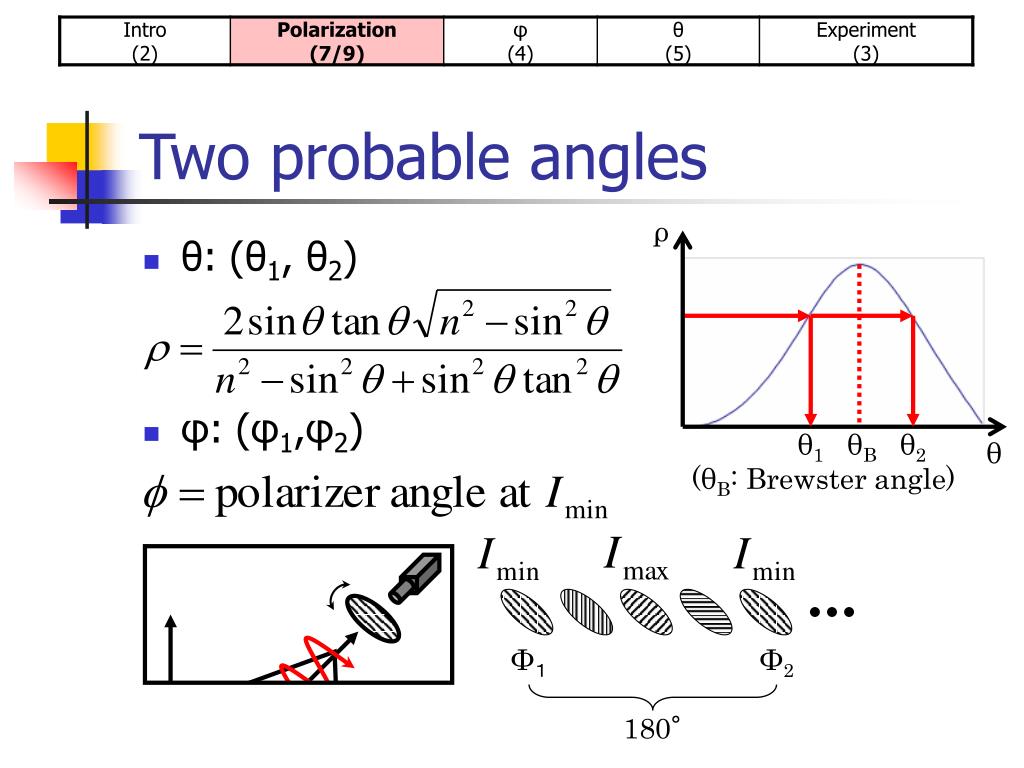

  10. ρ θ1 θB θ2 θ Φ1 Φ2 180° Two probable angles • θ: (θ1, θ2) • φ: (φ1,φ2) (θB: Brewster angle)

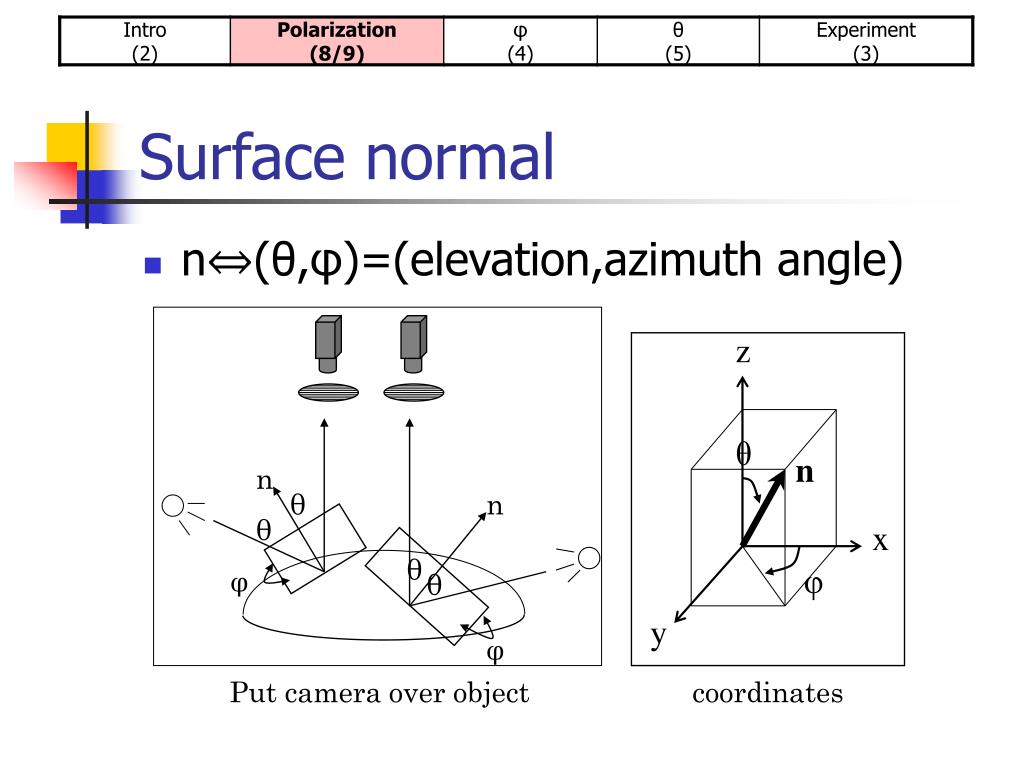

  11. z n θ θ n n θ θ x φ θ φ φ y Surface normal • n⇔(θ,φ)=(elevation,azimuth angle) Put camera over object coordinates

  12. Halfway summary • 4 possible surface normals(θ1,φ1), (θ1,φ2), (θ2,φ1), (θ2,φ2) • Choose the correct θ and φ • Choosing correct azimuth angle φ • Choosing correct elevation θ

  13. Choosing correct φ • φ1,φ2: direction is directly oppositei.e. |φ1-φ2|=180° • Choose the correct azimuth angle φ φ2 φ1 Two φ at each pixel Obtaining data 2D image of object

  14. Background area Objectarea y x 2D 1D 1D direction of 2D angle • Looking through lines parallel to y axis • 1D direction of 2D azimuth angle φ • Direction changing point

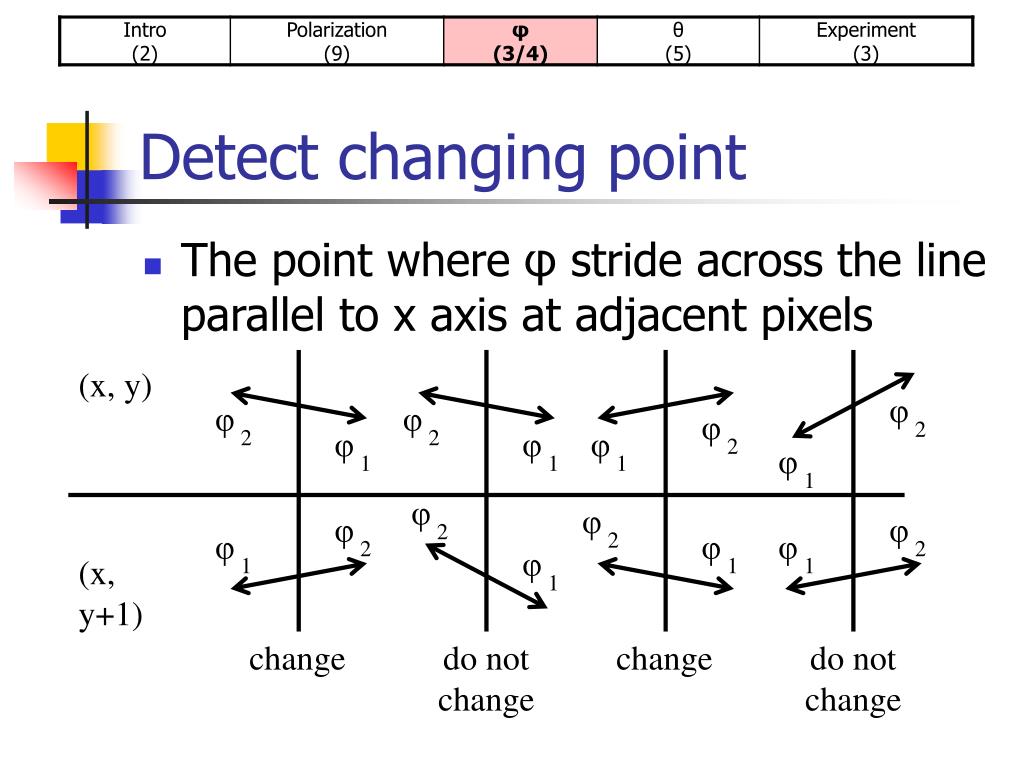

  15. (x, y) φ φ φ φ φ φ φ φ 2 2 2 2 2 2 2 2 φ φ φ φ φ φ φ φ 1 1 1 1 1 1 1 1 (x, y+1) change do notchange change do notchange Detect changing point • The point where φ stride across the line parallel to x axis at adjacent pixels

  16. Summary of choosing φ • Looking through lines parallel to y axis • Thinking of 1D direction of 2D angle φ • Detect direction changing points • Determine the angle of object boundary as outside direction • Change the direction at changing point

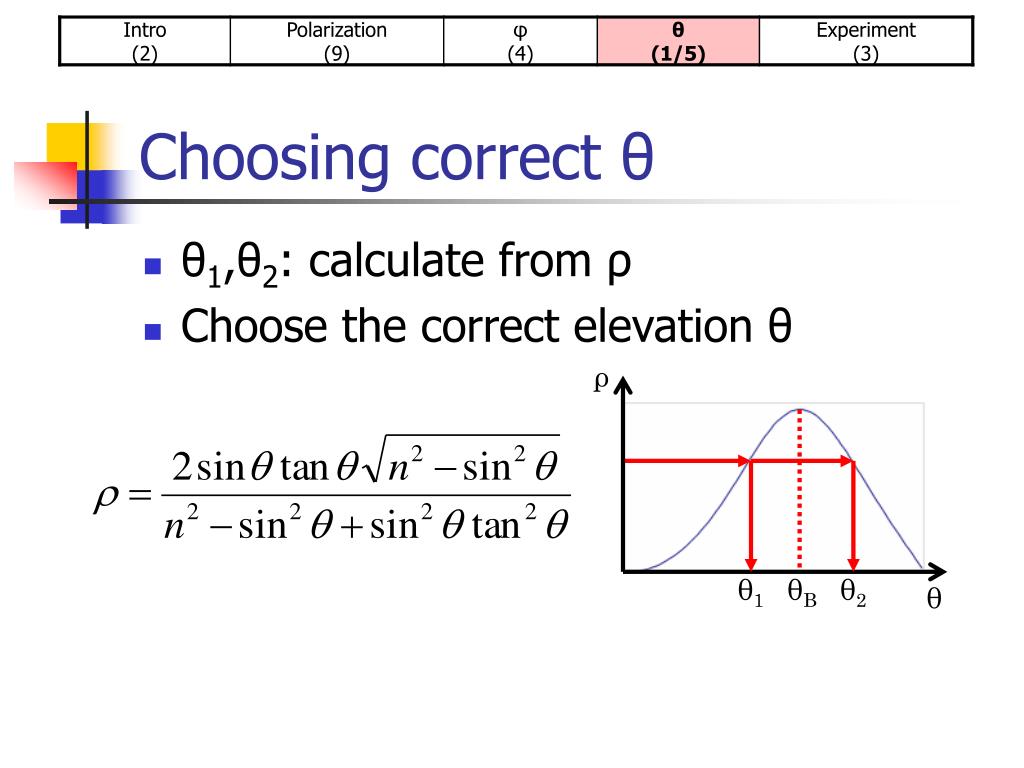

  17. ρ θ1 θB θ2 θ Choosing correct θ • θ1,θ2: calculate from ρ • Choose the correct elevation θ

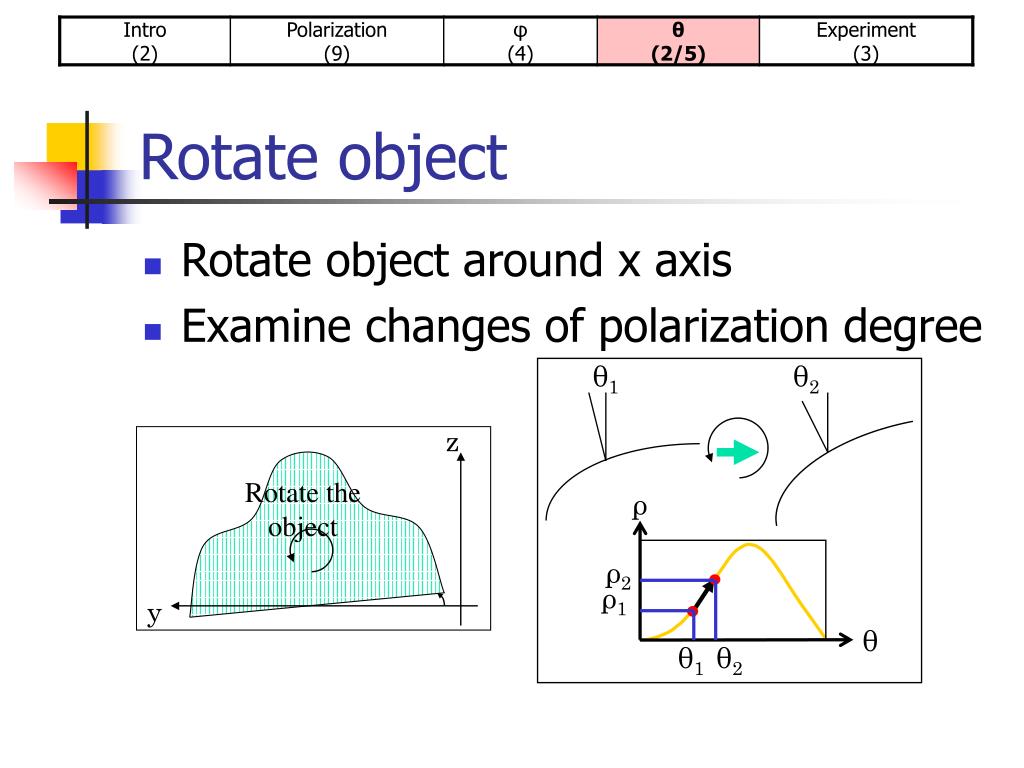

  18. z Rotate the object θ1 θ2 y ρ ρ2 ρ1 θ θ1 θ2 Rotate object • Rotate object around x axis • Examine changes of polarization degree

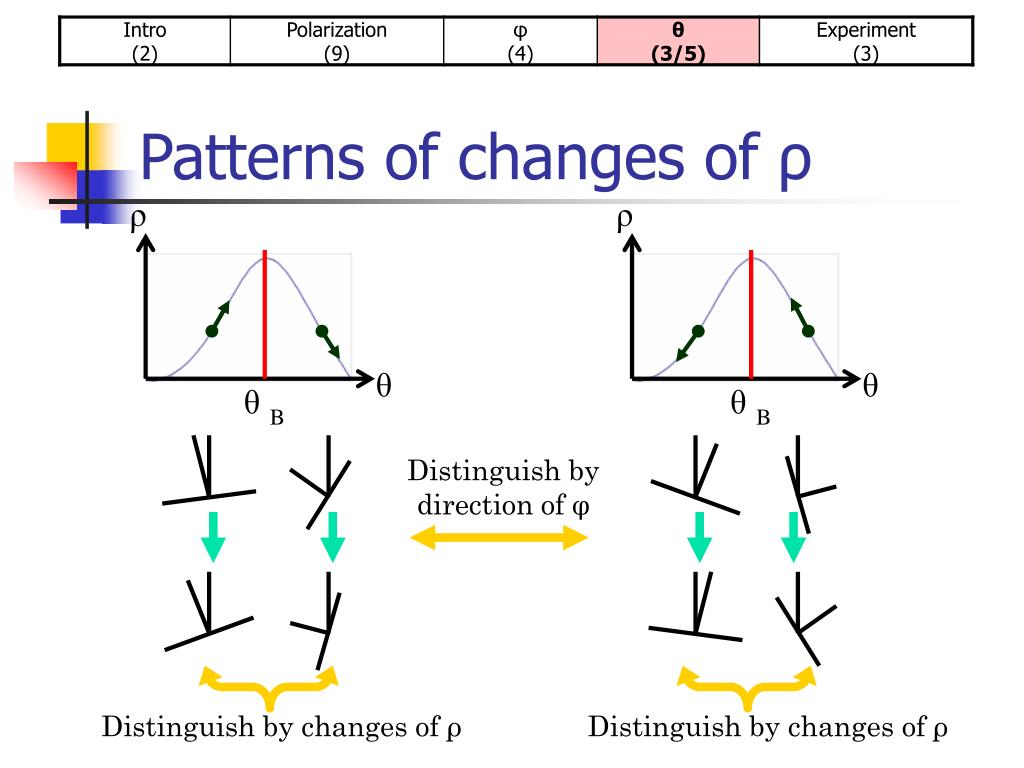

  19. ρ ρ θ θ θ θ B B Patterns of changes of ρ Distinguish by direction of φ Distinguish by changes of ρ Distinguish by changes of ρ

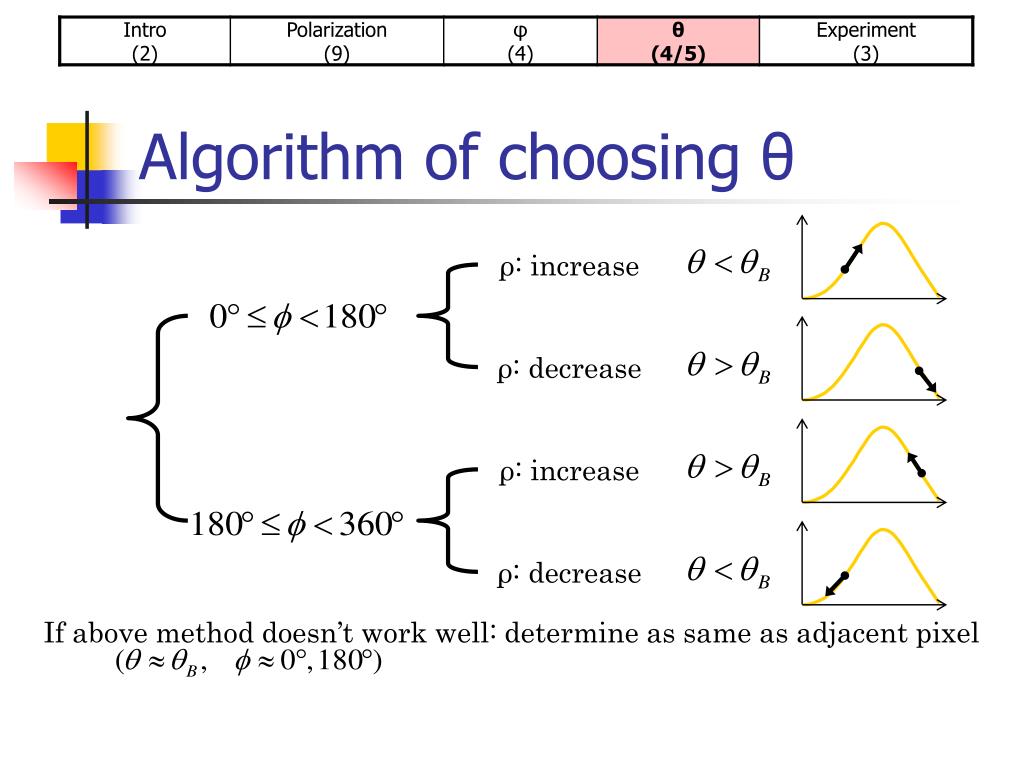

  20. Algorithm of choosing θ ρ: increase ρ: decrease ρ: increase ρ: decrease If above method doesn’t work well: determine as same as adjacent pixel

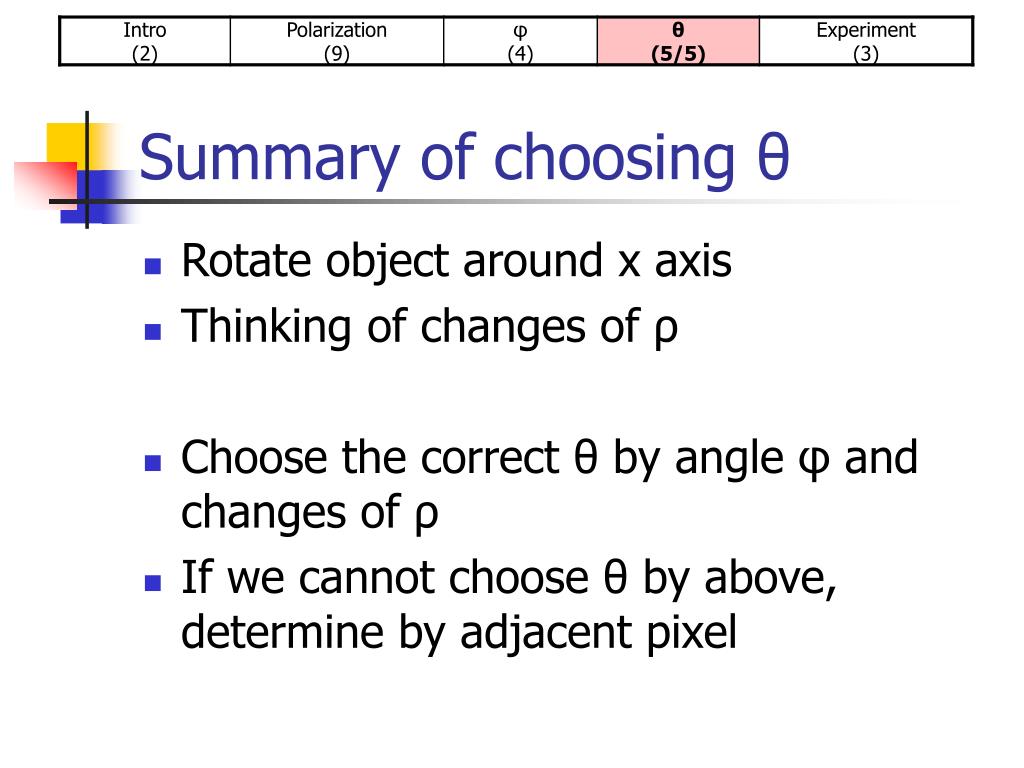

  21. Summary of choosing θ • Rotate object around x axis • Thinking of changes of ρ • Choose the correct θ by angle φ and changes of ρ • If we cannot choose θ by above, determine by adjacent pixel

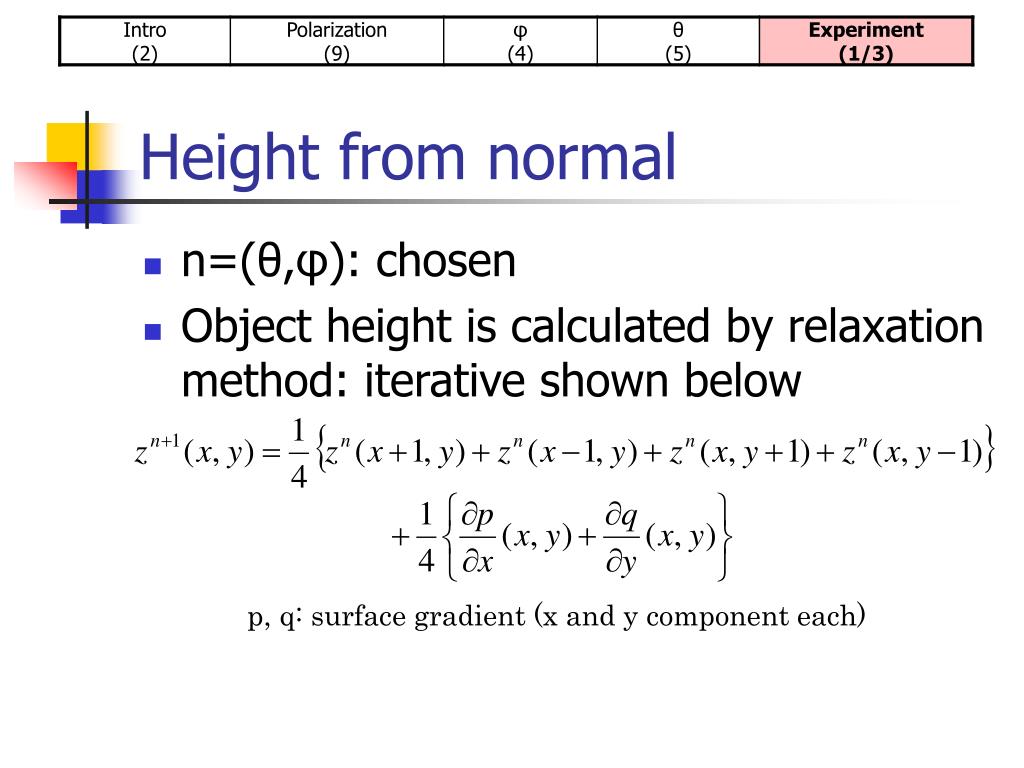

  22. Height from normal • n=(θ,φ): chosen • Object height is calculated by relaxation method: iterative shown below p, q: surface gradient (x and y component each)

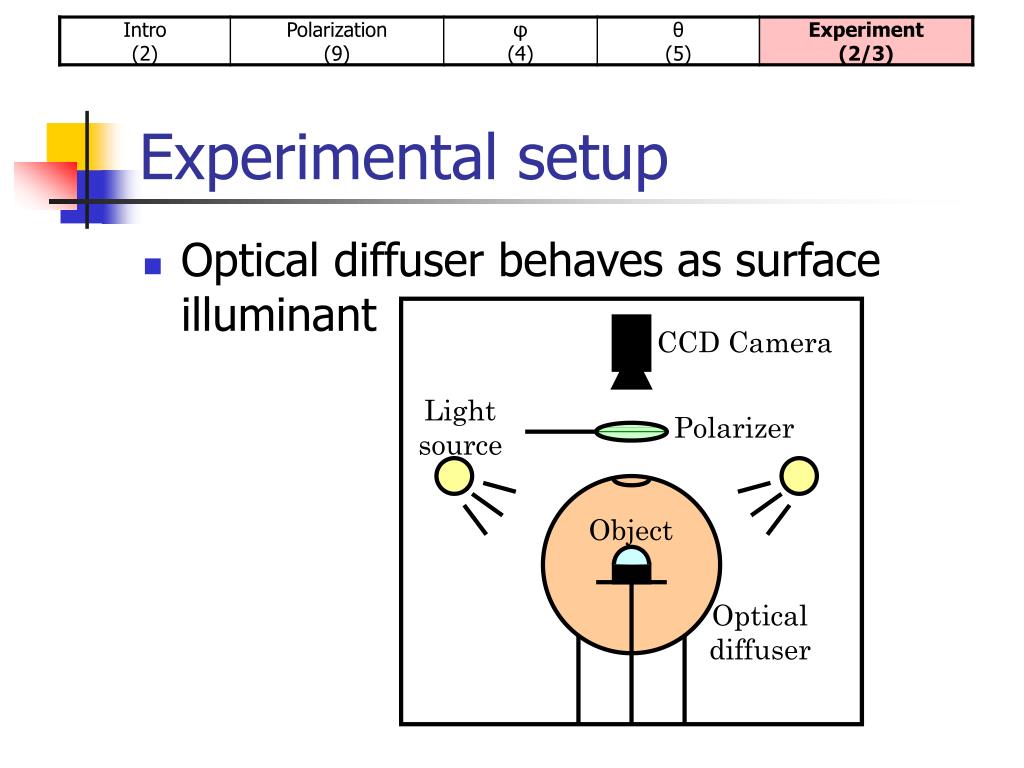

  23. CCD Camera Lightsource Polarizer Object Opticaldiffuser Experimental setup • Optical diffuser behaves as surface illuminant

  24. Experimental result • Result of acrylic hemisphere object

  25. Conclusion • Obtain polarization data by easy setup • Calculated 4 possible surface normal • Chose the correct surface normal (θ and φ) • Object surface height is calculated

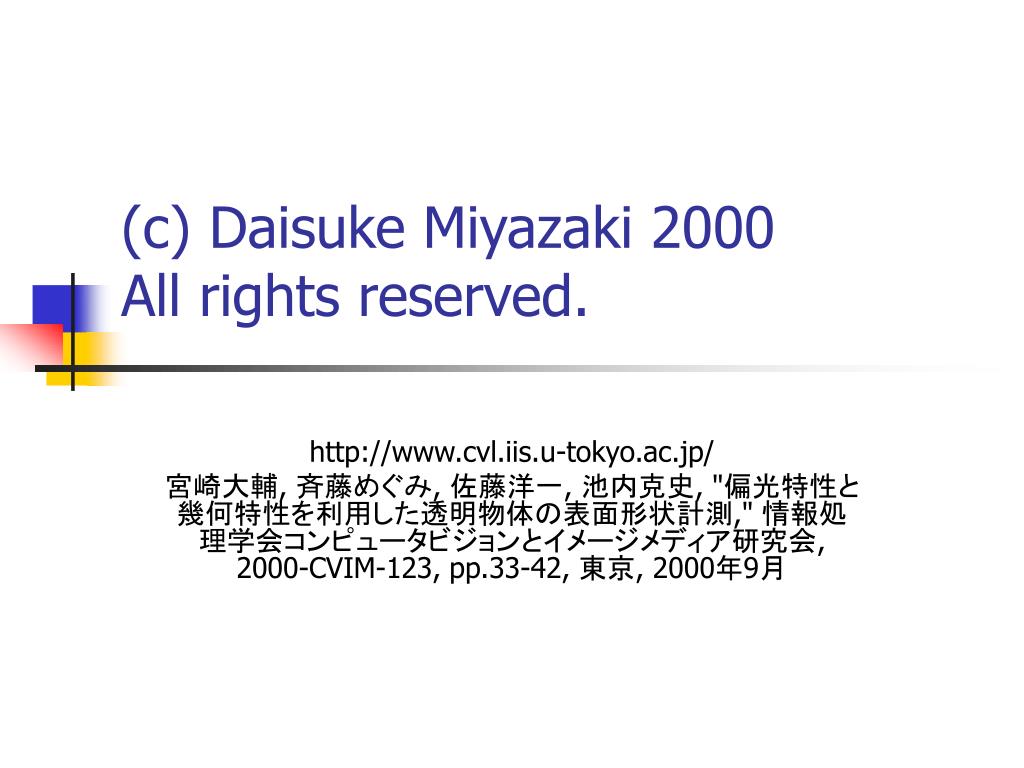

  26. (c) Daisuke Miyazaki 2000All rights reserved. http://www.cvl.iis.u-tokyo.ac.jp/ 宮崎大輔, 斉藤めぐみ, 佐藤洋一, 池内克史, "偏光特性と幾何特性を利用した透明物体の表面形状計測," 情報処理学会コンピュータビジョンとイメージメディア研究会, 2000-CVIM-123, pp.33-42, 東京, 2000年9月
