  1. IGSS PortalIGSS via the Internet HTML 3.2 WAP WML 1.1 cHTML 1.0 • Version 4 included thin clients with full graphics via Terminal Server • Version 5 supplements with an IGSS Portal • Full control from a standard Web browser • Very few requirements to the browser • No software needs to be downloaded – only data • No software needs to be installed • Need for very little bandwidth IGSS Portal

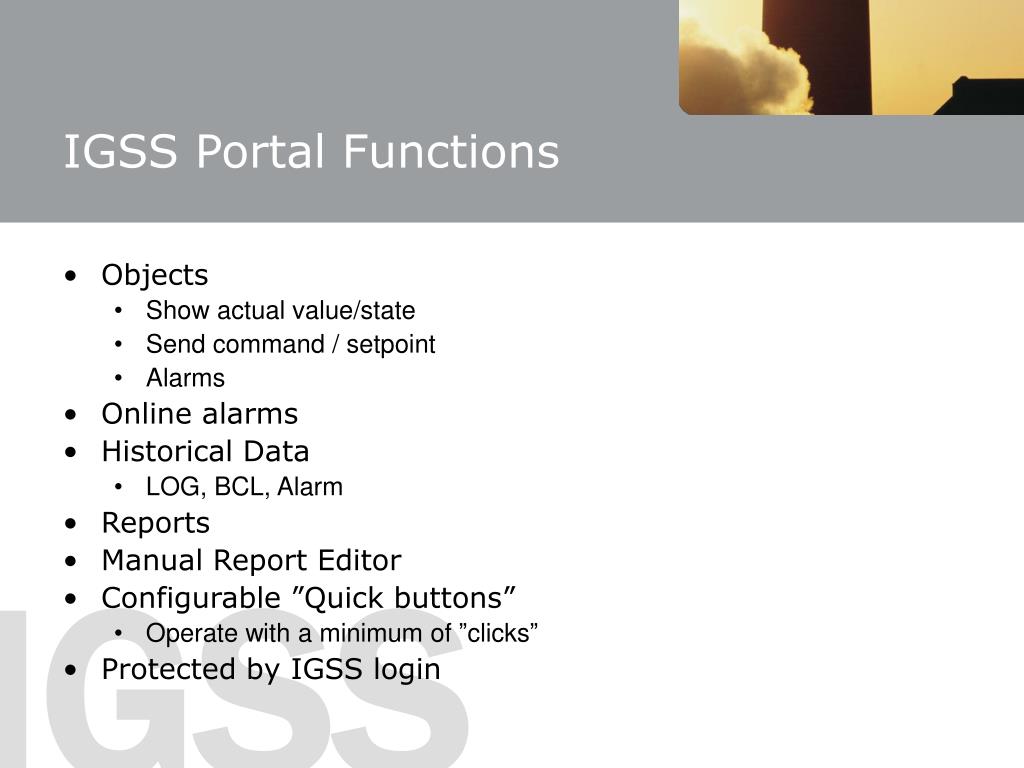

  2. IGSS Portal Functions • Objects • Show actual value/state • Send command / setpoint • Alarms • Online alarms • Historical Data • LOG, BCL, Alarm • Reports • Manual Report Editor • Configurable ”Quick buttons” • Operate with a minimum of ”clicks” • Protected by IGSS login

  3. Login http://minPc/IgssPortal

  4. Object Values

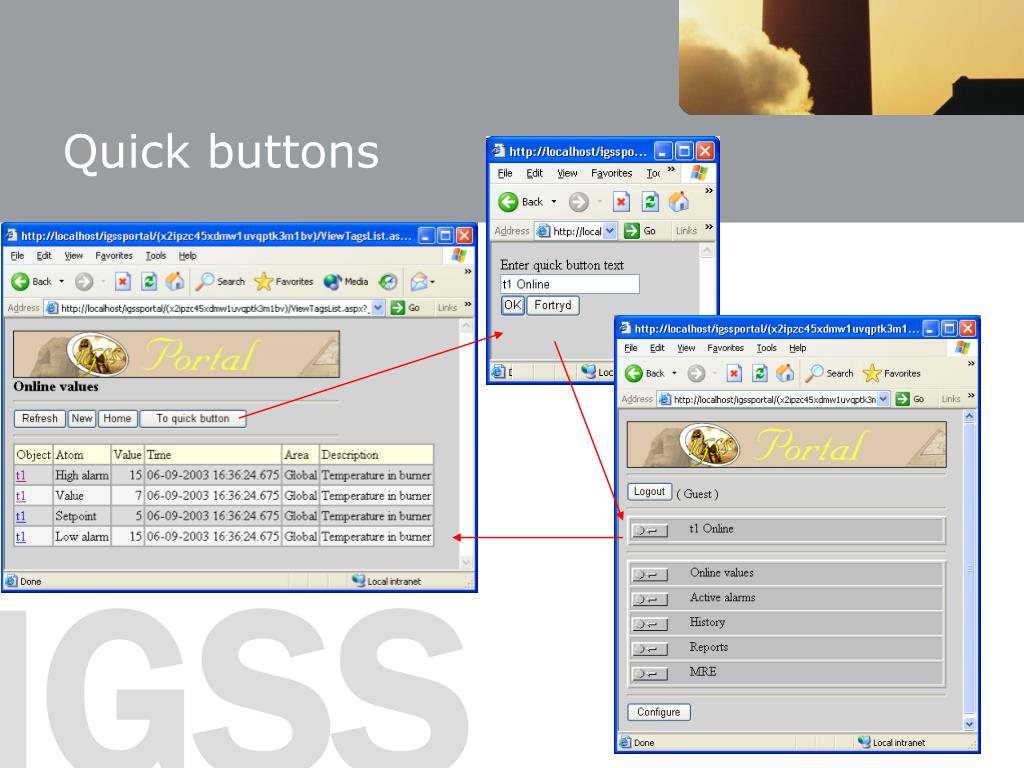

  5. Quick buttons

  6. Alarms

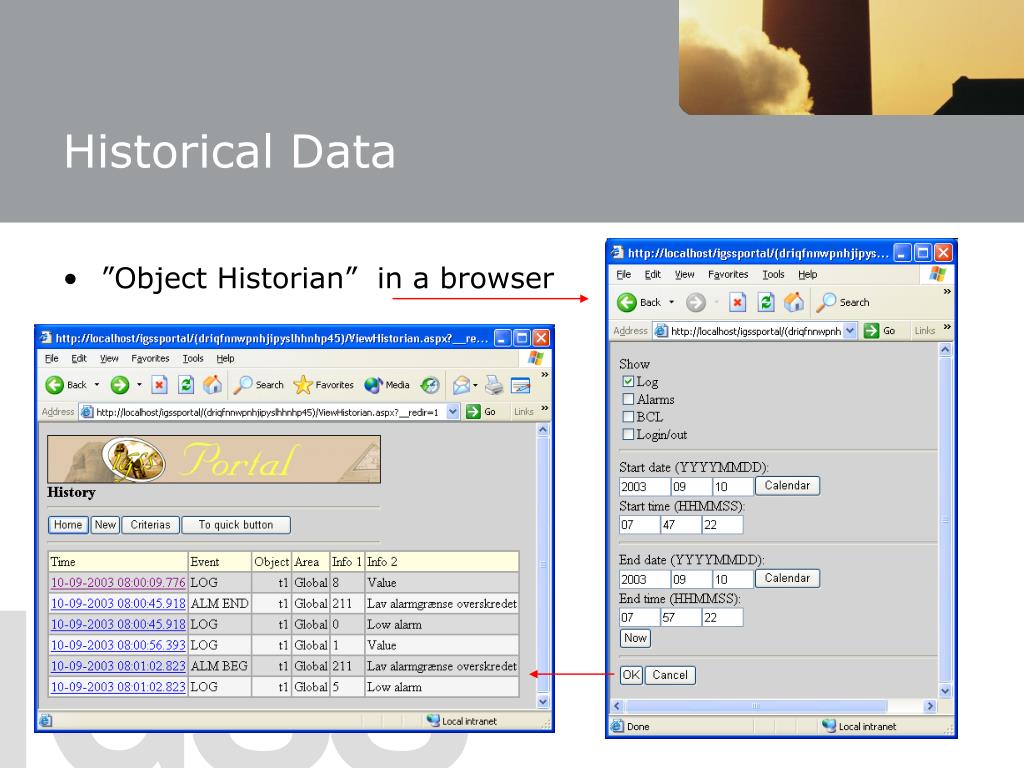

  7. Historical Data • ”Object Historian” in a browser

  8. Reports • Output from IGSS standard reports

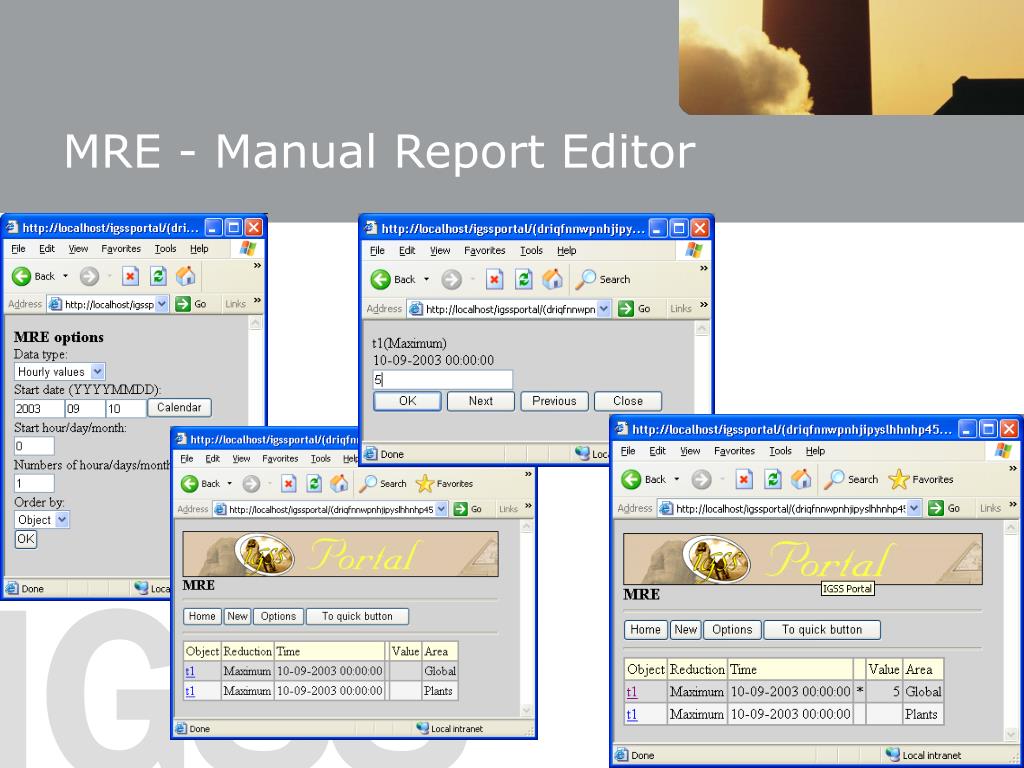

  9. MRE - Manual Report Editor

  10. Security IGSS server IGSS OP IGSS OP Terminal server + IGSS OP IIS + IGSS Portal + IGSS OP VPN and/or FireWall 802.11 Access Point Internet Wireless Encryption Internet Browser 802.11 Clients Terminal Client
