  1. DHCP Dynamic Host Configuration Protocol

  2. What is DHCP? • It does name resolution (one more?!) • DNS resolves IP numbers and FQDN • WINS resolves NetBIOS names and IP numbers • ARP resolves IP numbers and MAC addresses (outgoing packets) • DHCP resolves IP numbers and MAC addresses dynamically • The Windows BootP • BootP is a table of IP numbers and MAC addresses on a server • DHCP is a dynamic BootP

  3. How does it work? (1) (0) IP scope DHCP discover DHCP SERVER DHCP CLIENT MAC address DHCP offer DHCP DATABASE IP#, lease time (2) DHCP request DHCP CLIENT IP#, MAC address MAC address, IP#, lease time DHCP ack IP#, lease time • Scope - a range of IP addresses • IP lease - the IP# is assigned temporarily • Reserved IP - servers are assigned fixed IP addresses

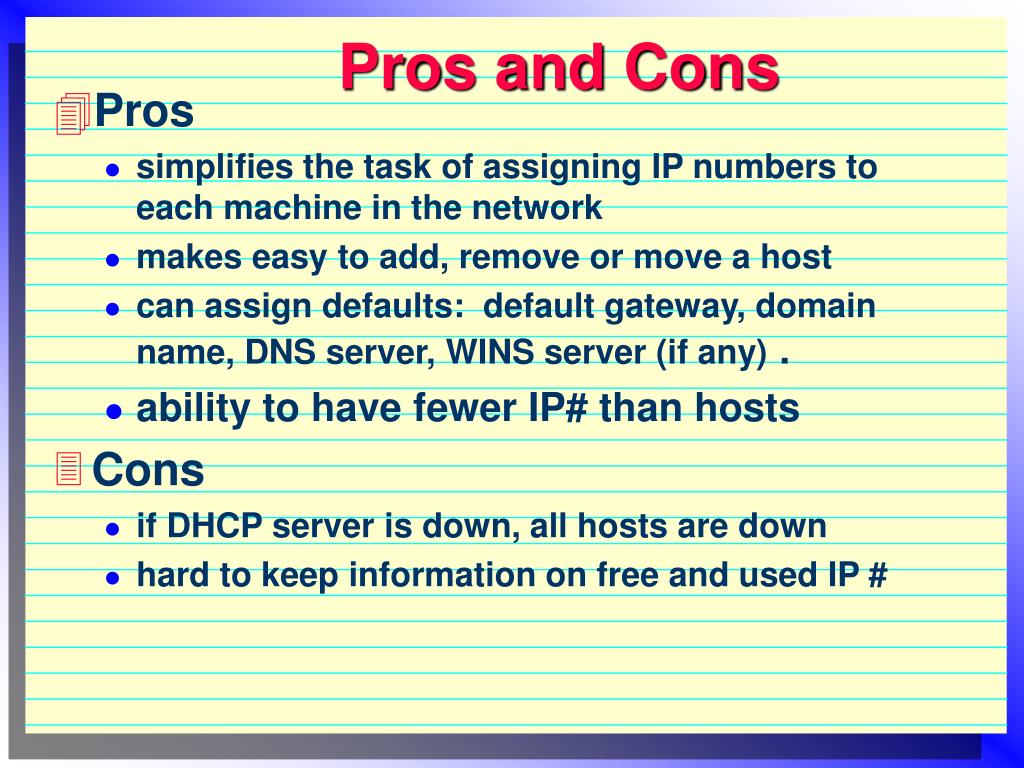

  4. Pros and Cons • Pros • simplifies the task of assigning IP numbers to each machine in the network • makes easy to add, remove or move a host • can assign defaults: default gateway, domain name, DNS server, WINS server (if any) . • ability to have fewer IP# than hosts • Cons • if DHCP server is down, all hosts are down • hard to keep information on free and used IP #

  5. Multi-DHCP networks • No server coordination • each subnet can only have one scope (continuous, but you can exclude some IP addresses), but • you can create DHCP servers with non-overlapping scopes to the same subnet (not MS party line) • Backup and fault tolerance • DHCP makes an hourly backup of its database • it can recover itself, but you should do a backup of its backup if you think something is wrong • copy the DHCP backup before stopping it (at shutdown does another backup).

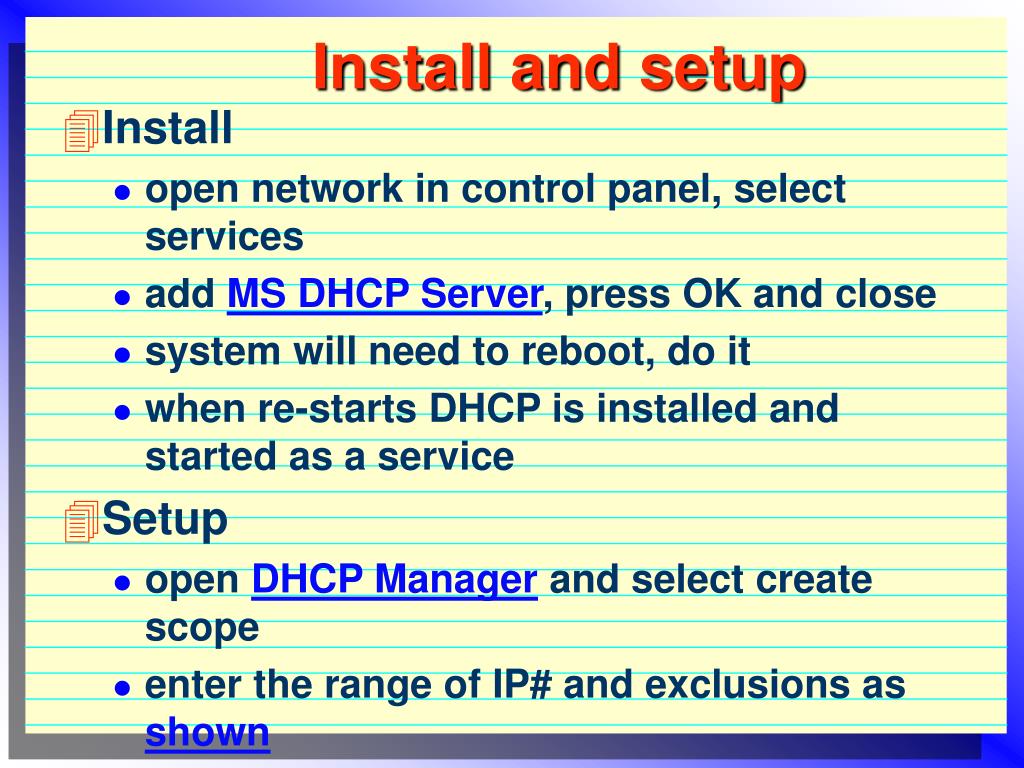

  6. Install and setup • Install • open network in control panel, select services • add MS DHCP Server, press OK and close • system will need to reboot, do it • when re-starts DHCP is installed and started as a service • Setup • open DHCP Manager and select create scope • enter the range of IP# and exclusions as shown • select options, global and enter defaults • finally assign static IP numbers to defaults

  7. DHCP and IPCONFIG • IPCONFIG/ALL • FQDN, servers (DNS, WINS), node type, etc • NIC description, MAC address, IP address, gateway, subnet mask • To handle leases • IP CONFIG/RENEW [adapter] • IP CONFIG/RELEASE [adapter] • if no adapter name is specified, then the IP leases for all adapters bound to TCP/IP will be released or renewed.
