  1. Quantified Invariant Generationusing anInterpolating Saturation Prover Ken McMillan Cadence Research Labs TexPoint fonts used in EMF: AAAAA

  2. Quantified invariants • Many systems that we would like to verify formally are effectively infinite state • Parameterized protocols • Programs manipulating unbounded data structures (arrays, heaps, stacks) • Programs with unbounded thread creation • To verify such systems, we must construct a quantified invariant • For all processes, array elements, threads, etc. • Existing fully automated techniques for generating invariants are not strongly relevance driven • Invisible invariants • Indexed predicate abstraction • Shape analysis

  3. Interpolants and abstraction • Interpolants derived from proofs can provide an effective relevance heuristic for constructing inductive invariants • Provides a way of generalizing proofs about bounded behaviors to the unbounded case • Exploits a prover’s ability to focus on relevant facts • Used in various applications, including • Hardware verification (propositional case) • Predicate abstraction (quantifier-free) • Program verification (quantifier-free) • This talk • Moving to the first-order case, including FO(TC) • Modifying SPASS to create an interpolating FO prover • Apply to program verification with arrays, linked lists

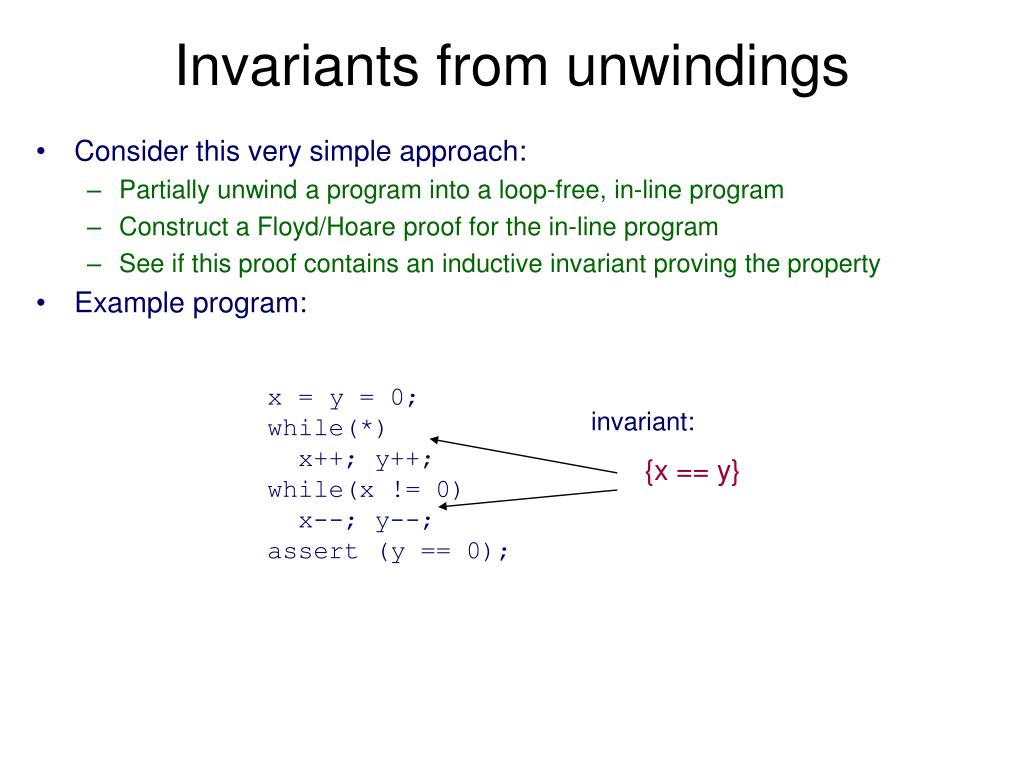

  4. invariant: {x == y} Invariants from unwindings • Consider this very simple approach: • Partially unwind a program into a loop-free, in-line program • Construct a Floyd/Hoare proof for the in-line program • See if this proof contains an inductive invariant proving the property • Example program: x = y = 0; while(*) x++; y++; while(x != 0) x--; y--; assert (y == 0);

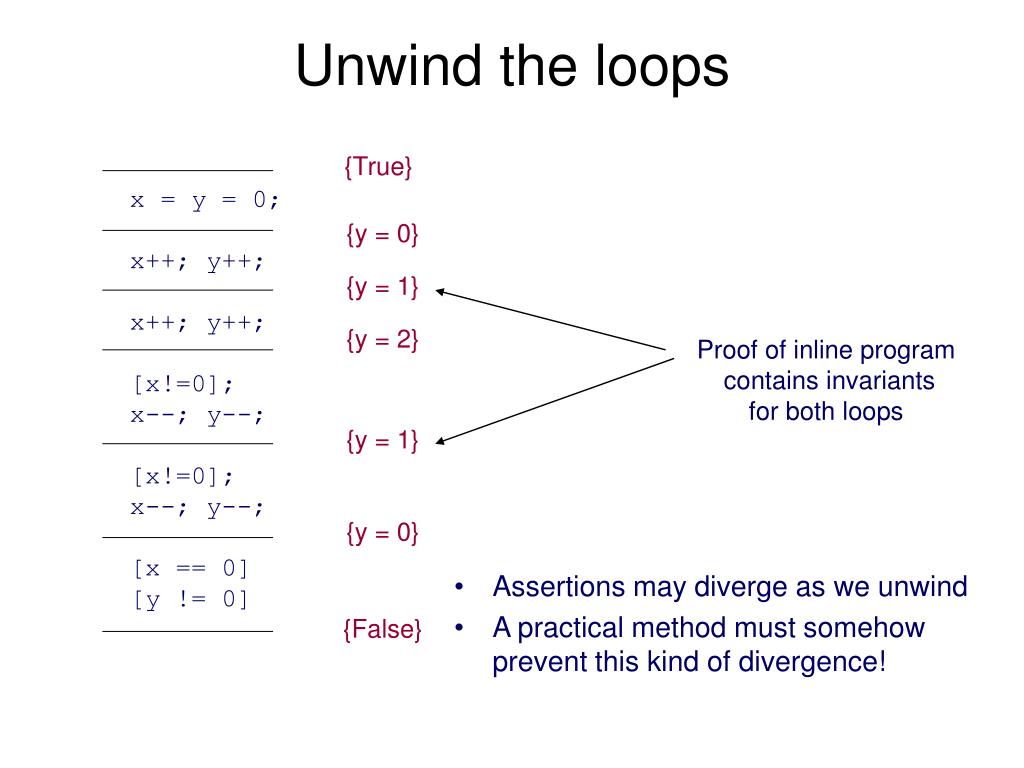

  5. {True} {True} x = y = 0; x++; y++; x++; y++; [x!=0]; x--; y--; [x!=0]; x--; y--; [x == 0] [y != 0] {y = 0} {x = 0 ^ y = 0} {y = 1} {x = y} {y = 2} {x = y} Proof of inline program contains invariants for both loops {y = 1} {x = y} {y = 0} {x = 0 ) y = 0} {False} {False} Unwind the loops • Assertions may diverge as we unwind • A practical method must somehow prevent this kind of divergence!

  6. Interpolation Lemma [Craig,57] • If A Ù B = false, there exists an interpolant A' for (A,B) such that: • A implies A’ • A’ is inconsistent with B • A’ is expressed over the common vocabulary of A and B A variety of techniques exist for deriving an interpolant from a refutation of A Ù B, generated by a theorem prover.

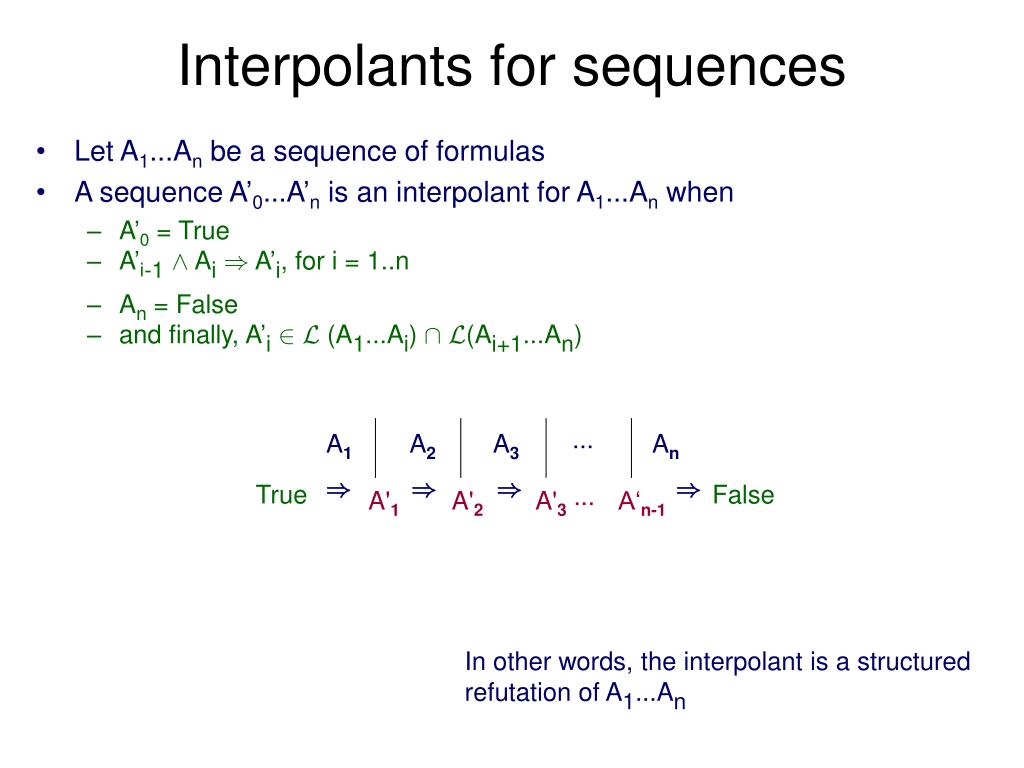

  7. ... A1 A2 A3 An True False ... ) ) ) ) A'1 A'2 A'3 A‘n-1 Interpolants for sequences • Let A1...An be a sequence of formulas • A sequence A’0...A’n is an interpolant for A1...An when • A’0 = True • A’i-1^ Ai) A’i, for i = 1..n • An = False • and finally, A’i2L (A1...Ai) \L(Ai+1...An) In other words, the interpolant is a structured refutation of A1...An

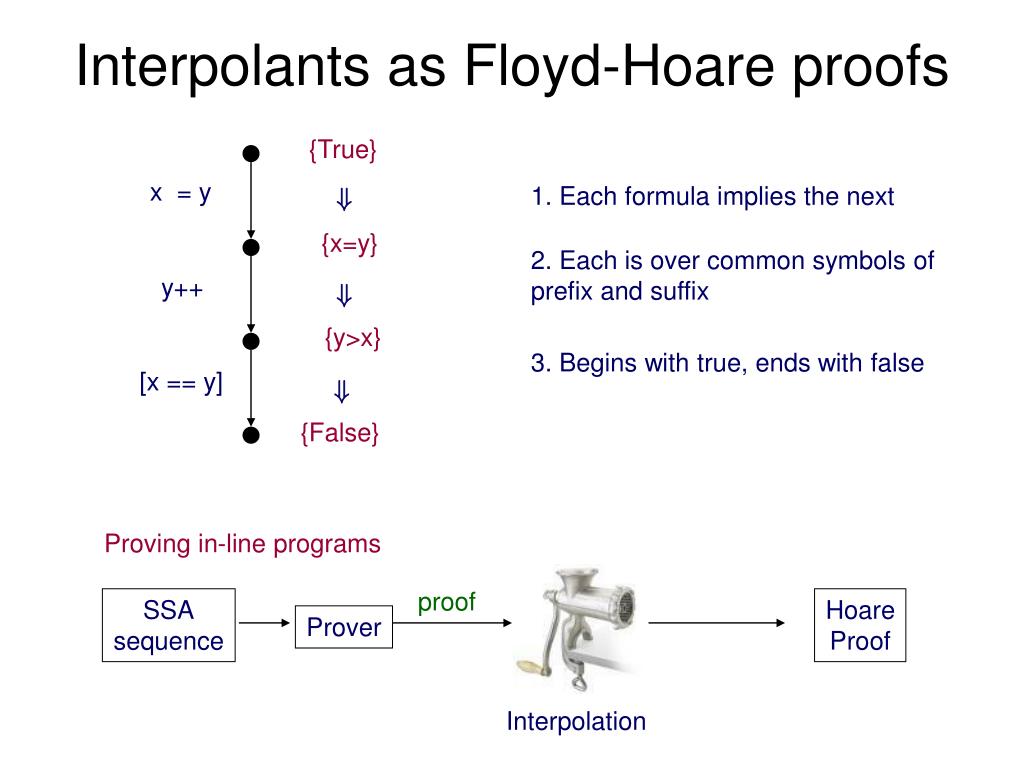

  8. {True} True x = y x1= y0 x=y; 1. Each formula implies the next ) x1=y0 {x=y} y1=y0+1 y++ y++; ) {y>x} y1>x1 x1=y1 [x == y] [x=y] ) False {False} Proving in-line programs proof SSA sequence Hoare Proof Prover Interpolation Interpolants as Floyd-Hoare proofs 2. Each is over common symbols of prefix and suffix 3. Begins with true, ends with false

  9. FOCI: An Interpolating Prover • Proof-generating decision procedure for quantifier-free FOL • Equality with uninterpreted function symbols • Theory of arrays • Linear rational arithmetic, integer difference bounds • SAT Modulo Theories approach • Boolean reasoning performed by SAT solver • Exploits SAT relevance heuristics • Quantifier-free interpolants from proofs • Linear-time construction [TACAS 04] • From Q-F interpolants, we can derive atomic predicates for Predicate Abstraction [Henzinger, et al, POPL 04] • Allows counterexample-based refinement • Integrated with software verification tools • Berkeley BLAST, Cadence IMPACT

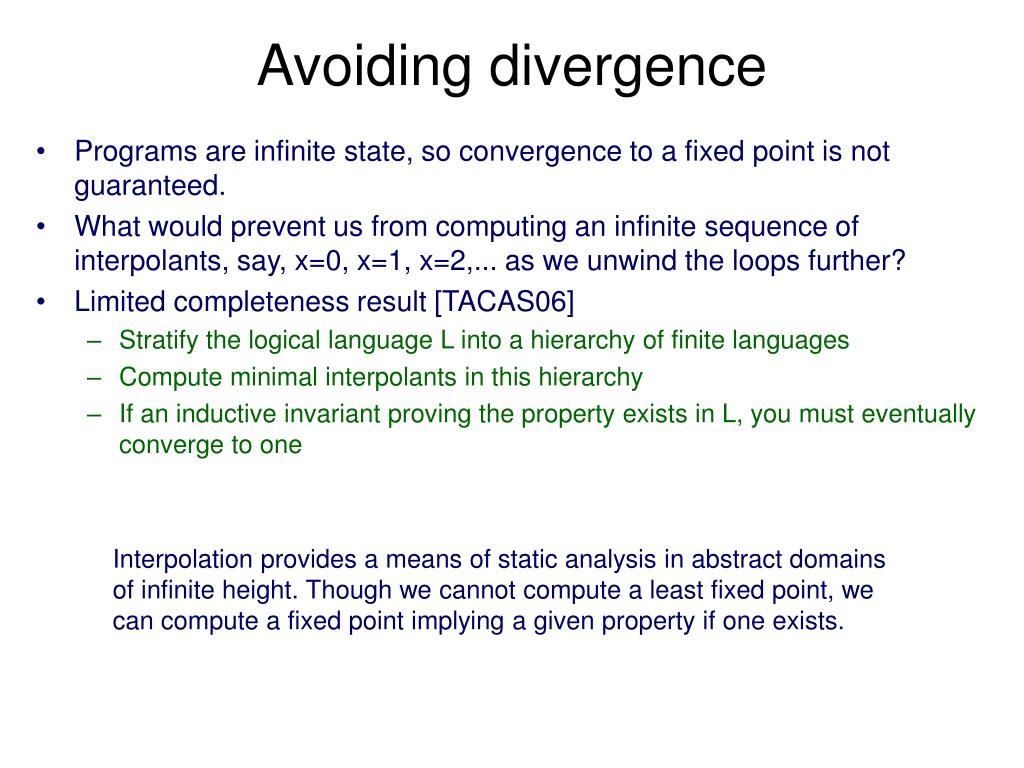

  10. Avoiding divergence • Programs are infinite state, so convergence to a fixed point is not guaranteed. • What would prevent us from computing an infinite sequence of interpolants, say, x=0, x=1, x=2,... as we unwind the loops further? • Limited completeness result [TACAS06] • Stratify the logical language L into a hierarchy of finite languages • Compute minimal interpolants in this hierarchy • If an inductive invariant proving the property exists in L, you must eventually converge to one Interpolation provides a means of static analysis in abstract domains of infinite height. Though we cannot compute a least fixed point, we can compute a fixed point implying a given property if one exists.

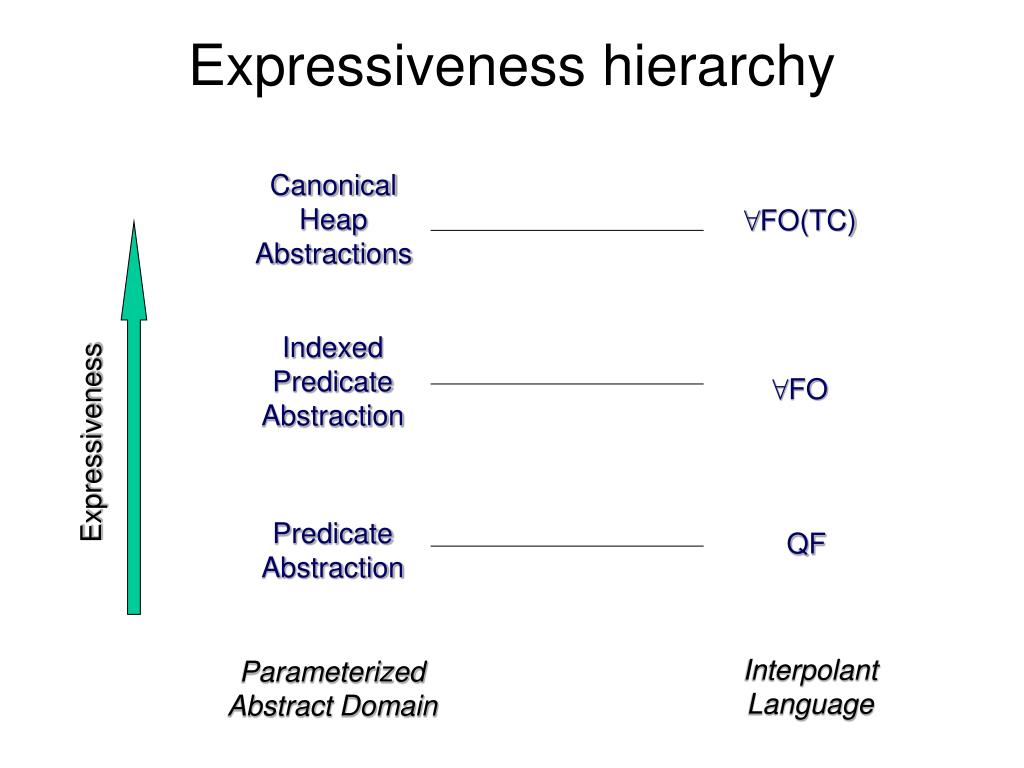

  11. Expressiveness hierarchy Canonical Heap Abstractions 8FO(TC) Indexed Predicate Abstraction 8FO Expressiveness Predicate Abstraction QF Interpolant Language Parameterized Abstract Domain

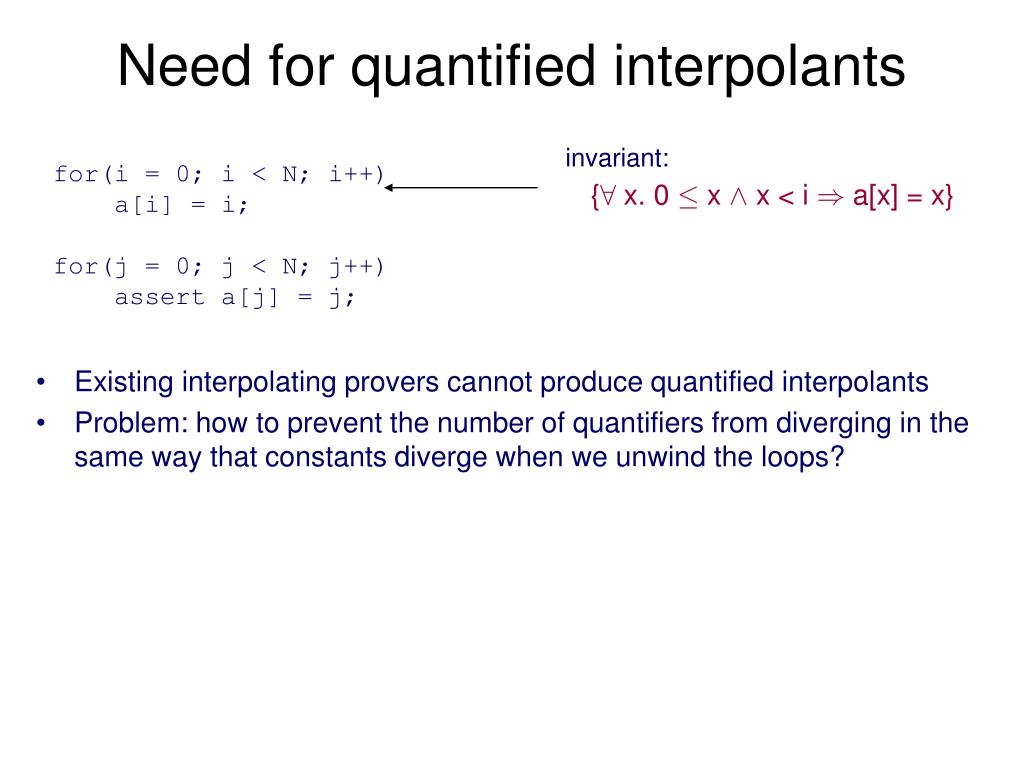

  12. invariant: {8 x. 0 · x ^ x < i ) a[x] = x} Need for quantified interpolants • Existing interpolating provers cannot produce quantified interpolants • Problem: how to prevent the number of quantifiers from diverging in the same way that constants diverge when we unwind the loops? for(i = 0; i < N; i++) a[i] = i; for(j = 0; j < N; j++) assert a[j] = j;

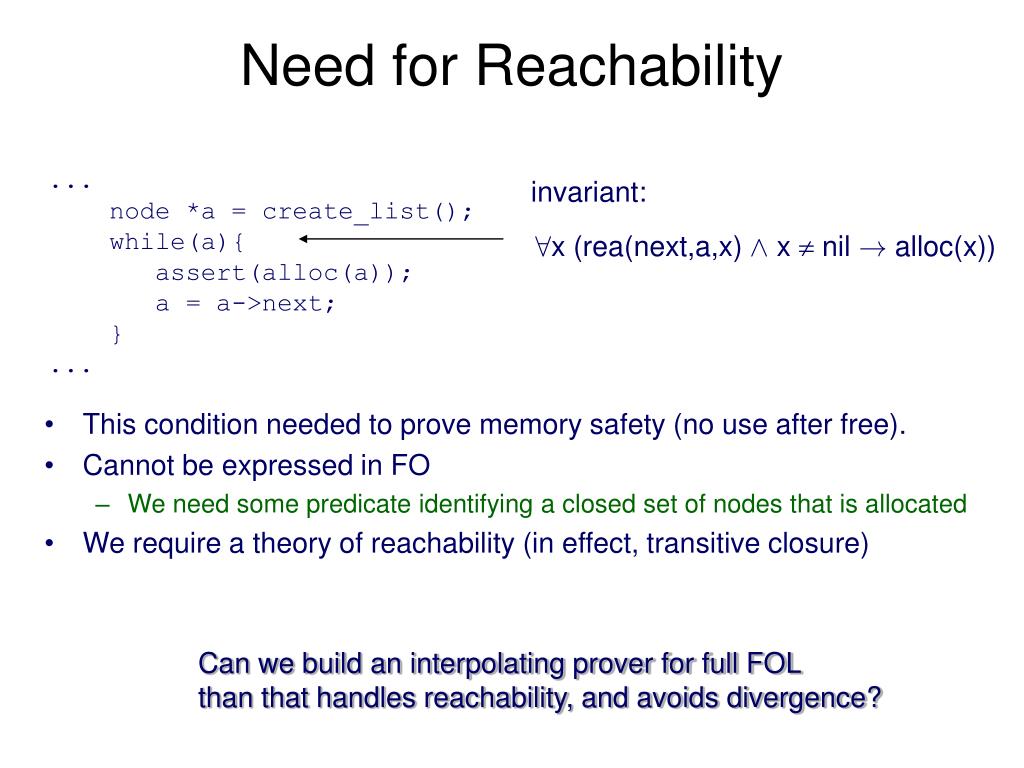

  13. Need for Reachability • This condition needed to prove memory safety (no use after free). • Cannot be expressed in FO • We need some predicate identifying a closed set of nodes that is allocated • We require a theory of reachability (in effect, transitive closure) ... node *a = create_list(); while(a){ assert(alloc(a)); a = a->next; } ... invariant: 8 x (rea(next,a,x) ^ x  nil ! alloc(x)) Can we build an interpolating prover for full FOL than that handles reachability, and avoids divergence?

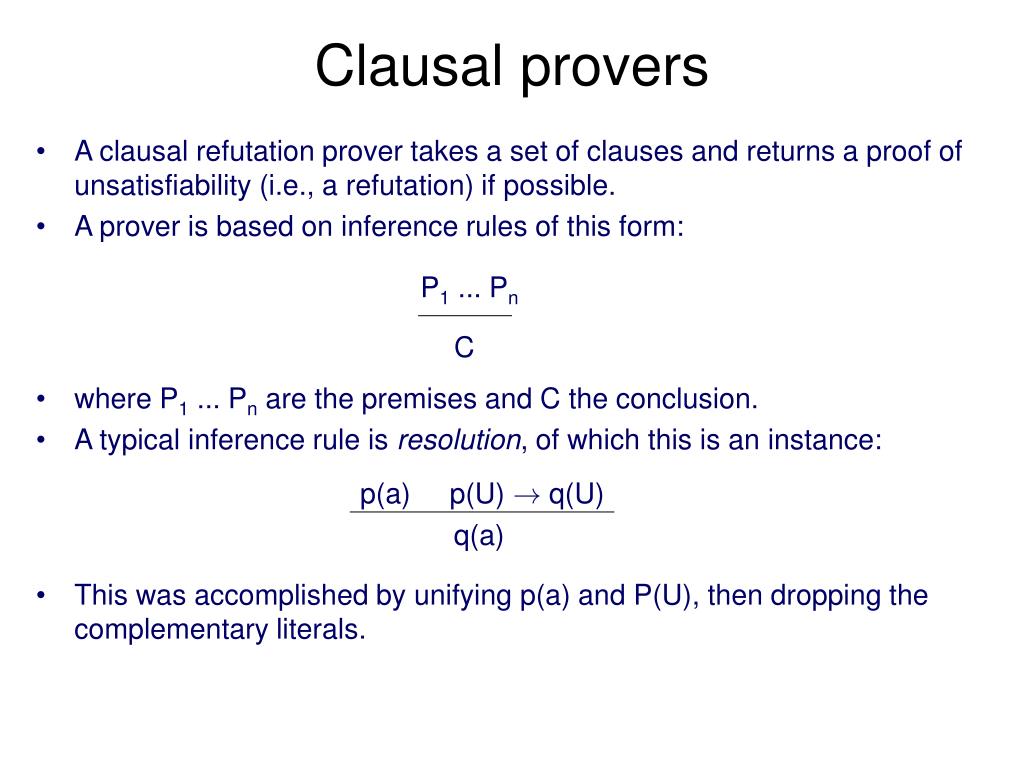

  14. Clausal provers • A clausal refutation prover takes a set of clauses and returns a proof of unsatisfiability (i.e., a refutation) if possible. • A prover is based on inference rules of this form: P1 ... Pn C • where P1 ... Pn are the premises and C the conclusion. • A typical inference rule is resolution, of which this is an instance: p(a) p(U) ! q(U) q(a) • This was accomplished by unifying p(a) and P(U), then dropping the complementary literals.

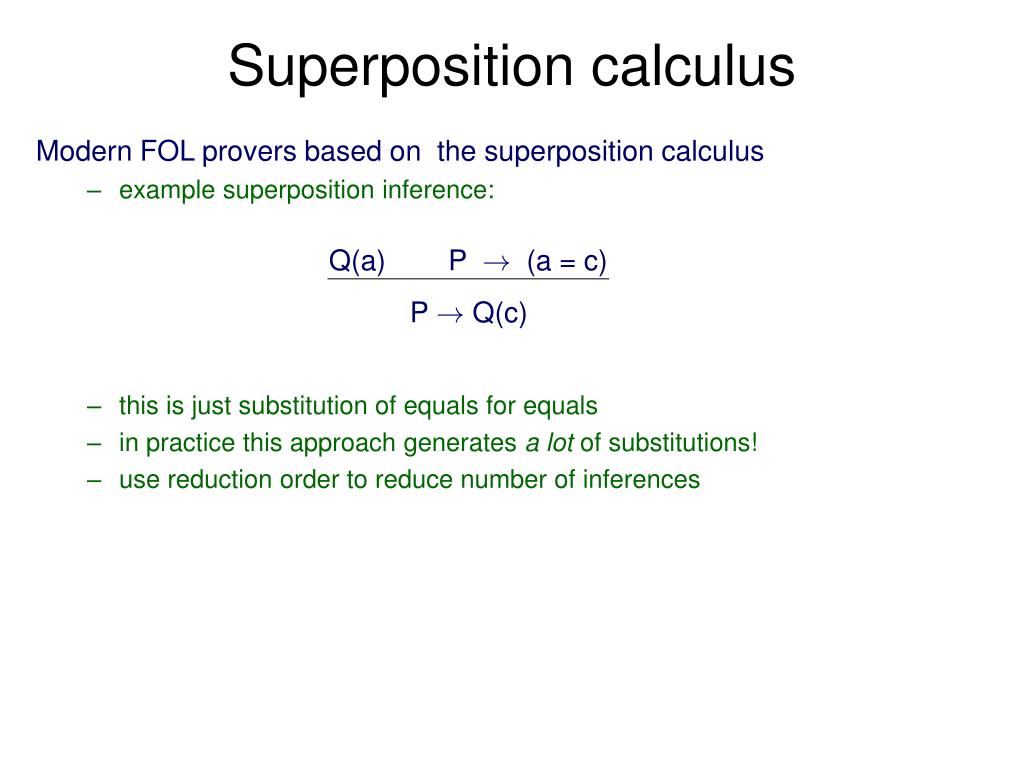

  15. Superposition calculus Modern FOL provers based on the superposition calculus • example superposition inference: Q(a) P ! (a = c) P ! Q(c) • this is just substitution of equals for equals • in practice this approach generates a lot of substitutions! • use reduction order to reduce number of inferences

  16. Reduction orders • A reduction order  is: • a total, well founded order on ground terms • subterm property: f(a)  a • monotonicity: a  b implies f(a)  f(b) • Example: Recursive Path Ordering (with Status) (RPOS) • start with a precedence on symbols: a  b  c  f • induces a reduction ordering on ground terms: f(f(a)  f(a)  a  f(b)  b  c  f

  17. These terms must be maximal in their clauses Thm: Superposition with OC is complete for refutation in FOL with equality. So how do we get interpolants from these proofs? Ordering Constraint • Constrains rewrites to be “downward” in the reduction order: Q(a) P ! (a = c) P ! Q(c) example: this inference only possible if a  c

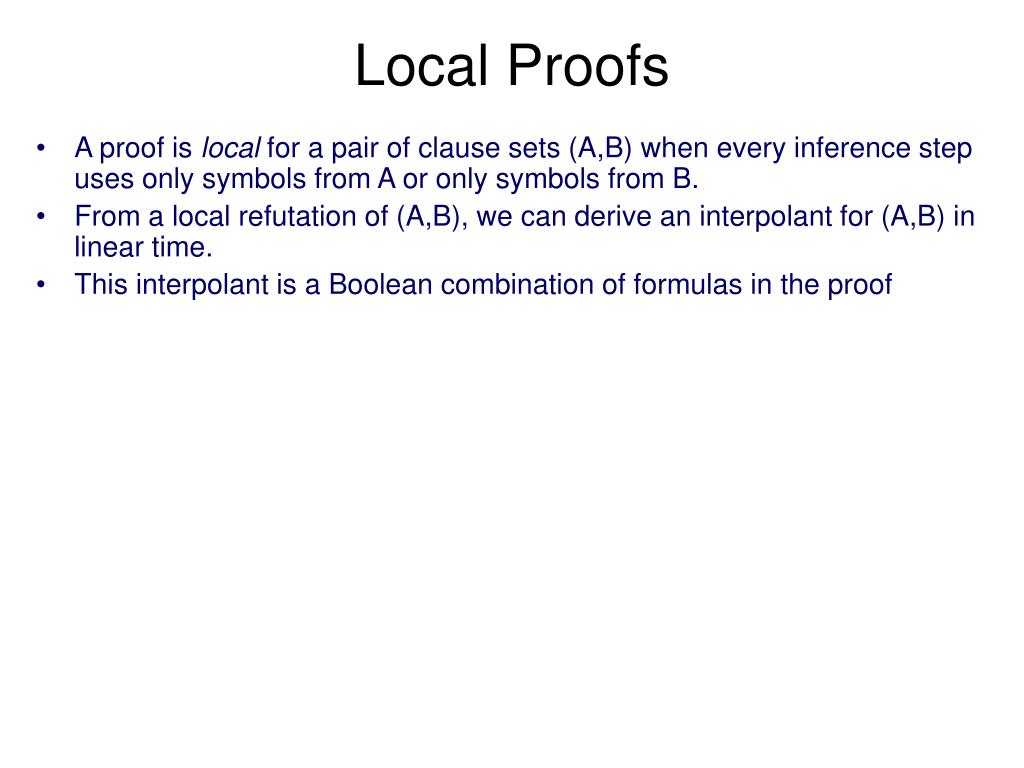

  18. Local Proofs • A proof is local for a pair of clause sets (A,B) when every inference step uses only symbols from A or only symbols from B. • From a local refutation of (A,B), we can derive an interpolant for (A,B) in linear time. • This interpolant is a Boolean combination of formulas in the proof

  19. A B x = y f(y) = d f(x) = c c d Reduction orders and locality • A reduction order is oriented for (A,B) when: • s  t for every s L (B) and t 2L(B) • Intuition: rewriting eliminates first A variables, then B variables. oriented: x y c d f x = y f(x) = c ` f(y) = c Local!! f(y) = c f(y) = d ` c = d c = d c  d `?

  20. Q(a) a = c Q(a) Q(c) a = c a = U ! Q(U) Q(c) Orientation is not enough • Local superposition gives only c=c. • Solution: replace non-local superposition with two inferences: B A Q(a) a = c Q  a  b  c b = c : Q(b) Second inference can be postponed until after resolving with : Q(b) This “procrastination” step is an example of a reduction rule, and preserves completeness.

  21. Completeness of local inference • Thm: Local superposition with procrastination is complete for refutation of pairs (A,B) such that: • (A,B) has a universally quantified interpolant • The reduction order is oriented for (A,B) • This gives us a complete method for generation of universally quantified interpolants for arbitrary first-order formulas! • This is easily extensible to interpolants for sequences of formulas, hence we can use the method to generate Floyd/Hoare proofs for inline programs.

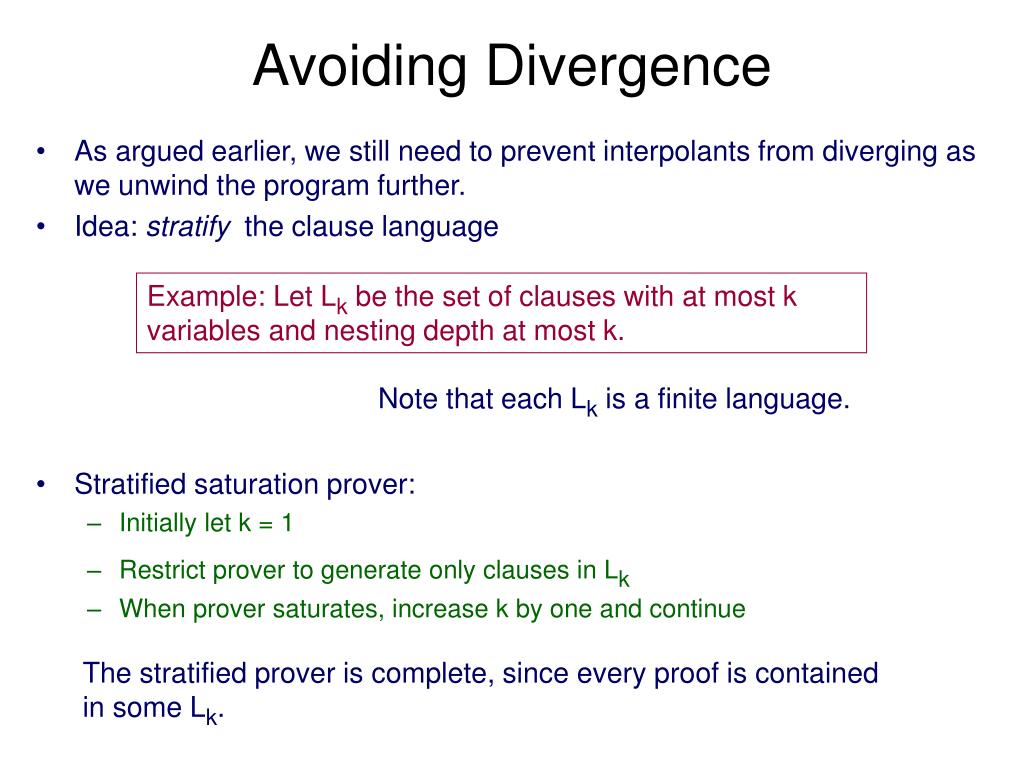

  22. Avoiding Divergence • As argued earlier, we still need to prevent interpolants from diverging as we unwind the program further. • Idea: stratify the clause language Example: Let Lk be the set of clauses with at most k variables and nesting depth at most k. Note that each Lk is a finite language. • Stratified saturation prover: • Initially let k = 1 • Restrict prover to generate only clauses in Lk • When prover saturates, increase k by one and continue The stratified prover is complete, since every proof is contained in some Lk.

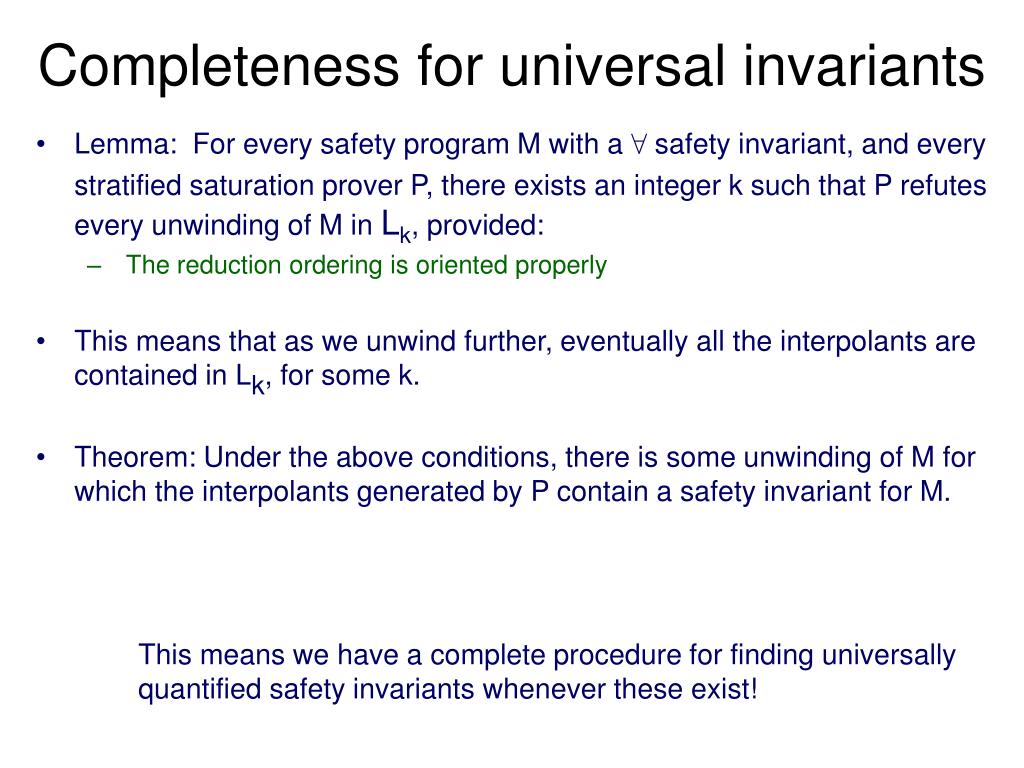

  23. Completeness for universal invariants • Lemma: For every safety program M with a 8 safety invariant, and every stratified saturation prover P, there exists an integer k such that P refutes every unwinding of M in Lk, provided: • The reduction ordering is oriented properly • This means that as we unwind further, eventually all the interpolants are contained in Lk, for some k. • Theorem: Under the above conditions, there is some unwinding of M for which the interpolants generated by P contain a safety invariant for M. This means we have a complete procedure for finding universally quantified safety invariants whenever these exist!

  24. In practice • We have proved theoretical convergence. But does the procedure converge in practice in a reasonable time? • Modify SPASS, an efficient superposition-based saturation prover: • Generate oriented precedence orders • Add procrastination rule to SPASS’s reduction rules • Drop all non-local inferences • Add stratification (SPASS already has something similar) • Add axiomatizations of the necessary theories • An advantage of a full FOL prover is we can add axioms! • As argued earlier, we need a theory of arrays and reachability (TC) • Since this theory is not finitely axiomatizable, we use an incomplete axiomatization that is intended to handle typical operations in list-manipulating programs

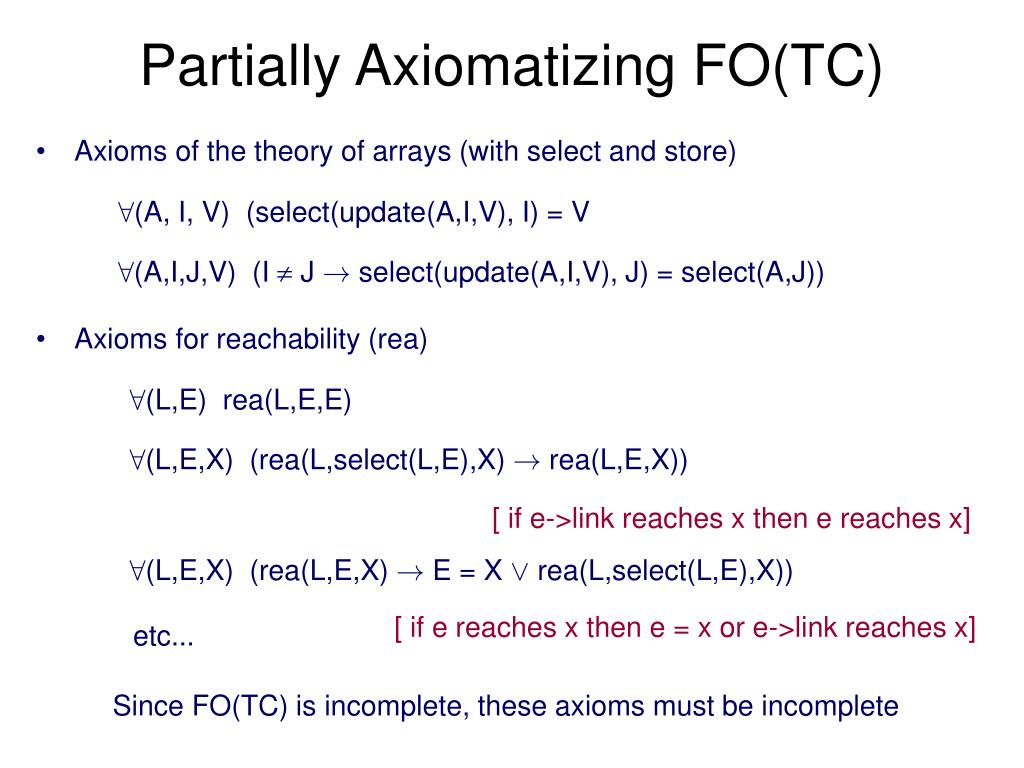

  25. Partially Axiomatizing FO(TC) • Axioms of the theory of arrays (with select and store) 8 (A, I, V) (select(update(A,I,V), I) = V 8 (A,I,J,V) (I  J ! select(update(A,I,V), J) = select(A,J)) • Axioms for reachability (rea) 8 (L,E) rea(L,E,E) 8 (L,E,X) (rea(L,select(L,E),X) ! rea(L,E,X)) [ if e->link reaches x then e reaches x] 8 (L,E,X) (rea(L,E,X) ! E = X _ rea(L,select(L,E),X)) [ if e reaches x then e = x or e->link reaches x] etc... Since FO(TC) is incomplete, these axioms must be incomplete

  26. invariant: {8 x. 0 · x ^ x < i ) a[x] = x} Simple example for(i = 0; i < N; i++) a[i] = i; for(j = 0; j < N; j++) assert a[j] = j;

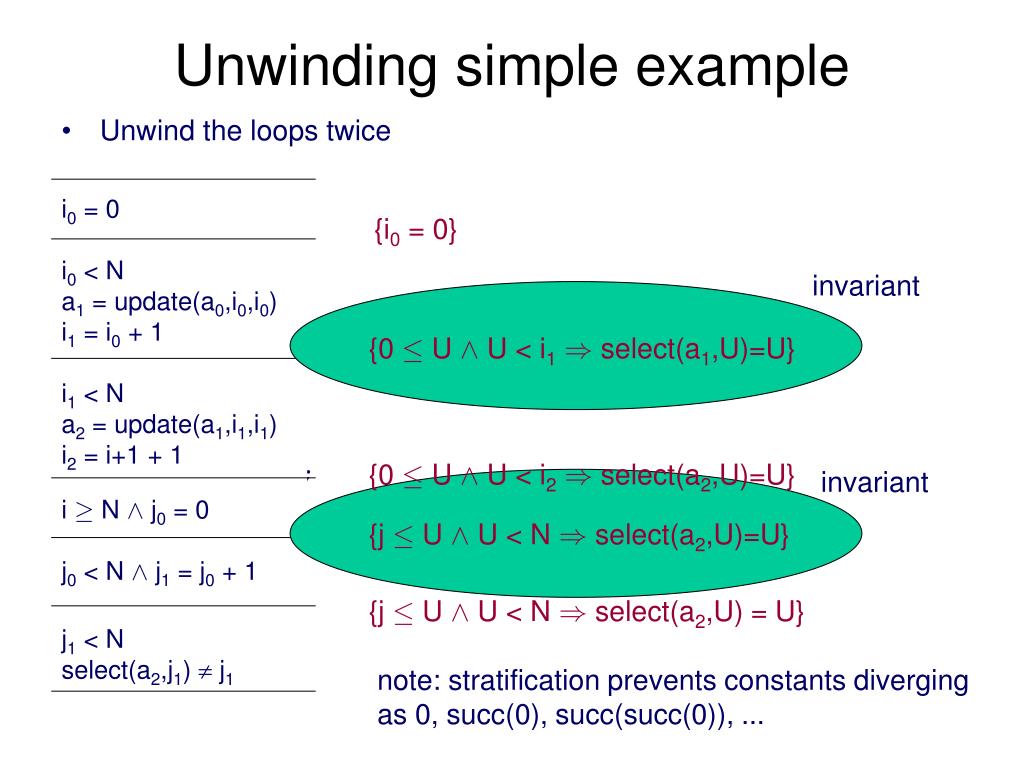

  27. i0 = 0 i0 < N a1 = update(a0,i0,i0) i1 = i0 + 1 i1 < N a2 = update(a1,i1,i1) i2 = i+1 + 1 i ¸ N ^ j0 = 0 j0 < N ^ j1 = j0 + 1 j1 < N select(a2,j1)  j1 {i0 = 0} i = 0; [i < N]; a[i] = i; i++; [i < N]; a[i] = i; i++; [i >= N]; j = 0; [j < N]; j++; [j < N]; a[j] != j; invariant {0 · U ^ U < i1) select(a1,U)=U} {0 · U ^ U < i2) select(a2,U)=U} invariant {j · U ^ U < N ) select(a2,U)=U} {j · U ^ U < N ) select(a2,U) = U} Unwinding simple example • Unwind the loops twice note: stratification prevents constants diverging as 0, succ(0), succ(succ(0)), ...

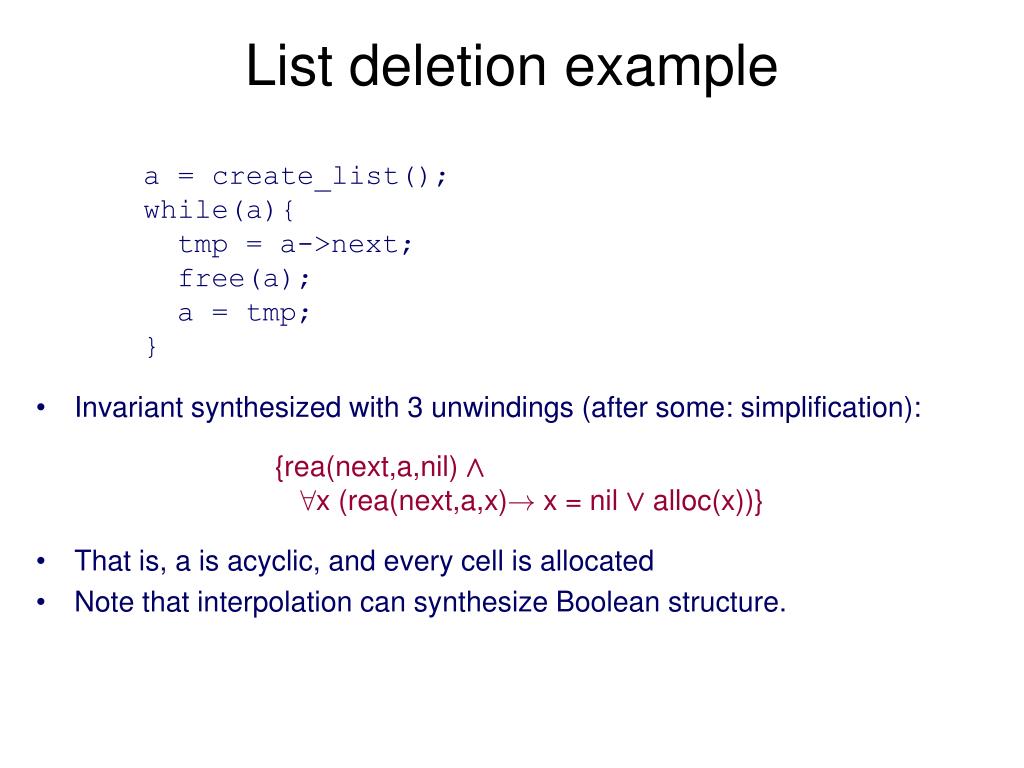

  28. List deletion example • Invariant synthesized with 3 unwindings (after some: simplification): a = create_list(); while(a){ tmp = a->next; free(a); a = tmp; } {rea(next,a,nil) ^ 8 x (rea(next,a,x)! x = nil _ alloc(x))} • That is, a is acyclic, and every cell is allocated • Note that interpolation can synthesize Boolean structure.

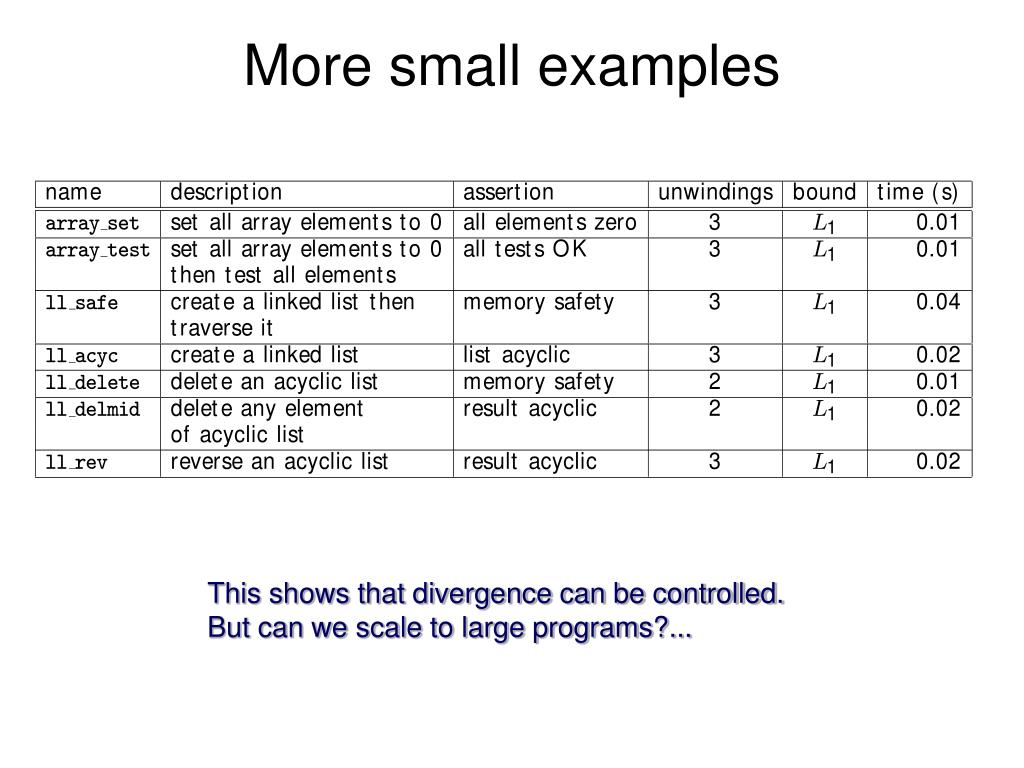

  29. More small examples This shows that divergence can be controlled. But can we scale to large programs?...

  30. Pta Reaa Reaa Reaa is_null Reaa next next next null a a Canonical abstraction • Abstraction replaces concrete heaps with abstract symbolic heaps • Abstraction parameterize by “instrumentation predicates” • Abstract heap represents infinite class of concrete heaps • “Summary” node represents equivalence class of concrete nodes • Dotted arcs mean “may point to”

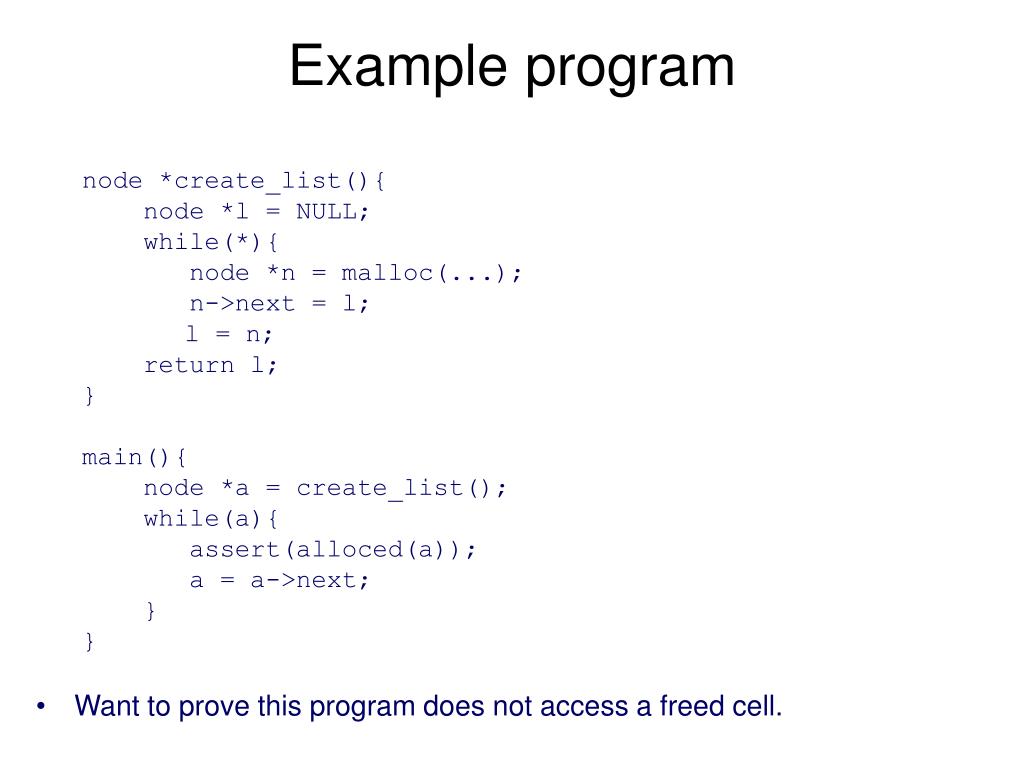

  31. Example program • Want to prove this program does not access a freed cell. node *create_list(){ node *l = NULL; while(*){ node *n = malloc(...); n->next = l; l = n; return l; } main(){ node *a = create_list(); while(a){ assert(alloced(a)); a = a->next; } }

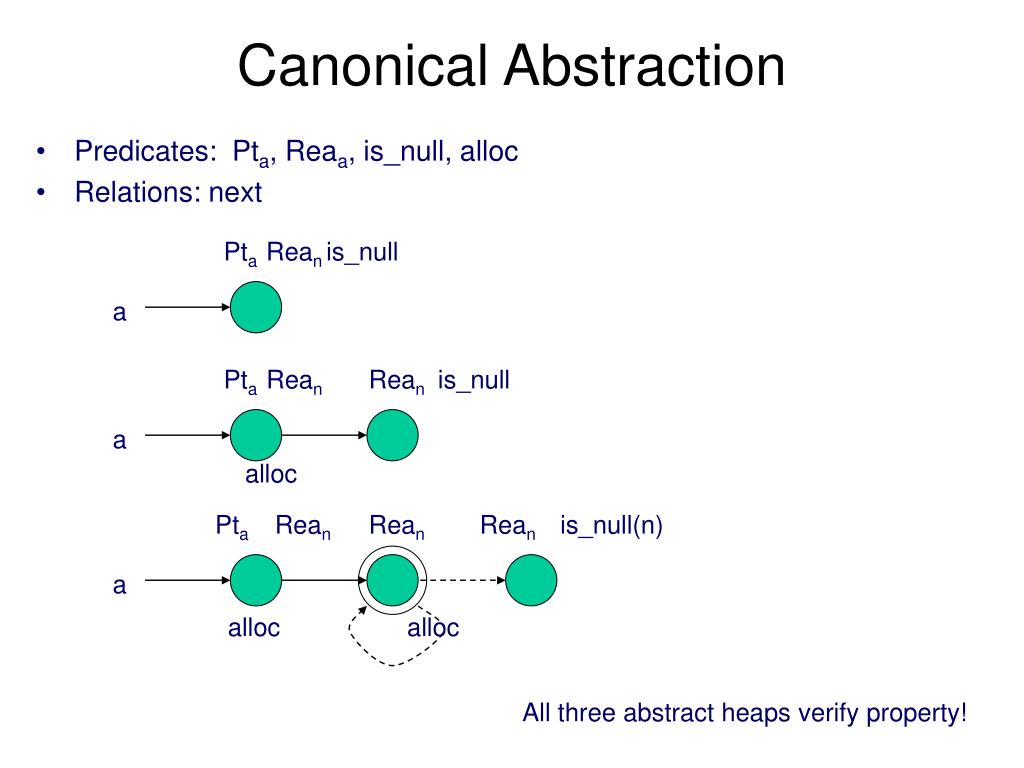

  32. Canonical Abstraction • Predicates: Pta, Reaa, is_null, alloc • Relations: next Pta Rean is_null a Pta Rean Rean is_null a alloc Pta Rean Rean Rean is_null(n) a alloc alloc All three abstract heaps verify property!

  33. A slightly larger program • We have to track a, b and c to prove this property • Lets look at what happens with canonical heap abstractions... main(){ node *a = create_list(); node *b = create_list(); node *c = create_list(); node *p = * ? a : * ? b : c while(p){ assert(alloced(p)); p = p->next; } }

  34. is_null(n) a Pta(n) is_null(n) a alloced(n) Pta(n) Ren(n) is_null(n) a alloced(n) alloced(n) After creating “a” • Predicates: Pta, Reaa, is_null, alloced • Relations: next

  35. is_null(n) is_null(n) is_null(n) is_null(n) is_null(n) is_null(n) a a b b b a Pta(n) Pta(n) Pta(n) Pta(n) Pta(n) Pta(n) is_null(n) is_null(n) is_null(n) is_null(n) is_null(n) is_null(n) a a b b a b alloced(n) alloced(n) alloced(n) alloced(n) alloced(n) alloced(n) Pta(n) Pta(n) Pta(n) Pta(n) Pta(n) Pta(n) Ren(n) Ren(n) Ren(n) Ren(n) Ren(n) Ren(n) is_null(n) is_null(n) is_null(n) is_null(n) is_null(n) is_null(n) b a b a b a alloced(n) alloced(n) alloced(n) alloced(n) alloced(n) alloced(n) alloced(n) alloced(n) alloced(n) alloced(n) alloced(n) alloced(n) After creating “b”

  36. After creating “c” [ Picture 27 abstract heaps here ] Problem: abstraction scales exponentially with number of independent data structures.

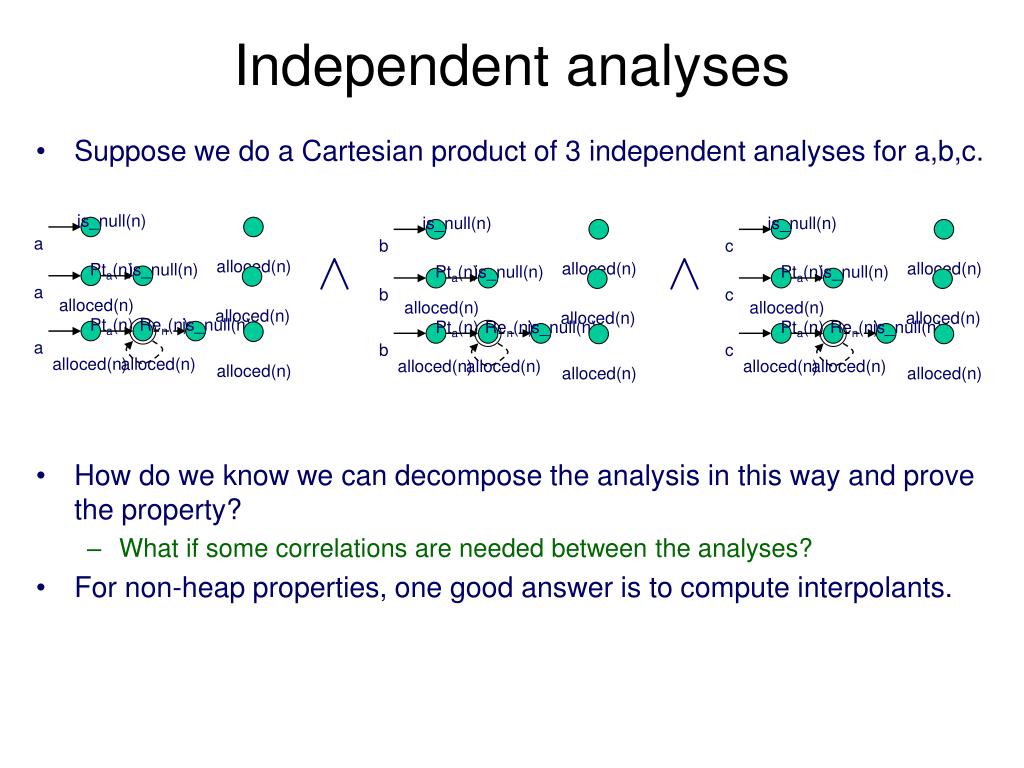

  37. is_null(n) is_null(n) is_null(n) a b c alloced(n) alloced(n) alloced(n) alloced(n) alloced(n) alloced(n) alloced(n) alloced(n) alloced(n) Pta(n) Pta(n) Pta(n) is_null(n) is_null(n) is_null(n) a b c alloced(n) alloced(n) alloced(n) Pta(n) Pta(n) Pta(n) Ren(n) Ren(n) Ren(n) is_null(n) is_null(n) is_null(n) b a c alloced(n) alloced(n) alloced(n) alloced(n) alloced(n) alloced(n) Independent analyses • Suppose we do a Cartesian product of 3 independent analyses for a,b,c. ^ ^ • How do we know we can decompose the analysis in this way and prove the property? • What if some correlations are needed between the analyses? • For non-heap properties, one good answer is to compute interpolants.

  38. ( a  0 ) alloced(a) ) ^ ( b  0 ) alloced(b) ) ^ ( c  0 ) alloced(c) ) 8x. (x  0 ^ alloced(x) ) alloced(next(x)) ^ Abstraction from interpolants main(){ node *a = create_list(); node *b = create_list(); node *c = create_list(); node *p = * ? x : * ? b : c while(p){ assert(alloced(p)); p = p->next; } } • Interpolants contain inductive invariants after unrolling loops 3 times. • Interpolant after creating c:

  39. Shape of the interpolant • Invariant says that allocated cells closed under ‘next’ relation • Notice also the size of this formula is linear in the number of lists, not exponential as is the set of shape graphs. ( a  0 ) alloced(a) ) ^ ( b  0 ) alloced(b) ) ^ ( c  0 ) alloced(c) ) 8x. (x  0 ^ alloced(x) ) alloced(next(x)) ^ next a b c alloced next null

  40. Suggests decomposition • Each of these analyses proves one conjunct of the invariant. ( a  0 ) alloced(a) ) ^ ( b  0 ) alloced(a) ) ^ ( c  0 ) alloced(a) ) 8x. (x  0 ^ alloced(x) ) alloced(next(x)) ^ Canonical abstract domains Predicates Relations a = 0, alloced(n) b = 0, alloced(n) c = 0, alloced(n) next n = 0, alloced(n)

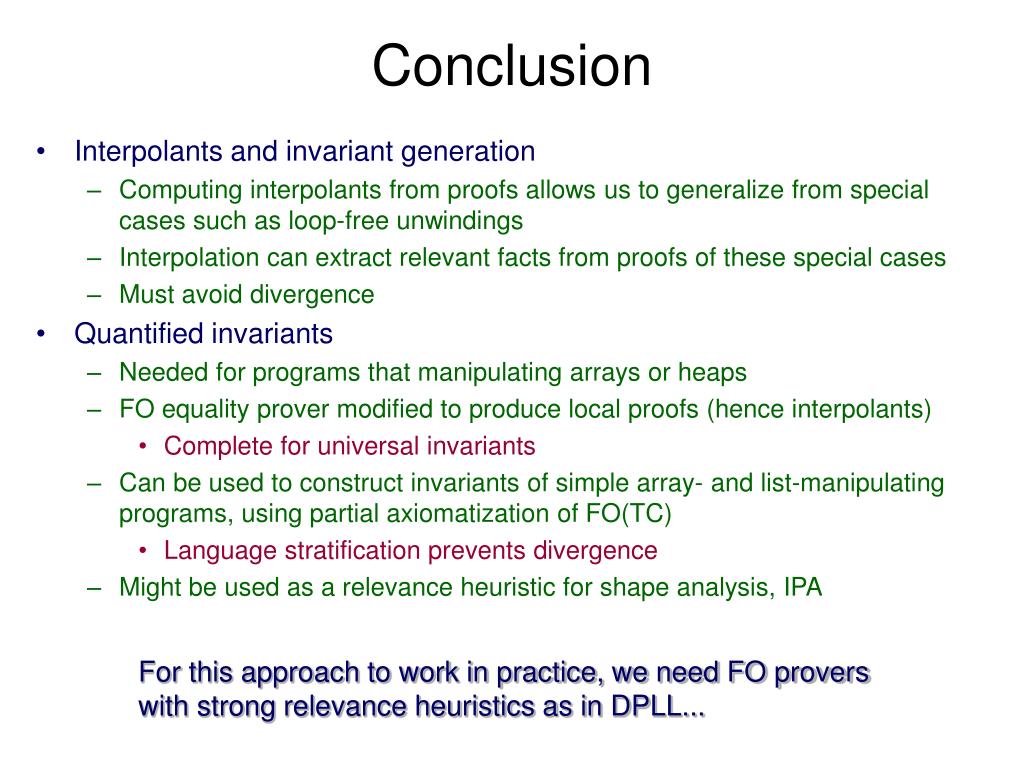

  41. Conclusion • Interpolants and invariant generation • Computing interpolants from proofs allows us to generalize from special cases such as loop-free unwindings • Interpolation can extract relevant facts from proofs of these special cases • Must avoid divergence • Quantified invariants • Needed for programs that manipulating arrays or heaps • FO equality prover modified to produce local proofs (hence interpolants) • Complete for universal invariants • Can be used to construct invariants of simple array- and list-manipulating programs, using partial axiomatization of FO(TC) • Language stratification prevents divergence • Might be used as a relevance heuristic for shape analysis, IPA For this approach to work in practice, we need FO provers with strong relevance heuristics as in DPLL...

  42. Expressiveness hierarchy Canonical Heap Abstractions 8FO(TC) Indexed Predicate Abstraction 8FO Expressiveness Predicate Abstraction QF Interpolant Language Parameterized Abstract Domain

  43. Need for Reachability • This condition needed to prove memory safety (no use after free). • Cannot be expressed in FO • We need some predicate identifying a closed set of nodes that is allocated • We require a theory of reachability (in effect, transitive closure) ... node *a = create_list(); while(a){ assert(alloc(a)); a = a->next; } ... invariant: 8 x (rea(next,a,x) ^ x  nil ! alloc(x)) Can we build an interpolating prover for full FOL than that handles reachability, and avoids divergence?
