Angle Relationships

Angle Relationships. 90 degree angle:. 180 degree angle:. 90 and 180 degree angles……. Acute – angles less than 90 degrees. Right – angles with exactly 90 degrees. Types of angles……. Obtuse – angles greater than 90 degrees but less than 180 degrees.

astrid
Télécharger la présentation

Angle Relationships

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Angle Relationships

  2. 90 degree angle: 180 degree angle: 90 and 180 degree angles……

  3. Acute – angles less than 90 degrees. Right – angles with exactly 90 degrees. Types of angles……

  4. Obtuse – angles greater than 90 degrees but less than 180 degrees. Straight – angles that are 180 degrees and form a line.

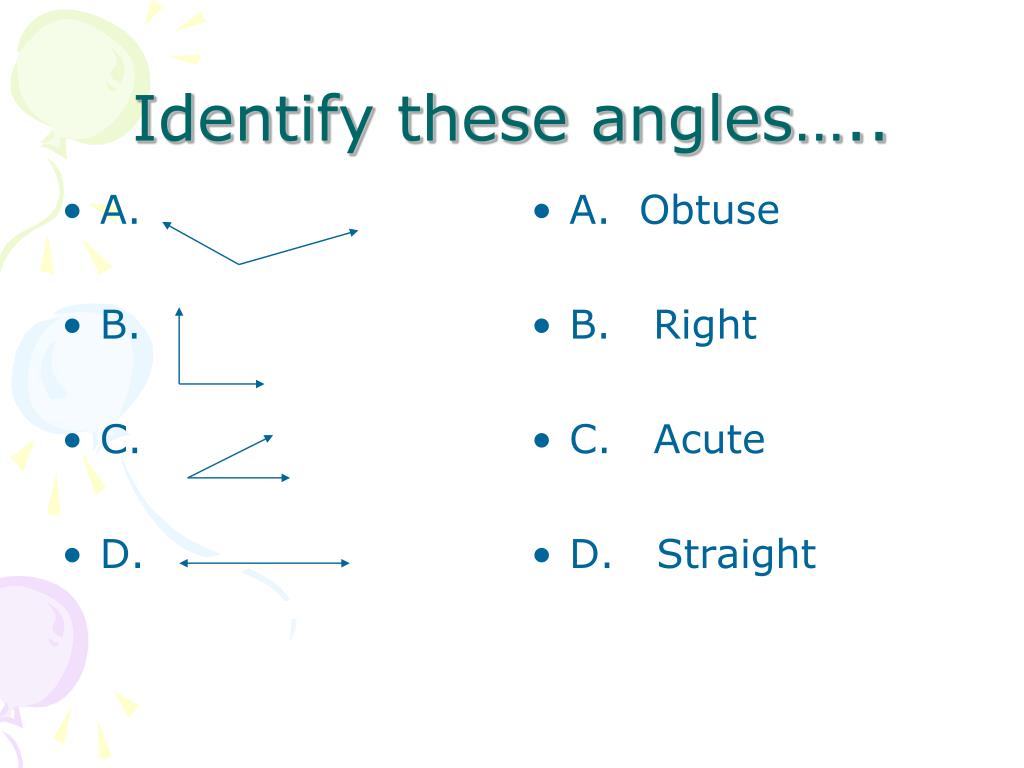

  5. A. B. C. D. A. Obtuse B. Right C. Acute D. Straight Identify these angles…..

  6. Adjacent Angles…… • Two angles that share a common side are adjacent angles. • Example:

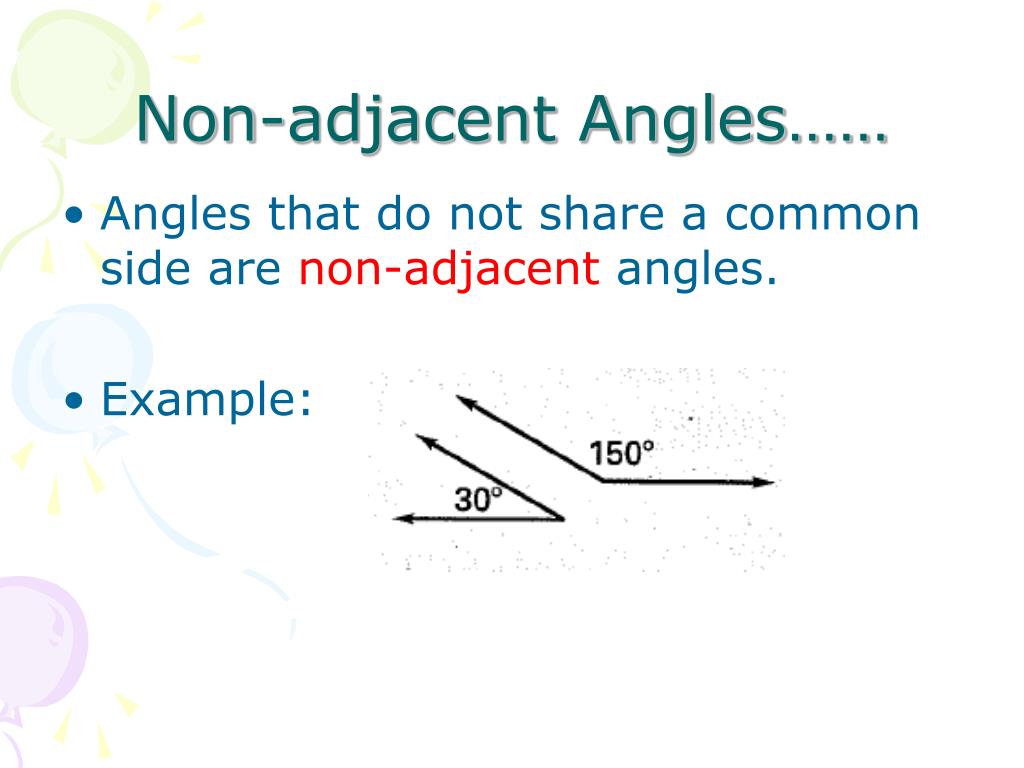

  7. Non-adjacent Angles…… • Angles that do not share a common side are non-adjacent angles. • Example:

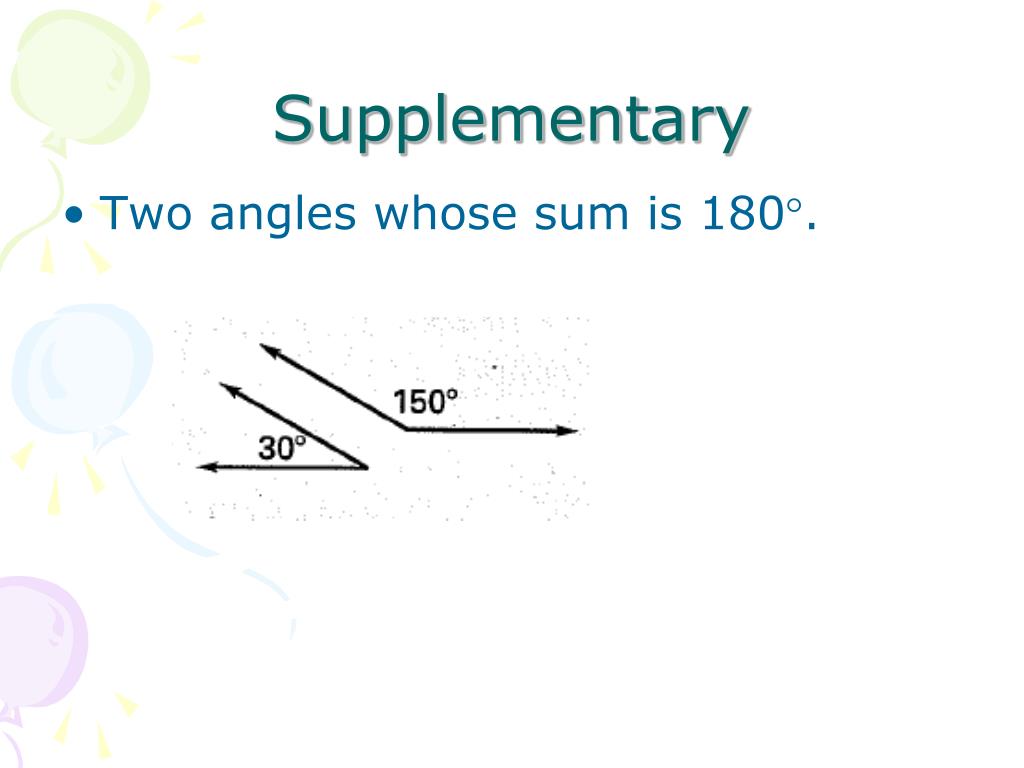

  8. Supplementary • Two angles whose sum is 180.

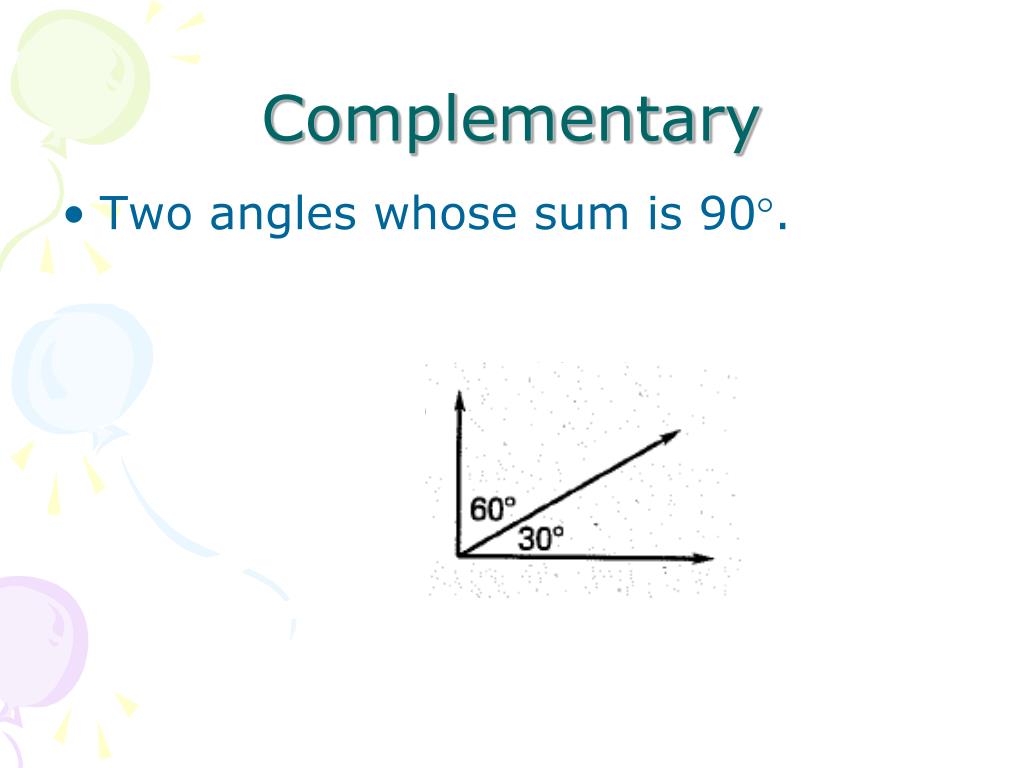

  9. Complementary • Two angles whose sum is 90.

  10. If 2 segments are perpendicular to each other, then they form a 90 degree angle. The symbol for perpendicular is an upside down T. Example: Perpendicular

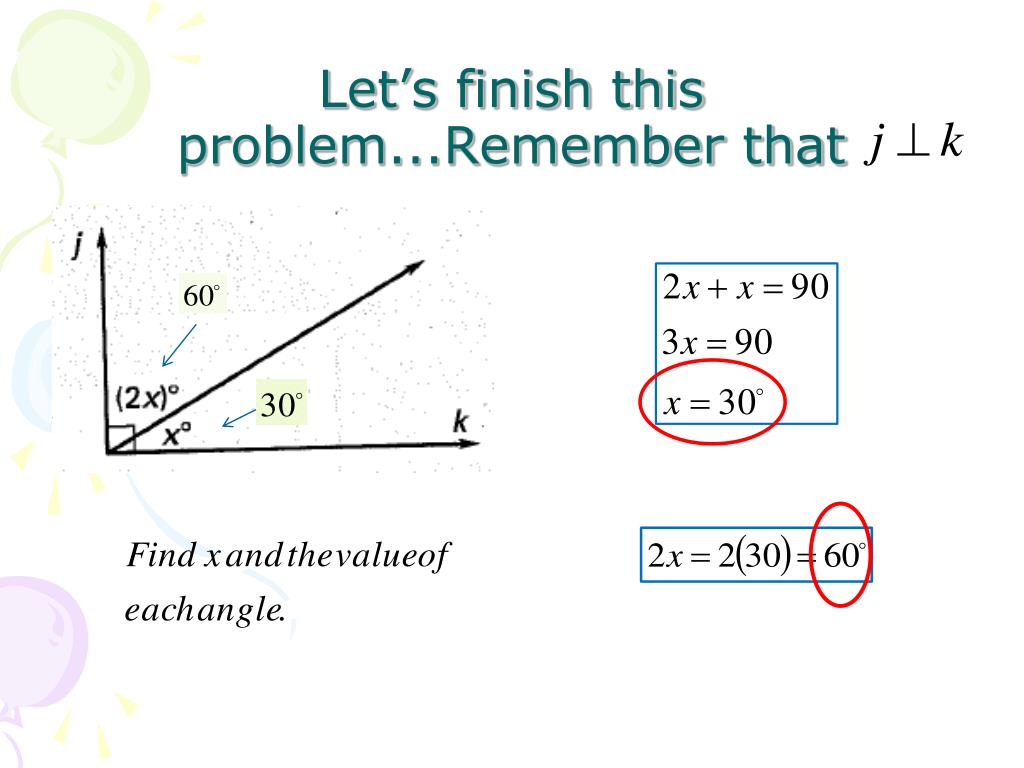

  11. Let’s finish thisproblem...Remember that

  12. Find x, given that

  13. Vertical Angles are two non-adjacent angles formed by intersecting lines. Vertical Angles are congruent. (Equal) Vertical Angles……

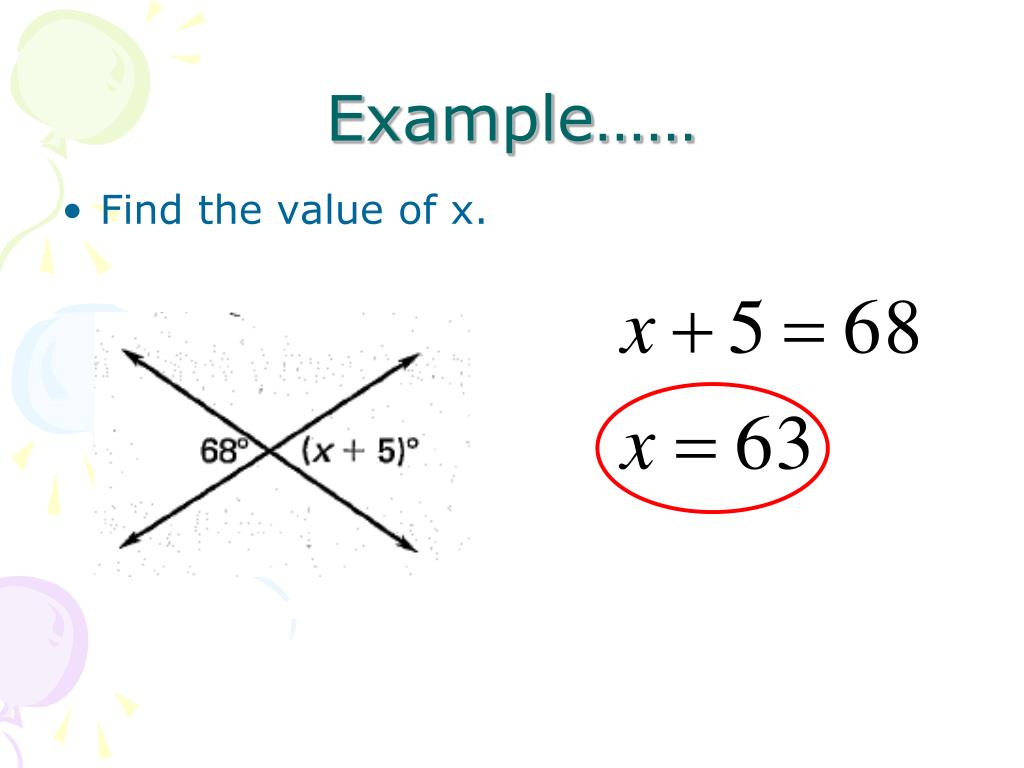

  14. Find the value of x. Example……

  15. Find the Example…..

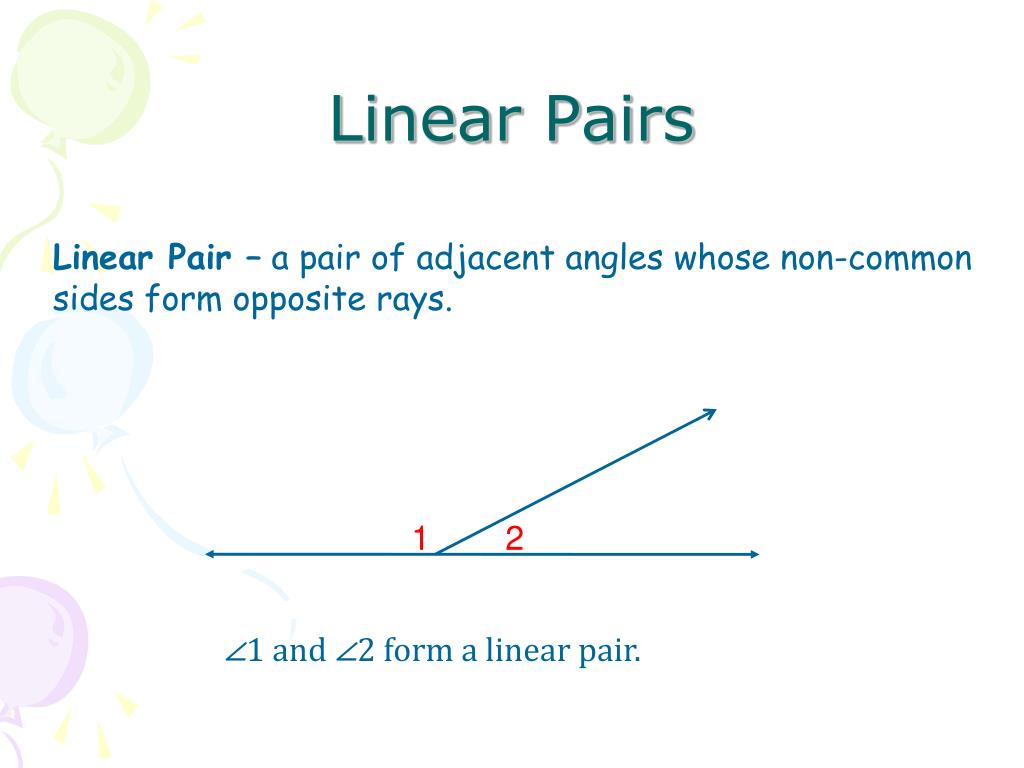

  16. Linear Pairs Linear Pair – a pair of adjacent angles whose non-common sides form opposite rays. 1 2 ∠1and ∠2form a linear pair.

  17. A linear pair is supplementary – the angle measures add up to 180 degrees. Find x:

  18. Homework • Angle Relationships Worksheet
