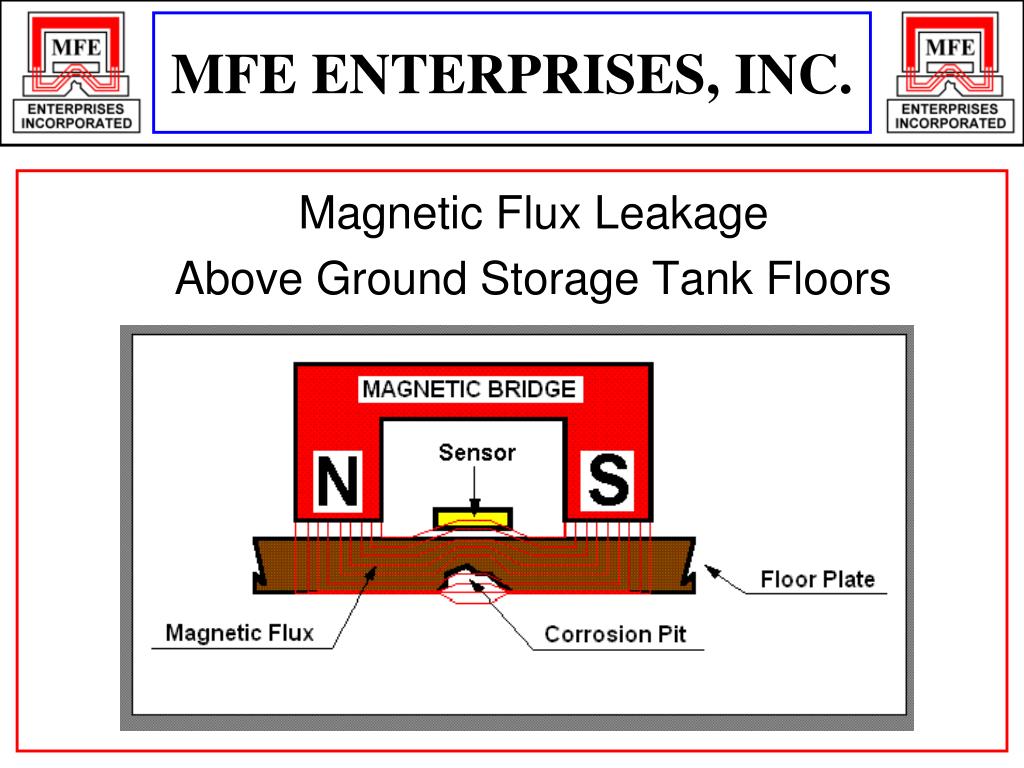

  1. MFE ENTERPRISES, INC. Magnetic Flux Leakage Above Ground Storage Tank Floors

  2. MFE ENTERPRISES, INC. MFE 2412 Mark 2 Floor Scanner Main Components: 1) Electronics Module 2) Battery Box 3) Magnetic Bridge 4) Sensor

  3. ON ON OFF OFF MFE ENTERPRISES, INC. MFE 2412 Mark 2 Electronics Module Gain MFE 2412 Mk2 Battery 30 12.54 Alarm High Display Low Reset 1 2 3 4 5 6 7 8 9 0 1 2 MFE ENTERPRISES INC

  4. ON OFF 1 2 3 4 5 6 7 8 9 10 11 12 Bottomside Slot (Alarm Off) Gain Battery MFE 2412 Mk2 30 12.54 ON Alarm High Low Display Reset Reset ON 1 2 3 4 5 6 7 8 9 0 1 2 OFF MFE ENTERPRISES INC

  5. MFE ENTERPRISES, INC. MFE 2412 Mark 2 Magnetic Bridge

  6. S N Sensor MFE ENTERPRISES, INC. Magnetic Field Through Steel Floor Plate Magnetic Field Through Air

  7. S N Sensor MFE ENTERPRISES, INC. Magnetic Field Through Steel Floor Plate

  8. S N Sensor MFE ENTERPRISES, INC. Floor Plate Corrosion Pit

  9. S N Sensor MFE ENTERPRISES, INC. Floor Plate Corrosion Pit

  10. ON OFF S N Sensor MFE ENTERPRISES, INC. Gain Battery MFE 2412 Mk2 30 12.54 ON Alarm High Low Display Reset Reset ON 1 2 3 4 5 6 7 8 9 0 1 2 OFF MFE ENTERPRISES INC Floor Plate Corrosion Pit

  11. MFE ENTERPRISES, INC. Influence of Magnet Lift Off on Signal Amplitude A Detection Threshold B Detection Threshold

  12. Sensor MFE ENTERPRISES, INC. MFE 2412 Mark 2 Effect of Magnet Lift Off Floor Plate Corrosion Pit

  13. MFE ENTERPRISES, INC. Influence of Sensor Lift Off on Signal Amplitude A Detection Threshold B Detection Threshold

  14. Sensor MFE ENTERPRISES, INC. MFE 2412 Mark 2 Effect of Sensor Lift Off Floor Plate Corrosion Pit

  15. MFE ENTERPRISES, INC. Influence and adjustment for coatings A Detection Threshold B Detection Threshold C Detection Threshold

  16. Sensor MFE ENTERPRISES, INC. Floor Plate Corrosion Pit

  17. Sensor MFE ENTERPRISES, INC. Floor Plate Corrosion Pit

  18. ON ON OFF OFF S N Sensor Sensor MFE ENTERPRISES, INC. Gain Battery MFE 2412 Mk2 30 12.54 ON Alarm High Low Display Reset ON 1 2 3 4 5 6 7 8 9 0 1 2 OFF Floor Plate MFE ENTERPRISES INC Corrosion Pit Gain Battery MFE 2412 Mk2 30 12.54 ON Alarm High Low Display Reset Floor Coating ON 1 2 3 4 5 6 7 8 9 0 1 2 OFF MFE ENTERPRISES INC

  19. MFE ENTERPRISES, INC. Effects of plate curvature on signal amplitude A Detection Threshold B Detection Threshold C Detection Threshold

  20. MFE ENTERPRISES, INC. Side to side effect on signal amplitude caused by plate curvature A Detection Threshold B Detection Threshold C Detection Threshold

  21. MFE ENTERPRISES, INC. Scanner Wheelbase effect with curved surface A Detection Threshold B Detection Threshold C Detection Threshold

  22. MFE ENTERPRISES, INC. Volumetric influence on signal amplitude A Detection Threshold B Detection Threshold C Detection Threshold

  23. MFE ENTERPRISES, INC. Topside / Bottomside influence on signal Amplitude A Detection Threshold B Detection Threshold

  24. ON OFF 1 2 3 4 5 6 7 8 9 10 11 12 Bottomside Slot (Alarm Off) Gain Battery MFE 2412 Mk2 30 12.54 ON Alarm High Low Display Reset Reset ON 1 2 3 4 5 6 7 8 9 0 1 2 OFF MFE ENTERPRISES INC

  25. ON OFF 1 2 3 4 5 6 7 8 9 10 11 12 Bottomside Slot (Alarm On) Gain Battery MFE 2412 Mk2 30 12.54 Alarm High Low Display Reset ON 1 2 3 4 5 6 7 8 9 0 1 2 OFF MFE ENTERPRISES INC

  26. ON OFF 1 2 3 4 5 6 7 8 9 0 1 2 Bottomside Pit (Alarm Off) Gain Battery MFE 2412 Mk2 30 12.54 Alarm High Low Display Reset ON 1 2 3 4 5 6 7 8 9 0 1 2 OFF MFE ENTERPRISES INC

  27. ON OFF 1 2 3 4 5 6 7 8 9 0 1 2 Bottomside Defect w/ Topside Pitting (Alarm Off) Gain Battery MFE 2412 Mk2 30 12.54 ON Alarm High Low Display Reset Reset ON 1 2 3 4 5 6 7 8 9 0 1 2 OFF MFE ENTERPRISES INC
