Naming Ionic Compounds

Naming Ionic Compounds. Science 10. Simple Ionic Compounds. Let’s look at this example: KBr Name the metal (cation) first Potassium Name the non-metal (anion) next, end it with –ide Bromine becomes brom ide Put together: Potassium bromide. Practice. Na 2 O. Sodium.

ata
Télécharger la présentation

Naming Ionic Compounds

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

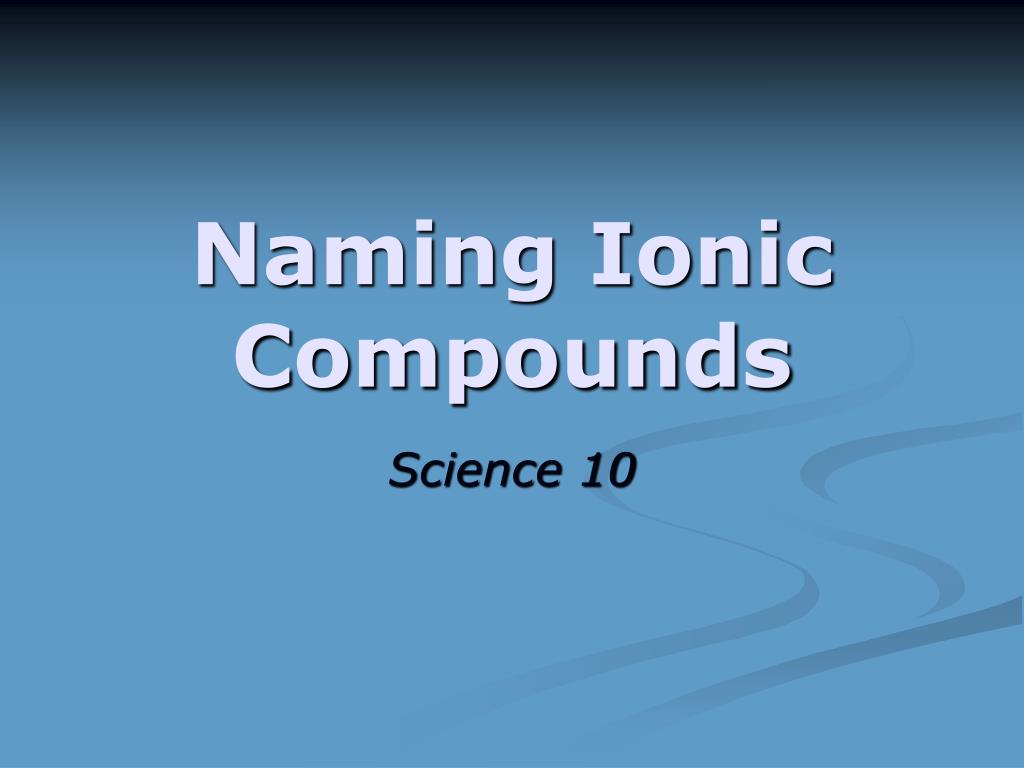

  1. Naming Ionic Compounds Science 10

  2. Simple Ionic Compounds • Let’s look at this example: KBr • Name the metal (cation) first • Potassium • Name the non-metal (anion) next, end it with –ide • Bromine becomes bromide • Put together: Potassium bromide

  3. Practice • Na2O Sodium Name the metal: Oxide Name the non-metal: • Put them together to get: Sodium Oxide • Note: It takes two Na+ to combine with one O2- to make a neutral compound!

  4. Writing Formulae If you’re given the name, can you write the formula? • Strontium nitride • Strontium is Sr2+ • Nitride is N3- • We must combine them to be equal to zero • Need 3 Sr2+ to combine with 2 N3- • Answer is Sr3N2

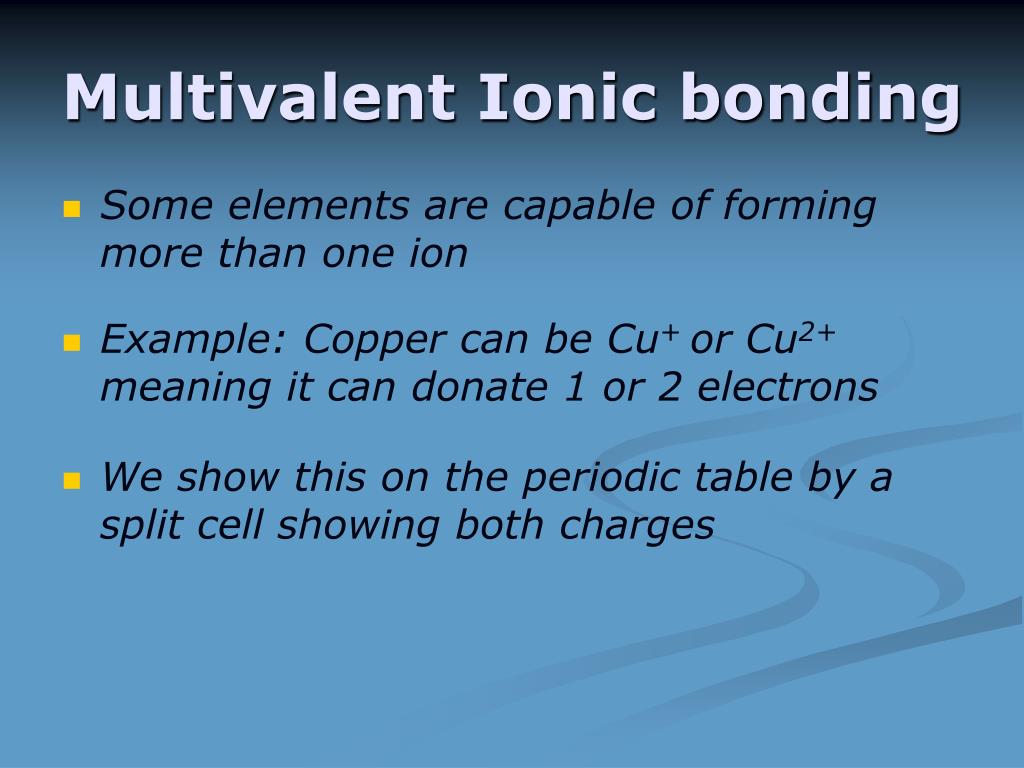

  5. Multivalent Ionic bonding • Some elements are capable of forming more than one ion • Example: Copper can be Cu+ or Cu2+ meaning it can donate 1 or 2 electrons • We show this on the periodic table by a split cell showing both charges

  6. When compounds are made with multivalent elements, we must choose or indicate which charge we are referring to in the chemical equation. • Look at Iron • There is an option of Fe2+ and Fe3+ • FeO would be called Iron (II) oxide • It takes Fe2+ to balance out charges with O2- • We indicate the optional charge with roman numerals; 2= II, 3=III, 4=IV and so on • The roman numeral is put after the cation

  7. Practice Naming • FeCl2 • MnO • Fe2O3 • TiO2

  8. Practice & Homework 1. Practice writing ionic formulae with Investigation 2 2. Practice naming ionic compounds with Investigation 3

  9. Naming With Polyatomic Ions

  10. Polyatomic Ions Polyatomic ions are ions that contain two or more atoms. They are electrically charged, which means that they are always looking at gaining or losing one or more electrons. So, polyatomic ions basically look like molecules (only contain non-metals), but with a charge.

  11. Most polyatomic ions are anions, meaning they have more electrons than the neutral atoms that are in the ion. • Hydroxide (OH-) has one extra electron beyond what the neutral oxygen and hydrogen atoms would have • Although most are anions, there are some, which are cations. The most common is NH4+ (ammonium).

  12. Naming with Polyatomic Ions • It is the same for naming ionic compounds but you must use the names of the polyatomic ions. • The endings will not change to –ide • Examples: • LiOH • NH4Cl • BaSO3

  13. Writing Formula’s • When there is more than one of the polyatomic ion needed you must place it in brackets • Ex. Lithium hydroxide LiOH • No brackets because Li+ and OH- balance in a 1:1 ratio • Ex. Calcium hydroxide Ca(OH)2 • Use brackets because Ca2+ needs 2 OH- in order to balance

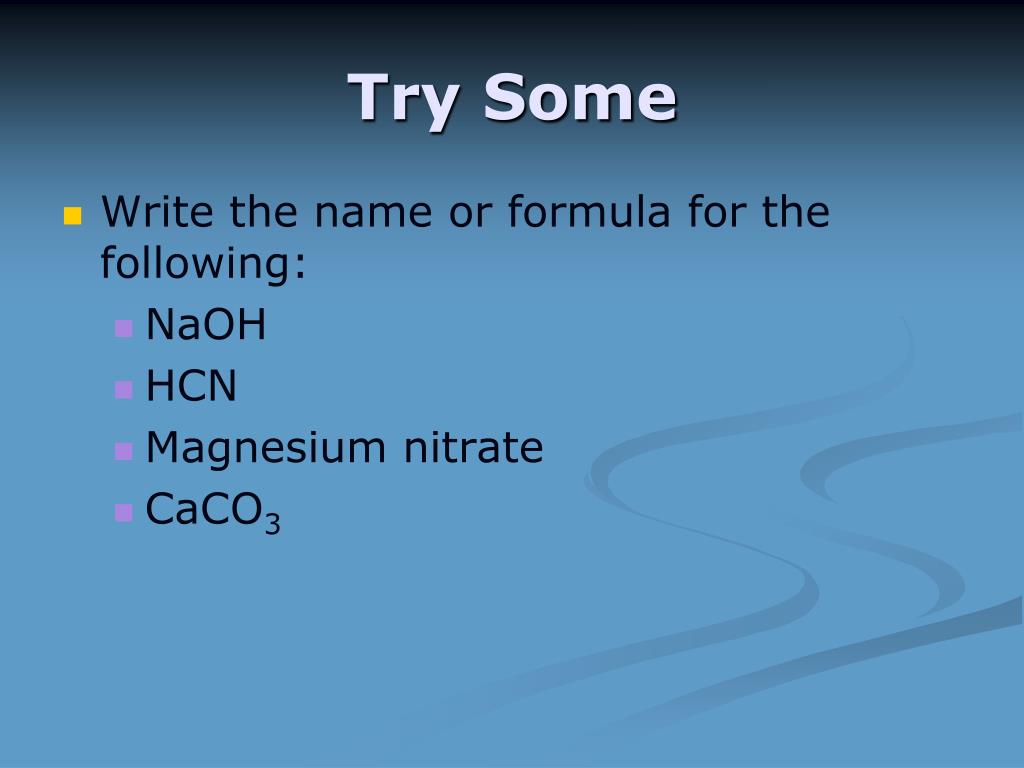

  14. Try Some • Write the name or formula for the following: • NaOH • HCN • Magnesium nitrate • CaCO3

  15. Practice & Homework Complete Investigation 4
