Presentation Transcript

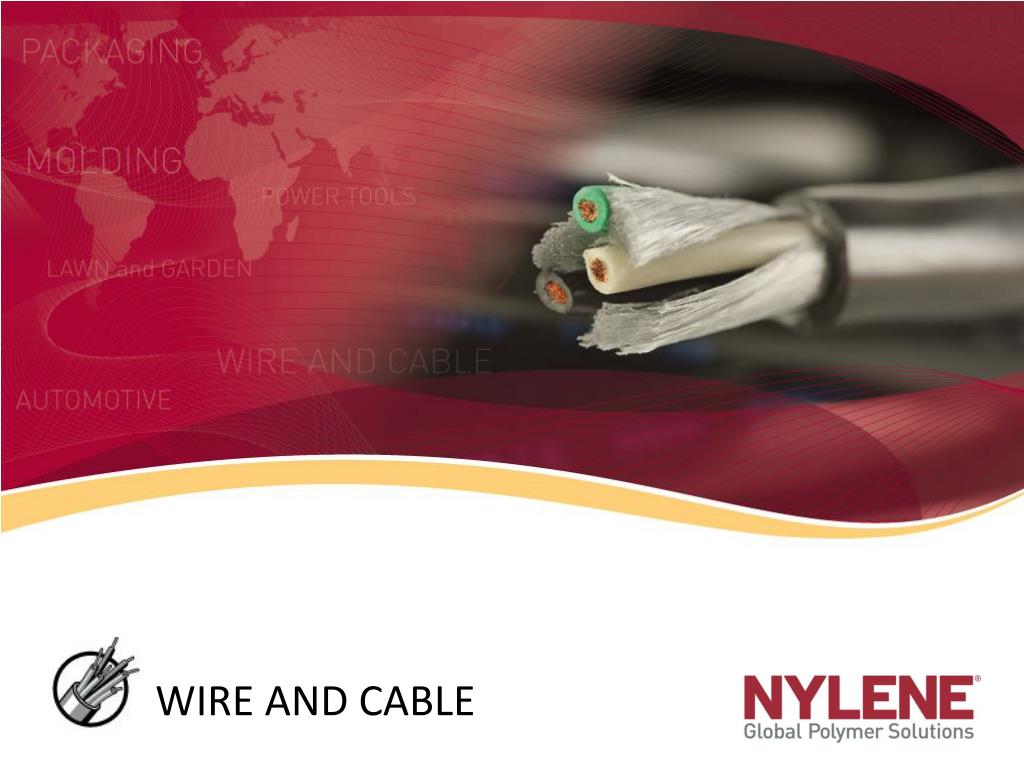

  1. WIRE AND CABLE

  2. NYLENE CANADA INC Nylene Canada, 200 McNab Street Arnprior, Ontario Wholly owned subsidiary of Polymeric Resources Corp. Based in Wayne, New Jersey, USA

  3. NYLENE CANADA (Arnprior, Ontario) • Plant built in 1966 • Current Capacity 70M lb. Produce W&C since 1983 • Currently sell US, Mexico, SA, Phillipines • Sell currently all major wire manufacturers

  4. NYLON WIRE & CABLE • Currently used in THHN, THWN • NM constructions • Cable tray wire • Large diameter power cable • Nylon adopted in early 80’s to improve performance of existing product • Provided safer more reliable total wire construction.

  5. WHY NYLON IS USED • Toughness • Impact resistance • Heat resistance • Weight and size reduction of conductors • Chemical resistance to grease, oils , hydrocarbons • Cut-through resistance • Abrasion resistance

  6. CURRENT MARKET • Consists of all Major Wire Manufacturers in NA, SA, and Mexico. • Total Market size is 70M lb. • Nylene current market share 25% • Have been selling into this market for 26 years continuously

  7. APPROVALS • UL (Polymeric Materials used in W&C) • CSA Approval (NM) • UL 758 • UL File QMTT2.E237217

  8. NYLENE PRODUCTS • Nylene BX3WQ662 • Nylene BX3WQ662X • Nylene BX3WQ662HRV • Nylene NX4795

  9. GENERAL PROPERTIES • Standard extrusion viscosity 2.7 • Extractable levels range 3 – 6 • Additives for product stabilization and long term heat ageing • Special production dedicated only for W&C Needs

  10. NYLENE BX3WQ662 • Classic Grade normal production • Ease of processabilty for circuit size & large diameter cables • Production speeds normally under 4000fpm • Lower extractable levels

  11. NYLENE BX3WQ662X • High Speed Grade • Used in circuit sizes where high speed production is used (up to 8000fpm) • Higher extractable levels.

  12. BX3WQ662X HRV • Higher viscosity version • Used in both high and low speed • Used where increased pressure needed in extrusion equipment

  13. NX4795 • General Purpose Grade • Medium Viscosity • Specialty Lub Package for improved wire pull capability

  14. REQUIREMENTS TO PROCESS • Normally tandem extrusion but can use Co-extrusion as well • Wire coating approx .005 in. • Need standard nylon screw

  15. TANDEM WIRE COATING • The PVC and nylon extruders are separated- each with it’s own crosshead. • A vacuum can utilized to adjust the jacket tightness and remove outgasses. • Both PVC and nylon diameters can be monitored and controlled

  16. CO-EXTRUSION COATING • The PVC and nylon extruders use one common crosshead. • A vacuum can utilized to adjust the jacket tightness and remove outgasses. • Only finished diameter can be monitored and controlled • A glass smooth finish can be attained.

  17. REVIEW • Nylene provides 3 separate nylon grades from wire coating • Products are all UL approved for the applications • Proprietary products made since 1983 for the industry in NA and SA • Technical support from Arnprior for all products
