5.2: Bisectors in Triangles

5.2: Bisectors in Triangles. Objectives: To use properties of perpendicular and angle bisectors. Warm Up. What is a perpendicular bisector of a segment? What is an angle bisector? What does equidistant mean?. is the perpendicular bisector of What do we know?.

aurek
Télécharger la présentation

5.2: Bisectors in Triangles

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. 5.2: Bisectors in Triangles Objectives: To use properties of perpendicular and angle bisectors

  2. Warm Up • What is a perpendicular bisector of a segment? • What is an angle bisector? • What does equidistant mean?

  3. is the perpendicular bisector of What do we know?

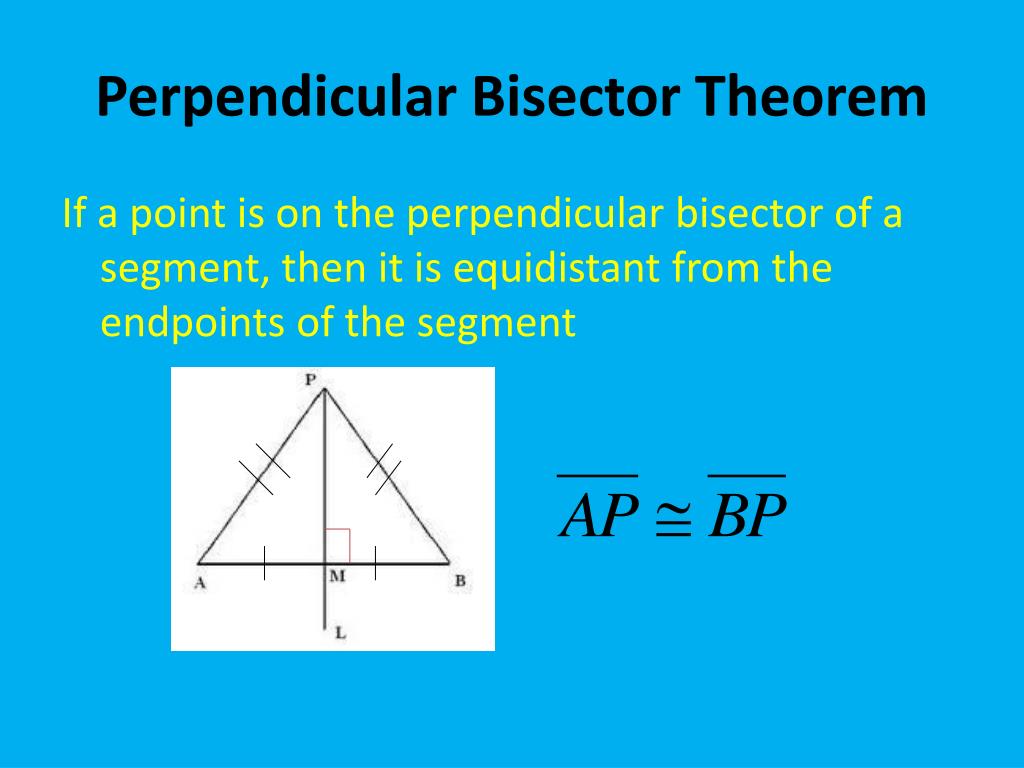

  4. Perpendicular Bisector Theorem If a point is on the perpendicular bisector of a segment, then it is equidistant from the endpoints of the segment

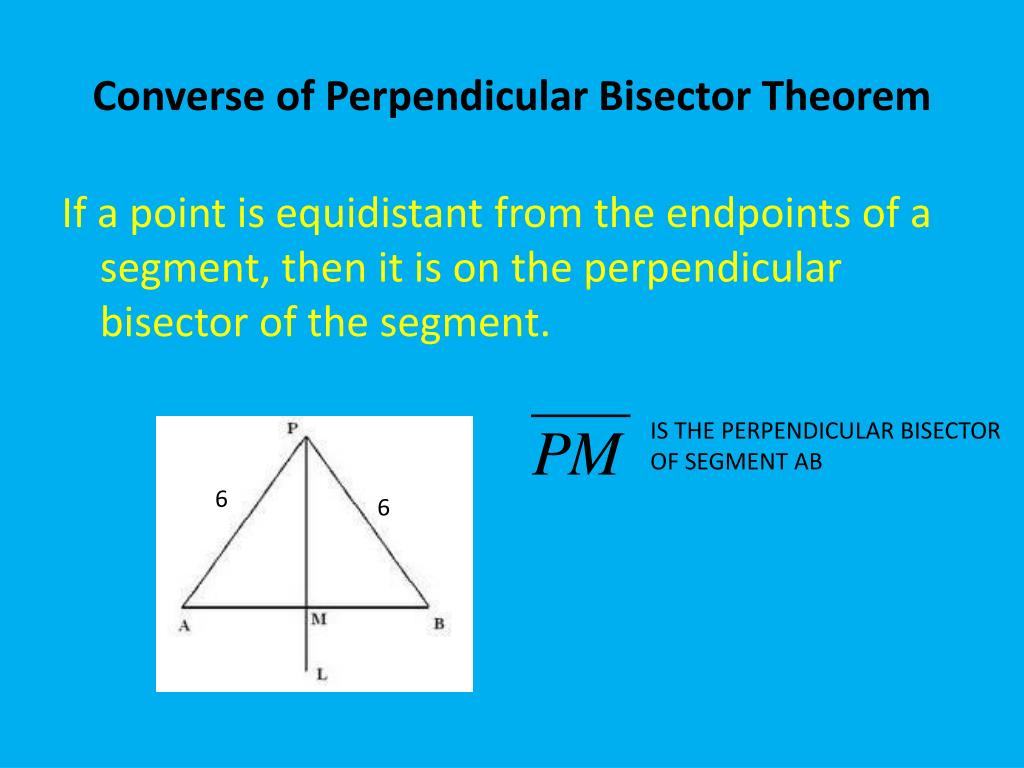

  5. Converse of Perpendicular Bisector Theorem If a point is equidistant from the endpoints of a segment, then it is on the perpendicular bisector of the segment. IS THE PERPENDICULAR BISECTOR OF SEGMENT AB 6 6

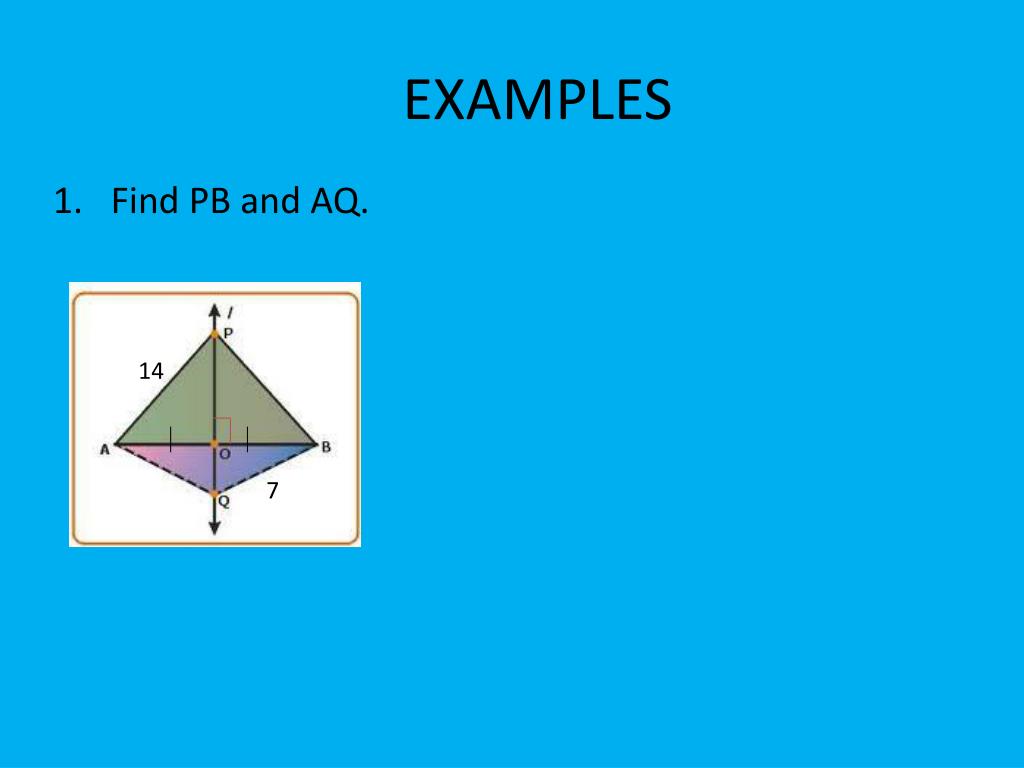

  6. EXAMPLES • Find PB and AQ. 14 7

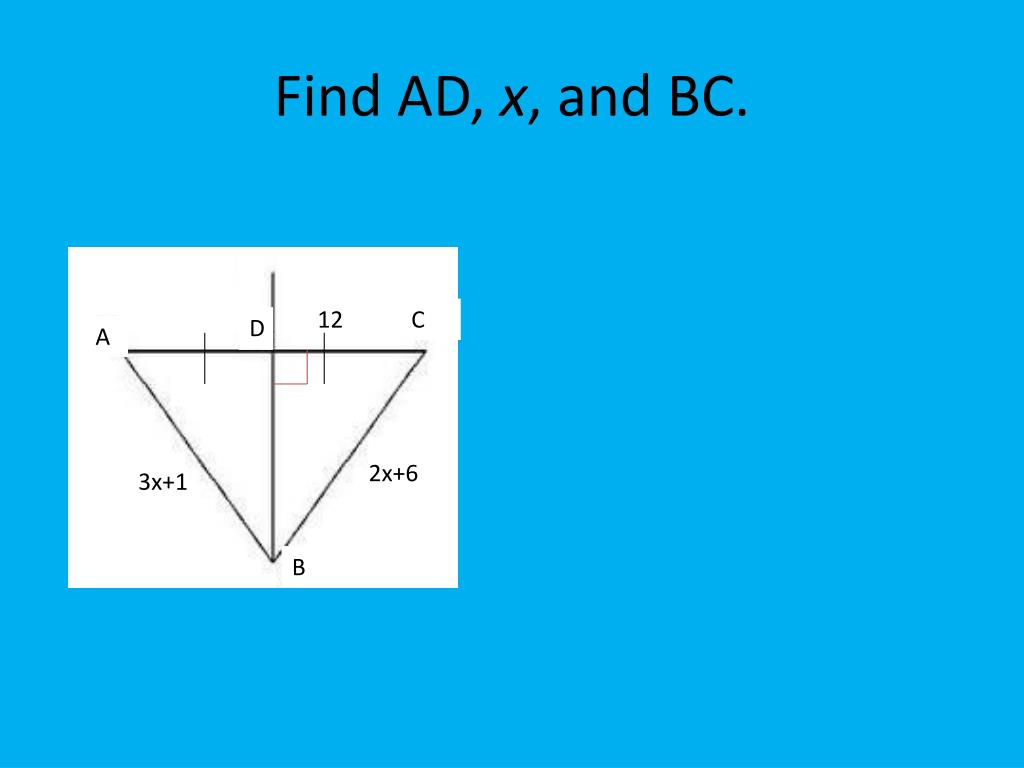

  7. Find AD, x, and BC. 12 C D A 2x+6 3x+1 B

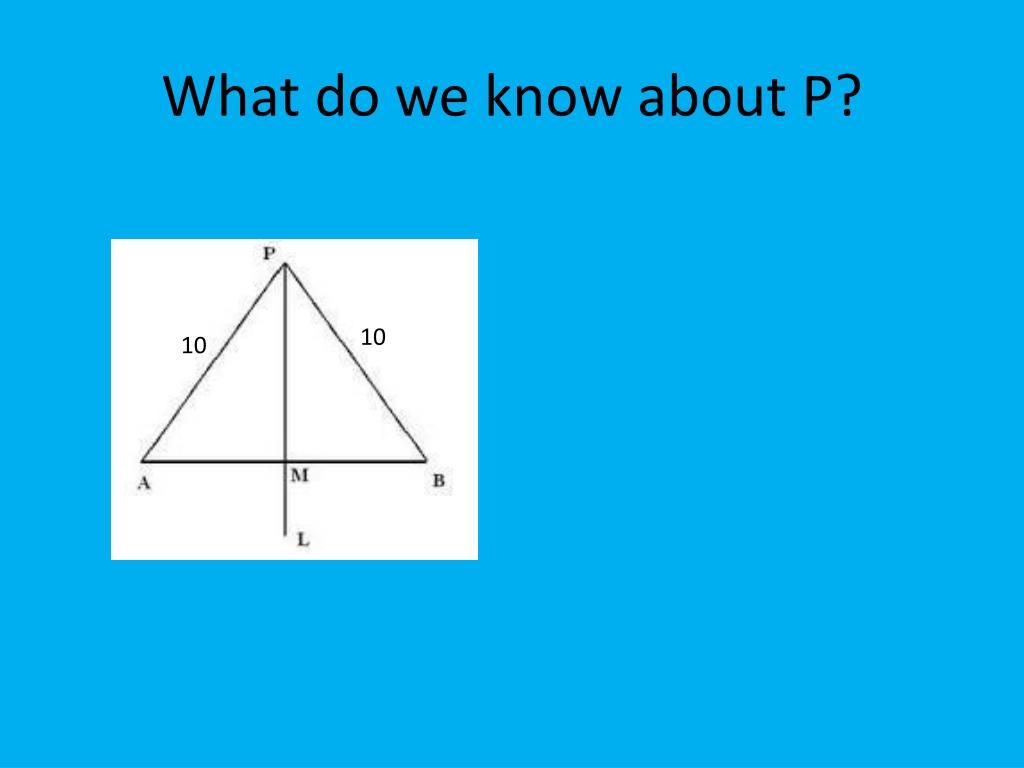

  8. What do we know about P? 10 10

  9. Definition The distance from a point to a line is defined as the length of the perpendicular segment from the point to the line.

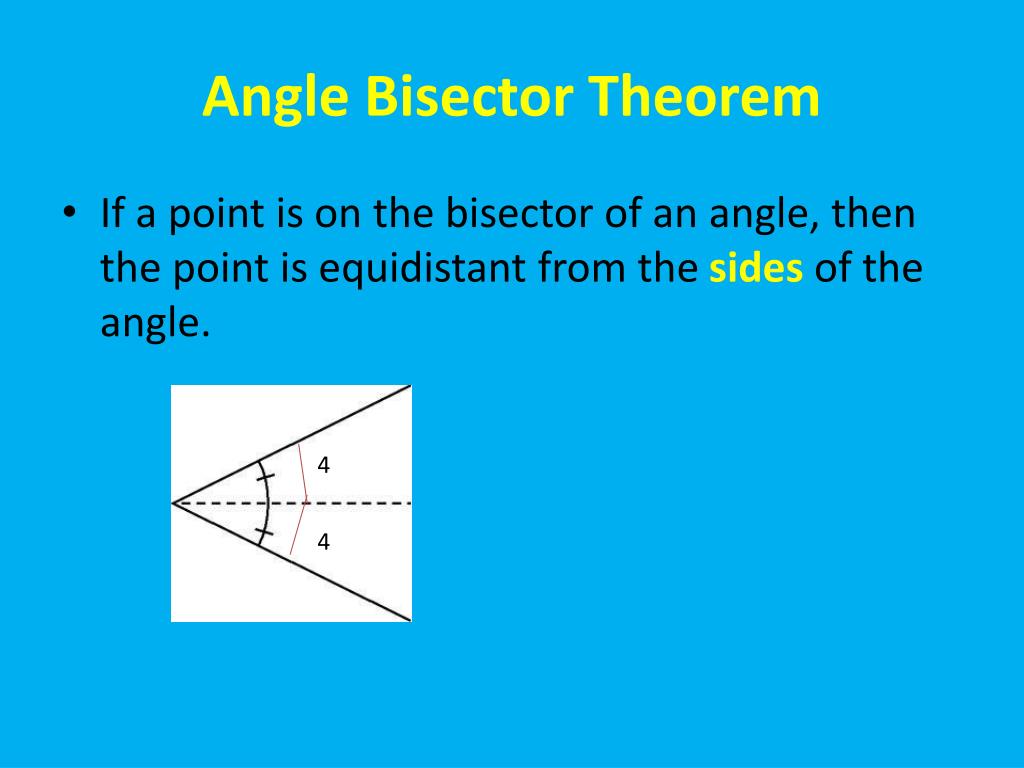

  10. Angle Bisector Theorem • If a point is on the bisector of an angle, then the point is equidistant from the sides of the angle. 4 4

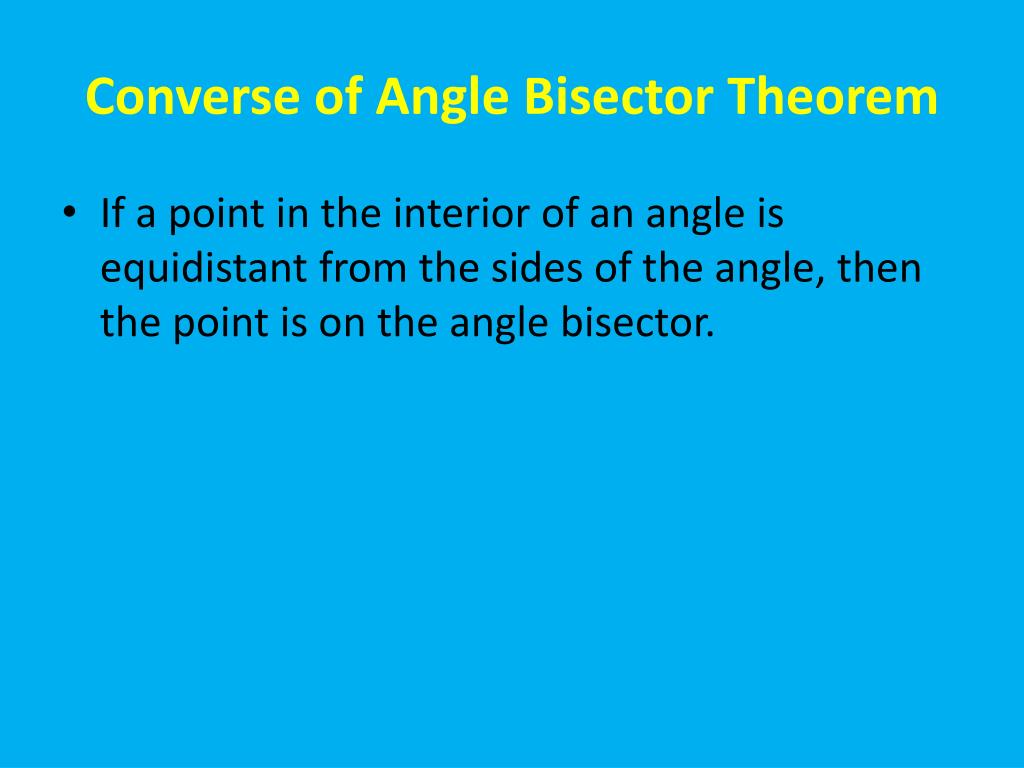

  11. Converse of Angle Bisector Theorem • If a point in the interior of an angle is equidistant from the sides of the angle, then the point is on the angle bisector.

  12. You are designing a park, and you are in charge of building a walkway where every point on the walkway will be equidistant from 2 major monuments in the park. How would you figure out where to put the walkway?
