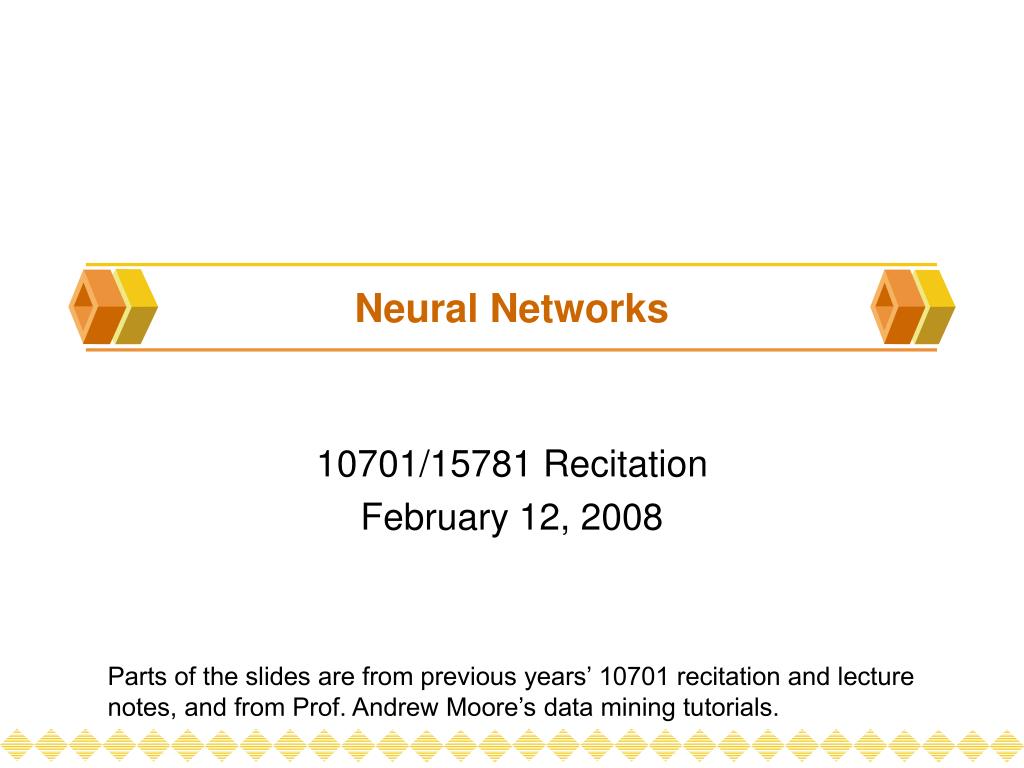

  1. Neural Networks 10701/15781Recitation February 12, 2008 Parts of the slides are from previous years’ 10701 recitation and lecture notes, and from Prof. Andrew Moore’s data mining tutorials.

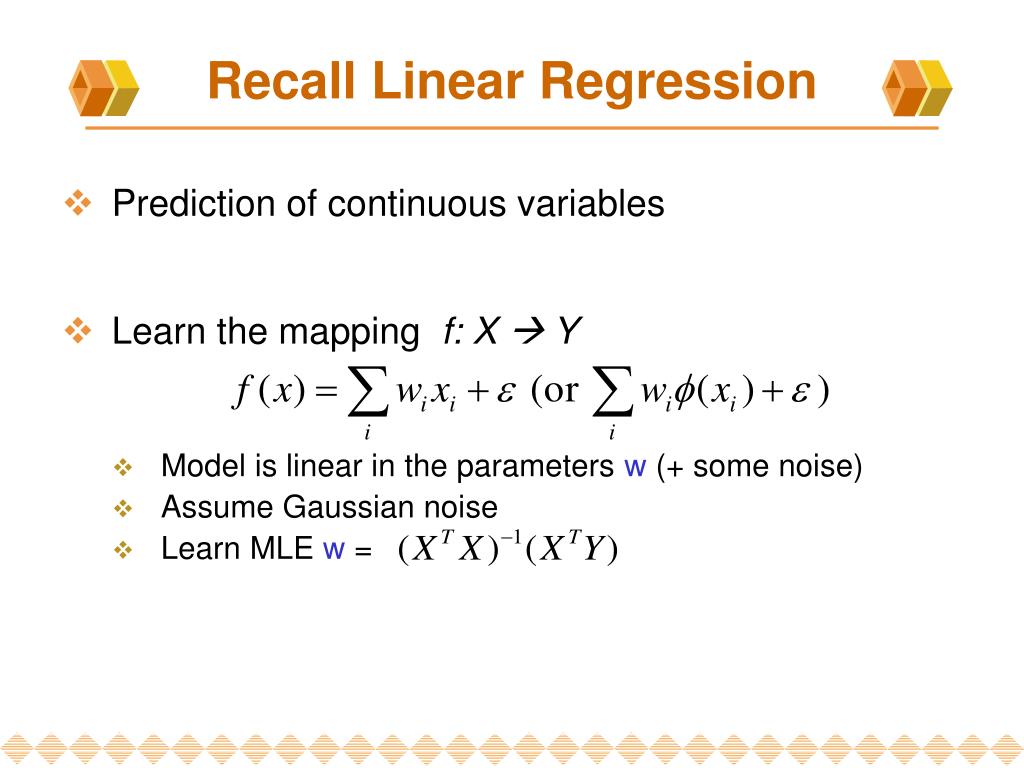

  2. Recall Linear Regression • Prediction of continuous variables • Learn the mapping f: X  Y • Model is linear in the parameters w (+ some noise) • Assume Gaussian noise • Learn MLE w =

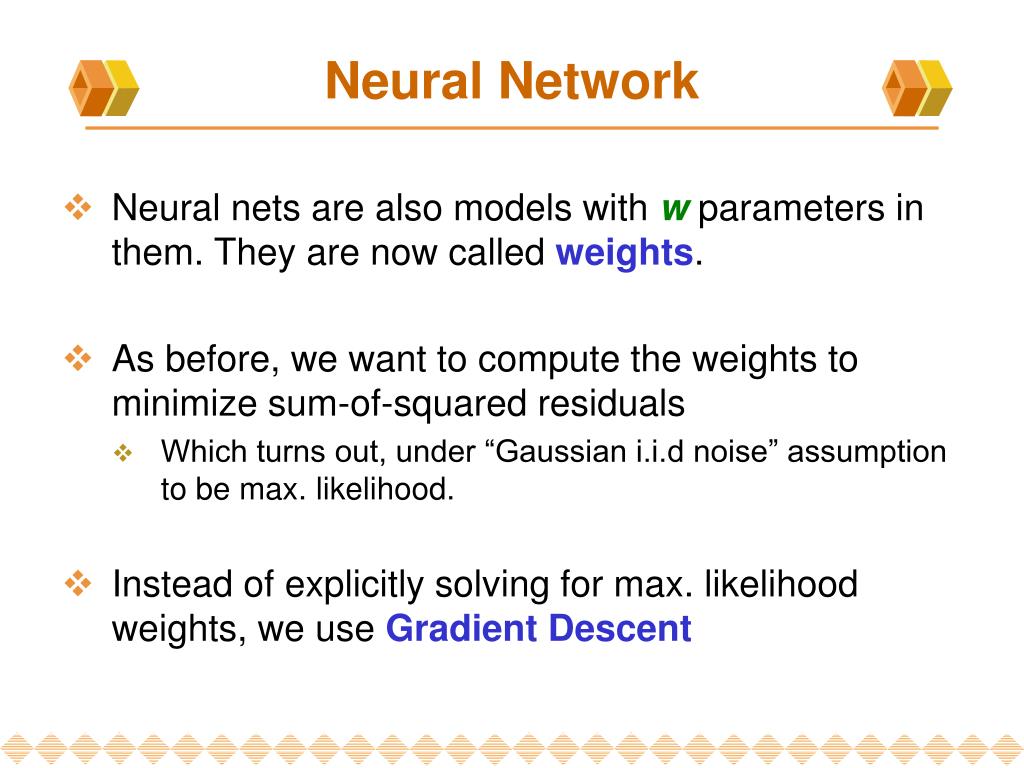

  3. Neural Network • Neural nets are also models withw parameters in them. They are now called weights. • As before, we want to compute the weights to minimize sum-of-squared residuals • Which turns out, under “Gaussian i.i.d noise” assumption to be max. likelihood. • Instead of explicitly solving for max. likelihood weights, we use Gradient Descent

  4. Perceptrons • Input x=(x1,…, xn) and target value t: or • Given training data {(x(l),t(l))}, find w which minimizes

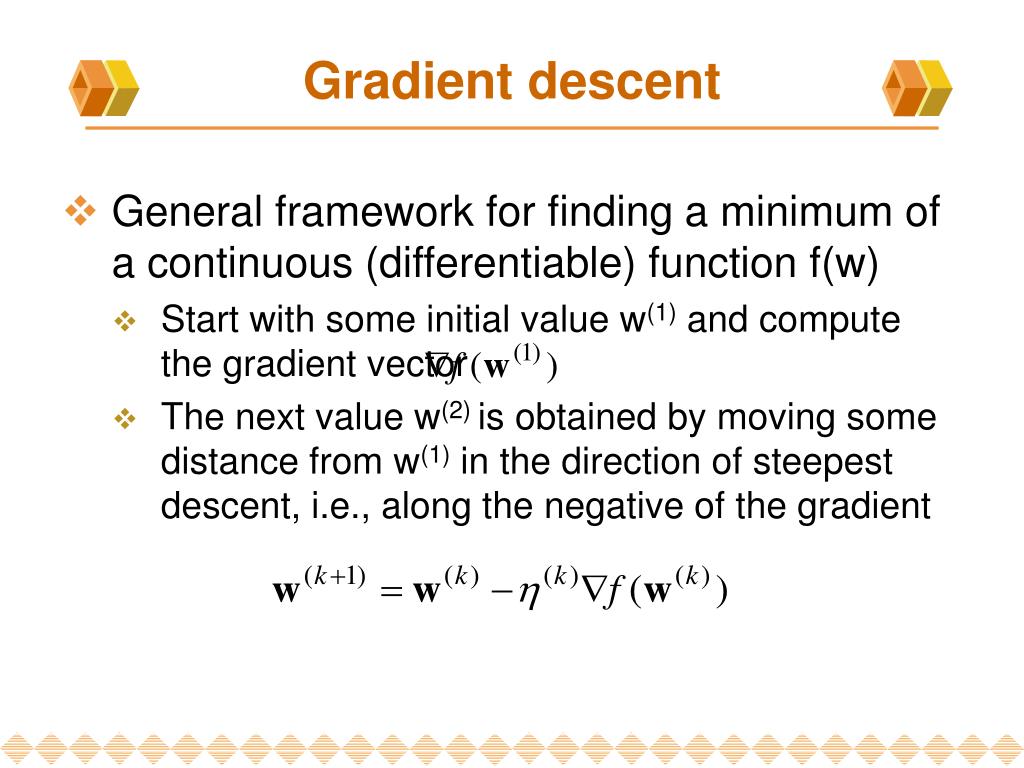

  5. Gradient descent • General framework for finding a minimum of a continuous (differentiable) function f(w) • Start with some initial value w(1) and compute the gradient vector • The next value w(2)is obtained by moving some distance from w(1) in the direction of steepest descent, i.e., along the negative of the gradient

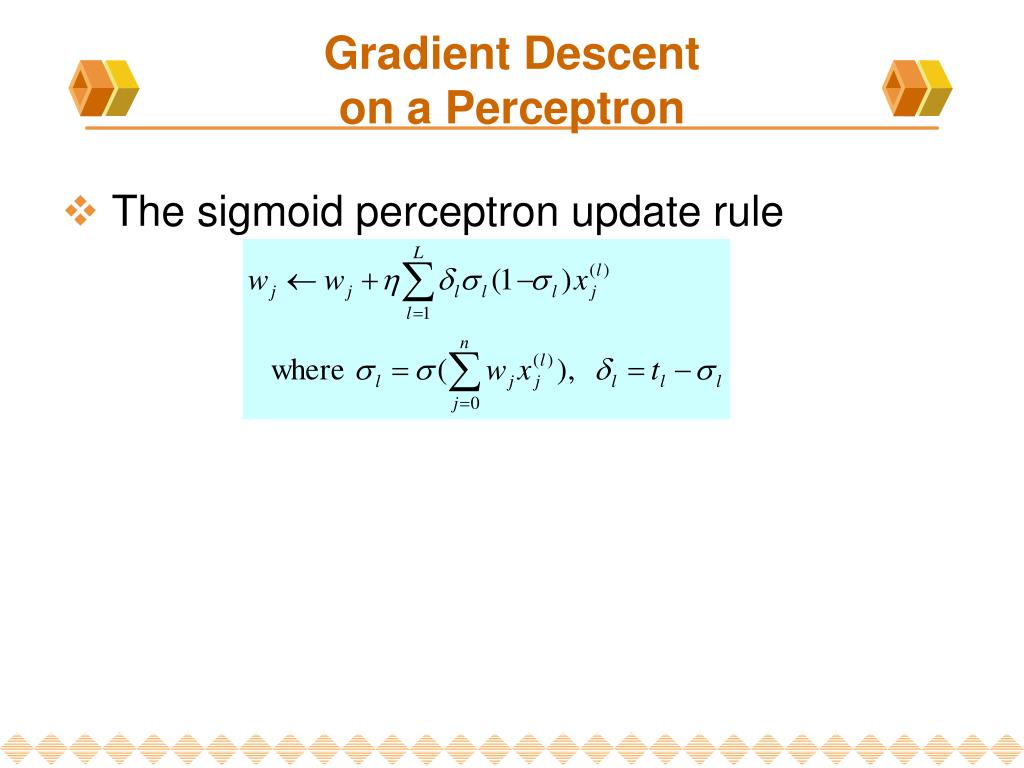

  6. Gradient Descent on a Perceptron • The sigmoid perceptron update rule

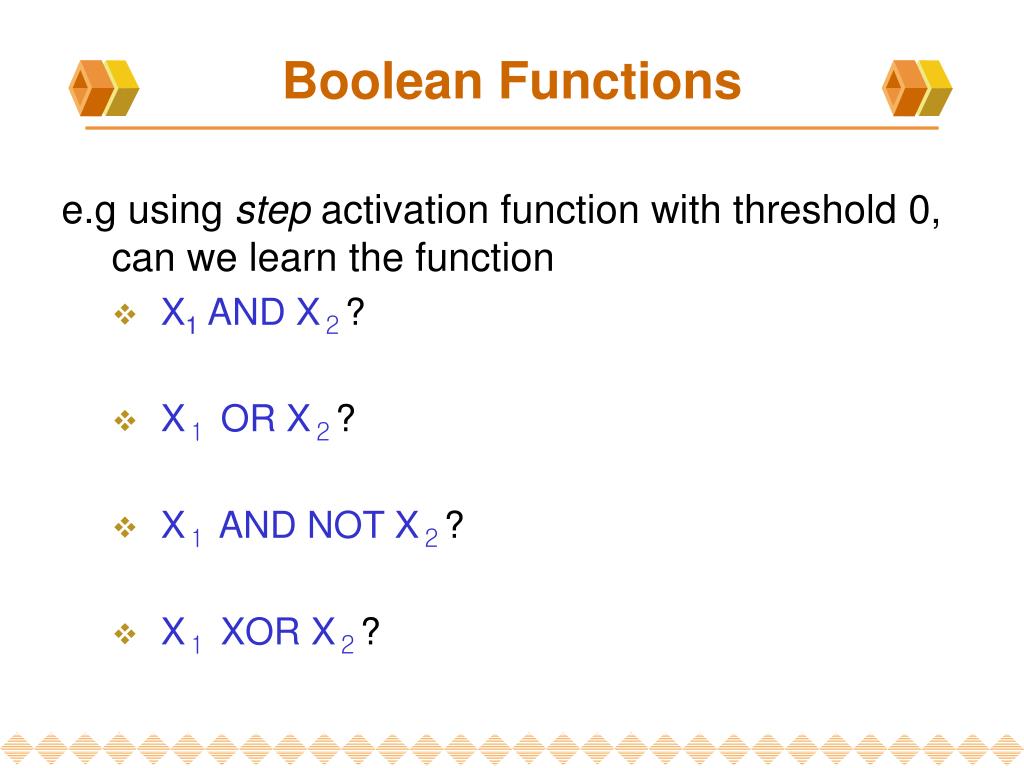

  7. Boolean Functions e.g using step activation function with threshold 0, can we learn the function • X1 AND X２? • X１OR X２? • X１AND NOT X２? • X１XOR X２?

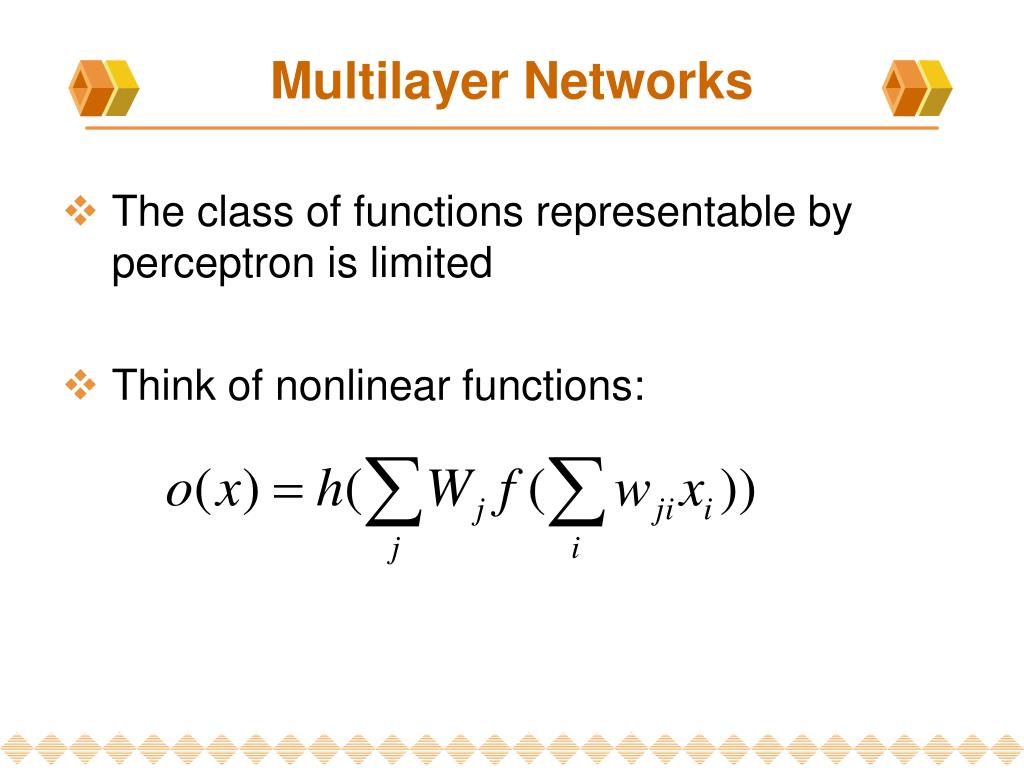

  8. Multilayer Networks • The class of functions representable by perceptron is limited • Think of nonlinear functions:

  9. A 1-Hidden layer Net • Ninput=2, Nhidden=3, Noutput=1

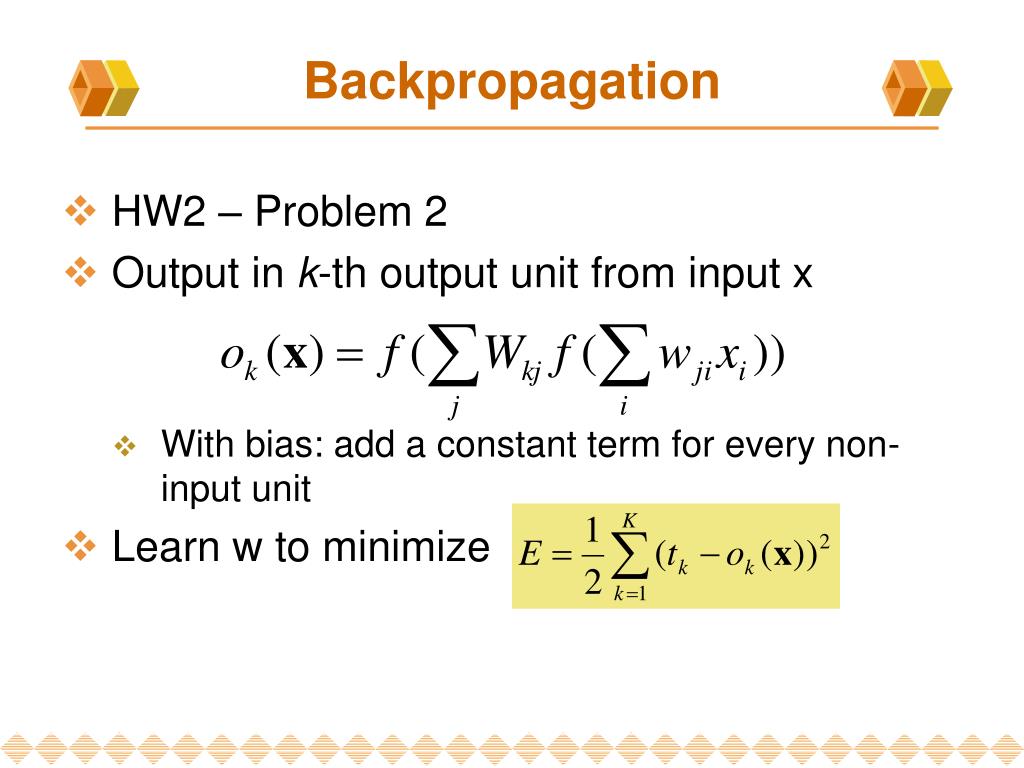

  10. Backpropagation • HW2 – Problem 2 • Output in k-th output unit from input x • With bias: add a constant term for every non-input unit • Learn w to minimize

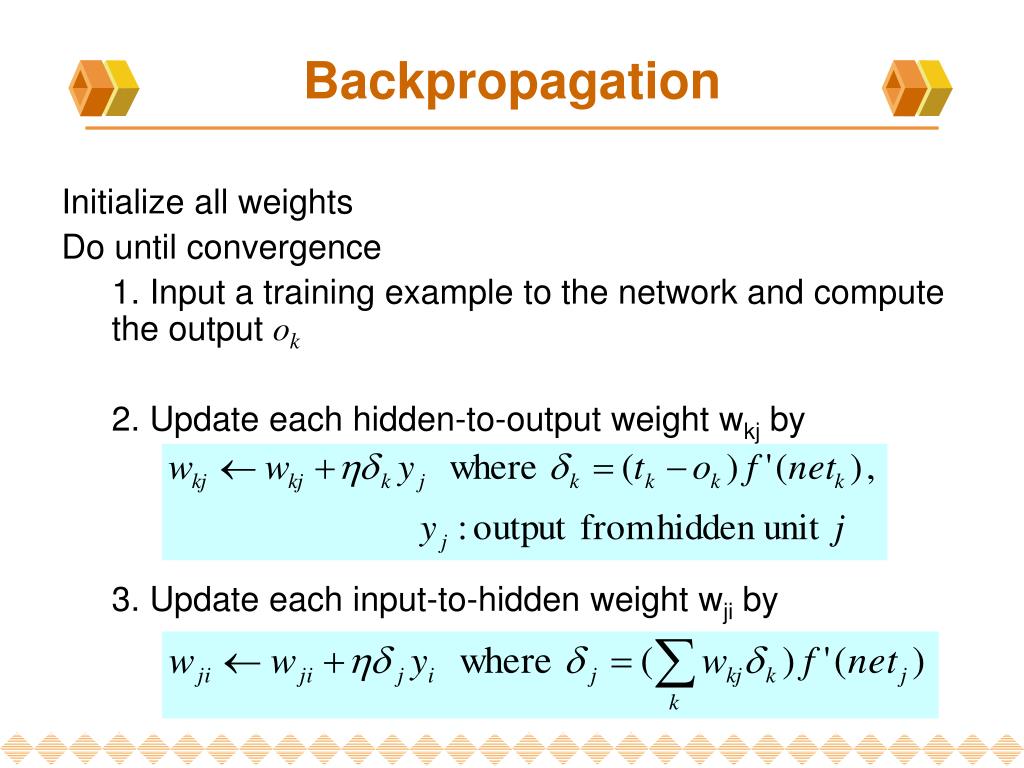

  11. Backpropagation Initialize all weights Do until convergence 1. Input a training example to the network and compute the output ok 2. Update each hidden-to-output weight wkj by 3. Update each input-to-hidden weight wji by
