  1. A Leakage Current ReplicaKeeper for Dynamic Circuits • Based on the work presented in “A leakage Current Replica Keeper for Dynamic Circuits” by: Yolin lih, Nestoras Tzartzanis, William W. Walker Fujitsu Laboratories of America, Sunnyvale, CA presented in ISSCC 2006/Session 24/High performance Digital Circuits/24.4 • For class presentation in Advanced VLSI Course, Tehran University, Fall 2006 By: Bardia Bozorgzadeh Professor: Dr. S. M. Fakhraie

  2. Outline • Introduction • Conventional keepers and their problems • Existing solutions and their problems • Leakage current replica keeper proposal • Application to a mutli-port SRAM • Measurements • Conclusion • References

  3. Dynamic circuits are indispensable for constructing wide high-speed OR and AND-OR gates in CMOS. Faster and more compact than conventional logic gates. Required to build memories. These gates need keepers to maintain a high state during evaluation. Introduction

  4. Conventional Keeper • Conventional keeper is sized for worst-case (sPfN process corner) leakage current.[1] • Also should be week enough so that a single NFET leg can pull the dynamic node quickly in fPsN process corner.[1] • Upper limit on the number of legs decreases as processes are scaled.[1]

  5. Delay for conventional keeper • Keeper is sized for a max voltage drop of 0.1VDD on node DN with DC noise of 0.15VDD applied to 1/4 of legs in sPfN corner.[1] • Gate fails to switch for more than 24 legs.[1] • Domino gates with conventional keeper will no longer be designable.[1]

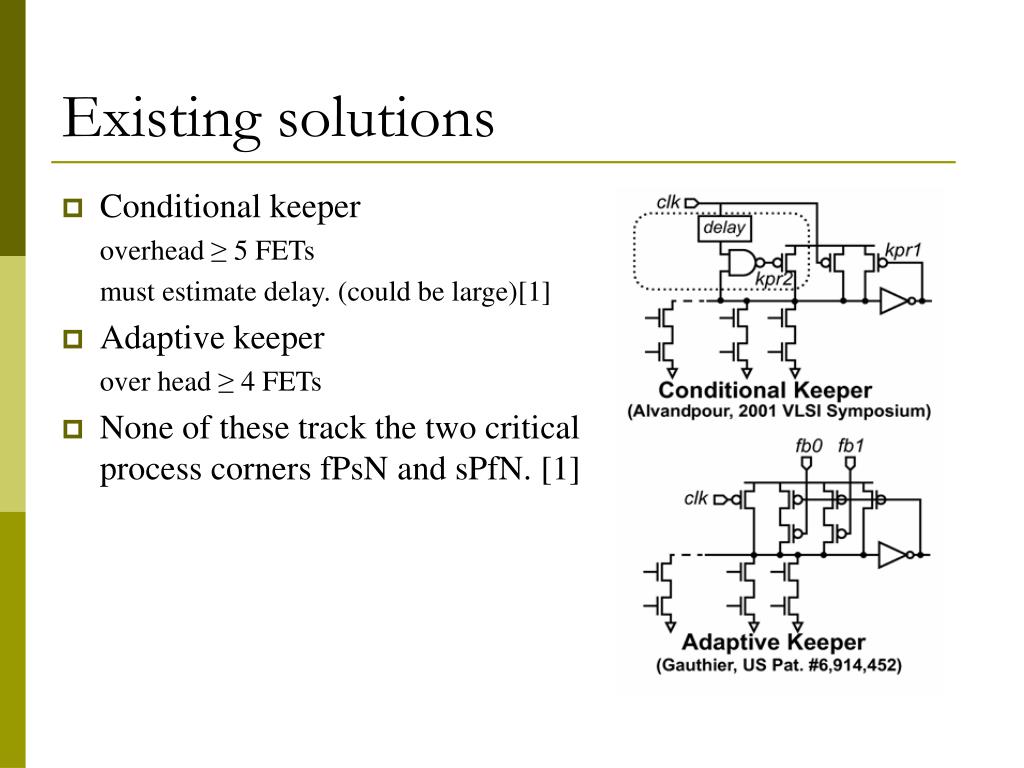

  6. Existing solutions • Conditional keeper overhead ≥ 5 FETs must estimate delay. (could be large)[1] • Adaptive keeper over head ≥ 4 FETs • None of these track the two critical process corners fPsN and sPfN. [1]

  7. Leakage Current Replica (LCR) Keeper • Subthreshold is tracked using a replica circuit, and mirrored into the dynamic gate keeper. • The replica current mirror can be shared with all dynamic gates • 1 FET overhead/gate • Tracks all process corners as well as temperature and VDD.[1] • Only random on-die variations are not tracked, but after margining for these variations, LCR still has an advantage.[1]

  8. Sizing LCR Keeper • Wnprl = sf.∑Wni • With sf=1 will hold DN only to same voltage as KPR. • V(KPR) design critical[1]: too low : poor replica too high : ΔVtp sensitive • sf is selected to be approximately 10, then p1 is driven to triode region to keep DN close to VDD. • Choose long L for p1 and p3 to reduce Vt variations.[1] • The size of p2 isn’t critical as long as it is bigger than p1. [1]

  9. Selecting a safety factor

  10. Delay Comparison • LCR Keeper is usable for up to 32 legs. • sPfN process corner presents the worst-case delay for more than 20 legs due to replication of the leakage current by the keeper.[1] • With 16 to 24 legs LCR is 25 to 40% faster than conventional keeper. [1]

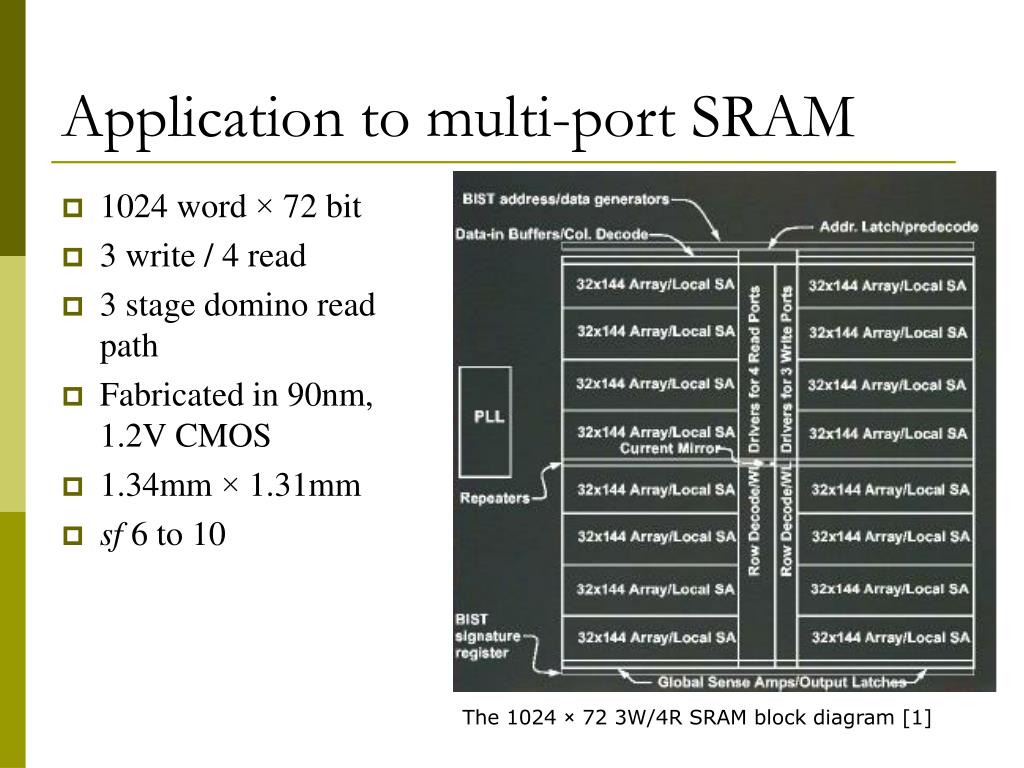

  11. 1024 word × 72 bit 3 write / 4 read 3 stage domino read path Fabricated in 90nm, 1.2V CMOS 1.34mm × 1.31mm sf 6 to 10 The 1024 × 72 3W/4R SRAM block diagram [1] Application to multi-port SRAM

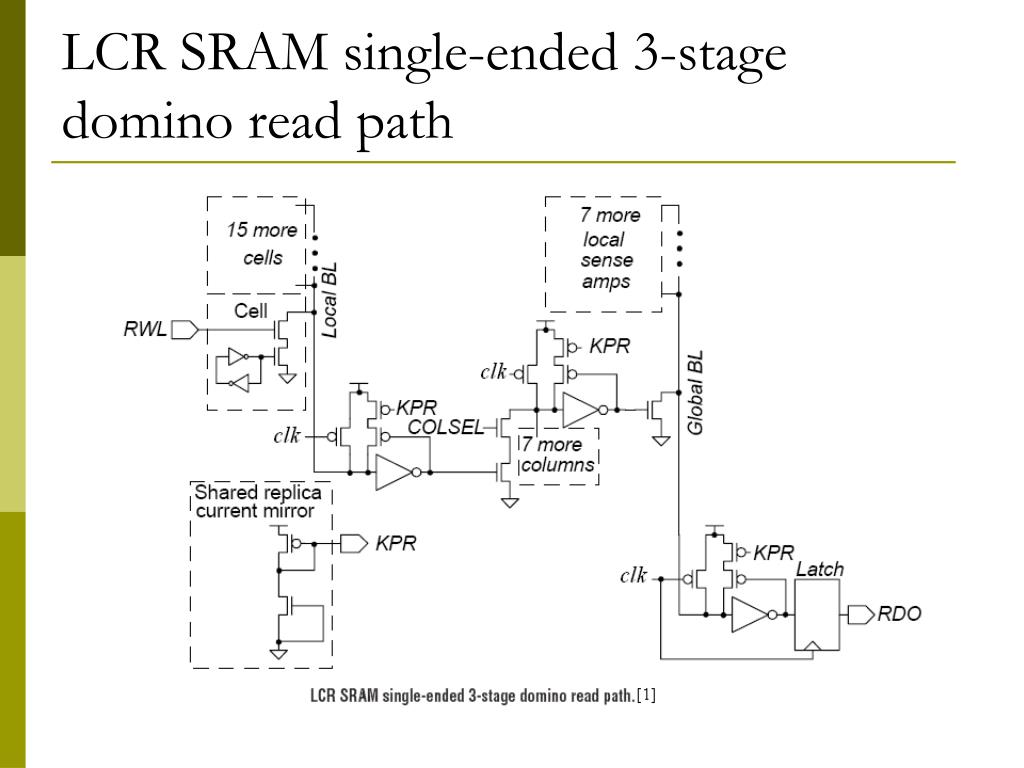

  12. LCR SRAM single-ended 3-stage domino read path

  13. Cont’d • Previous SRAMs in this technology are desinged using high-Vt NFETs in the dynamic gates but using LCR keeper allowed us to switch to low-Vt NFETs. [1] • Since all read paths are identical only one current mirror is used for the entire SRAM.[1] • 2 × minimum length channel is used for p1 and p3 to increase Vtp and reduce its variations.

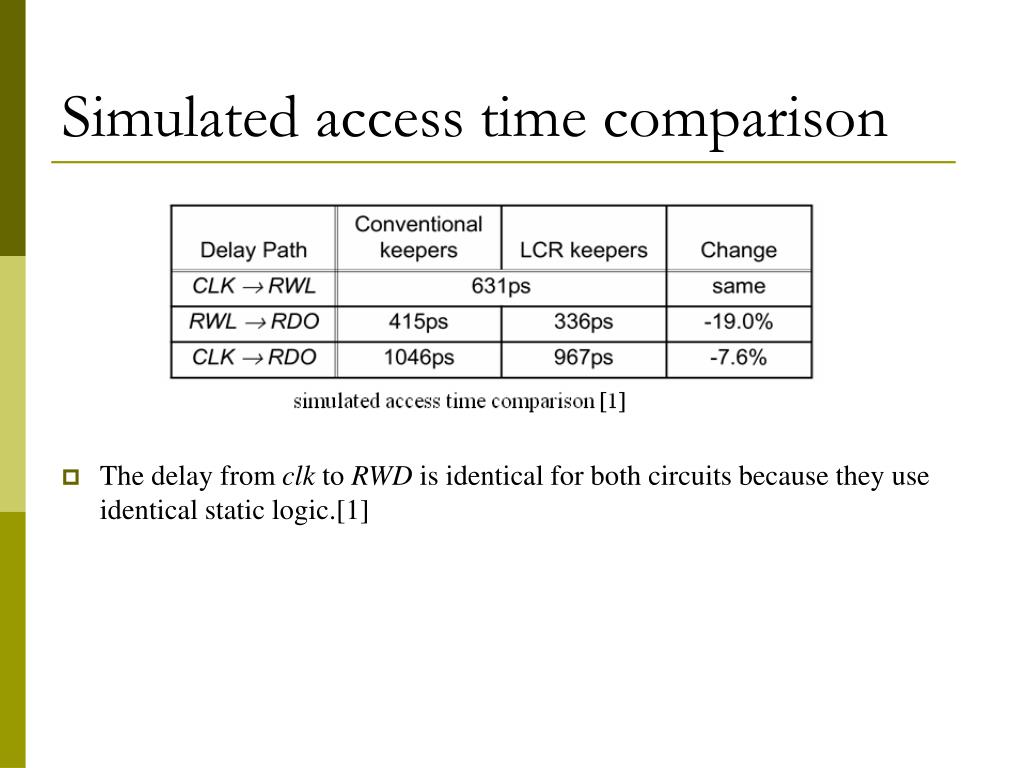

  14. Simulated access time comparison • The delay from clk to RWD is identical for both circuits because they use identical static logic.[1]

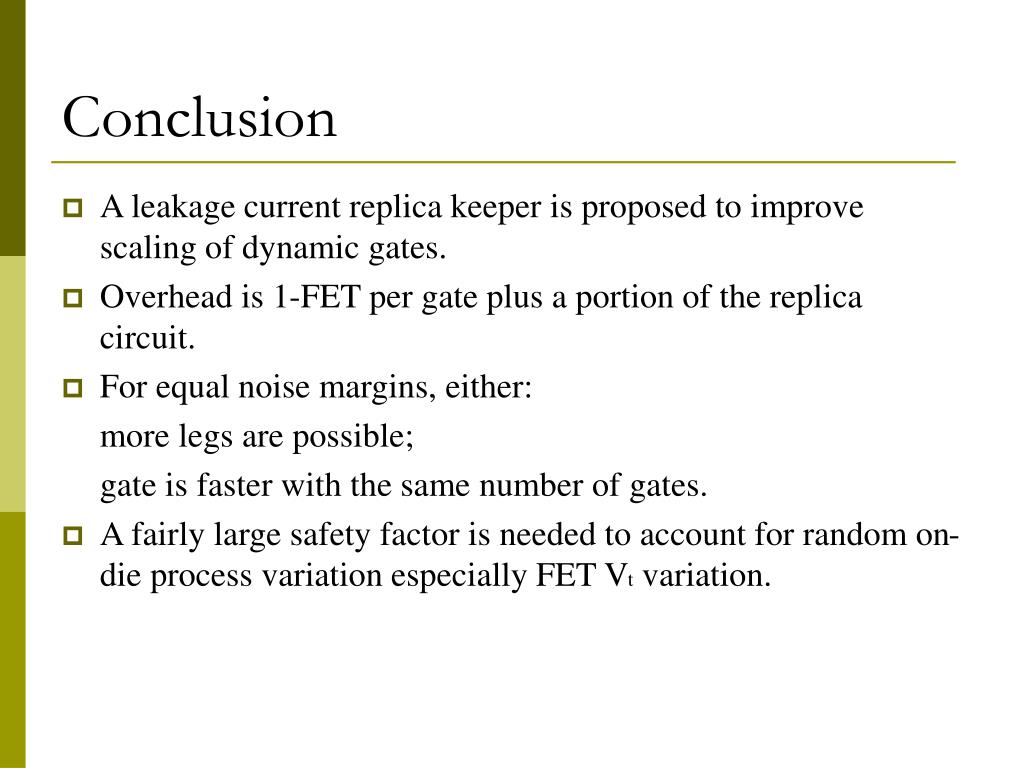

  15. Conclusion • A leakage current replica keeper is proposed to improve scaling of dynamic gates. • Overhead is 1-FET per gate plus a portion of the replica circuit. • For equal noise margins, either: more legs are possible; gate is faster with the same number of gates. • A fairly large safety factor is needed to account for random on-die process variation especially FET Vt variation.

  16. References [1]Yolin lih, Nestoras Tzartzanis, William W. Walker. “A leakage Current Replica Keeper for Dynamic Circuits” ISSCC 2006/Session 24/High performance Digital Circuits/24.4 [2] N.H.E. Weste and David Harris, “CMOS VLSI Design. A Circuit and System perspective”. Third Edition, Boston: Addison-Wesley, 2005. [3] A.Alvandpour et al., “A Conditional Technique for Sub-0.13µm wide Dynamic Gates,” Symp. VLSI Circuits, pp. 29-30, 2001 [4] C. R. Gautheir et al., US Patents #6,914,452 and #6,894,528, 2002.
