  1. Bioinformatic Analysis of Chromatin Genomic Data Giulio Pavesi University of Milano giulio.pavesi@unimi.it

  2. “Nucleosome” • The nucleosome core particle consists of approximately 147 base pairs of DNA wrapped in 1.67 left-handed superhelical turns around a histone octamer • Octamer: 2 copies each of the core histones H2A, H2B, H3, and H4 • Core particles are connected by stretches of "linker DNA", which can be up to about 80 bp long

  3. Epigenetics • Modern experimental techniques and technologies allow for the genome-wide study of different types of histone modifications, shedding light on the role of each one

  4. The histone code • Example H3K4me3 • H3is the histone • K4 is the residue that is modified and its position (K lysine in position 4 of the sequence) • me3 is the modification (three-methyl groups attached to K4) • If no number at the end like in H3K9ac means only one group

  5. Different chromatin states Chromatin structure (and thus, gene expression) depend also on the post-translational modifications associated with histones forming nuclesomes

  6. “ChIP” • If we have the “right” antibody, we can extract (“immunoprecipitate”) from living cells the protein of interest bound to the DNA • And - we can try to identify which were the DNA regions bound by the protein • Can be done for transcription factors • But can be done also for histones - and separately for each modification

  7. ChIP-Seq Histone ChIP TF ChIP

  8. Many cells- many copies of the same region bound by the protein

  9. After ChIP Size selection: only fragments of the “right size” (200 bp) are kept Identification of the DNA fragment bound by the protein Sequencing

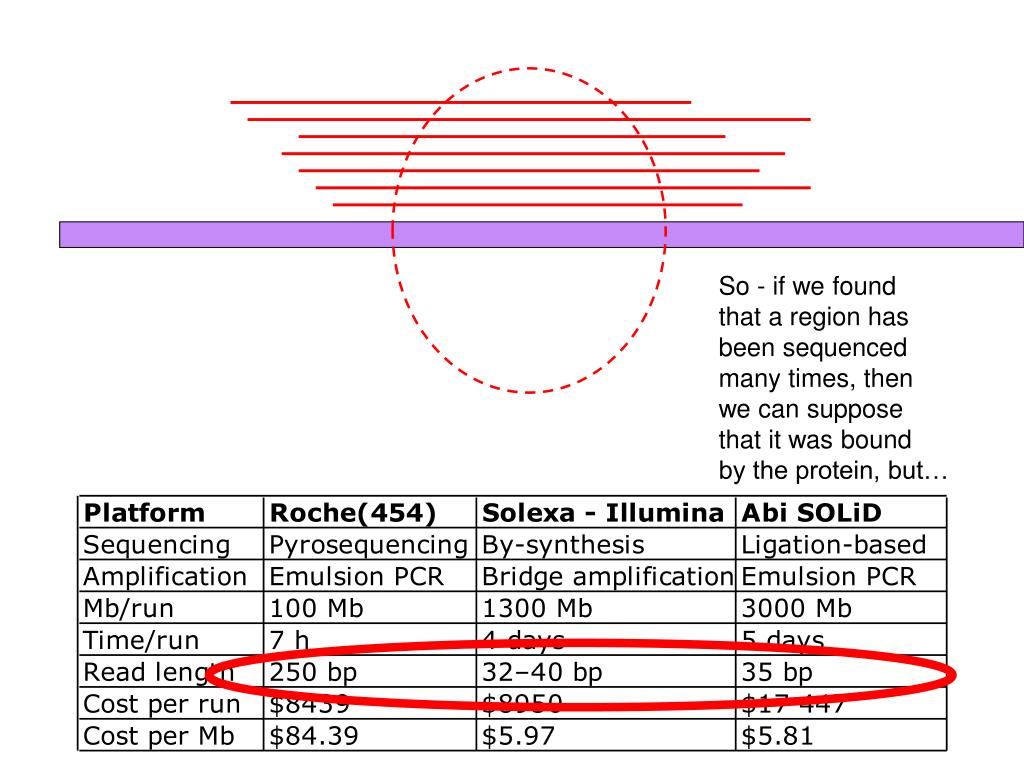

  10. So - if we found that a region has been sequenced many times, then we can suppose that it was bound by the protein, but…

  11. Only a short fragment of the extracted DNA region can be sequenced, at either or both ends (“single” vs “paired end” sequencing) for no more than 35 (before) / 50 (now) / 75 (now) bps Thus, original regions have to be “reconstructed” …and, once again, bioinformaticians can be of help…

  12. Read Mapping • Each sequence read has to be assigned to its original position in the genome • A typical ChIP-Seq experiment produces from 6 (before) to 100 million (now) reads of 50-70 and more base pairs for each sequencing “lane” (Solexa/Illumina) • Research in read alignment algorithms is booming (who is going to be the next BLAST?) • There exist efficient “sequence mappers” against the genome for NGS read

  13. Read Mapping “Typical” Output @12_10_2007_SequencingRun_3_1_119_647 (actual sequence) TTTGAATATATTGAGAAAATATGACCATTTTT +12_10_2007_SequencingRun_3_1_119_647 (“quality” scores) 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 39 27 40 40 4 27 40

  14. Read Mapping • Reads mapping more than once (repetitive regions) can be discarded: • Never, use all matches everywhere • If they map more than a given maximum number of times • If they do not map uniquely in the best match • If they do not map uniquely with 0, 1, or 2 substitutions

  15. Read Mapping • Sequence quality tends to be lower toward the 3’end of sequence reads • Trick: if too few read map, “trim” the reads: • Map reads with standard parameters (two substitutions will do) • Take all the reads that haven’t been mapped, and re-map them trimming away the first and the last nucleotides • Repeat until no significant improvement/increase in mapped reads is obtained • Discard reads mapping on different locations of the genome

  16. “Peak finding” • The critical part of any ChIP-Seq analysis is the identification of the genomic regions that produced a significantly high number of sequence reads, corresponding to the region where the protein (nucleosome) of interest was bound to DNA • Since a graphical visualization of the “piling” of read mapping on the genome produces a “peak” in correspondence of these regions, the problem is often referred to as “peak finding” • A “peak” then marks the region that was enriched in the original DNA sample

  17. “Peak finding” Peaks: How tall? How wide? How much enriched?

  18. “Peak finding” • The main issue: the DNA sample sequenced (apart from sequencing errors/artifacts) contains a lot of “noise” • Sample “contamination” - the DNA of the PhD student performing the experiment • DNA shearing is not uniform: open chromatin regions tend to be fragmented more easily and thus are more likely to be sequenced • Repetitive sequences might be artificially enriched due to inaccuracies in genome assembly • Amplification pushed too much: you see a single DNA fragment amplified, not enriched • As yet unknown problems, that anyway seem to produce “noisy” sequencings and screw the experiment up

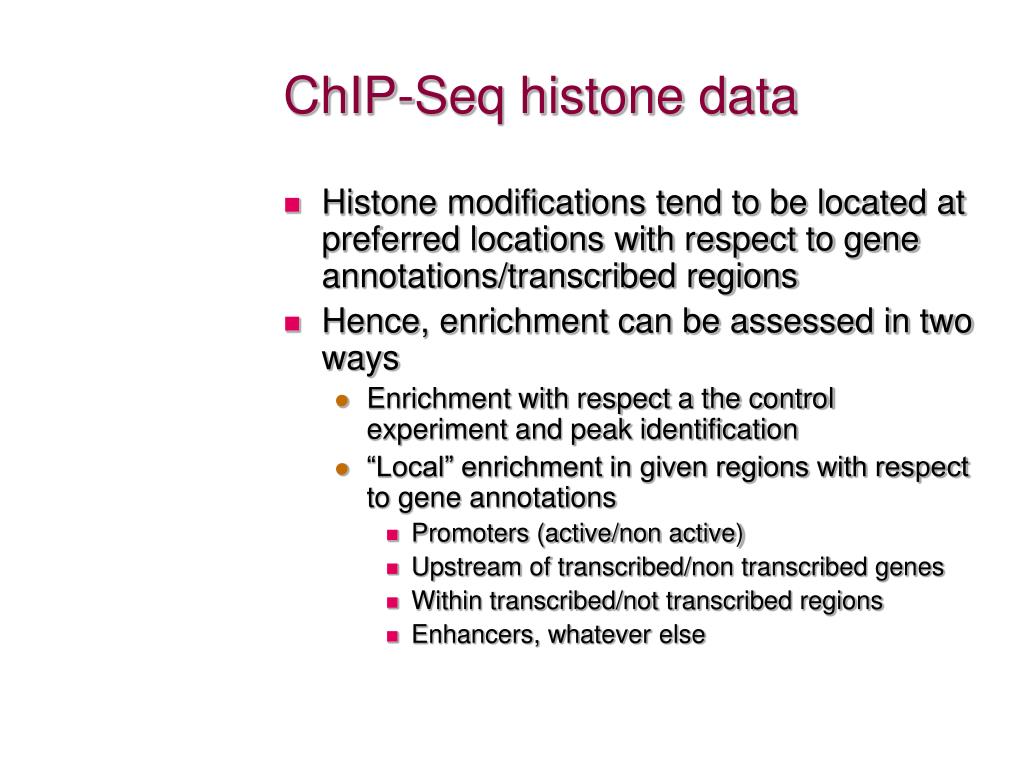

  19. Histone modifications tend to be located at preferred locations with respect to gene annotations/transcribed regions Hence, enrichment can be assessed in two ways Enrichment with respect a the control experiment and peak identification “Local” enrichment in given regions with respect to gene annotations Promoters (active/non active) Upstream of transcribed/non transcribed genes Within transcribed/not transcribed regions Enhancers, whatever else ChIP-Seq histone data

  20. Esperimento • Eseguire una ChIP-Seq per diverse modificazioni istoniche, partendo da quelle più “classiche” • Verificare: • Se ciascuna modifica ha una sua localizzazione “preferenziale” sul genoma o rispetto ai geni (es. nel promotore, nella regione trascritta, etc.) • Se ciascuna modifica è “correlata” in qualche modo alla trascrizione/espressione dei geni

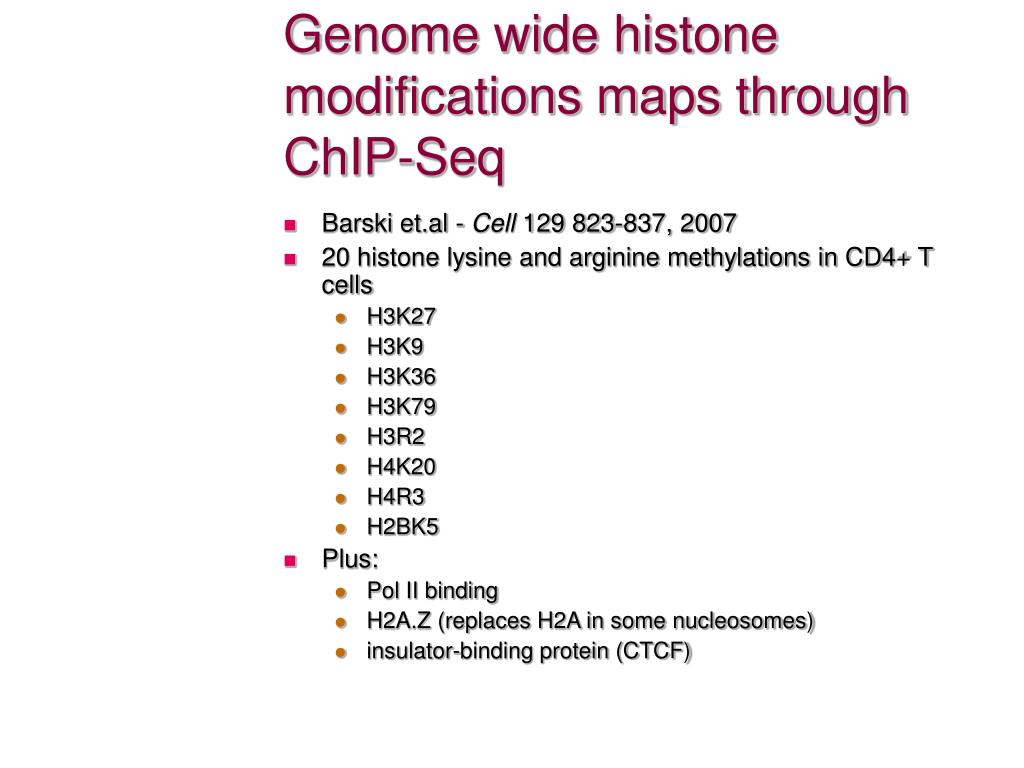

  21. Genome wide histone modifications maps through ChIP-Seq • Barski et.al - Cell 129 823-837, 2007 • 20 histone lysine and arginine methylations in CD4+ T cells • H3K27 • H3K9 • H3K36 • H3K79 • H3R2 • H4K20 • H4R3 • H2BK5 • Plus: • Pol II binding • H2A.Z (replaces H2A in some nucleosomes) • insulator-binding protein (CTCF)

  22. Genome wide histone modifications maps through ChIP-Seq

  23. Esperimento • ChIP-Seq associata a una particolare modificazione (es, H3K4me3) • Domanda: la modificazione è “correlabile” alla trascrizione dei geni? • Ovvero, la modificazione “marca” particolari nucleosomi rispetto all’inizio della trascrizione, o alla regione trascritta • Esempio: potrebbero esserci modificazioni che: • Marcano l’inizio della trascrizione • Marcano tutta e solo la regione trascritta • “Silenziano” particolari loci genici impedendo la trascrizione

  24. Esperimento • Sequenze ottenute da ChIP-Seq per la modificazione studiata • Input: coordinate genomiche delle posizioni in ciascuna delle sequenze mappa (vedi file di esempio) • Input: coordinate genomiche dei geni RefSeq annotati • Un nucleosoma marcato dalla modificazione dovrebbe corrispondere a un “mucchietto” di read che si sovrappongono (“picco”) • Andiamo a contare, nucleosoma per nucleosoma, quanto alto è il “mucchietto”, ovvero quanti read sono associabili al nucleosoma

  25. Esempio: se si trovasse la modifica nel nucleosoma a monte del TSS dei geni trascritti, troveremmo un “mucchietto” così Modificazione Nucleosoma

  26. Esempio: se si trovasse la modifica nei nucleosomi associati alle regioni trascritte, troveremmo “mucchietti” così Modificazione Nucleosoma

  27. Analisi: primo esempio • Input • Lista ordinata delle coordinate genomiche dei TSS associati ai geni trascritti • Lista ordinata delle coordinate genomiche dei TSS associati ai geni NON trascritti • Lista ordinata delle coordinate genomiche dove mappa ciascuna sequenza della ChIP-Seq • Output: calcolare la distribuzione (i “mucchietti”) rispetto ai TSS delle due categorie: • Geni trascritti • Geni NON trascritti

  28. Algoritmo! -1000 +1000 TSS Dato ciascun TSS, calcolare quante sequenze mappano tra -1000 e +1000 bp rispetto al TSS Contare quante sequenze mappano a -1000, -999, -998...-1,0 +1,+2,...+998,+999,+1000 Sommare per tutti i TSS i conteggi a ciascuna distanza (-1000, -999, -998,...,-1,0,+1,+2,...+998,+999,+1000)

  29. Attenzione! -1000 +1000 TSS +1000 -1000 TSS Le coordinate rispetto al TSS dipendono dalla direzione della trascrizione!!

  30. Output: histone modifications at TSS Read count (peak height) -1000 0 +1000 Distance from TSS

  31. I risultati!

  32. PolII is found bound to DNA at the TSS of transcribed genes

  33. H3K4me3 is found just before and after the TSS of transcribed genes

  34. H3K4me2 (not me3!) is found just before and after the TSS of transcribed genes, but farther away than H3K4me3

  35. H3K4me1 is found just before and after the TSS of transcribed genes, but farther away than H3K4me3 and H3K4me2

  36. H3K27me3 covers the whole locus of “silent” genes - no transcription here

  37. H3K27me1 (not me3!) is vice versa associated before and after loci of transcribed genes

  38. H3K36me3 is found within the transcribed region - a bit downstream of the TSS - as if it “lets” polymerase proceed with transcription

  39. H3K9me1 is similar in profile to H3K4me3

  40. Barski et. al. High-Resolution Profiling of Histone Methylations in the Human Genome, Cell 129(4)

  41. Histone modifications at transcribed regions Read count (peak height) High Low Expression level
