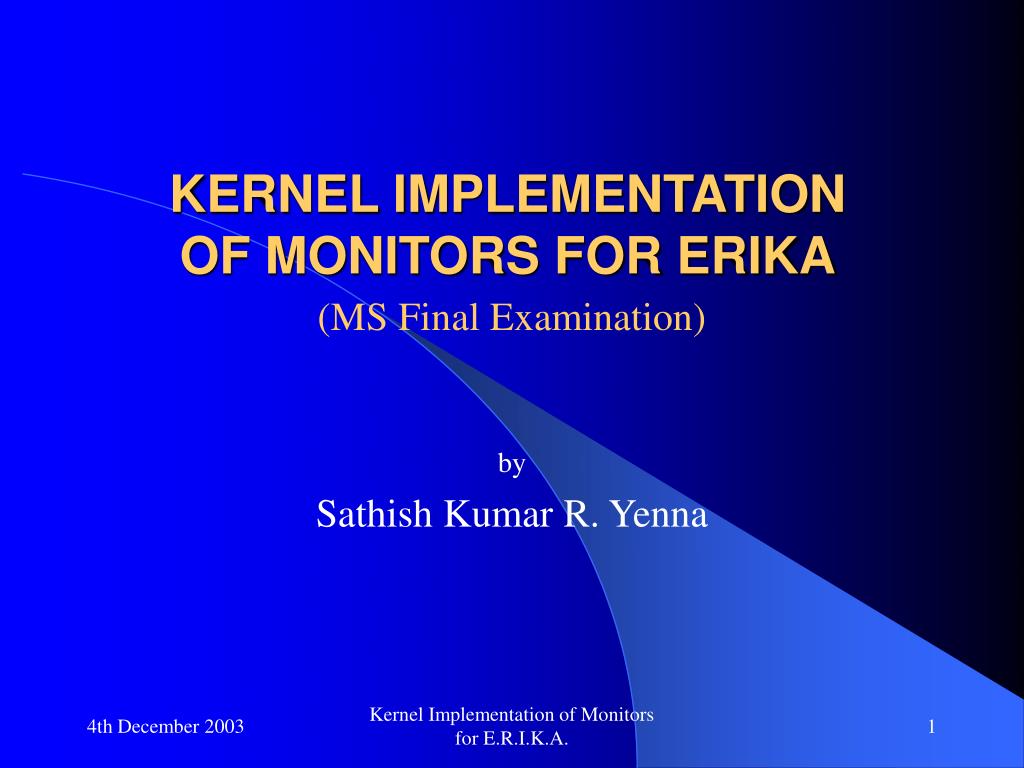

  1. KERNEL IMPLEMENTATION OF MONITORS FOR ERIKA (MS Final Examination) by Sathish Kumar R. Yenna Kernel Implementation of Monitors for E.R.I.K.A.

  2. Introduction to ERIKA • ERIKA (Embedded Real tIme Kernel Architecture) is a research project about micro-kernel architectures for embedded systems. • Very structured and easy to port. • Currently, it has kernels for • ST10/C167 architecture • ARM7TDMI architecture Kernel Implementation of Monitors for E.R.I.K.A.

  3. Functional View ERIKA kernel is able to • Handle threads • Handle synchronization • Handle interrupts Kernel Implementation of Monitors for E.R.I.K.A.

  4. Thread Handling ERIKA provides only the basic features required for thread handling - scheduling, activation and context switching Each thread owns a set of attributes • TID – Thread IDentifier • Body Function • Priority • User Stack (Multi-Stack HAL) • Register Bank • Status Word Kernel Implementation of Monitors for E.R.I.K.A.

  5. Thread Status A thread can be in one of the following four states: • stacked state - started execution and its frame is on stack (running or preempted) • ready state - activated and ready to execute • idle state - terminated and not in the ready queue • blocked state - blocked on a synchronizing condition Kernel Implementation of Monitors for E.R.I.K.A.

  6. Thread Synchronization Mutexes – for mutual exclusion CABs – Cyclical Asynchronous Buffers Semaphores Interrupt Handling It can be configured to handle interrupts in a clean way Provides an interface that allows linking a handler written by the user to an interrupt vector Kernel Implementation of Monitors for E.R.I.K.A.

  7. ERIKA Architecture Figure 1 : Layers of ERIKA Kernel Implementation of Monitors for E.R.I.K.A.

  8. Kernel Layer • Exports system primitives to the application • Written in standard C language • Independent from the underlying architecture Services provided by the Kernel Layer • Queue Handling – queue structures to keep track of the thread status • Scheduling – primitives to schedule threads • User interface – data types, data structures and primitives for the application Kernel Implementation of Monitors for E.R.I.K.A.

  9. Kernel API • Thread Management: thread_make_ready() thread_activate() sys_scheduler() thread_end_instance() • Thread Management in Interrupt Handlers: IRQ_make_ready() IRQ_end_instance() set_handler() • Shared Memory Management: mutex_lock() mutex_unlock() • Utility Functions: sys_gettime() sys_panic() sys_reboot() sys_idle() Kernel Implementation of Monitors for E.R.I.K.A.

  10. Figure 2: Thread Transition Diagram Kernel Implementation of Monitors for E.R.I.K.A.

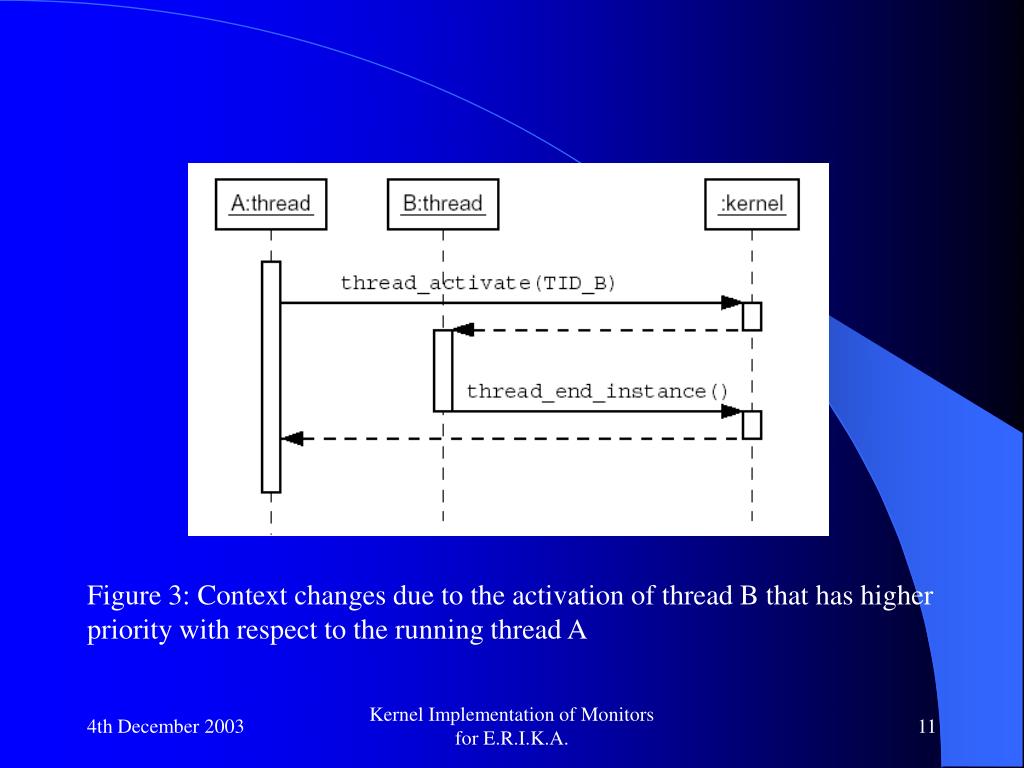

  11. Figure 3: Context changes due to the activation of thread B that has higher priority with respect to the running thread A Kernel Implementation of Monitors for E.R.I.K.A.

  12. Figure 4: Context switches due to the activation of thread B by a call of thread_make_ready() by a lower priority thread A. Kernel Implementation of Monitors for E.R.I.K.A.

  13. Hardware Abstraction Layer • Main objective – export the abstraction of the thread to the kernel layer • A thread is characterized by • a body • a context • Provides a clean interface for the kernel • Context handling • Interrupt handling and other utility functions Kernel Implementation of Monitors for E.R.I.K.A.

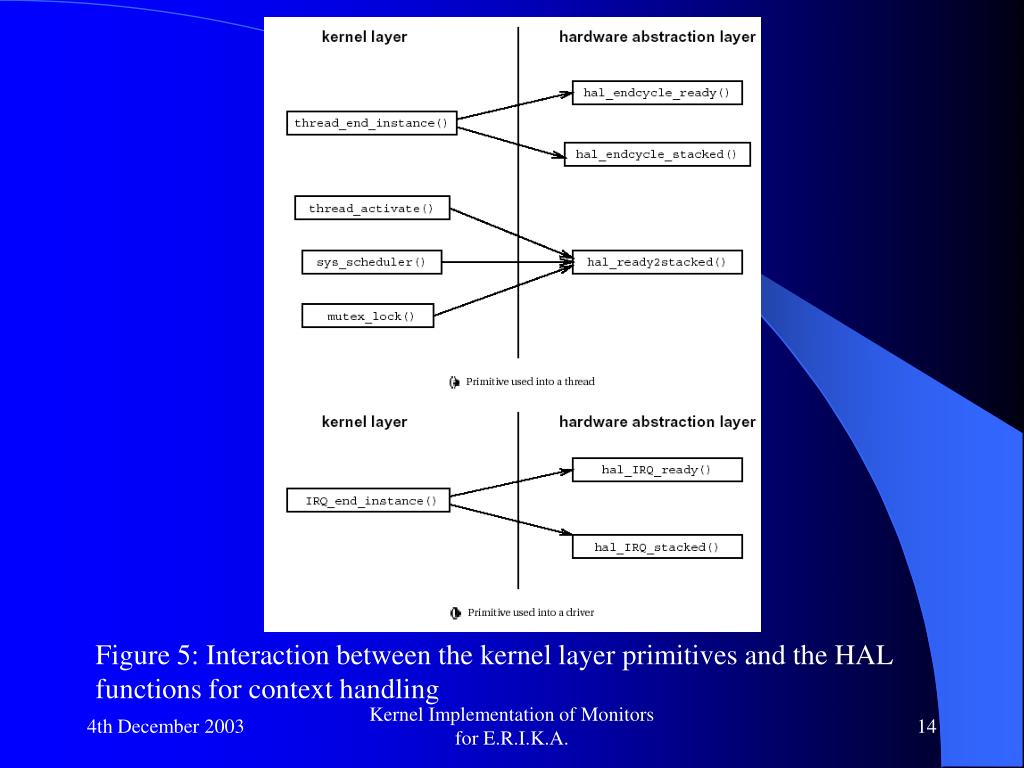

  14. Figure 5: Interaction between the kernel layer primitives and the HAL functions for context handling Kernel Implementation of Monitors for E.R.I.K.A.

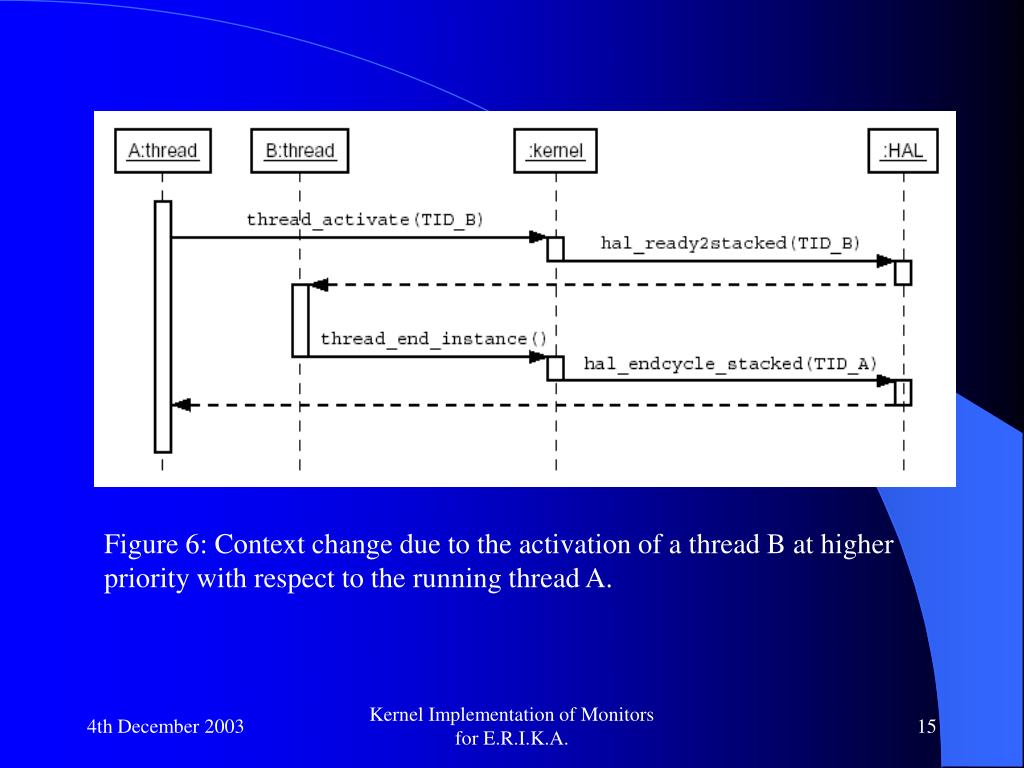

  15. Figure 6: Context change due to the activation of a thread B at higher priority with respect to the running thread A. Kernel Implementation of Monitors for E.R.I.K.A.

  16. Kernel Layer uses TIDs to identify threads – allows implementation of scheduling algorithms in a hardware independent way Kernel Implementation of Monitors for E.R.I.K.A.

  17. Code Portability • The division of the Kernel into two layers • A standard interface provided by the HAL eases the porting to different architectures Kernel Implementation of Monitors for E.R.I.K.A.

  18. ERIKA HALs • Mono-Stack HAL • All the threads and interrupts share the same stack • Preempted thread can not execute again before all the threads have finished their instances. • Blocking primitives are not allowed • Multi-Stack HAL • Each thread can have its own stack • Blocking primitives are allowed (ex. semaphores) Kernel Implementation of Monitors for E.R.I.K.A.

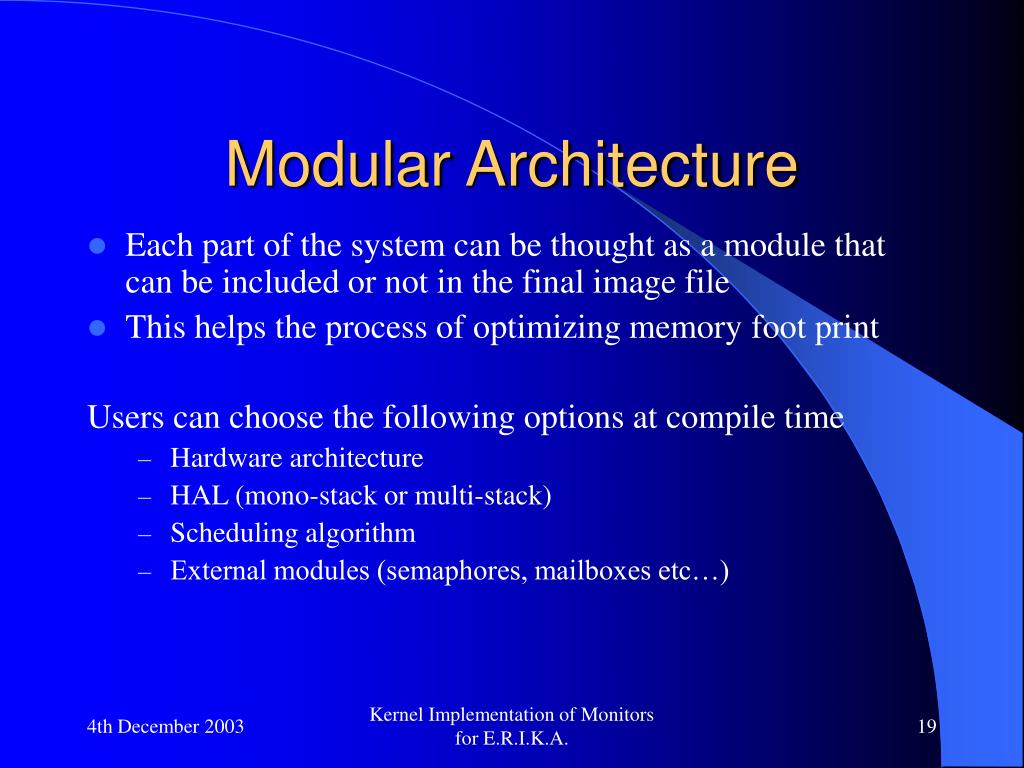

  19. Modular Architecture • Each part of the system can be thought as a module that can be included or not in the final image file • This helps the process of optimizing memory foot print Users can choose the following options at compile time • Hardware architecture • HAL (mono-stack or multi-stack) • Scheduling algorithm • External modules (semaphores, mailboxes etc…) Kernel Implementation of Monitors for E.R.I.K.A.

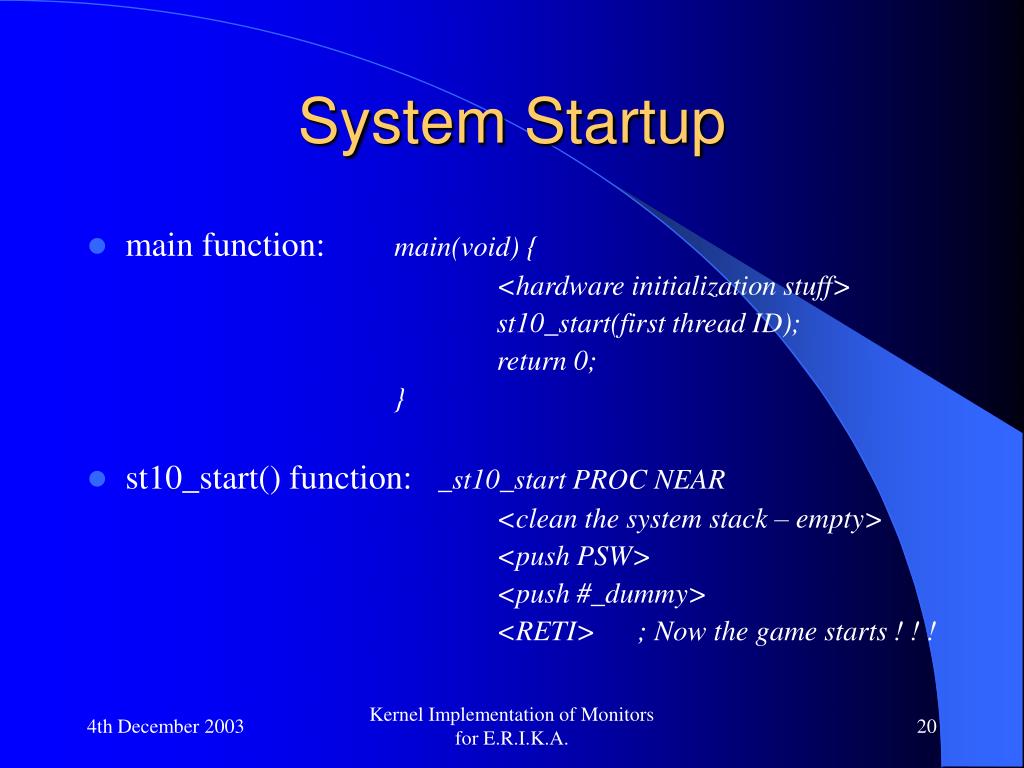

  20. System Startup • main function: main(void) { <hardware initialization stuff> st10_start(first thread ID); return 0; } • st10_start() function: _st10_start PROC NEAR <clean the system stack – empty> <push PSW> <push #_dummy> <RETI> ; Now the game starts ! ! ! Kernel Implementation of Monitors for E.R.I.K.A.

  21. dummy() thread • startup point of the application • does not have a TID • never ends • lowest priority thread in the system • always active and hence never activated void dummy() { <system initialization> <thread activation> <scheduling> <idle loop> } Kernel Implementation of Monitors for E.R.I.K.A.

  22. Thread scheduling Thread Execution Thread termination SP SP RETI: (IP)  ((SP)) (SP)  (SP) + 2 (PSW)  ((SP)) (SP)  (SP) + 2 RET: (IP)  ((SP)) (SP)  (SP) + 2 Kernel Implementation of Monitors for E.R.I.K.A.

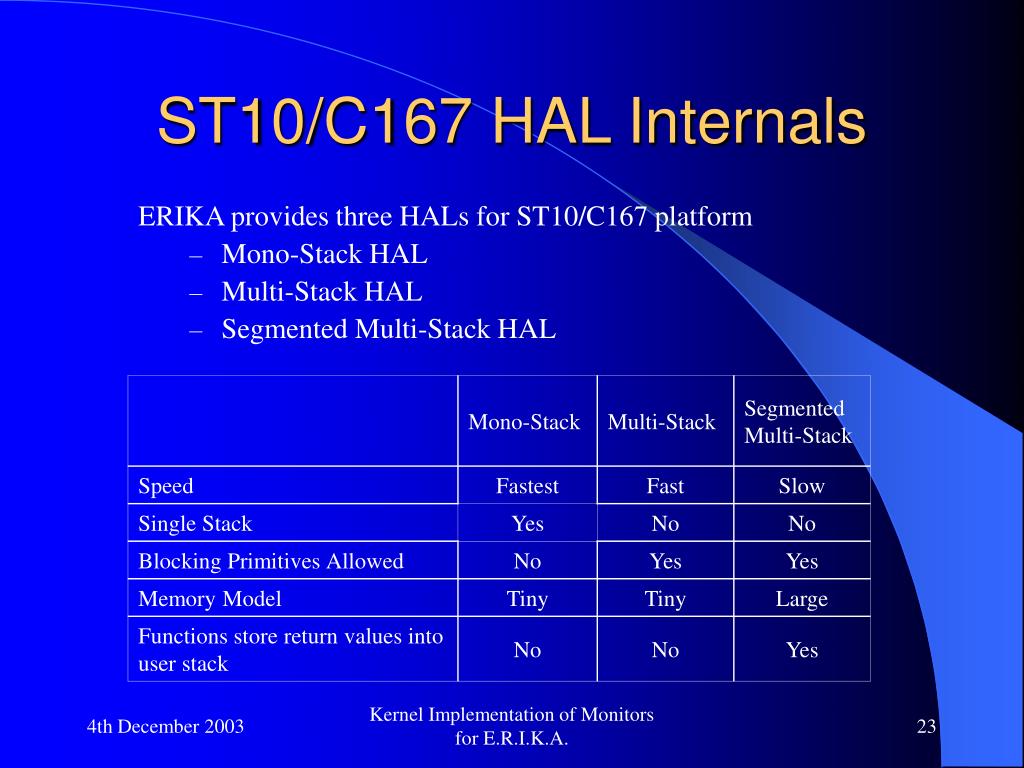

  23. ST10/C167 HAL Internals ERIKA provides three HALs for ST10/C167 platform • Mono-Stack HAL • Multi-Stack HAL • Segmented Multi-Stack HAL Kernel Implementation of Monitors for E.R.I.K.A.

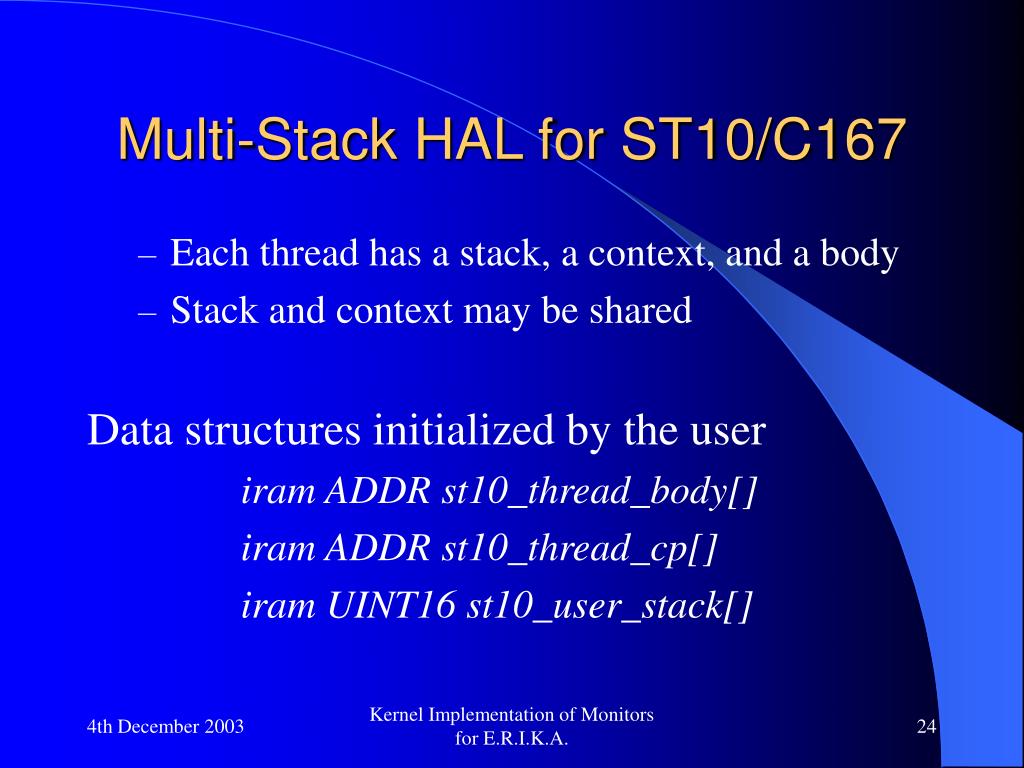

  24. Multi-Stack HAL for ST10/C167 • Each thread has a stack, a context, and a body • Stack and context may be shared Data structures initialized by the user iram ADDR st10_thread_body[] iram ADDR st10_thread_cp[] iram UINT16 st10_user_stack[] Kernel Implementation of Monitors for E.R.I.K.A.

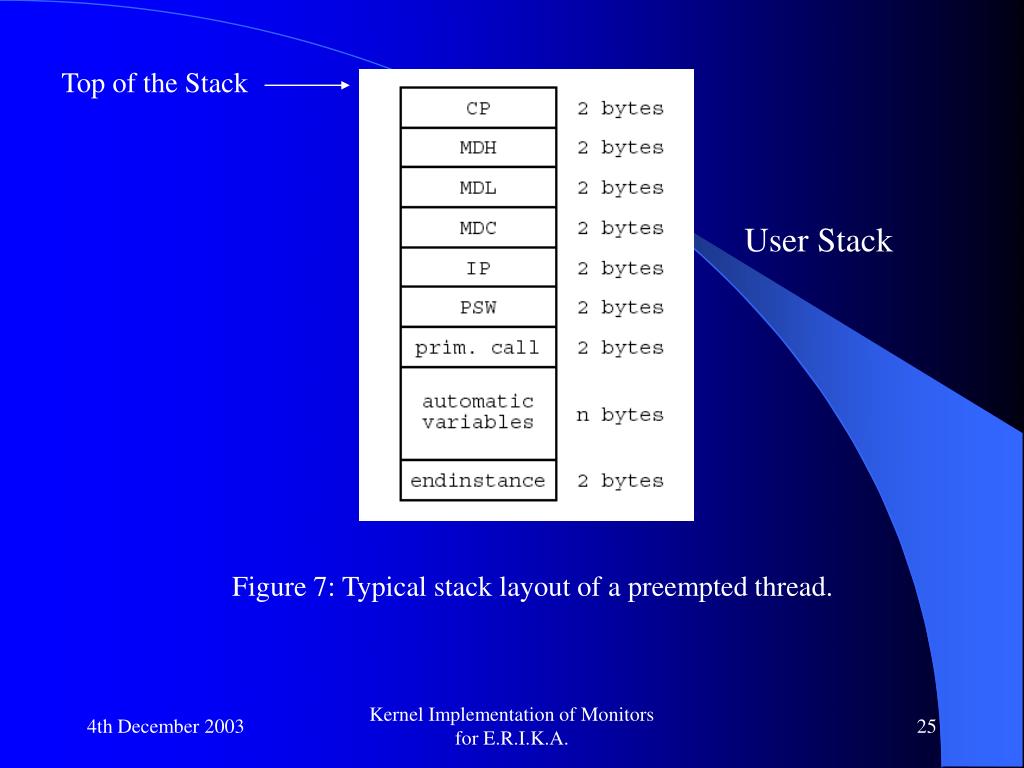

  25. Top of the Stack User Stack Figure 7: Typical stack layout of a preempted thread. Kernel Implementation of Monitors for E.R.I.K.A.

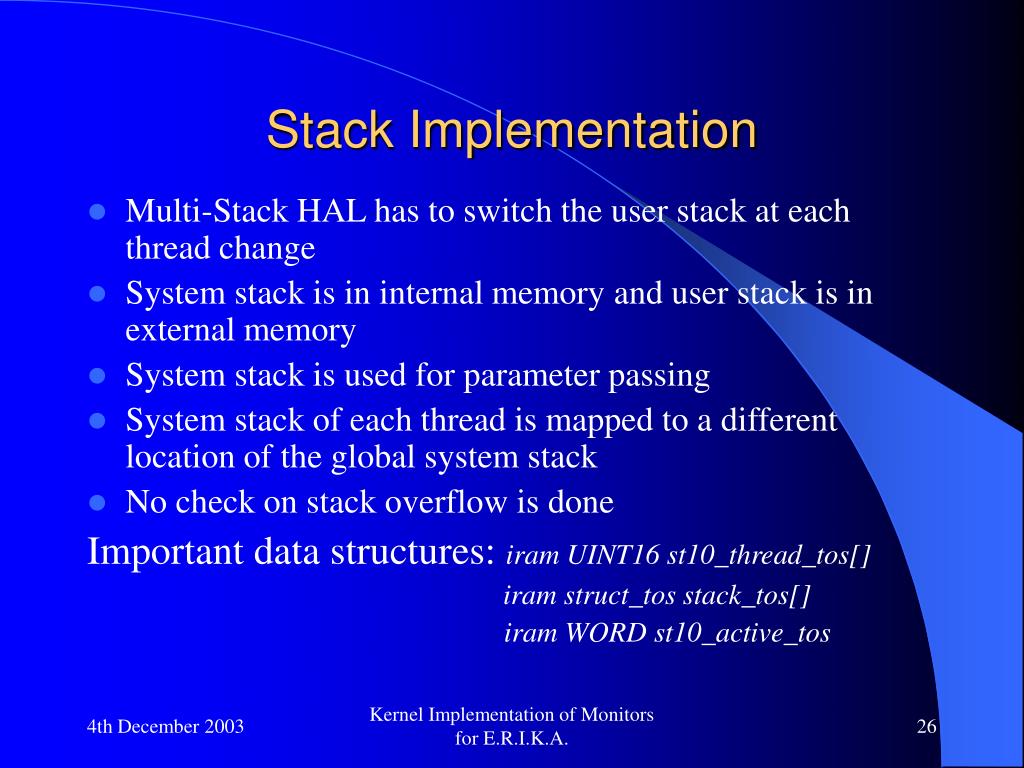

  26. Stack Implementation • Multi-Stack HAL has to switch the user stack at each thread change • System stack is in internal memory and user stack is in external memory • System stack is used for parameter passing • System stack of each thread is mapped to a different location of the global system stack • No check on stack overflow is done Important data structures: iram UINT16 st10_thread_tos[] iram struct_tos stack_tos[] iram WORD st10_active_tos Kernel Implementation of Monitors for E.R.I.K.A.

  27. Figure 8: Typical stack configuration Kernel Implementation of Monitors for E.R.I.K.A.

  28. MONITORS • Provide a structured approach for process synchronization • Can be implemented as efficient as semaphores • Data abstraction mechanism: They encapsulate the representation of the abstract resources and provide a set of operations that are the only means by which they are manipulated • Mutual exclusion is provided by ensuring that the execution of procedures in the same monitor is not overlapped • Condition synchronization in monitors is provided by a low-level mechanism called condition variables Kernel Implementation of Monitors for E.R.I.K.A.

  29. Condition Variables • Declaration var c:cond • Delay a process wait(c) • Wake up a process signal(c) Programmer has to take care of inserting wait and signal operations at appropriate locations to avoid permanent blocking of processes Kernel Implementation of Monitors for E.R.I.K.A.

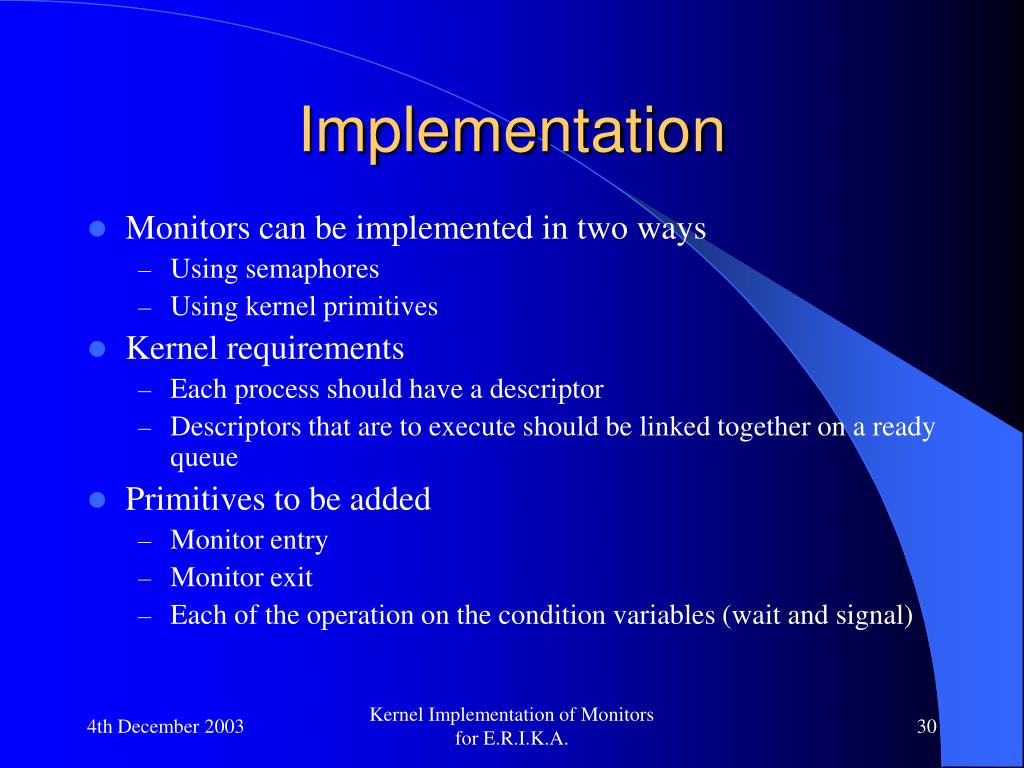

  30. Implementation • Monitors can be implemented in two ways • Using semaphores • Using kernel primitives • Kernel requirements • Each process should have a descriptor • Descriptors that are to execute should be linked together on a ready queue • Primitives to be added • Monitor entry • Monitor exit • Each of the operation on the condition variables (wait and signal) Kernel Implementation of Monitors for E.R.I.K.A.

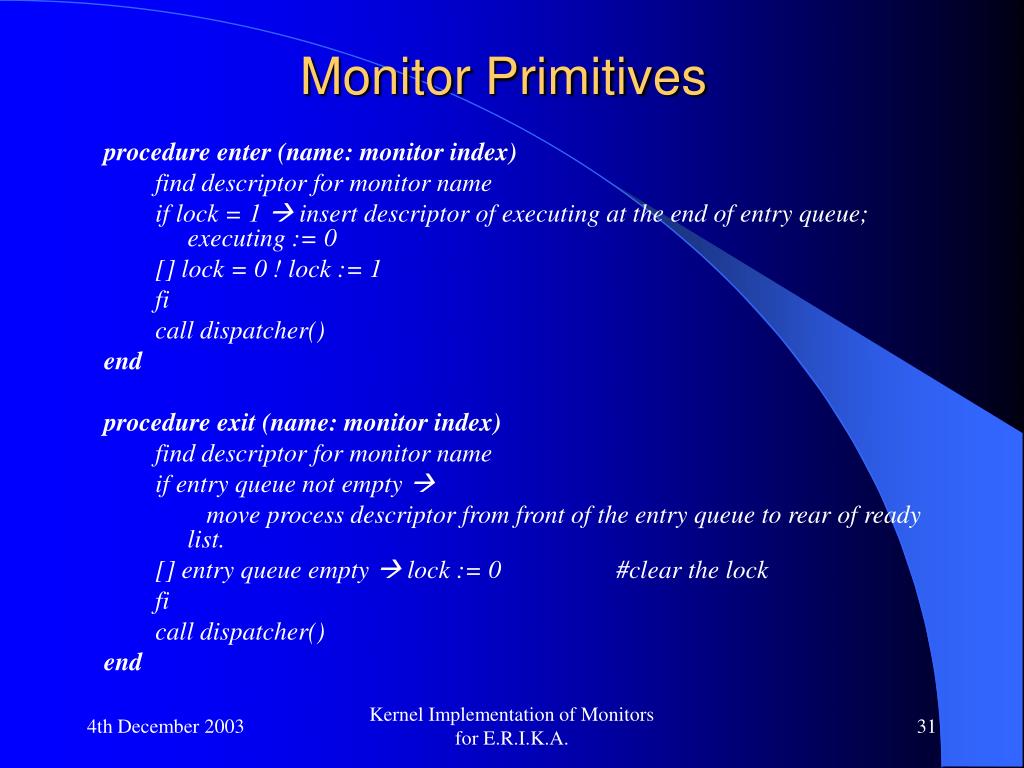

  31. Monitor Primitives procedure enter (name: monitor index) find descriptor for monitor name if lock = 1  insert descriptor of executing at the end of entry queue; executing := 0 [] lock = 0 ! lock := 1 fi call dispatcher() end procedure exit (name: monitor index) find descriptor for monitor name if entry queue not empty  move process descriptor from front of the entry queue to rear of ready list. [] entry queue empty  lock := 0 #clear the lock fi call dispatcher() end Kernel Implementation of Monitors for E.R.I.K.A.

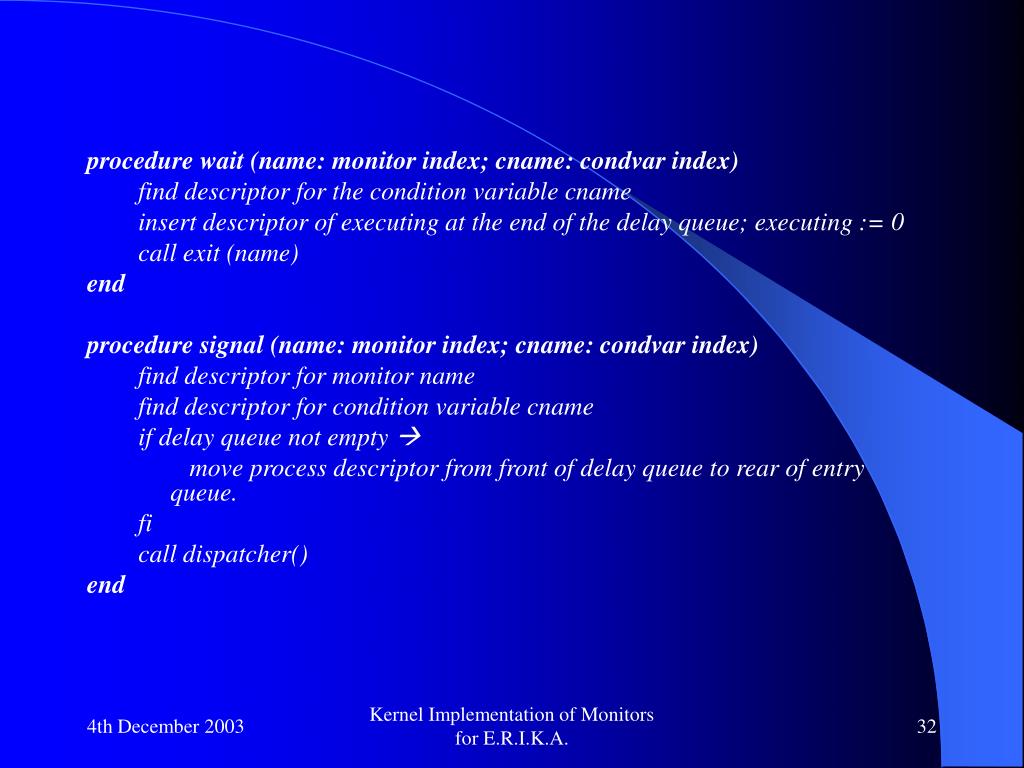

  32. procedure wait (name: monitor index; cname: condvar index) find descriptor for the condition variable cname insert descriptor of executing at the end of the delay queue; executing := 0 call exit (name) end procedure signal (name: monitor index; cname: condvar index) find descriptor for monitor name find descriptor for condition variable cname if delay queue not empty  move process descriptor from front of delay queue to rear of entry queue. fi call dispatcher() end Kernel Implementation of Monitors for E.R.I.K.A.

  33. Data structures added • Monitor Descriptor • Lock • Queue of waiting processes typedef struct { UINT8 lock; TID first; TID last; } MON; • Condition Variable Descriptor • Queue of delayed processes typedef struct { TID first; TID last; } CONDVAR; Kernel Implementation of Monitors for E.R.I.K.A.

  34. Kernel Primitives used void hal_begin_primitive(void) void hal_end_primitive(void) TID rq_queryfirst(void) TID stk_queryfirst(void) void stk_getfirst(void) void rq_insert(TID t) void hal_stkchange(TID t) TID rq2stk_exchange(void) void hal_ready2stacked(TID t) void sys_scheduler(void) Kernel Implementation of Monitors for E.R.I.K.A.

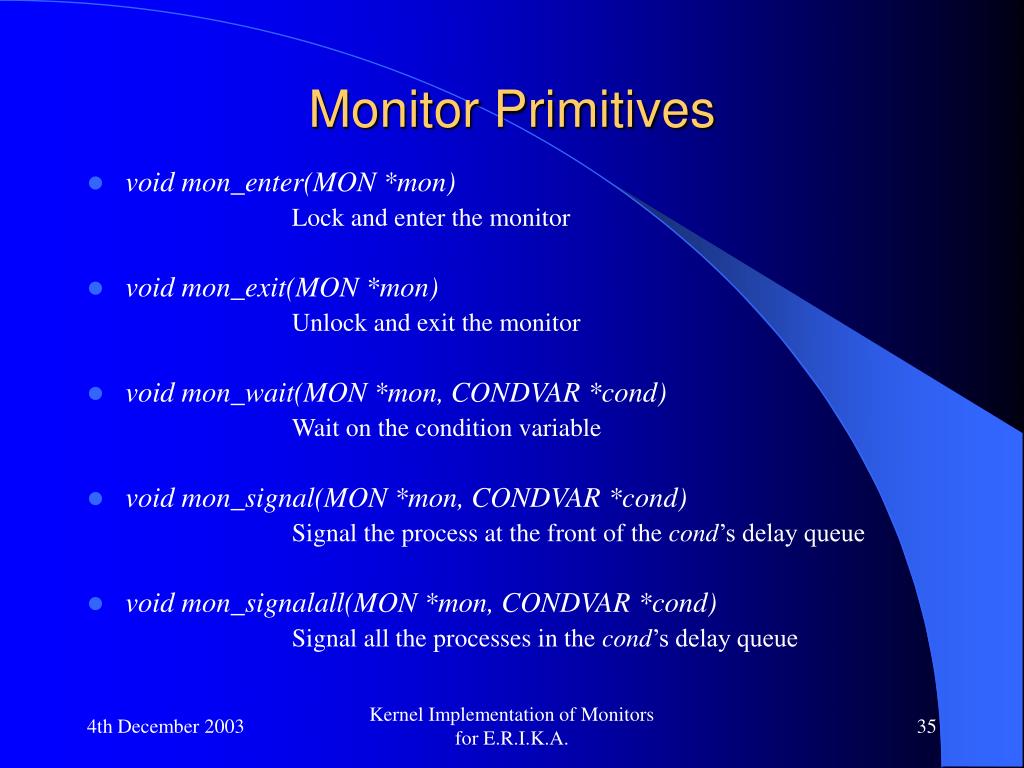

  35. Monitor Primitives • void mon_enter(MON *mon) Lock and enter the monitor • void mon_exit(MON *mon) Unlock and exit the monitor • void mon_wait(MON *mon, CONDVAR *cond) Wait on the condition variable • void mon_signal(MON *mon, CONDVAR *cond) Signal the process at the front of the cond’s delay queue • void mon_signalall(MON *mon, CONDVAR *cond) Signal all the processes in the cond’s delay queue Kernel Implementation of Monitors for E.R.I.K.A.

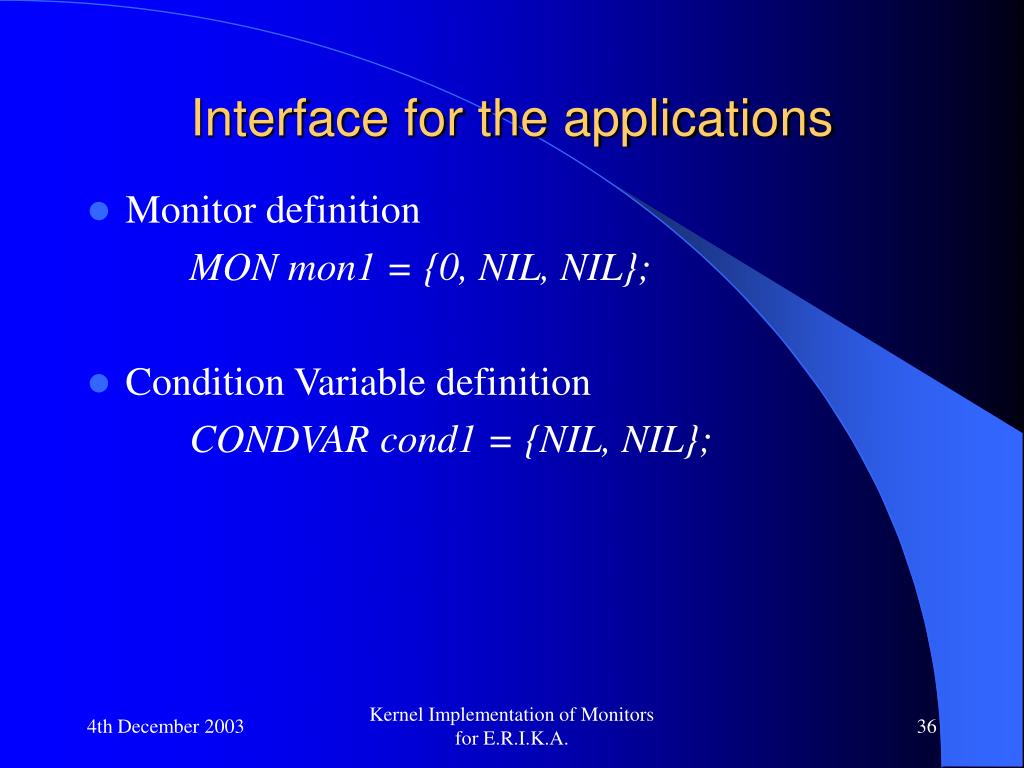

  36. Interface for the applications • Monitor definition MON mon1 = {0, NIL, NIL}; • Condition Variable definition CONDVAR cond1 = {NIL, NIL}; Kernel Implementation of Monitors for E.R.I.K.A.

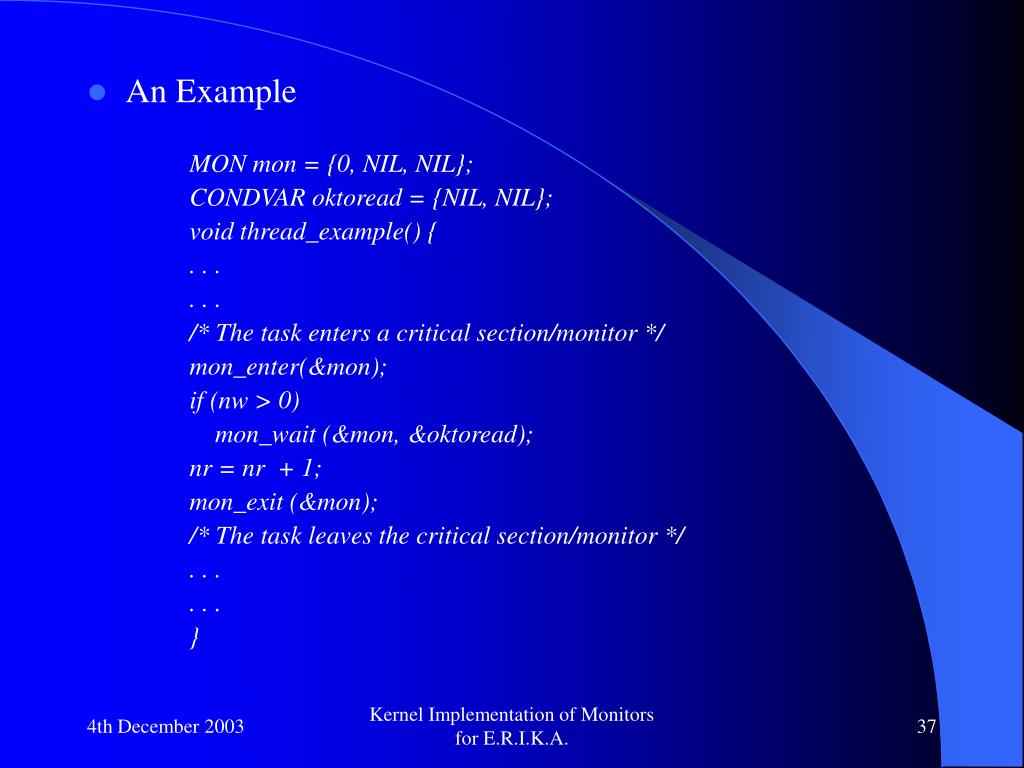

  37. An Example MON mon = {0, NIL, NIL}; CONDVAR oktoread = {NIL, NIL}; void thread_example() { . . . . . . /* The task enters a critical section/monitor */ mon_enter(&mon); if (nw > 0) mon_wait (&mon, &oktoread); nr = nr + 1; mon_exit (&mon); /* The task leaves the critical section/monitor */ . . . . . . } Kernel Implementation of Monitors for E.R.I.K.A.

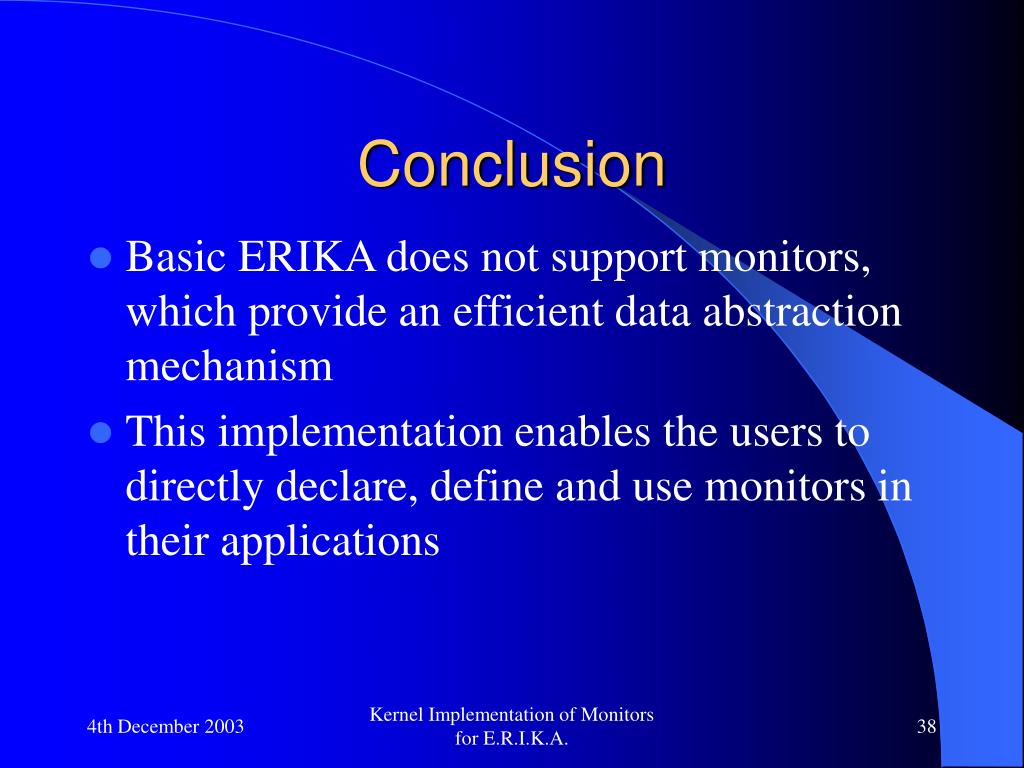

  38. Conclusion • Basic ERIKA does not support monitors, which provide an efficient data abstraction mechanism • This implementation enables the users to directly declare, define and use monitors in their applications Kernel Implementation of Monitors for E.R.I.K.A.

  39. References • ERIKA web pages : http://erika.sssup.it • Paolo Gai and Alessandro Colantonio. ERIKA User Manual (draft version). April 29, 2002 • Paolo Gai. ERIKA Mono-Stack Documentation Notes. November 21, 2000 • Paolo Gai. ERIKA Multi-Stack Documentation Notes. November 21, 2000 • Gregory R. Andrews. Concurrent Programming – Principles and Practice • Brian W. Kernighan and Dennis M. Ritchie. The C Programming Language • SIEMENS AG. Instruction Set Manual for the C166 Family (Version 1.2, 12.97) Kernel Implementation of Monitors for E.R.I.K.A.

  40. Acknowledgements • Dr. Mitch Neilsen (Major Professor) • Dr. Masaaki Mizuno • Dr. Gurdip Singh Kernel Implementation of Monitors for E.R.I.K.A.

  41. Questions & Comments Kernel Implementation of Monitors for E.R.I.K.A.
