Presentation Transcript

  1. Installing GSAS-II You must be connected to the internet!! You must have Administrator privilege on your computer!! This is for Windows!!

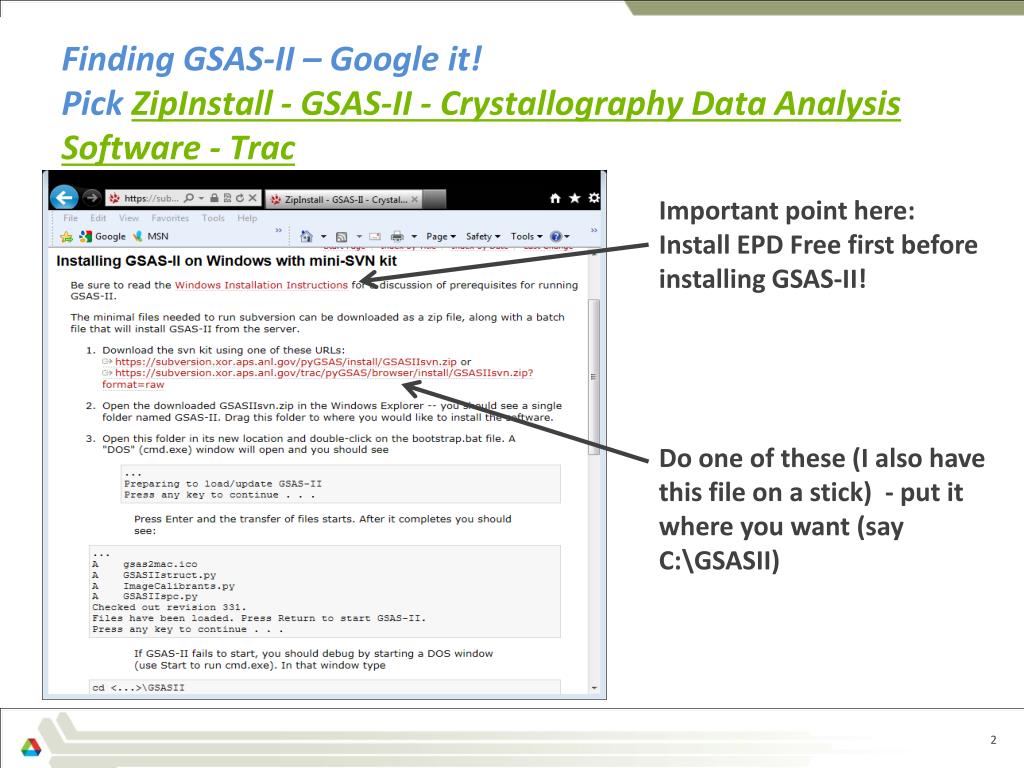

  2. Finding GSAS-II – Google it!Pick ZipInstall - GSAS-II - Crystallography Data Analysis Software - Trac Important point here: Install EPD Free first before installing GSAS-II! Do one of these (I also have this file on a stick) - put it where you want (say C:\GSASII)

  3. EPD Free Installation • Get file from Enthought (I have on a stick) http://www.enthought.com/products/epd_free.php (full academic version from http://www.enthought.com/products/edudownload.php.) • Install file – epd_free-7.2-2-win-x86.msi (you must have Administrative privilege on your computer) • Open a console window & type python – get something like: • Enter exit() to quit python

  4. Install GSAS-II • Open GSASIIsvn.zip in the Windows Explorer you should see a single folder named GSAS-II. • Drag this folder to where you would like to install the software (say the C:\ drive, but could be anywhere). • Open this folder in its new location • Double-click on the bootstrap.bat file. • A console window will open and you should see... • Press Enter and the transfer of files starts. After it completes

  5. GSAS-II installation cont.. you should see something like: Revision will be different!! • GSAS-II will start & then immediately install pyOpenGL and stop • Go to GSASII directory & find GSASII.BAT • You can create shortcut & put on desktop • Double click it!!

  6. GSAS-II runs! Data Tree window GSAS-II plot window Data Window console Tutorials under Help
