  1. A Distributed Vertex-Centric Approach for Pattern Matching in Massive Graphs • Arash Fard • M. UsmanNisar • LakshmishRamaswamy • John A. Miller • Matthew Saltz Computer Science Department University of Georgia, Athens, GA October 7, 2013 The IEEE International Conference on Big Data 2013

  2. Outline • Introduction • Subgraph Pattern Matching • Types of Subgraph Pattern Matching • Strict Simulation • Distributed Algorithms • Experiments

  3. Introduction • Labeled Directed Graph G(V, E, l) • Versatile and expressive • Social networks, web search engines, genome sequencing, etc. • Data sizes are growing rapidly • Facebook: 1 billion+ users, average degree of 140 • Twitter: 200 million+ users, 400 million tweets each day • Bigger datasets mean bigger graphs • Pattern (Query Graph): the interesting small graph • Data Graph: the massive graph contains the information • Pattern Matching: finding the instances of the pattern in the data graph

  4. Subgraph Pattern Matching • There are different paradigms for pattern matching: • Exact Topological Matching • Sub-graph Isomorphism • Simulation Matching (meaning of the relations) • Graph Simulation • Dual Simulation • Strong Simulation • Strict Simulation SD Mary John SD SD Bio PM Ann Bio PM Bio Endorsed by Alice A B Bob PM Sara PM SD: Software Developer Bio: Biologist PM: Product Manager Pattern Graph Data Graph

  5. Example: Graph Simulation • Label and Children conditions • Quadratic time complexity 7 AI 1 PM 5 6 PM DB 4 2 PM SD 10 DB PM 8 11 PM SA SA 22 3 AI AI AI DB 9 DB SA 21 16 15 SA SA 17 12 DB DB AI 14 PM Pattern Graph AI DB AI 13 18 19 20 PM: Product Manager SA: Software Analyst DB: Database Designer AI: AI specialist SD: Software Developer SA PM 23 24 Data Graph

  6. Example: Dual Simulation • Adds Parents condition • Cubic time complexity 7 AI 1 PM 5 6 PM DB 4 2 PM SD 10 DB PM 8 11 PM SA SA 22 3 AI AI AI DB 9 DB SA 21 16 15 SA SA 17 12 DB DB AI 14 PM Pattern Graph AI DB AI 13 18 19 20 PM: Product Manager SA: Software Analyst DB: Database Designer AI: AI specialist SD: Software Developer SA PM 23 24 Data Graph

  7. Strong Simulation • Extends dual simulation with a locality condition • A ball Gb[v, r] is a subgraph of a graph G containing: • all vertices Vbwithin an undirected distance r of the vertex v • all the edges between the vertices in Vb S. Ma, Y. Cao, W. Fan, J. Huai, and T. Wo, “Capturing topology in graph pattern matching,” Proc. VLDB Endow., vol. 5, no. 4, pp. 310–321, Dec. 2011.

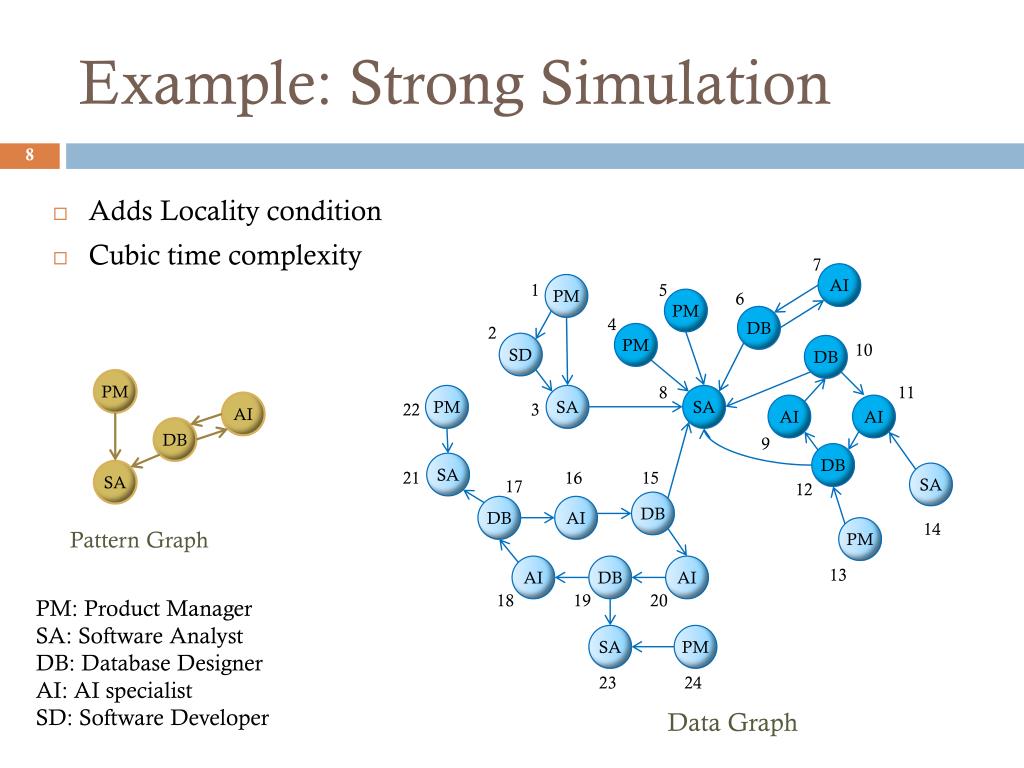

  8. Example: Strong Simulation • Adds Locality condition • Cubic time complexity 7 AI 1 PM 5 6 PM DB 4 2 PM SD 10 DB PM 8 11 PM SA SA AI 22 3 AI AI DB 9 DB SA SA 21 16 15 SA 17 12 DB DB AI 14 PM Pattern Graph AI DB AI 13 18 19 20 PM: Product Manager SA: Software Analyst DB: Database Designer AI: AI specialist SD: Software Developer SA PM 23 24 Data Graph

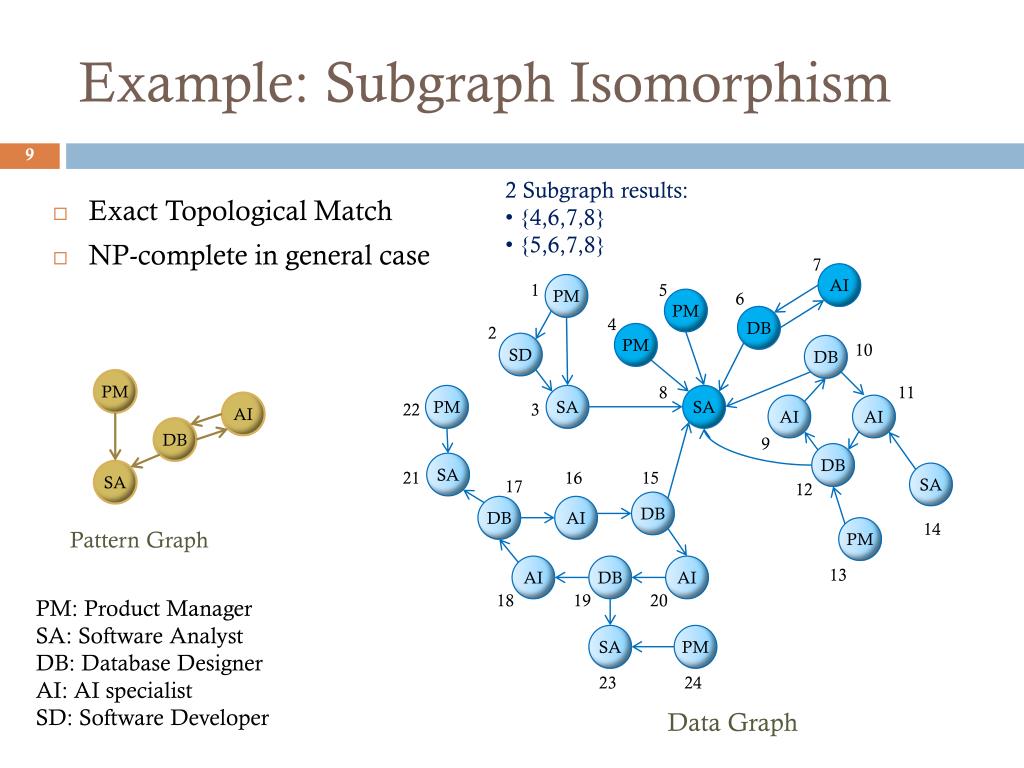

  9. Example: Subgraph Isomorphism • 2 Subgraph results: • {4,6,7,8} • {5,6,7,8} • Exact Topological Match • NP-complete in general case 7 AI 1 PM 5 6 PM DB 4 2 PM SD 10 DB PM 8 11 PM SA SA AI 22 3 AI AI DB 9 DB SA SA 21 16 15 SA 17 12 DB DB AI 14 PM Pattern Graph AI DB AI 13 18 19 20 PM: Product Manager SA: Software Analyst DB: Database Designer AI: AI specialist SD: Software Developer SA PM 23 24 Data Graph

  10. Strict Simulation • Strict Simulation is a smart modification of Strong Simulation • Smaller balls • Faster computation • The same quality of results or better • Cubic time complexity

  11. Strict vs Strong Simulation

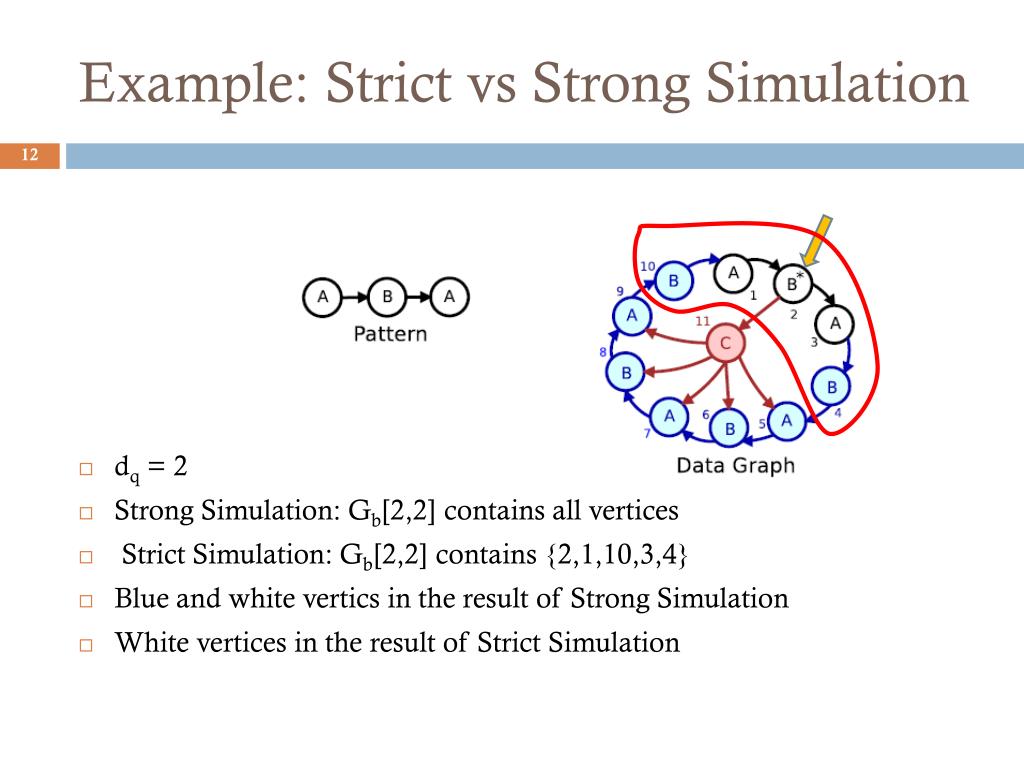

  12. Example: Strict vs Strong Simulation • dq = 2 • Strong Simulation: Gb[2,2] contains all vertices • Strict Simulation: Gb[2,2] contains {2,1,10,3,4} • Blue and white vertics in the result of Strong Simulation • White vertices in the result of Strict Simulation

  13. Vertex Centric BSP • Bulk Synchronous Parallel • Vertex Centric • Each vertex of the graph is a computing unit • Each vertex initially knows only its id, label, and out going edges • Algorithm terminates when every vertex votes to halt. • GPS, a free implementation of Pregel, developed in infoLab, Stanford University.

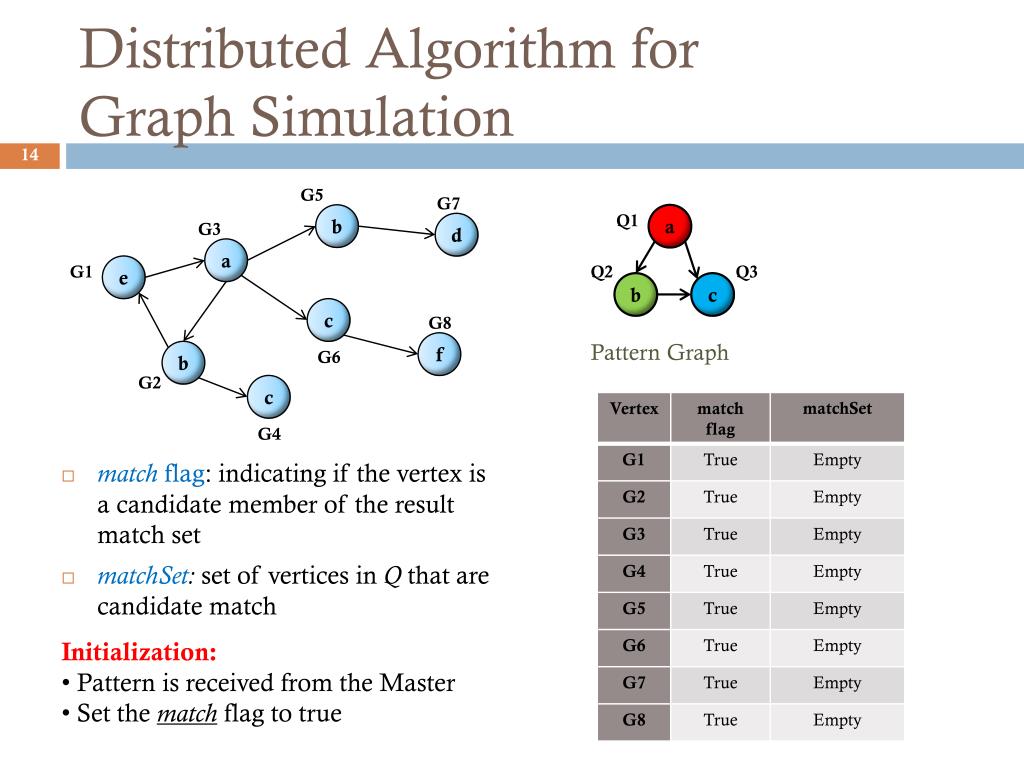

  14. Distributed Algorithm for Graph Simulation G5 G7 b Q1 a G3 d a G1 e Q2 Q3 b c c G8 f Pattern Graph b G6 G2 c G4 • match flag: indicating if the vertex is a candidate member of the result match set • matchSet: set of vertices in Q that are candidate match • Initialization: • Pattern is received from the Master • Set the match flag to true

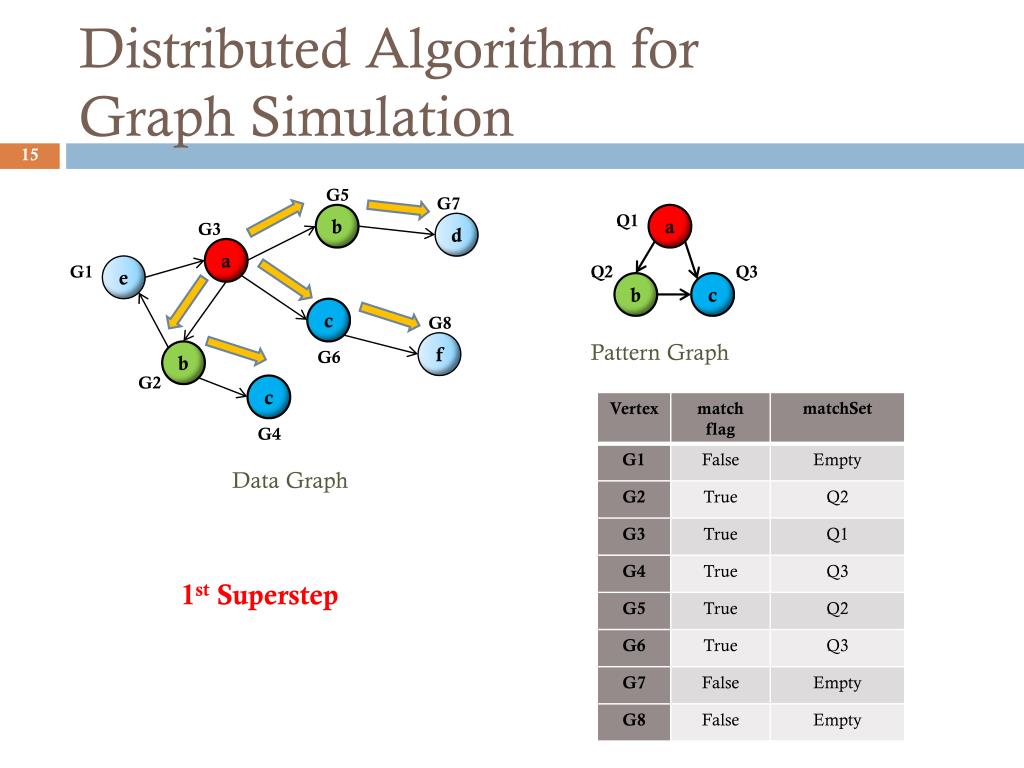

  15. Distributed Algorithm for Graph Simulation G5 G7 b Q1 a G3 d a G1 e Q2 Q3 b c c G8 f Pattern Graph b G6 G2 c G4 Data Graph 1stSuperstep

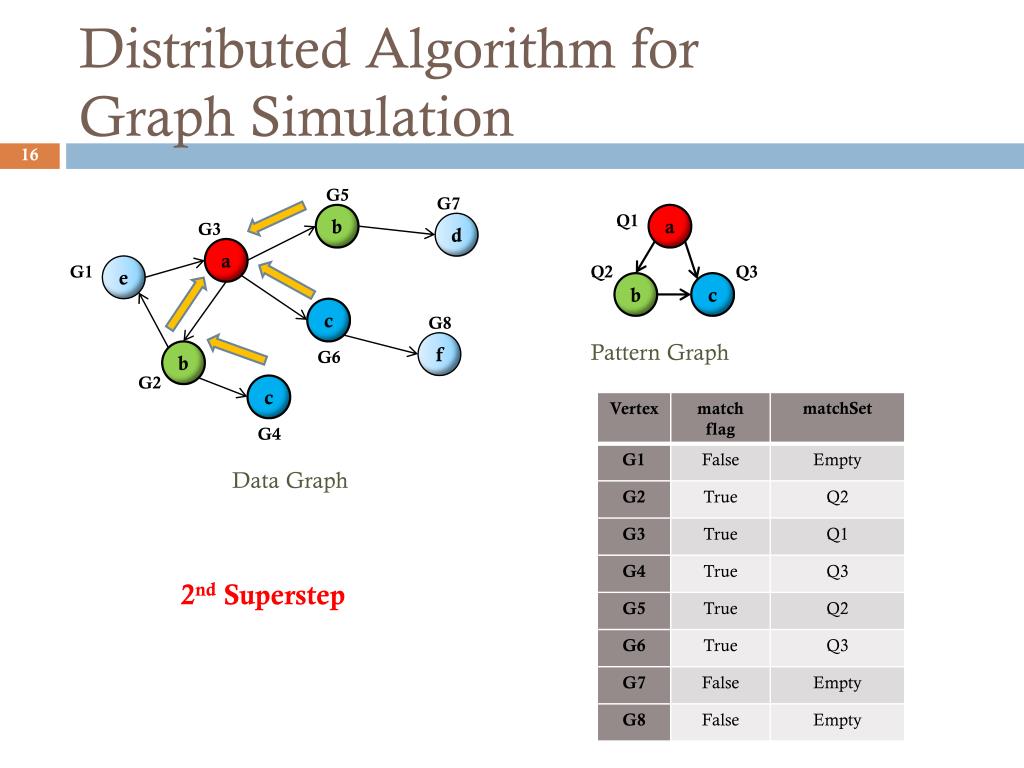

  16. Distributed Algorithm for Graph Simulation G5 G7 b Q1 a G3 d a G1 e Q2 Q3 b c c G8 f Pattern Graph b G6 G2 c G4 Data Graph 2ndSuperstep

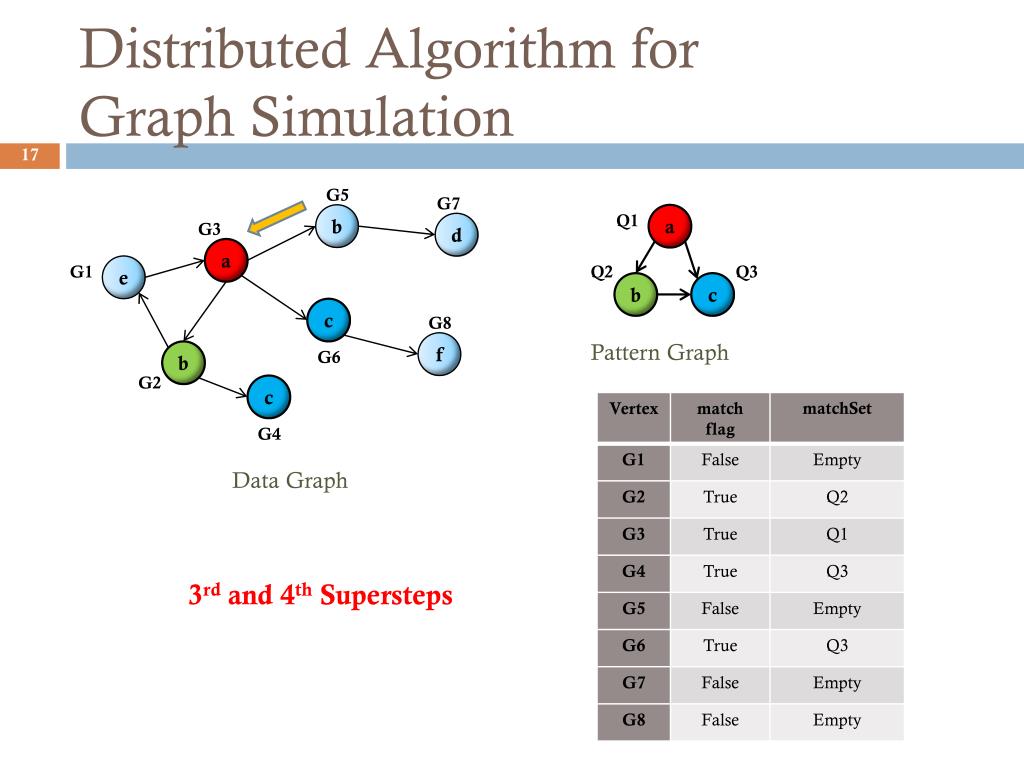

  17. Distributed Algorithm for Graph Simulation G5 G7 b Q1 a G3 d a G1 e Q2 Q3 b c c G8 f Pattern Graph b G6 G2 c G4 Data Graph 3rd and 4thSupersteps

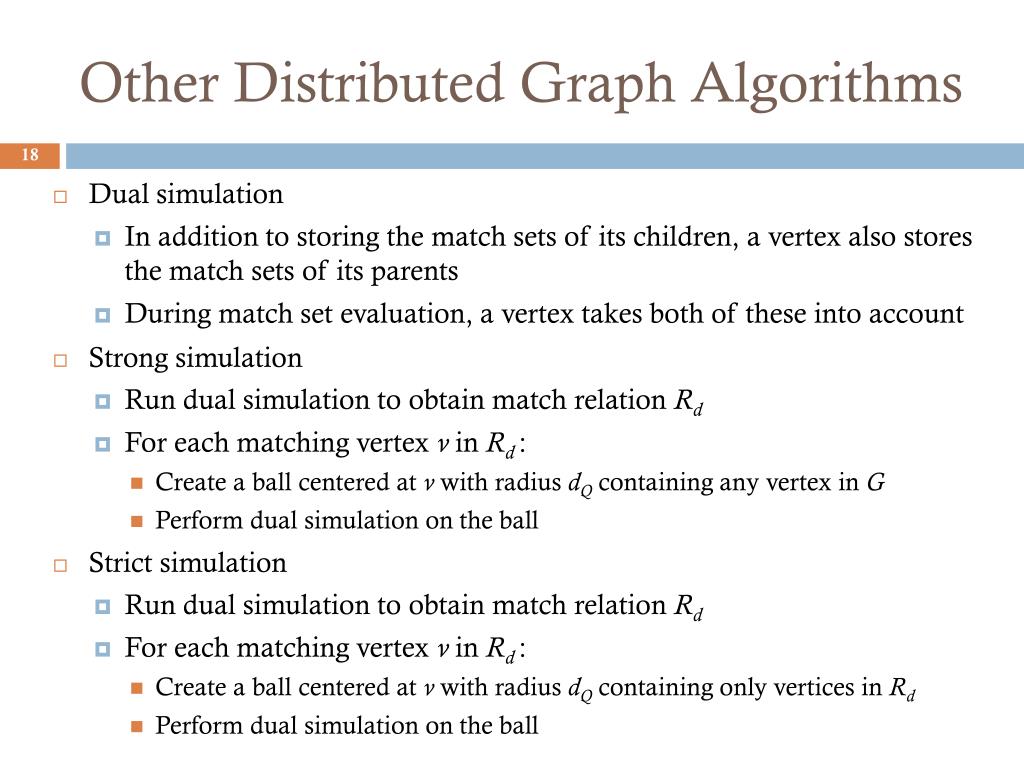

  18. Other Distributed Graph Algorithms • Dual simulation • In addition to storing the match sets of its children, a vertex also stores the match sets of its parents • During match set evaluation, a vertex takes both of these into account • Strong simulation • Run dual simulation to obtain match relation Rd • For each matching vertex v in Rd : • Create a ball centered at v with radius dQ containing any vertex in G • Perform dual simulation on the ball • Strict simulation • Run dual simulation to obtain match relation Rd • For each matching vertex v in Rd : • Create a ball centered at v with radius dQ containing only vertices in Rd • Perform dual simulation on the ball

  19. Experiments • System • Cluster of 12 machines • 128 GB RAM • Two 2GHz Intel Xeon E-2620 • GPS (developed in infoLab, Stanford University) • Datasets • Synthesized graphs: |V|= 100e6, |E|=|V|α , α= 1.2 • Real world graphs • uk-2002: |V|= 18e6, |E|=298e6 • ljournal: |V|= 5e6, |E|=79e6 • Amazon-2008: |V|= 7e5, |E|=5e6 http://law.di.unimi.it/datasets.php

  20. Experiment 1: Comparison of Strong and Strict Simulation Synthesized (|V |= 1e6,α = 1.2) Amazon-2008 (|V |= 7e5,|Vq|= 20) Amazon-2008 (|V |= 7e5,|V|= 5e6) Amazon-2008 (|V |= 7e5,|Vq|= 20)

  21. Experiment 2: Running time Quality of result: Graph Simulation < Dual Simulation < Strict Simulation Synthesized (|V |= 1e8, α = 1.2, |E|=|V|α) uk-2002-hc (|V |= 18e6, |E|=298e6) (l = 200 & |Vq| = 20)

  22. Experiment 3: Impact of dataset Synthesized (α = 1.2, |E|=|V|α) Synthesized (|V |= 100e6) (l = 200 & |Vq| = 20)

  23. Experiment 4: Impact of pattern Synthesized (|V |= 100e6,α = 1.2 , |E|=|V|α) uk-2002-hc (|V |= 18e6, |E|=298e6)

  24. Related work • Pattern matching models • P-homomorphism • Graph Simulation, Dual and Strong • Bounded simulation • Distributed algorithms for pattern matching • S. Ma, Y. Cao, J. Huai, and T. Wo, “Distributed graph pattern matching,” WWW 2012. • Z. Sun, H. Wang, H. Wang, B. Shao, and J. Li, “Efficient subgraph matching on billion node graphs,”VLDB 2012.

  25. Conclusion • Introducing a new Pattern Matching model • Design, implementation, and test of 4 distributed algorithms for Pattern Matching • Graph Simulation • Dual Simulation • Strong Simulation • Strict Simulation

  26. Questions? Thanks
