1CH MPEG4 NETWORK A/V CLIENT

1CH MPEG4 NETWORK A/V CLIENT. IP Decoder C-152. DVD QUALITY NEWORK A/V CLIENT. - MPEG4 compression, 704x480 Resolution, up to 30fps@704X480 - Efficient Bandwidth by MPEG4 compression and Multi-streaming - Bi-directional Audio Communication

axelle
Télécharger la présentation

1CH MPEG4 NETWORK A/V CLIENT

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

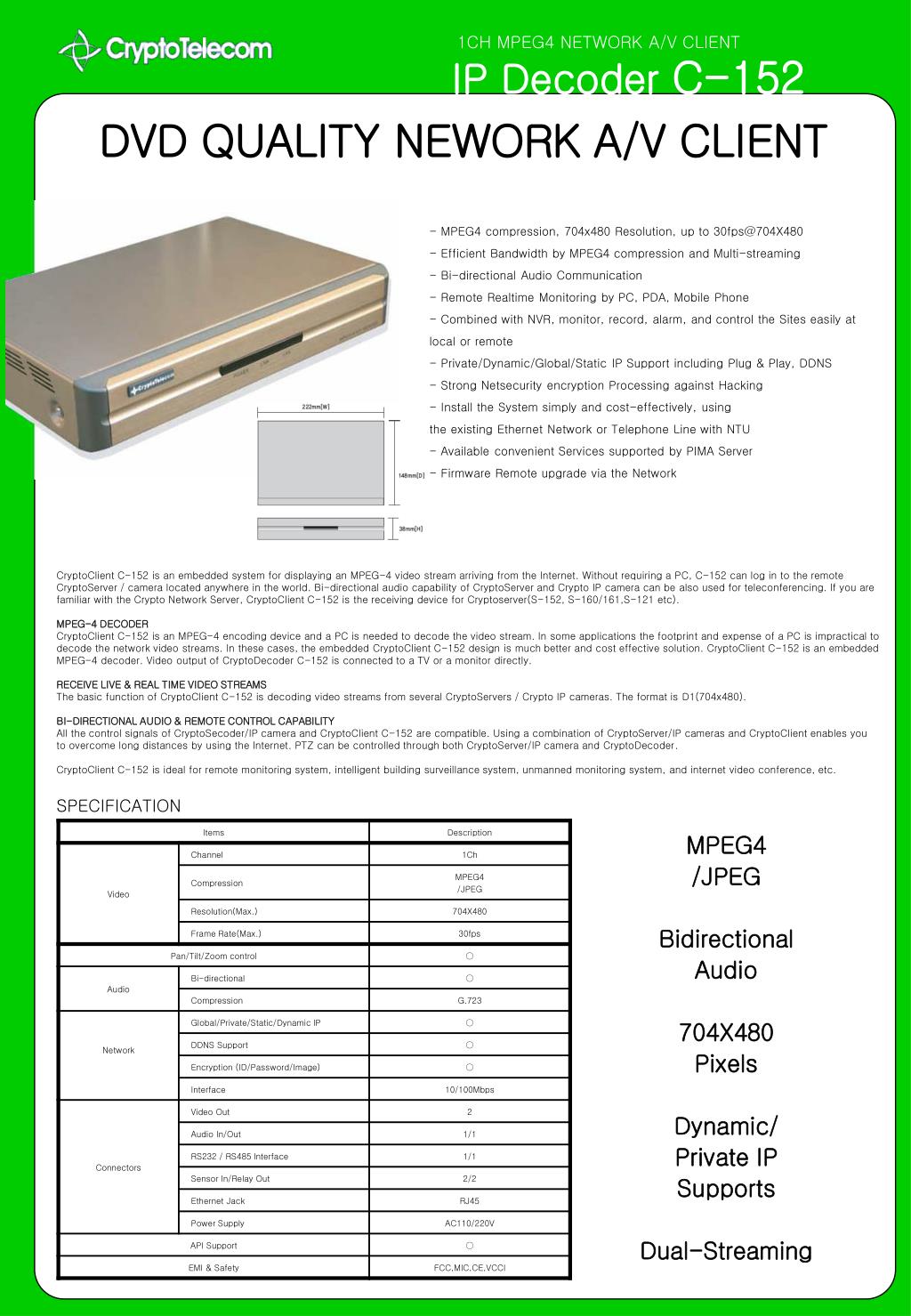

  1. 1CH MPEG4 NETWORK A/V CLIENT IP Decoder C-152 DVD QUALITY NEWORK A/V CLIENT - MPEG4 compression, 704x480 Resolution, up to 30fps@704X480 - Efficient Bandwidth by MPEG4 compression and Multi-streaming - Bi-directional Audio Communication - Remote Realtime Monitoring by PC, PDA, Mobile Phone - Combined with NVR, monitor, record, alarm, and control the Sites easily at local or remote - Private/Dynamic/Global/Static IP Support including Plug & Play, DDNS - Strong Netsecurity encryption Processing against Hacking - Install the System simply and cost-effectively, using the existing Ethernet Network or Telephone Line with NTU - Available convenient Services supported by PIMA Server - Firmware Remote upgrade via the Network CryptoClient C-152 is an embedded system for displaying an MPEG-4 video stream arriving from the Internet. Without requiring a PC, C-152 can log in to the remote CryptoServer / camera located anywhere in the world. Bi-directional audio capability of CryptoServer and Crypto IP camera can be also used for teleconferencing. If you are familiar with the Crypto Network Server, CryptoClient C-152 is the receiving device for Cryptoserver(S-152, S-160/161,S-121 etc). MPEG-4 DECODER CryptoClient C-152 is an MPEG-4 encoding device and a PC is needed to decode the video stream. In some applications the footprint and expense of a PC is impractical to decode the network video streams. In these cases, the embedded CryptoClient C-152 design is much better and cost effective solution. CryptoClient C-152 is an embedded MPEG-4 decoder. Video output of CryptoDecoder C-152 is connected to a TV or a monitor directly. RECEIVE LIVE & REAL TIME VIDEO STREAMS The basic function of CryptoClient C-152 is decoding video streams from several CryptoServers / Crypto IP cameras. The format is D1(704x480). BI-DIRECTIONAL AUDIO & REMOTE CONTROL CAPABILITY All the control signals of CryptoSecoder/IP camera and CryptoClient C-152 are compatible. Using a combination of CryptoServer/IP cameras and CryptoClient enables you to overcome long distances by using the Internet. PTZ can be controlled through both CryptoServer/IP camera and CryptoDecoder. CryptoClient C-152 is ideal for remote monitoring system, intelligent building surveillance system, unmanned monitoring system, and internet video conference, etc. SPECIFICATION MPEG4 /JPEG Bidirectional Audio 704X480 Pixels Dynamic/ Private IP Supports Dual-Streaming

  2. 1CH MPEG4 NETWORK A/V CLIENT CRYPTOCLIENTC-152 CONFIGURATION Viewer @ PC (A / V Communicator) Reset Speaker Sensor Analog Camera RS-232 Web Viewer @ PC NVR @ PC Power MIC Relay P/T/Z Controller Router • View & Record up to 16 Cameras Modem PDA Viewer @ PDA INTERNET S-152 PIMA Server CARRIER Viewer @ Mobile phone Standalone Server Image Viewer Video Viewer APPLICATION On the streets or highway status to enable drivers to use roads efficiently by transmitting live video At museum or exhibition hall to reinforce security and to encourage children to study by transmitting live video of its exhibits or art works on the Internet At tourist attractions or around hotels to provide good-quality service to tourists At any construction sites to enable managers to confirm construction progress without visiting the site in person At sightseeing resort to provide current weather information to potential tourists At shops employing POS system to monitor multiple shops at one time. No additional cable work is needed since most POS terminal is connected to Ethernet. At stores to promote advertising impact and increase sales by showing commodity racks or showrooms displaying popular products. At unmanned bank branches installing to monitor ATM efficiently for safe operation and maintenance At lecture rooms and other facilities rooms to enable lecture to manage students or protect deluxe facilities Traffic Information Observation Tour Tourist Facility Construction Site Weather Observation POS Department Store /Distribution Center ATM College Campus * All trademarks are property of owners and Specifications are subject to change without a prior notice 5F, Gwanghee b/d., 976-5, Hogye-dong., Dongan-gu, Anyang-si, Gyeongi-do, 431-080, Korea Tel : +82-31-360-1331 Fax : +82-31-360-3707 E-mail : crypto@cryptotelecom.com http:// www.cryptotelecom.com
