Network Operating Systems versus Operating Systems

Network Operating Systems versus Operating Systems. Computer Networks. NOS have dedicated servers C lient server networks Servers provide a variety of services for other computers on the network. Network Operating System (NOS). Networks that don’t use NOS are peer-to-peer networks

ayame
Télécharger la présentation

Network Operating Systems versus Operating Systems

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Network Operating Systems versus Operating Systems Computer Networks

  2. NOS have dedicated servers • Client server networks • Servers provide a variety of services for other computers on the network Network Operating System (NOS)

  3. Networks that don’t use NOS are peer-to-peer networks • Consists of client computers • Client computers can also perform specific server functions if they use special server software Operating System (OS)

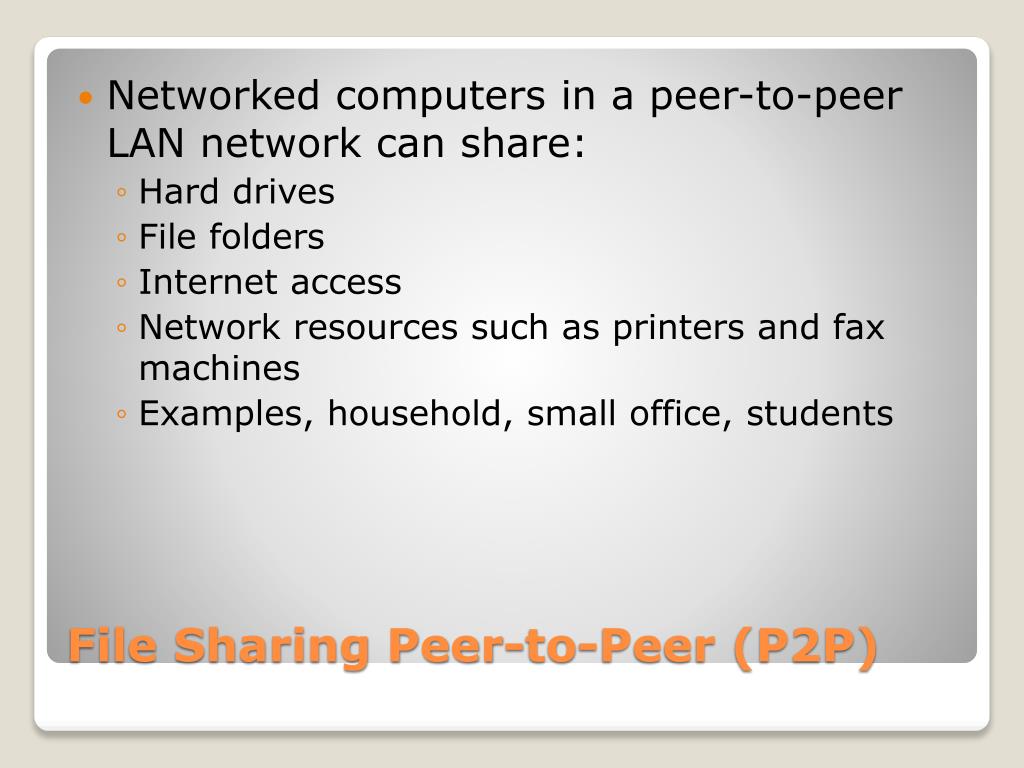

  4. Networked computers in a peer-to-peer LAN network can share: • Hard drives • File folders • Internet access • Network resources such as printers and fax machines • Examples, household, small office, students File Sharing Peer-to-Peer (P2P)

  5. Global • Sharing on the web requires a special software client like Napster, BitTorrent, etc. • Everything in the shared file is shared with other users • You don't see the names of users on the web Sharing on the Internet P2P

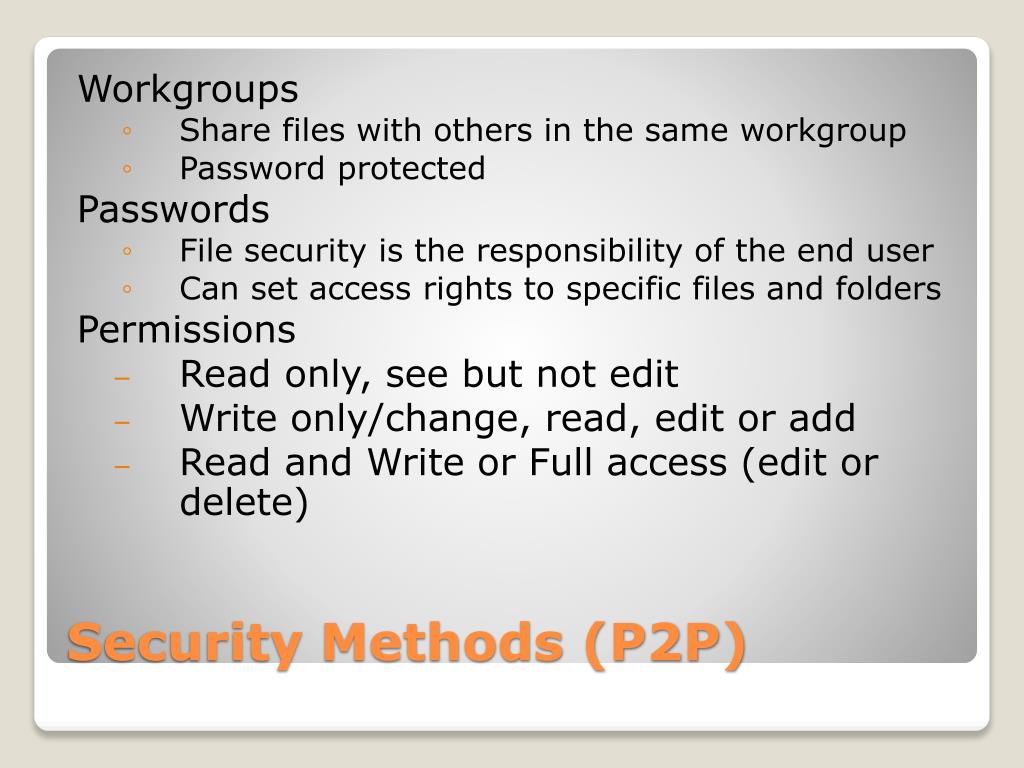

  6. Workgroups • Share files with others in the same workgroup • Password protected Passwords • File security is the responsibility of the end user • Can set access rights to specific files and folders Permissions • Read only, see but not edit • Write only/change, read, edit or add • Read and Write or Full access (edit or delete) Security Methods (P2P)

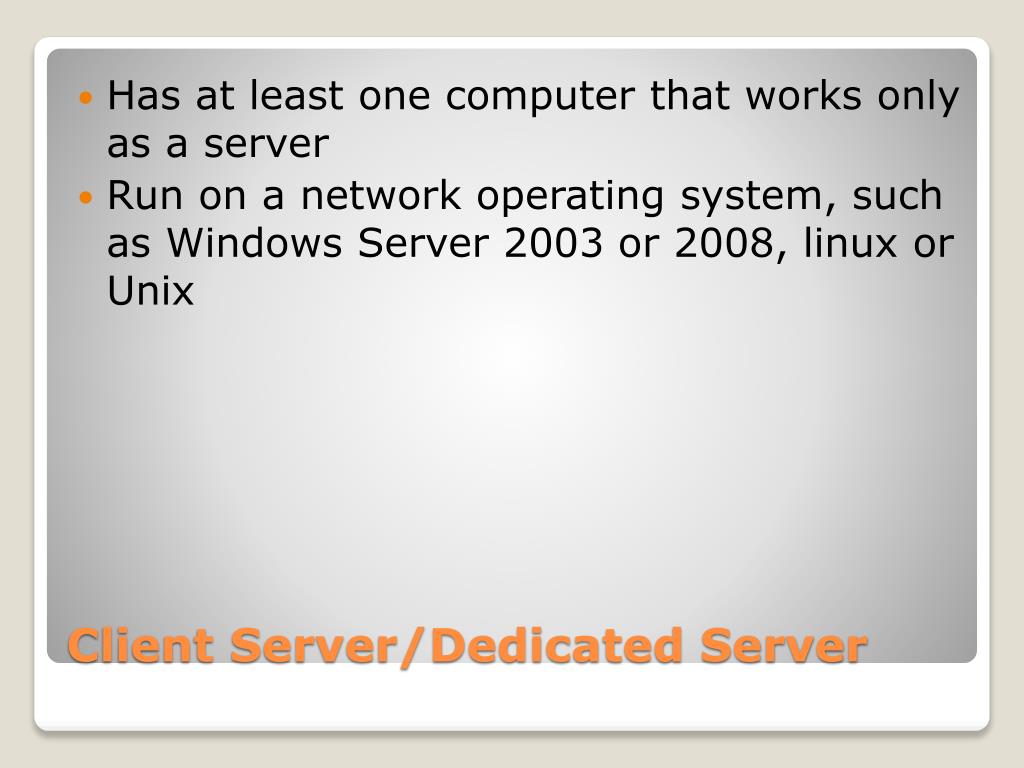

  7. Has at least one computer that works only as a server • Run on a network operating system, such as Windows Server 2003 or 2008, linux or Unix Client Server/Dedicated Server

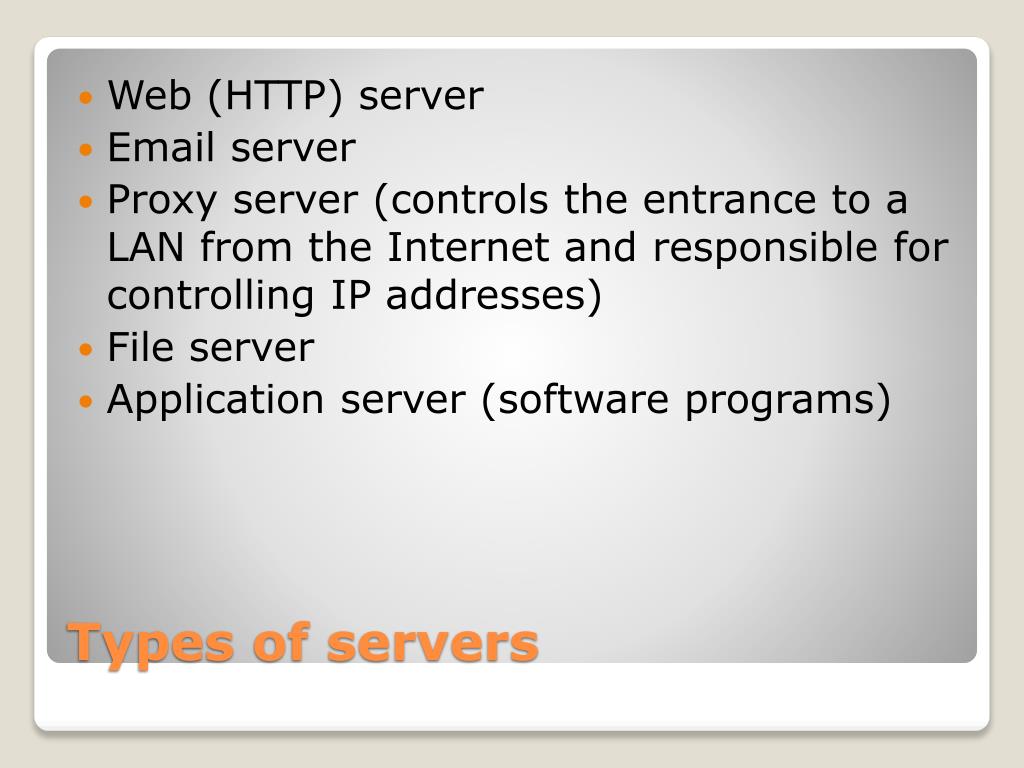

  8. Web (HTTP) server • Email server • Proxy server (controls the entrance to a LAN from the Internet and responsible for controlling IP addresses) • File server • Application server (software programs) Types of servers

  9. Log into any machine on the LAN and access same files and system settings, protected with a password Roaming Authentication

  10. Proxy server is LAN gateway to Internet • Protects the internal LAN by using two different IP addresses: a public address that the Internet can see and a private one used on the LAN • The ISP (Internet Service Provider) provides the IP address(es) for the Internet • Proxy Server (using DHCP) assigns a different IP address for each computer on the LAN Network Address Translation

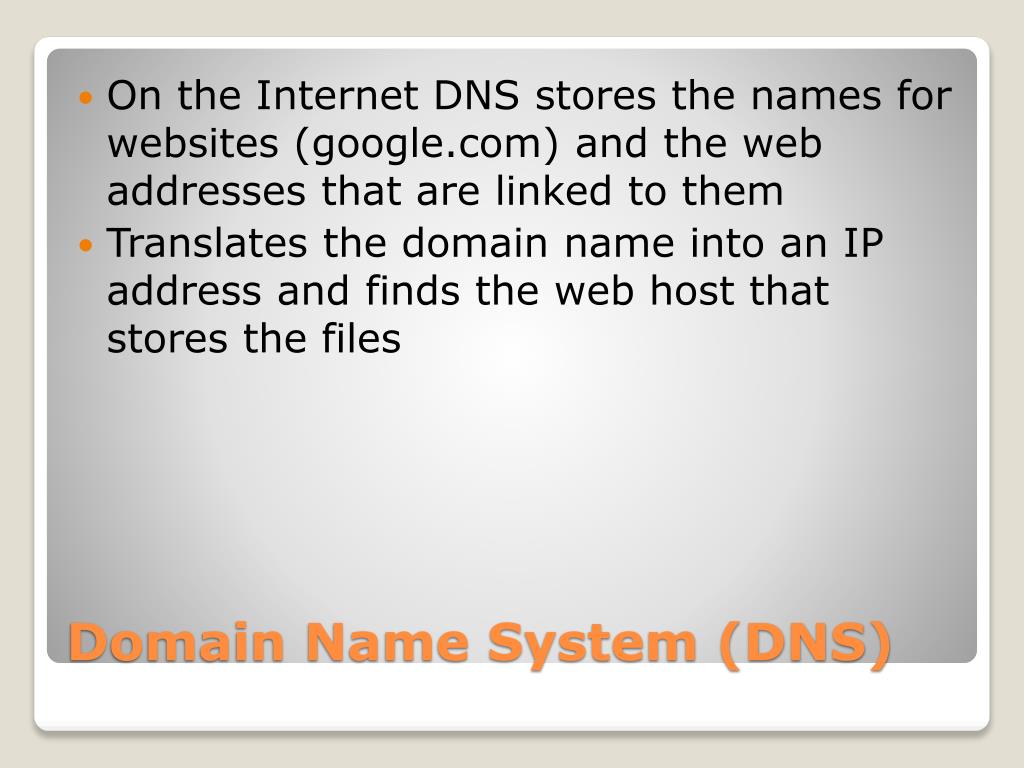

  11. On the Internet DNS stores the names for websites (google.com) and the web addresses that are linked to them • Translates the domain name into an IP address and finds the web host that stores the files Domain Name System (DNS)

  12. Within a LAN, the comparable naming service is WINS • Names individual computer using NetBIOS: example “Laura’s Computer” Windows Internet Naming System

  13. In a peer-to-peer network, if someone shuts his computer down, his files will no longer be available for others. • One benefit of using a client/server network is that files will always be available so long as the server is running. • When working off a server, you can also mount a shared network drive, so that it shows up under My Computer as if it were on the local machine. Mapping a Shared Drive

  14. Using Command Prompt IP Congig will find the computer’s IP address • It will also show subnet masks that are assigned to different departments or sections IP Config Command
